Model Maytag MGS5752BDB19 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

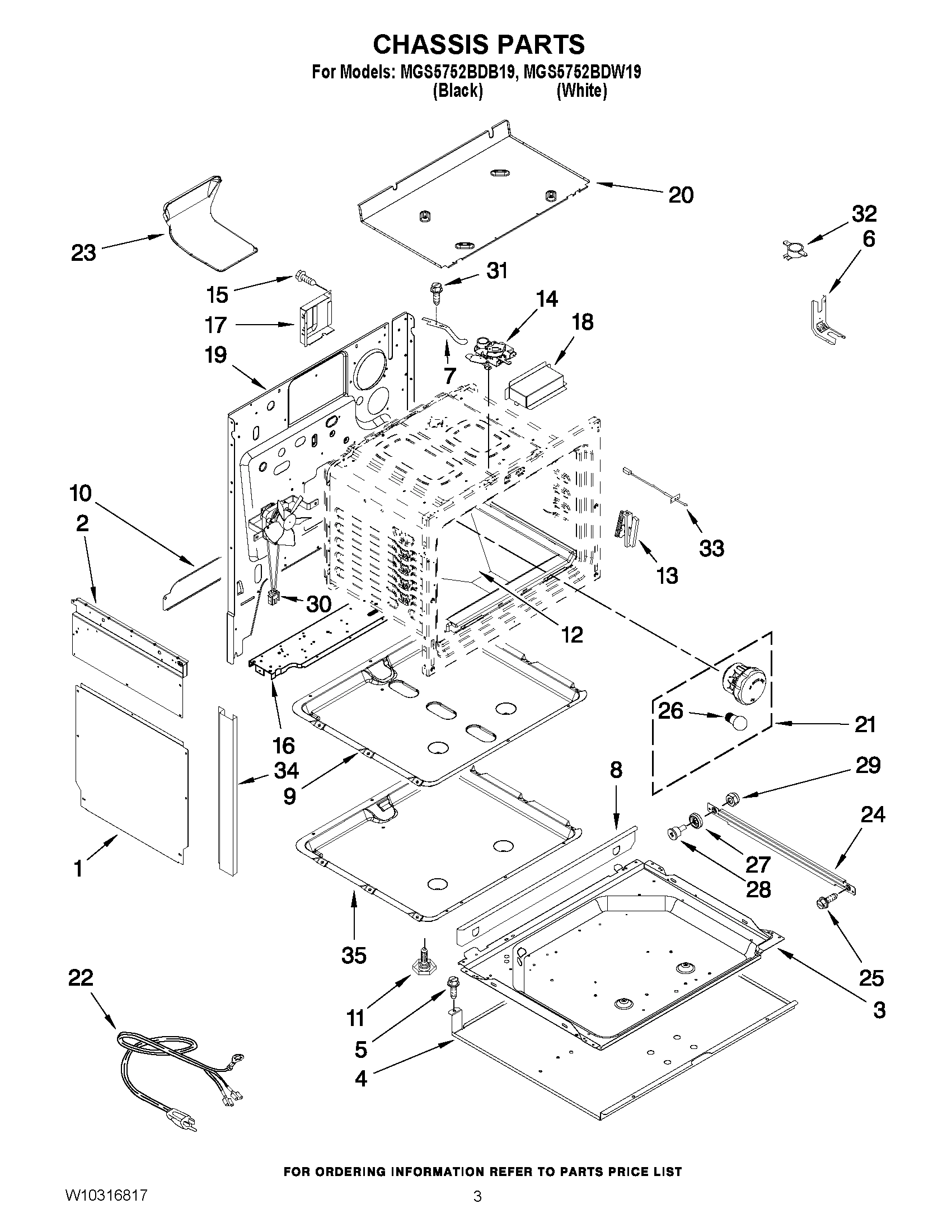

03 - CHASSIS PARTS

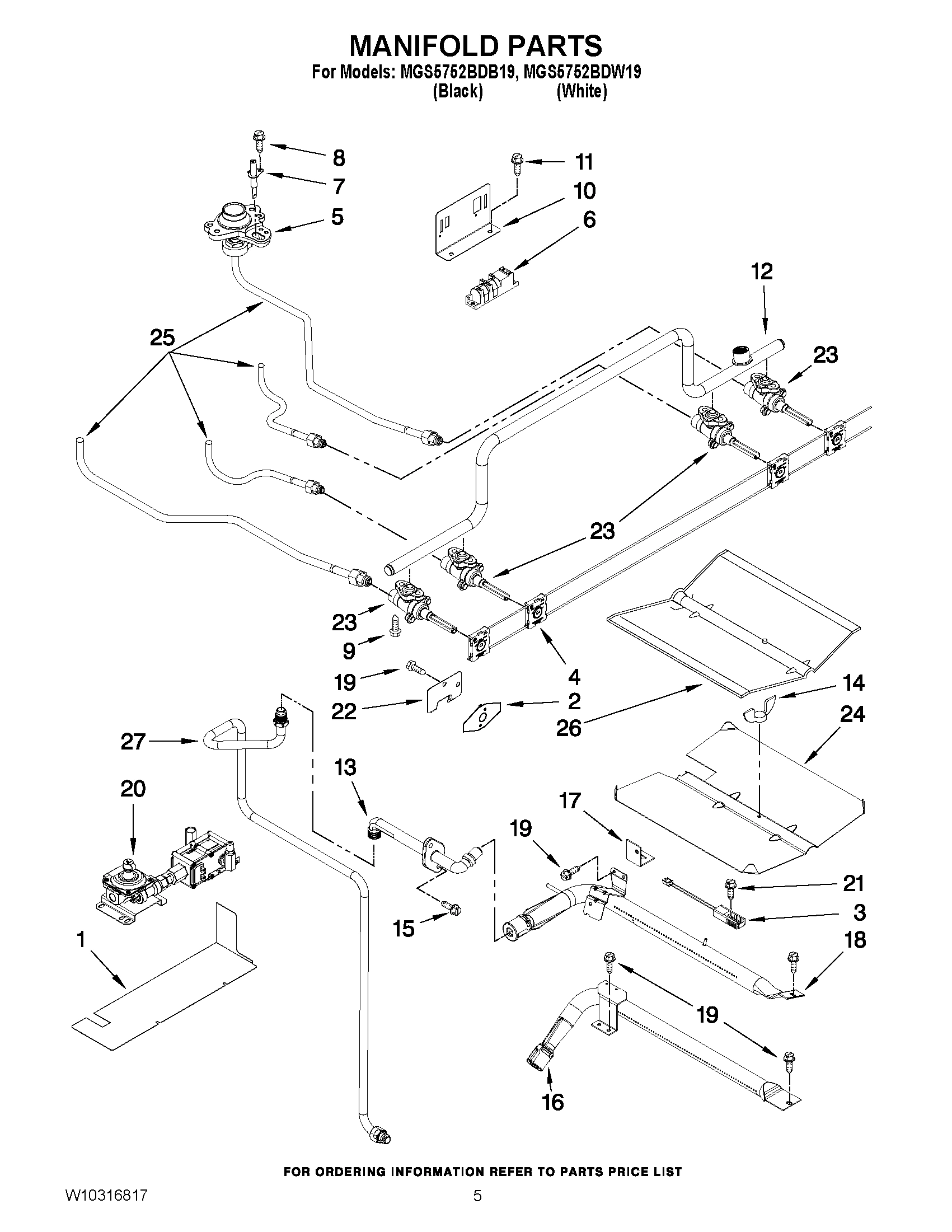

04 - MANIFOLD PARTS

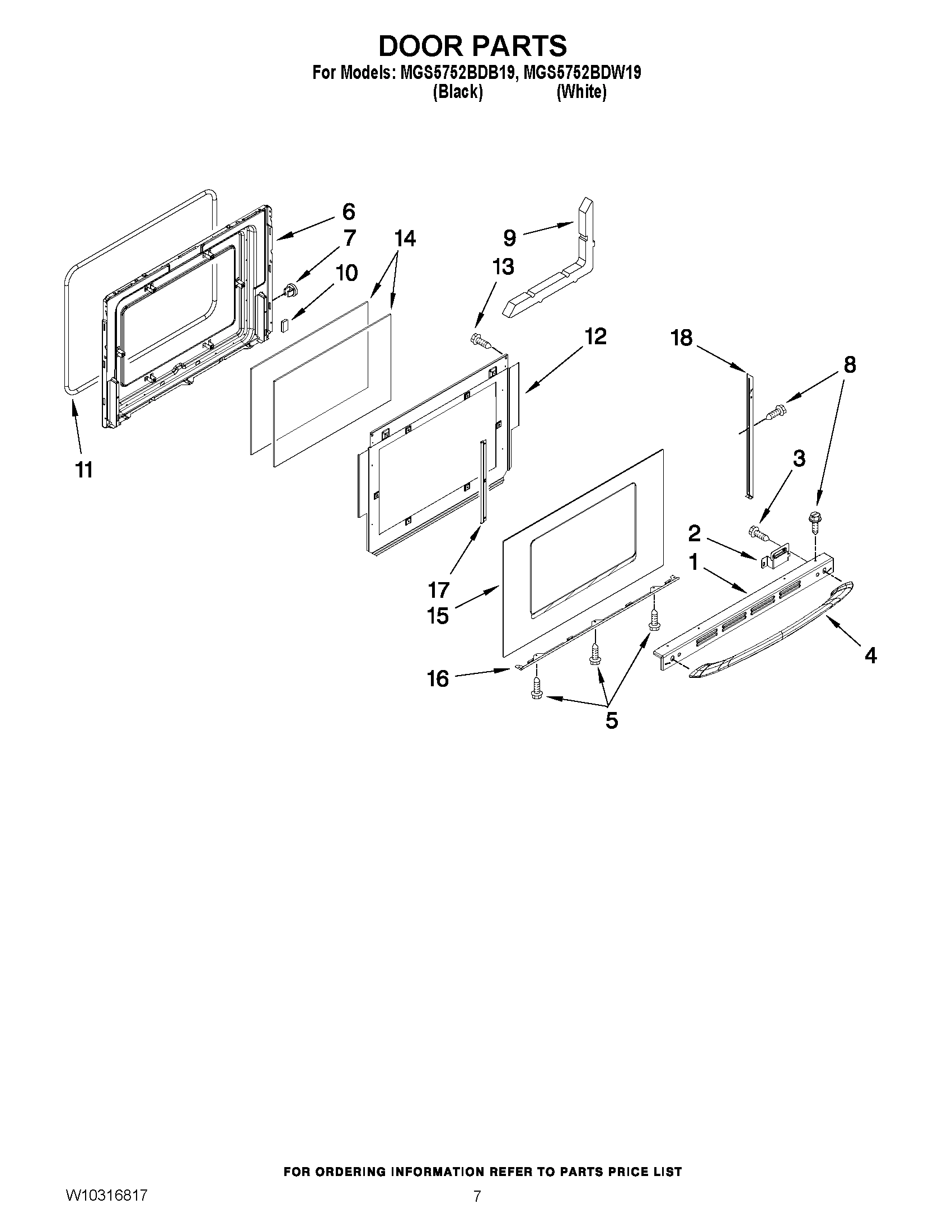

05 - DOOR PARTS

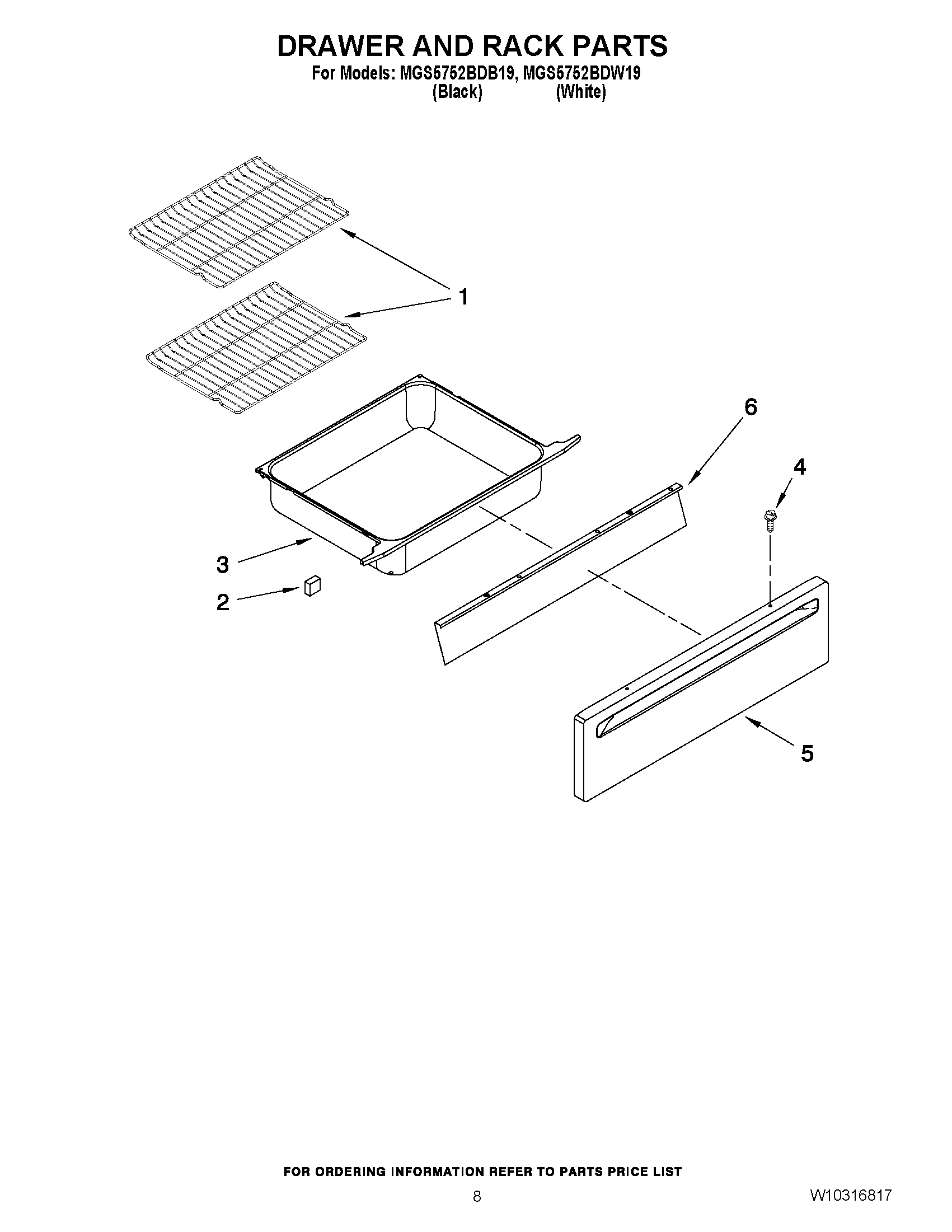

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGS5752BDB19 GAS RANGE
1
OWNERS MANUAL MAY 8113P762-60 Contact Us For Availability
1
MAY 8119P169-60 MAY 8119P169-60 Contact Us For Availability
1
BROCHURE, TIPS SAFER COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFER COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY 7733P458-60 MAY 7733P458-60 Contact Us For Availability
1
MAY 7733P460-60 MAY 7733P460-60 Contact Us For Availability
1
MAY 3604F416-51 MAY 3604F416-51 Contact Us For Availability
1
COVER, BNR VALVE MAY W10271712 Contact Us For Availability
1
MAY 3608F141-70 MAY 3608F141-70 Contact Us For Availability
1
MAY 3608F141-71 MAY 3608F141-71 Contact Us For Availability
1
RACK, OVEN (2) MAY 7801P173-60 Contact Us For Availability
2
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
2
MAY 2616D370-09 MAY 2616D370-09 Contact Us For Availability
2
MAY 2616D370-81 MAY 2616D370-81 Contact Us For Availability
2
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
2
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
2
MAY 3605F269-45 MAY 3605F269-45 Contact Us For Availability
2
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
2
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
2
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
3
COOKTOP (BLACK) MAY W10202566 Contact Us For Availability
3
MAY W10204437 MAY W10204437 Contact Us For Availability
3
MAY 5701M887-60 MAY 5701M887-60 Contact Us For Availability
3
MAY 5701M888-60 MAY 5701M888-60 Contact Us For Availability
3
MAY 3804F245-51 MAY 3804F245-51 Contact Us For Availability
3
IGNITOR, ELECTRIC IGNITION MAY 7432P106-60 Contact Us For Availability
3
SCREW, HANDLE MAY 7101P681-60 Contact Us For Availability
3
MAY 3405F033-80 MAY 3405F033-80 Contact Us For Availability
4
MAY 7518P201-60 MAY 7518P201-60 Contact Us For Availability
4
MAY 7518P249-60 MAY 7518P249-60 Contact Us For Availability
4
MAY 3604F421-51 MAY 3604F421-51 Contact Us For Availability
4
MAY 3604F326-45 MAY 3604F326-45 Contact Us For Availability
4
HARNESS, VALVE INCLUDES SWITCHES MAY 7450P006-60 Contact Us For Availability
4
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
4
MAY 7701P517-60 MAY 7701P517-60 Contact Us For Availability
5
CAP, BURNER (BLACK 14K (TURBO)) MAY W10169983 Contact Us For Availability
5
CAP, BURNER (BLACK 9K) (SEMI-RAPID) MAY W10169984 Contact Us For Availability
5
CAP, BURNER (BLACK 6K (AUXI)) MAY W10169985 Contact Us For Availability
5
CAP, BURNER (BLACK 12K (RAPID)) MAY W10173833 Contact Us For Availability
5
CAP, BURNER (GRAY 6K (AUXI)) MAY W10237742 Contact Us For Availability
5
CAP, BURNER (BLACK 6K (AUXI)) MAY W10237743 Contact Us For Availability
5
CAP, BURNER (GRAY 12K (RAPID)) MAY W10237745 Contact Us For Availability
5
CAP, BURNER (GRAY 14K (TURBO)) MAY W10237747 Contact Us For Availability
5
CAP, END (WHITE, LEFT) MAY 7726P332-60 Contact Us For Availability
5
CAP, END (WHITE, RIGHT) MAY 7726P333-60 Contact Us For Availability
5
CAP, END (BLACK, LEFT) MAY 7726P400-60 Contact Us For Availability
5
CAP, END (BLACK, RIGHT) MAY 7726P401-60 Contact Us For Availability
5
SCREW (GLASS SUPPORT) MAY 7101P633-60 Contact Us For Availability
5
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
ORIFICE, HOLDER (12K (1) RF) MAY 7527P082-60 Contact Us For Availability
5
ORIFICE, HOLDER (9.2K (2) LF,RR) MAY 7527P083-60 Contact Us For Availability
5
ORIFICE, HOLDER (5K (1) LR) MAY 7527P084-60 Contact Us For Availability
5
PANEL,DRAWER FRONT (BLACK) MAY 2416F059-70 Contact Us For Availability
5
MAY 2416F059-71 MAY 2416F059-71 Contact Us For Availability
6
BASE, BURNER (6K LR (1)) MAY 8286181 Contact Us For Availability
6
BASE, BURNER (12K (3)) MAY 8286182 Contact Us For Availability
6
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
6
MAY 7431P064-60 MAY 7431P064-60 Contact Us For Availability
6
Liner, Door MAY 2402W312-19 Contact Us For Availability
6
MAY 2404F030-51 MAY 2404F030-51 Contact Us For Availability
7
COVER, VENT (BLACK) MAY 7724P197-60 Contact Us For Availability
7
MAY 7724P198-60 MAY 7724P198-60 Contact Us For Availability
7
SUPPORT, CNTRL PNL MAY 3807F729-51 Contact Us For Availability
7
LEVER, LOCK ARM (BLACK) MAY 8009P031-60 Contact Us For Availability
7
LEVER, LOCK ARM (WHITE) MAY 8009P035-60 Contact Us For Availability
7
IGNITOR (4) MAY 7432M126-60 Contact Us For Availability
7
NUT, SNAP (4) MAY 7103P141-60 Contact Us For Availability
8
MAY 7726P300-60 MAY 7726P300-60 Contact Us For Availability
8
MAY 7726P301-60 MAY 7726P301-60 Contact Us For Availability
8
END CAP, VENT (BLACK, RIGHT) MAY 7726P396-60 Contact Us For Availability
8
END CAP, VENT (BLACK, LEFT) MAY 7726P397-60 Contact Us For Availability
8
SWITCH, ROCKER (WHITE) MAY 7403P926-60 Contact Us For Availability
8
SWITCH, ROCKER (BLACK) MAY 7403P985-60 Contact Us For Availability
8
MAY 3601F251-45 MAY 3601F251-45 Contact Us For Availability
8
SCREW, IGNITOR MAY 8273062 Contact Us For Availability
8
SCREW, TRIM MAY 7101P208-60 Contact Us For Availability
9
GASKET, DOOR TOP MAY 7201P143-60 Contact Us For Availability
9
MAY 3401F044-45 MAY 3401F044-45 Contact Us For Availability
9
SUPPORT, SCREW (4) MAY 7101P338-60 Contact Us For Availability
9
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
10
SCREW (VENT END CAP) MAY 7101P634-60 Contact Us For Availability
10
MAY 3826F066-51 MAY 3826F066-51 Contact Us For Availability
10
MAY 3807F752-45 MAY 3807F752-45 Contact Us For Availability
11
FOOT, LEVELER (4) MAY 7101P660-60 Contact Us For Availability
11
SEAL, DOOR MAY W10162384 Contact Us For Availability
12
MAY 2205F054-19 MAY 2205F054-19 Contact Us For Availability
12
MAY 7513P472-60 MAY 7513P472-60 Contact Us For Availability
12
BAFFLE, RETAINER MAY 3601F373-51 Contact Us For Availability
13
HINGE (2) MAY 7106P141-60 Contact Us For Availability
13
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
MAY 7507P407-60 MAY 7507P407-60 Contact Us For Availability
14
MAY 8002P094-60 MAY 8002P094-60 Contact Us For Availability
14
NUT, WING MAY 7103P030-60 Contact Us For Availability
14
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
15
SCREW, LATCH LEVER MAY 7101P375-60 Contact Us For Availability
15
SCREW MAY 7101P502-60 Contact Us For Availability
15
GLASS, DOOR (WHITE) MAY 7902P736-60 Contact Us For Availability
15
GLASS, DOOR (BLACK) MAY 7902P797-60 Contact Us For Availability
16
MAY 3807F640-51 MAY 3807F640-51 Contact Us For Availability
16
MAY 7505P254-60 MAY 7505P254-60 Contact Us For Availability
16
TRIM, DOOR BOTTOM (BLACK) MAY 3807F708-70 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) MAY 3807F708-71 Contact Us For Availability
17
MAY 4005F810-51 MAY 4005F810-51 Contact Us For Availability
17
MAY 3807F480-45 MAY 3807F480-45 Contact Us For Availability
17
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
18
MAY 4005F750-51 MAY 4005F750-51 Contact Us For Availability
18
MAY 7505P293-60 MAY 7505P293-60 Contact Us For Availability
18
TRIM, DOOR SIDE (BLACK, RIGHT) MAY 3608F116-70 Contact Us For Availability
18
TRIM, DOOR SIDE (WHITE, RIGHT) MAY 3608F116-71 Contact Us For Availability
18
TRIM, DOOR SIDE (BLACK, LEFT) MAY 3608F117-70 Contact Us For Availability
18
TRIM, DOOR SIDE (WHITE, LEFT) MAY 3608F117-71 Contact Us For Availability
19
MAY 3804F313-51 MAY 3804F313-51 Contact Us For Availability
19
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
20
MAY 4011F491-51 MAY 4011F491-51 Contact Us For Availability
20
MAY 7501P231-60 MAY 7501P231-60 Contact Us For Availability
21
MAY 7407P182-60 MAY 7407P182-60 Contact Us For Availability
21
Screw MAY 7101P282-60 Contact Us For Availability
22
MAY 7402P086-60 MAY 7402P086-60 Contact Us For Availability
22
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
23
MAY 8026P095-60 MAY 8026P095-60 Contact Us For Availability
23
VALVE, BURNER (LR) MAY 7502P470-60 Contact Us For Availability
23
VALVE, BURNER (LF, RF, RR (3)) MAY 7502P471-60 Contact Us For Availability
24
RUNNER, DRAWER (2) MAY W10182835 Contact Us For Availability
24
BAFFLE, BROIL MAY 3601F307-45 Contact Us For Availability
25
MAY 7101P017-60 MAY 7101P017-60 Contact Us For Availability
25
MAY 7506P450-60 MAY 7506P450-60 Contact Us For Availability
25
MAY 7506P451-60 MAY 7506P451-60 Contact Us For Availability
25
MAY 7506P452-60 MAY 7506P452-60 Contact Us For Availability
25
MAY 7506P453-60 MAY 7506P453-60 Contact Us For Availability
26
BAFFLE, BAKE MAY 3601F239-45 Contact Us For Availability
27
ROLLER, DRAWER (2) MAY W10272883 Contact Us For Availability
27
TUBING, BROIL FITTING MAY 7506P301-60 Contact Us For Availability
28
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
29
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
30
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
31
SCREW (LOCK LEVER ARM) MAY 7101P230-60 Contact Us For Availability
32
MAY 7450P030-60 MAY 7450P030-60 Contact Us For Availability
33
MAY 7430P041-60 MAY 7430P041-60 Contact Us For Availability
34
TRIM, SIDE (2) (BLACK) MAY 3608F138-70 Contact Us For Availability
34
TRIM, SIDE (2) (WHITE) MAY 3608F138-71 Contact Us For Availability
35
SUPPORT, OVEN (BOTTOM) MAY 3807F727-45 Contact Us For Availability
NI
MAY 7002P443-60 MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P451-60 MAY 7002P451-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
MAY 7507P405-60 MAY 7507P405-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
REFINISHING MATERIAL (INSULATION, FIBERGLASS MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
REFINISHING MATERIAL (INSULATION, FIBERGLASS MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PROCELAIN (2 MAY 511873 Contact Us For Availability
NI
HARNESS, WIRE (DOOR LOCK MANUAL) MAY 5171P526-60 Contact Us For Availability
NI
MAY 5171P540-60 MAY 5171P540-60 Contact Us For Availability
NI
MAY 5171P718-60 MAY 5171P718-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
HARNESS, SPARK MAY W10173467 Contact Us For Availability
× ![]()
