Model Maytag MGRL752BDB14 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

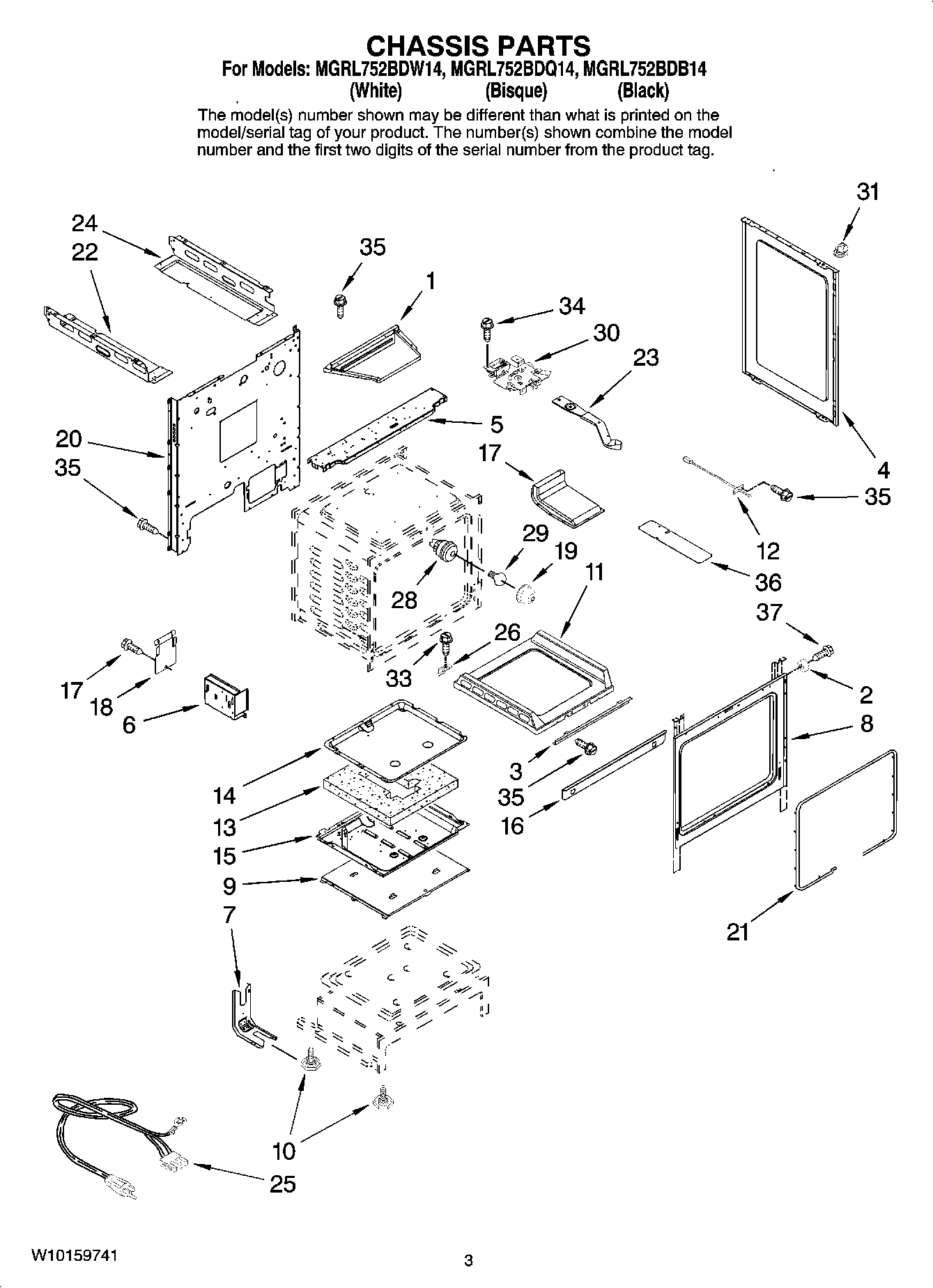

03 - CHASSIS PARTS

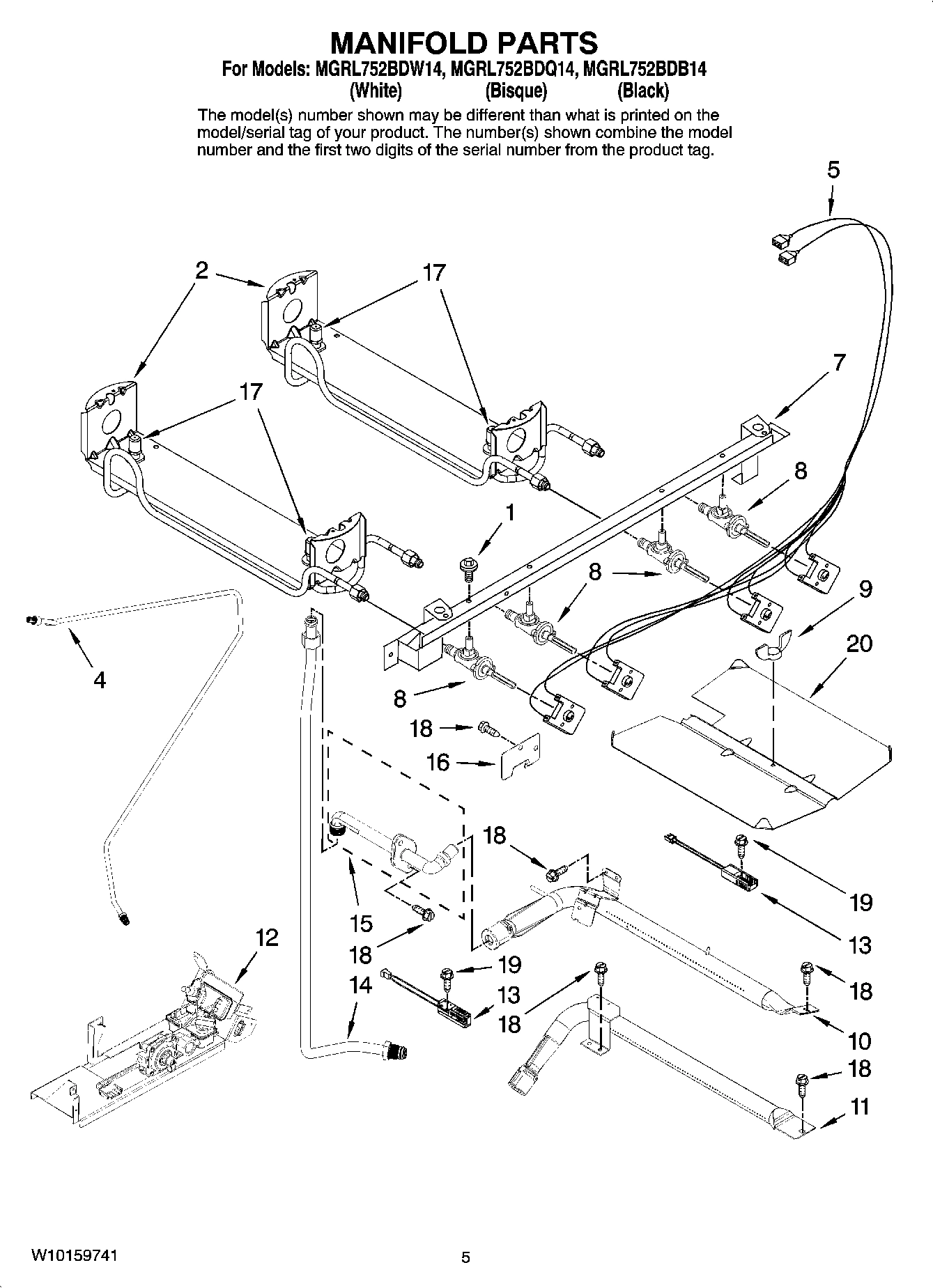

04 - MANIFOLD PARTS

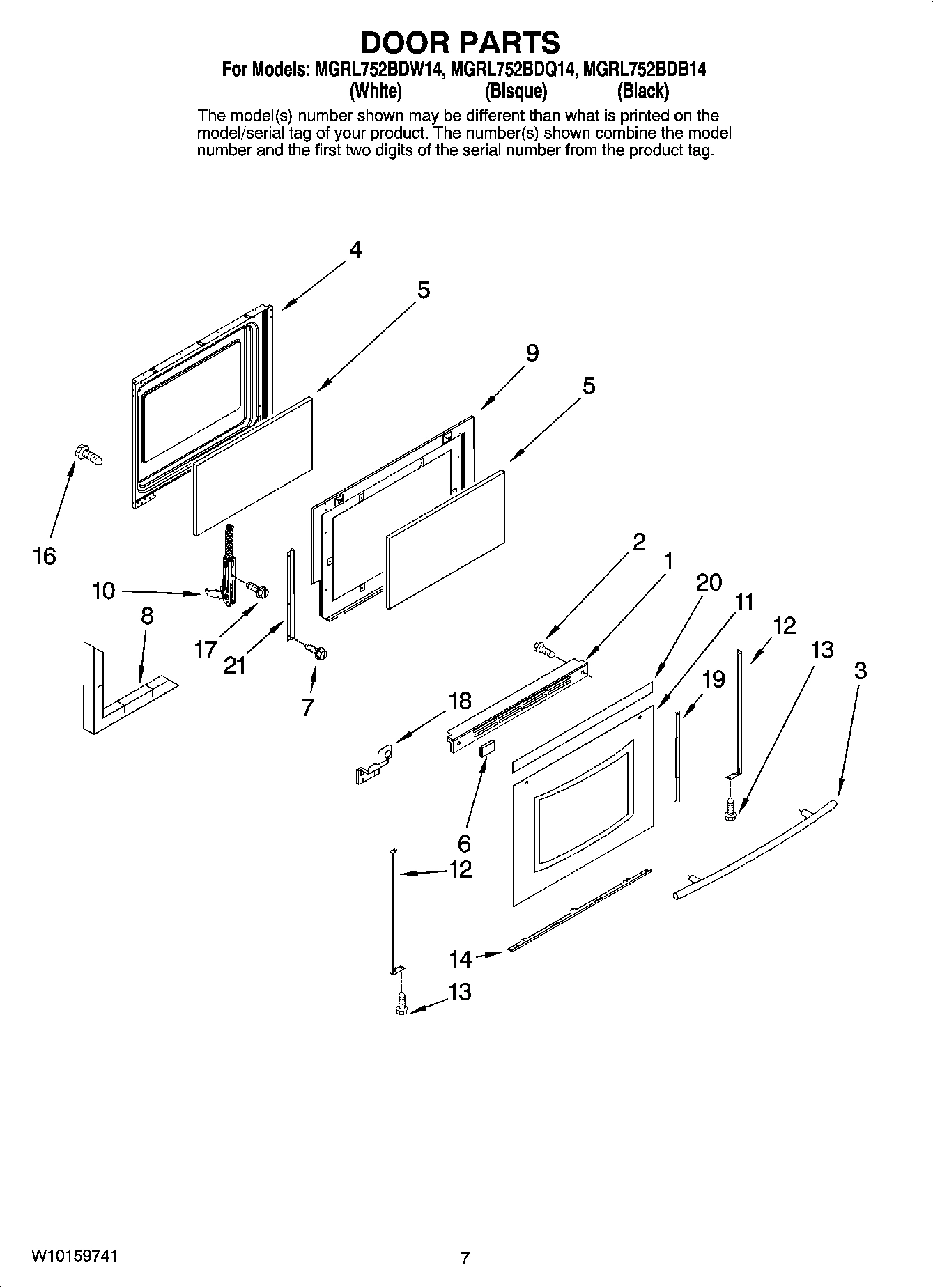

05 - DOOR PARTS

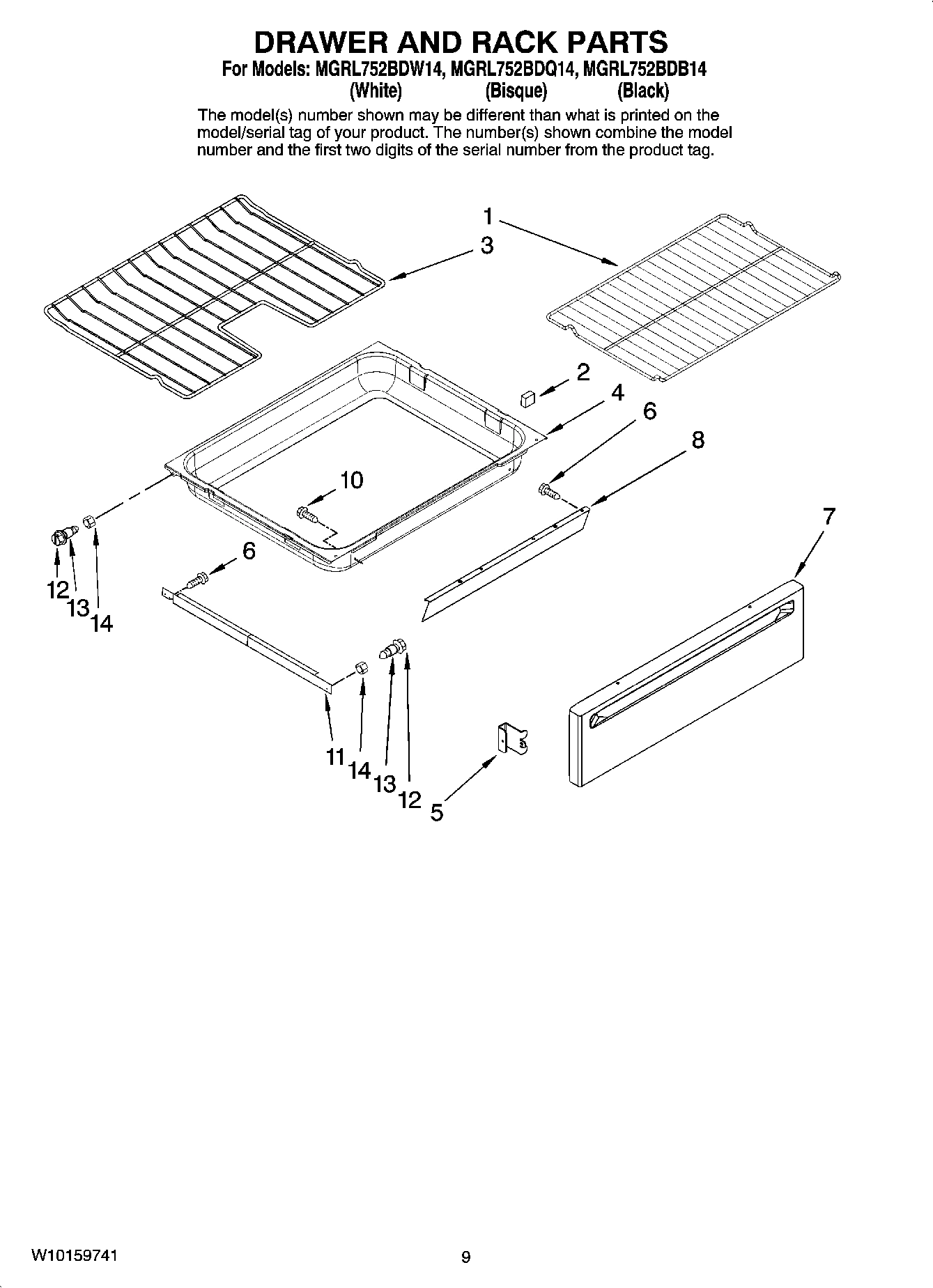

06 - DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGRL752BDB14 GAS RANGE
1
Endcap, Left Hand (Bisque) MAY 74010214 Contact Us For Availability
1
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
1
Screw, Valve MAY 74009416 Contact Us For Availability
1
Trim, Top (Black) MAY 74009689 Contact Us For Availability
1
Trim, Top (White) MAY 74009690 Contact Us For Availability
1
Trim, Top (Bisque) MAY 74009691 Contact Us For Availability
2
Heat Shield,Visor (Bisque) MAY 74009798 Contact Us For Availability
2
Heat Shield,Visor (White) MAY 74009799 Contact Us For Availability
2
Heat Shield,Visor (Black) MAY 74009800 Contact Us For Availability
2
MAY 740107939 MAY 740107939 Contact Us For Availability
3
Panel, Control (Black) MAY 74009108 Contact Us For Availability
3
Panel, Control (White) MAY 74009109 Contact Us For Availability
3
Panel, Control (Bisque) MAY 74009110 Contact Us For Availability
3
Support, Oven Bottom MAY 8004P024-60 Contact Us For Availability
3
MAY 74011779 MAY 74011779 Contact Us For Availability
3
Rack, Oven MAY 74009527 Contact Us For Availability
4
Ignitor, Top (RF) MAY 74004410 Contact Us For Availability
4
Panel, Side (2) (White) MAY 74003236 Contact Us For Availability
4
Panel, Side (2) (Black) MAY 74003283 Contact Us For Availability
4
Panel, Side (2) (Bisque) MAY 74004965 Contact Us For Availability
4
Tubing, Main Supply MAY 74009766 Contact Us For Availability
4
MAY 74011456 MAY 74011456 Contact Us For Availability
4
Drawer MAY 74008337 Contact Us For Availability
5
MAY 74010935 MAY 74010935 Contact Us For Availability
5
SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability
5
Harness, Igniter Includes Switches MAY 74009769 Contact Us For Availability
5
MAY 74010896 MAY 74010896 Contact Us For Availability
6
Shield, Vent MAY 74009779 Contact Us For Availability
6
Support, Spark Module MAY 74009853 Contact Us For Availability
7
MAY 74009773 MAY 74009773 Contact Us For Availability
7
MAY 74009724 MAY 74009724 Contact Us For Availability
7
MAY 74010271 MAY 74010271 Contact Us For Availability
7
Panel, Drawer Frnt (White) MAY 74003407 Contact Us For Availability
7
Panel, Drawer Frnt (Black) MAY 74003701 Contact Us For Availability
7
Panel, Drawer Frnt (Bisque) MAY 74004966 Contact Us For Availability
8
Grate, Burner (2) (Gray) MAY 74005301 Contact Us For Availability
8
Grate, Burner (2) (Black) MAY 74001769 Contact Us For Availability
8
Valve (LF,RR,LR) MAY 74009462 Contact Us For Availability
8
Valve (RF) MAY 74009770 Contact Us For Availability
8
Insulation,Door MAY 74003647 Contact Us For Availability
8
Panel, Inner MAY 2404F030-51 Contact Us For Availability
9
MAY 74009052 MAY 74009052 Contact Us For Availability
9
Shield, Heat MAY 74006574 Contact Us For Availability
9
Nut MAY 790431 Contact Us For Availability
10
Burner, Broiler MAY 74004076 Contact Us For Availability
11
MAY 74003960 MAY 74003960 Contact Us For Availability
11
Glass, Outer Door (Black) MAY 12002395 Contact Us For Availability
11
Glass, Outer Door (White) MAY 12002396 Contact Us For Availability
11
Cover, Main Wire MAY 74009654 Contact Us For Availability
11
Bottom, Oven MAY 74011228 Contact Us For Availability
11
Rail, Drawer MAY 74003565 Contact Us For Availability
12
MAY 12002227 MAY 12002227 Contact Us For Availability
12
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
12
MAY 71001394 MAY 71001394 Contact Us For Availability
12
Trim, Door Side (Black,LH) MAY 74009693 Contact Us For Availability
12
Trim, Door Side (Bisque,RH) MAY 74009696 Contact Us For Availability
12
Trim, Door Side (Bisque,LH) MAY 74009697 Contact Us For Availability
13
MAY 74009780 MAY 74009780 Contact Us For Availability
13
Insulation, Bottom MAY 74003503 Contact Us For Availability
13
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
14
MAY 74009978 MAY 74009978 Contact Us For Availability
14
Pan, Burner Bake MAY 74004465 Contact Us For Availability
14
Tubing (Broiler Fitting To Valve) MAY 74006430 Contact Us For Availability
14
Trim, Lower Door (Black) MAY 74009686 Contact Us For Availability
14
Trim, Lower Door (Bisque) MAY 74009688 Contact Us For Availability
15
Fitting, Broiler MAY 74009765 Contact Us For Availability
15
Retainer, Insul. MAY 74009480 Contact Us For Availability
16
Baffle, Oven Frnt MAY 74001219 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
17
MAY 74006420 MAY 74006420 Contact Us For Availability
17
MAY 74010719 MAY 74010719 Contact Us For Availability
17
MAY 74010720 MAY 74010720 Contact Us For Availability
17
MAY 74010723 MAY 74010723 Contact Us For Availability
17
MAY 74010724 MAY 74010724 Contact Us For Availability
17
Screw MAY 7101P282-60 Contact Us For Availability
18
MAY 74009653 MAY 74009653 Contact Us For Availability
19
MAY 74003389 MAY 74003389 Contact Us For Availability
19
Screw MAY 7101P208-60 Contact Us For Availability
19
MAY 74003650 MAY 74003650 Contact Us For Availability
19
MAY 74010267 MAY 74010267 Contact Us For Availability
20
Back, Main MAY 74009884 Contact Us For Availability
20
MAY W10156134 MAY W10156134 Contact Us For Availability
20
Tape, Foil (3``) MAY 74003664 Contact Us For Availability
21
Bracket, Window(2) MAY 74011458 Contact Us For Availability
22
Box, Brnr (Left) MAY 74009767 Contact Us For Availability
23
Lever, Lock MAY 74010244 Contact Us For Availability
24
Box, Brnr (Rt) MAY 74009768 Contact Us For Availability
26
MAY 74010812 MAY 74010812 Contact Us For Availability
28
Light Assembly MAY 74003387 Contact Us For Availability
30
Latch, Door Lock MAY 74009764 Contact Us For Availability
31
Spacer (Left) MAY 8010P087-60 Contact Us For Availability
31
Spacer (Right) MAY 8010P088-60 Contact Us For Availability
36
MAY 74009569 MAY 74009569 Contact Us For Availability
37
Screw MAY 74007476 Contact Us For Availability
NI
Insulation, Wrap MAY 74009201 Contact Us For Availability
NI
Harness, Gas MAY 74009826 Contact Us For Availability
NI
Insulation, Oven MAY 7002P140-60 Contact Us For Availability
NI
MAY 74008871 MAY 74008871 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability
NI
Wire, Blue 14 Ga. 150 c MAY 242821 Contact Us For Availability
NI
Wire, Brown 14 Ga. 150 c MAY 242822 Contact Us For Availability
NI
Wire, Green 14 Ga. 150 c MAY 242823 Contact Us For Availability
NI
Wire, Orange 14 Ga. 150 c MAY 242824 Contact Us For Availability
NI
Wire, Red 14 Ga. 150 c MAY 242825 Contact Us For Availability
NI
Wire, Yellow 14 Ga. 150 c MAY 242827 Contact Us For Availability
NI
Wire, Black 12 Ga. 150 c MAY 242828 Contact Us For Availability
NI
Wire, Brown 14 Ga. 200 c MAY 242830 Contact Us For Availability
NI
Wire, Red 14 Ga. 200 c MAY 242831 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
MAY 261582 MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 74006811 MAY 74006811 Contact Us For Availability
NI
Harness,W.Drawer MAY 74007018 Contact Us For Availability
NI
MAY 74009824 MAY 74009824 Contact Us For Availability
NI
Harness,B.Guard MAY 74009825 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
× ![]()
