Model Maytag MGR8875WW1 GAS RANGE – Common Parts & Diagrams

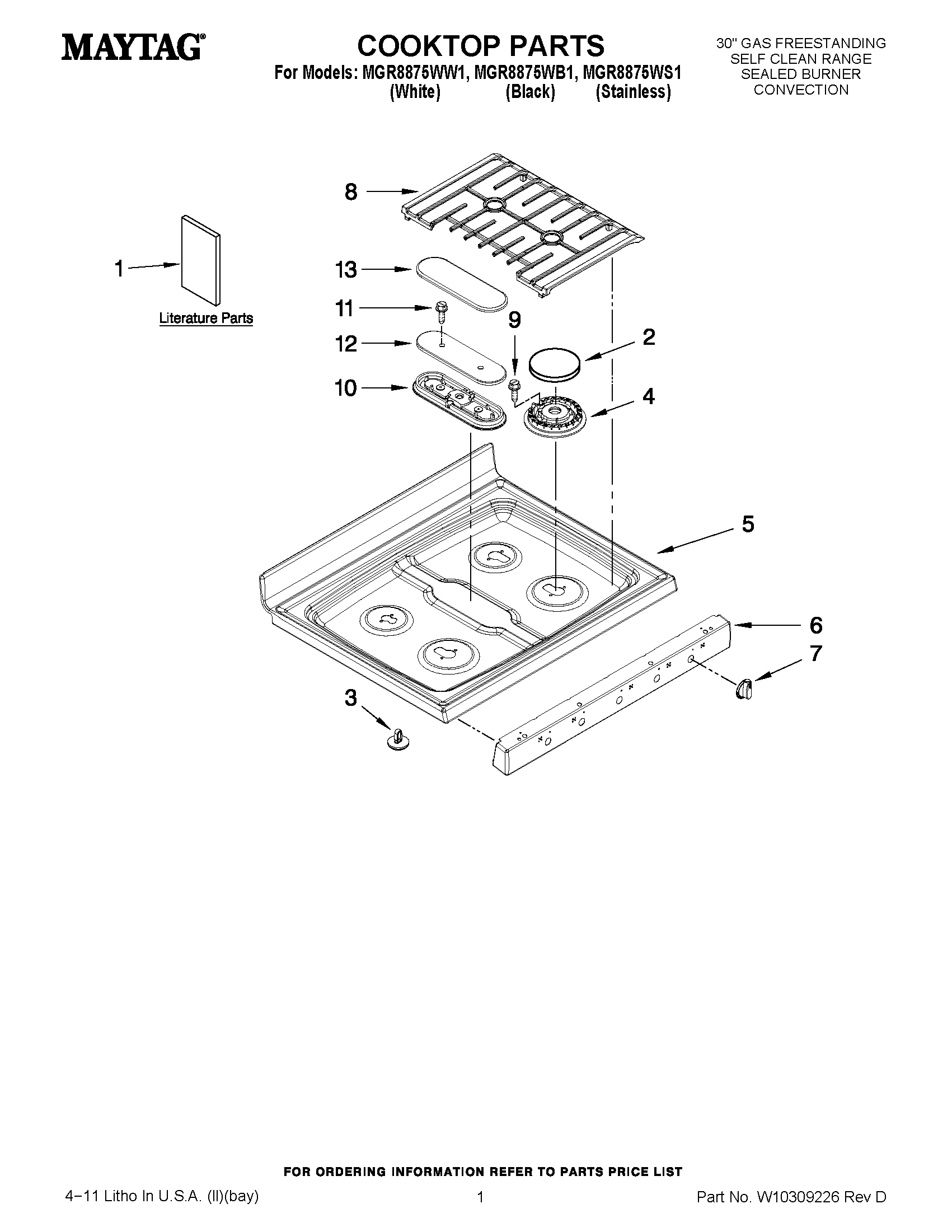

01 - COOKTOP PARTS

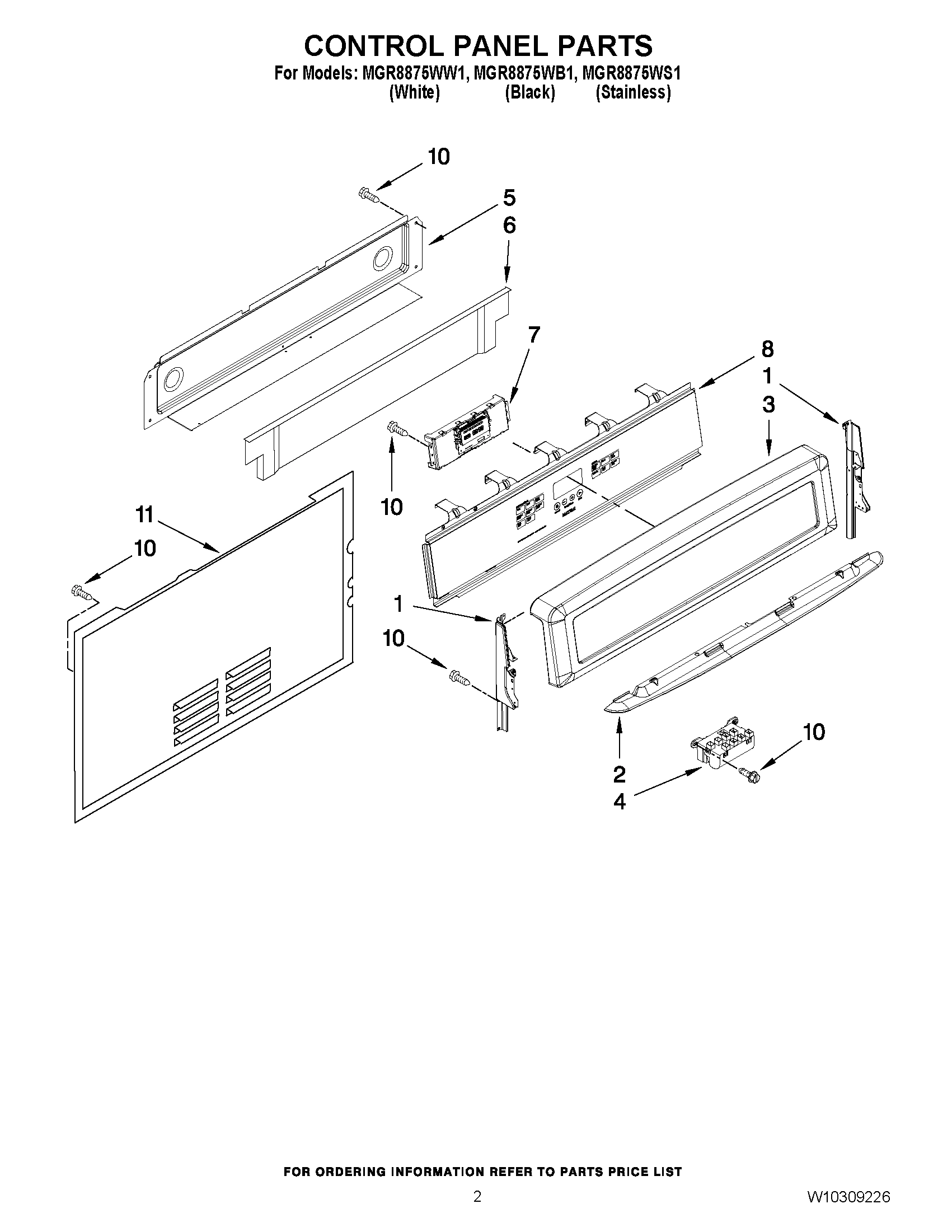

02 - CONTROL PANEL PARTS

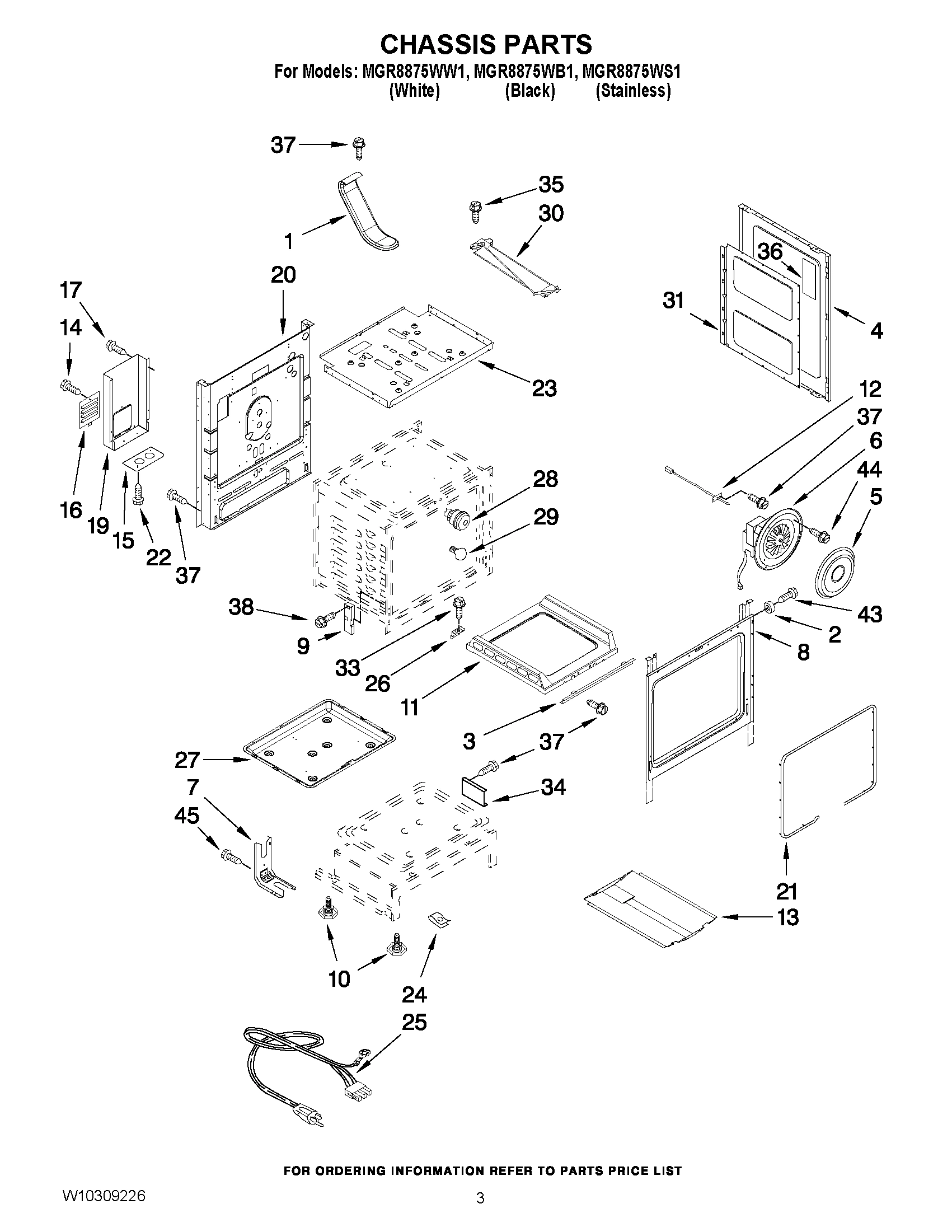

03 - CHASSIS PARTS

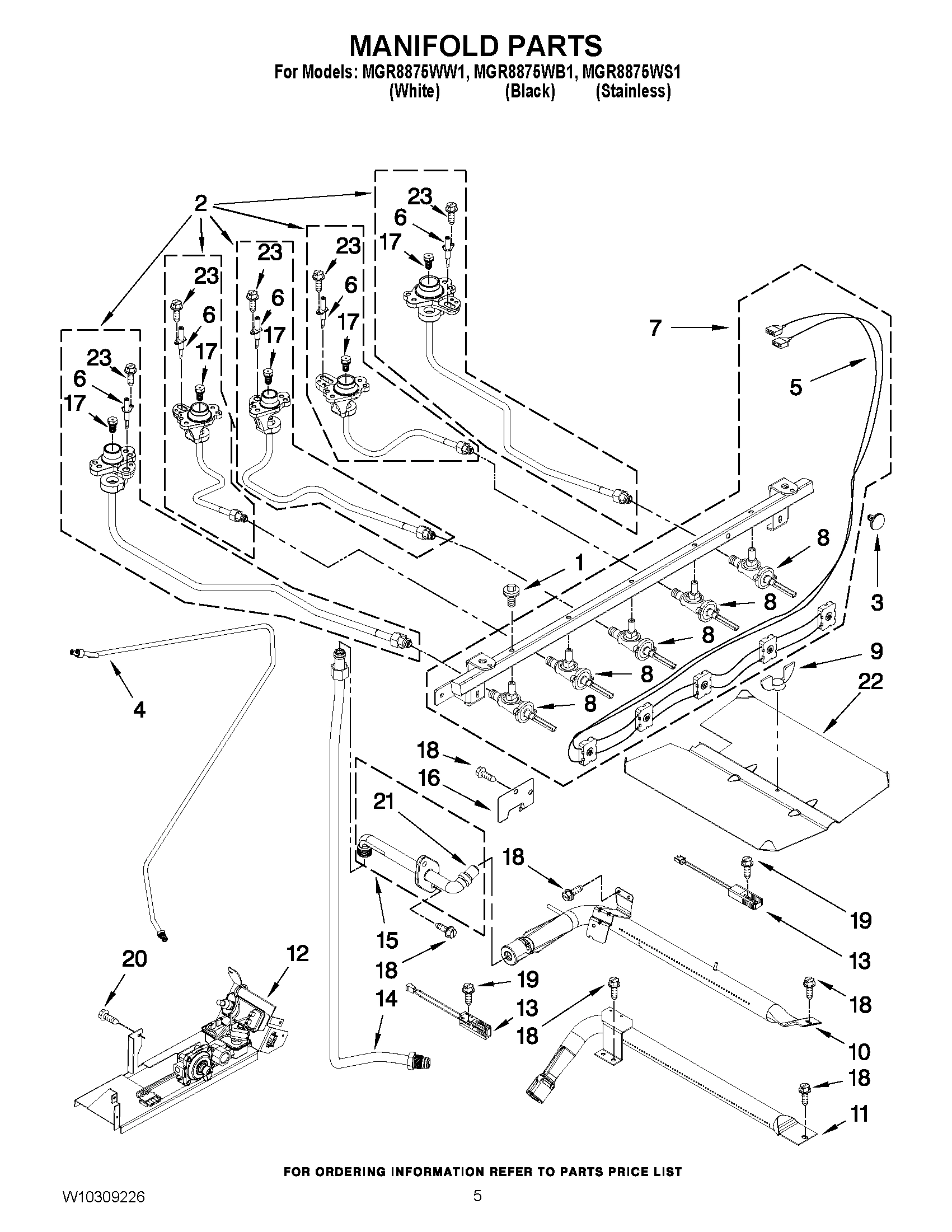

04 - MANIFOLD PARTS

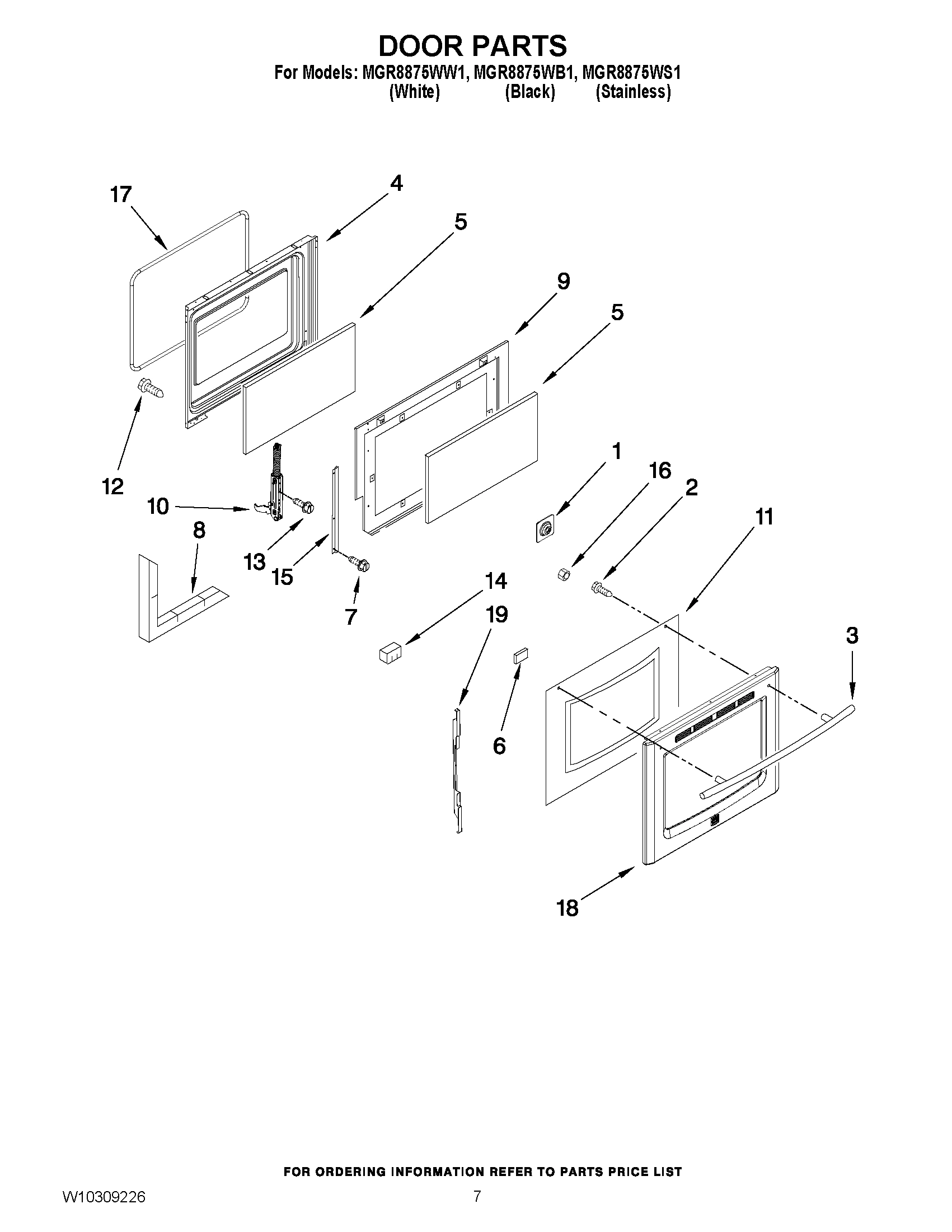

05 - DOOR PARTS

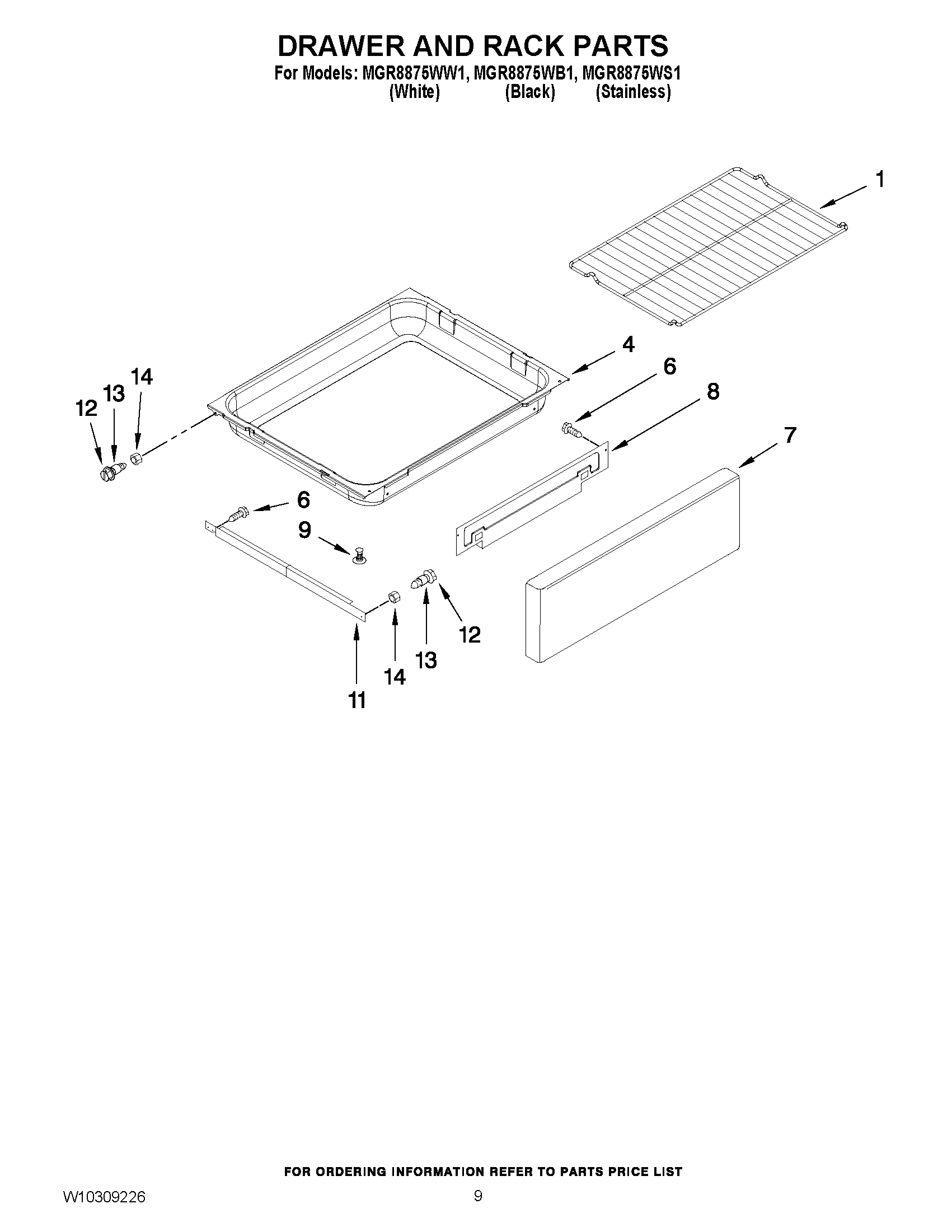

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8875WW1 GAS RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10239464 MAY W10239464 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) MAY W10239476 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) MAY W10239477 Contact Us For Availability
1
MAY W10258096 MAY W10258096 Contact Us For Availability
1
ENDCAP, LEFT HAND (WHITE) MAY W10163967 Contact Us For Availability
1
ENDCAP, RIGHT HAND (WHITE) MAY W10163968 Contact Us For Availability
1
ENDCAP, LEFT HAND (BLACK) MAY W10163969 Contact Us For Availability
1
ENDCAP, RIGHT HAND (BLACK) MAY W10163970 Contact Us For Availability
1
MAY 8026P080-60 MAY 8026P080-60 Contact Us For Availability
1
Screw, Valve MAY 7101P651-60 Contact Us For Availability
1
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
1
Rack, Oven MAY W10179196 Contact Us For Availability
2
CAP, BURNER (WETSTONE) MAY W10183373 Contact Us For Availability
2
CAP, BURNER (BLACK) MAY W10183375 Contact Us For Availability
2
HEAT SHIELD,VISOR (BLACK) MAY 3604F382-09 Contact Us For Availability
2
Heat Shield, Visor (White) MAY 3604F382-81 Contact Us For Availability
2
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
2
HOLDER, ORIFICE ((LR)) MAY W10169901 Contact Us For Availability
2
HOLDER, ORIFICE ((RR)) MAY W10169902 Contact Us For Availability
2
MAY W10169903 MAY W10169903 Contact Us For Availability
2
HOLDER, ORIFICE ((RF)) MAY W10169907 Contact Us For Availability
2
MAY W10169909 MAY W10169909 Contact Us For Availability
2
SCREW (BLACK) MAY 3196557 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10097270 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10097280 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
Support, Oven Bottom MAY 3807P680-45 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
3
MAY W10171747 MAY W10171747 Contact Us For Availability
3
MAY W10171748 MAY W10171748 Contact Us For Availability
4
BURNER (LR) MAY 8286181 Contact Us For Availability
4
BURNER (RF & LF) MAY 8286183 Contact Us For Availability
4
BURNER, CENTER MAY W10169577 Contact Us For Availability
4
BURNER (RR & CTR) MAY W10194076 Contact Us For Availability
4
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
4
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
4
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
4
MAY 7506P361-60 MAY 7506P361-60 Contact Us For Availability
4
Liner, Door MAY 2402W297-19 Contact Us For Availability
4
Drawer MAY 3405F037-80 Contact Us For Availability
5
MAY W10237150 MAY W10237150 Contact Us For Availability
5
MAY W10237151 MAY W10237151 Contact Us For Availability
5
COVER, UPPER MAY W10243038 Contact Us For Availability
5
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
5
MAY 7403P983-60 MAY 7403P983-60 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
MAY W10211380 MAY W10211380 Contact Us For Availability
6
MAY W10211381 MAY W10211381 Contact Us For Availability
6
MAY W10211395 MAY W10211395 Contact Us For Availability
6
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
6
MOTOR, CONVECTION MAY 7427P104-60 Contact Us For Availability
6
IGNITOR, TOP BURNER MAY W10216419 Contact Us For Availability
6
Screw MAY 3196173 Contact Us For Availability
7
MAY W10111302 MAY W10111302 Contact Us For Availability
7
KNOB, CONTROL (WHITE) MAY W10200192 Contact Us For Availability
7
MAY W10200193 MAY W10200193 Contact Us For Availability
7
MAY W10157252 MAY W10157252 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY W10269502 MAY W10269502 Contact Us For Availability
7
PANEL, DRAWER FRNT (WHITE) MAY W10172596 Contact Us For Availability
7
PANEL, DRAWER FRNT (BLACK) MAY W10172597 Contact Us For Availability
7
PANEL, DRAWER FRNT (STAINLESS) MAY W10172599 Contact Us For Availability
8
GRATE, BURNER (WETSTONE) MAY W10225516 Contact Us For Availability
8
MAY W10225517 MAY W10225517 Contact Us For Availability
8
MAY W10207498 MAY W10207498 Contact Us For Availability
8
MAY W10207499 MAY W10207499 Contact Us For Availability
8
MAY W10225529 MAY W10225529 Contact Us For Availability
8
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
8
VALVE (CENTER) MAY 7502P499-60 Contact Us For Availability
8
VALVE (LR,LF,RR) MAY 7502P500-60 Contact Us For Availability
8
MAY 7502P501-60 MAY 7502P501-60 Contact Us For Availability
8
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
8
MAY W10173314 MAY W10173314 Contact Us For Availability
9
Hinge, Receiver MAY 7106P125-60 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
Retainer, Insulation MAY 3601F380-51 Contact Us For Availability
9
Drawer, Stop MAY 8038P037-60 Contact Us For Availability
10
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
10
MAY W10160904 MAY W10160904 Contact Us For Availability
10
Hinge, Door MAY 7106P124-60 Contact Us For Availability
11
SCREW, CAP MAY W10217535 Contact Us For Availability
11
MAY W10243047 MAY W10243047 Contact Us For Availability
11
MAY W10211367 MAY W10211367 Contact Us For Availability
11
MAY 7505P331-60 MAY 7505P331-60 Contact Us For Availability
11
GLASS, OUTER DOOR MAY W10181725 Contact Us For Availability
11
RAIL, DRAWER MAY 3406P034-51 Contact Us For Availability
12
COVER, CAP MAY W10169578 Contact Us For Availability
12
MAY 3196178 MAY 3196178 Contact Us For Availability
12
SENSOR, OVEN MAY W10131827 Contact Us For Availability
12
MAY 7501P233-60 MAY 7501P233-60 Contact Us For Availability
12
Shaft, Storage Drawer Roller MAY 7118P032-60 Contact Us For Availability
13
BURNER, CAP (WETSTONE) MAY W10171137 Contact Us For Availability
13
BURNER, CAP (BLACK) MAY W10171140 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
Screw MAY 7101P282-60 Contact Us For Availability
13
Igniter (Broil) MAY 7432P106-60 Contact Us For Availability
13
MAY 7432P136-60 MAY 7432P136-60 Contact Us For Availability
13
MAY W10272883 MAY W10272883 Contact Us For Availability
14
MAY 7506P368-60 MAY 7506P368-60 Contact Us For Availability
14
INSULATION, CORNER MAY 7002P482-60 Contact Us For Availability
14
NUT MAY 7103P190-60 Contact Us For Availability
15
MAY 3605P146-51 MAY 3605P146-51 Contact Us For Availability
15
MAY W10247148 MAY W10247148 Contact Us For Availability
15
BRACKET, WINDOW MAY 3801F886-51 Contact Us For Availability
16
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
17
MAY 3196160 MAY 3196160 Contact Us For Availability
17
ORIFICE, BURNER (LEFT REAR) MAY W10170506 Contact Us For Availability
17
ORIFICE, BURNER (RIGHT REAR) MAY W10170508 Contact Us For Availability
17
ORIFICE, BURNER (LEFT FRONT) MAY W10170509 Contact Us For Availability
17
ORIFICE, BURNER (RIGHT FRONT) MAY W10170511 Contact Us For Availability
17
ORIFICE, BURNER (CENTER) MAY W10251991 Contact Us For Availability
17
GASKET, SS MODEL MAY W10306689 Contact Us For Availability
18
PANEL, OUTER DOOR (STAINLESS) MAY W10097300 Contact Us For Availability
18
PANEL, OUTER DOOR (WHITE) MAY W10172590 Contact Us For Availability
18
PANEL, OUTER DOOR (BLACK) MAY W10214541 Contact Us For Availability
19
COVER, LOWER WIRE MAY W10243045 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
19
BRKT., SS MODEL MAY 3801P918-51 Contact Us For Availability
20
MAY 3400701 MAY 3400701 Contact Us For Availability
20
BACK, MAIN MAY W10205618 Contact Us For Availability
21
Seal, Oven MAY W10162385 Contact Us For Availability
21
MAY 7507P366-60 MAY 7507P366-60 Contact Us For Availability
22
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
22
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
23
MAY 3604P409-51 MAY 3604P409-51 Contact Us For Availability
23
MAY 8273062 MAY 8273062 Contact Us For Availability
24
CLIP MAY 7112P158-60 Contact Us For Availability
25
MAY 7402P109-60 MAY 7402P109-60 Contact Us For Availability
26
BRACKET, OVEN BOTTOM MAY 3801P798-51 Contact Us For Availability
27
MAY 3401F082-45 MAY 3401F082-45 Contact Us For Availability
28
LIGHT ASSEMBLY MAY 3196701 Contact Us For Availability
29
MAY 311255 MAY 311255 Contact Us For Availability
30
LATCH, DOOR LOCK MAY W10275451 Contact Us For Availability
31
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
33
MAY 3196154 MAY 3196154 Contact Us For Availability
34
Bracket, Oven MAY 3801P822-45 Contact Us For Availability
35
MAY 3196560 MAY 3196560 Contact Us For Availability
36
MAY W10182346 MAY W10182346 Contact Us For Availability
43
Screw MAY 7101P618-60 Contact Us For Availability
45
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
RETAINER, INSUL. MAY 3804F300-51 Contact Us For Availability
NI
STRAP, INSULATION MAY 4820F015-59 Contact Us For Availability
NI
MAY 7002P424-60 MAY 7002P424-60 Contact Us For Availability
NI
INSULATION, BOTTOM MAY 7002P480-60 Contact Us For Availability
NI
MAY W10243056 MAY W10243056 Contact Us For Availability
NI
MAY W10271868 MAY W10271868 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
CLIP, WIRE MAY 8019P026-60 Contact Us For Availability
NI
CLIP, HARNESS MAY 8273564 Contact Us For Availability
NI
MAY W10169819 MAY W10169819 Contact Us For Availability
NI
MAY W10237924 MAY W10237924 Contact Us For Availability
NI
MAY W10252061 MAY W10252061 Contact Us For Availability
× ![]()
