Model Maytag MGR8800FZ1 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams

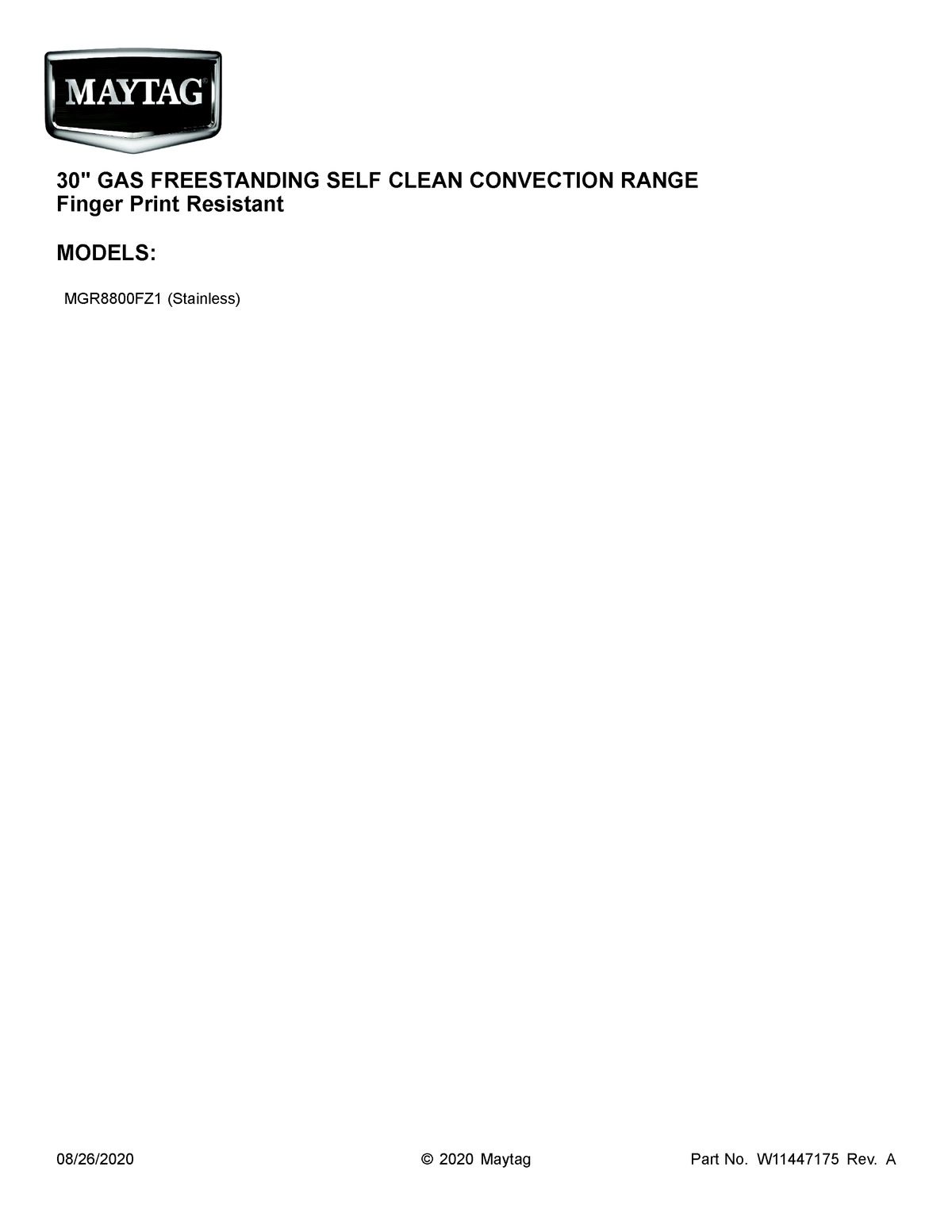

01 - COVER SHEET

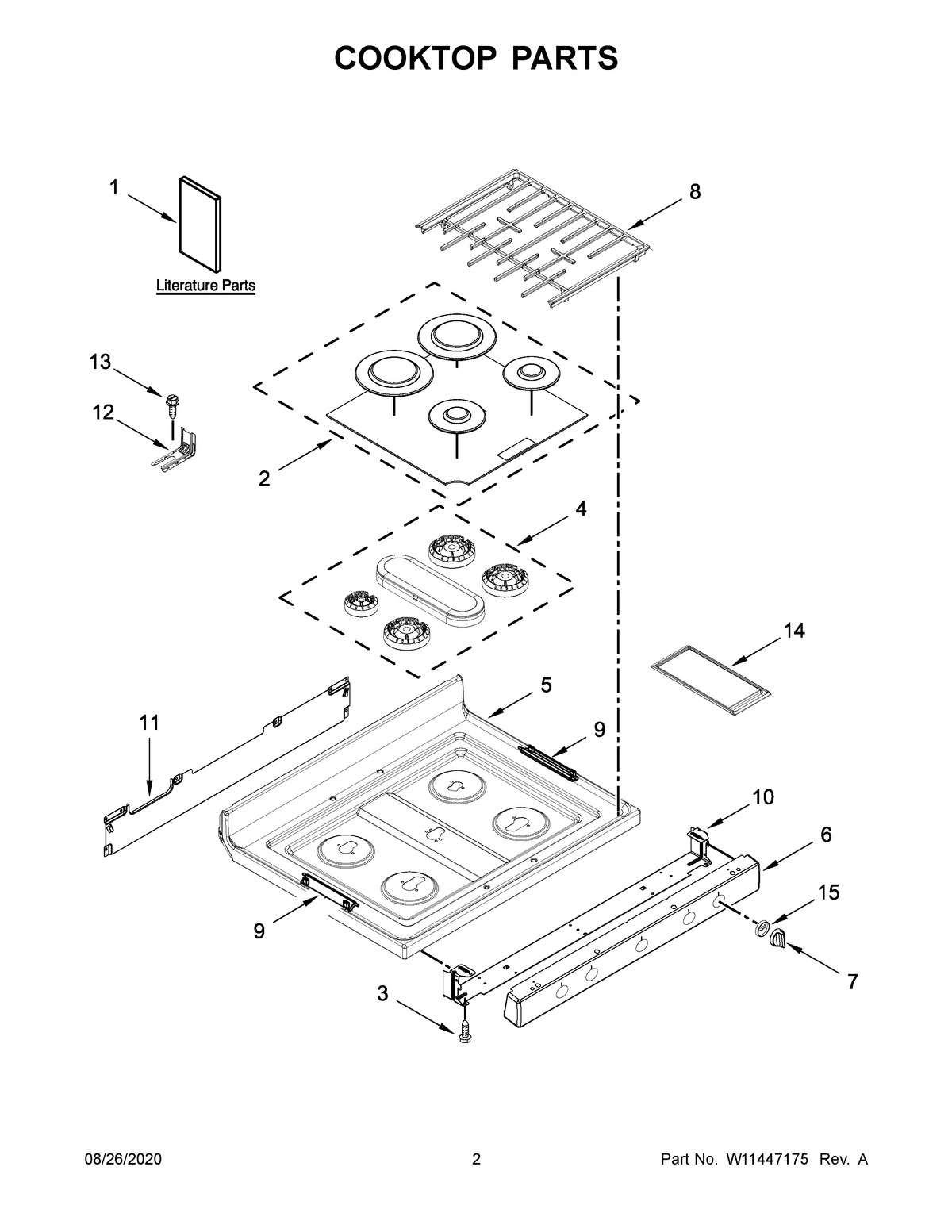

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS
05 - MANIFOLD PARTS
06 - DOOR PARTS
07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8800FZ1 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
MAY W11383207 MAY W11383207 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
ASSEMBLY, FLUE MAY W10314347 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
GLASS SPACER MAY W11379948 Contact Us For Availability
1
PANEL, DRAWER FRONT (STAINLESS) MAY W10861565 Contact Us For Availability
1A
MAY W11404102 MAY W11404102 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1B
TECH SHEET MAY W10538797 Contact Us For Availability
1C
QUICK START GUIDE (ENGLISH) MAY W10400066 Contact Us For Availability
2
BURNER CAP KIT (BLACK (SET OF 4) (LEFT FRONT, MAY W11352138 Contact Us For Availability
2
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
2
SPACER, DOOR MAY 9758701 Contact Us For Availability
2
ORIFICE HOLDER ASSEMBLY (18K) (LEFT FRONT) MAY W11331179 Contact Us For Availability
2
SCREW MAY W11091878 Contact Us For Availability
2
SCREW MAY 3196169 Contact Us For Availability
2A
ORIFICE HOLDER ASSEMBLY (9.5K) (LEFT REAR) MAY W11345009 Contact Us For Availability
2B
ORIFICE HOLDER ASSEMBLY (15K) (RIGHT FRONT) MAY W11345011 Contact Us For Availability
2C
ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) MAY W11345010 Contact Us For Availability
2D
ORIFICE HOLDER ASSEMBLY (8K) (CENTER) MAY W11345012 Contact Us For Availability
3
SCREW MAY W10067840 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10645848 Contact Us For Availability
3
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
3
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY W10834521 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
4
BURNER KIT MAY W11367106 Contact Us For Availability
4
MODULE, SPARK DSI MAY W10920631 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
TUBING, MAIN SUPPLY MAY W10510125 Contact Us For Availability
4
LINER, DOOR MAY W10826568 Contact Us For Availability
4
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
4A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
5
COOKTOP (BLACK) MAY W11418086 Contact Us For Availability
5
COVER, UPPER MAY W10198745 Contact Us For Availability
5
COVER, REAR FAN MAY W10158780 Contact Us For Availability
5
SCREW MAY W10031790 Contact Us For Availability
5
SWITCH, 5 BURNER MANIFOLD HARNESS MAY W10783317 Contact Us For Availability
5
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
6
PANEL, MANIFOLD (STAINLESS) MAY W10861559 Contact Us For Availability
6
SHIELD, HEAT MAY W10192841 Contact Us For Availability
6
SWITCH, DOOR MAY W10627802 Contact Us For Availability
6
BAFFLE, BROIL BURNER MAY 3601P336-45 Contact Us For Availability
6
GLASS, INNER MAY W11223202 Contact Us For Availability
7
KNOB (STAINLESS) MAY W10858253 Contact Us For Availability
7
CONTROL, MRC MAY W10340325 Contact Us For Availability
7
CLIP, PANEL MAY W10137382 Contact Us For Availability
7
MANIFOLD ASSEMBLY MAY W11418925 Contact Us For Availability
7
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
8
MAY W11241655 MAY W11241655 Contact Us For Availability
8
BRACKET, MOUNTING MAY W10762981 Contact Us For Availability
8
CLIP, FRONT FRAME COVER MAY W10501599 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W11352012 Contact Us For Availability
8
HINGE, DOOR (ACTIVE) MAY W10885519 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR, CENTER) MAY W11352013 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) (CENTER) MAY W11352015 Contact Us For Availability
9
COVER, BACK MAY W10184251 Contact Us For Availability
9
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10867480 Contact Us For Availability
10
MANIFOLD PANEL BRACKET MAY W11379946 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
BURNER, BROILER MAY W10439242 Contact Us For Availability
10
SCOOP, DOOR MAY W10675397 Contact Us For Availability
11
REAR GAS COOKTOP BRACKET MAY W11379358 Contact Us For Availability
11
SPREADER, CLIP-SPRING MAY W10551614 Contact Us For Availability
11
BOTTOM, OVEN MAY W10211368 Contact Us For Availability
11
BURNER, BAKE MAY W10680035 Contact Us For Availability
11
SCREW MAY W10327235 Contact Us For Availability
12
BRACKET, ANTI-TIP MAY W11379945 Contact Us For Availability
12
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
VALVE, GAS MAY W10720102 Contact Us For Availability
12
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
13
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
13
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
13
BAFFLE, BAKE BURNER MAY 3601P356-45 Contact Us For Availability
13
SCREW MAY W10031780 Contact Us For Availability
13
IGNITER, BAKE MAY W10324262 Contact Us For Availability
14
GRIDDLE MAY W10432544 Contact Us For Availability
14
ASSEMBLY, ACTIVE OVERLAY (BLACK) MAY W10884364 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) MAY W10306050 Contact Us For Availability
14
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
15
BEZEL (STAINLESS) MAY W10876919 Contact Us For Availability
15
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
15
FITTING, BROIL MAY W10776437 Contact Us For Availability
15
BADGE MAY W10612925 Contact Us For Availability
16
ASSEMBLY, FLUE (UPPER) MAY W11040249 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
16
WASHER, DOOR MAY W10319024 Contact Us For Availability
17
ORIFICE (18K) (LEFT FRONT) MAY W11428754 Contact Us For Availability
17A
ORIFICE (10K) (LEFT REAR) MAY W10849720 Contact Us For Availability
17B
ORIFICE (15K) (RIGHT FRONT) MAY W11428753 Contact Us For Availability
17C
ORIFICE (5K) (RIGHT REAR) MAY W10849719 Contact Us For Availability
17D
ORIFICE (8K) (CENTER) MAY W11429345 Contact Us For Availability
18
SCREW MAY 3196178 Contact Us For Availability
18
DIFFUSER, FLAME MAY W10323077 Contact Us For Availability
19
SCREW MAY 3196385 Contact Us For Availability
20
RACK, OVEN MAY W10531060 Contact Us For Availability
20
SCREW MAY 3400016 Contact Us For Availability
21
GASKET, DOOR MAY W10162385 Contact Us For Availability
21
ELECTRODE (LEFT FRONT, LEFT REAR) MAY W11428831 Contact Us For Availability
21A
ELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER) MAY W11428858 Contact Us For Availability
22
SCREW MAY W10673618 Contact Us For Availability
23
SHIELD, HEAT MAY W10273195 Contact Us For Availability
23
SPRING, ELECTRODE MAY W10827923 Contact Us For Availability
24
ROD, DOOR SWITCH MAY W11370463 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
27
PAN, BAKE MAY W11379356 Contact Us For Availability
28
LIGHT ASSEMBLY MAY W11175594 Contact Us For Availability
29
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
30
FRONT FOOT ASSEMBLY MAY W10341186 Contact Us For Availability
31
BASE RAIL ASSEMBLY (LEFT) MAY W10390008 Contact Us For Availability
31A
BASE RAIL ASSEMBLY (RIGHT) MAY W10390007 Contact Us For Availability
33
MOTOR, FAN (CONVECTION) MAY W10874067 Contact Us For Availability
34
COVER, CONVECTION MAY W10346154 Contact Us For Availability
35
SCREW MAY W10362924 Contact Us For Availability
36
RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, MAIN MAY W10797419 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP MAY W10526208 Contact Us For Availability
NI
INSULATION, MAIN BACK MAY W10526209 Contact Us For Availability
NI
LP CONVERSION KIT (BAKE/BROIL) MAY W10566535 Contact Us For Availability
NI
LP 5 ORIFICE CONVERSION KIT MAY W11415424 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
