Model Maytag MGR8775AB1 30`` GAS FREESTANDING SELF CLEAN CONVECT RANGE – Common Parts & Diagrams

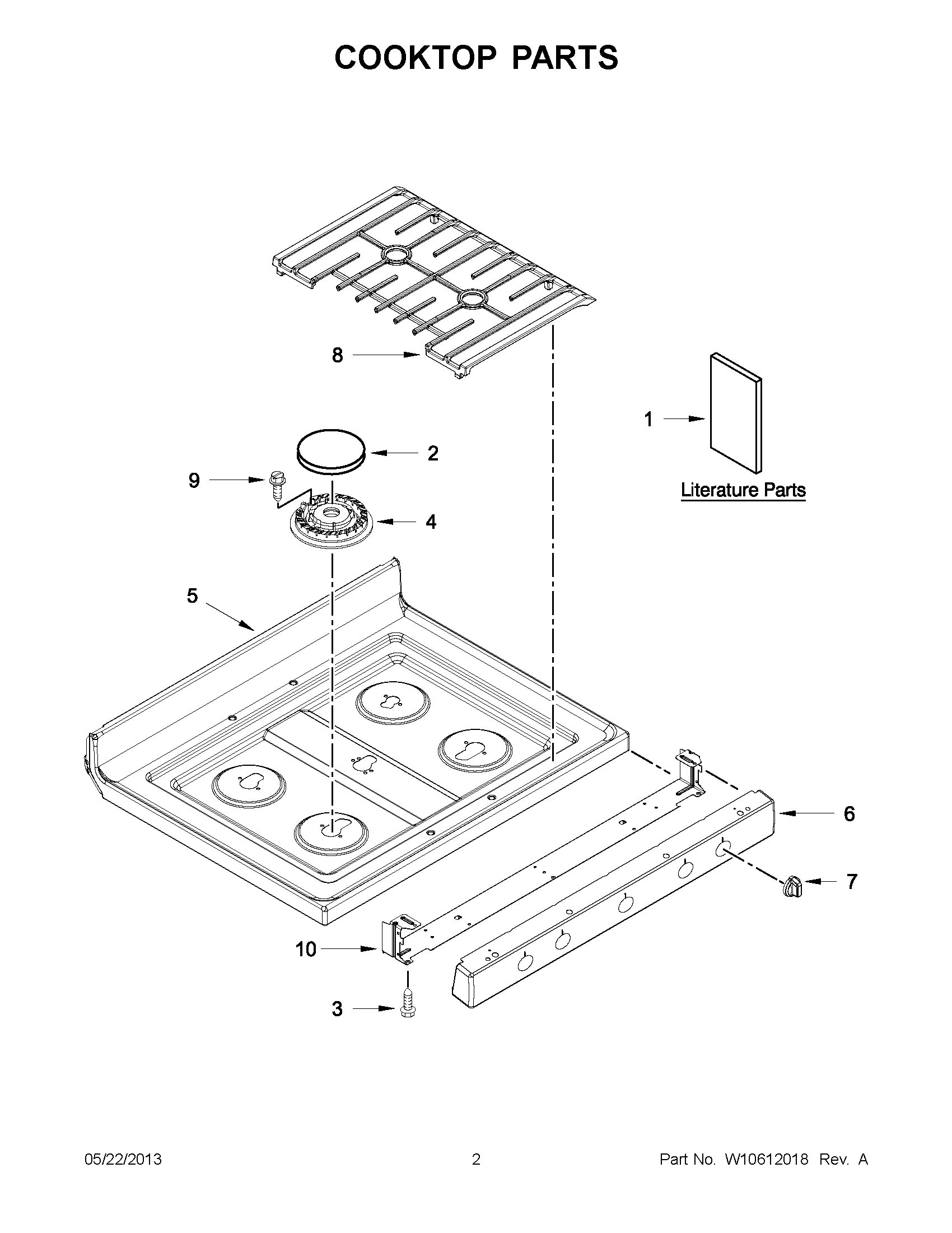

01 - COOKTOP PARTS

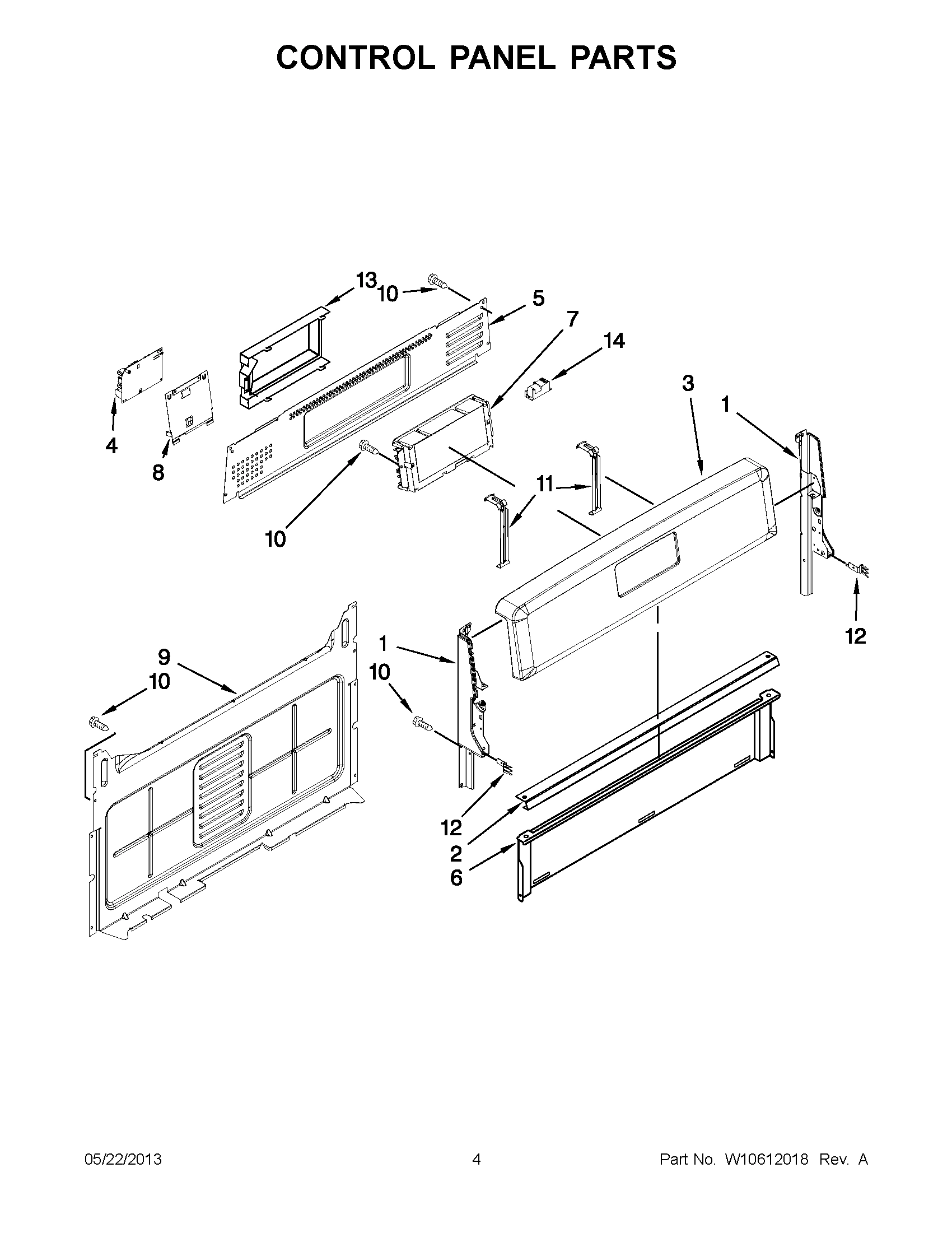

02 - CONTROL PANEL PARTS

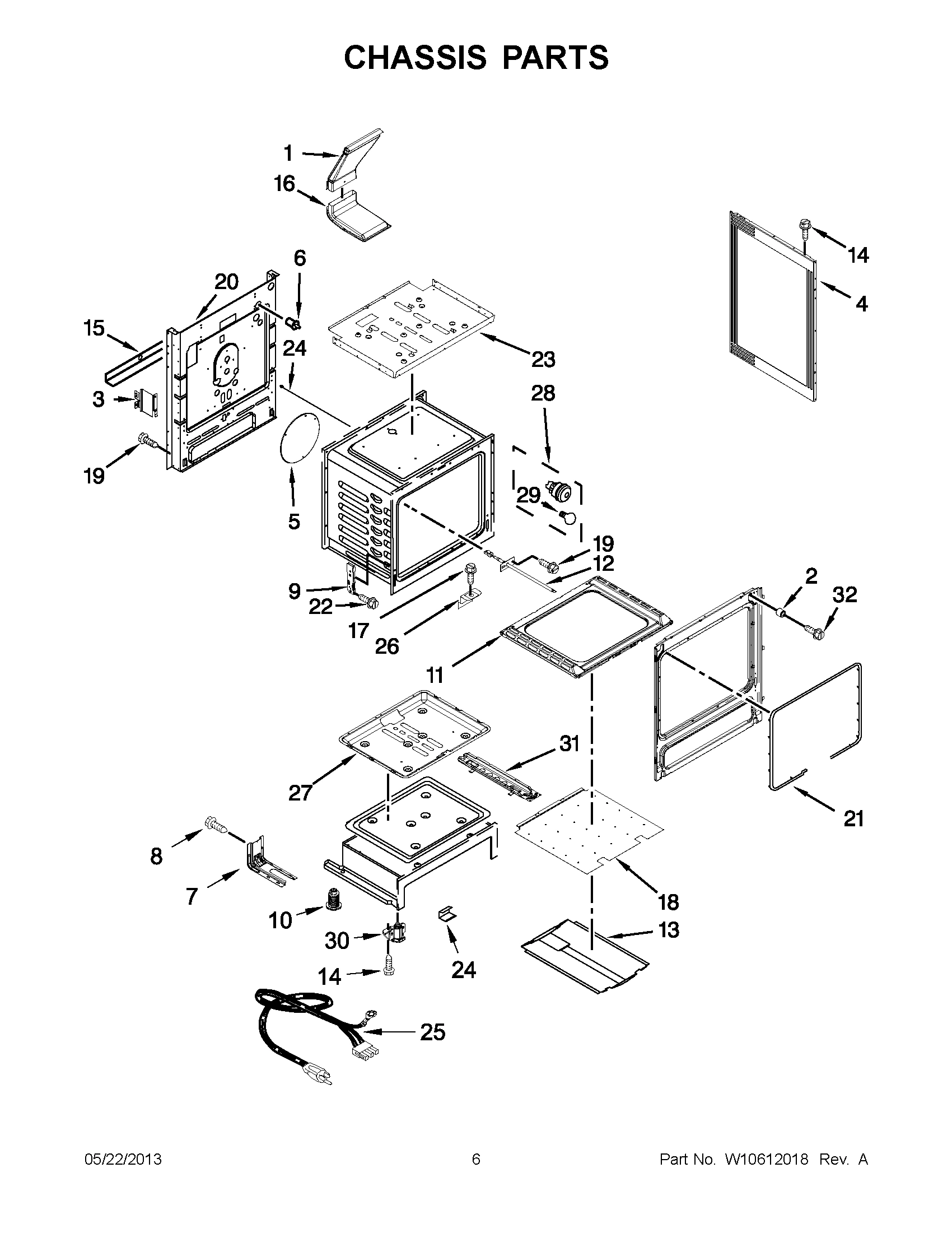

03 - CHASSIS PARTS

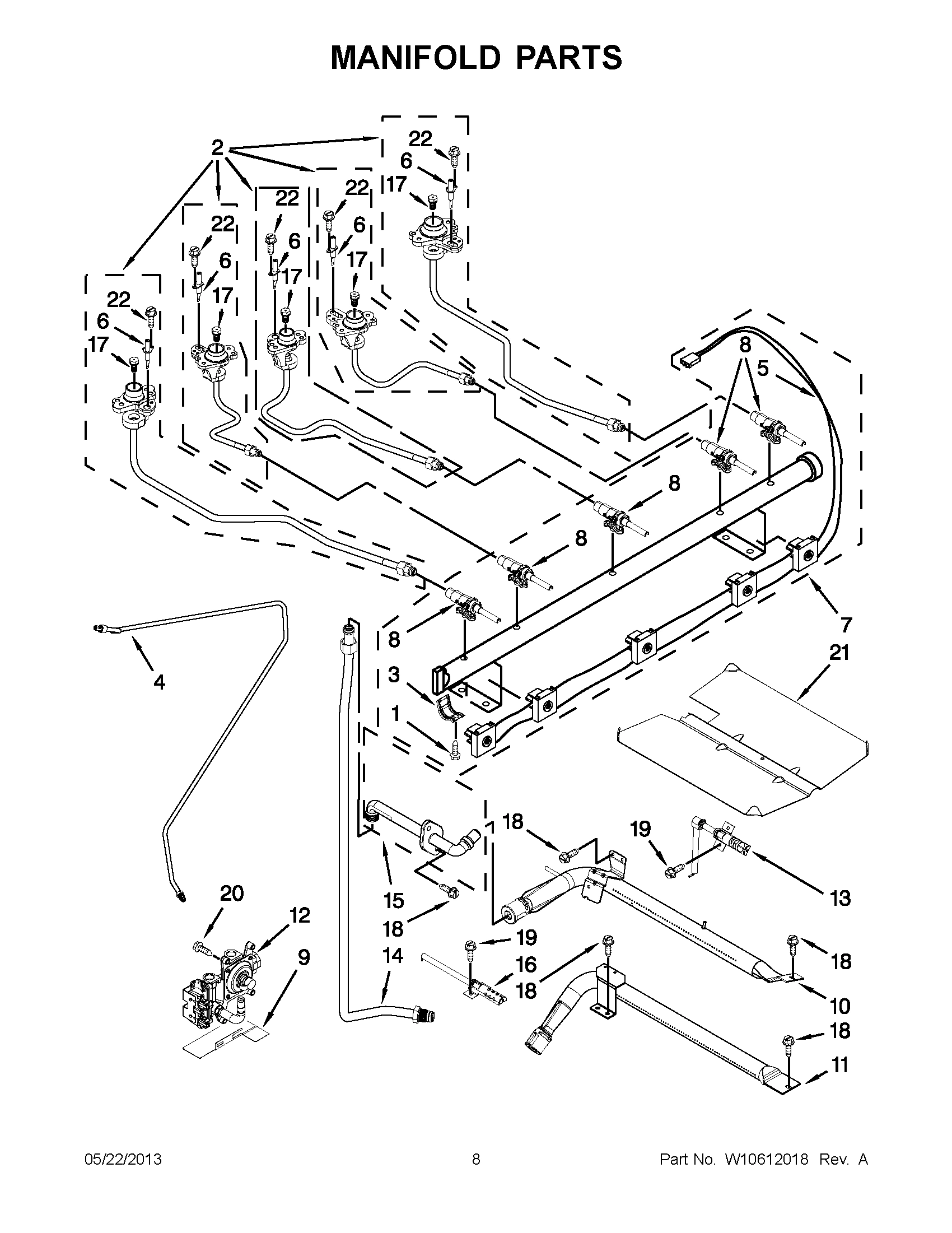

04 - MANIFOLD PARTS

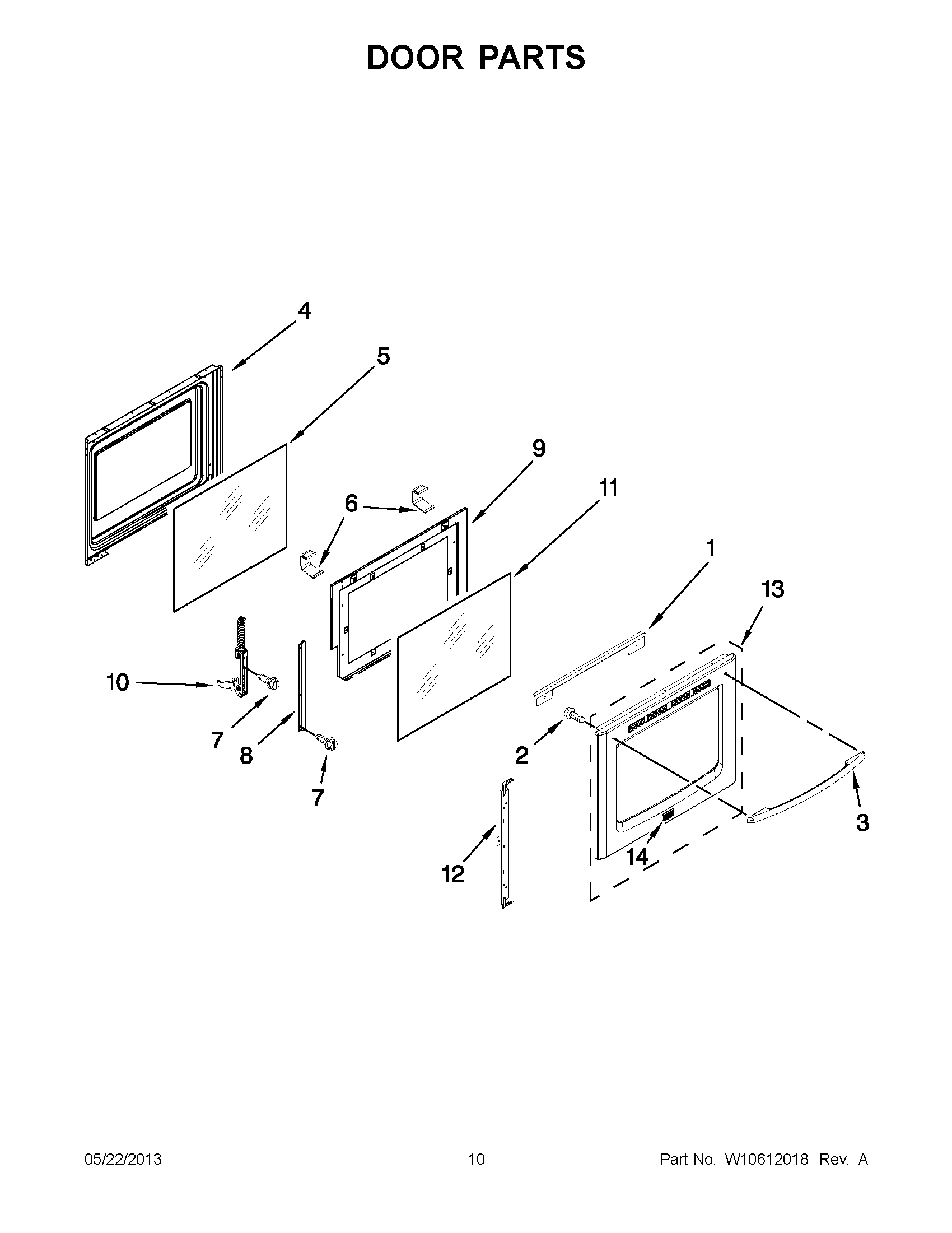

05 - DOOR PARTS

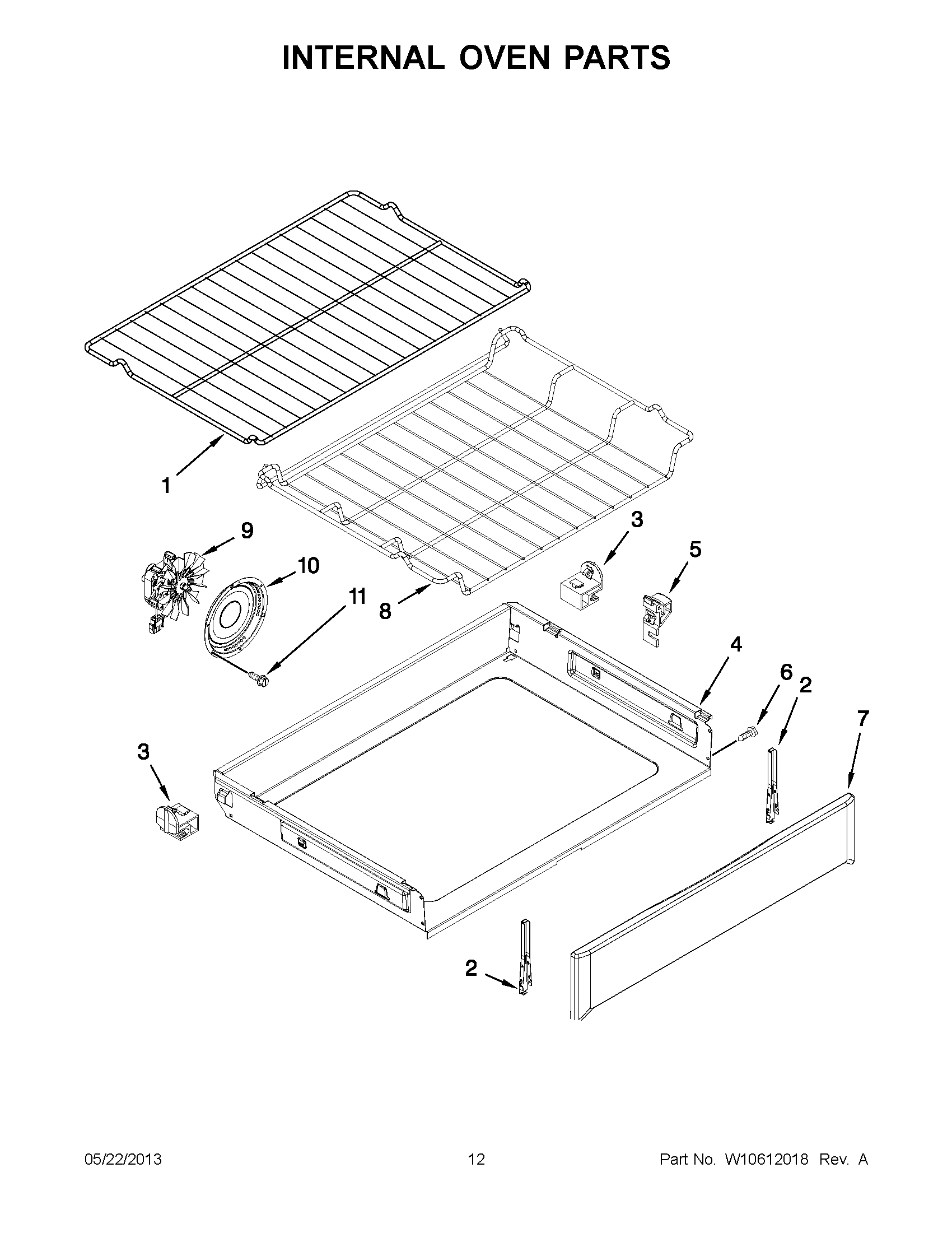

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8775AB1 30`` GAS FREESTANDING SELF CLEAN CONVECT RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
GUIDE, USE & CARE MAY W10399029 Contact Us For Availability
1
GUIDE, QUICK START MAY W10400066 Contact Us For Availability
1
MAY W10538795 MAY W10538795 Contact Us For Availability
1
MAY W10553363 MAY W10553363 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10314347 MAY W10314347 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
MAY W10330075 MAY W10330075 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1
Rack, Oven MAY W10179196 Contact Us For Availability
2
BURNER CAP, SET (BLACK) MAY W10183374 Contact Us For Availability
2
BRACKET, CONSOLE MOUNTING (GAS) MAY W10516123 Contact Us For Availability
2
Spacer, Door MAY 9758701 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT REAR (9.5K)) MAY W10473932 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT FRONT (17K)) MAY W10473935 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT REAR (5K)) MAY W10474162 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT FRONT (15K)) MAY W10474166 Contact Us For Availability
2
HOLDER, ORIFICE (CENTER (8K)) MAY W10474170 Contact Us For Availability
2
SCREW MAY W10317886 Contact Us For Availability
2
MAY W10318026 MAY W10318026 Contact Us For Availability
3
MAY W10067840 MAY W10067840 Contact Us For Availability
3
MAY W10333931 MAY W10333931 Contact Us For Availability
3
MAY W10333932 MAY W10333932 Contact Us For Availability
3
MAY W10333933 MAY W10333933 Contact Us For Availability
3
MAY W10273002 MAY W10273002 Contact Us For Availability
3
MAY W10295996 MAY W10295996 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
3
MAY W10171747 MAY W10171747 Contact Us For Availability
3
MAY W10171748 MAY W10171748 Contact Us For Availability
3
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
4
BURNER HEAD, AUXI (5K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
4
BURNER HEAD, SEMI (9.5 K) (LEFT REAR & CENTER MAY W10515454 Contact Us For Availability
4
MAY W10515455 MAY W10515455 Contact Us For Availability
4
MODULE-SPARK (4+2) DSI MAY W10511278 Contact Us For Availability
4
MAY W10322769 MAY W10322769 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
MAY W10510125 MAY W10510125 Contact Us For Availability
4
MAY W10297318 MAY W10297318 Contact Us For Availability
4
MAY W10300032 MAY W10300032 Contact Us For Availability
5
MAY W10366729 MAY W10366729 Contact Us For Availability
5
MAY W10366730 MAY W10366730 Contact Us For Availability
5
MAY W10198745 MAY W10198745 Contact Us For Availability
5
MAY W10413868 MAY W10413868 Contact Us For Availability
5
GLASS, INNER MAY W10300487 Contact Us For Availability
5
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
6
MAY W10441312 MAY W10441312 Contact Us For Availability
6
MAY W10441313 MAY W10441313 Contact Us For Availability
6
MAY W10441315 MAY W10441315 Contact Us For Availability
6
MAY W10192841 MAY W10192841 Contact Us For Availability
6
MAY 9757262 MAY 9757262 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
6
CLIP, GLASS MAY W10137382 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY W10370187 MAY W10370187 Contact Us For Availability
7
MAY W10370188 MAY W10370188 Contact Us For Availability
7
MAY W10370189 MAY W10370189 Contact Us For Availability
7
MAY W10477077 MAY W10477077 Contact Us For Availability
7
MAY W10477078 MAY W10477078 Contact Us For Availability
7
MAY W10477079 MAY W10477079 Contact Us For Availability
7
MAY W10306542 MAY W10306542 Contact Us For Availability
7
MAY W10413870 MAY W10413870 Contact Us For Availability
7
MAY W10325670 MAY W10325670 Contact Us For Availability
7
MAY W10325671 MAY W10325671 Contact Us For Availability
7
MAY W10325673 MAY W10325673 Contact Us For Availability
8
GRATE, SET (BLACK) MAY W10451804 Contact Us For Availability
8
MAY W10516463 MAY W10516463 Contact Us For Availability
8
MAY 7101P485- MAY 7101P485- Contact Us For Availability
8
VALVE, GAS (5K) (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE, GAS (9.5K) (LEFT REAR & CENTER) MAY W10279614 Contact Us For Availability
8
VALVE, GAS (15K) (LEFT FRONT & RIGHT FRONT) MAY W10279615 Contact Us For Availability
8
MAY W10294852 MAY W10294852 Contact Us For Availability
8
RACK, OVEN (GULL WING) MAY W10289145 Contact Us For Availability
9
MAY 3400701 MAY 3400701 Contact Us For Availability
9
Cover, Back MAY W10184251 Contact Us For Availability
9
MAY W10289077 MAY W10289077 Contact Us For Availability
9
BRACKET - AEGIS MAY W10224921 Contact Us For Availability
9
MAY W10294853 MAY W10294853 Contact Us For Availability
9
MAY W10399033 MAY W10399033 Contact Us For Availability
10
BRACKET, MANIFOLD (REAR) MAY W10530070 Contact Us For Availability
10
BRACKET, MAINFOLD (FRONT) MAY W10534174 Contact Us For Availability
10
MAY W10346154 MAY W10346154 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
MAY W10439242 MAY W10439242 Contact Us For Availability
10
HINGE, ACTIVE DOOR MAY W10388635 Contact Us For Availability
11
MAY W10324410 MAY W10324410 Contact Us For Availability
11
MAY W10211368 MAY W10211368 Contact Us For Availability
11
MAY W10362924 MAY W10362924 Contact Us For Availability
11
MAY W10439243 MAY W10439243 Contact Us For Availability
11
GLASS, OUTER MAY W10316819 Contact Us For Availability
12
MAY 8523412 MAY 8523412 Contact Us For Availability
12
MAY W10181986 MAY W10181986 Contact Us For Availability
12
MAY W10224915 MAY W10224915 Contact Us For Availability
12
MAY W10294851 MAY W10294851 Contact Us For Availability
13
MAY W10158780 MAY W10158780 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
MAY W10324262 MAY W10324262 Contact Us For Availability
13
MAY W10325665 MAY W10325665 Contact Us For Availability
13
MAY W10325666 MAY W10325666 Contact Us For Availability
13
SKIN, DOOR (STAINLESS) MAY W10325668 Contact Us For Availability
14
MAY W10475149 MAY W10475149 Contact Us For Availability
14
MAY W10306050 MAY W10306050 Contact Us For Availability
14
MAY W10429490 MAY W10429490 Contact Us For Availability
15
MAY W10435470 MAY W10435470 Contact Us For Availability
15
MAY W10319134 MAY W10319134 Contact Us For Availability
16
MAY W10311326 MAY W10311326 Contact Us For Availability
16
MAY W10333842 MAY W10333842 Contact Us For Availability
17
ORIFICE (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
17
ORIFICE (8K) (CENTER) MAY W10170507 Contact Us For Availability
17
ORIFICE (9.5K) (LEFT REAR) MAY W10170508 Contact Us For Availability
17
ORIFICE (17K) (LEFT FRONT) MAY W10170511 Contact Us For Availability
17
ORIFICE (15K) (RIGHT FRONT) MAY W10347414 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
MAY W10323077 MAY W10323077 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
20
MAY W10273005 MAY W10273005 Contact Us For Availability
20
MAY 3400016 MAY 3400016 Contact Us For Availability
21
MAY W10162385 MAY W10162385 Contact Us For Availability
21
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
22
MAY W10031780 MAY W10031780 Contact Us For Availability
22
MAY 8273062 MAY 8273062 Contact Us For Availability
23
MAY W10273195 MAY W10273195 Contact Us For Availability
24
MAY W10273192 MAY W10273192 Contact Us For Availability
25
Cord, Power MAY 9757891 Contact Us For Availability
26
MAY W10035900 MAY W10035900 Contact Us For Availability
27
MAY W10273204 MAY W10273204 Contact Us For Availability
28
MAY W10454648 MAY W10454648 Contact Us For Availability
29
MAY 311255 MAY 311255 Contact Us For Availability
30
MAY W10341186 MAY W10341186 Contact Us For Availability
31
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
31
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
32
MAY 3196560 MAY 3196560 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP GAS MAY W10526208 Contact Us For Availability
NI
MAY W10526209 MAY W10526209 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
LP CONVERSION KIT MAY W10170516 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, BAKE/BROIL MAY W10170250 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY W10334923 Contact Us For Availability
NI
MAY W10432019 MAY W10432019 Contact Us For Availability
NI
MAY W10519920 MAY W10519920 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DSI 200C MAY W10519934 Contact Us For Availability
NI
MAY W10519952 MAY W10519952 Contact Us For Availability
× ![]()
