Model Maytag MGR8670WS0 30`` GAS FREESTANDING SELF CLEAN RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS

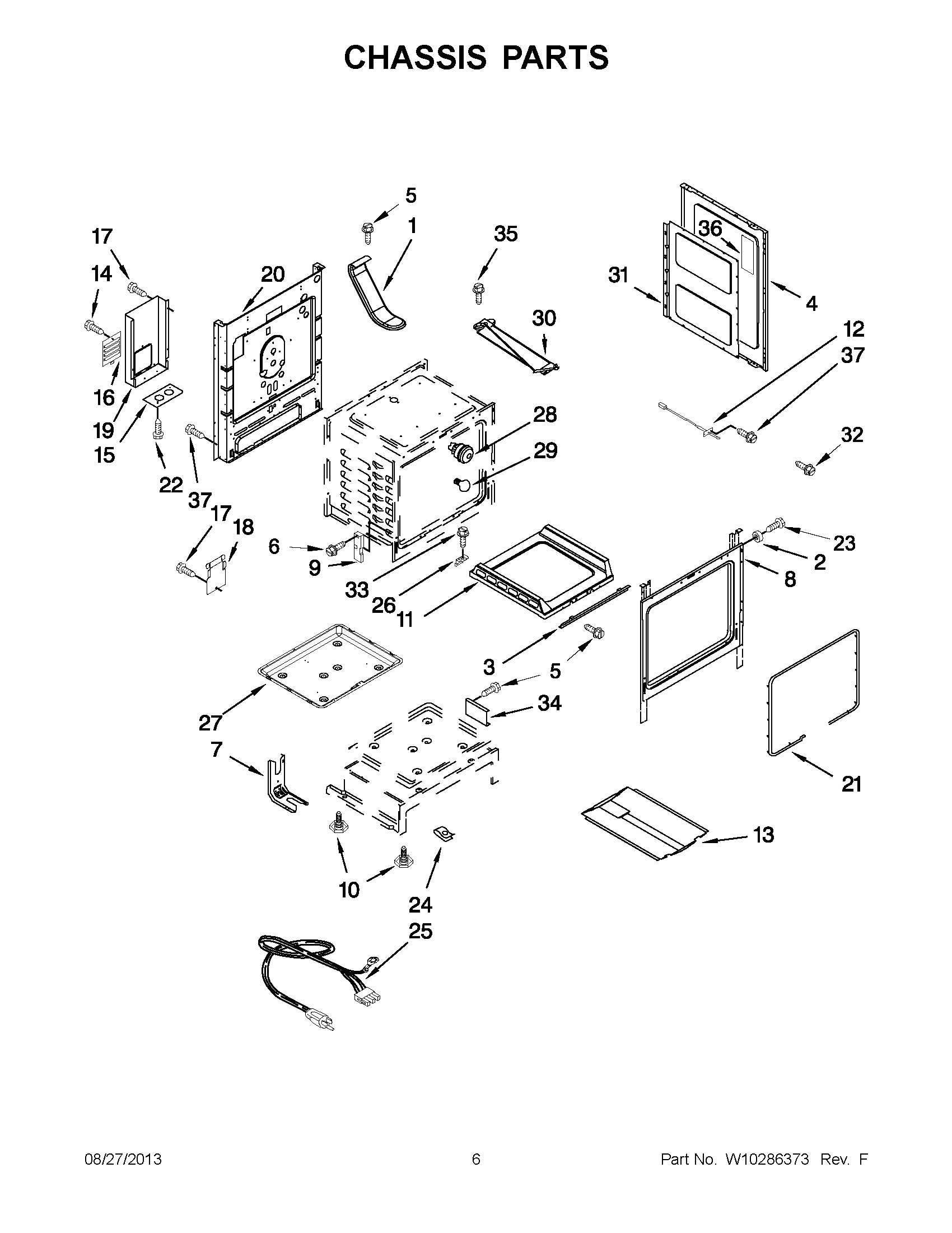

04 - CHASSIS PARTS

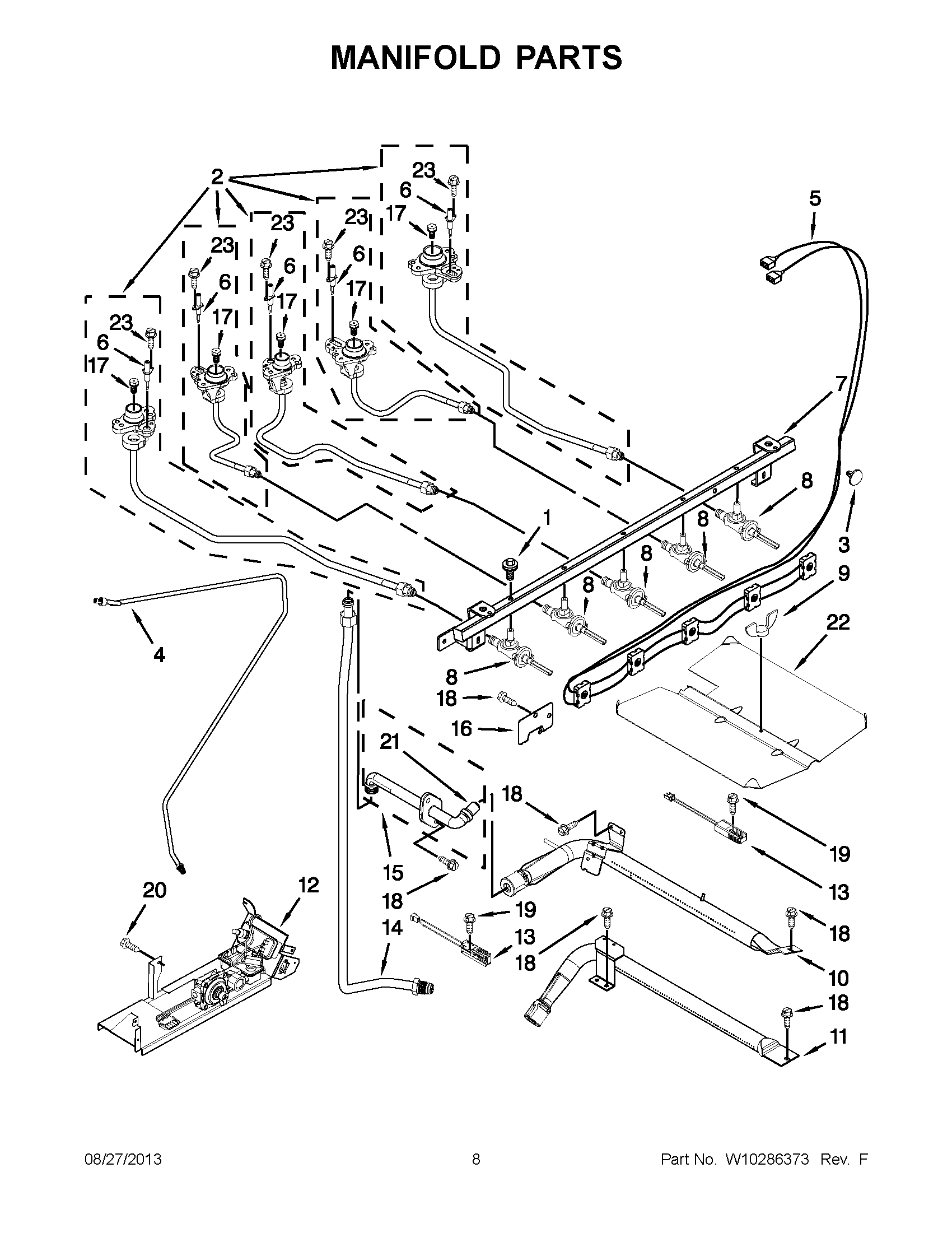

05 - MANIFOLD PARTS

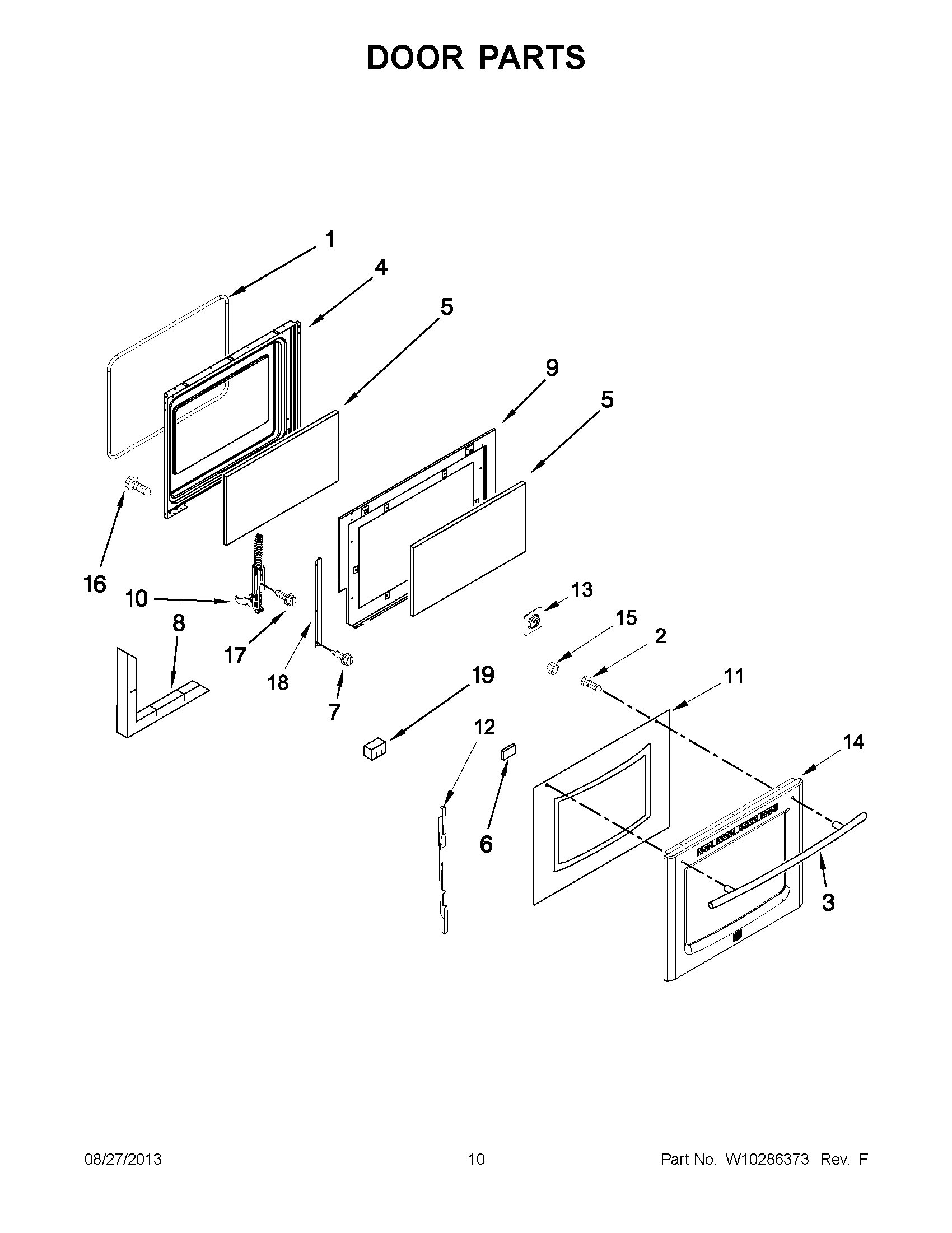

06 - DOOR PARTS

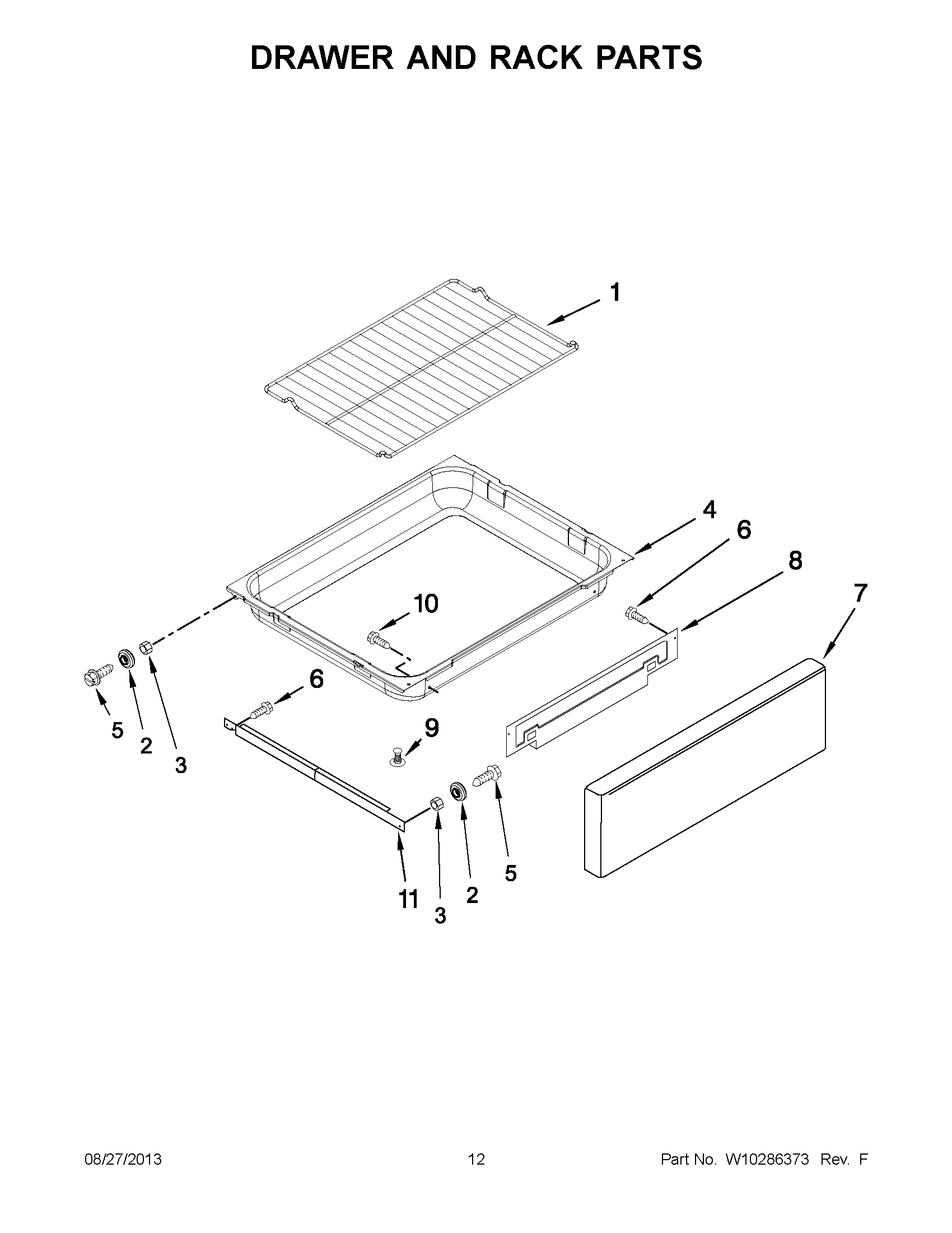

07 - DRAWER AND RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR8670WS0 30`` GAS FREESTANDING SELF CLEAN RANGE
1
MAY W10239463 MAY W10239463 Contact Us For Availability
1
MAY W10239472 MAY W10239472 Contact Us For Availability
1
MAY W10258096 MAY W10258096 Contact Us For Availability
1
ENDCAP (WHITE (LEFT HAND)) MAY W10163967 Contact Us For Availability
1
ENDCAP (WHITE (RIGHT HAND)) MAY W10163968 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10163969 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10163970 Contact Us For Availability
1
ENDCAP (BISCUIT (LEFT HAND)) MAY W10171416 Contact Us For Availability
1
ENDCAP (BISCUIT (RIGHT HAND)) MAY W10171417 Contact Us For Availability
1
MAY 8026P080-60 MAY 8026P080-60 Contact Us For Availability
1
Screw, Valve MAY 7101P651-60 Contact Us For Availability
1
GASKET, WINDOW MAY W10290904 Contact Us For Availability
1
Rack, Oven MAY W10179196 Contact Us For Availability
2
BURNER, CAP (WETSTONE) MAY W10169973 Contact Us For Availability
2
BURNER, CAP (WETSTONE) MAY W10169974 Contact Us For Availability
2
BURNER, CAP (WETSTONE) MAY W10169975 Contact Us For Availability
2
BURNER, CAP (WETSTONE) MAY W10173832 Contact Us For Availability
2
BURNER, CAP (BLACK (RIGHT FRONT)) MAY W10183368 Contact Us For Availability
2
BURNER, CAP (BLACK (RIGHT REAR AND CENTER)) MAY W10183369 Contact Us For Availability
2
BURNER, CAP (BLACK (LEFT REAR)) MAY W10183370 Contact Us For Availability
2
BURNER, CAP (BLACK (LEFT FRONT)) MAY W10183371 Contact Us For Availability
2
HEAT SHIELD,VISOR (BLACK) MAY 3604F382-09 Contact Us For Availability
2
Heat Shield, Visor (White) MAY 3604F382-81 Contact Us For Availability
2
HEAT SHIELD,VISOR (BISCUIT) MAY 3604F382-88 Contact Us For Availability
2
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
2
MAY W10169901 MAY W10169901 Contact Us For Availability
2
MAY W10169902 MAY W10169902 Contact Us For Availability
2
MAY W10169903 MAY W10169903 Contact Us For Availability
2
MAY W10169906 MAY W10169906 Contact Us For Availability
2
MAY W10169907 MAY W10169907 Contact Us For Availability
2
MAY 3196557 MAY 3196557 Contact Us For Availability
2
MAY W10272883 MAY W10272883 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
MAY W10225561 MAY W10225561 Contact Us For Availability
3
MAY W10225562 MAY W10225562 Contact Us For Availability
3
MAY W10225563 MAY W10225563 Contact Us For Availability
3
MAY W10225564 MAY W10225564 Contact Us For Availability
3
Support, Oven Bottom MAY 3807P680-45 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
3
MAY W10171747 MAY W10171747 Contact Us For Availability
3
MAY W10171748 MAY W10171748 Contact Us For Availability
3
HANDLE, DOOR (BISCUIT) MAY W10171749 Contact Us For Availability
4
BURNER HEAD, AUXILIARY (6K) (LEFT REAR) MAY 8286181 Contact Us For Availability
4
BURNER HEAD, RAPID (12K) (LEFT FRONT) MAY 8286182 Contact Us For Availability
4
BURNER HEAD, ULTRA RAPID (17K) (RIGHT FRONT) MAY 8286183 Contact Us For Availability
4
BURNER HEAD, SEMI (9.5K) (RIGHT REAR AND CENT MAY W10194076 Contact Us For Availability
4
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
4
MAY 2618F172-57 MAY 2618F172-57 Contact Us For Availability
4
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
4
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
4
MAY 7506P361-60 MAY 7506P361-60 Contact Us For Availability
4
MAY 2402W297-19 MAY 2402W297-19 Contact Us For Availability
4
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
5
MAY W10225508 MAY W10225508 Contact Us For Availability
5
MAY W10225509 MAY W10225509 Contact Us For Availability
5
MAY W10225510 MAY W10225510 Contact Us For Availability
5
COVER, CONSOLE-UPPER MAY W10243038 Contact Us For Availability
5
MAY 7403P983-60 MAY 7403P983-60 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
5
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
6
MAY W10211380 MAY W10211380 Contact Us For Availability
6
MAY W10211381 MAY W10211381 Contact Us For Availability
6
MAY W10211382 MAY W10211382 Contact Us For Availability
6
MAY W10211395 MAY W10211395 Contact Us For Availability
6
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
6
Shield, Vent Ext MAY 3604F381-19 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
7
MAY W10111302 MAY W10111302 Contact Us For Availability
7
KNOB, CONTROL (WHITE) MAY W10200192 Contact Us For Availability
7
MAY W10200193 MAY W10200193 Contact Us For Availability
7
KNOB, CONTROL (BISCUIT) MAY W10200194 Contact Us For Availability
7
MAY W10236265 MAY W10236265 Contact Us For Availability
7
MAY W10236266 MAY W10236266 Contact Us For Availability
7
MAY W10236267 MAY W10236267 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
MAY 7513P499-60 MAY 7513P499-60 Contact Us For Availability
7
MAY W10172596 MAY W10172596 Contact Us For Availability
7
MAY W10172597 MAY W10172597 Contact Us For Availability
7
MAY W10172598 MAY W10172598 Contact Us For Availability
7
MAY W10172599 MAY W10172599 Contact Us For Availability
8
MAY W10249311 MAY W10249311 Contact Us For Availability
8
MAY W10249312 MAY W10249312 Contact Us For Availability
8
MAY W10243047 MAY W10243047 Contact Us For Availability
8
VALVE (5K) (LEFT REAR) MAY 7502P499-60 Contact Us For Availability
8
VALVE (12K) (LEFT FRONT & RIGHT REAR) MAY 7502P500-60 Contact Us For Availability
8
VALVE (16K) (RIGHT FRONT) MAY 7502P501-60 Contact Us For Availability
8
VALVE (7K) (CENTER) MAY W10269504 Contact Us For Availability
8
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
8
MAY W10173314 MAY W10173314 Contact Us For Availability
9
Hinge, Receiver MAY 7106P125-60 Contact Us For Availability
9
WING NUT MAY 7103P030-60 Contact Us For Availability
9
Retainer, Insulation MAY 3601F380-51 Contact Us For Availability
9
Drawer, Stop MAY 8038P037-60 Contact Us For Availability
10
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
10
MAY W10160904 MAY W10160904 Contact Us For Availability
10
Hinge, Door MAY 7106P124-60 Contact Us For Availability
11
MAY W10211367 MAY W10211367 Contact Us For Availability
11
MAY 7505P331-60 MAY 7505P331-60 Contact Us For Availability
11
GLASS, OUTER DOOR MAY W10181725 Contact Us For Availability
11
RAIL, DRAWER MAY 3406P034-51 Contact Us For Availability
12
SENSOR, OVEN MAY W10131827 Contact Us For Availability
12
MAY 7501P233-60 MAY 7501P233-60 Contact Us For Availability
12
BRACKET (STAINLESS MODEL ONLY) MAY 3801F918-51 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
IGNITOR, ELECTRIC IGNITION (BROIL) MAY 7432P106-60 Contact Us For Availability
13
IGNITOR, ELECTRIC (BAKE) MAY 7432P136-60 Contact Us For Availability
13
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
14
MAY 7506P368-60 MAY 7506P368-60 Contact Us For Availability
14
PANEL, OUTER DOOR (STAINLESS) MAY W10097300 Contact Us For Availability
14
PANEL, OUTER DOOR (WHITE) MAY W10172590 Contact Us For Availability
14
PANEL, OUTER DOOR (BISCUIT) MAY W10172591 Contact Us For Availability
14
PANEL, OUTER DOOR (BLACK) MAY W10214541 Contact Us For Availability
15
MAY 3605F146-51 MAY 3605F146-51 Contact Us For Availability
15
MAY W10247148 MAY W10247148 Contact Us For Availability
15
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
16
COVER, ACCESS PLATE MAY 4005P704-51 Contact Us For Availability
16
COVER,IGNITOR WIRE MAY 4005F421-45 Contact Us For Availability
16
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
17
Screw MAY 7101P282-60 Contact Us For Availability
17
MAY 3196160 MAY 3196160 Contact Us For Availability
17
ORIFICE (5K) (LEFT REAR) MAY W10170506 Contact Us For Availability
17
ORIFICE (9.5K) (RIGHT REAR) MAY W10170508 Contact Us For Availability
17
ORIFICE (17K) (RIGHT FRONT) MAY W10170511 Contact Us For Availability
17
ORIFICE (12K) (LEFT FRONT) MAY W10178934 Contact Us For Availability
17
MAY W10251991 MAY W10251991 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
MAY 4005F753-45 MAY 4005F753-45 Contact Us For Availability
18
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
19
COVER, LOWER WIRE MAY 4005P711-51 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
19
MAY 7002P482-60 MAY 7002P482-60 Contact Us For Availability
20
BACK, MAIN MAY W10205618 Contact Us For Availability
20
MAY 3400701 MAY 3400701 Contact Us For Availability
21
MAY W10162385 MAY W10162385 Contact Us For Availability
21
ORIFICE (BROIL) MAY 7507P366-60 Contact Us For Availability
22
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
22
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
23
Screw MAY 7101P618-60 Contact Us For Availability
23
MAY 8273062 MAY 8273062 Contact Us For Availability
24
MAY 7112P158-60 MAY 7112P158-60 Contact Us For Availability
25
MAY 7402P109-60 MAY 7402P109-60 Contact Us For Availability
26
BRACKET, OVEN SUPPORT MAY 3801P798-51 Contact Us For Availability
27
MAY 3401F082-45 MAY 3401F082-45 Contact Us For Availability
28
SOCKET, LIGHT MAY 3196701 Contact Us For Availability
30
Latch, Door Lock MAY 8002P104-60 Contact Us For Availability
31
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
32
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
33
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
34
BRACKET, OVEN SUPPORT MAY 3801P822-45 Contact Us For Availability
35
MAY 3196560 MAY 3196560 Contact Us For Availability
36
INSULATION, SIDE PANEL MAY W10182346 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY 7002P424-60 MAY 7002P424-60 Contact Us For Availability
NI
MAY W10243056 MAY W10243056 Contact Us For Availability
NI
MAY W10271869 MAY W10271869 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, LP CONVERSION MAY 5789A598-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, REAR UPPER COVER MAY 8273564 Contact Us For Availability
NI
MAY W10237604 MAY W10237604 Contact Us For Availability
× ![]()
