Model Maytag MGR6775BDB18 GAS RANGE – Common Parts & Diagrams

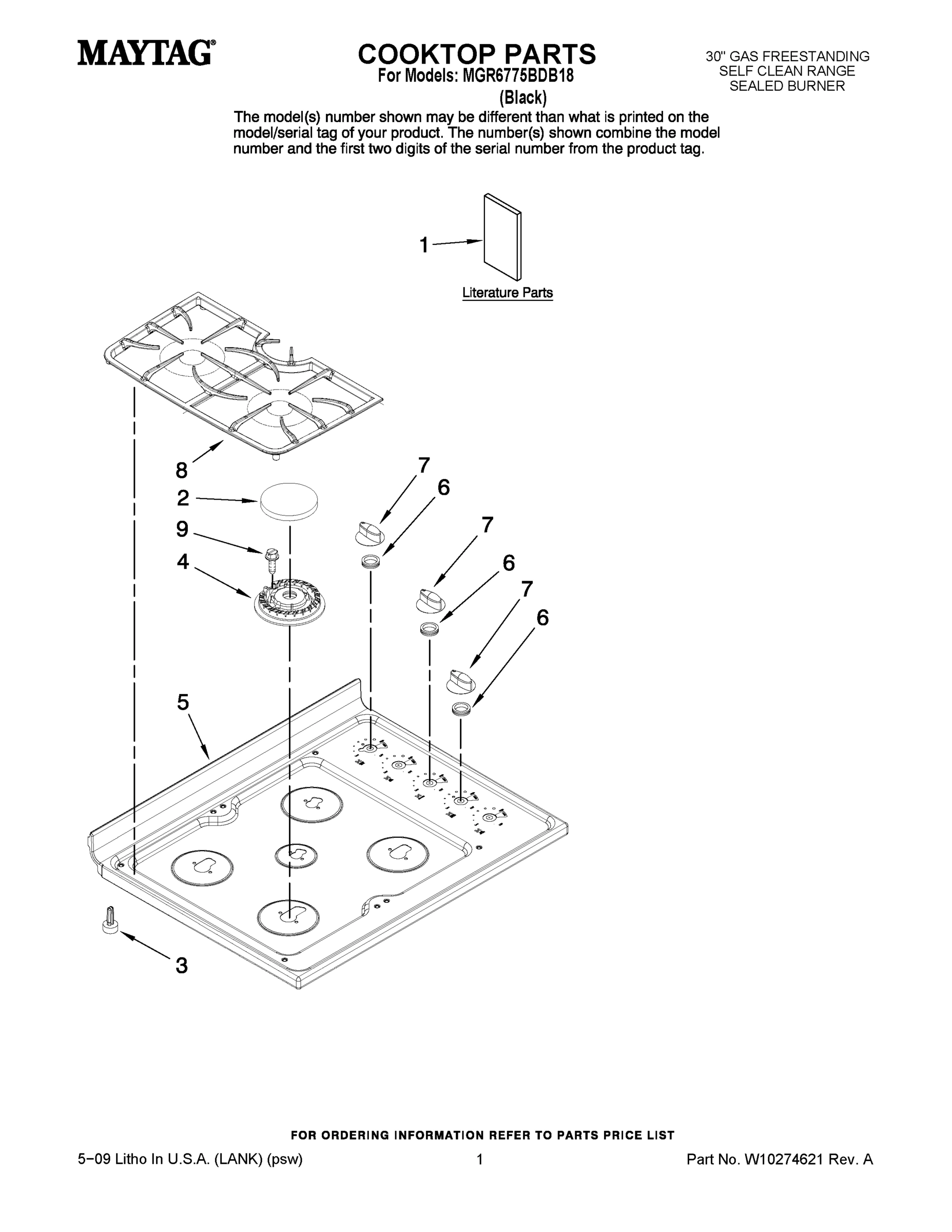

01 - COOKTOP PARTS

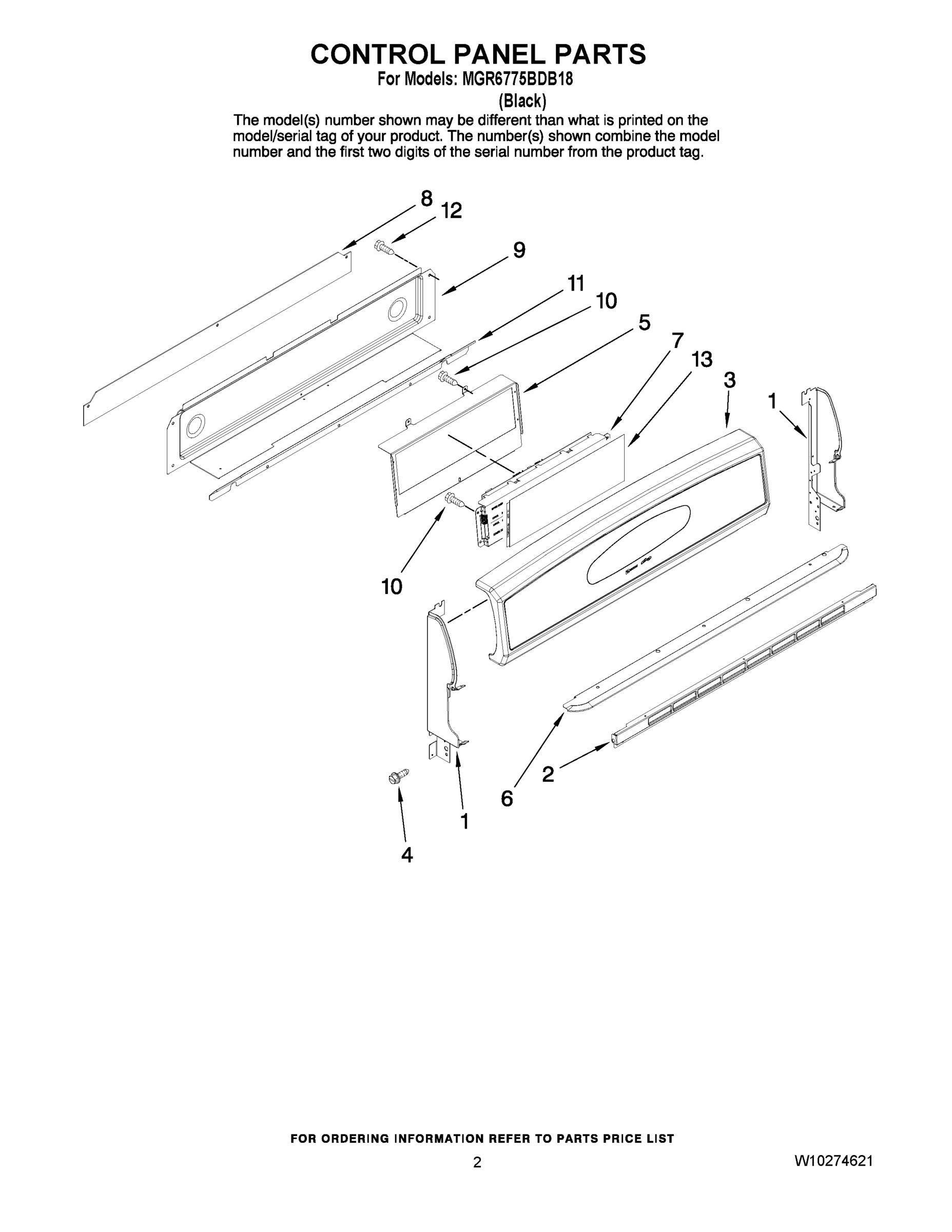

02 - CONTROL PANEL PARTS
03 - MANIFOLD PARTS
04 - CHASSIS PARTS
05 - UPPER DOOR PARTS
06 - LOWER DOOR PARTS
07 - RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR6775BDB18 GAS RANGE
1
MAY 8113P707-60 MAY 8113P707-60 Contact Us For Availability
1
DIAGRAM, WIRING MAY 8119P393-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
Screw, Valve (4) MAY 7101P639-60 Contact Us For Availability
1
MAY 3826W047-45 MAY 3826W047-45 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
HANDLE, DOOR MAY 7701P516-60 Contact Us For Availability
1
MAY 7801P159-60 MAY 7801P159-60 Contact Us For Availability
2
CAP, BURNER (LF (1)) MAY W10169983 Contact Us For Availability
2
CAP, BURNER (LR/RR (2)) MAY W10169984 Contact Us For Availability
2
CAP, BURNER (CENTER (1)) MAY W10169985 Contact Us For Availability
2
CAP, BURNER (RF (1)) MAY W10173833 Contact Us For Availability
2
MAY 3608F121-09 MAY 3608F121-09 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT FRONT 16K (1)) MAY 7527P021-60 Contact Us For Availability
2
HOLDER, ORIFICE ((LR & RR) 9.2K (2)) MAY 7527P022-60 Contact Us For Availability
2
HOLDER, ORIFICE (CENTER 5K (1)) MAY 7527P023-60 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT FRT 12.5K(1)) MAY 7527P028-60 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
GLASS, DOOR MAY 7902P797-60 Contact Us For Availability
2
MAY 7801P143-60 MAY 7801P143-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
PANEL, CONTROL MAY 2602N352-09 Contact Us For Availability
3
VALVE, SHUT OFF (INCLUDES SCREW) MAY 7502P565-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
3
Rack, Lwr Oven (2) MAY 7801P173-60 Contact Us For Availability
4
BURNER (LR/RR 9.2K (2)) MAY 7540P043-60 Contact Us For Availability
4
BURNER (CENTER 5K (1)) MAY 8286181 Contact Us For Availability
4
BURNER (RIGHT FRONT 12K(1)) MAY 8286182 Contact Us For Availability
4
BURNER (LEFT FRONT 16K (1)) MAY 8286183 Contact Us For Availability
4
TUBING, REGULATOR-MANIFOLD MAY 7506P422-60 Contact Us For Availability
4
Panel, Side MAY 2618F194-70 Contact Us For Availability
4
MAY 7902P521-60 MAY 7902P521-60 Contact Us For Availability
4
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
4
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
5
COOKTOP MAY 2001N219-09 Contact Us For Availability
5
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
5
HARNESS, IGNITER (WITH SWITCHES) MAY 7450P106-60 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
6
Grommet, Knob (5) MAY 8285469 Contact Us For Availability
6
MAY 3604F398-09 MAY 3604F398-09 Contact Us For Availability
6
Ignitor, Top Burner (5) MAY 7432M126-60 Contact Us For Availability
6
MAY 3823F015-51 MAY 3823F015-51 Contact Us For Availability
6
Screw (10ABx1/4P) MAY 7101P208-60 Contact Us For Availability
7
KNOB, CONTROL (5) MAY 7733P423-60 Contact Us For Availability
7
CONTROL (GAS) MAY W10166969 Contact Us For Availability
7
MAY 7513P529-60 MAY 7513P529-60 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
Baffle, Door MAY 3601F354-45 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P681-60 Contact Us For Availability
8
MAY 7518F287-60 MAY 7518F287-60 Contact Us For Availability
8
MAY 8036P025-60 MAY 8036P025-60 Contact Us For Availability
8
VALVE (CENTER 5K (1)) MAY 7502P561-60 Contact Us For Availability
8
VALVE ((LR/RR/RF)9.2K (3)) MAY 7502P562-60 Contact Us For Availability
8
VALVE (LEFT FRONT 16K (1)) MAY 7502P564-60 Contact Us For Availability
8
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
SUPPORT, GLASS MAY 3807F708-70 Contact Us For Availability
9
MAY 4005F805-51 MAY 4005F805-51 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
MAY 4003F070-51 MAY 4003F070-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7505P323-60 MAY 7505P323-60 Contact Us For Availability
10
SENSOR, OVEN (LOWER OVEN) MAY 7430P041-60 Contact Us For Availability
10
Sensor, Oven (Upper Oven) MAY 7430P045-60 Contact Us For Availability
10
MAY 3804F179-45 MAY 3804F179-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
MAY 7505P324-60 MAY 7505P324-60 Contact Us For Availability
11
Switch, Light-Assy MAY 7450P108-60 Contact Us For Availability
11
GLASS, DOOR MAY 7902P799-60 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7510P089-60 MAY 7510P089-60 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
OVERLAY, CONTROL MAY 7728P503-60 Contact Us For Availability
13
MAY 7432P130-60 MAY 7432P130-60 Contact Us For Availability
13
Igniter (Bake) MAY 7432P143-60 Contact Us For Availability
13
MAY 4005F743-51 MAY 4005F743-51 Contact Us For Availability
14
MAY 7506P429-60 MAY 7506P429-60 Contact Us For Availability
14
MAY 4005F655-51 MAY 4005F655-51 Contact Us For Availability
14
MAY 7101P543-60 MAY 7101P543-60 Contact Us For Availability
14
TRIM, DOOR (RT) MAY 3608F116-70 Contact Us For Availability
15
MAY 7507P400-60 MAY 7507P400-60 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
TRIM, DOOR (LT) MAY 3608F117-70 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY 4002F341-51 MAY 4002F341-51 Contact Us For Availability
16
TAPE MAY W10250536 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
MAY 3807F647-45 MAY 3807F647-45 Contact Us For Availability
17
TRIM, DOOR TOP MAY 3608F141-70 Contact Us For Availability
18
TRIM, DOOR (RT) MAY 3608F118-70 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 3807F643-45 MAY 3807F643-45 Contact Us For Availability
19
MAY 3807F644-45 MAY 3807F644-45 Contact Us For Availability
19
TRIM, DOOR (LT) MAY 3608F119-70 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
MAY 3601F339-45 MAY 3601F339-45 Contact Us For Availability
20
RETAINER, INSULATION MAY 3804F212-45 Contact Us For Availability
20
MAY 7103P039-60 MAY 7103P039-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
20
SCREW, TRIM (4) MAY 7101P635-60 Contact Us For Availability
21
MAY 5171P603-60 MAY 5171P603-60 Contact Us For Availability
21
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
MAY 4005F695-45 MAY 4005F695-45 Contact Us For Availability
22
MAY 7106P141-60 MAY 7106P141-60 Contact Us For Availability
23
Screw, Igniter MAY 8273062 Contact Us For Availability
23
MAY 3807F580-51 MAY 3807F580-51 Contact Us For Availability
24
TUBING, BAKE BURNER (WITH ORIFICE) MAY 7507P395-60 Contact Us For Availability
24
Light Assy. (2) MAY 7407P179-60 Contact Us For Availability
24
MAY 7106P110-60 MAY 7106P110-60 Contact Us For Availability
25
MAY 7101P282-60 MAY 7101P282-60 Contact Us For Availability
25
MAY 7501P221-60 MAY 7501P221-60 Contact Us For Availability
25
MAY 899138-001 MAY 899138-001 Contact Us For Availability
26
TUBING, BROIL BURNER (WITH ORIFICE) MAY 7507P396-60 Contact Us For Availability
26
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
27
MAY 3801F681-45 MAY 3801F681-45 Contact Us For Availability
27
MAY 4011F524-51 MAY 4011F524-51 Contact Us For Availability
27
MAY 4011F525-51 MAY 4011F525-51 Contact Us For Availability
28
MAY 3801F691-51 MAY 3801F691-51 Contact Us For Availability
28
MAY 3601F321-50 MAY 3601F321-50 Contact Us For Availability
29
TUBING (RIGHT) (2) MAY 7506P378-60 Contact Us For Availability
29
MAY 3826W042-45 MAY 3826W042-45 Contact Us For Availability
30
TUBING (LEFT) (2) MAY 7506P379-60 Contact Us For Availability
30
MAY 4022W055-45 MAY 4022W055-45 Contact Us For Availability
31
TUBING (CENTER) MAY 7506P417-60 Contact Us For Availability
31
MAY 3826W052-45 MAY 3826W052-45 Contact Us For Availability
32
MAY 7506P428-60 MAY 7506P428-60 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
MAY 7431P067-60 MAY 7431P067-60 Contact Us For Availability
33
Seal, Front Frame MAY 7212P066-60 Contact Us For Availability
34
MAY 4005F736-45 MAY 4005F736-45 Contact Us For Availability
35
MAY 3601F308-19 MAY 3601F308-19 Contact Us For Availability
36
MAY 2205F055-19 MAY 2205F055-19 Contact Us For Availability
37
MAY 2205F051-19 MAY 2205F051-19 Contact Us For Availability
38
MAY 3608F088-70 MAY 3608F088-70 Contact Us For Availability
39
MAY 3804F212-47 MAY 3804F212-47 Contact Us For Availability
40
MAY 7002P310-60 MAY 7002P310-60 Contact Us For Availability
40
MAY 7002P413-60 MAY 7002P413-60 Contact Us For Availability
40
MAY 7002P415-60 MAY 7002P415-60 Contact Us For Availability
40
MAY 7002P419-60 MAY 7002P419-60 Contact Us For Availability
40
MAY W10170906 MAY W10170906 Contact Us For Availability
40
MAY W10172248 MAY W10172248 Contact Us For Availability
NI
Kit, LP Gas MAY 5789A602-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P462-60 MAY 5171P462-60 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
HARNESS, MAIN MAY 5171P602-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY W10202387 MAY W10202387 Contact Us For Availability
× ![]()
