Model Maytag MGR6751BDW17 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

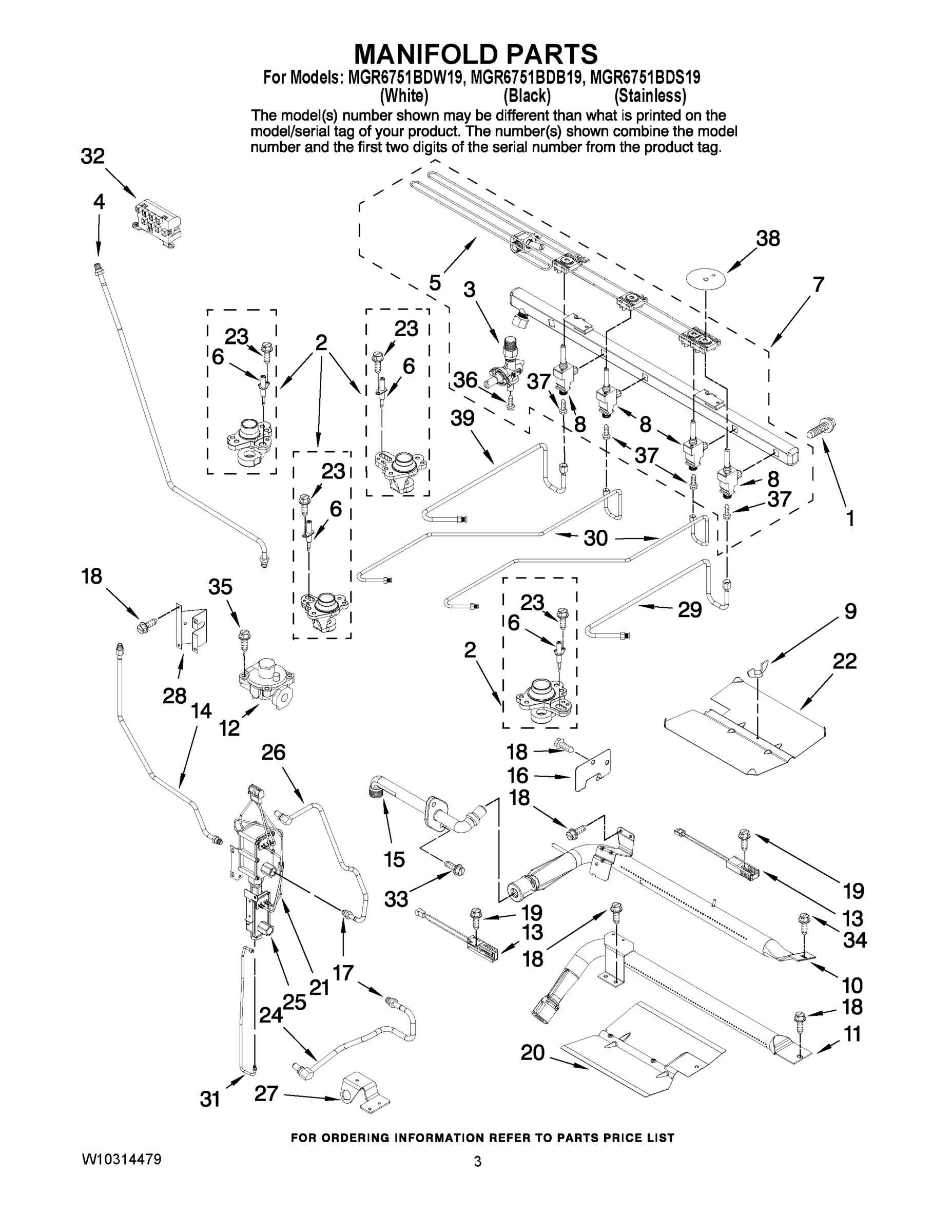

03 - MANIFOLD PARTS

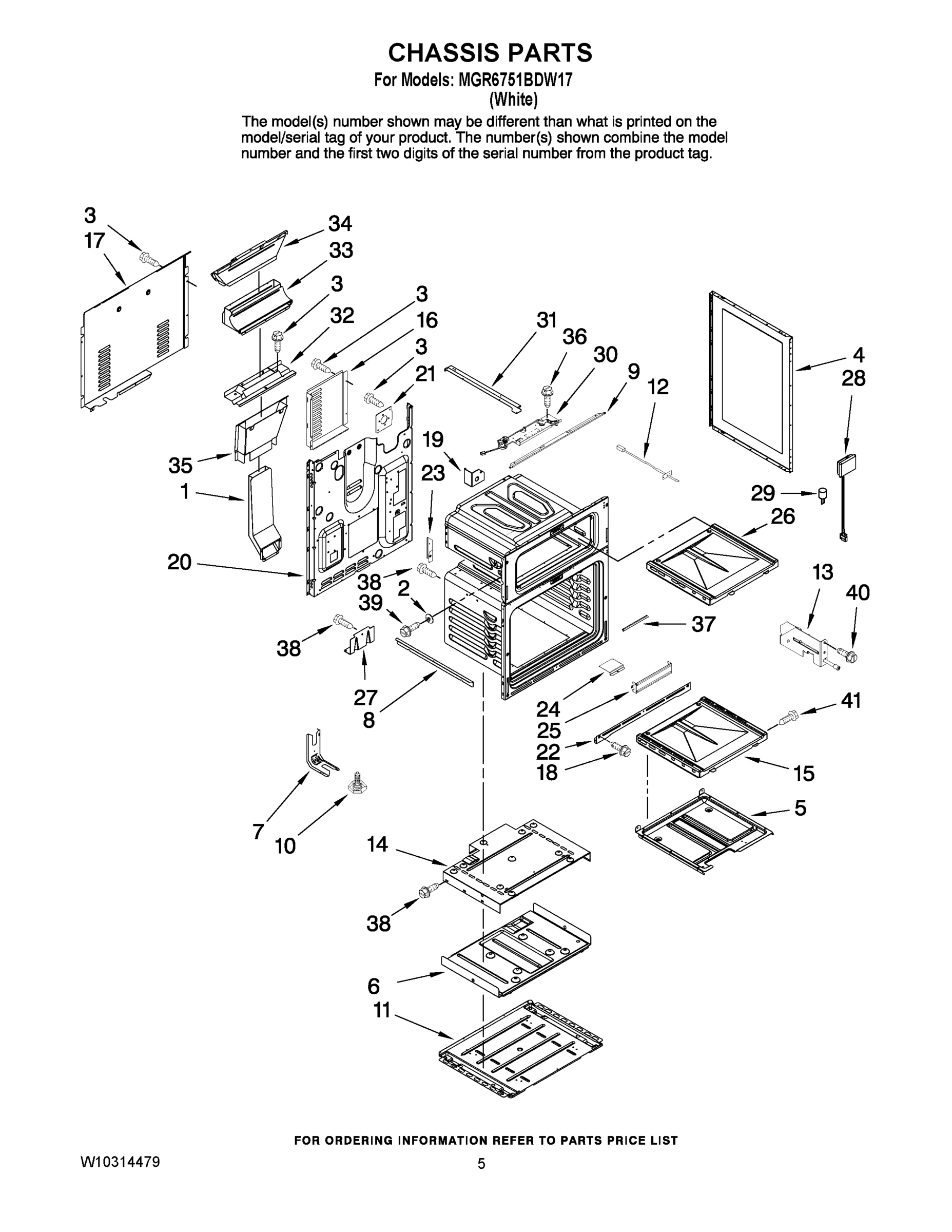

04 - CHASSIS PARTS

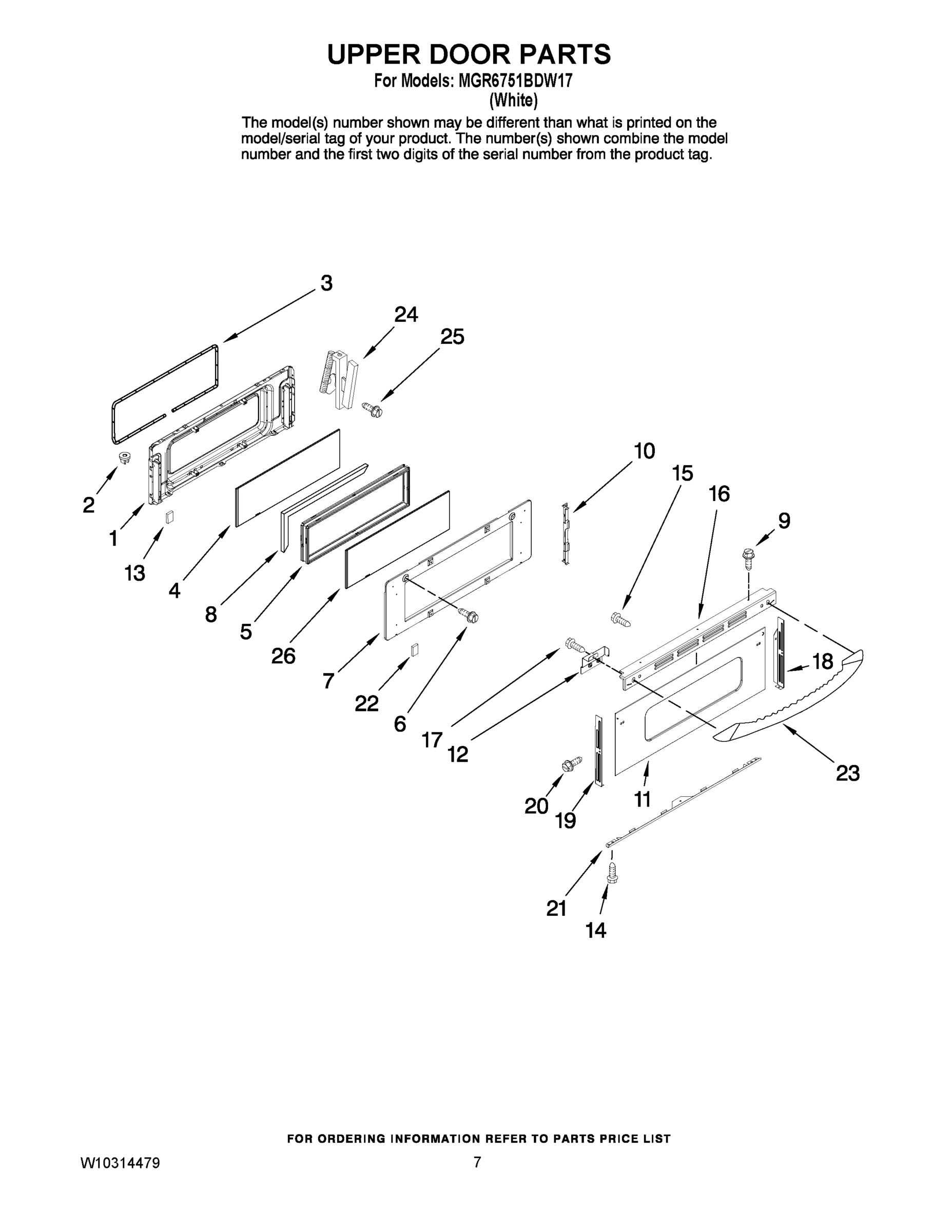

05 - UPPER DOOR PARTS

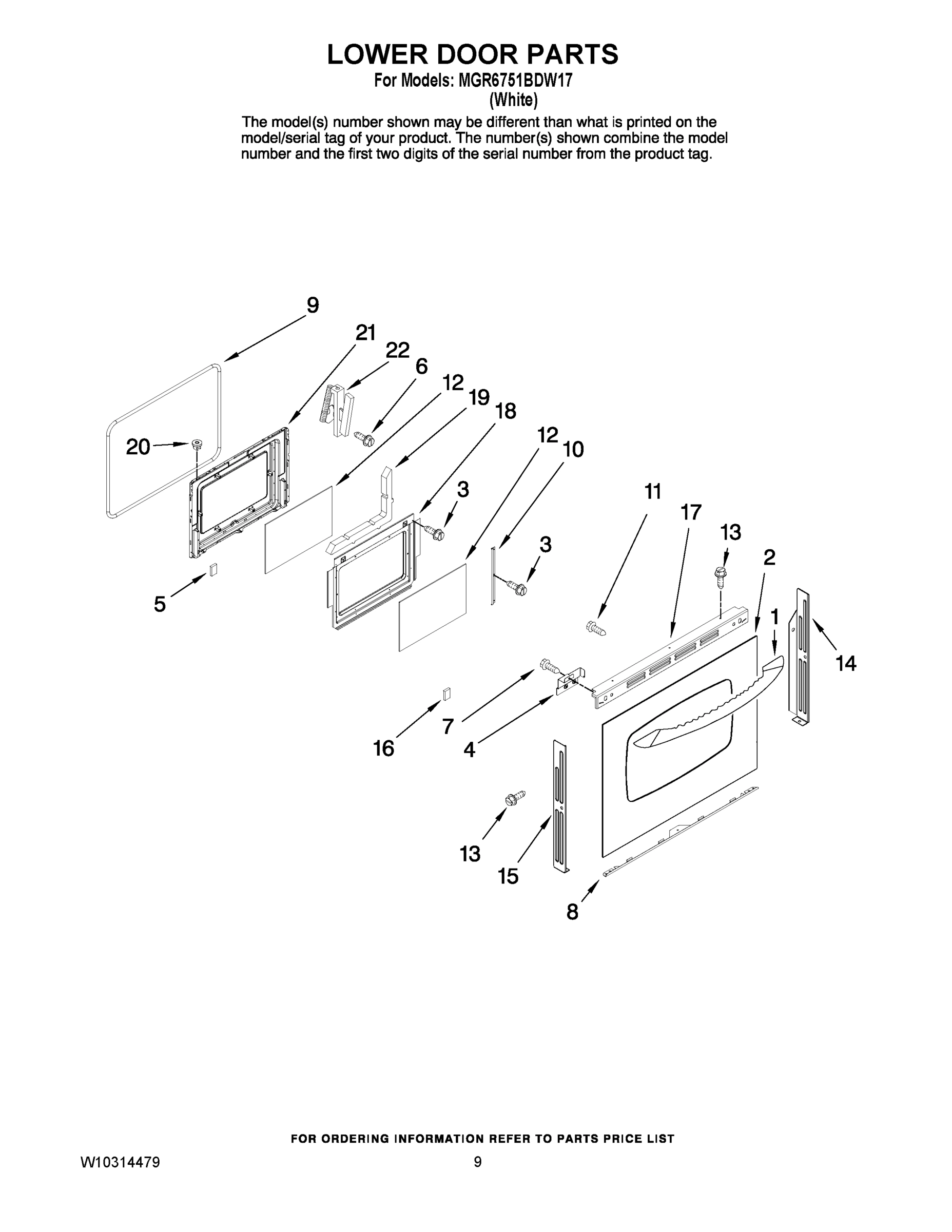

06 - LOWER DOOR PARTS

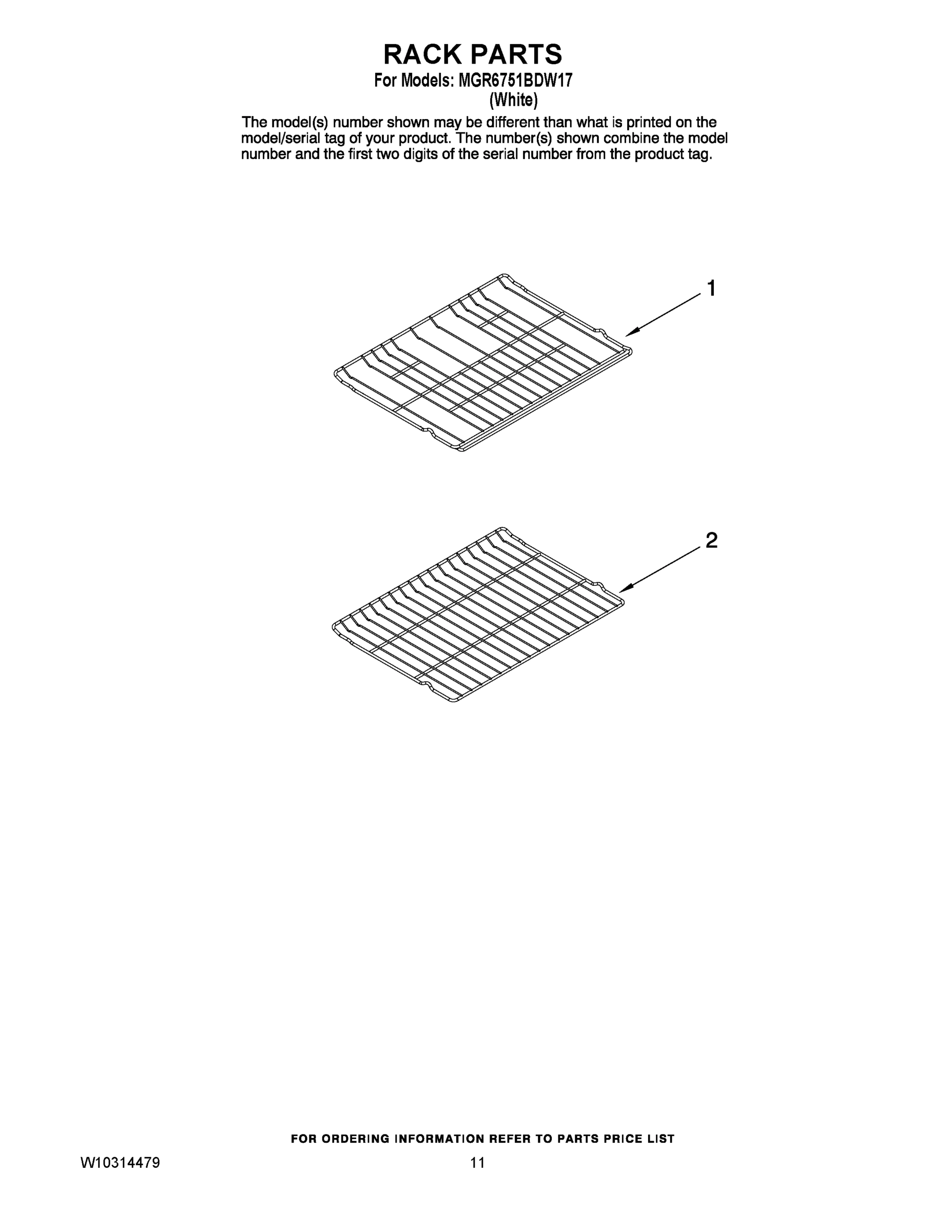

07 - RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR6751BDW17 GAS RANGE
1
MAY 8113P739-60 MAY 8113P739-60 Contact Us For Availability
1
WIRING DIAGRAM MAY 8119P218-60 Contact Us For Availability
1
MAY W10285258 MAY W10285258 Contact Us For Availability
1
SUPPORT, BACKGUARD (LEFT) MAY 3807F733-71 Contact Us For Availability
1
SUPPORT, BACKGUARD (RIGHT) MAY 3807F734-71 Contact Us For Availability
1
SCREW, 8-32X.375 MAY 7101P548-60 Contact Us For Availability
1
MAY 3826W047-45 MAY 3826W047-45 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
HANDLE, DOOR MAY 7701P517-60 Contact Us For Availability
1
RACK, UPPER OVEN MAY W10273816 Contact Us For Availability
2
CAP, BURNER (LR/RR/RF) MAY 7504P140-60 Contact Us For Availability
2
CAP, BURNER (LF) MAY 7504P141-60 Contact Us For Availability
2
TRIM, VENT MAY 3608F121-37 Contact Us For Availability
2
HOLDER, ORIFICE ((LF)) MAY 7527P021-60 Contact Us For Availability
2
HOLDER, ORIFICE (LR/RR/RF) MAY 7527P022-60 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
KIT, DOOR GLASS (INCL. FOIL TAPE) MAY 7902P757-60 Contact Us For Availability
2
Rack, Lwr Oven (2) MAY 7801P173-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
PANEL, CONTROL (INCL. OVERLAY) MAY 2602N352-81 Contact Us For Availability
3
VALVE, SHUT OFF MAY 7502P565-60 Contact Us For Availability
3
SCREW, 8AB-18X.37 MAY 7101P426-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
4
Burner (LF) MAY 8286183 Contact Us For Availability
4
BURNER (LR/RR/RF) MAY W10194076 Contact Us For Availability
4
SCREW MAY 7101P663-60 Contact Us For Availability
4
TUBING, REGULATOR TO MANIFOLD MAY 7506P422-60 Contact Us For Availability
4
PANEL, SIDE (2) MAY 2618F194-71 Contact Us For Availability
4
MAY 7902P521-60 MAY 7902P521-60 Contact Us For Availability
4
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
4
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
5
COOKTOP MAY 2001N298-81 Contact Us For Availability
5
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
5
MAY 7450P107-60 MAY 7450P107-60 Contact Us For Availability
5
MAY 3401F090-45 MAY 3401F090-45 Contact Us For Availability
5
MAY 3401F091-45 MAY 3401F091-45 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
6
GROMMET, KNOB (4) MAY 8285469 Contact Us For Availability
6
MAY 3604F398-81 MAY 3604F398-81 Contact Us For Availability
6
Ignitor, Top Burner (4) MAY 7432M126-60 Contact Us For Availability
6
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
6
RETAINER, INSUL BOTTOM MAY 3804F212-45 Contact Us For Availability
6
Screw MAY 7101P208-60 Contact Us For Availability
7
KNOB, CONTROL (4) MAY 7733P425-60 Contact Us For Availability
7
MAY W10166969 MAY W10166969 Contact Us For Availability
7
PIPE, MANIFOLD ASSEMBLY MAY 7513D535-60 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
Baffle, Door MAY 3601F354-45 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P681-60 Contact Us For Availability
8
GRATE, BURNER (2) MAY 7518P319-60 Contact Us For Availability
8
MAY 8036P025-60 MAY 8036P025-60 Contact Us For Availability
8
VALVE ((LR/RR/RF)9.2K) MAY 7502P562-60 Contact Us For Availability
8
VALVE ((LF)16K) MAY 7502P564-60 Contact Us For Availability
8
MAY 3823F015-51 MAY 3823F015-51 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
SUPPORT, GLASS MAY 3807F708-71 Contact Us For Availability
9
SCREW (8) MAY 3368921 Contact Us For Availability
9
MAY 4005F805-51 MAY 4005F805-51 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7505P323-60 MAY 7505P323-60 Contact Us For Availability
10
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
10
MAY 3804F179-45 MAY 3804F179-45 Contact Us For Availability
10
RETAINER, GLASS MAY 3804F219-45 Contact Us For Availability
11
MAY 7728P502-60 MAY 7728P502-60 Contact Us For Availability
11
MAY 7505P324-60 MAY 7505P324-60 Contact Us For Availability
11
MAY 4003F070-51 MAY 4003F070-51 Contact Us For Availability
11
BAFFLE, DOOR (INCL. FOIL TAPE) MAY 7902P745-60 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
12
SCREW, 8AB X 3/8 MAY 7101P313-60 Contact Us For Availability
12
MAY 7510P089-60 MAY 7510P089-60 Contact Us For Availability
12
SENSOR, OVEN (LOWER OVEN) MAY 7430P041-60 Contact Us For Availability
12
Sensor, Oven (Upper Oven) MAY 7430P045-60 Contact Us For Availability
12
MAY 7902P472-60 MAY 7902P472-60 Contact Us For Availability
13
MAY 7101P609-60 MAY 7101P609-60 Contact Us For Availability
13
MAY 7432P130-60 MAY 7432P130-60 Contact Us For Availability
13
Igniter (Bake) MAY 7432P143-60 Contact Us For Availability
13
MAY 7450P108-60 MAY 7450P108-60 Contact Us For Availability
13
SCREW MAY 7101P636-60 Contact Us For Availability
14
SCREW, 8B X 3/8 MAY 7101P338-60 Contact Us For Availability
14
MAY 7506P429-60 MAY 7506P429-60 Contact Us For Availability
14
COVER, RETAINER MAY 4005F695-45 Contact Us For Availability
14
TRIM, DOOR (RT) MAY 3608F116-71 Contact Us For Availability
15
BRACKET, CONTROL BOARD MAY 3801F844-51 Contact Us For Availability
15
MAY 7507P400-60 MAY 7507P400-60 Contact Us For Availability
15
MAY 2205F051-19 MAY 2205F051-19 Contact Us For Availability
15
BAFFLE, DOOR MAY 3608F117-71 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY 4005F743-51 MAY 4005F743-51 Contact Us For Availability
16
TAPE MAY W10250536 Contact Us For Availability
17
MAY 7103P195-60 MAY 7103P195-60 Contact Us For Availability
17
COVER, MAIN WIRE MAY 4005F655-51 Contact Us For Availability
17
TRIM, DOOR TOP MAY 3608F141-71 Contact Us For Availability
18
TRIM, DOOR (RT) MAY 3608F118-71 Contact Us For Availability
18
BAFFLE, DOOR MAY 3601F353-45 Contact Us For Availability
19
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
19
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
19
TRIM, DOOR (LT) MAY 3608F119-71 Contact Us For Availability
19
MAY 7002P221-60 MAY 7002P221-60 Contact Us For Availability
20
MAY 3601F339-45 MAY 3601F339-45 Contact Us For Availability
20
MAY W10180198 MAY W10180198 Contact Us For Availability
20
NUT, SNAP MAY 7103P039-60 Contact Us For Availability
21
MAY 5171P603-60 MAY 5171P603-60 Contact Us For Availability
21
MAY 3807F647-45 MAY 3807F647-45 Contact Us For Availability
21
MAY 2402W271-19 MAY 2402W271-19 Contact Us For Availability
22
MAY 3601F358-45 MAY 3601F358-45 Contact Us For Availability
22
TRIM, KICKPLATE MAY 3608F088-71 Contact Us For Availability
22
MAY 7106P141-60 MAY 7106P141-60 Contact Us For Availability
23
MAY 3807F643-45 MAY 3807F643-45 Contact Us For Availability
23
MAY 3807F644-45 MAY 3807F644-45 Contact Us For Availability
24
MAY 7507P395-60 MAY 7507P395-60 Contact Us For Availability
24
MAY 4005F736-45 MAY 4005F736-45 Contact Us For Availability
24
MAY 7106P148-60 MAY 7106P148-60 Contact Us For Availability
25
MAY 7101P282-60 MAY 7101P282-60 Contact Us For Availability
25
MAY 7501P221-60 MAY 7501P221-60 Contact Us For Availability
25
MAY 3601F308-19 MAY 3601F308-19 Contact Us For Availability
26
MAY 7507P396-60 MAY 7507P396-60 Contact Us For Availability
26
MAY 2205F055-19 MAY 2205F055-19 Contact Us For Availability
26
MAY 7902P520-60 MAY 7902P520-60 Contact Us For Availability
27
MAY 3801F681-45 MAY 3801F681-45 Contact Us For Availability
27
MAY 3807F580-51 MAY 3807F580-51 Contact Us For Availability
28
MAY 3801F691-51 MAY 3801F691-51 Contact Us For Availability
28
Light Assy. (2) MAY 7407P179-60 Contact Us For Availability
29
Tubing (RF) MAY 7506P378-60 Contact Us For Availability
29
MAY 899138-001 MAY 899138-001 Contact Us For Availability
30
Tubing (LR & LF) MAY 7506P379-60 Contact Us For Availability
30
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
31
MAY 7506P428-60 MAY 7506P428-60 Contact Us For Availability
31
MAY 4011F524-51 MAY 4011F524-51 Contact Us For Availability
31
MAY 4011F525-51 MAY 4011F525-51 Contact Us For Availability
32
Module, Spark MAY 7431P064-60 Contact Us For Availability
32
MAY 3601F321-50 MAY 3601F321-50 Contact Us For Availability
33
MAY 7101P502-60 MAY 7101P502-60 Contact Us For Availability
33
MAY 3826W042-45 MAY 3826W042-45 Contact Us For Availability
34
SCREW, 10AB X .50 MAY 7101P360-60 Contact Us For Availability
34
MAY 4022W055-45 MAY 4022W055-45 Contact Us For Availability
35
SCREW, 8-32 X 3/8 MAY 7101P074-60 Contact Us For Availability
35
MAY 3826W052-45 MAY 3826W052-45 Contact Us For Availability
36
SCREW, VALVE SHUT-OFF MAY 7101P640-60 Contact Us For Availability
36
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
37
SCREW, 10-24 X.40 MAY 7101P639-60 Contact Us For Availability
37
Seal, Front Frame MAY 7212P066-60 Contact Us For Availability
38
COVER,VALVE SWITCH MAY 7724P194-60 Contact Us For Availability
39
Tubing (RR) MAY 7506P418-60 Contact Us For Availability
39
SCREW, 8AB MAY 7101P618-60 Contact Us For Availability
41
SCREW, 8AB X 1/2 MAY 7101P385-60 Contact Us For Availability
NI
KIT, LP CONVERSION MAY 5789A602-60 Contact Us For Availability
NI
MAY 7002P310-60 MAY 7002P310-60 Contact Us For Availability
NI
MAY 7002P413-60 MAY 7002P413-60 Contact Us For Availability
NI
MAY 7002P415-60 MAY 7002P415-60 Contact Us For Availability
NI
MAY 7002P419-60 MAY 7002P419-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P462-60 MAY 5171P462-60 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
MAY 5171P602-60 MAY 5171P602-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10202388 MAY W10202388 Contact Us For Availability
× ![]()
