Model Maytag MGR5765QDB1 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

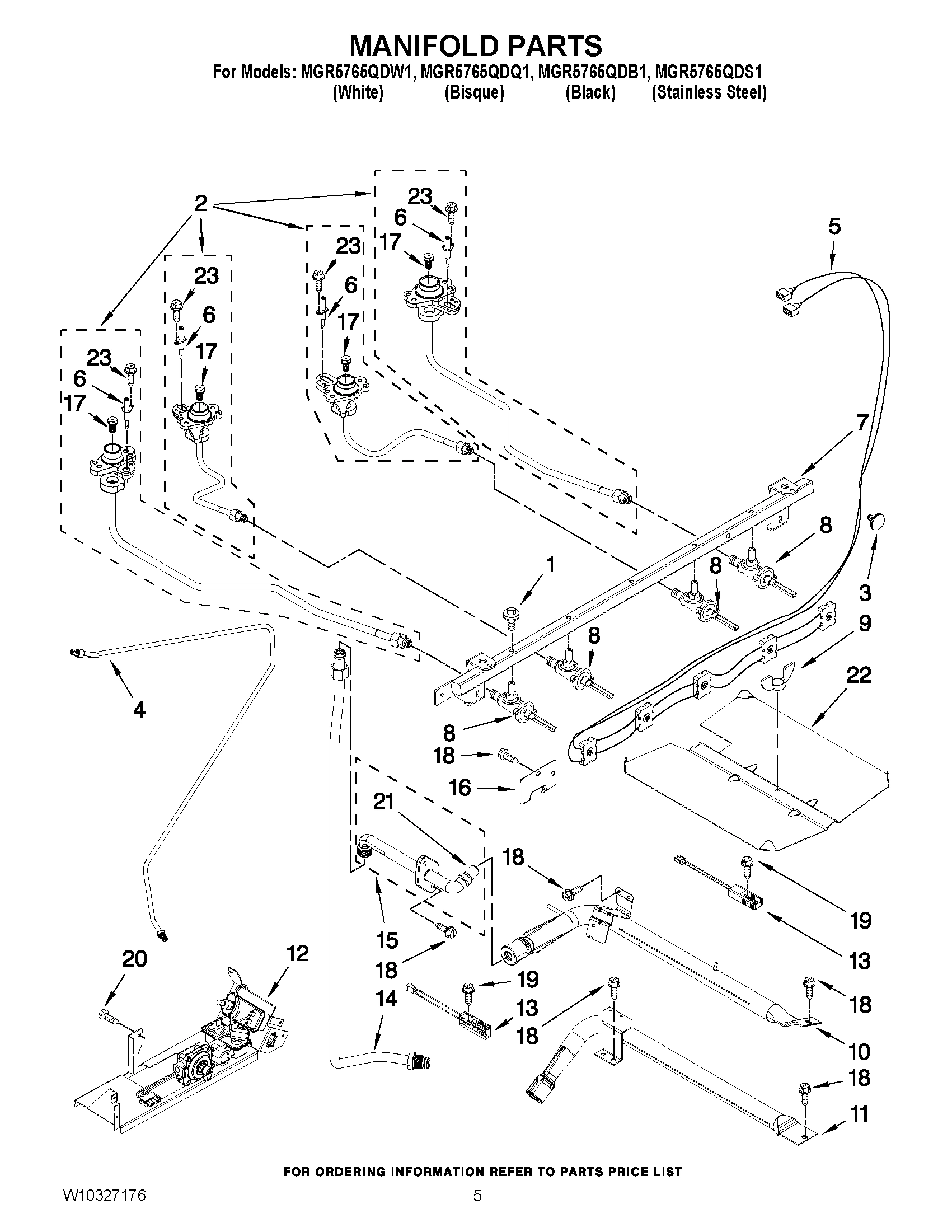

03 - CHASSIS PARTS
04 - MANIFOLD PARTS

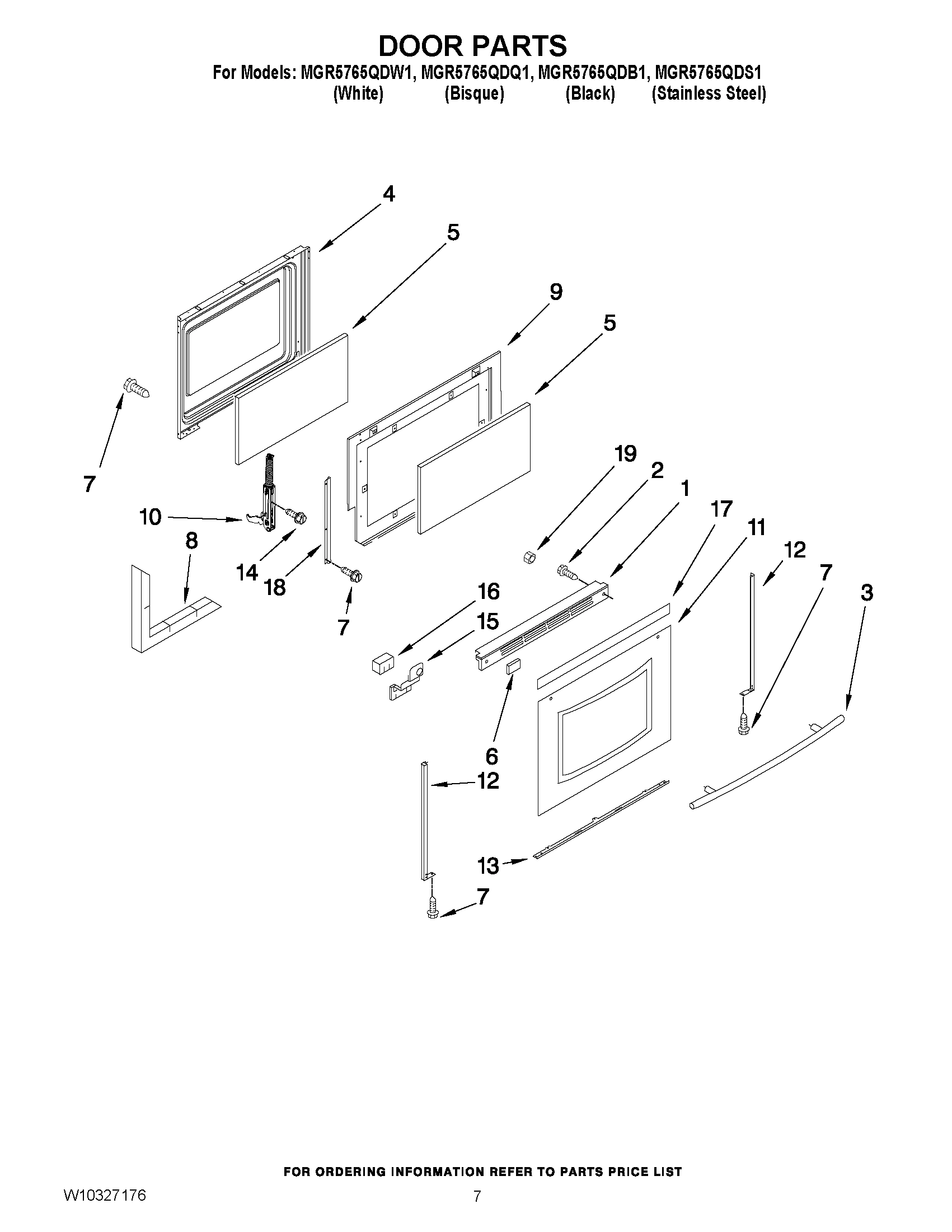

05 - DOOR PARTS

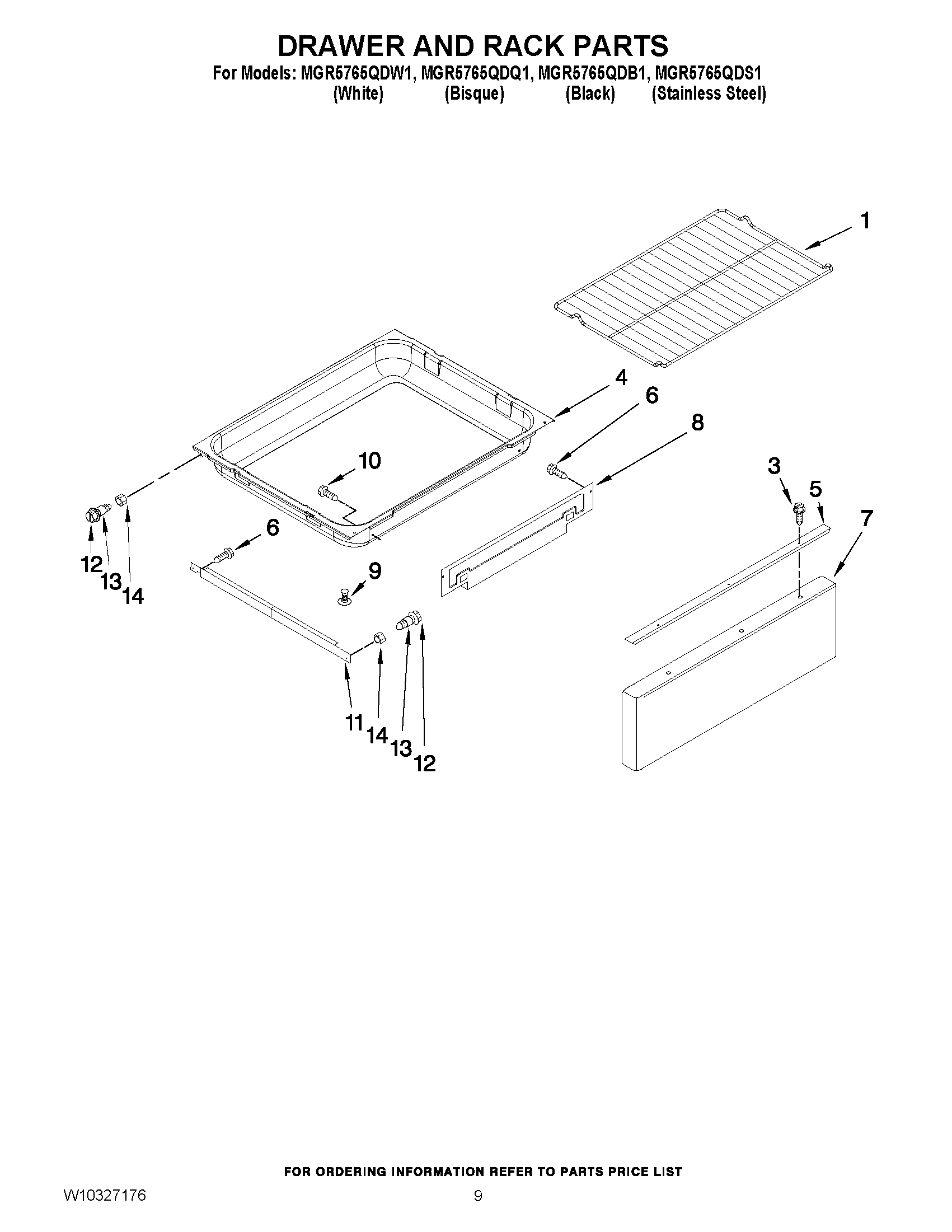

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR5765QDB1 GAS RANGE
1
MAY 8101P571-60 MAY 8101P571-60 Contact Us For Availability
1
OWNERS MANUAL MAY 8113P734-60 Contact Us For Availability
1
MAY 8119P327-60 MAY 8119P327-60 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY 3807F702-70 Contact Us For Availability
1
Endcap, Right Hand (White) MAY 3807F702-71 Contact Us For Availability
1
Endcap, Right Hand (Bisque) MAY 3807F702-78 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY 3807F703-70 Contact Us For Availability
1
Endcap, Left Hand (White) MAY 3807F703-71 Contact Us For Availability
1
Endcap, Left Hand (Bisque) MAY 3807F703-78 Contact Us For Availability
1
MAY 8026P080-60 MAY 8026P080-60 Contact Us For Availability
1
SCREW, VALVE MAY 7101P681-60 Contact Us For Availability
1
Trim, Top (Black) MAY 3608F140-70 Contact Us For Availability
1
Trim, Top (White) MAY 3608F140-71 Contact Us For Availability
1
Trim, Top (Bisque) MAY 3608F140-78 Contact Us For Availability
1
Rack, Oven MAY W10179196 Contact Us For Availability
2
CAP, BURNER LEFT REAR (BLACK) MAY 7504P136-60 Contact Us For Availability
2
CAP, BURNER LF,RR (BLACK) MAY 7504P137-60 Contact Us For Availability
2
CAP, BURNER RIGHT FRONT (BLACK) MAY 7504P138-60 Contact Us For Availability
2
CAP, BURNER LEFT REAR (GRAY) MAY 7504P139-60 Contact Us For Availability
2
CAP, BURNER (LF)(RR) (GRAY) MAY 7504P140-60 Contact Us For Availability
2
CAP, BURNER RIGHT FRONT (GRAY) MAY 7504P141-60 Contact Us For Availability
2
MAY 7504P142-60 MAY 7504P142-60 Contact Us For Availability
2
MAY 7504P143-60 MAY 7504P143-60 Contact Us For Availability
2
MAY 7504P144-60 MAY 7504P144-60 Contact Us For Availability
2
HEAT SHIELD,VISOR (BLACK) MAY 3604F382-09 Contact Us For Availability
2
Heat Shield, Visor (White) MAY 3604F382-81 Contact Us For Availability
2
HEAT SHIELD,VISOR (BISQUE) MAY 3604F382-88 Contact Us For Availability
2
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
2
MAY 7527P095-60 MAY 7527P095-60 Contact Us For Availability
2
MAY 7527P098-60 MAY 7527P098-60 Contact Us For Availability
2
MAY 7527P123-60 MAY 7527P123-60 Contact Us For Availability
2
MAY 7527P124-60 MAY 7527P124-60 Contact Us For Availability
2
Screw (White) MAY 3196166 Contact Us For Availability
2
SCREW (BLACK) MAY 3196557 Contact Us For Availability
2
SCREW (BISQUE) MAY 8281194 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
MAY 2601N980-09 MAY 2601N980-09 Contact Us For Availability
3
MAY 2601N980-81 MAY 2601N980-81 Contact Us For Availability
3
MAY 2601N980-88 MAY 2601N980-88 Contact Us For Availability
3
Support, Oven Bottom MAY 3807P680-45 Contact Us For Availability
3
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
3
MAY 7701P517-60 MAY 7701P517-60 Contact Us For Availability
3
MAY 7701P518-60 MAY 7701P518-60 Contact Us For Availability
3
MAY 7701P526-60 MAY 7701P526-60 Contact Us For Availability
4
BURNER (LF,RR) MAY 7540P043-60 Contact Us For Availability
4
BURNER (LEFT REAR) MAY 8286181 Contact Us For Availability
4
BURNER (RF) MAY 8286183 Contact Us For Availability
4
MAY 7431P054-60 MAY 7431P054-60 Contact Us For Availability
4
Panel, Side (Bisque) MAY 2618F172-57 Contact Us For Availability
4
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
4
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
4
MAY 7506P361-60 MAY 7506P361-60 Contact Us For Availability
4
Liner, Door MAY 2402W297-19 Contact Us For Availability
4
Drawer MAY 3405F037-80 Contact Us For Availability
5
MAY 2001F284-09 MAY 2001F284-09 Contact Us For Availability
5
MAY 2001F284-81 MAY 2001F284-81 Contact Us For Availability
5
MAY 2001F284-88 MAY 2001F284-88 Contact Us For Availability
5
Cover, Upper MAY 4005F803-51 Contact Us For Availability
5
MAY 3604P409-51 MAY 3604P409-51 Contact Us For Availability
5
MAY 7403P982-60 MAY 7403P982-60 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
5
HANDLE, SS MODEL MAY 7701P547-60 Contact Us For Availability
6
MAY 2616N379-09 MAY 2616N379-09 Contact Us For Availability
6
MAY 2616N379-81 MAY 2616N379-81 Contact Us For Availability
6
MAY 3616N379-88 MAY 3616N379-88 Contact Us For Availability
6
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
6
IGNITOR, TOP BURNER MAY 82000311 Contact Us For Availability
6
MAY 7101P652-60 MAY 7101P652-60 Contact Us For Availability
7
MAY 7733P416-60 MAY 7733P416-60 Contact Us For Availability
7
MAY 7733P417-60 MAY 7733P417-60 Contact Us For Availability
7
MAY 7733P418-60 MAY 7733P418-60 Contact Us For Availability
7
MAY 5701M708-60 MAY 5701M708-60 Contact Us For Availability
7
MAY 5701M711-60 MAY 5701M711-60 Contact Us For Availability
7
MAY 5701M725-60 MAY 5701M725-60 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
MAY 7513P523-60 MAY 7513P523-60 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY 2416F104-70 MAY 2416F104-70 Contact Us For Availability
7
MAY 2416F104-71 MAY 2416F104-71 Contact Us For Availability
7
MAY 2416F104-78 MAY 2416F104-78 Contact Us For Availability
7
Panel, Drawer Frnt (Stainless) MAY 7760P228-60 Contact Us For Availability
8
MAY 7518P193-60 MAY 7518P193-60 Contact Us For Availability
8
MAY 7518P194-60 MAY 7518P194-60 Contact Us For Availability
8
MAY 7518P195-60 MAY 7518P195-60 Contact Us For Availability
8
SWITCH, ROCKER MAY 7403P757-60 Contact Us For Availability
8
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
8
VALVE (CENTER) MAY 7502P499-60 Contact Us For Availability
8
VALVE (LR,LF,RR) MAY 7502P500-60 Contact Us For Availability
8
MAY 7502P501-60 MAY 7502P501-60 Contact Us For Availability
8
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
8
Panel, Inner MAY 3605P337-51 Contact Us For Availability
9
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
9
Hinge, Receiver MAY 7106P125-60 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
Retainer, Insulation MAY 3601F380-51 Contact Us For Availability
9
Drawer, Stop MAY 8038P037-60 Contact Us For Availability
10
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
10
MAY W10160904 MAY W10160904 Contact Us For Availability
10
Hinge, Door MAY 7106P124-60 Contact Us For Availability
10
MAY 6196173 MAY 6196173 Contact Us For Availability
11
MAY 4005F748-51 MAY 4005F748-51 Contact Us For Availability
11
MAY 2205F053-19 MAY 2205F053-19 Contact Us For Availability
11
MAY 7505P331-60 MAY 7505P331-60 Contact Us For Availability
11
GLASS, OUTER DOOR (WHITE) MAY 7902P781-60 Contact Us For Availability
11
GLASS, OUTER DOOR (BISQUE) MAY 7902P782-60 Contact Us For Availability
11
Glass, Outer Door (Black) MAY 7902P791-60 Contact Us For Availability
11
GLASS, OUTER DOOR (STAINLESS) MAY 7902P803-60 Contact Us For Availability
11
RAIL, DRAWER MAY 3406P034-51 Contact Us For Availability
12
MAY 3604P372-51 MAY 3604P372-51 Contact Us For Availability
12
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
12
MAY 7501P233-60 MAY 7501P233-60 Contact Us For Availability
12
MAY 3608F126-70 MAY 3608F126-70 Contact Us For Availability
12
MAY 3608F126-71 MAY 3608F126-71 Contact Us For Availability
12
Trim, Door Side (Bisque) MAY 3608F126-78 Contact Us For Availability
12
Shaft, Storage Drawer Roller MAY 7118P032-60 Contact Us For Availability
13
BOTTOM, WIRE COVER MAY 4005P711-51 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
Igniter (Broil) MAY 7432P106-60 Contact Us For Availability
13
MAY 7432P136-60 MAY 7432P136-60 Contact Us For Availability
13
Trim, Lower Door (Black) MAY 3608F092-70 Contact Us For Availability
13
Trim, Lower Door (White) MAY 3608F092-71 Contact Us For Availability
13
Trim, Lower Door (Bisque) MAY 3608F092-78 Contact Us For Availability
13
MAY W10272883 MAY W10272883 Contact Us For Availability
14
Screw MAY 7101P282-60 Contact Us For Availability
14
MAY 7506P368-60 MAY 7506P368-60 Contact Us For Availability
15
MAY 3605P146-51 MAY 3605P146-51 Contact Us For Availability
15
MAY 7507P357-60 MAY 7507P357-60 Contact Us For Availability
15
MAY 3801P857-45 MAY 3801P857-45 Contact Us For Availability
15
MAY 3801P858-45 MAY 3801P858-45 Contact Us For Availability
16
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY 7002P484-60 MAY 7002P484-60 Contact Us For Availability
17
MAY 3196160 MAY 3196160 Contact Us For Availability
17
ORIFICE, BURNER (LEFT REAR) MAY 7509P120-60 Contact Us For Availability
17
ORIFICE, BURNER (LF,RR) MAY 7509P122-60 Contact Us For Availability
17
ORIFICE, BURNER (RIGHT FRONT) MAY 7509P124-60 Contact Us For Availability
17
TAPE, FOIL 3`` MAY W10208311 Contact Us For Availability
18
MAY 3196178 MAY 3196178 Contact Us For Availability
18
MAY 4005F753-45 MAY 4005F753-45 Contact Us For Availability
18
BRACKET, WINDOW (2) MAY 3801F886-51 Contact Us For Availability
19
COVER, LOWER WIRE MAY 4005P703-51 Contact Us For Availability
19
MAY 3196385 MAY 3196385 Contact Us For Availability
19
NUT MAY 7103P190-60 Contact Us For Availability
20
Back, Main MAY 4002F347-51 Contact Us For Availability
21
Seal, Oven MAY W10162385 Contact Us For Availability
21
MAY W10247147 MAY W10247147 Contact Us For Availability
22
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
22
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
23
MAY 3196154 MAY 3196154 Contact Us For Availability
24
CLIP MAY 7112P158-60 Contact Us For Availability
25
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
26
BRACKET, OVEN BOTTOM MAY 3801P798-51 Contact Us For Availability
27
MAY 3401F082-45 MAY 3401F082-45 Contact Us For Availability
28
Light Assembly MAY 7407P181-60 Contact Us For Availability
30
Latch, Door Lock MAY 8002P104-60 Contact Us For Availability
31
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
32
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
33
Bracket, Oven MAY 3801P822-45 Contact Us For Availability
34
MAY 3196560 MAY 3196560 Contact Us For Availability
35
MAY 7002P494-60 MAY 7002P494-60 Contact Us For Availability
36
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
38
Screw MAY 7101P618-60 Contact Us For Availability
39
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
NI
STRAP, INSULATION MAY 4820F015-59 Contact Us For Availability
NI
MAY 7002P424-60 MAY 7002P424-60 Contact Us For Availability
NI
MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
SPUDS, LP GAS (KIT OF 5) MAY 7509P115-60 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25’) MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 5171P727-60 MAY 5171P727-60 Contact Us For Availability
NI
CLAMP, HARNESS MAY 7111P009-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7402P109-60 MAY 7402P109-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY 8019P026-60 MAY 8019P026-60 Contact Us For Availability
NI
MAY W10173437 MAY W10173437 Contact Us For Availability
× ![]()
