Model Maytag MGR5720ADT GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

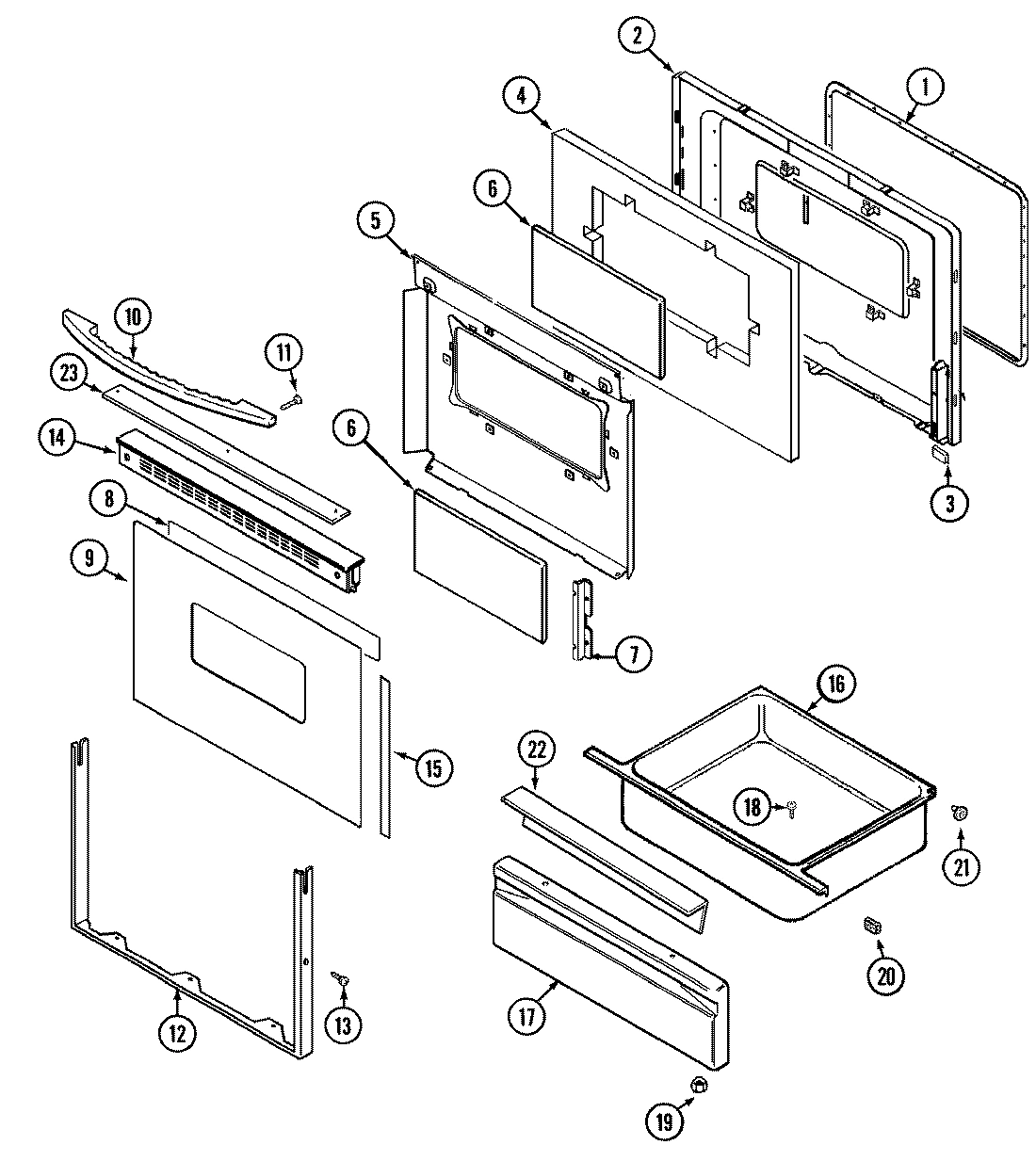

03 - DOOR/DRAWER

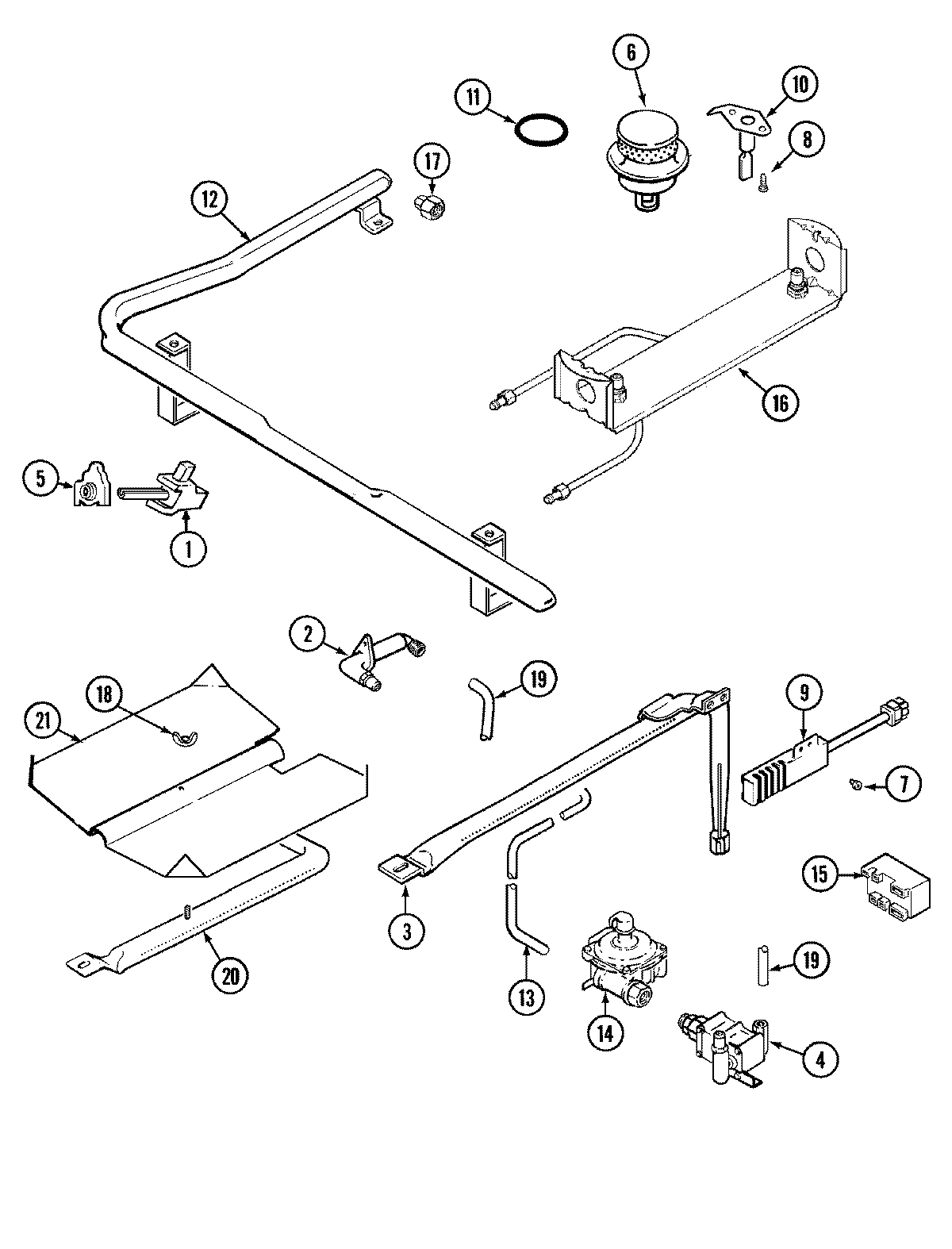

04 - GAS CONTROLS

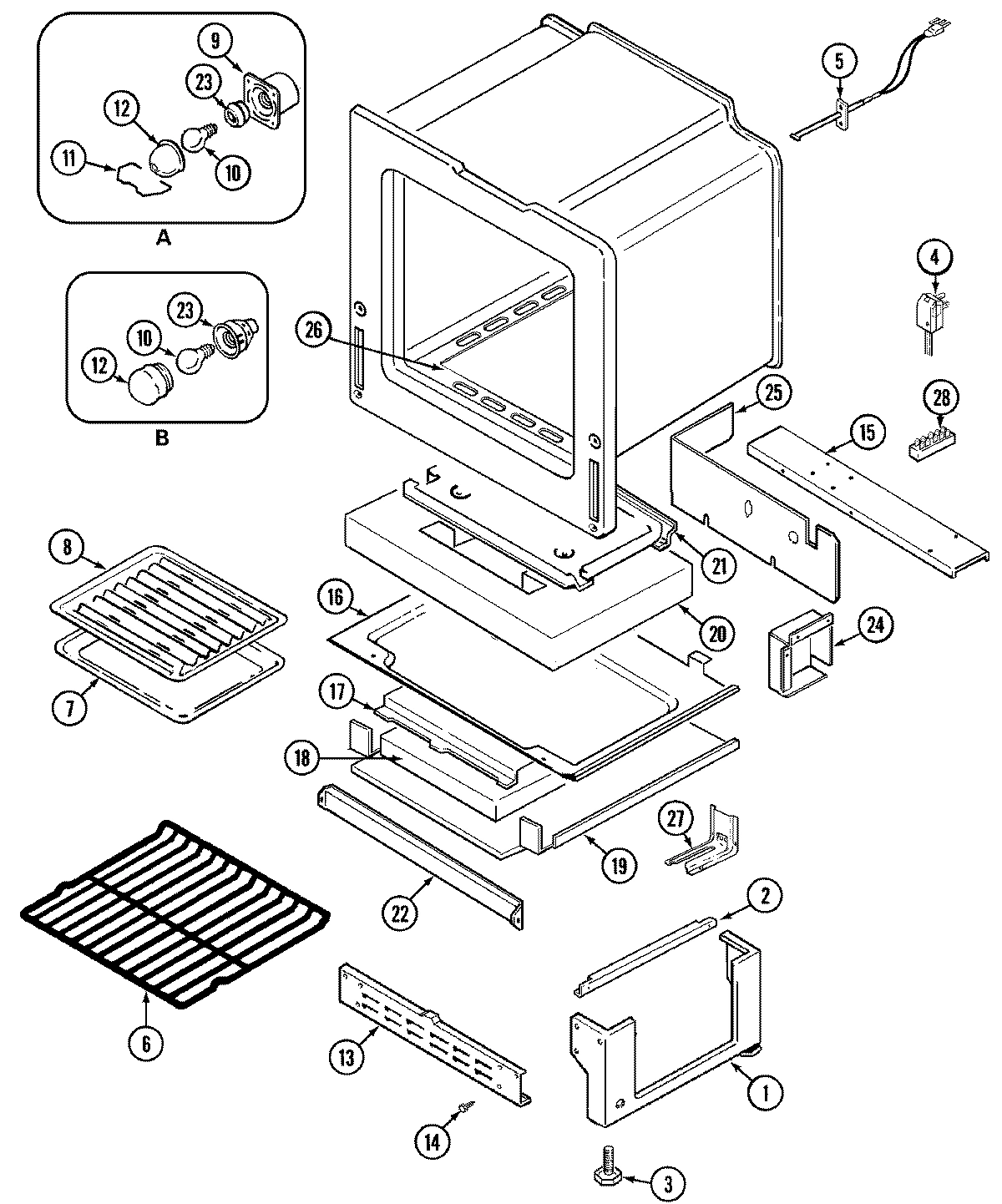

05 - OVEN/BASE

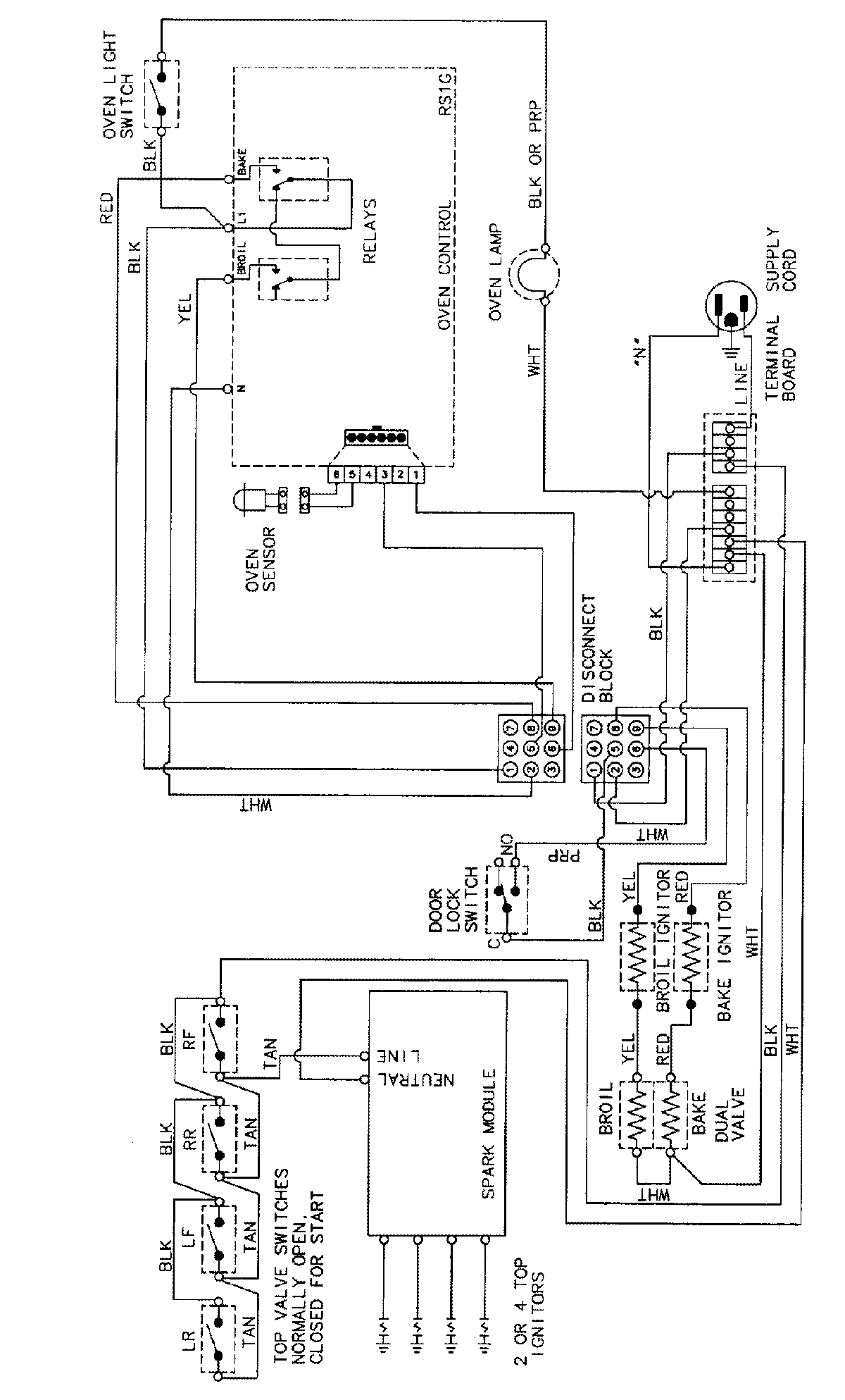

06 - WIRING INFORMATION
Common parts from model Maytag MGR5720ADT GAS RANGE
1
MAY 74003924 MAY 74003924 Contact Us For Availability
1
MAY 74003488 MAY 74003488 Contact Us For Availability
1
MAY 71003231 MAY 71003231 Contact Us For Availability
1
MAY 74004303 MAY 74004303 Contact Us For Availability
1
MAY 74003405 MAY 74003405 Contact Us For Availability
2
MAY 74003489 MAY 74003489 Contact Us For Availability
2
MAY 74003490 MAY 74003490 Contact Us For Availability
2
MAY 74003244 MAY 74003244 Contact Us For Availability
2
MAY 74004307 MAY 74004307 Contact Us For Availability
2
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
2
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
3
MAY 74003960 MAY 74003960 Contact Us For Availability
3
MAY 74004551 MAY 74004551 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 74003886 MAY 74003886 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
5
MAY 74002432 MAY 74002432 Contact Us For Availability
5
MAY 74003605 MAY 74003605 Contact Us For Availability
5
MAY 74003606 MAY 74003606 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY 74002533 MAY 74002533 Contact Us For Availability
6
GLASS, INNER MAY 74003320 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 74003363 MAY 74003363 Contact Us For Availability
7
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
7
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
7
MAY 74003798 MAY 74003798 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
8
MAY 74001084 MAY 74001084 Contact Us For Availability
8
MAY 74003502 MAY 74003502 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
8
MAY Y707113 MAY Y707113 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
MAY 74003816 MAY 74003816 Contact Us For Availability
9
MAY 74003627 MAY 74003627 Contact Us For Availability
9
MAY 74002058 MAY 74002058 Contact Us For Availability
9
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
9
MAY 7432P075-60 MAY 7432P075-60 Contact Us For Availability
9
MAY 74003388 MAY 74003388 Contact Us For Availability
10
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
10
MAY 74003383 MAY 74003383 Contact Us For Availability
10
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
10
MAY 74004963 MAY 74004963 Contact Us For Availability
10
MAY 74003617 MAY 74003617 Contact Us For Availability
11
LEVER, LATCH (BLK) MAY 74001075 Contact Us For Availability
11
MAY 12001323 MAY 12001323 Contact Us For Availability
11
MAY 74003992 MAY 74003992 Contact Us For Availability
11
MAY 74004945 MAY 74004945 Contact Us For Availability
11
MAY W10124350 MAY W10124350 Contact Us For Availability
11
MAY 74003391 MAY 74003391 Contact Us For Availability
12
MAY 74004050 MAY 74004050 Contact Us For Availability
12
MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability
12
MAY 74003504 MAY 74003504 Contact Us For Availability
12
MAY 74005681 MAY 74005681 Contact Us For Availability
12
MAY 74003389 MAY 74003389 Contact Us For Availability
13
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
13
MAY 16010161 MAY 16010161 Contact Us For Availability
13
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
14
MAY 74003381 MAY 74003381 Contact Us For Availability
14
MAY 74003385 MAY 74003385 Contact Us For Availability
14
MAY 74002065 MAY 74002065 Contact Us For Availability
15
MAY 74003660 MAY 74003660 Contact Us For Availability
15
MAY 74004167 MAY 74004167 Contact Us For Availability
16
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
16
MAY 71003042 MAY 71003042 Contact Us For Availability
16
MAY 74003528 MAY 74003528 Contact Us For Availability
16
MAY 74004296 MAY 74004296 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
PANEL, DRAWER (BSQ) MAY 74004966 Contact Us For Availability
17
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
17
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
18
MAY 74001449 MAY 74001449 Contact Us For Availability
18
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
19
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
19
MAY 1555258K MAY 1555258K Contact Us For Availability
19
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
19
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
20
MAY 74002367 MAY 74002367 Contact Us For Availability
20
MAY 74004076 MAY 74004076 Contact Us For Availability
20
MAY 74003503 MAY 74003503 Contact Us For Availability
21
MAY 8010P048-60 MAY 8010P048-60 Contact Us For Availability
21
MAY 74004079 MAY 74004079 Contact Us For Availability
21
MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability
21
PAN, BAKE BURNER MAY 74004465 Contact Us For Availability
22
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
22
MAY 71003540 MAY 71003540 Contact Us For Availability
22
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
23
MAY 74003387 MAY 74003387 Contact Us For Availability
24
MAY 74004499 MAY 74004499 Contact Us For Availability
25
MAY 74003329 MAY 74003329 Contact Us For Availability
26
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
27
MAY 74002311 MAY 74002311 Contact Us For Availability
28
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
NI
MAY 15002242 MAY 15002242 Contact Us For Availability
× ![]()
