Model Electrolux MGF350SBWB RANGE – Common Parts & Diagrams

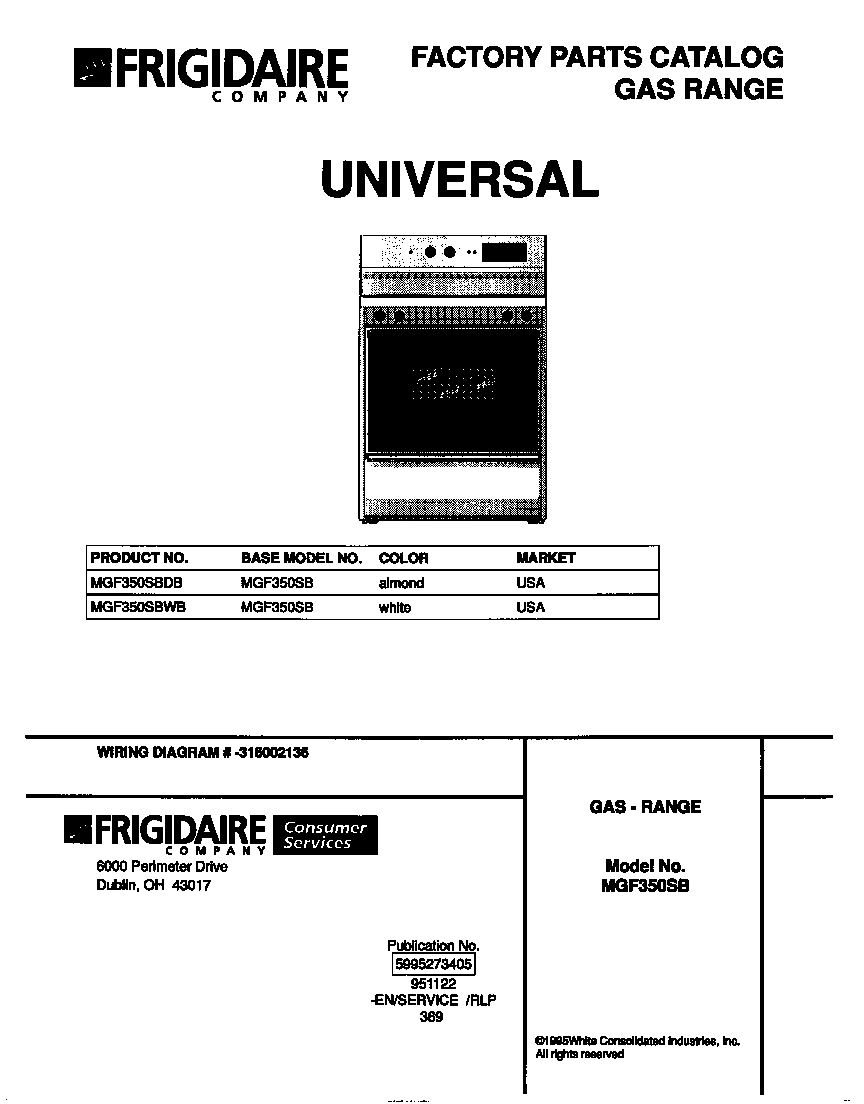

01 - COVER

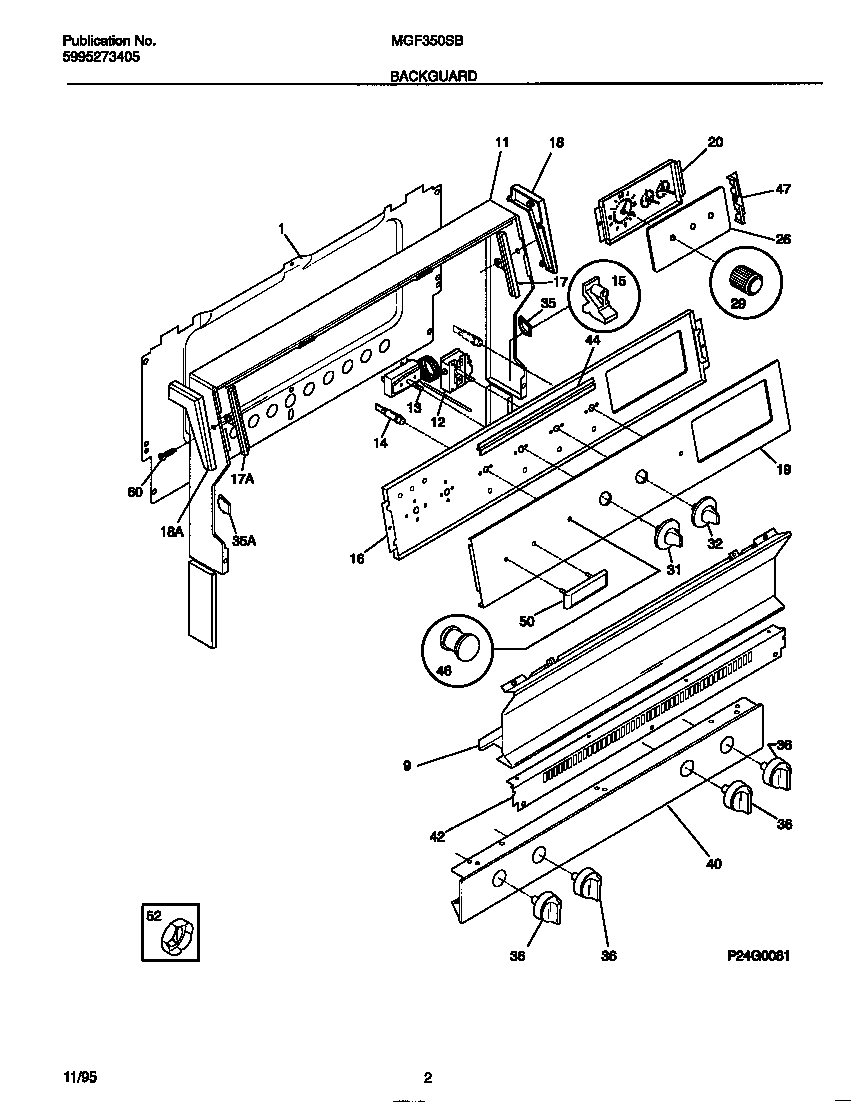

02 - BACKGUARD

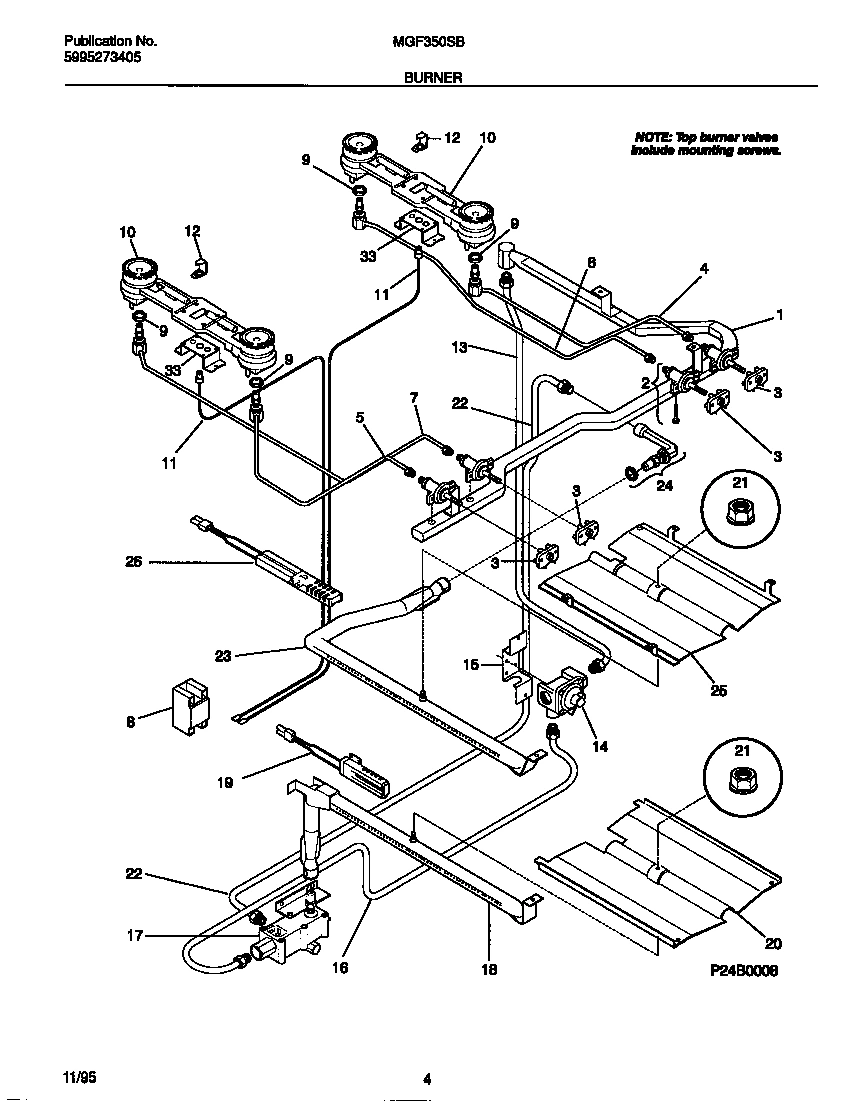

03 - BURNER

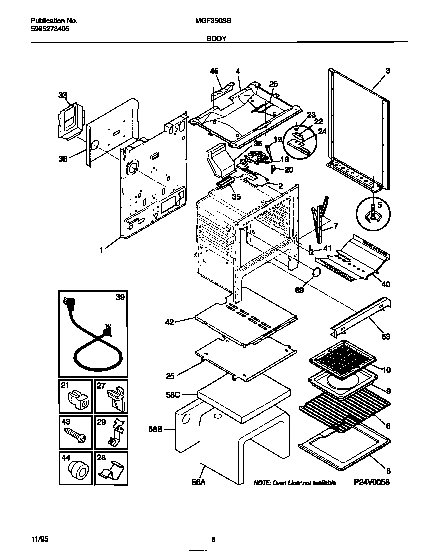

04 - BODY

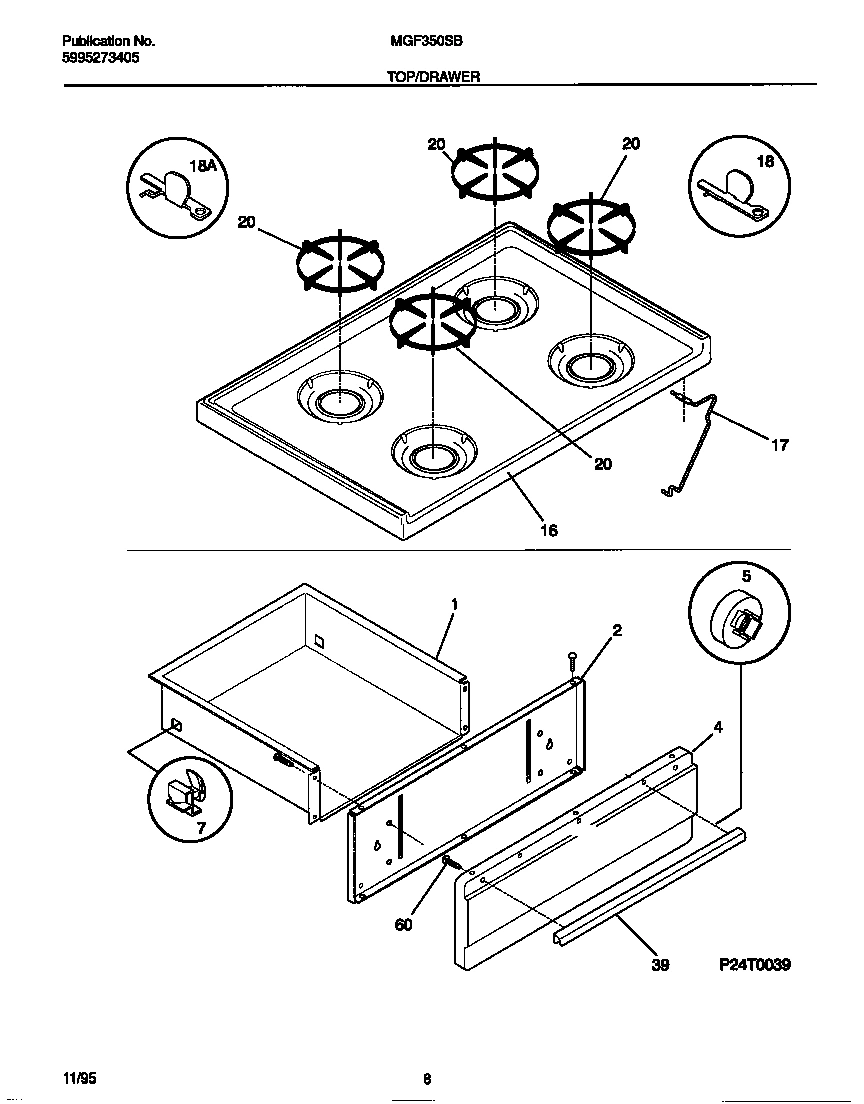

05 - TOP/DRAWER

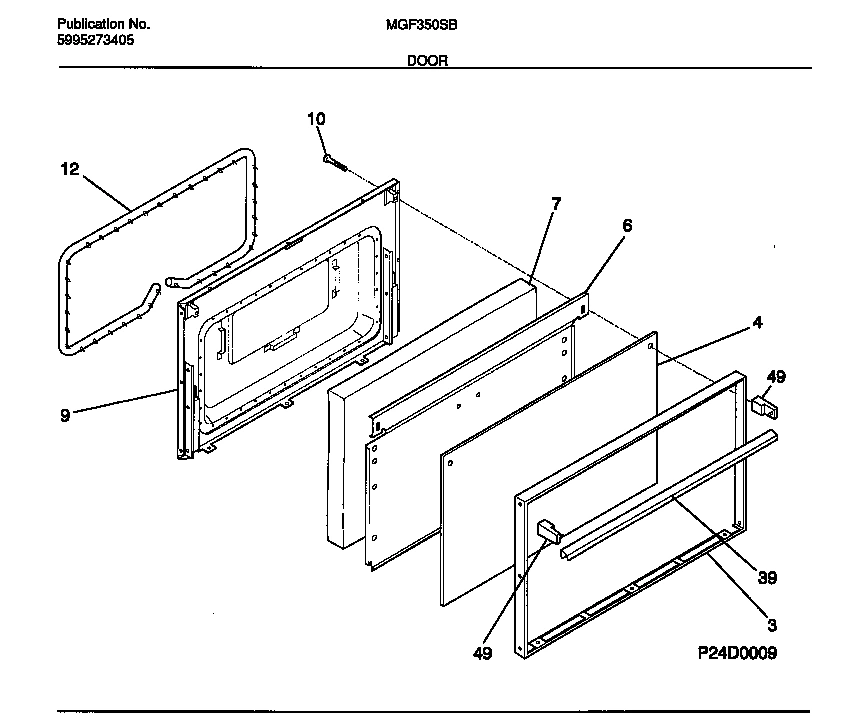

06 - DOOR

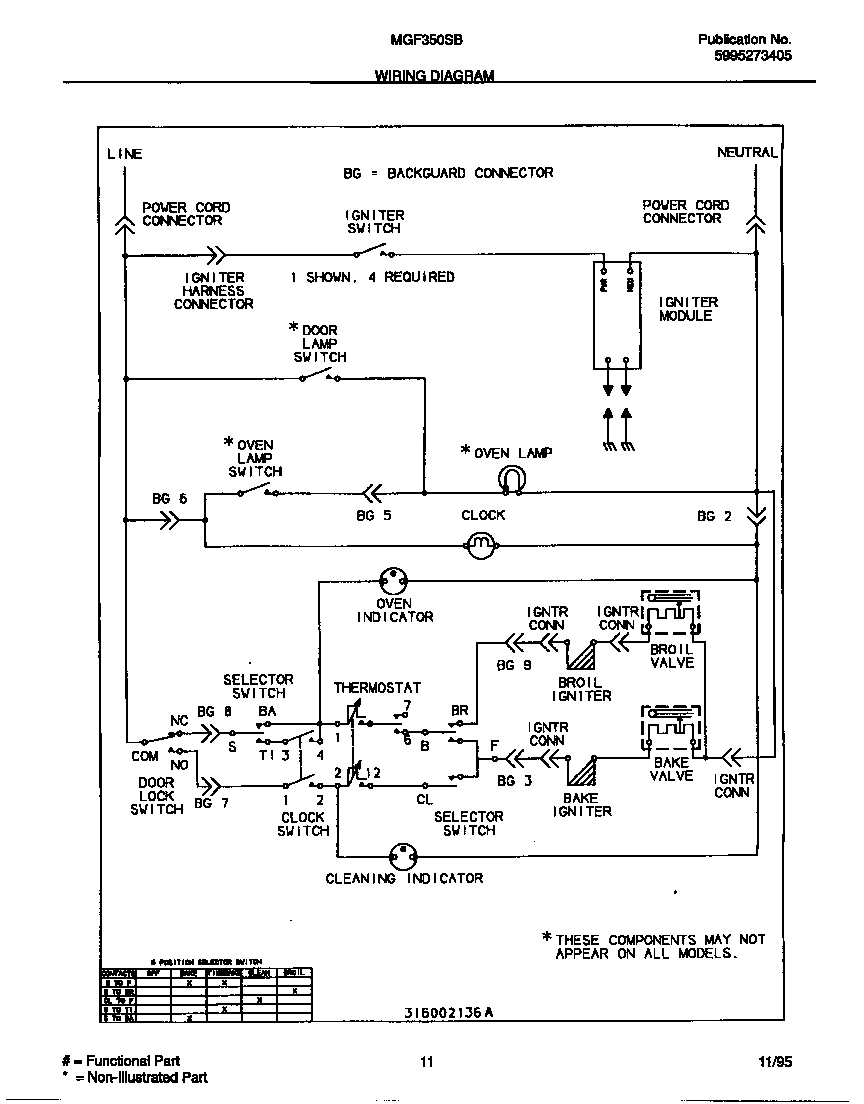

07 - WIRING DIAGRAM
Common parts from model Electrolux MGF350SBWB RANGE
*51365
HARNESS-WIRING, MAIN WCI 316001628 Contact Us For Availability
*51368
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*51369
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*51370
WCI 316065300 WCI 316065300 Contact Us For Availability
*51371
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*51373
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316066201 WCI 316066201 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
2A
VALVE-TOP BURNER, 2-POSITION, (4) WCI 316031900 Contact Us For Availability
2B
SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 WCI 316048200 Contact Us For Availability
3
WCI 316081004 WCI 316081004 Contact Us For Availability
3
WCI 316081005 WCI 316081005 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
WCI 316032001 WCI 316032001 Contact Us For Availability
3A
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3B
SWITCH HARNESS TERMINAL KIT (NOT-ILLUSTRATED WCI 5303935040 Contact Us For Availability
3B
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316051400 WCI 316051400 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
5
WCI 316051401 WCI 316051401 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316051402 WCI 316051402 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
WCI 316051403 WCI 316051403 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
7A
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
11A
IGNITER-TOP BURNER, BASE, 50``(1) WCI 3200276 Contact Us For Availability
11B
WCI 5303289336 WCI 5303289336 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
WCI 3200657 WCI 3200657 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18B
SHIELD, LATCH TOP (NOT ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
WCI 5303288408 WCI 5303288408 Contact Us For Availability
20A
WCI 3203218 WCI 3203218 Contact Us For Availability
20B
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22A
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22B
STUD, SPACER (NOT ILLUSTRATED) WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
WCI 5303288407 WCI 5303288407 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316014301 WCI 316014301 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
40A
WCI 3200836 WCI 3200836 Contact Us For Availability
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
53A
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
69
WCI 3051218 WCI 3051218 Contact Us For Availability
× ![]()
