Model Electrolux MGF345BGWD RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

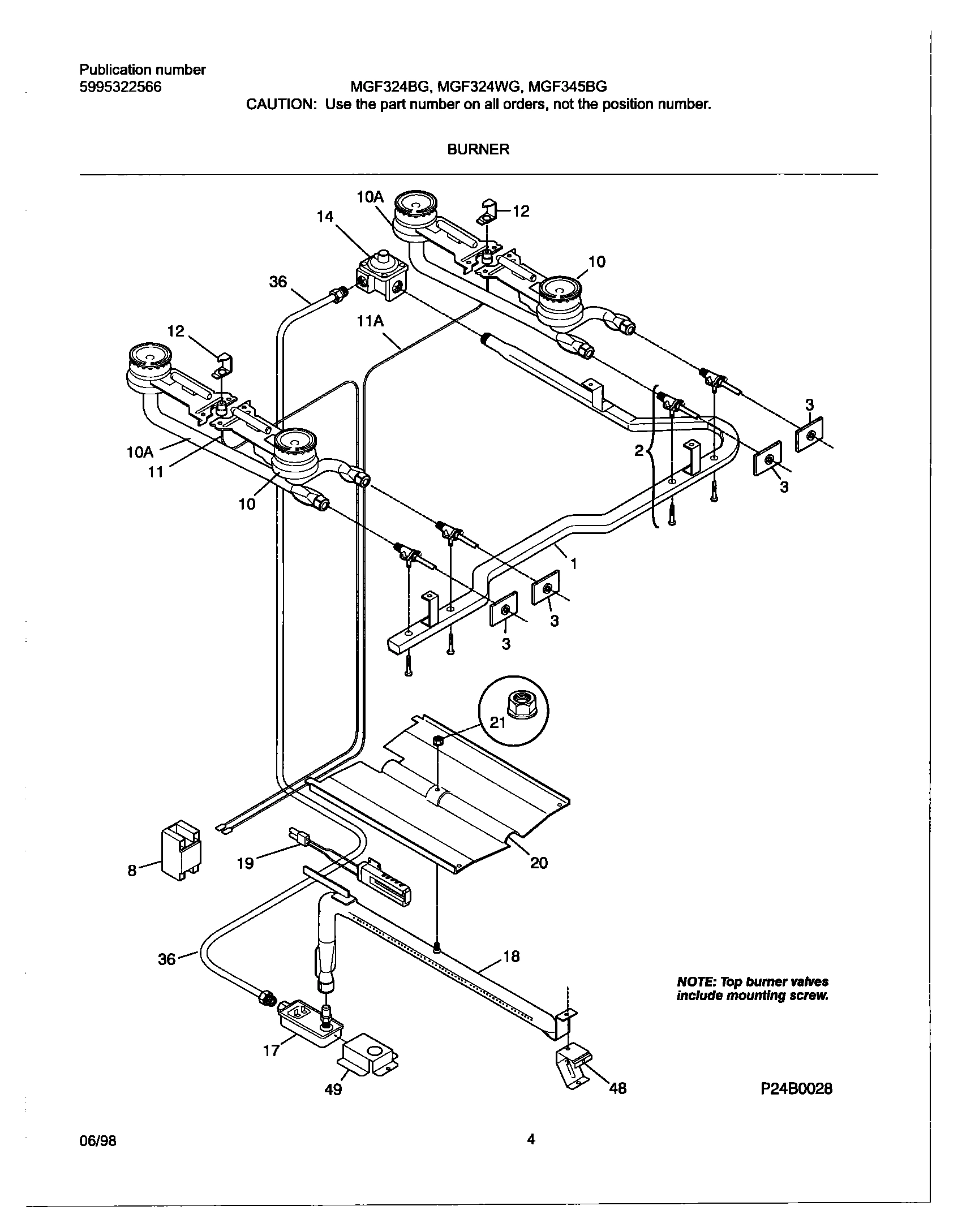

03 - BURNER

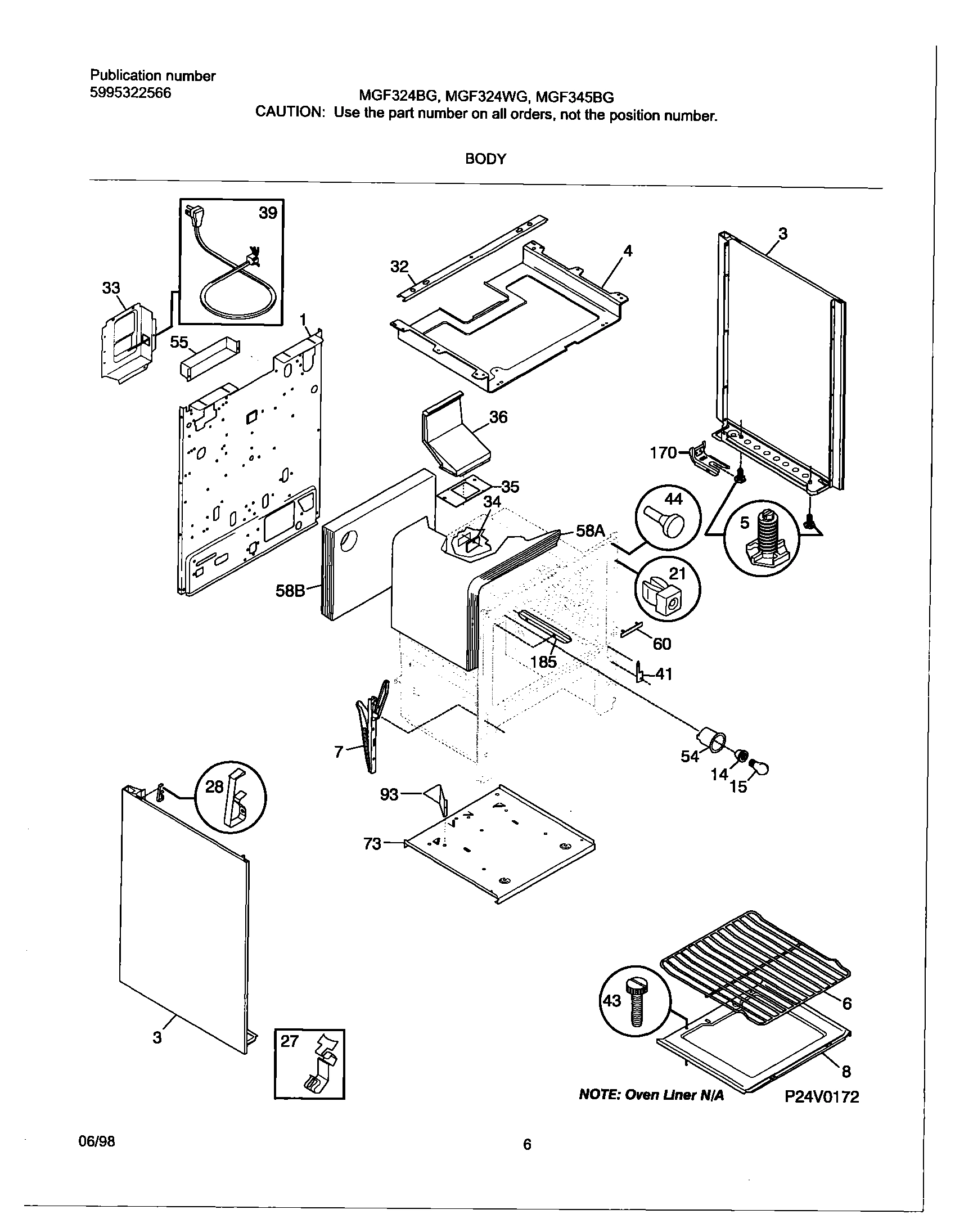

04 - BODY

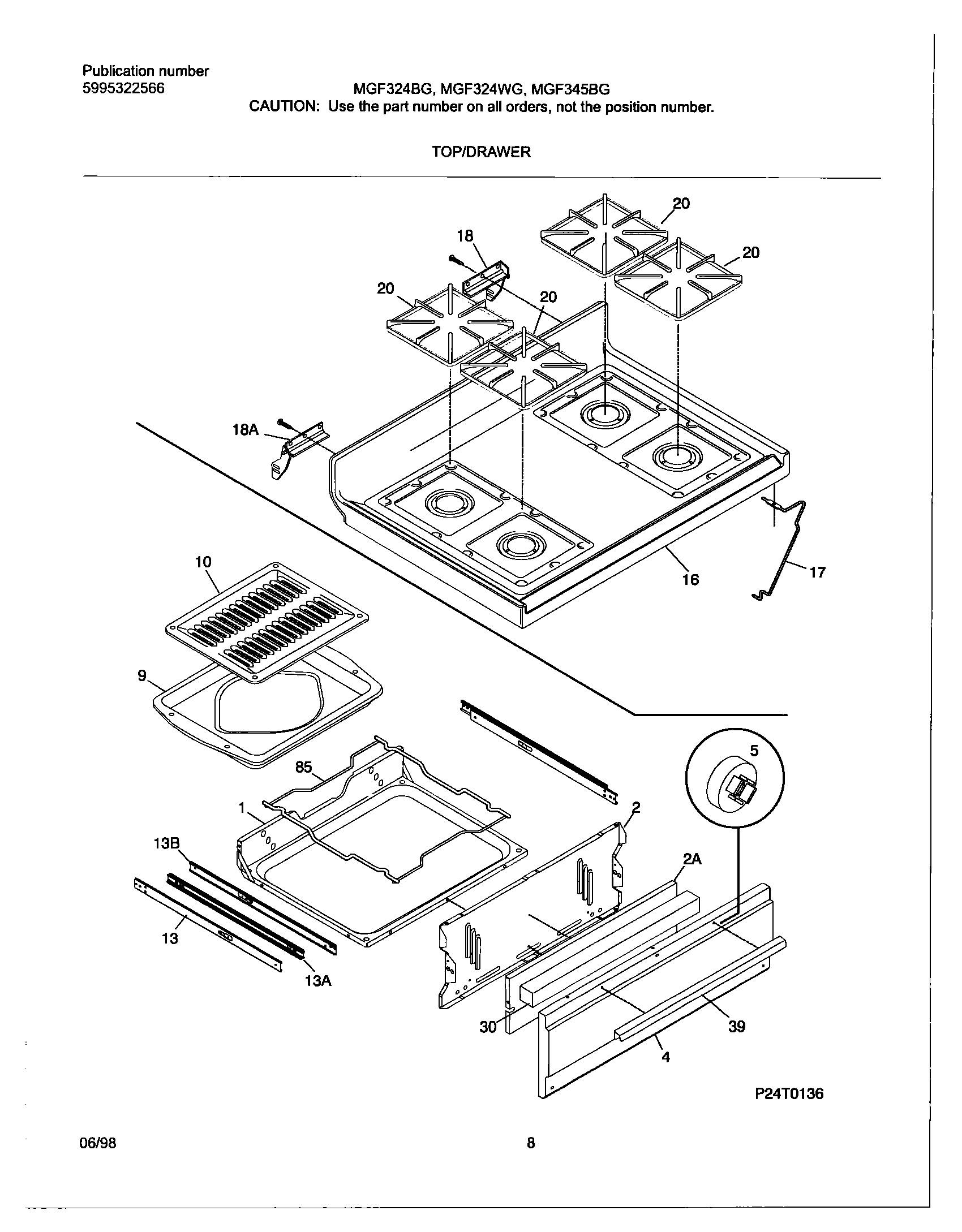

05 - TOP/DRAWER

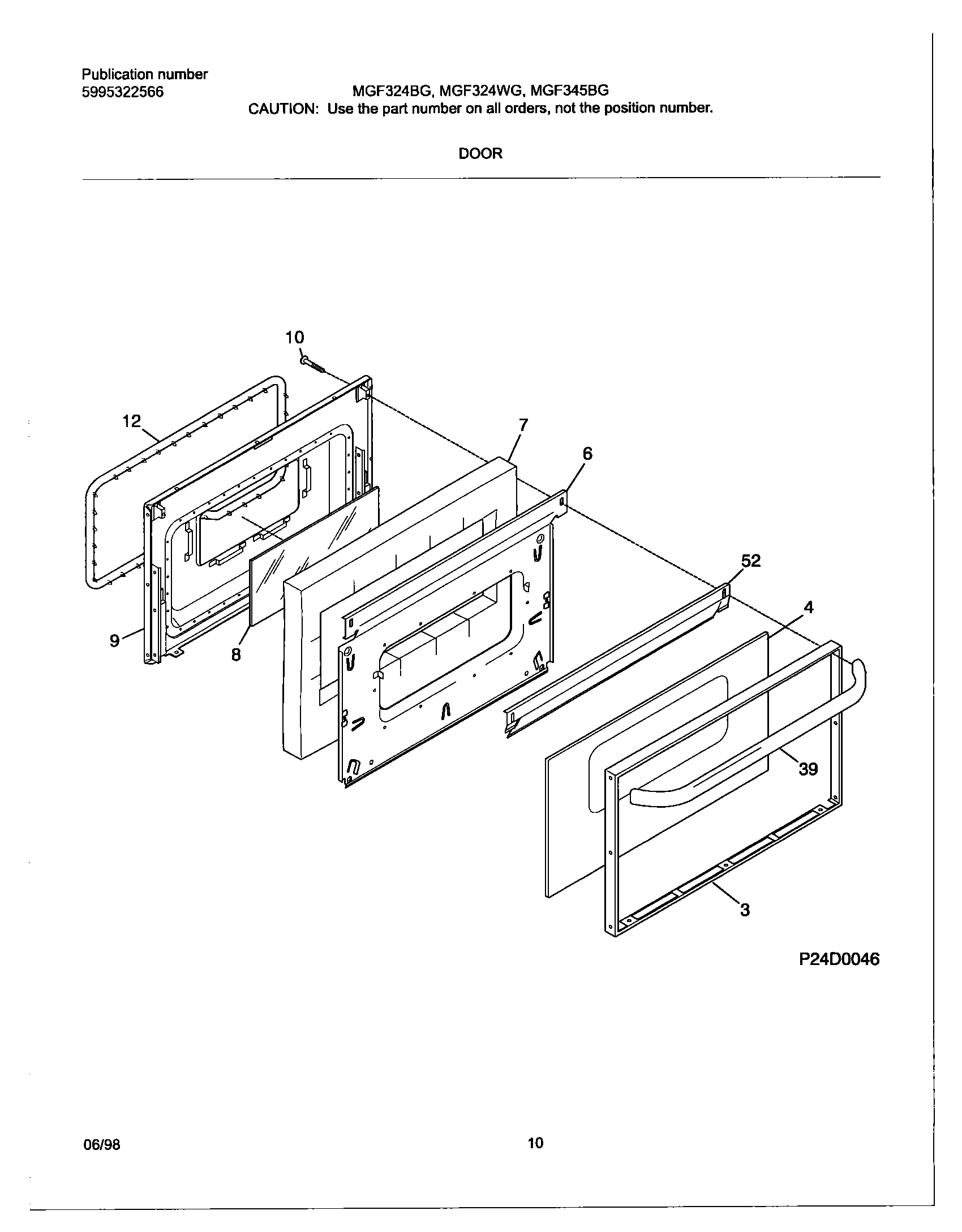

06 - DOOR

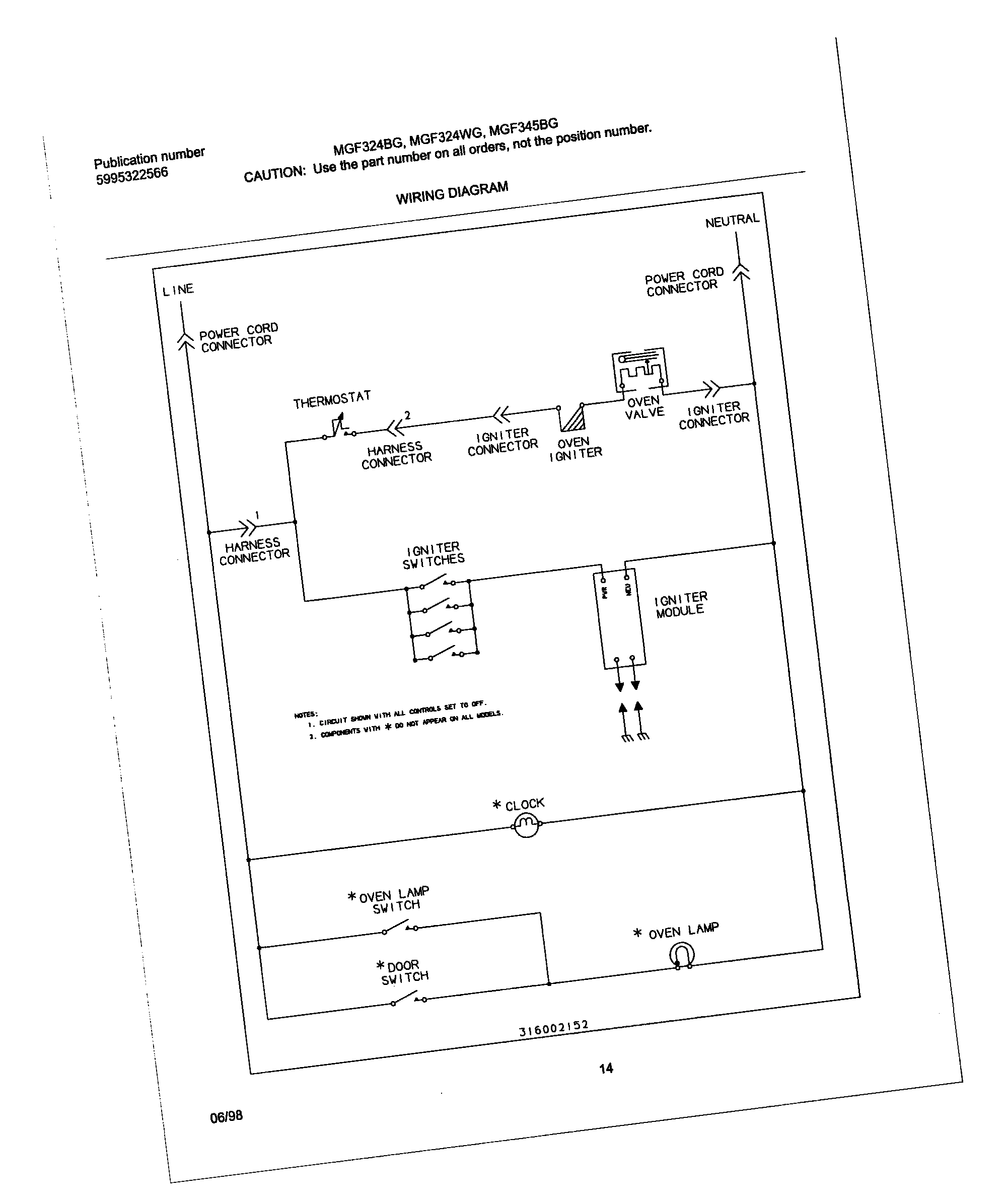

08 - WIRING DIAGRAM
Common parts from model Electrolux MGF345BGWD RANGE
*58561
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*58577
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*58579
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
2
WCI 316110101 WCI 316110101 Contact Us For Availability
2
WCI 316110800 WCI 316110800 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10A
WCI 3205234 WCI 3205234 Contact Us For Availability
10B
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
13
WCI 316111501 WCI 316111501 Contact Us For Availability
13
GLIDE-DRAWER,OUTER WCI 316111500 Contact Us For Availability
13
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
14
WCI 316082900 WCI 316082900 Contact Us For Availability
16
WCI 5303285552 WCI 5303285552 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
WCI 316113200 WCI 316113200 Contact Us For Availability
20
WCI 316088900 WCI 316088900 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
29A
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
32
WCI 316109506 WCI 316109506 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316083000 WCI 316083000 Contact Us For Availability
36
WCI 316109507 WCI 316109507 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
185
WCI 316112900 WCI 316112900 Contact Us For Availability
× ![]()
