Model Electrolux MGF324WESE RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

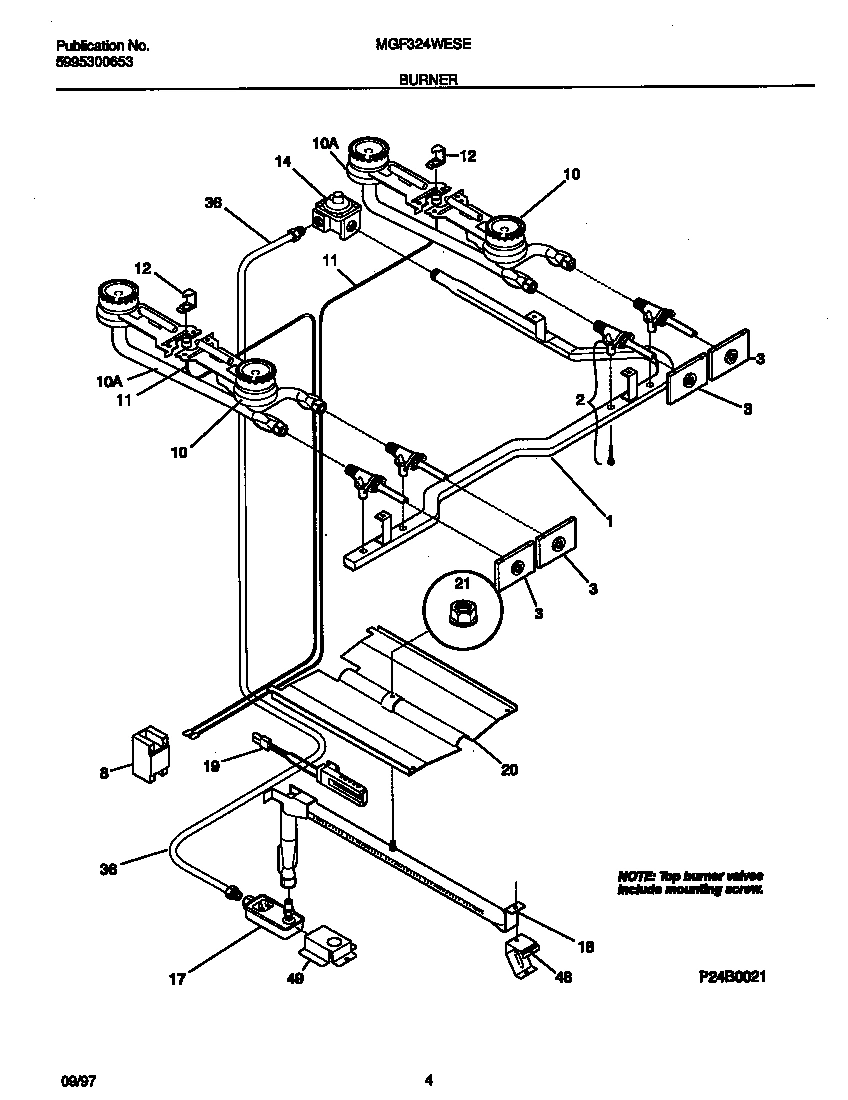

03 - BURNER

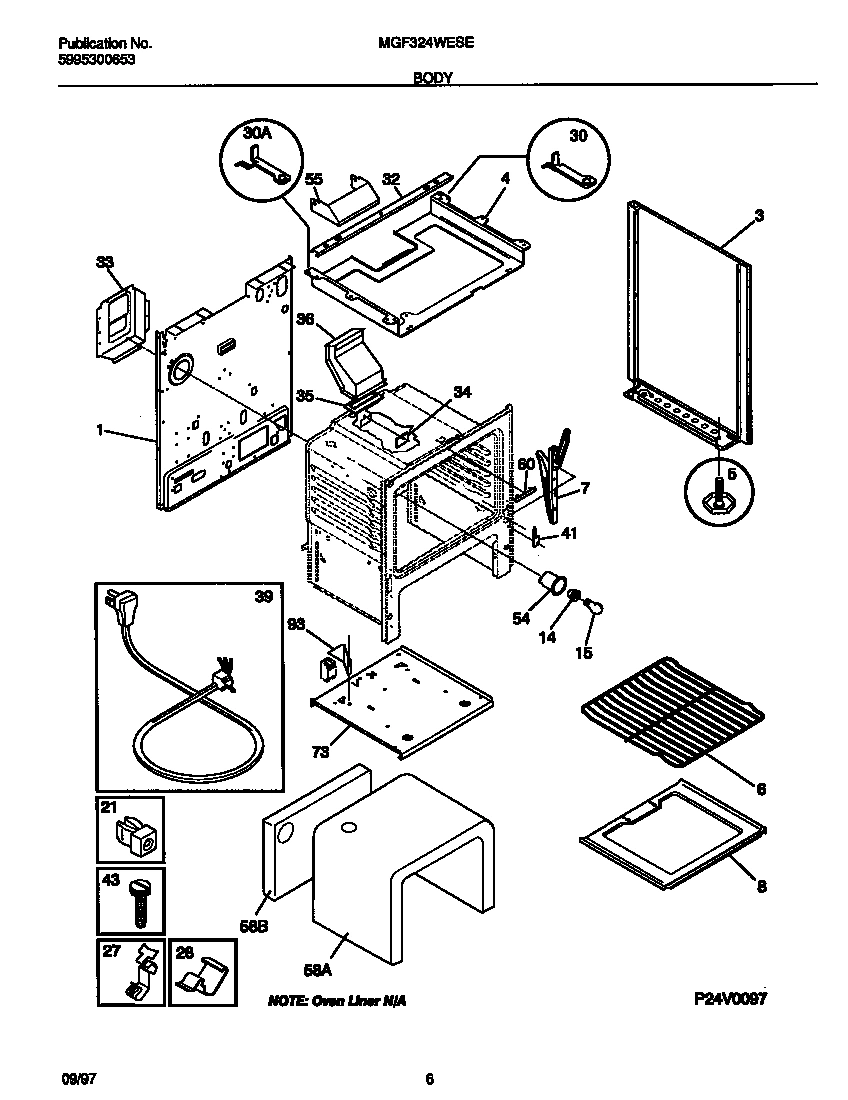

04 - BODY

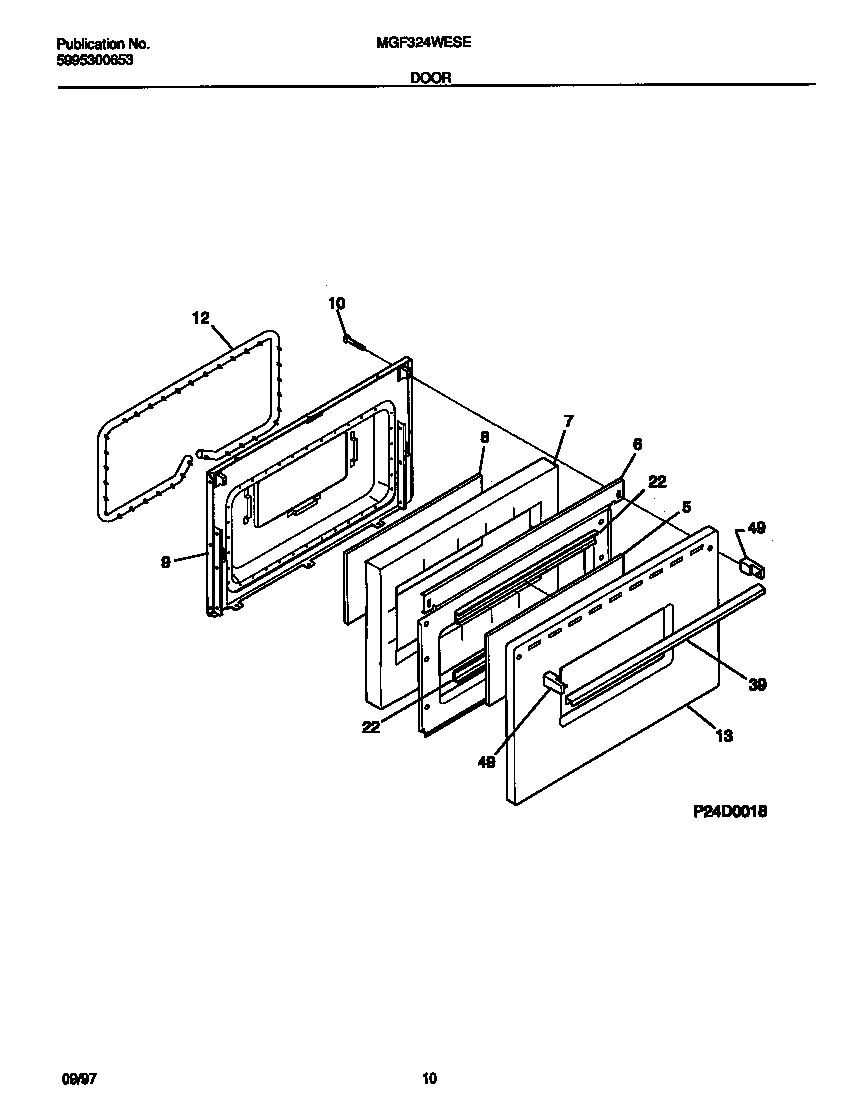

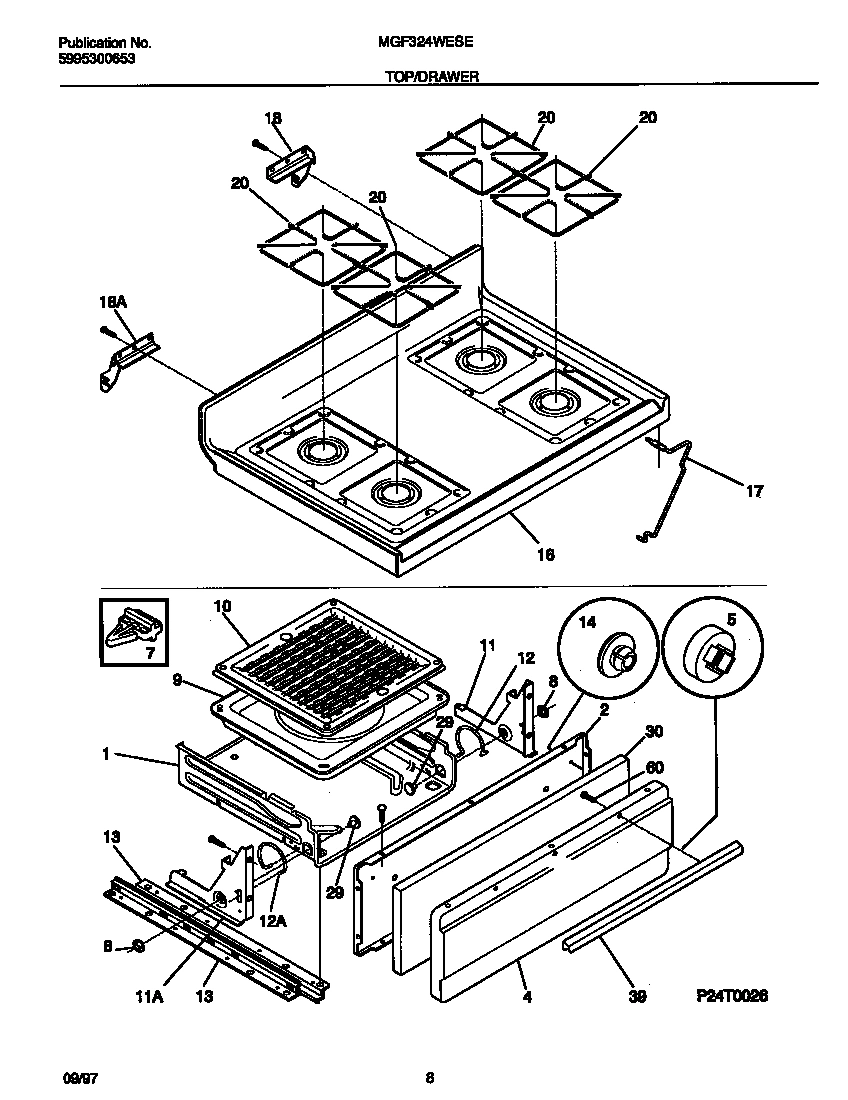

05 - TOP/DRAWER
06 - DOOR

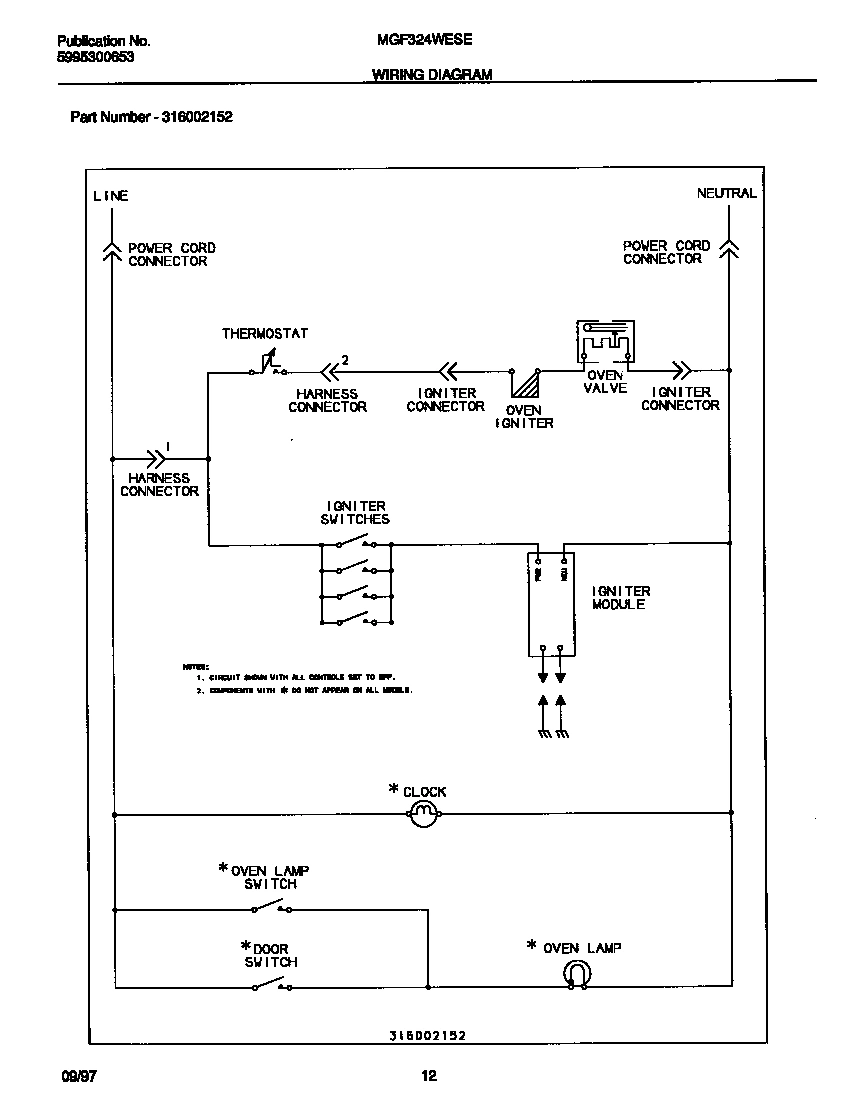

07 - WIRING DIAGRAM
Common parts from model Electrolux MGF324WESE RANGE
*76604
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*76605
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*76607
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
5
WCI 3934058 WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
WCI 316050300 WCI 316050300 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
GLASS-OVEN DOOR, AIRWASH WCI 316088600 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
11
BRACKET-HINGE, BROILER LH WCI 316066300 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
12
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
WCI 316082900 WCI 316082900 Contact Us For Availability
16
WCI 5303285552 WCI 5303285552 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
GRATE, (4) WCI 316088901 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
28
BUTTON-CLOCK, WHITE WCI 316017303 Contact Us For Availability
29
WCI 316028402 WCI 316028402 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316083000 WCI 316083000 Contact Us For Availability
39
WCI 316019505 WCI 316019505 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
49
WCI 316020101 WCI 316020101 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
WCI 5303289358 WCI 5303289358 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055500 WCI 316055500 Contact Us For Availability
× ![]()
