Model Electrolux MGF312SBWC RANGE – Common Parts & Diagrams

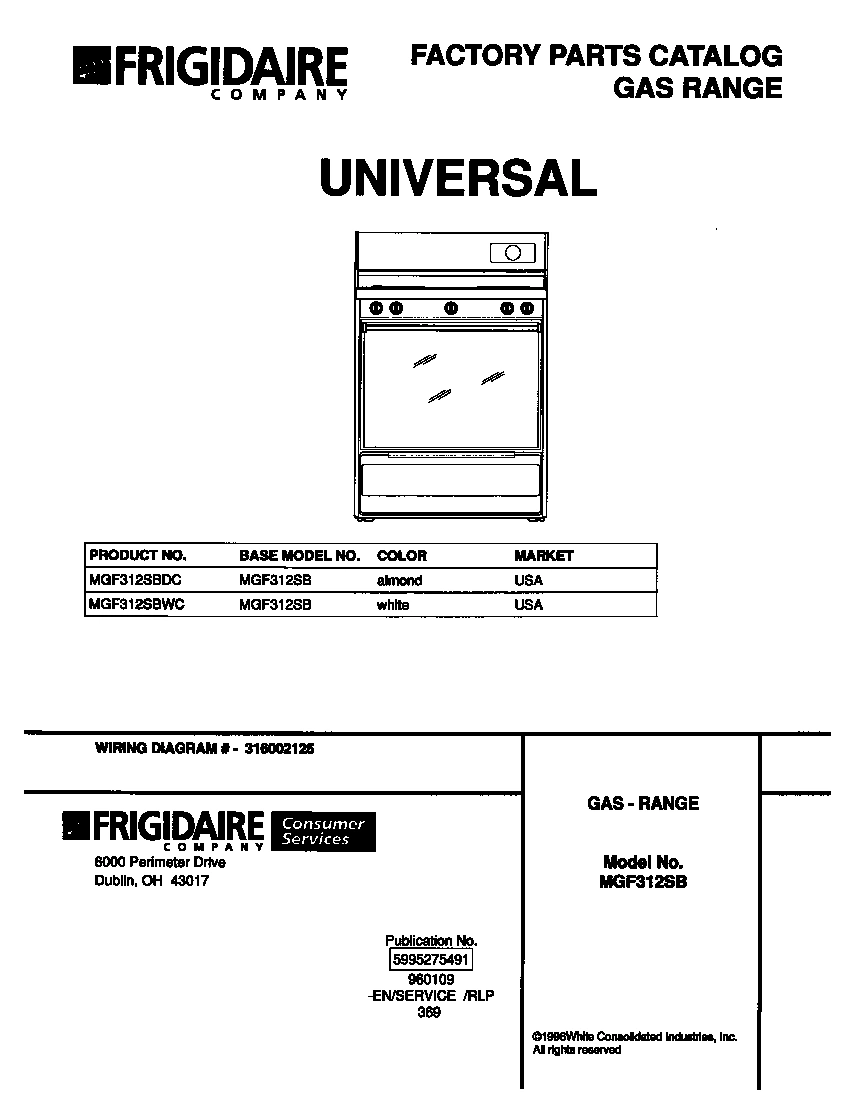

01 - COVER

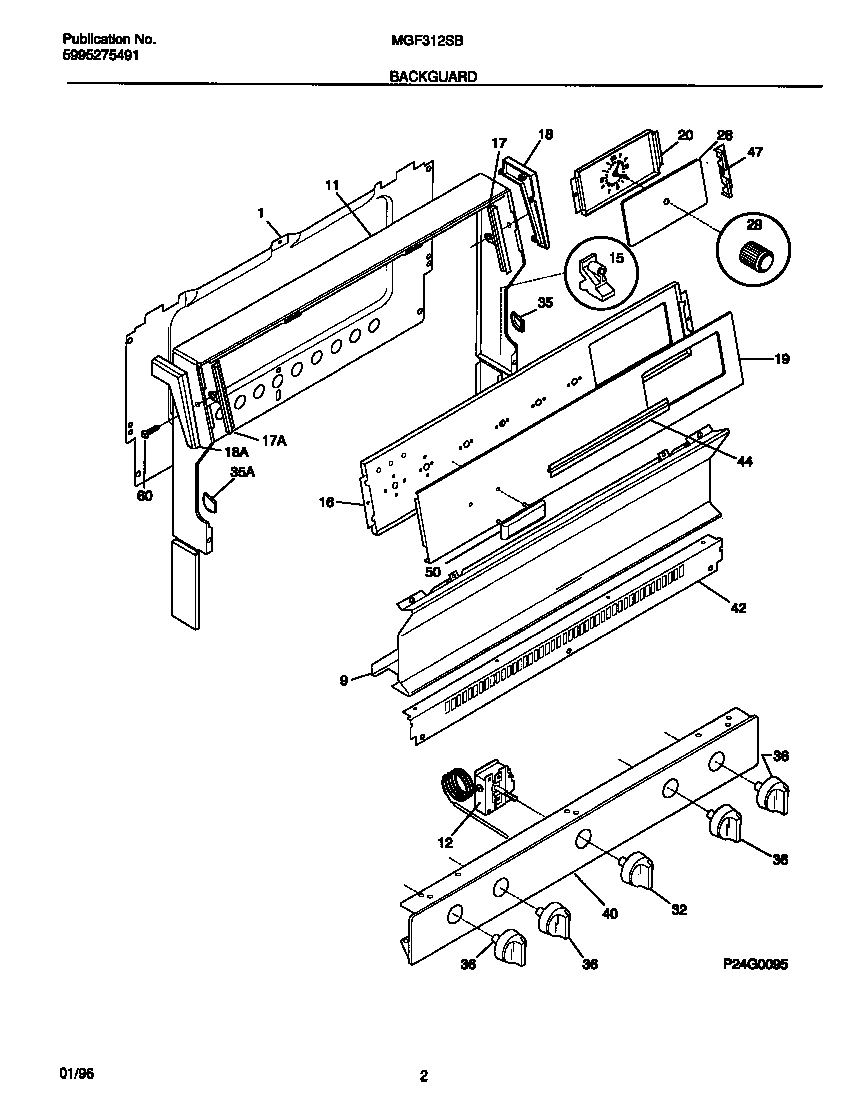

02 - BACKGUARD

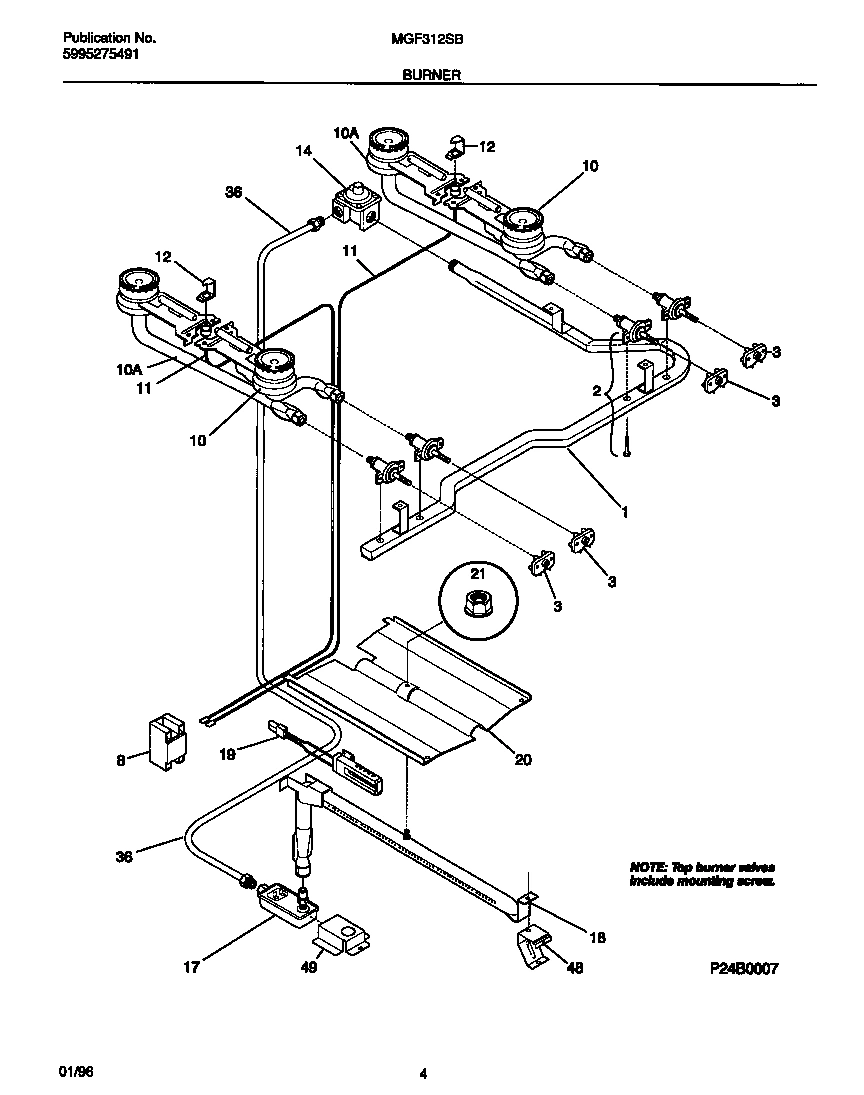

03 - BURNER

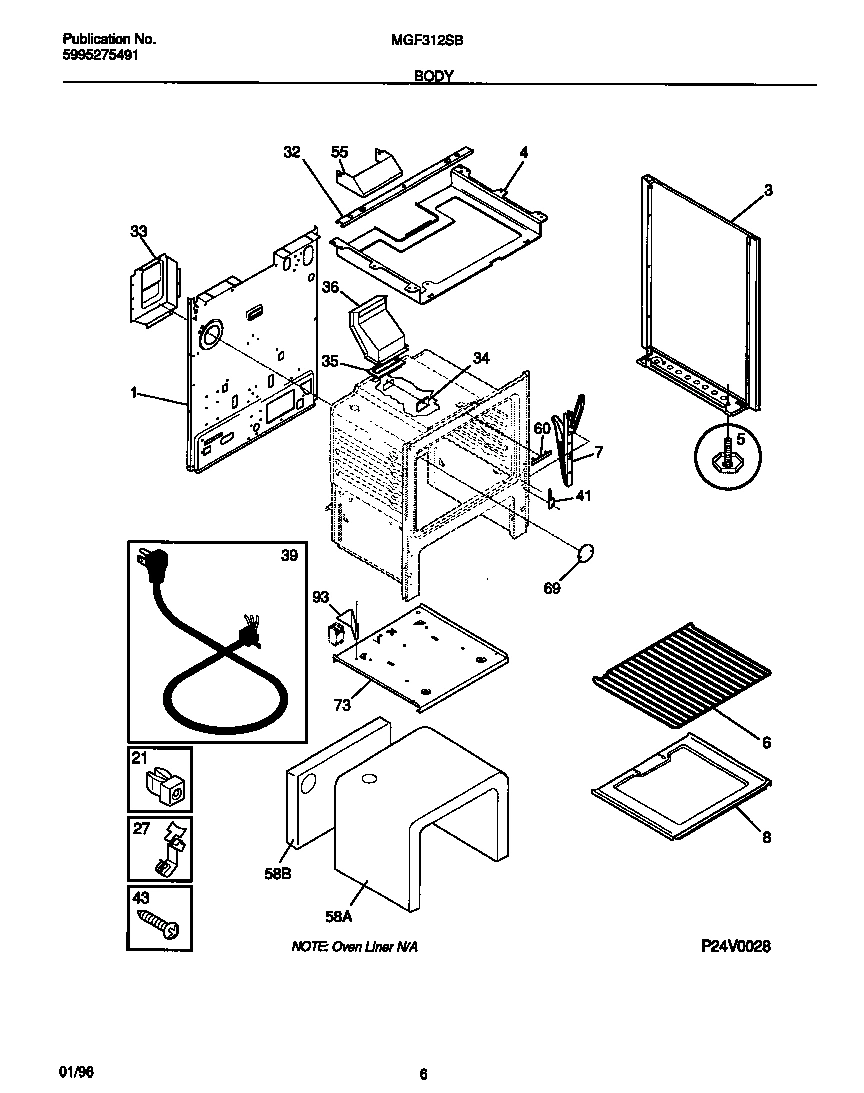

04 - BODY

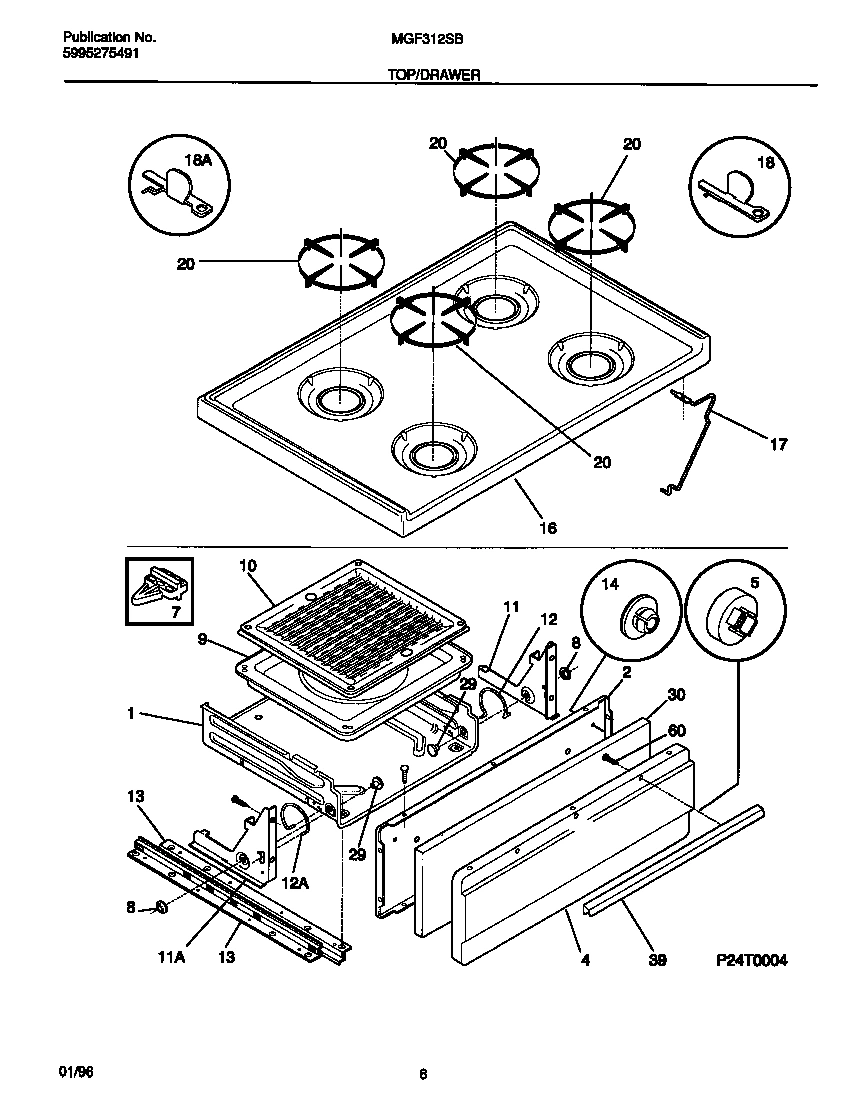

05 - TOP/DRAWER

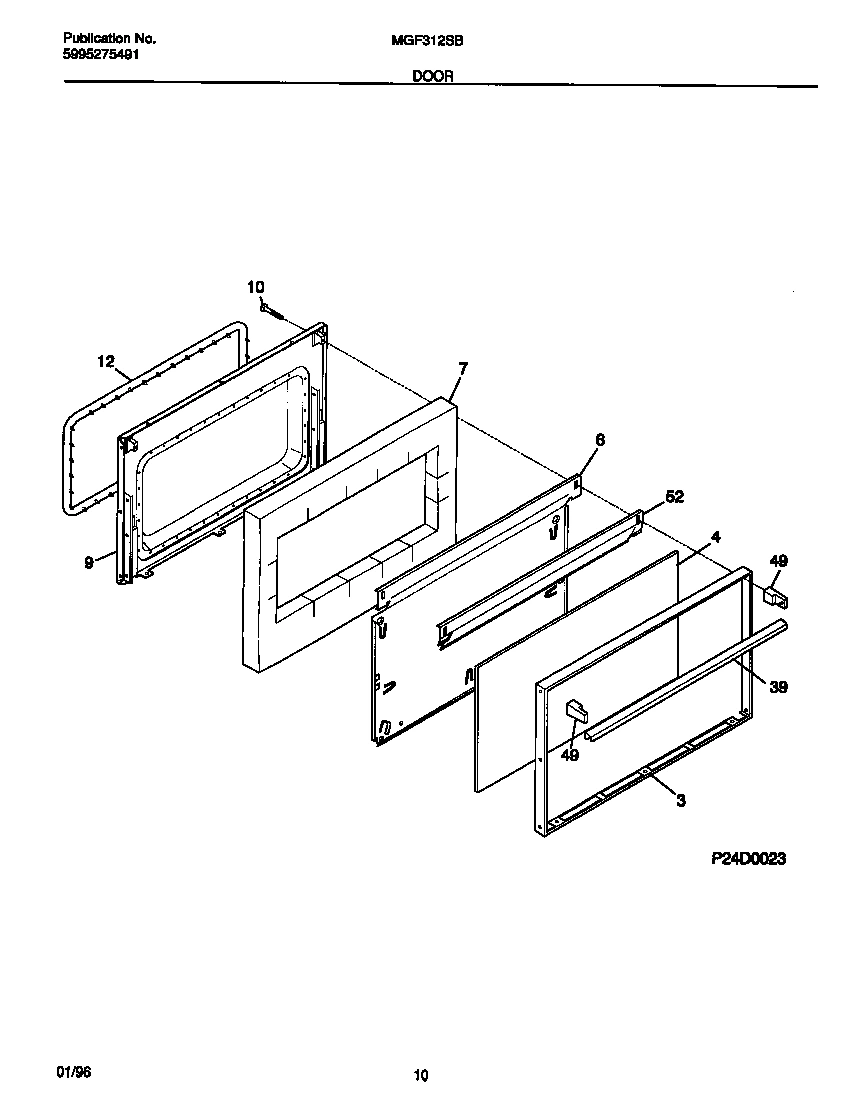

06 - DOOR

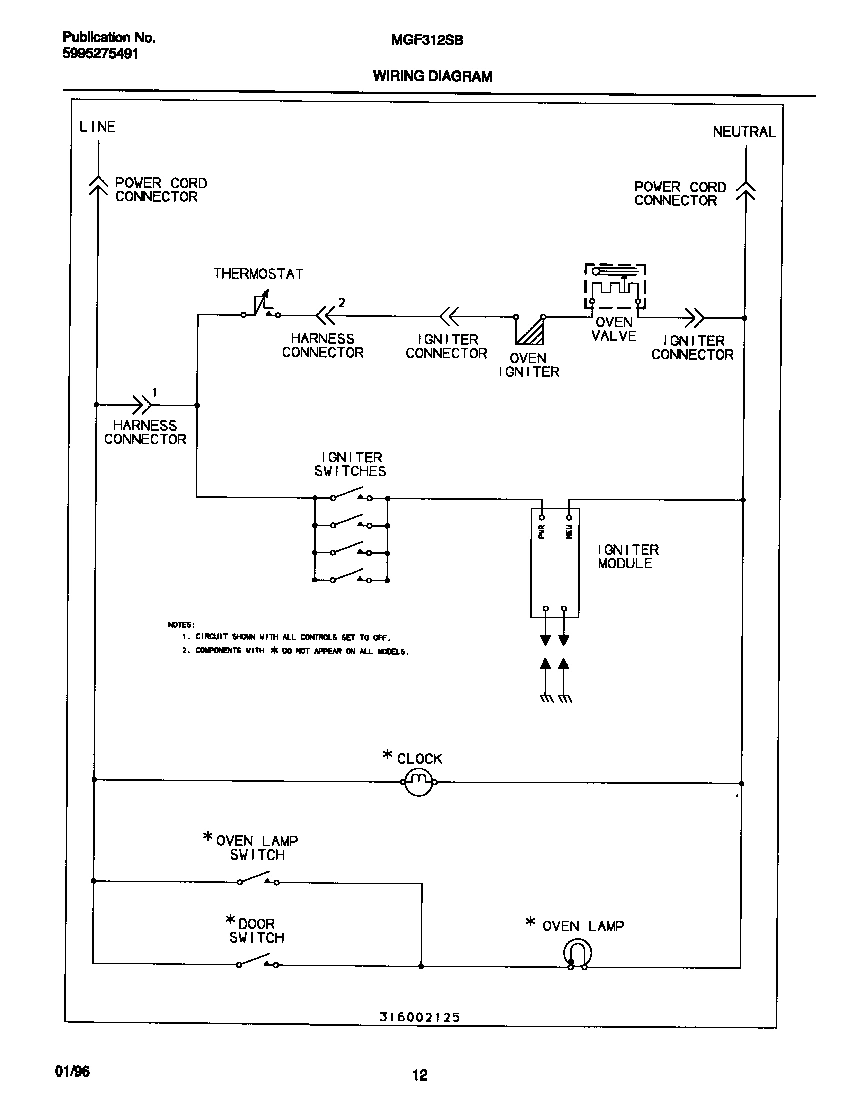

07 - WIRING DIAGRAM
Common parts from model Electrolux MGF312SBWC RANGE
*77402
WCI 316056500 WCI 316056500 Contact Us For Availability
*77403
SHIELD - FLUE PROFILE WCI 5303280614 Contact Us For Availability
*77405
WCI 316001205 WCI 316001205 Contact Us For Availability
*77406
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*77407
WCI 316071600 WCI 316071600 Contact Us For Availability
*77408
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*77410
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*77412
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
WCI 316081004 WCI 316081004 Contact Us For Availability
3
WCI 316081005 WCI 316081005 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
WCI 316032001 WCI 316032001 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316067204 WCI 316067204 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316089001 WCI 316089001 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316091402 WCI 316091402 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
WCI 316076401 WCI 316076401 Contact Us For Availability
7A
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 316066300 WCI 316066300 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
11B
IGNITER-TOP BURNER, BASE, 33`` WCI 5303289336 Contact Us For Availability
12
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
WCI 316082900 WCI 316082900 Contact Us For Availability
16
WCI 3200657 WCI 3200657 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
20
WCI 5303288409 WCI 5303288409 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
32
WCI 5303288194 WCI 5303288194 Contact Us For Availability
32
WCI 3203441 WCI 3203441 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316083000 WCI 316083000 Contact Us For Availability
36
WCI 3131904 WCI 3131904 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
49
BRACKET, SAFETY VALVE WCI 3131438 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
69
WCI 3051218 WCI 3051218 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055501 WCI 316055501 Contact Us For Availability
× ![]()
