Model Electrolux MGF303PGDH RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

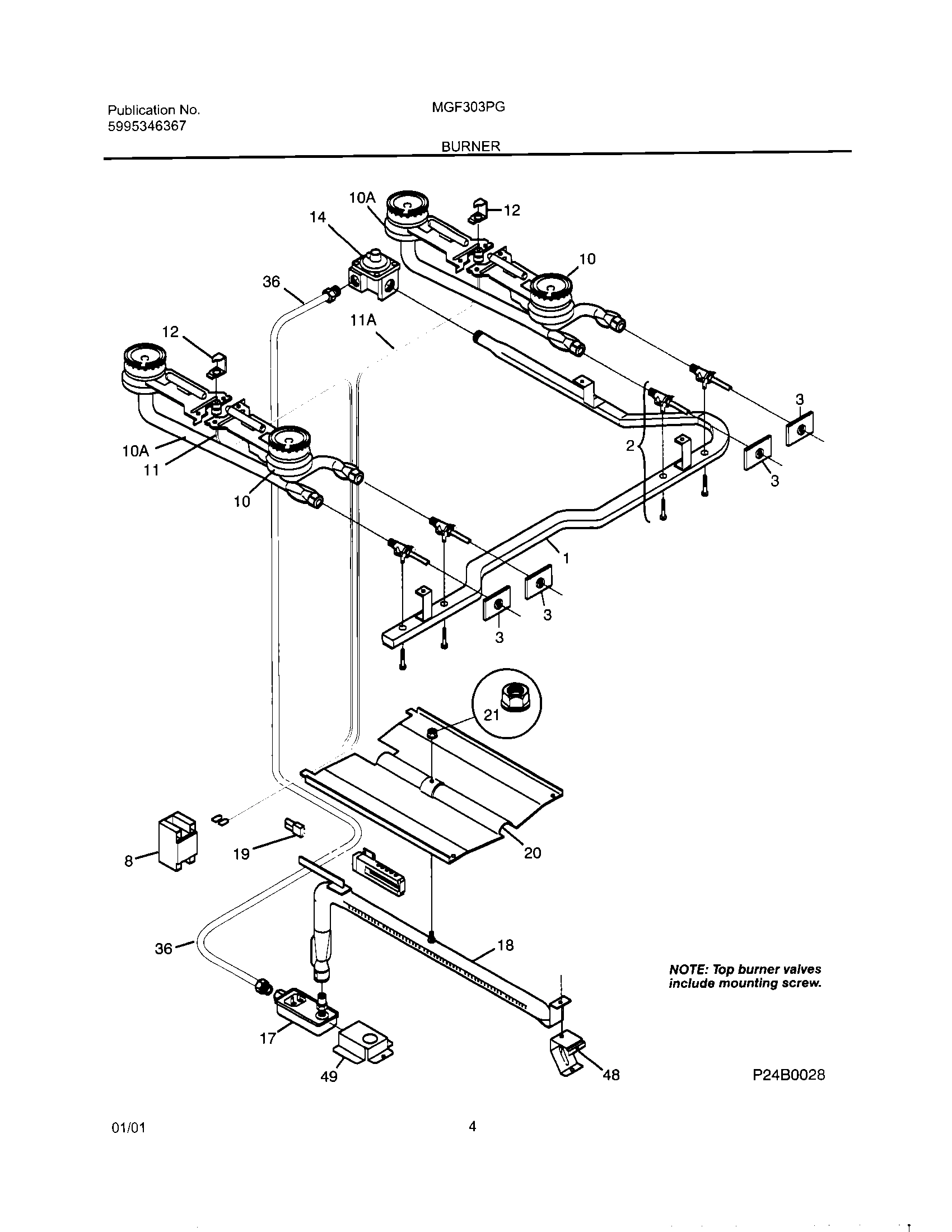

05 - BURNER

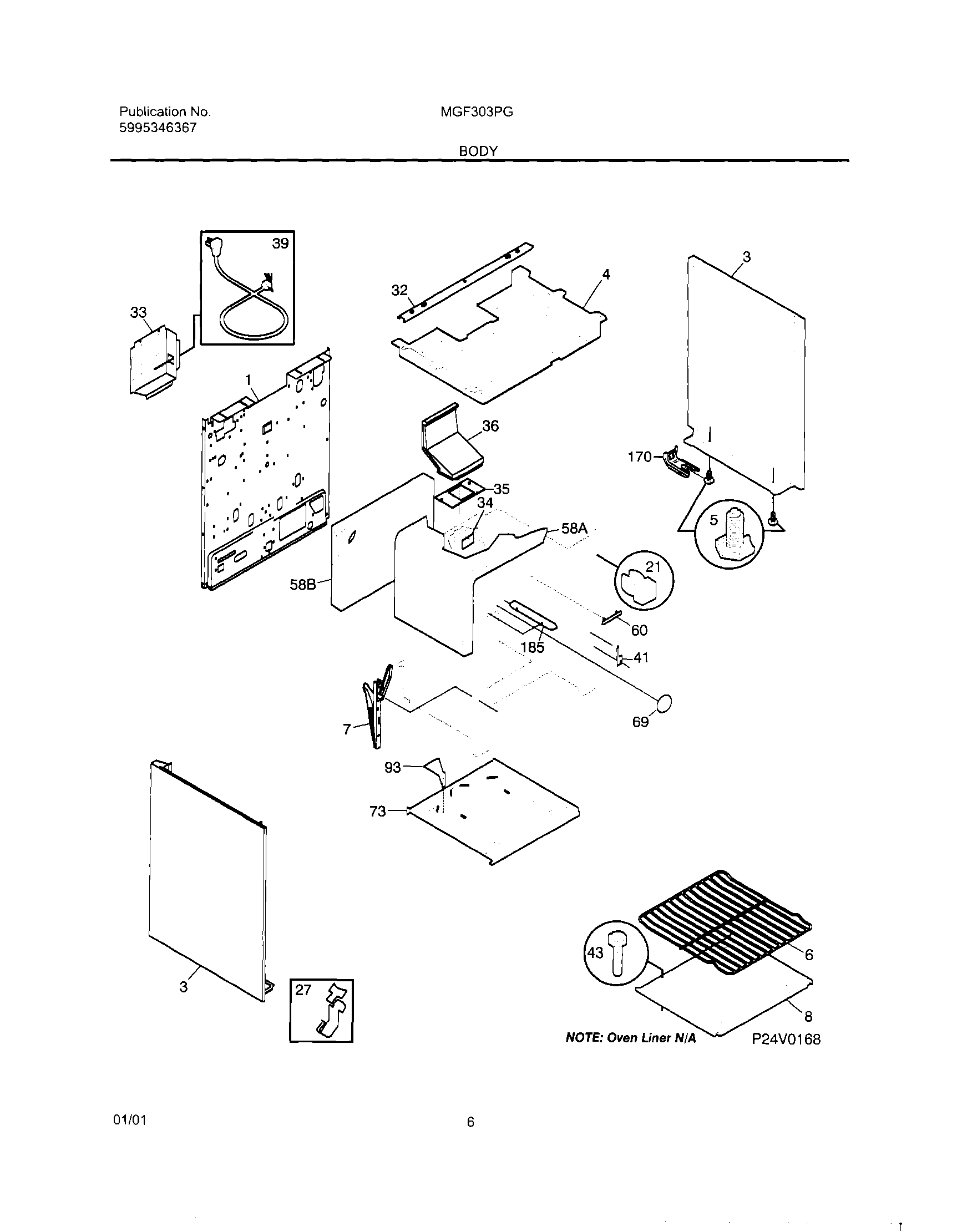

07 - BODY

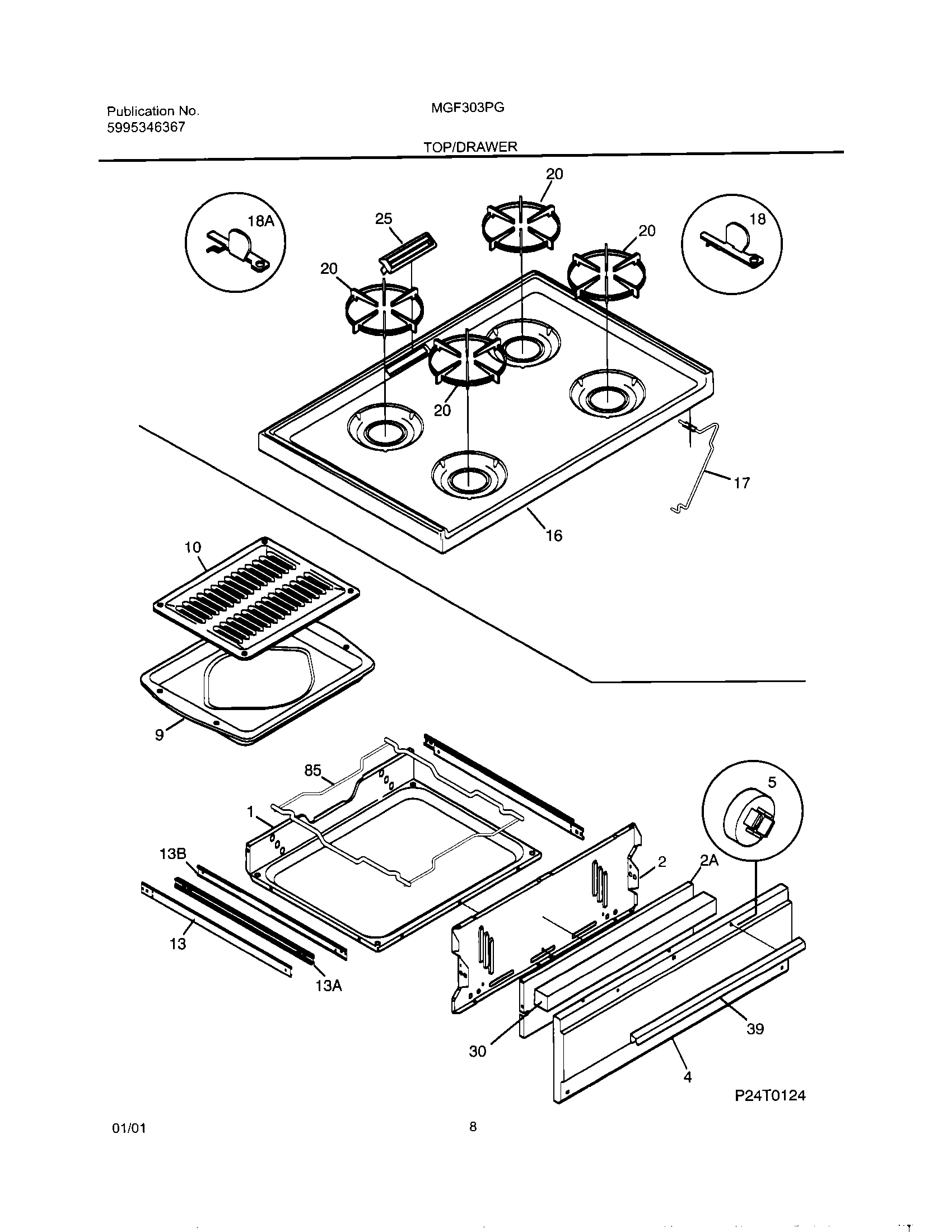

09 - TOP/DRAWER

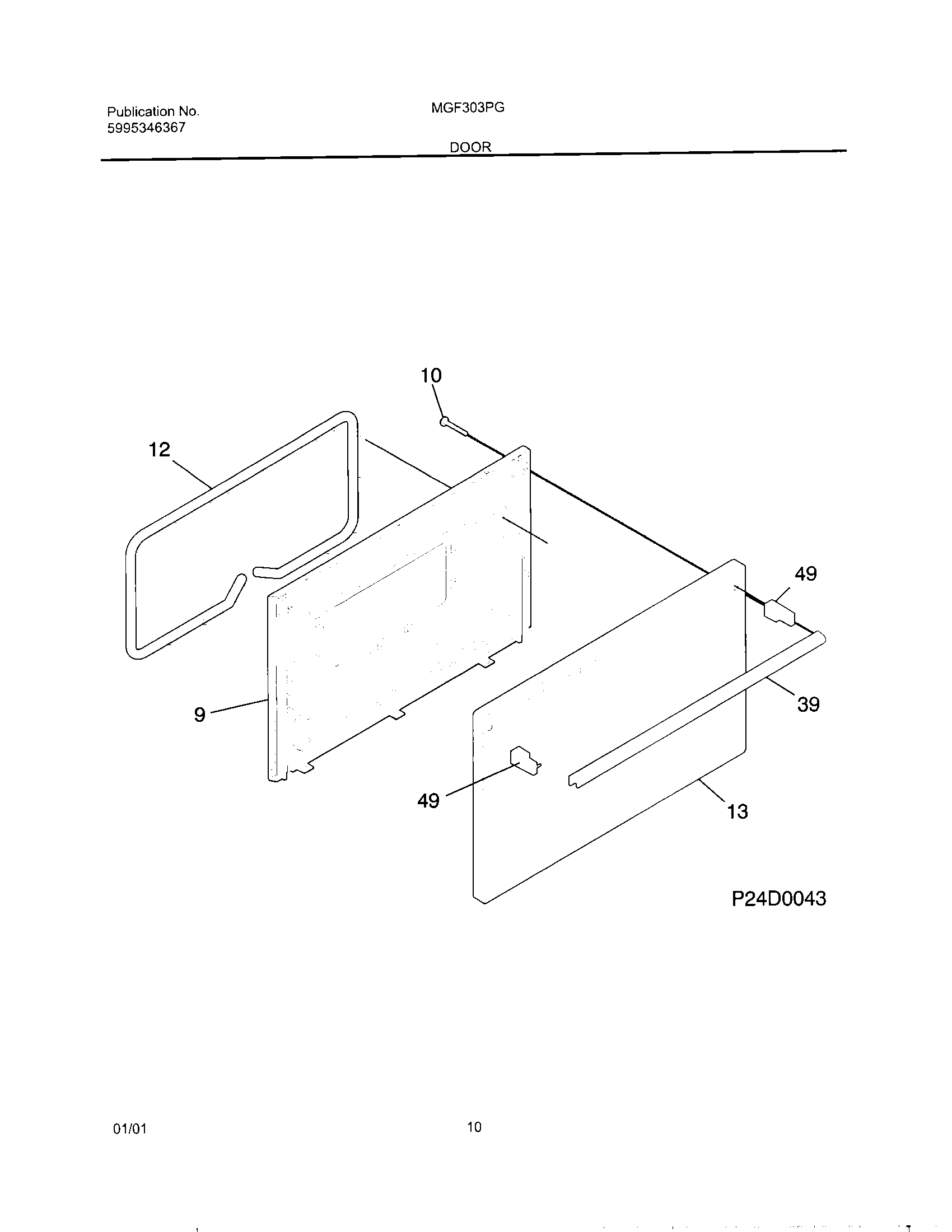

11 - DOOR

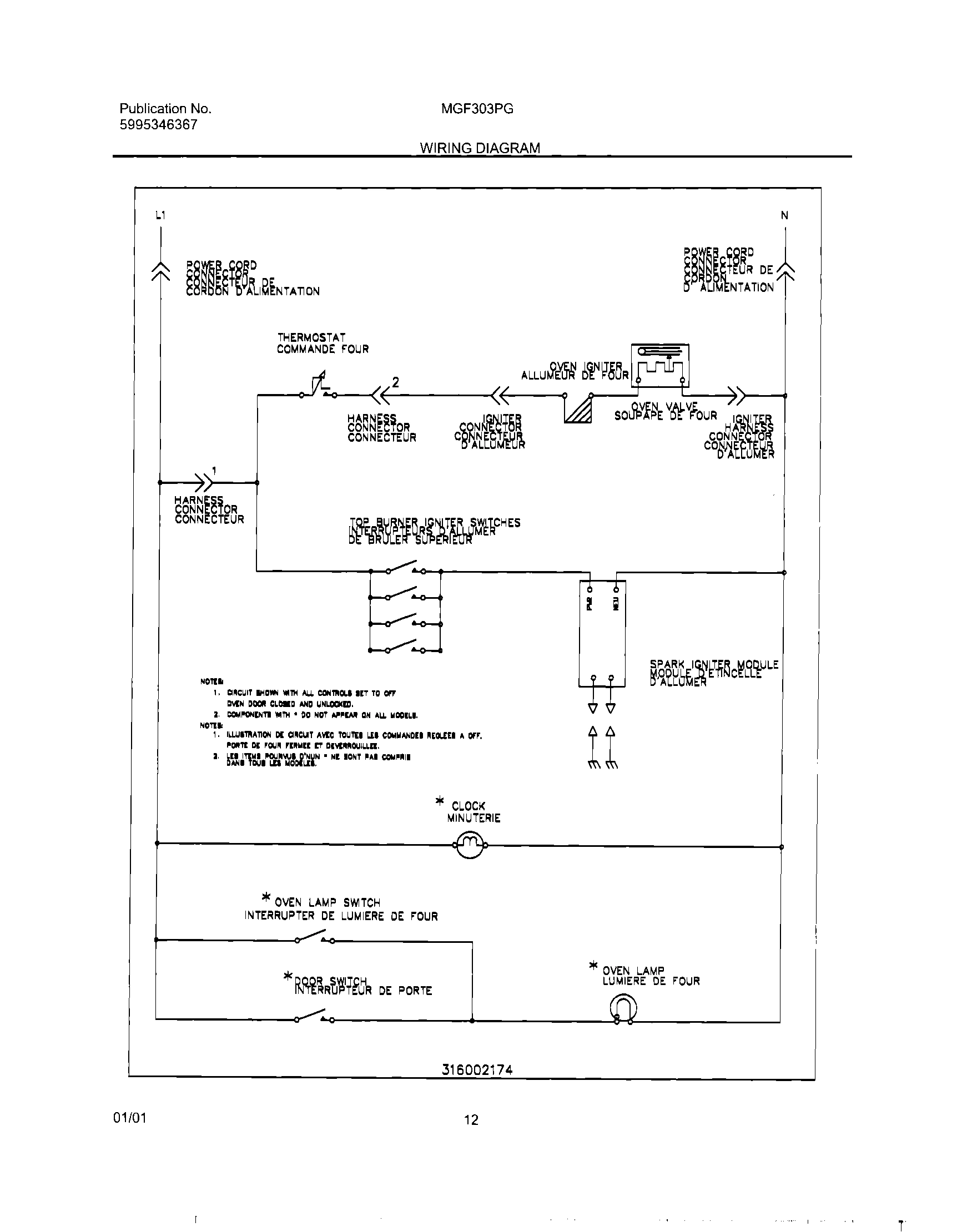

12 - WIRING DIAGRAM
Common parts from model Electrolux MGF303PGDH RANGE
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
3
WCI 316001828 WCI 316001828 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Fastener-spacer,push-in nut ,nylon WCI 316129100 Contact Us For Availability
7
WCI 316007007 WCI 316007007 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
13
WCI 316111501 WCI 316111501 Contact Us For Availability
14
WCI 316082900 WCI 316082900 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
End Cap,black ,LH WCI 3202801 Contact Us For Availability
18
End Cap,black ,RH WCI 3202802 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
COVER-VENT,METAL ,CHROME WCI 316104500 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
KNOB-TOP VALVE, (4) WCI 316009008 No Longer Available
36
WCI 316083000 WCI 316083000 Contact Us For Availability
39
WCI 316020204 WCI 316020204 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
× ![]()
