Model Maytag MGDX700AG0 GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

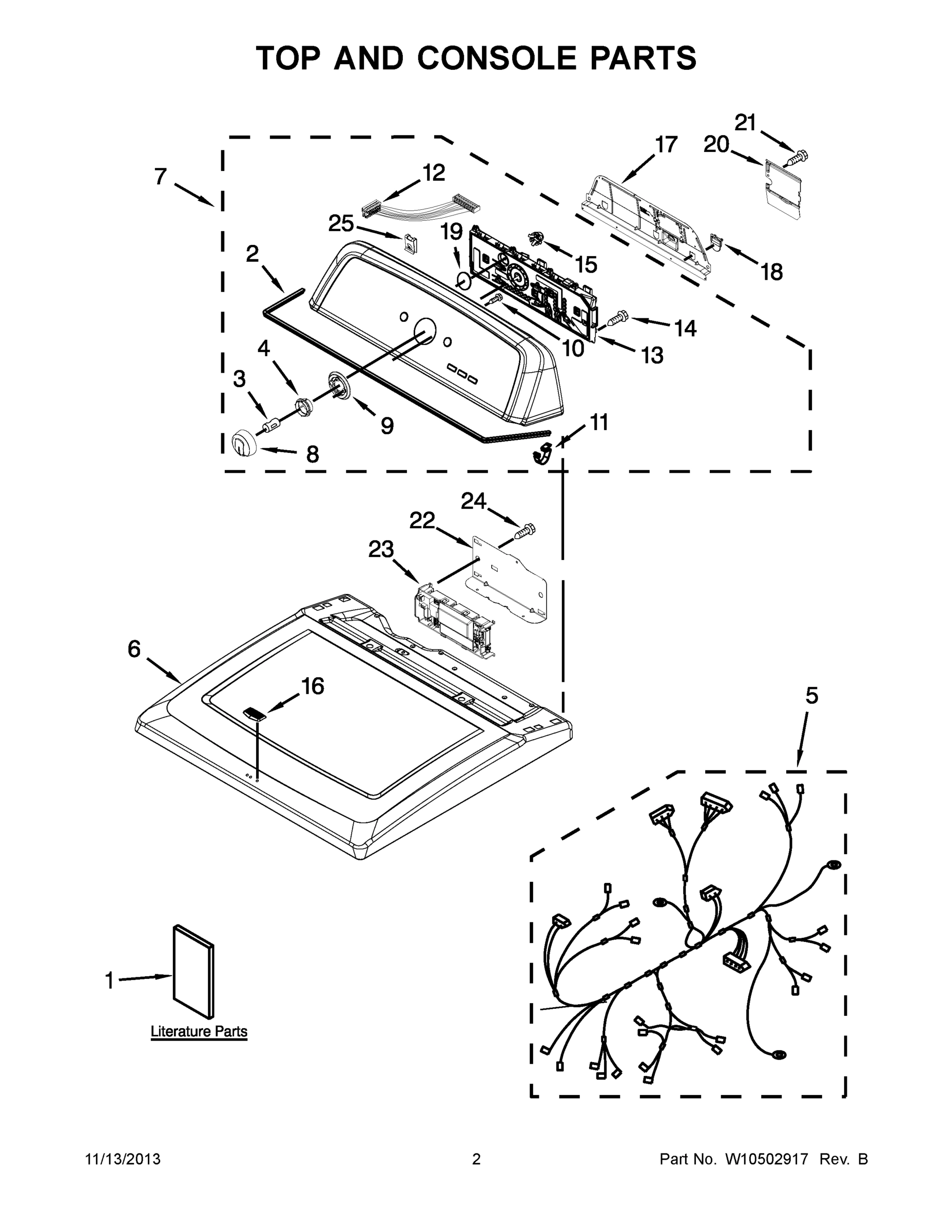

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - DOOR PARTS
06 - W10293911 BURNER ASSEMBLY
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDX700AG0 GAS DRYER
1
USE AND CARE GUIDE MAY W10096989 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10115228 Contact Us For Availability
1
MAY W10287249 MAY W10287249 Contact Us For Availability
1
MAY W10417013 MAY W10417013 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10513690 MAY W10513690 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1 AND 2) (COPREC MAY W10293911 Contact Us For Availability
2
MAY W10280079 MAY W10280079 Contact Us For Availability
2
MAY 8529757 MAY 8529757 Contact Us For Availability
2
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
CLIP, SPRING MAY 8536939 Contact Us For Availability
3
MAY 488729 MAY 488729 Contact Us For Availability
3
SCREW MAY 90767 Contact Us For Availability
3
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10326923 MAY W10326923 Contact Us For Availability
4
MAY 342055 MAY 342055 Contact Us For Availability
4
MAY W10354249 MAY W10354249 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10287253 MAY W10287253 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
5
MAY W10354795 MAY W10354795 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
6
MAY W10459652 MAY W10459652 Contact Us For Availability
6
MAY W10440460 MAY W10440460 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Screw MAY 3393258 Contact Us For Availability
7
MAY W10459653 MAY W10459653 Contact Us For Availability
7
MAY W10459657 MAY W10459657 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10192860 MAY W10192860 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
MAY W10251384 MAY W10251384 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10284122 MAY W10284122 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
MAY W10305134 MAY W10305134 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
JUMPER, WIRE MAY 3401707 Contact Us For Availability
9
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
9
Orifice, Burner (Type 4 (Butane)) MAY 15422 Contact Us For Availability
9
MAY 229742 MAY 229742 Contact Us For Availability
10
MAY 3196172 MAY 3196172 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
10
MAY W10470571 MAY W10470571 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10175144 Contact Us For Availability
11
MAY 8312709 MAY 8312709 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10298258 MAY W10298258 Contact Us For Availability
11
MAY W10284121 MAY W10284121 Contact Us For Availability
11
SLEEVE-MAGNETIC MAY W10295524 Contact Us For Availability
12
MAY W10285494 MAY W10285494 Contact Us For Availability
12
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY (COSMETALLIC) MAY W10461891 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
13
MAY W10272644 MAY W10272644 Contact Us For Availability
13
TOE, PANEL (COSMETALLIC) MAY W10461893 Contact Us For Availability
13
MAY W10153414 MAY W10153414 Contact Us For Availability
13
MAY W10328463 MAY W10328463 Contact Us For Availability
14
MAY W10153413 MAY W10153413 Contact Us For Availability
14
Bracket, Gas Pipe MAY 3978776 Contact Us For Availability
15
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
15
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
16
MAY W10323735 MAY W10323735 Contact Us For Availability
16
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
16
SCREW MAY 3390647 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
PANEL, REAR CONSOLE MAY W10096969 Contact Us For Availability
17
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY W10295523 MAY W10295523 Contact Us For Availability
18
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
18
MAY 3387242 MAY 3387242 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
SEAL, USER INTERFACE MAY W10323092 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10338363 MAY W10338363 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
SCREW MAY 3390814 Contact Us For Availability
21
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10271580 MAY W10271580 Contact Us For Availability
22
SEAL, FOAM MAY W10336128 Contact Us For Availability
23
MAY W10214009 MAY W10214009 Contact Us For Availability
23
MAY W10304147 MAY W10304147 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10153423 Contact Us For Availability
24
Switch, Door MAY 3406107 Contact Us For Availability
24
MAY 359625 MAY 359625 Contact Us For Availability
25
NUT, ``U`` MAY W10298336 Contact Us For Availability
25
ELBOW MAY 49026 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
Strike, Door MAY 3403431 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10396038 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
Screw MAY 8533971 Contact Us For Availability
28
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
29
MAY W10460106 MAY W10460106 Contact Us For Availability
29
MAY 697557 MAY 697557 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
31
Screw MAY 693995 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY W10153412 MAY W10153412 Contact Us For Availability
33
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
33
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
34
PLUG, STRIKE MAY W10097055 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY W10236068 MAY W10236068 Contact Us For Availability
35
MAY 3402841 MAY 3402841 Contact Us For Availability
36
MAY 693152 MAY 693152 Contact Us For Availability
36
MAY 3406124 MAY 3406124 Contact Us For Availability
37
FRONT PANEL (COSMETALLIC) MAY W10461887 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
Retainer MAY 3388229 Contact Us For Availability
38
MAY 8578825 MAY 8578825 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
MAY W10214261 MAY W10214261 Contact Us For Availability
40
SCREW MAY 3357011 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
41
MAY W10596627 MAY W10596627 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
MAY 8573824 MAY 8573824 Contact Us For Availability
47
MAY 338906 MAY 338906 Contact Us For Availability
48
SCREW MAY 3387230 Contact Us For Availability
49
Baffle, Drum MAY 697693 Contact Us For Availability
50
MAY W10305870 MAY W10305870 Contact Us For Availability
51
MAY W10128629 MAY W10128629 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 & 2) TO TYPE (4) L.P.G MAY W10293913 Contact Us For Availability
NI
ACCESSORY PARTS KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER RACK MAY W10071550A Contact Us For Availability
× ![]()
