Model Maytag MGDX655DW0 GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

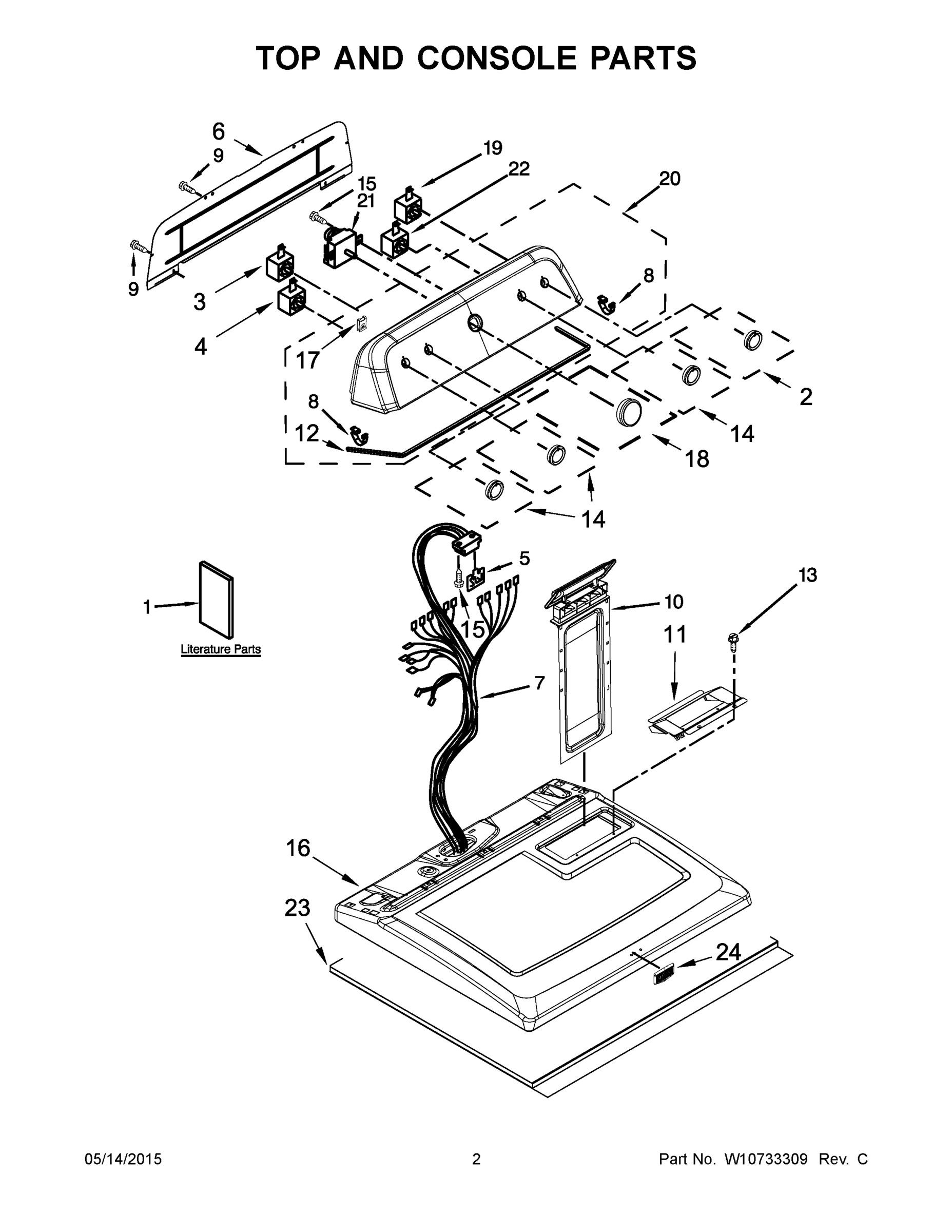

02 - TOP AND CONSOLE PARTS

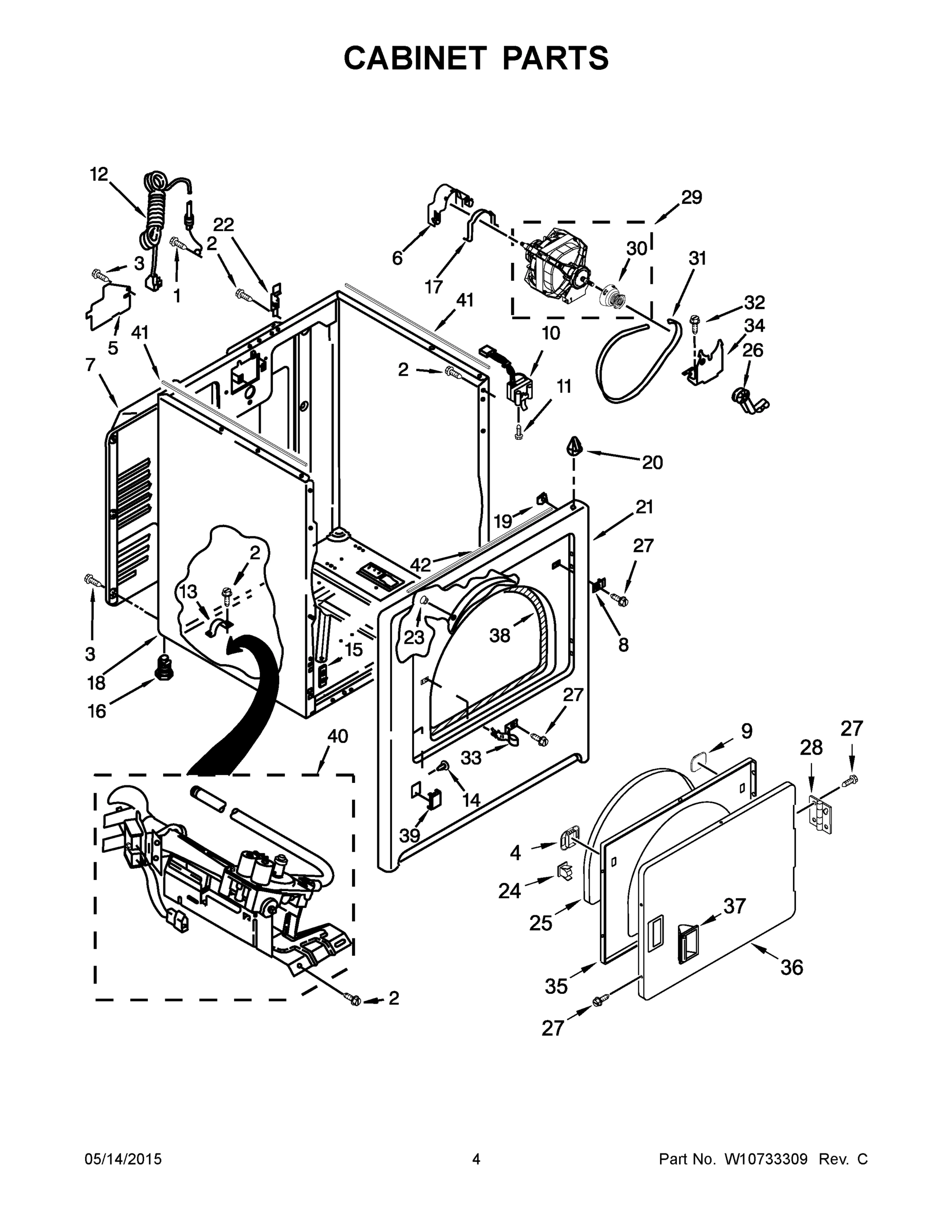

03 - CABINET PARTS

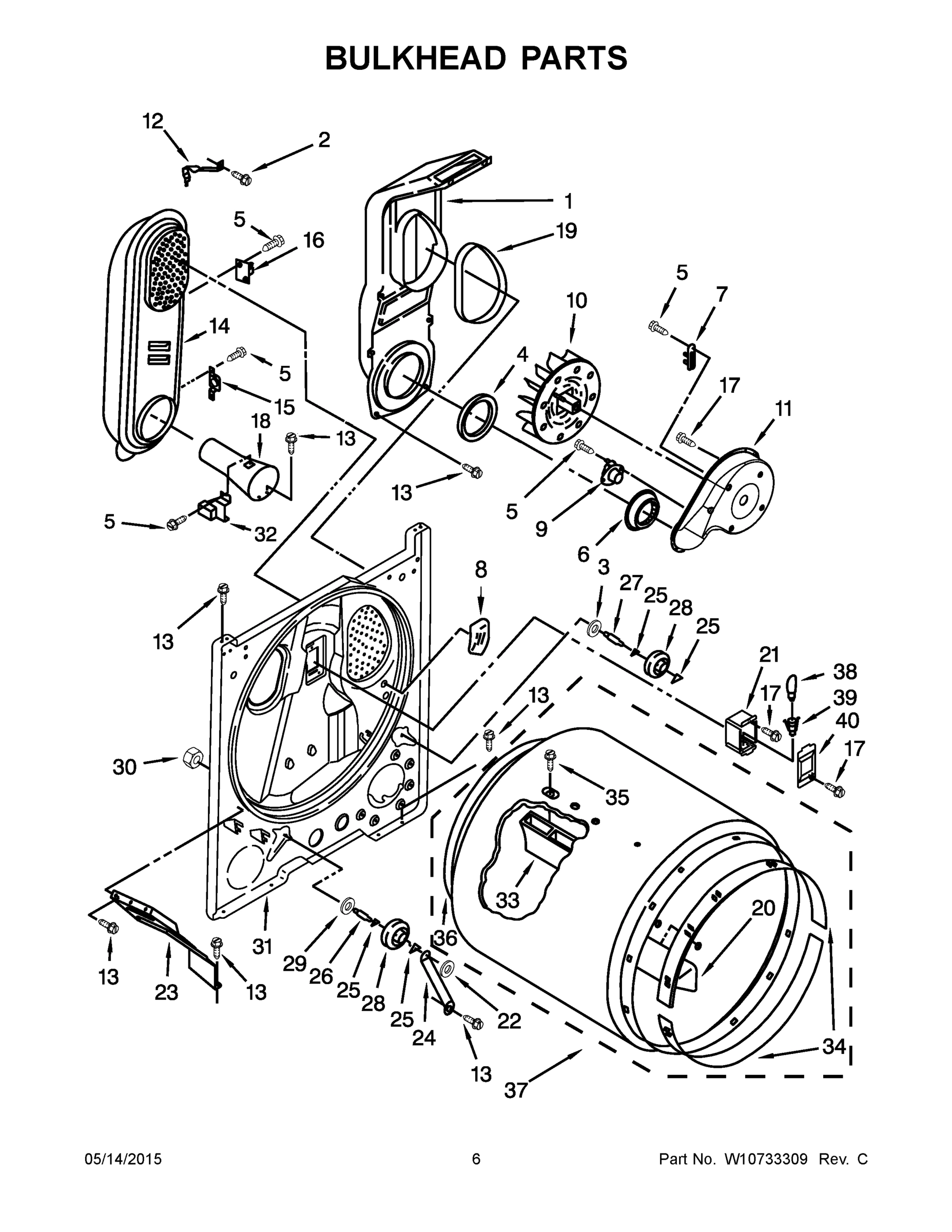

04 - BULKHEAD PARTS

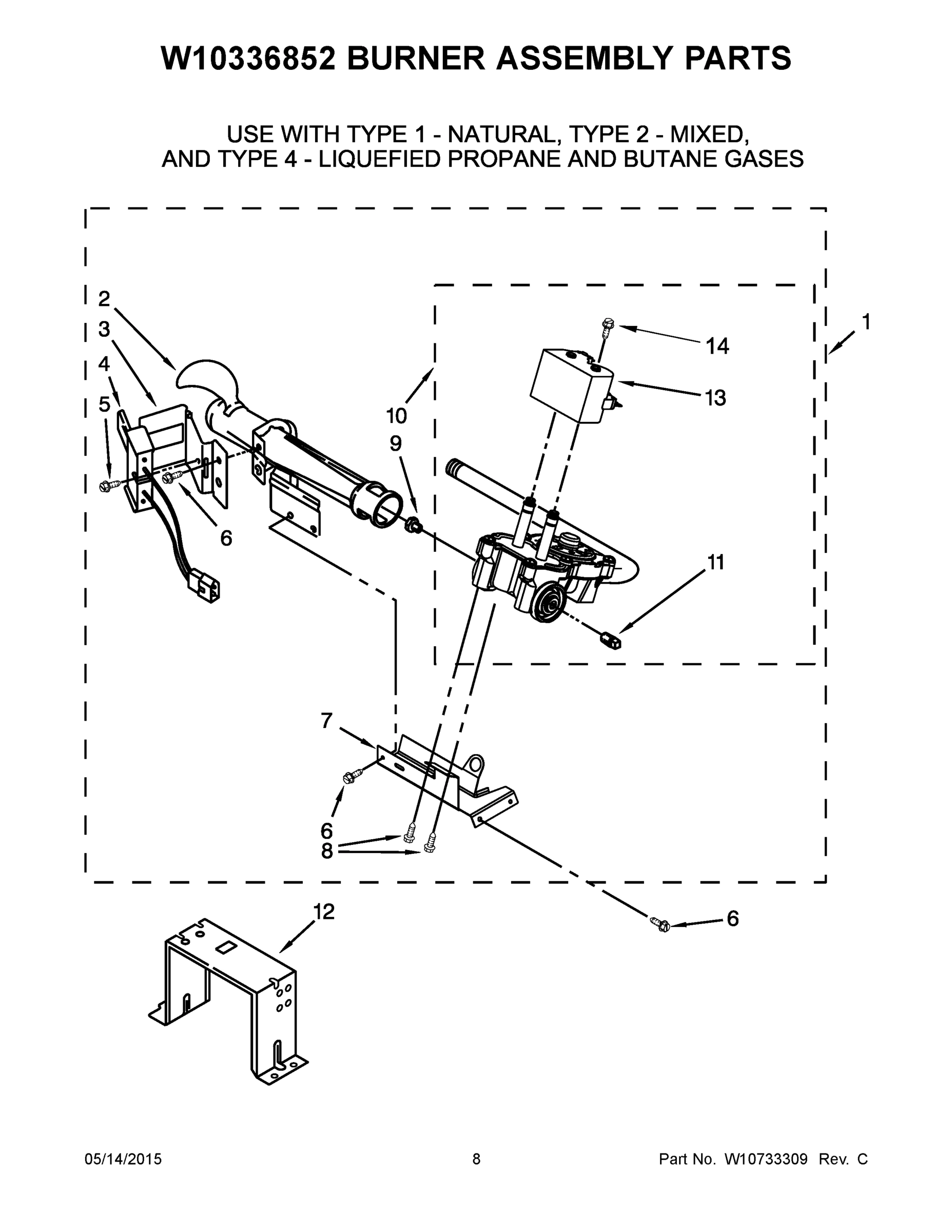

05 - W10336852 BURNER ASSEMBLY PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDX655DW0 GAS DRYER
1
MAY W10594781 MAY W10594781 Contact Us For Availability
1
SCREW MAY 3390631 Contact Us For Availability
1
MAY W10336852 MAY W10336852 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
1A
MAY W10562360 MAY W10562360 Contact Us For Availability
1B
MAY W10185994 MAY W10185994 Contact Us For Availability
2
ASSEMBLY, PUSH TO START KNOB (GREY) MAY W10565871 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY W10627711 MAY W10627711 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10562713 MAY W10562713 Contact Us For Availability
4
MAY W10529197 MAY W10529197 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10476828 MAY W10476828 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY 3396795 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
5
MAY W10366705 MAY W10366705 Contact Us For Availability
6
MAY W10416486 MAY W10416486 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
6
MAY W10389567 MAY W10389567 Contact Us For Availability
7
MAY W10640712 MAY W10640712 Contact Us For Availability
7
MAY W10571724 MAY W10571724 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
7
MAY 693986 MAY 693986 Contact Us For Availability
8
MAY 8312709 MAY 8312709 Contact Us For Availability
8
MAY W10567345 MAY W10567345 Contact Us For Availability
8
MAY 3976479 MAY 3976479 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
MAY 8533974 MAY 8533974 Contact Us For Availability
9
MAY W10529198 MAY W10529198 Contact Us For Availability
9
MAY 8318268 MAY 8318268 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234826 Contact Us For Availability
10
ASSEMBLY, LINT SCREEN MAY W10508973 Contact Us For Availability
10
MAY W10569603 MAY W10569603 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
10
MAY W10304604 MAY W10304604 Contact Us For Availability
11
MAY W10662472 MAY W10662472 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
MAY W10295523 MAY W10295523 Contact Us For Availability
12
MAY W10588162 MAY W10588162 Contact Us For Availability
12
MAY 344020 MAY 344020 Contact Us For Availability
12
MAY 3398161 MAY 3398161 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
13
SCREW MAY 688983 Contact Us For Availability
13
MAY 341029 MAY 341029 Contact Us For Availability
13
MAY W10328463 MAY W10328463 Contact Us For Availability
14
MAY W10562155 MAY W10562155 Contact Us For Availability
14
PLUG, HOLE MAY 3404413 Contact Us For Availability
14
BOX, HEATER (96C) MAY 8530285 Contact Us For Availability
14
MAY 326049536 MAY 326049536 Contact Us For Availability
15
MAY 3348629 MAY 3348629 Contact Us For Availability
15
MAY W10775448 MAY W10775448 Contact Us For Availability
15
MAY W10423382 MAY W10423382 Contact Us For Availability
16
MAY W10695517 MAY W10695517 Contact Us For Availability
16
MAY W10561321 MAY W10561321 Contact Us For Availability
16
MAY 3977394 MAY 3977394 Contact Us For Availability
17
MAY W10298336 MAY W10298336 Contact Us For Availability
17
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
17
SCREW MAY 3390647 Contact Us For Availability
18
MAY W10558463 MAY W10558463 Contact Us For Availability
18
CABINET (WHITE) MAY W10224934 Contact Us For Availability
18
FUNNEL, BURNER LIGHT MAY 8066049 Contact Us For Availability
19
MAY W10563095 MAY W10563095 Contact Us For Availability
19
CLIP, GROUND MAY 98234 Contact Us For Availability
19
MAY 339956 MAY 339956 Contact Us For Availability
20
MAY W10557259 MAY W10557259 Contact Us For Availability
20
MAY 8066092 MAY 8066092 Contact Us For Availability
20
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
21
MAY W10642928 MAY W10642928 Contact Us For Availability
21
MAY W10664698 MAY W10664698 Contact Us For Availability
21
MAY 3977373 MAY 3977373 Contact Us For Availability
22
MAY W10563094 MAY W10563094 Contact Us For Availability
22
HINGE, TOP MAY 8066217 Contact Us For Availability
22
NUT, PUSH ON MAY 90296 Contact Us For Availability
23
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
23
CLIP, FELT PAD MAY 685203 Contact Us For Availability
23
BRACKET, BULKHEAD CHUTE MAY 3406022 Contact Us For Availability
24
MAY W10612925 MAY W10612925 Contact Us For Availability
24
MAY W10610880 MAY W10610880 Contact Us For Availability
24
MAY 3976434 MAY 3976434 Contact Us For Availability
25
MAY W10730752 MAY W10730752 Contact Us For Availability
25
MAY W10512946 MAY W10512946 Contact Us For Availability
26
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
26
MAY W10359270 MAY W10359270 Contact Us For Availability
27
MAY 342055 MAY 342055 Contact Us For Availability
27
MAY W10359269 MAY W10359269 Contact Us For Availability
28
MAY W10362431 MAY W10362431 Contact Us For Availability
28
MAY W10314171 MAY W10314171 Contact Us For Availability
29
MAY W10396032 MAY W10396032 Contact Us For Availability
29
WASHER MAY 348197 Contact Us For Availability
30
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
30
MAY W10298789 MAY W10298789 Contact Us For Availability
31
MAY W10198086 MAY W10198086 Contact Us For Availability
31
MAY 3403414 MAY 3403414 Contact Us For Availability
32
BOLT MAY 3400500 Contact Us For Availability
32
MAY 338906 MAY 338906 Contact Us For Availability
33
STRIKE, DOOR MAY 3403431 Contact Us For Availability
33
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
34
MAY 348780 MAY 348780 Contact Us For Availability
34
BEARING, RING MAY 692526 Contact Us For Availability
35
MAY W10463967 MAY W10463967 Contact Us For Availability
35
MAY W10219342 MAY W10219342 Contact Us For Availability
36
DOOR, OUTER (WHITE) MAY 3402335 Contact Us For Availability
36
MAY W10663495 MAY W10663495 Contact Us For Availability
37
MAY W10549553 MAY W10549553 Contact Us For Availability
37
MAY W10389436 MAY W10389436 Contact Us For Availability
38
MAY W10663510 MAY W10663510 Contact Us For Availability
38
MAY 3406124 MAY 3406124 Contact Us For Availability
39
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
39
MAY W10214261 MAY W10214261 Contact Us For Availability
40
MAY 3402841 MAY 3402841 Contact Us For Availability
41
MAY W10316529 MAY W10316529 Contact Us For Availability
42
MAY W10316619 MAY W10316619 Contact Us For Availability
NI
MAY 49572A MAY 49572A Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
MAY 3406839 MAY 3406839 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
MAY W10336486 MAY W10336486 Contact Us For Availability
NI
MAY W10439655 MAY W10439655 Contact Us For Availability
NI
MAY W10676169 MAY W10676169 Contact Us For Availability
× ![]()
