Model Maytag MGDX600XW2 GAS DRYER – Common Parts & Diagrams

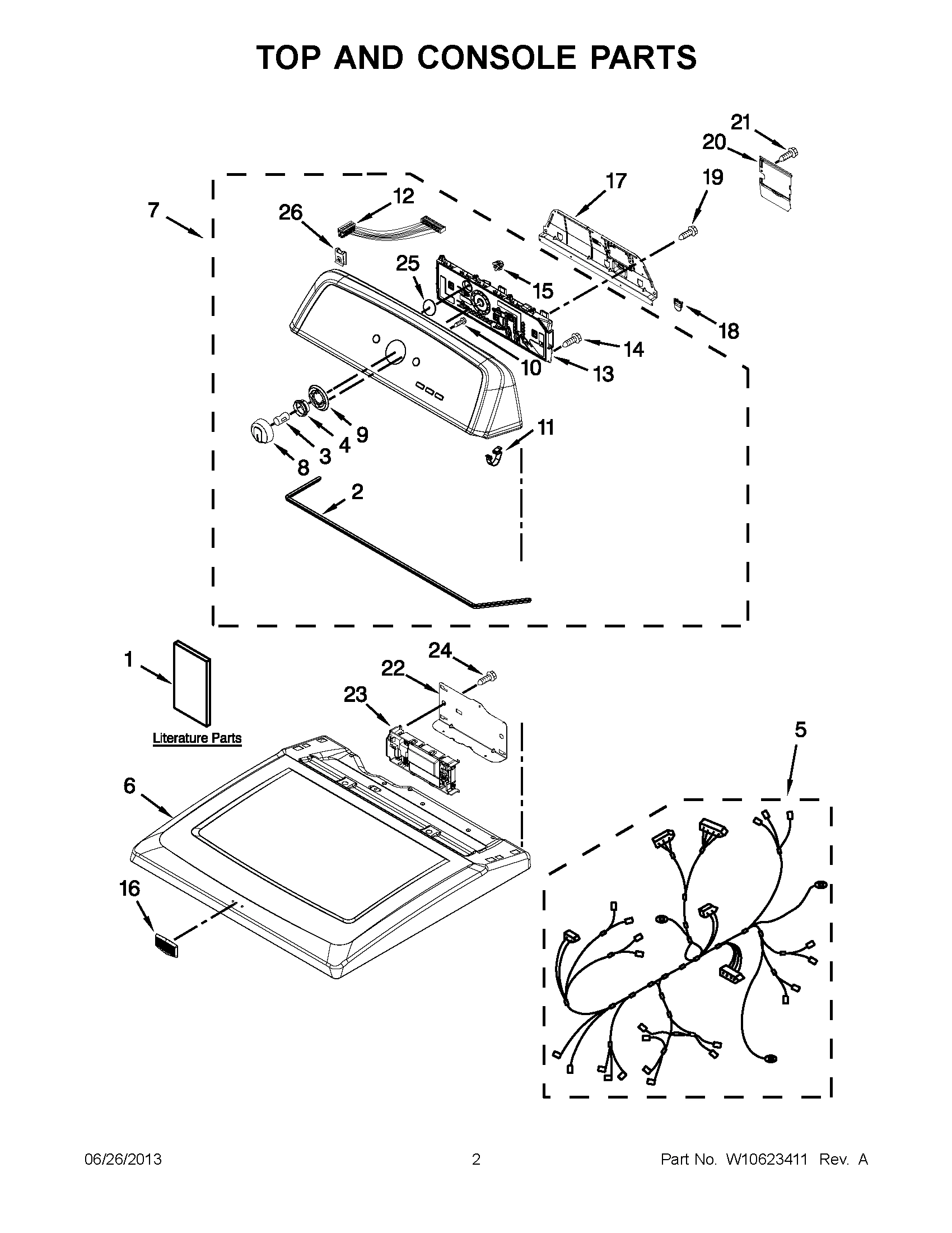

01 - TOP AND CONSOLE PARTS

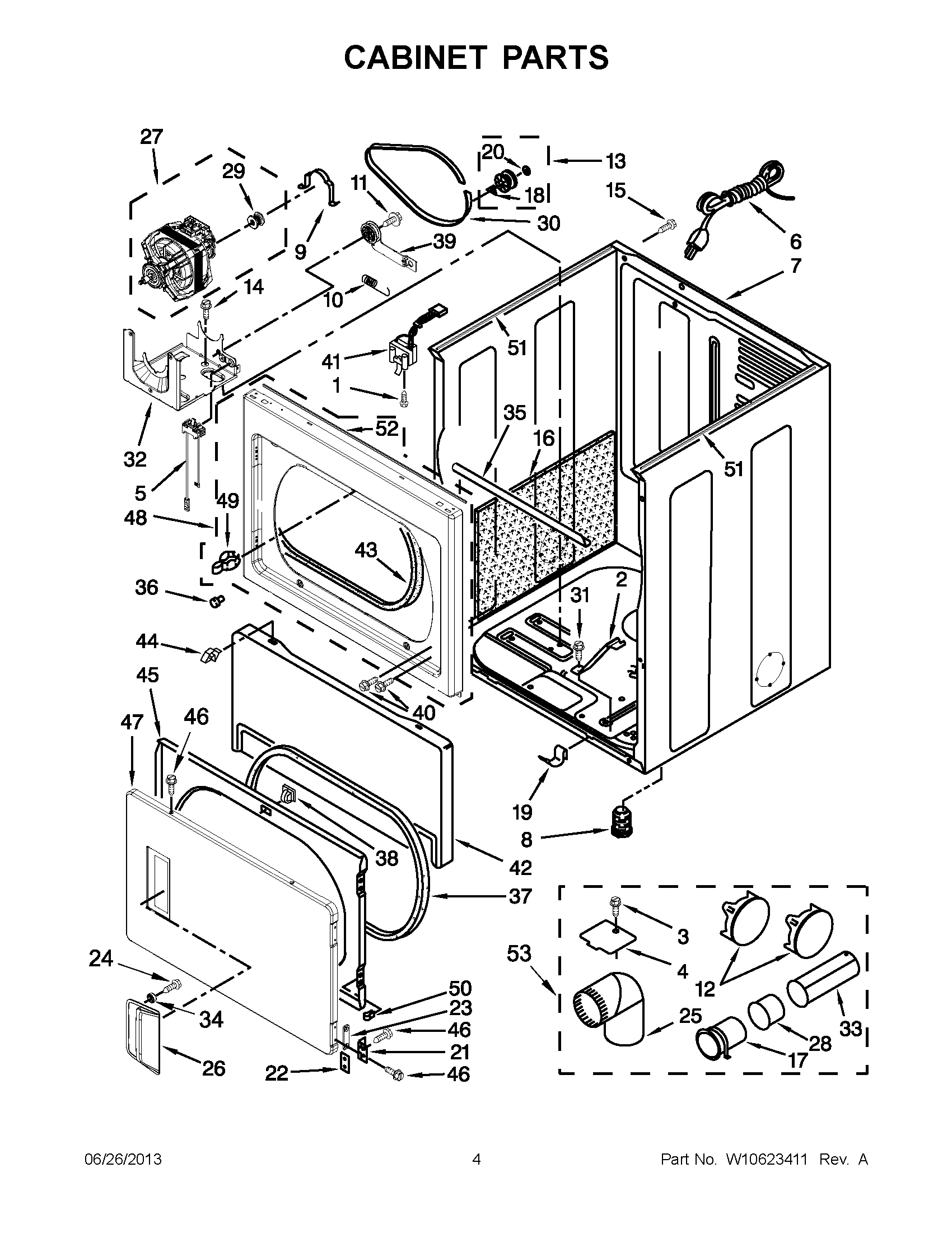

02 - CABINET PARTS

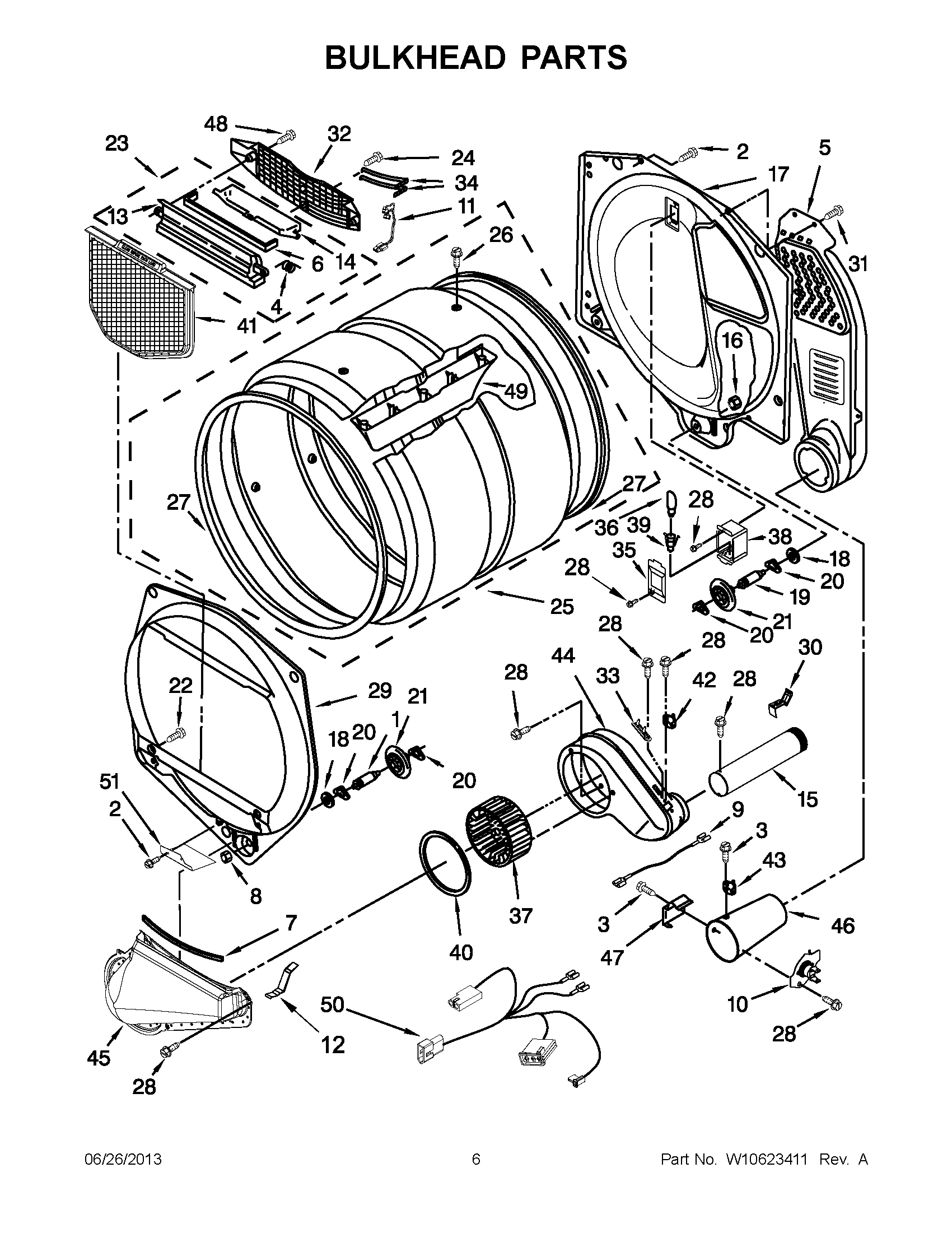

03 - BULKHEAD PARTS

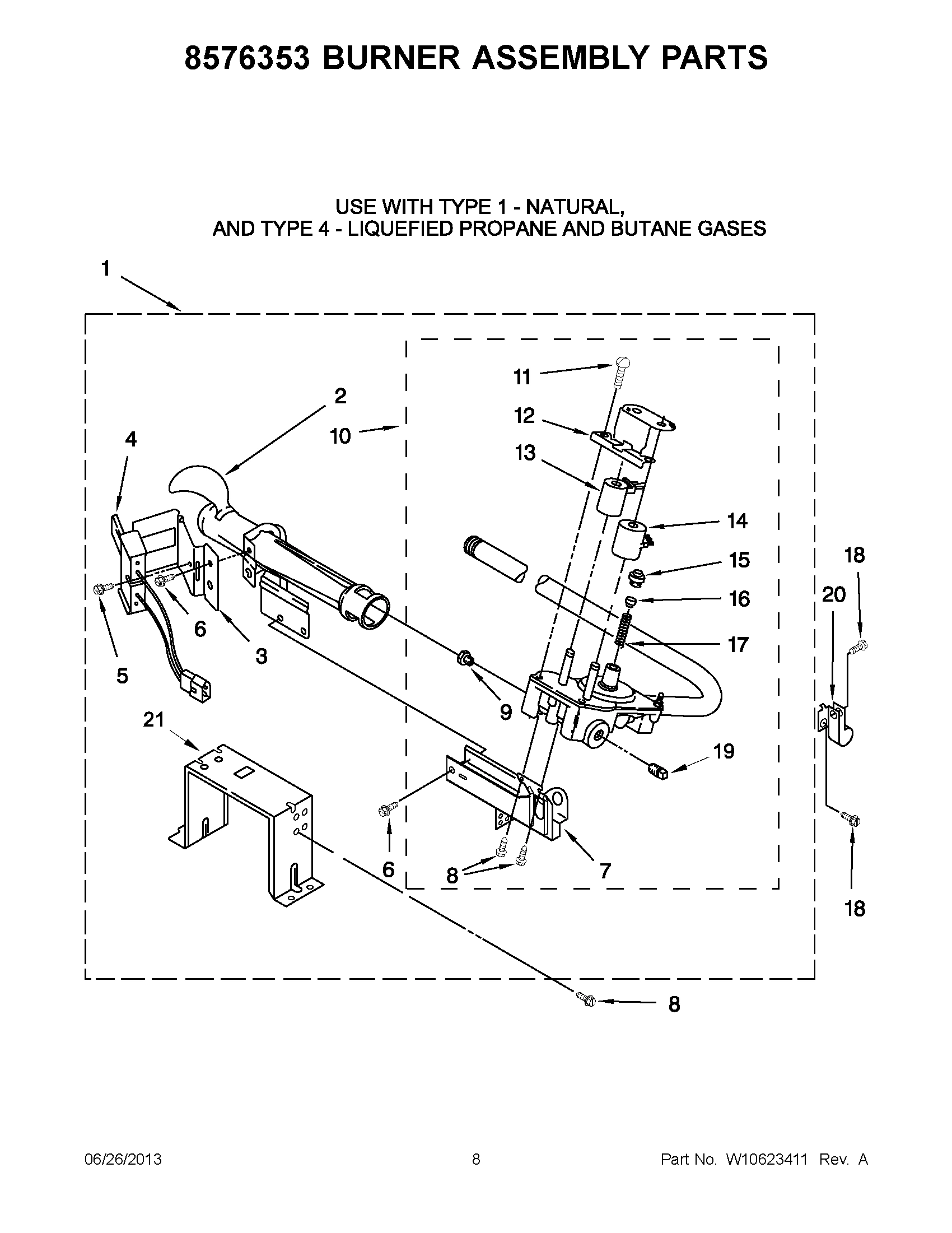

04 - 8576353 BURNER ASSEMBLY PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDX600XW2 GAS DRYER
1
MAY W10096989 MAY W10096989 Contact Us For Availability
1
MAY W10259284 MAY W10259284 Contact Us For Availability
1
MAY W10417013 MAY W10417013 Contact Us For Availability
1
MAY W10514185 MAY W10514185 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS MAY 8576353 Contact Us For Availability
2
MAY W10280079 MAY W10280079 Contact Us For Availability
2
MAY 8529757 MAY 8529757 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
CLIP, SPRING MAY 8536939 Contact Us For Availability
3
SCREW MAY 90767 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10326923 MAY W10326923 Contact Us For Availability
4
MAY 3394331 MAY 3394331 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10253982 MAY W10253982 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
6
MAY W10268730 MAY W10268730 Contact Us For Availability
6
MAY W10440460 MAY W10440460 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
ASSEMBLY, CONSOLE (WHITE) MAY W10293247 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
ASSEMBLY, CONTROL KNOB (SILVER) MAY W10251381 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
MAY W10305134 MAY W10305134 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
JUMPER, WIRE MAY 3401707 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
9
Orifice, Burner (Type 4 (Butane)) MAY 15422 Contact Us For Availability
9
Orifice, Burner (Type 4 (Propane)) MAY 234867 Contact Us For Availability
10
MAY 3196172 MAY 3196172 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10298258 MAY W10298258 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10285494 MAY W10285494 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
12
MAY W10345456 MAY W10345456 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
ASSEMBLY, USER INTERFACE MAY W10272643 Contact Us For Availability
13
ASSEMBLY, PULLEY MAY 3388672 Contact Us For Availability
13
MAY W10153414 MAY W10153414 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY W10153413 MAY W10153413 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
15
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10492808 MAY W10492808 Contact Us For Availability
16
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY W10550615 MAY W10550615 Contact Us For Availability
17
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
18
SCREW MAY 3390647 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 239822 MAY 239822 Contact Us For Availability
20
MAY W10338363 MAY W10338363 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
20
MAY 3387561 MAY 3387561 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN (SILVER) MAY 3389247 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 3389889 MAY 3389889 Contact Us For Availability
22
MAY W10271580 MAY W10271580 Contact Us For Availability
22
MAY 342055 MAY 342055 Contact Us For Availability
22
Clip, Door Hinge MAY 3390902 Contact Us For Availability
23
MAY W10317638 MAY W10317638 Contact Us For Availability
23
PLUG, HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10153423 Contact Us For Availability
24
MAY 359625 MAY 359625 Contact Us For Availability
24
MAY W10192860 MAY W10192860 Contact Us For Availability
25
SEAL, USER INTERFACE MAY W10323092 Contact Us For Availability
25
ELBOW MAY 49026 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY 8312709 MAY 8312709 Contact Us For Availability
26
MAY W10284182 MAY W10284182 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10396038 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
Screw MAY 8533971 Contact Us For Availability
28
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
29
MAY W10460106 MAY W10460106 Contact Us For Availability
29
MAY 697557 MAY 697557 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
31
Screw MAY 693995 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY W10153412 MAY W10153412 Contact Us For Availability
33
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
33
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
34
MAY W10294344 MAY W10294344 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY W10236068 MAY W10236068 Contact Us For Availability
35
MAY 3402841 MAY 3402841 Contact Us For Availability
36
MAY 693152 MAY 693152 Contact Us For Availability
36
MAY 3406124 MAY 3406124 Contact Us For Availability
37
MAY 3390735 MAY 3390735 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
38
MAY 8578825 MAY 8578825 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
MAY W10214261 MAY W10214261 Contact Us For Availability
40
SCREW MAY 3357011 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
Switch, Door MAY 3406107 Contact Us For Availability
41
MAY W10596627 MAY W10596627 Contact Us For Availability
42
PANEL, TOE (INCLUDES ITEM. 36) (WHITE) MAY 697215 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY 3387242 MAY 3387242 Contact Us For Availability
43
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
44
Retainer MAY 3388229 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY W10323061 MAY W10323061 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
MAY 8573824 MAY 8573824 Contact Us For Availability
47
DOOR, OUTER (WHITE) MAY W10322551 Contact Us For Availability
47
MAY 338906 MAY 338906 Contact Us For Availability
48
PANEL, FRONT (WHITE) MAY W10115218 Contact Us For Availability
48
SCREW MAY 3387230 Contact Us For Availability
49
MAY 696144 MAY 696144 Contact Us For Availability
49
Baffle, Drum MAY 697693 Contact Us For Availability
50
NUT, ``U`` MAY W10298336 Contact Us For Availability
50
MAY W10305870 MAY W10305870 Contact Us For Availability
51
SEAL, FOAM MAY W10336128 Contact Us For Availability
51
MAY W10128629 MAY W10128629 Contact Us For Availability
52
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
53
MAY W10331132 MAY W10331132 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
Conversion Kit (Type (1) to Type (4) LPG). MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
× ![]()
