Model Maytag MGDE500VW3 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

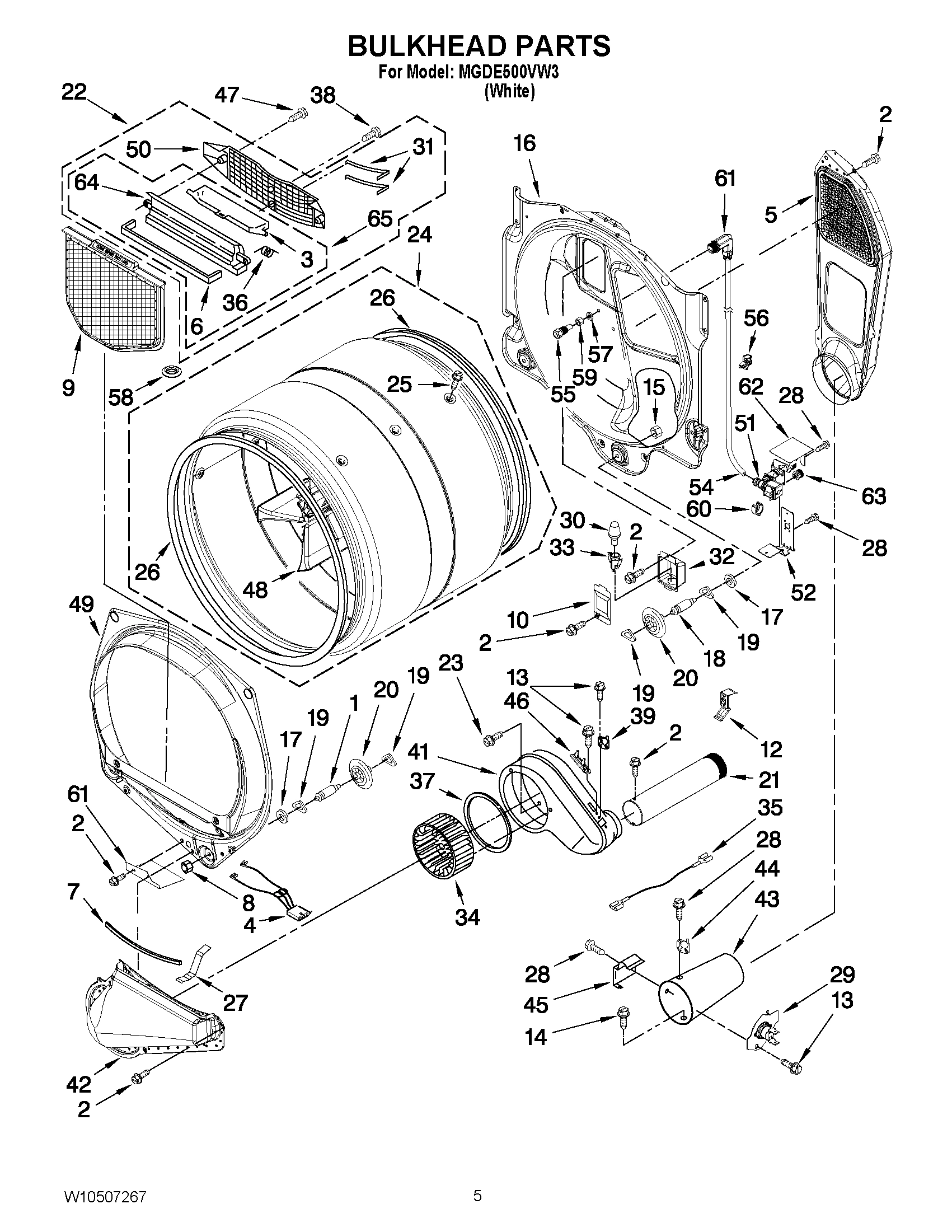

03 - BULKHEAD PARTS

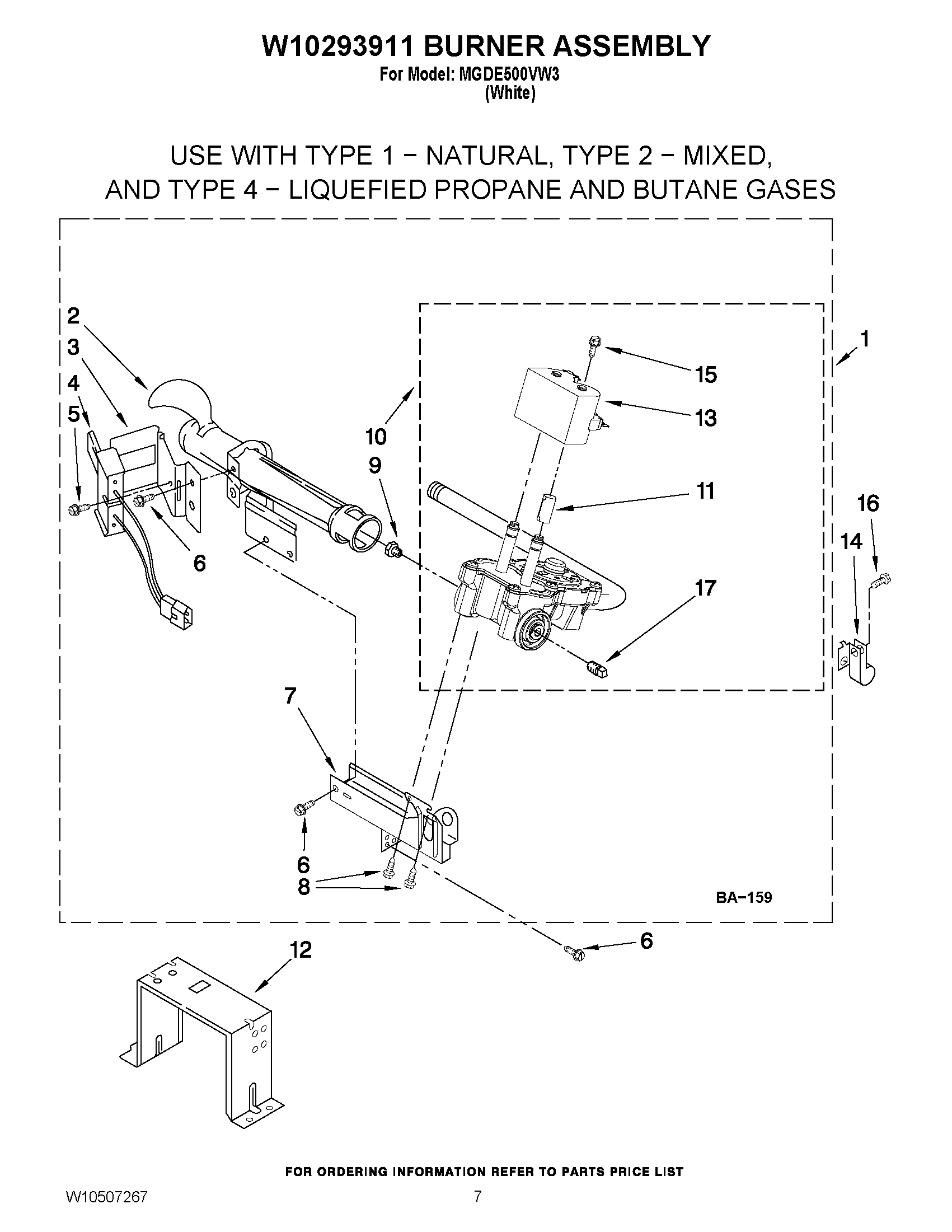

04 - W10293911 BURNER ASSEMBLY

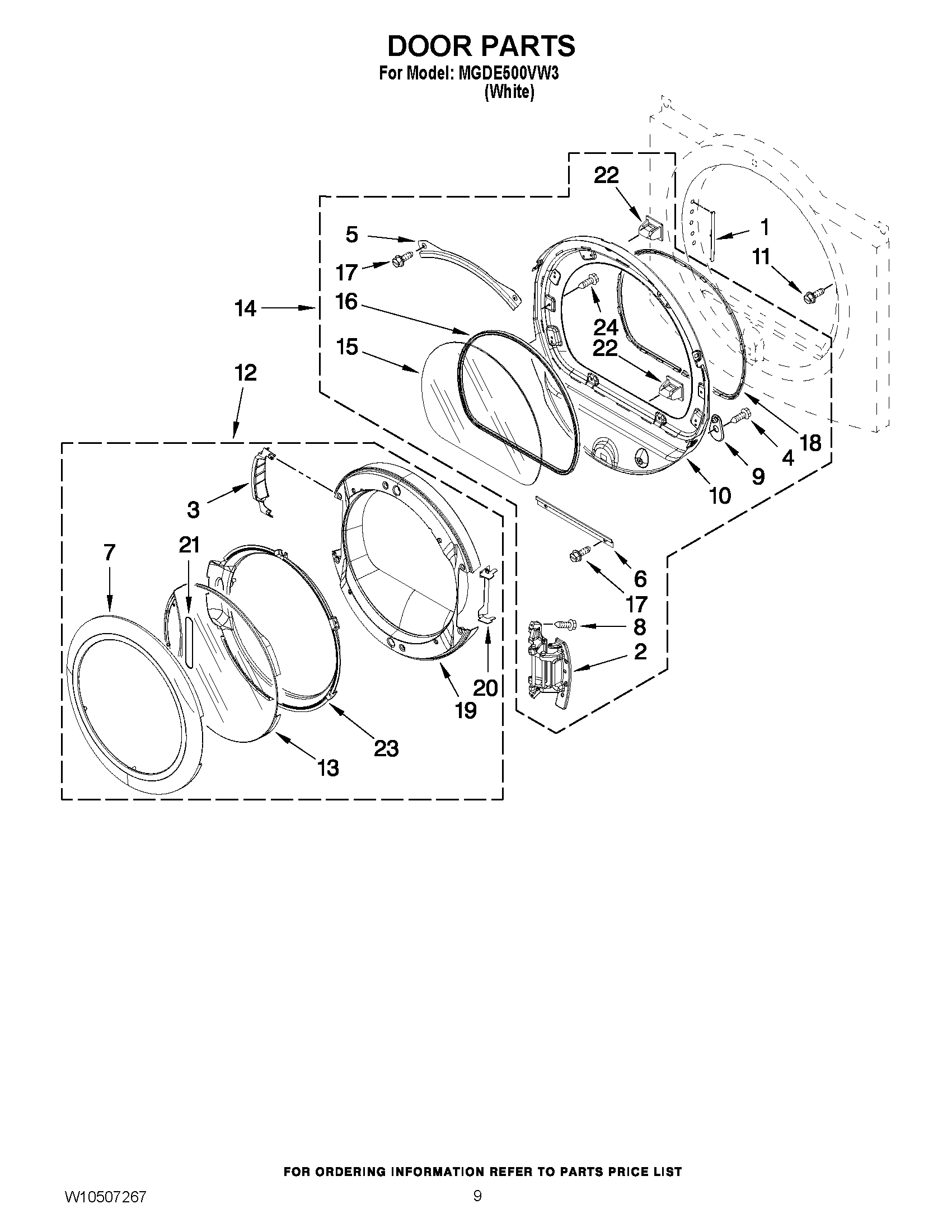

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDE500VW3 GAS DRYER
1
MAY W10239302 MAY W10239302 Contact Us For Availability
1
MAY W10298850 MAY W10298850 Contact Us For Availability
1
MAY W10471645 MAY W10471645 Contact Us For Availability
1
MAY 8317340 MAY 8317340 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
1
MAY W10293911 MAY W10293911 Contact Us For Availability
1
Label, Hinge Hole (Silver) MAY W10085230 Contact Us For Availability
2
MAY 3980634 MAY 3980634 Contact Us For Availability
2
SCREW MAY 3390631 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10310366 MAY W10310366 Contact Us For Availability
3
MAY W10111069 MAY W10111069 Contact Us For Availability
3
SCREW GROUND MAY 8533974 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
Cover, Door Hinge MAY W10180119 Contact Us For Availability
4
CONSOLE ASSEMBLY MAY W10246750 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 3400224 Contact Us For Availability
5
BRACKET, CONSOLE (INCLUDES NO. 9) MAY W10215656 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
Retainer-Window Upper MAY 8519356 Contact Us For Availability
6
PANEL, SIDE MAY W10468495 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Retainer-Window Lower MAY 8519354 Contact Us For Availability
7
MAY 8572039 MAY 8572039 Contact Us For Availability
7
MAY 3392100 MAY 3392100 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
Handle Ring MAY W10193522 Contact Us For Availability
8
MEDALLION MAY W10316087 Contact Us For Availability
8
MAY W10121316 MAY W10121316 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW, 8-18 X 3/8 (3) MAY 3387057 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY W10112267 MAY W10112267 Contact Us For Availability
9
MAY 3387374 MAY 3387374 Contact Us For Availability
9
MAY W10049370 MAY W10049370 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 15418 Contact Us For Availability
9
MAY W10048910 MAY W10048910 Contact Us For Availability
10
Knob MAY W10164576 Contact Us For Availability
10
MAY 3389420 MAY 3389420 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10175144 MAY W10175144 Contact Us For Availability
10
Inner Door MAY 8578229 Contact Us For Availability
11
TECHBOX ASSEMBLY MAY W10269025 Contact Us For Availability
11
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
11
SLEEVE-MAGNETIC MAY W10295524 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
MAY W10171504 MAY W10171504 Contact Us For Availability
12
MAY 3388672 MAY 3388672 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
12
DOOR ASSEMBLY OUTER (INCLUDES 3,7,13,19,20,21 MAY W10193530 Contact Us For Availability
13
MAY 8540282 MAY 8540282 Contact Us For Availability
13
Screw MAY 8533971 Contact Us For Availability
13
MAY W10273784 MAY W10273784 Contact Us For Availability
13
Door Mask Assembly MAY W10180117 Contact Us For Availability
14
MAY 8540513 MAY 8540513 Contact Us For Availability
14
MAY 3978776 MAY 3978776 Contact Us For Availability
14
Screw MAY 693995 Contact Us For Availability
14
DOOR ASSEMBLY INNER (INCLUDES 2,4,5,6,8,9,10, MAY 8577819 Contact Us For Availability
15
MAY W10170295 MAY W10170295 Contact Us For Availability
15
MAY W10244142 MAY W10244142 Contact Us For Availability
15
MAY W10001120 MAY W10001120 Contact Us For Availability
15
SCREW, COIL MAY 326049536 Contact Us For Availability
15
MAY 8566254 MAY 8566254 Contact Us For Availability
16
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
16
Guide, Light Cylcle Internal MAY W10170293 Contact Us For Availability
16
MAY 696144 MAY 696144 Contact Us For Availability
16
MAY W10133857 MAY W10133857 Contact Us For Availability
16
MAY 8579662 MAY 8579662 Contact Us For Availability
17
MAY W10164567 MAY W10164567 Contact Us For Availability
17
Washer, Flat Plastic MAY W10121334 Contact Us For Availability
17
MAY 3387459 MAY 3387459 Contact Us For Availability
17
PLUG, PIPE MAY W10295523 Contact Us For Availability
17
Screw MAY 3393258 Contact Us For Availability
18
MAY W10172298 MAY W10172298 Contact Us For Availability
18
MAY W10128087 MAY W10128087 Contact Us For Availability
18
MAY W10359272 MAY W10359272 Contact Us For Availability
18
MAY W10139457 MAY W10139457 Contact Us For Availability
19
POWER CABLE USER INTERFACE MAY W10242907 Contact Us For Availability
19
MAY 690997 MAY 690997 Contact Us For Availability
19
Door-Intermediate MAY W10180118 Contact Us For Availability
20
MAY W10164578 MAY W10164578 Contact Us For Availability
20
COVER, PLATE MAY W10354249 Contact Us For Availability
20
MAY W10314171 MAY W10314171 Contact Us For Availability
20
Shield, Door MAY W10180120 Contact Us For Availability
21
Frame-Light (Guide Display) MAY W10171502 Contact Us For Availability
21
MAY 8529053 MAY 8529053 Contact Us For Availability
21
MAY 8563745 MAY 8563745 Contact Us For Availability
21
Pad,Foam-Frame MAY W10153281 Contact Us For Availability
22
MAY W10215674 MAY W10215674 Contact Us For Availability
22
TOE PANEL MAY W10246269 Contact Us For Availability
22
OUTLET GRILL HOUSING ASSEMBLY (COMPLETE) MAY W10253353 Contact Us For Availability
22
DOOR CATCH MAY 690081 Contact Us For Availability
23
MAY W10216201 MAY W10216201 Contact Us For Availability
23
MAY W10174746 MAY W10174746 Contact Us For Availability
23
Screw MAY 489463 Contact Us For Availability
23
Screen, Door MAY W10171571 Contact Us For Availability
24
MAY W10216202 MAY W10216202 Contact Us For Availability
24
MOTOR, ASSEMBLY 60 HZ. MAY W10396028 Contact Us For Availability
24
MAY W10181466 MAY W10181466 Contact Us For Availability
24
Screw MAY 9742177 Contact Us For Availability
25
PLUG, CONNECTOR FRAME MAY W10214555 Contact Us For Availability
25
Bracket, Control MAY 8563727 Contact Us For Availability
25
MAY W10219342 MAY W10219342 Contact Us For Availability
26
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
26
MAY W10166807 MAY W10166807 Contact Us For Availability
27
MAY W10112954 MAY W10112954 Contact Us For Availability
27
MAY W10345456 MAY W10345456 Contact Us For Availability
28
SCREW MAY 90767 Contact Us For Availability
28
MAY 8529757 MAY 8529757 Contact Us For Availability
29
BRACKET, MOTOR MAY W10242878 Contact Us For Availability
29
MAY 8573713 MAY 8573713 Contact Us For Availability
30
MAY W10440461 MAY W10440461 Contact Us For Availability
30
MAY 3406124 MAY 3406124 Contact Us For Availability
31
MAY 49026 MAY 49026 Contact Us For Availability
31
MAY 3387223 MAY 3387223 Contact Us For Availability
32
MAY 8578825 MAY 8578825 Contact Us For Availability
33
EXHAUST PIPE MAY 8563747 Contact Us For Availability
33
SOCKET, ASSEMBLY MAY W10214261 Contact Us For Availability
34
MAY W10331278 MAY W10331278 Contact Us For Availability
34
MAY 697772 MAY 697772 Contact Us For Availability
35
MAY 8563749 MAY 8563749 Contact Us For Availability
35
Jumper-Tco Hi-Limit MAY 3401710 Contact Us For Availability
36
Idler Bracket MAY 3388674 Contact Us For Availability
36
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
37
Clip-S Type MAY 62825 Contact Us For Availability
37
MAY 697770 MAY 697770 Contact Us For Availability
38
TRIM-RING ASSEMBLY (INCLUDES: ITEM 44) MAY W10221445 Contact Us For Availability
38
SCREW MAY 695240 Contact Us For Availability
39
MAY W10242903 MAY W10242903 Contact Us For Availability
39
THERMISTOR MAY 8577274 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
MAY 8544362 MAY 8544362 Contact Us For Availability
42
SCREW MAY 3357011 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
MAY 8519459 MAY 8519459 Contact Us For Availability
43
MAY 8573824 MAY 8573824 Contact Us For Availability
44
Trim-Clip Metal MAY W10129065 Contact Us For Availability
44
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
45
MAY W10239098 MAY W10239098 Contact Us For Availability
45
MAY 338906 MAY 338906 Contact Us For Availability
46
FRONT PANEL MAY W10153275 Contact Us For Availability
46
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
47
SCREW MAY 3387230 Contact Us For Availability
48
Baffle, Drum MAY 697693 Contact Us For Availability
49
MAY W10252304 MAY W10252304 Contact Us For Availability
50
MAY W10153412 MAY W10153412 Contact Us For Availability
51
Valve, Water Inlet (Includes Illus, 52 & 62 ) MAY W10044596 Contact Us For Availability
52
Bracket, Valve MAY W10044597 Contact Us For Availability
54
HOSE MAY W10358883 Contact Us For Availability
55
NOZZLE, SPRAY STEAM MAY W10277503 Contact Us For Availability
56
MAY 3391018 MAY 3391018 Contact Us For Availability
57
MAY W10044579 MAY W10044579 Contact Us For Availability
58
MAY W10128544 MAY W10128544 Contact Us For Availability
59
Brass Nut MAY W10044628 Contact Us For Availability
60
MAY W10044599 MAY W10044599 Contact Us For Availability
61
NOZZLE & HOSE ASSEMBLY MAY W10358884 Contact Us For Availability
62
MAY W10184825 MAY W10184825 Contact Us For Availability
63
MAY W10044605 MAY W10044605 Contact Us For Availability
64
Outlet Housing MAY W10153414 Contact Us For Availability
65
MAY W10153423 MAY W10153423 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
NI
MAY W10293913 MAY W10293913 Contact Us For Availability
NI
(HOSE INLET) 2’ HOSE MAY 350027 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Filter Washer MAY 353362 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
NI
MAY 8579666A MAY 8579666A Contact Us For Availability
NI
HOSE, INLET 5` HOSE MAY 89503 Contact Us For Availability
NI
CONNECTOR, HOSE ``Y`` MAY W10044604 Contact Us For Availability
NI
BAG ASSEMBLY (CONTAINS THE FOLLOWING) MAY W10206708 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MAGNA RED) MAY W10218245 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Green Metallic) MAY W10218248 Contact Us For Availability
NI
Washer MAY W10242307 Contact Us For Availability
× ![]()
