Model Maytag MGDE400XW1 GAS DRYER – Common Parts & Diagrams

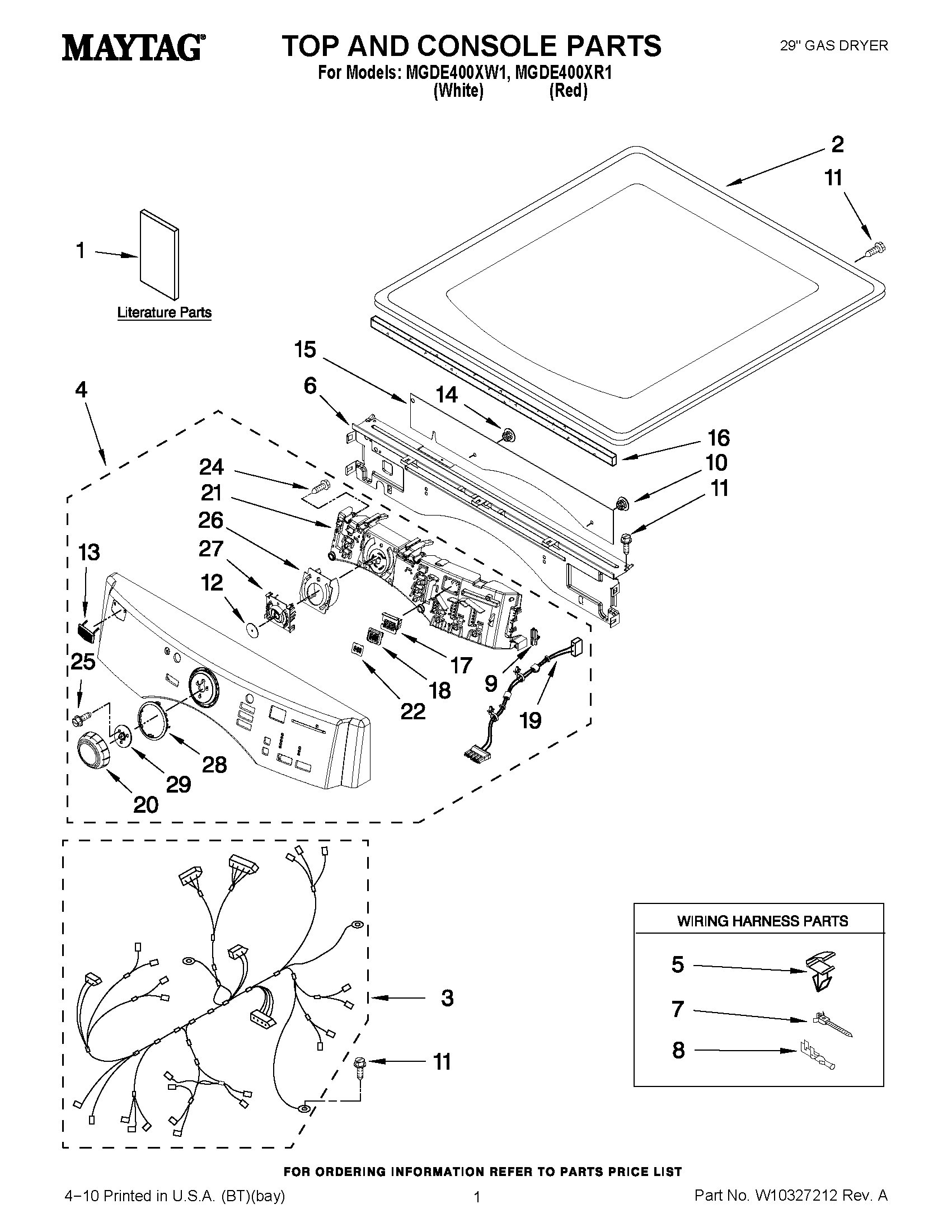

01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

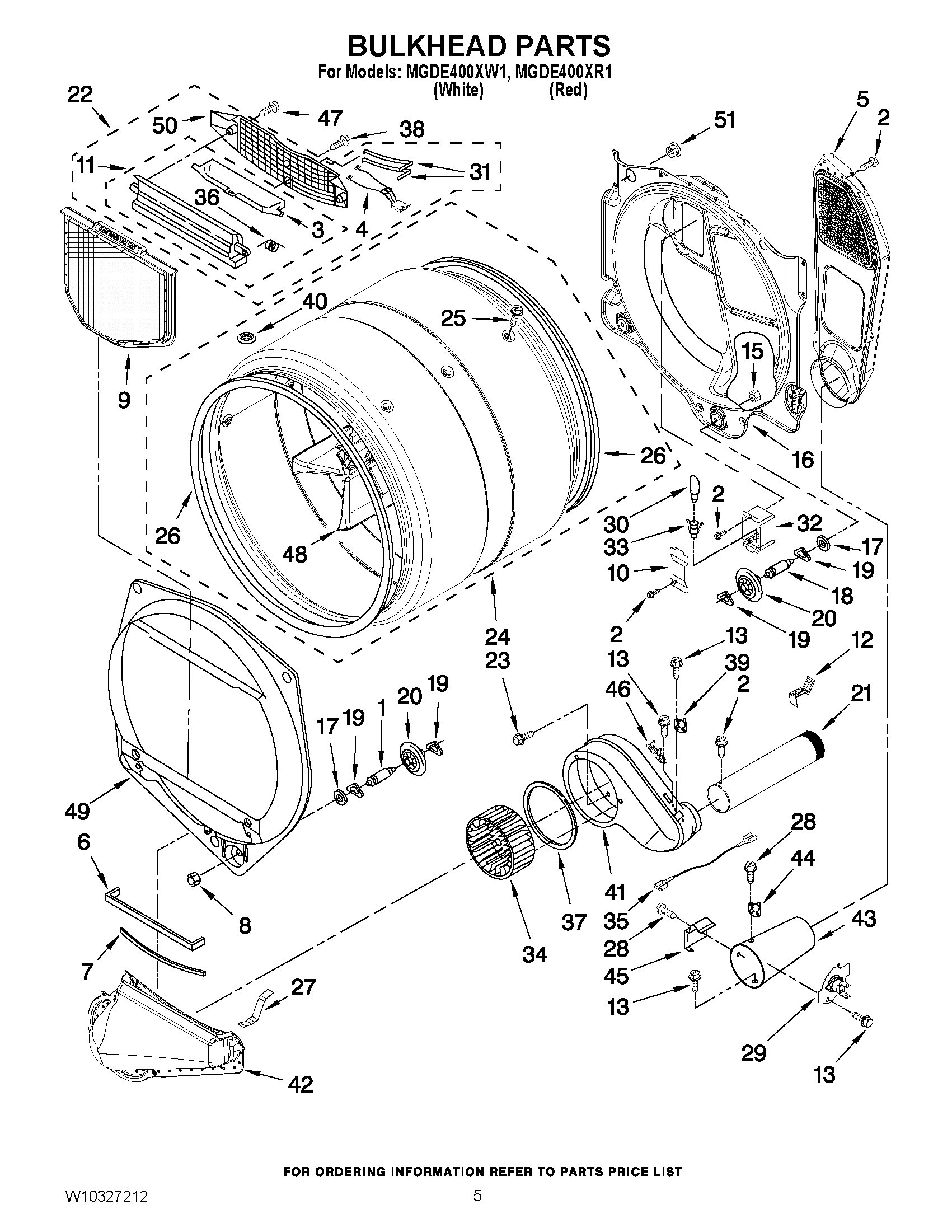

03 - BULKHEAD PARTS

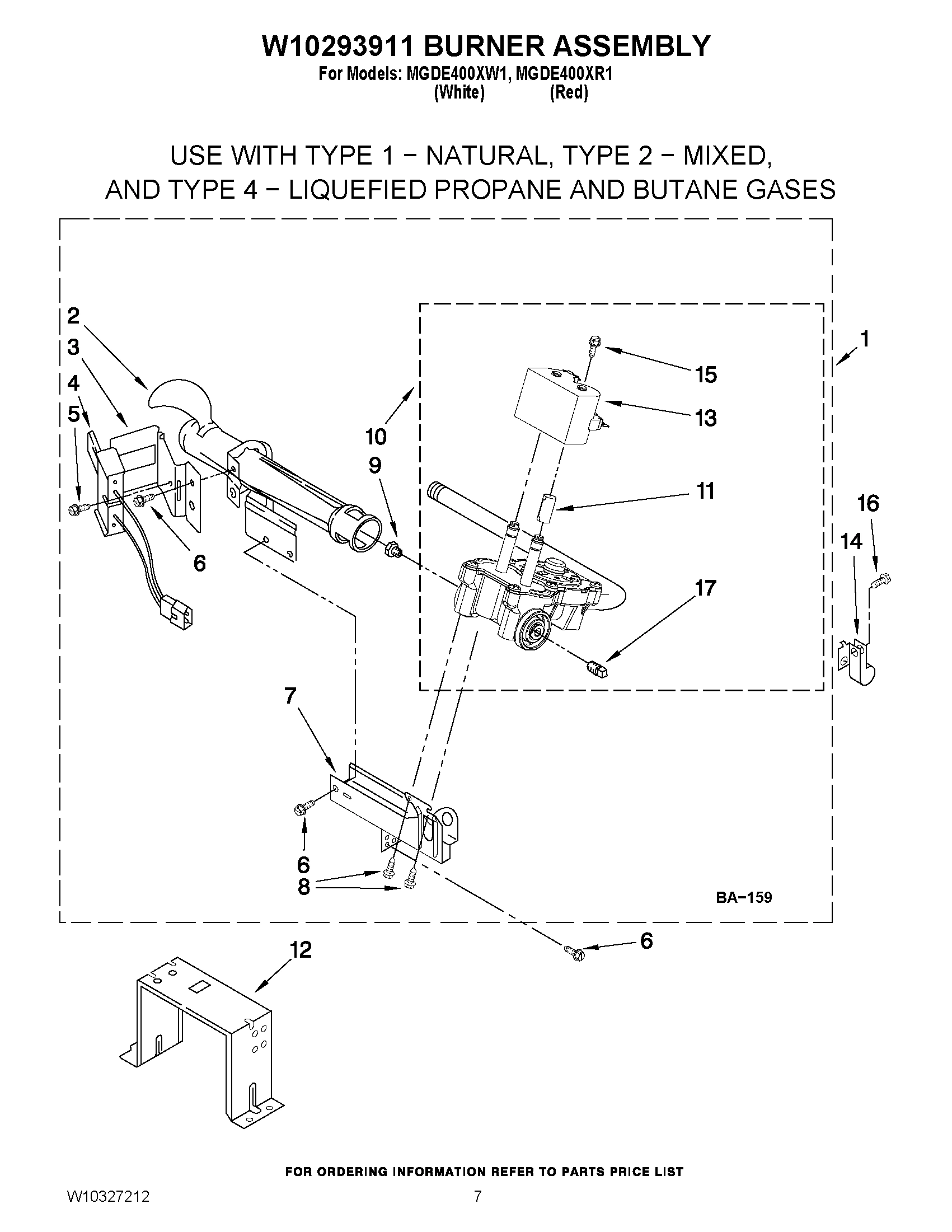

04 - W10293911 BURNER ASSEMBLY

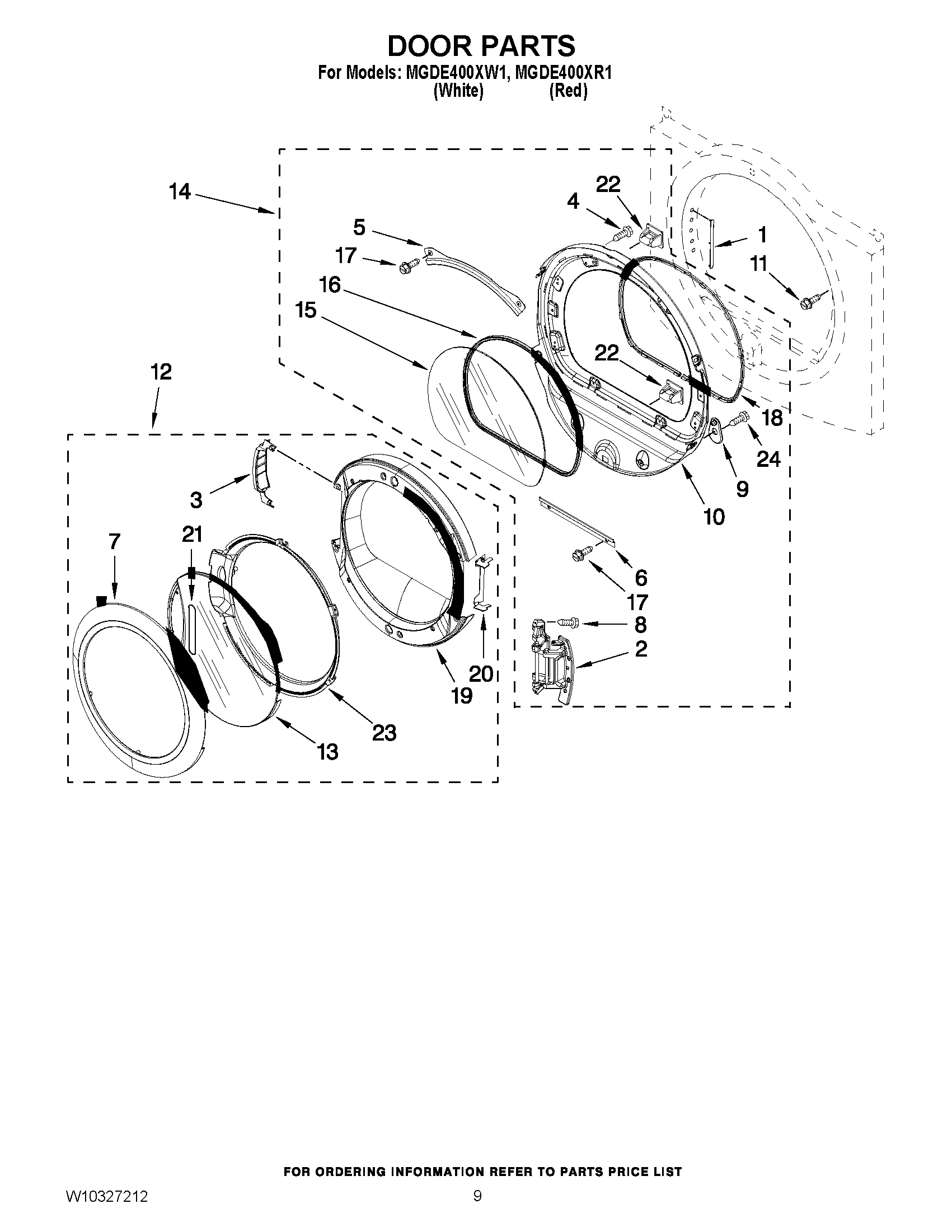

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDE400XW1 GAS DRYER
1
MAY W10239302 MAY W10239302 Contact Us For Availability
1
MAY W10255469 MAY W10255469 Contact Us For Availability
1
MAY W10298850 MAY W10298850 Contact Us For Availability
1
MAY 8317340 MAY 8317340 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
MAY W10293911 MAY W10293911 Contact Us For Availability
1
Label, Hinge Hole (White) MAY W10085210 Contact Us For Availability
1
Label, Hinge Hole (Silver) MAY W10085230 Contact Us For Availability
2
MAY 3980634 MAY 3980634 Contact Us For Availability
2
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10310366 MAY W10310366 Contact Us For Availability
3
MAY W10300883 MAY W10300883 Contact Us For Availability
3
Screw, 10-32 x 5/8 (Ground) MAY 8533974 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
Cover, Door Hinge MAY W10180119 Contact Us For Availability
4
CONSOLE ASSEMBLY (WHITE) MAY W10303515 Contact Us For Availability
4
CONSOLE ASSEMBLY (METALLIC RED) MAY W10303516 Contact Us For Availability
4
Panel, Side (R.H.) (White) MAY W10192446 Contact Us For Availability
4
PANEL, SIDE (R.H.) (METALLIC RED) MAY W10249769 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
CLIP, HARNESS MAY 3394427 Contact Us For Availability
5
MAY W10246525 MAY W10246525 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
Retainer-Window Upper MAY 8519356 Contact Us For Availability
6
Bracket, Console (Includes No. 16) MAY W10215656 Contact Us For Availability
6
Panel, Side (L.H.) (White) MAY W10192435 Contact Us For Availability
6
PANEL, SIDE (L.H.) (METALLIC RED) MAY W10249768 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Retainer-Window Lower MAY 8519354 Contact Us For Availability
7
MAY 3391018 MAY 3391018 Contact Us For Availability
7
MAY 3392100 MAY 3392100 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
Handle Ring MAY W10193522 Contact Us For Availability
8
Terminal MAY 94614 Contact Us For Availability
8
Clamp, Motor (2) MAY 660658 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW, 8-18 X 3/8 (3) MAY 3387057 Contact Us For Availability
8
Screw, 10-24 x 5/16 MAY W10159996 Contact Us For Availability
9
PLUG, CONNECTOR MAY W10214555 Contact Us For Availability
9
MAY 3387374 MAY 3387374 Contact Us For Availability
9
MAY W10049370 MAY W10049370 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 15418 Contact Us For Availability
9
MAY W10048910 MAY W10048910 Contact Us For Availability
10
MAY W10216202 MAY W10216202 Contact Us For Availability
10
MAY 3389420 MAY 3389420 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10175144 MAY W10175144 Contact Us For Availability
10
DOOR ASSEMBLY (INNER) (INCLUDES ILLUS. 22) MAY 8578229 Contact Us For Availability
11
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
11
MAY W10151499 MAY W10151499 Contact Us For Availability
11
OUTLET HOUSING ASSEMBLY (INCLUDES ITEM 6) MAY W10153423 Contact Us For Availability
11
SLEEVE-MAGNETIC MAY W10295524 Contact Us For Availability
11
MAY 355515 MAY 355515 Contact Us For Availability
12
MAY 8572039 MAY 8572039 Contact Us For Availability
12
MAY 3388672 MAY 3388672 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
12
Door, Outer MAY W10193530 Contact Us For Availability
13
MAY W10177245 MAY W10177245 Contact Us For Availability
13
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
13
MAY W10273784 MAY W10273784 Contact Us For Availability
13
Door Mask Assembly MAY W10180117 Contact Us For Availability
14
MAY W10216201 MAY W10216201 Contact Us For Availability
14
MAY 3978776 MAY 3978776 Contact Us For Availability
14
SOUND PANEL MAY W10123956 Contact Us For Availability
14
INNER DOOR ASSEMBLY MAY 8577819 Contact Us For Availability
15
MAY W10215674 MAY W10215674 Contact Us For Availability
15
MAY W10001120 MAY W10001120 Contact Us For Availability
15
SCREW, COIL MAY 326049536 Contact Us For Availability
15
MAY 8566254 MAY 8566254 Contact Us For Availability
16
MAY W10112267 MAY W10112267 Contact Us For Availability
16
MAY 8520836 MAY 8520836 Contact Us For Availability
16
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
16
MAY 8579662 MAY 8579662 Contact Us For Availability
17
Frame-Light (Guide Display) MAY W10171502 Contact Us For Availability
17
Washer, Flat Plastic MAY W10121334 Contact Us For Availability
17
MAY 3387459 MAY 3387459 Contact Us For Availability
17
PLUG, PIPE MAY W10295523 Contact Us For Availability
17
Screw, 10-16 x 3/64 MAY 3393258 Contact Us For Availability
18
MAY W10164578 MAY W10164578 Contact Us For Availability
18
MAY W10128087 MAY W10128087 Contact Us For Availability
18
MAY 8575325 MAY 8575325 Contact Us For Availability
18
MAY W10139457 MAY W10139457 Contact Us For Availability
19
POWER CABLE USER INTERFACE MAY W10242907 Contact Us For Availability
19
MAY 690997 MAY 690997 Contact Us For Availability
19
Door-Intermediate MAY W10180118 Contact Us For Availability
20
Knob MAY W10164576 Contact Us For Availability
20
MAY 8066115 MAY 8066115 Contact Us For Availability
20
MAY 8536973 MAY 8536973 Contact Us For Availability
20
Shield, Door MAY W10180120 Contact Us For Availability
21
TECHBOX ASSEMBLY MAY W10283492 Contact Us For Availability
21
MAY 8529053 MAY 8529053 Contact Us For Availability
21
MAY 8066224 MAY 8066224 Contact Us For Availability
21
Pad,Foam-Frame MAY W10153281 Contact Us For Availability
22
MAY W10171504 MAY W10171504 Contact Us For Availability
22
OUTLET GRILL HOUSING ASSEMBLY- COMPLETE (INCL MAY W10253353 Contact Us For Availability
22
Door Catch Assembly MAY 690081 Contact Us For Availability
23
MAY 489463 MAY 489463 Contact Us For Availability
23
Screen, Door MAY W10171571 Contact Us For Availability
24
MAY 8540282 MAY 8540282 Contact Us For Availability
24
MOTOR ASSEMBLY 1/3 HP MAY W10250900 Contact Us For Availability
24
MAY W10181467 MAY W10181467 Contact Us For Availability
24
SCREW, 1/4-20 X.50 MAY 3400224 Contact Us For Availability
25
MAY 8540513 MAY 8540513 Contact Us For Availability
25
Screw, 11-16 x 3/4 MAY W10219342 Contact Us For Availability
26
MAY W10170295 MAY W10170295 Contact Us For Availability
26
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
26
MAY W10166807 MAY W10166807 Contact Us For Availability
27
Guide, Light Cylcle Internal MAY W10170293 Contact Us For Availability
27
MAY W10112954 MAY W10112954 Contact Us For Availability
27
CLIP-SPRING MAY 8066208 Contact Us For Availability
28
MAY W10164567 MAY W10164567 Contact Us For Availability
28
MAY 8529757 MAY 8529757 Contact Us For Availability
28
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
29
MAY W10172298 MAY W10172298 Contact Us For Availability
29
BRACKET, MOTOR MAY W10242878 Contact Us For Availability
29
MAY 8573713 MAY 8573713 Contact Us For Availability
30
MAY 3401401 MAY 3401401 Contact Us For Availability
30
MAY 3406124 MAY 3406124 Contact Us For Availability
31
MAY 49026 MAY 49026 Contact Us For Availability
31
MAY 3387223 MAY 3387223 Contact Us For Availability
32
MAY 8578825 MAY 8578825 Contact Us For Availability
33
MAY 8563747 MAY 8563747 Contact Us For Availability
33
SOCKET, ASSEMBLY MAY W10214261 Contact Us For Availability
34
MAY 8563750 MAY 8563750 Contact Us For Availability
34
MAY 697772 MAY 697772 Contact Us For Availability
35
MAY 8563749 MAY 8563749 Contact Us For Availability
35
Jumper-Tco Hi-Limit MAY 3401710 Contact Us For Availability
36
Idler Bracket MAY 3388674 Contact Us For Availability
36
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
37
Clip, S-Type (3) MAY 62825 Contact Us For Availability
37
MAY 697770 MAY 697770 Contact Us For Availability
38
Trim-Ring Assembly (Includes: Item 44) (White MAY W10221445 Contact Us For Availability
38
TRIM-RING ASSEMBLY (INCLUDES: ITEM 44) (METAL MAY W10271928 Contact Us For Availability
38
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
39
THERMISTOR MAY 8577274 Contact Us For Availability
40
MAY W10128544 MAY W10128544 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
MAY 8544362 MAY 8544362 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
MAY 8519459 MAY 8519459 Contact Us For Availability
43
MAY 8573824 MAY 8573824 Contact Us For Availability
44
Trim-Clip Metal MAY W10129065 Contact Us For Availability
44
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
45
MAY W10239098 MAY W10239098 Contact Us For Availability
45
MAY 338906 MAY 338906 Contact Us For Availability
46
Front Panel (Includes Illus. 44) (White) MAY W10153275 Contact Us For Availability
46
FRONT PANEL (INCLUDES ILLUS. 44) (METALLIC RE MAY W10250671 Contact Us For Availability
46
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
47
Strike, Door (2) MAY 696144 Contact Us For Availability
47
Screw, 10-16 x 1 MAY 3387230 Contact Us For Availability
48
Baffle, Drum MAY 697693 Contact Us For Availability
49
MAY 3357011 MAY 3357011 Contact Us For Availability
49
MAY W10252304 MAY W10252304 Contact Us For Availability
50
MAY W10242903 MAY W10242903 Contact Us For Availability
50
MAY W10153412 MAY W10153412 Contact Us For Availability
51
Bracket, Control MAY 8563727 Contact Us For Availability
51
MAY 8529007 MAY 8529007 Contact Us For Availability
52
CONTROL BOARD MAY W10174745 Contact Us For Availability
54
TOE, PANEL (WHITE) MAY W10246269 Contact Us For Availability
54
TOE, PANEL (METALLIC RED) MAY W10259607 Contact Us For Availability
55
MAY W10303519 MAY W10303519 Contact Us For Availability
56
MAY W10212660 MAY W10212660 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
NI
MAY W10293913 MAY W10293913 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
NI
MAY 8579666A MAY 8579666A Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (RED) MAY W10218245 Contact Us For Availability
× ![]()
