Model Maytag MGDB855DW4 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

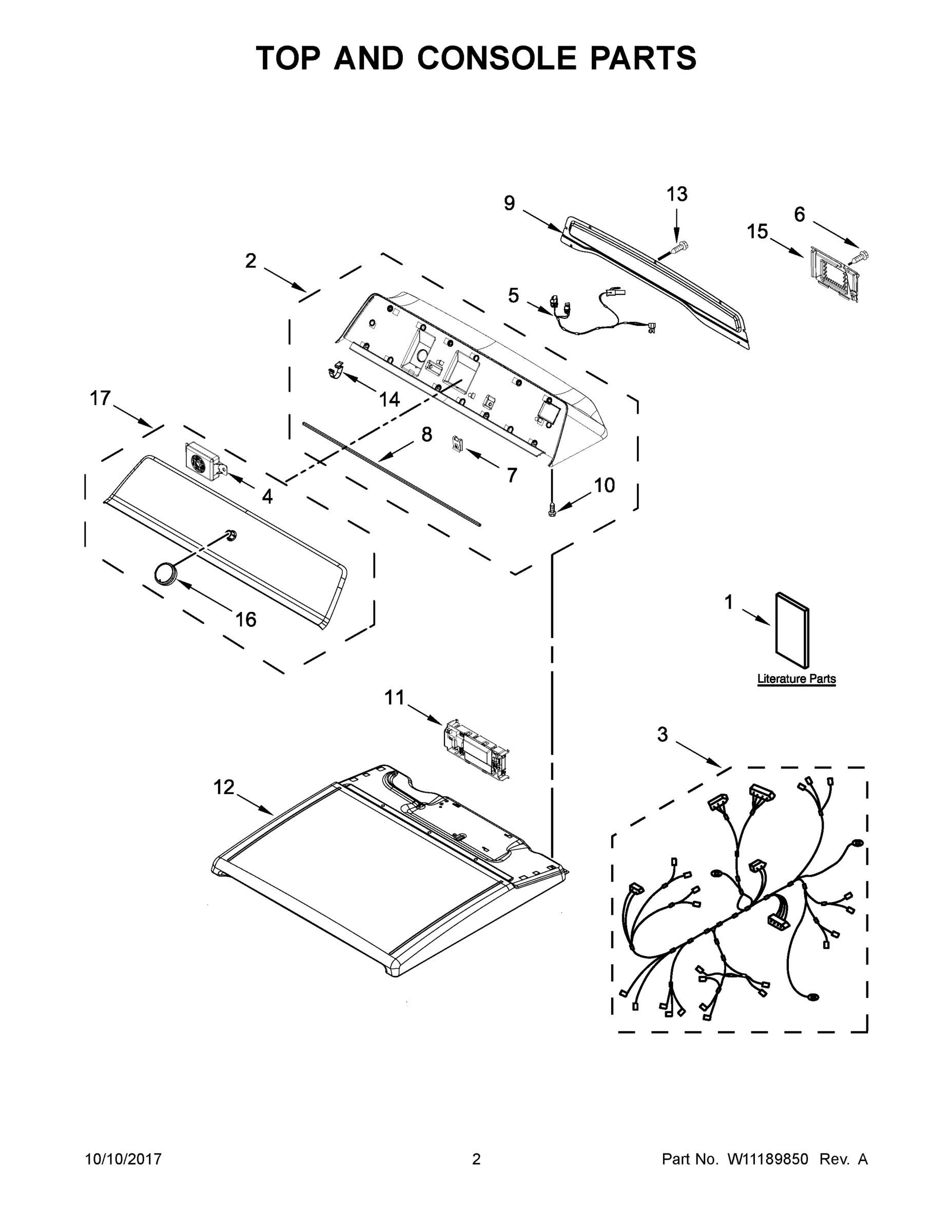

02 - TOP AND CONSOLE PARTS

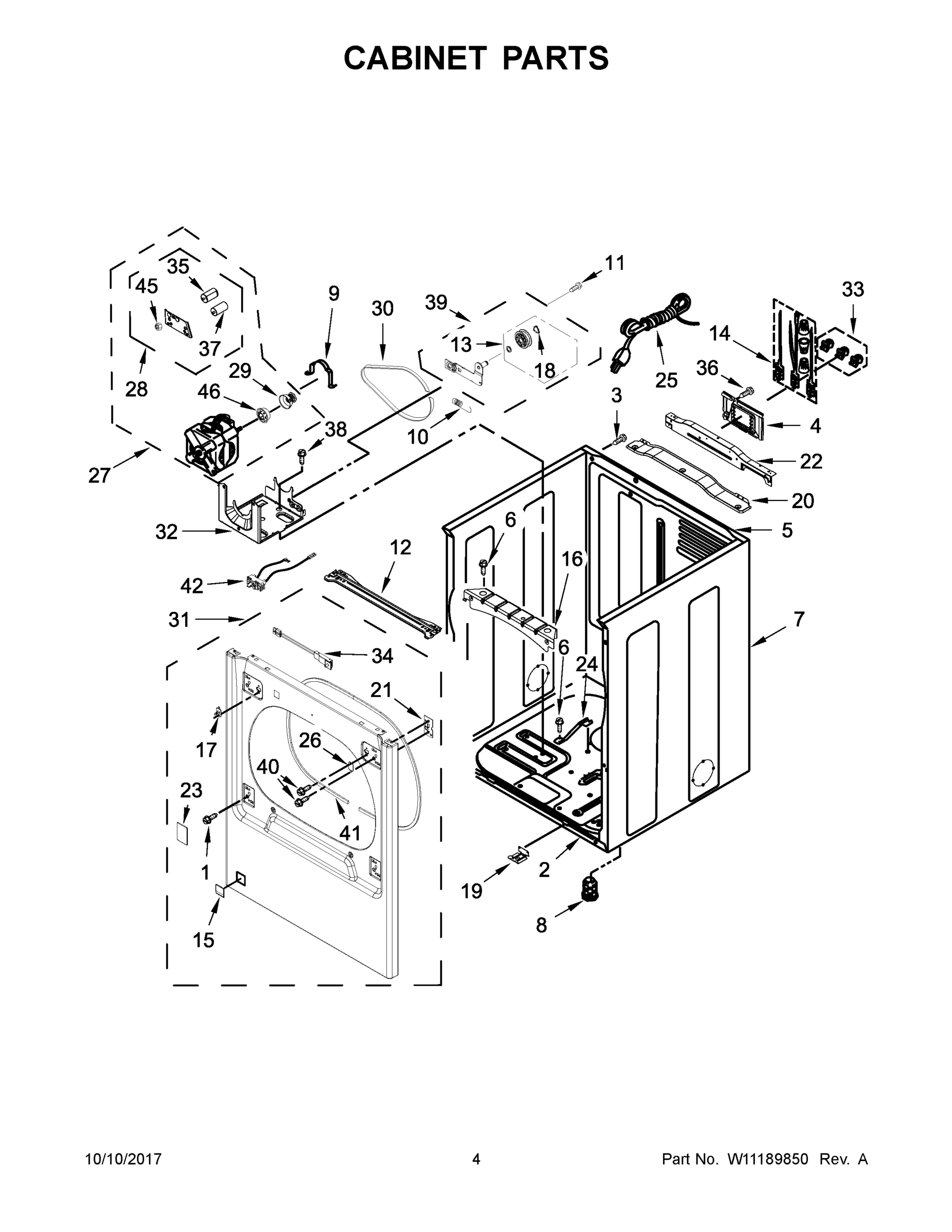

03 - CABINET PARTS

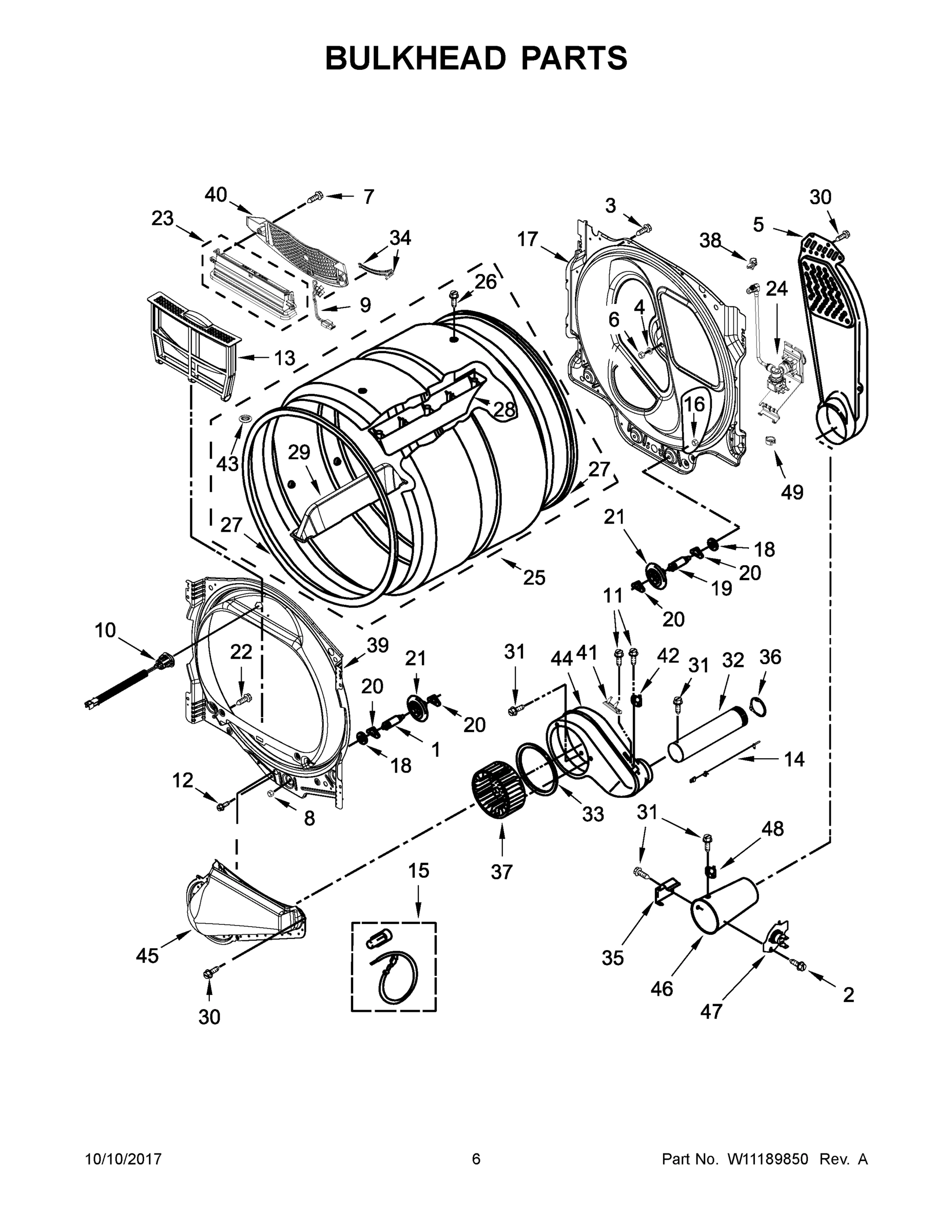

04 - BULKHEAD PARTS

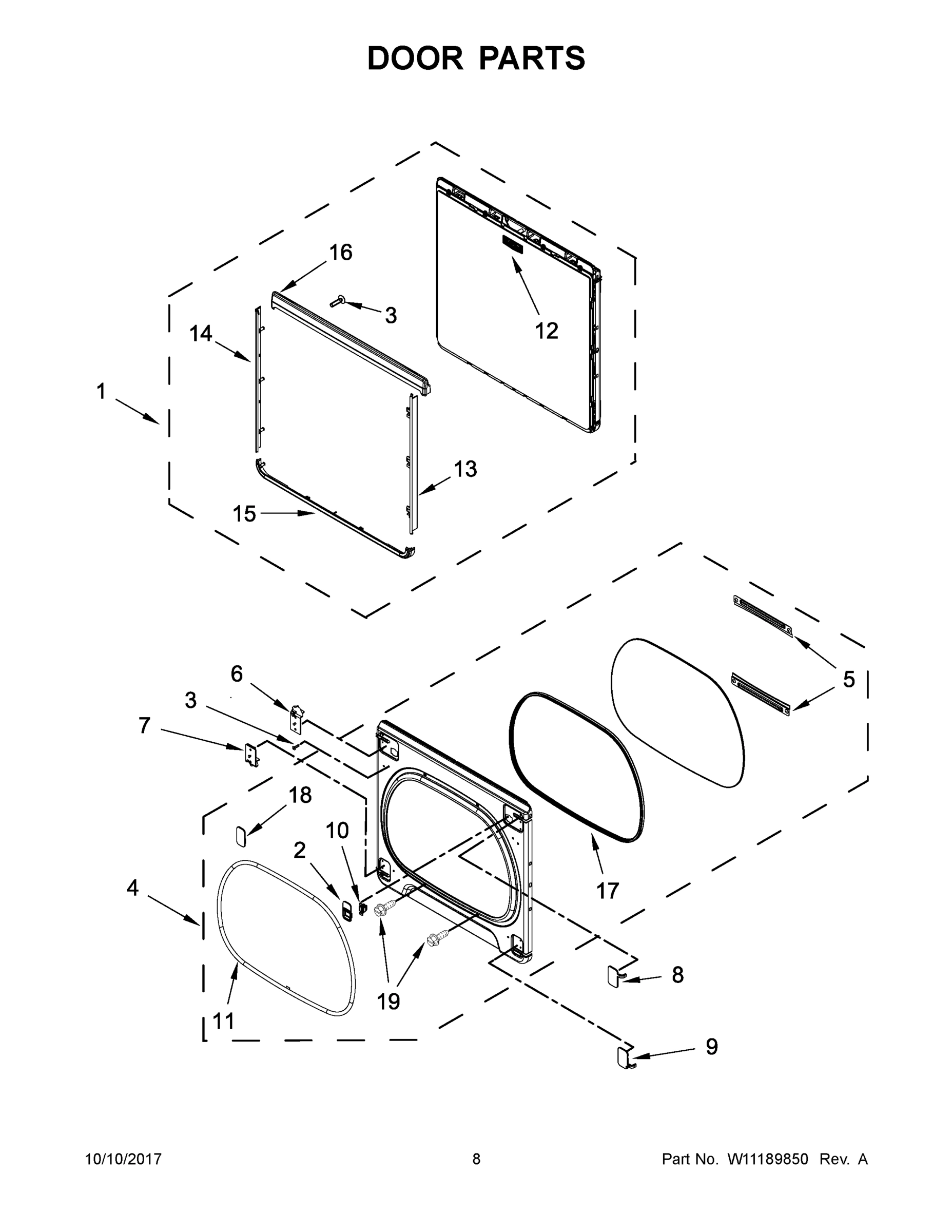

05 - DOOR PARTS

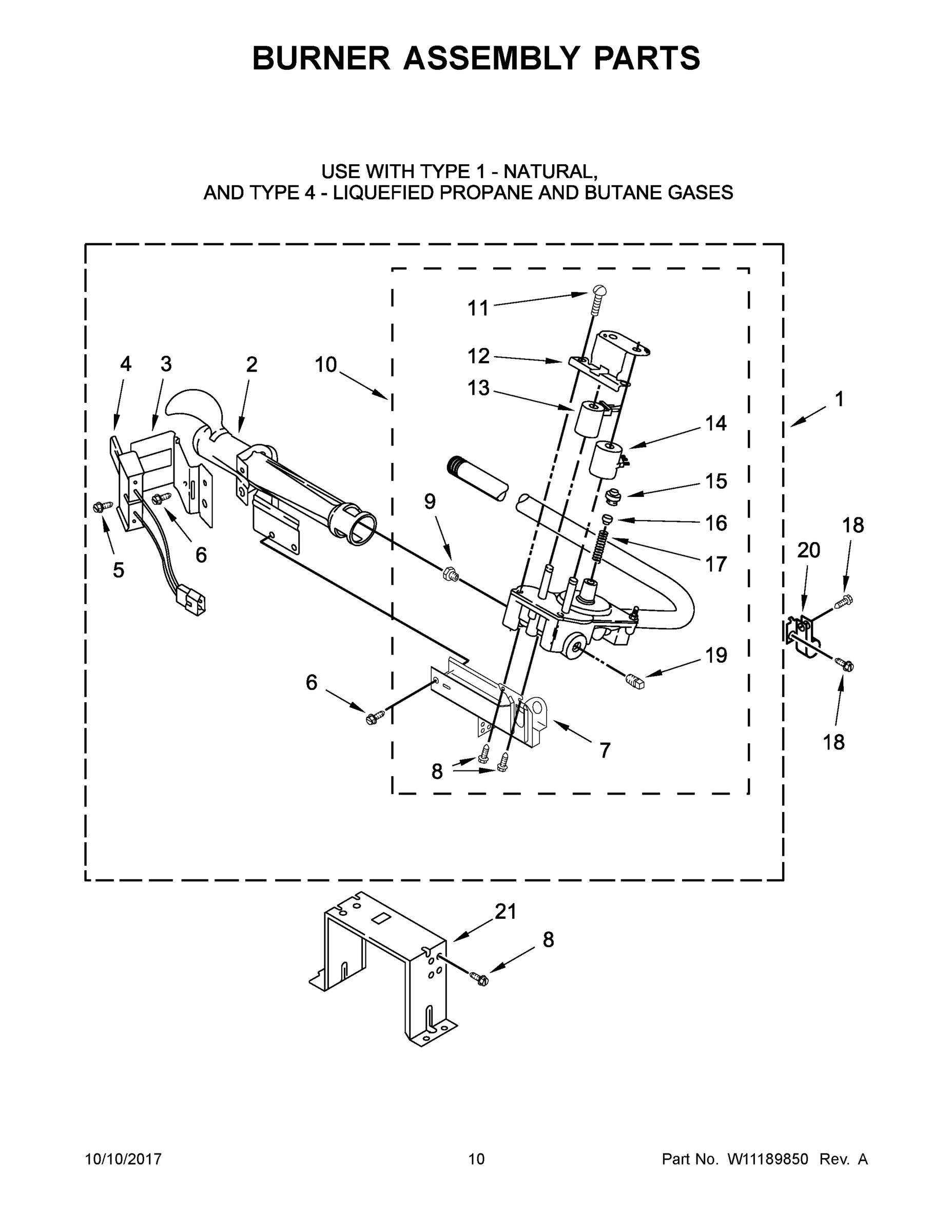

06 - BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDB855DW4 LAUNDRY, RESIDENTIAL, GAS DRYER
1
INSTALLATION INSTRUCTIONS MAY W10725269 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (CHROME SHADOW) MAY W10669027 Contact Us For Availability
1
BURNER ASSEMBLY MAY W10608838 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11089272 Contact Us For Availability
1B
TECH SHEET MAY W11089260 Contact Us For Availability
1C
QUICKSTART GUIDE MAY W11089276 Contact Us For Availability
2
ASSEMBLY, FASCIA (WHITE) MAY W10622102 Contact Us For Availability
2
BASE, CABINET MAY W10613683 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
BEZEL, DOOR CATCH (WHITE) MAY W10631401 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
2A
ASSEMBLY, FASCIA (CHROME SHADOW) MAY W10682013 Contact Us For Availability
2A
BEZEL, DOOR CATCH (CHROME SHADOW) MAY W10669023 Contact Us For Availability
3
WIRING HARNESS MAY W10777444 Contact Us For Availability
3
SCREW MAY W10636208 Contact Us For Availability
3
SCREW MAY 9742177 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
4
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
4
WASHER, NOZZLE MAY W10044579 Contact Us For Availability
4
ASSEMBLY, INNER DOOR (WHITE) MAY W10614997 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
4A
ASSEMBLY, INNER DOOR (CHROME SHADOW) MAY W10915195 Contact Us For Availability
5
HARNESS, USER INTERFACE MAY W10788429 Contact Us For Availability
5
PANEL, REAR MAY W10824896 Contact Us For Availability
5
DUCT, INLET ASSEMBLY MAY W10834203 Contact Us For Availability
5
RETAINER, WINDOW MAY W10621182 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
SCREW MAY 489470 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
NUT, BRASS MAY W10849464 Contact Us For Availability
6
DOOR, HINGE (UPPER) MAY W10783754 Contact Us For Availability
7
NUT, "U" MAY W10298336 Contact Us For Availability
7
PANEL, SIDE (WHITE (WITH CUTOUT)) MAY W10645768 Contact Us For Availability
7
SCREW MAY 3387230 Contact Us For Availability
7
DOOR, HINGE (LOWER) MAY W10783755 Contact Us For Availability
7
BASE, BURNER MAY 3389871 Contact Us For Availability
7A
PANEL, SIDE (CHROME SHADOW (WITH CUTOUT)) MAY W10681831 Contact Us For Availability
7B
PANEL, SIDE (WHITE (WITHOUT CUTOUT)) MAY W10633648 Contact Us For Availability
7C
PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT)) MAY W10681830 Contact Us For Availability
8
SEAL, CONSOLE MAY W10726632 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
HINGE COVER, TOP (WHITE) MAY W10631395 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8A
HINGE COVER, TOP (CHROME SHADOW) MAY W10631412 Contact Us For Availability
9
PANEL, REAR CONSOLE MAY W10622402 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
SENSOR JUMPER, MOISTURE MAY W10657328 Contact Us For Availability
9
HINGE COVER, BOTTOM (WHITE) MAY W10631396 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
9A
HINGE COVER, BOTTOM (CHROME SHADOW) MAY W10631413 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
ASSEMBLY, DRUM LIGHT MAY W10629046 Contact Us For Availability
10
ASSEMBLY, DOOR CATCH MAY W10610880 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10118312 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W11098435 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SEAL, DOOR MAY W10763835 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
TOP (WHITE) MAY W10508981 Contact Us For Availability
12
BRACE, CAB AND SEAL ASSEMBLY MAY W10722502 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
12
BADGE MAY W10612925 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
12A
TOP (CHROME SHADOW) MAY W10701018 Contact Us For Availability
13
SCREW MAY 9740849 Contact Us For Availability
13
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
13
SCREEN, LINT (GREY) MAY W10608811 Contact Us For Availability
13
TRIM, HINGE SIDE MAY W10631398 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
14
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
14
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
14
THERMISTOR, GAS INLET MAY W10651569 Contact Us For Availability
14
TRIM, SIDE MAY W10631399 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
15
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
15
TRIM, BOTTOM MAY W10631400 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
15A
PLUG, FRONT PANEL (CHROME SHADOW) MAY W10391496 Contact Us For Availability
16
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10727011 Contact Us For Availability
16
SPACER BRACKET, UPPER MAY W10632348 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
TRIM, TOP MAY W10608739 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
17
FASCIA MAY W11098473 Contact Us For Availability
17
STRIKE MAY W10778071 Contact Us For Availability
17
BULKHEAD, REAR MAY W10623519 Contact Us For Availability
17
SEAL, WINDOW MAY W10726214 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
SCREW MAY 3390647 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
COVER, DOOR CATCH (WHITE) MAY W10631410 Contact Us For Availability
18A
COVER, DOOR CATCH (CHROME SHADOW) MAY W10669024 Contact Us For Availability
19
SCREW MAY 342055 Contact Us For Availability
19
SPACER BRACKET, LOWER MAY W10632347 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
PLUG, PIPE MAY 239822 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
BULKHEAD BRACKET, REAR PANEL MAY W10651902 Contact Us For Availability
20
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
21
BRACKET, HINGE MAY W10596959 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
21
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
22
BRACKET, REAR PANEL UPPER MAY W10622391 Contact Us For Availability
22
SCREW MAY W10460893 Contact Us For Availability
23
PLUG, HINGE (WHITE) MAY W10590953 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10608812 Contact Us For Availability
23A
PLUG, HINGE (CHROME SHADOW) MAY W10596965 Contact Us For Availability
24
BRACKET, BURNER MAY 8529757 Contact Us For Availability
24
VALVE AND HOSE ASSEMBLY MAY W10638150 Contact Us For Availability
25
CORD, POWER MAY W10869142 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10646770 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
PLUG, STRIKE MAY W10111888 Contact Us For Availability
27
MOTOR ASSEMBLY MAY W10824899 Contact Us For Availability
27
SEAL, DRUM MAY W10664120 Contact Us For Availability
28
BRACKET ASSEMBLY MAY W10565150 Contact Us For Availability
28
BAFFLE, DRUM LOW MAY W10767090 Contact Us For Availability
29
PULLEY, MOTOR MAY W10786088 Contact Us For Availability
29
BAFFLE, DRUM HIGH MAY W10767074 Contact Us For Availability
30
BELT, DRIVE MAY W10610886 Contact Us For Availability
30
SCREW MAY 8533974 Contact Us For Availability
31
PANEL, FRONT (WHITE) MAY W10861063 Contact Us For Availability
31
SCREW MAY 90767 Contact Us For Availability
31A
PANEL, FRONT (CHROME SHADOW) MAY W10861062 Contact Us For Availability
32
BRACKET, MOTOR MOUNTING MAY W10578053 Contact Us For Availability
32
PIPE, EXHAUST MAY W10608817 Contact Us For Availability
33
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
SEAL, LINT DUCT MAY W10868675 Contact Us For Availability
34
SWITCH, DOOR MAY W10459026 Contact Us For Availability
34
SENSOR, ELECTRODE MAY W10608814 Contact Us For Availability
35
CAPACITOR, MOTOR RUN MAY W10442539 Contact Us For Availability
35
SENSOR, RADIANT MAY 338906 Contact Us For Availability
36
SCREW MAY W10567155 Contact Us For Availability
36
COLLAR, DUCT MAY W10344699 Contact Us For Availability
37
CAPACITOR, MOTOR START MAY W10701357 Contact Us For Availability
37
WHEEL, BLOWER MAY 697772 Contact Us For Availability
38
TIE, CABLE MAY 3391018 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
BULKHEAD, FRONT MAY W10861007 Contact Us For Availability
40
SCREW (ZINC) MAY 3400805 Contact Us For Availability
40
GRILLE, OUTLET MAY W10608813 Contact Us For Availability
41
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
42
SWITCH, BROKEN BELT MAY W10774832 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
CAP, PLUG MAY W10128544 Contact Us For Availability
44
HOUSING, BLOWER MAY W10667717 Contact Us For Availability
45
NUT MAY W10604214 Contact Us For Availability
45
LINT DUCT ASSEMBLY MAY W10868982 Contact Us For Availability
46
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
46
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
47
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
48
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
49
CLIP, PUSH TO CONNECT MAY W10044599 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAG MAY 279810 Contact Us For Availability
NI
MAY W10704365 MAY W10704365 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY 8576846 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY W10636192 Contact Us For Availability
× ![]()
Login and Registration Form
