Model Maytag MGDB850WB1 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

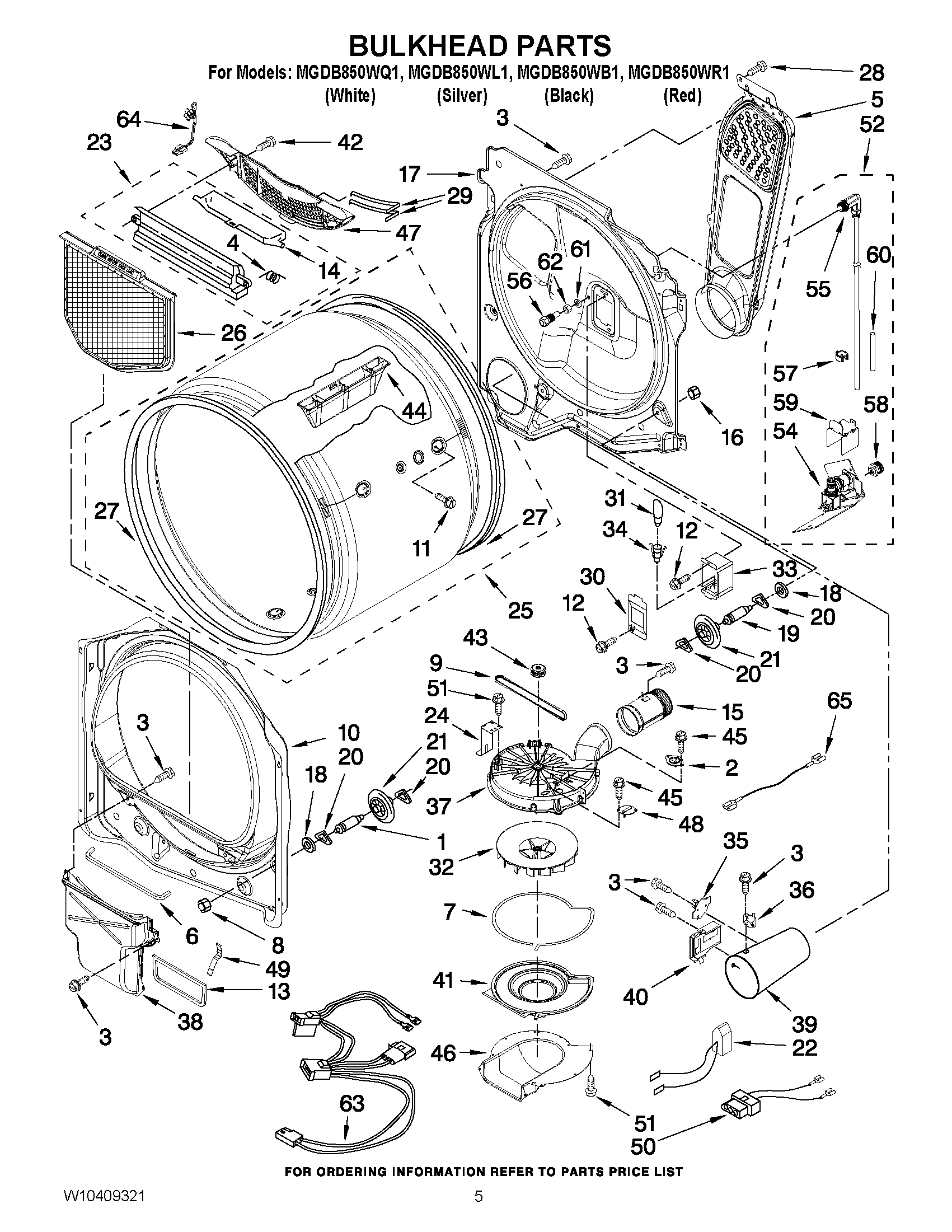

03 - BULKHEAD PARTS

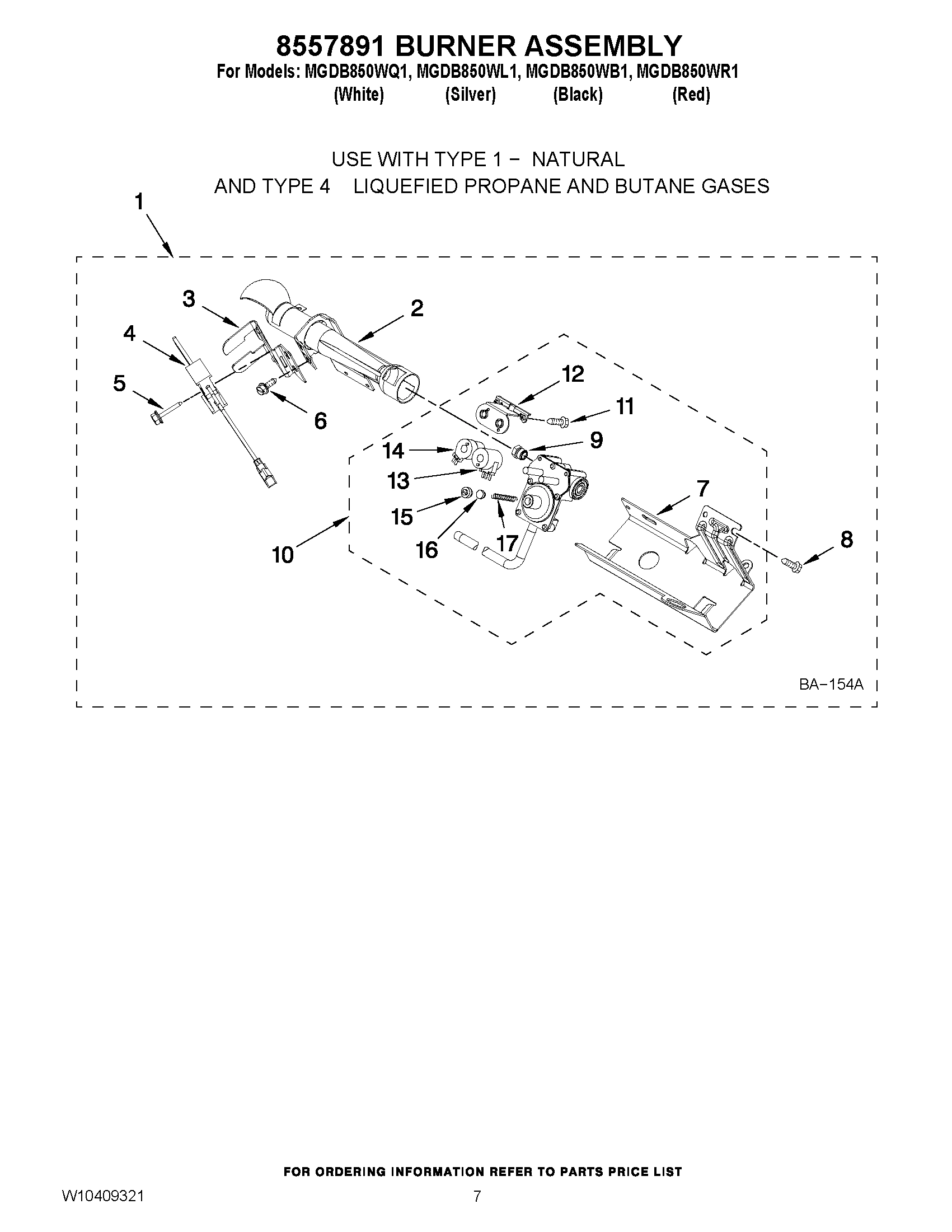

04 - 8557891 BURNER ASSEMBLY
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDB850WB1 GAS DRYER
1
MAY W10156734 MAY W10156734 Contact Us For Availability
1
MAY W10260037 MAY W10260037 Contact Us For Availability
1
GUIDE, INSTALL MAY W10388777 Contact Us For Availability
1
MAY W10007520 MAY W10007520 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
1
MAY 8557891 MAY 8557891 Contact Us For Availability
2
CONSOLE ASSEMBLY (WHITE) MAY W10252468 Contact Us For Availability
2
CONSOLE ASSEMBLY (SILVER) MAY W10252469 Contact Us For Availability
2
CONSOLE ASSEMBLY (RED) MAY W10252470 Contact Us For Availability
2
CONSOLE ASSEMBLY (BLACK) MAY W10252471 Contact Us For Availability
2
MAY 8544753 MAY 8544753 Contact Us For Availability
2
Thermistor, Blower Housing MAY 8577274 Contact Us For Availability
2
MAY 8573010 MAY 8573010 Contact Us For Availability
3
ASSEMBLY, USER INTERFACE MAY W10336131 Contact Us For Availability
3
MAY 3390631 MAY 3390631 Contact Us For Availability
3
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
COVER, UI ASSEMBLY MAY W10051124 Contact Us For Availability
4
MAY 8558833 MAY 8558833 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10051126 MAY W10051126 Contact Us For Availability
5
MAY W10314253 MAY W10314253 Contact Us For Availability
5
MAY 8544757 MAY 8544757 Contact Us For Availability
5
Screw & Washer (8-32 x 7/8) MAY 3393909 Contact Us For Availability
6
MAY W10111620 MAY W10111620 Contact Us For Availability
6
MAY 344020 MAY 344020 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
7
MAY W10153920 MAY W10153920 Contact Us For Availability
7
MAY W10223154 MAY W10223154 Contact Us For Availability
7
MAY W10223155 MAY W10223155 Contact Us For Availability
7
MAY W10283291 MAY W10283291 Contact Us For Availability
7
CABINET (SILVER) MAY W10283292 Contact Us For Availability
7
MAY 8573068 MAY 8573068 Contact Us For Availability
7
MAY 8544751 MAY 8544751 Contact Us For Availability
8
SEAL, UI MAY 8572039 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
MAY 3387057 MAY 3387057 Contact Us For Availability
9
MAY 8563853 MAY 8563853 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY 8544742 MAY 8544742 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 15418 Contact Us For Availability
9
Orifice, Burner (Type 4 (Butane)) MAY 15422 Contact Us For Availability
9
Orifice, Burner (Type 4 (Propane)) MAY 229742 Contact Us For Availability
10
MAY W10003770 MAY W10003770 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 8557244 MAY 8557244 Contact Us For Availability
10
MAY 8573071 MAY 8573071 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
11
MAY 694421 MAY 694421 Contact Us For Availability
12
MAY W10110295 MAY W10110295 Contact Us For Availability
12
Seal, Foam MAY W10224768 Contact Us For Availability
12
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
12
MAY 8182790 MAY 8182790 Contact Us For Availability
13
MAY W10223157 MAY W10223157 Contact Us For Availability
13
MAY W10223158 MAY W10223158 Contact Us For Availability
13
MAY W10283288 MAY W10283288 Contact Us For Availability
13
TOP (SILVER) MAY W10283289 Contact Us For Availability
13
MAY 8547160 MAY 8547160 Contact Us For Availability
13
MAY 8544721 MAY 8544721 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
BRACKET, GAS PIPE MAY W10201446 Contact Us For Availability
14
MAY 3394984 MAY 3394984 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
MAY 337686 MAY 337686 Contact Us For Availability
15
MAY 8544755 MAY 8544755 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10112673 MAY W10112673 Contact Us For Availability
16
NUT,3/8 X 16(L.H.) MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY W10323735 MAY W10323735 Contact Us For Availability
17
MAY W10139797 MAY W10139797 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10319803 MAY W10319803 Contact Us For Availability
19
MAY 3394083 MAY 3394083 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
MAY 8579717 MAY 8579717 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
Terminal MAY 94614 Contact Us For Availability
22
WINDOW, OUTER MAY W10394552 Contact Us For Availability
22
MAY 8539889 MAY 8539889 Contact Us For Availability
23
CLIP, HARNESS MAY 3394427 Contact Us For Availability
23
Outlet Housing Assembly MAY 3394985 Contact Us For Availability
24
MAY 3403498 MAY 3403498 Contact Us For Availability
24
BRACKET, BLOWER HOUSING MAY 8544741 Contact Us For Availability
25
Screw MAY W10131402 Contact Us For Availability
25
Bezel MAY W10111880 Contact Us For Availability
25
MAY 8557269 MAY 8557269 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
MAY W10049370 MAY W10049370 Contact Us For Availability
27
SEAL, TOP (RH) MAY W10219694 Contact Us For Availability
27
SEAL, TOP (LH) MAY W10219695 Contact Us For Availability
27
MAY W10136932 MAY W10136932 Contact Us For Availability
27
MAY W10116344 MAY W10116344 Contact Us For Availability
28
MAY W10140148 MAY W10140148 Contact Us For Availability
28
Screw MAY 693995 Contact Us For Availability
29
MAY W10139247 MAY W10139247 Contact Us For Availability
29
MAY 3387223 MAY 3387223 Contact Us For Availability
30
MAY W10136934 MAY W10136934 Contact Us For Availability
30
MAY 3402841 MAY 3402841 Contact Us For Availability
31
Hole, Plug (Cabinet Base) MAY 8578560 Contact Us For Availability
31
MAY 3406124 MAY 3406124 Contact Us For Availability
32
MAY 8547158 MAY 8547158 Contact Us For Availability
32
MAY 8544737 MAY 8544737 Contact Us For Availability
33
Door Catch Assembly MAY W10111905 Contact Us For Availability
33
BRACKET, LIGHT MAY 3977373 Contact Us For Availability
34
Socket Assembly MAY W10168632 Contact Us For Availability
35
LOCATOR, SNAP-DOWN MAY 8568303 Contact Us For Availability
35
MAY 8573713 MAY 8573713 Contact Us For Availability
36
MAY W10215725 MAY W10215725 Contact Us For Availability
36
THERMOSTAT,HIGH LIMIT MAY 3391912 Contact Us For Availability
37
Screw, 8-18 x 3/8 MAY 3400805 Contact Us For Availability
37
MAY W10256512 MAY W10256512 Contact Us For Availability
38
MAY W10144494 MAY W10144494 Contact Us For Availability
38
MAY 8544786 MAY 8544786 Contact Us For Availability
39
MAY W10221653 MAY W10221653 Contact Us For Availability
39
MAY 8573824 MAY 8573824 Contact Us For Availability
40
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
40
MAY 338906 MAY 338906 Contact Us For Availability
41
MAY W10201785 MAY W10201785 Contact Us For Availability
41
Cover, Blower (Includes No.7) MAY 8544719 Contact Us For Availability
42
MAY W10111857 MAY W10111857 Contact Us For Availability
42
Screw, 10-16 x 13/16 MAY 3387230 Contact Us For Availability
43
MAY 8576625 MAY 8576625 Contact Us For Availability
43
MAY 8544739 MAY 8544739 Contact Us For Availability
44
MAY W10044490 MAY W10044490 Contact Us For Availability
44
MAY 8563860 MAY 8563860 Contact Us For Availability
45
Plug, Front Panel (White) MAY 8564457 Contact Us For Availability
45
MAY 8573008 MAY 8573008 Contact Us For Availability
45
MAY W10249704 MAY W10249704 Contact Us For Availability
45
MAY W10256411 MAY W10256411 Contact Us For Availability
45
MAY 3350424 MAY 3350424 Contact Us For Availability
46
HINGE, TOP MAY 238088 Contact Us For Availability
46
MAY 8544718 MAY 8544718 Contact Us For Availability
47
MAY W10111878 MAY W10111878 Contact Us For Availability
47
Door, Inner (Silver) MAY W10111900 Contact Us For Availability
47
MAY W10111910 MAY W10111910 Contact Us For Availability
47
MAY W10252475 MAY W10252475 Contact Us For Availability
47
Grill, Outlet MAY 8544723 Contact Us For Availability
48
Seal, Foam MAY W10226482 Contact Us For Availability
48
THERMAL FUSE MAY 3390719 Contact Us For Availability
49
MAY W10111875 MAY W10111875 Contact Us For Availability
49
MAY W10111909 MAY W10111909 Contact Us For Availability
49
DOOR, OUTER (SILVER) MAY W10252478 Contact Us For Availability
49
MAY W10252479 MAY W10252479 Contact Us For Availability
49
MAY 8573070 MAY 8573070 Contact Us For Availability
50
Pulley, Drum Motor MAY W10136930 Contact Us For Availability
50
Hous-3 CKT.093 RCP MAY 353424 Contact Us For Availability
51
PANEL, FRONT (WHITE) MAY W10236201 Contact Us For Availability
51
MAY W10236204 MAY W10236204 Contact Us For Availability
51
MAY W10252448 MAY W10252448 Contact Us For Availability
51
MAY W10252449 MAY W10252449 Contact Us For Availability
51
MAY 97787 MAY 97787 Contact Us For Availability
52
Strike & Plate Assembly MAY W10111906 Contact Us For Availability
52
Valve & Hose Assembly, Complete MAY W10130506 Contact Us For Availability
53
MAY W10111888 MAY W10111888 Contact Us For Availability
54
Gasket-Glass Inner MAY W10111859 Contact Us For Availability
54
MAY W10129424 MAY W10129424 Contact Us For Availability
55
Cover-Gas Valve MAY W10183818 Contact Us For Availability
55
NOZZLE & HOSE ASSEMBLY (INCLUDES ITEMS 56, 57 MAY W10348593 Contact Us For Availability
56
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
56
NOZZLE & SCREEN ASSEMBLY MAY W10277503 Contact Us For Availability
57
SOUND PANEL MAY W10123956 Contact Us For Availability
57
MAY W10044599 MAY W10044599 Contact Us For Availability
58
MAY W10044605 MAY W10044605 Contact Us For Availability
59
MAY W10160575 MAY W10160575 Contact Us For Availability
60
MAY W10345257 MAY W10345257 Contact Us For Availability
61
MAY W10044579 MAY W10044579 Contact Us For Availability
62
Nut, 9/16 - 24 MAY W10044628 Contact Us For Availability
63
Harness, Gas MAY 3401850 Contact Us For Availability
64
MAY W10171086 MAY W10171086 Contact Us For Availability
65
JUMPER, HI LIMIT MAY 3401710 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
Conversion Kit (Type (1) to Type (4) LPG). MAY 8576846 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile) MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Filter Washer MAY 353362 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
Hose, Inlet 6 Ft. Hose W/Elbow MAY 76314 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Silver) MAY 8212605 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
HOSE, FILL MAY 89503 Contact Us For Availability
NI
CN-WASHER HOSE MAY W10242307 Contact Us For Availability
NI
CONNECTOR, HOSE Y MAY W10336486 Contact Us For Availability
NI
BAG ASSEMBLY (CONTAINS, THE FOLLOWING MAY W10362238 Contact Us For Availability
× ![]()
