Model Maytag MGD6300TQ1 GAS DRYER – Common Parts & Diagrams

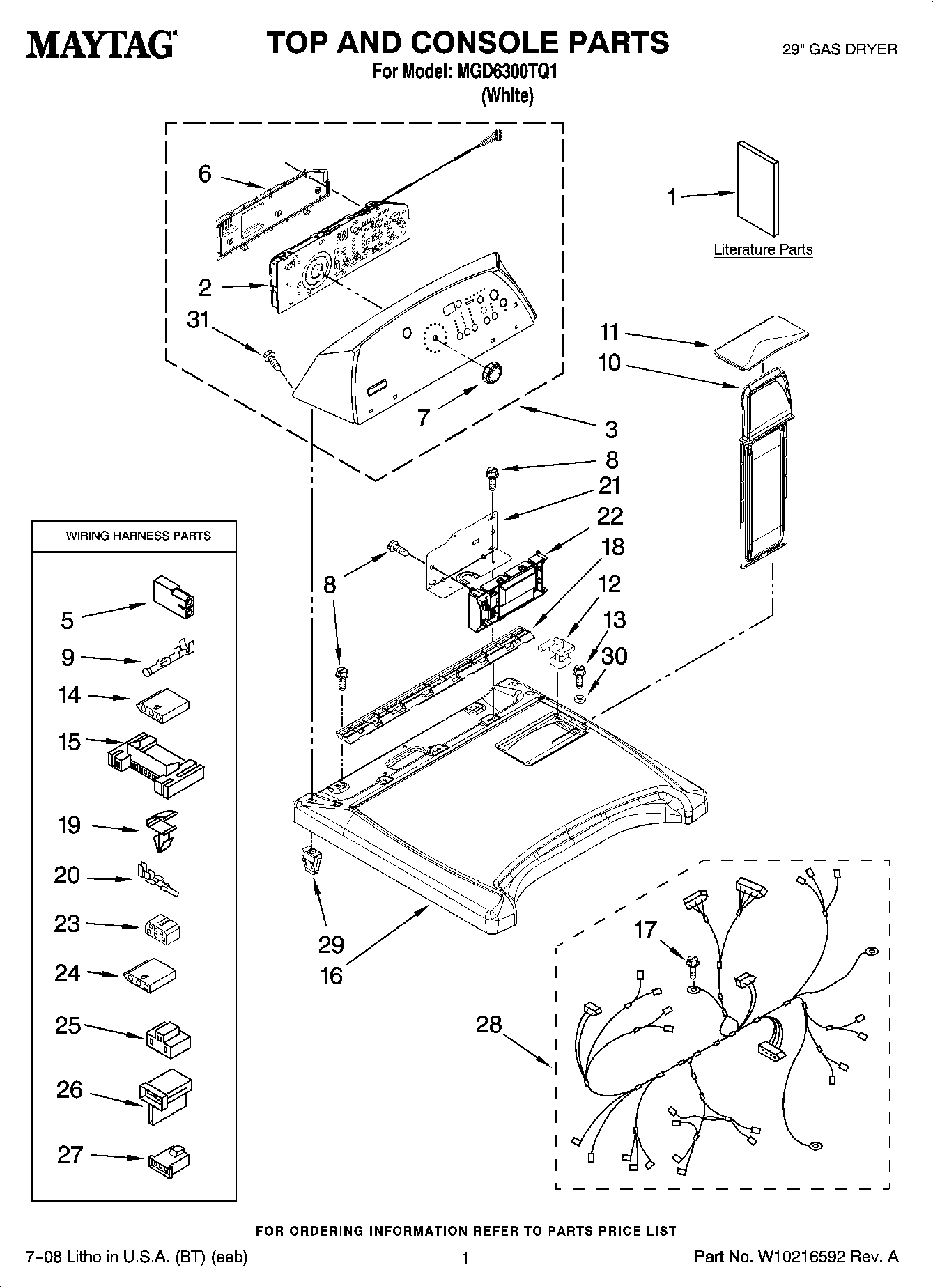

01 - TOP AND CONSOLE PARTS

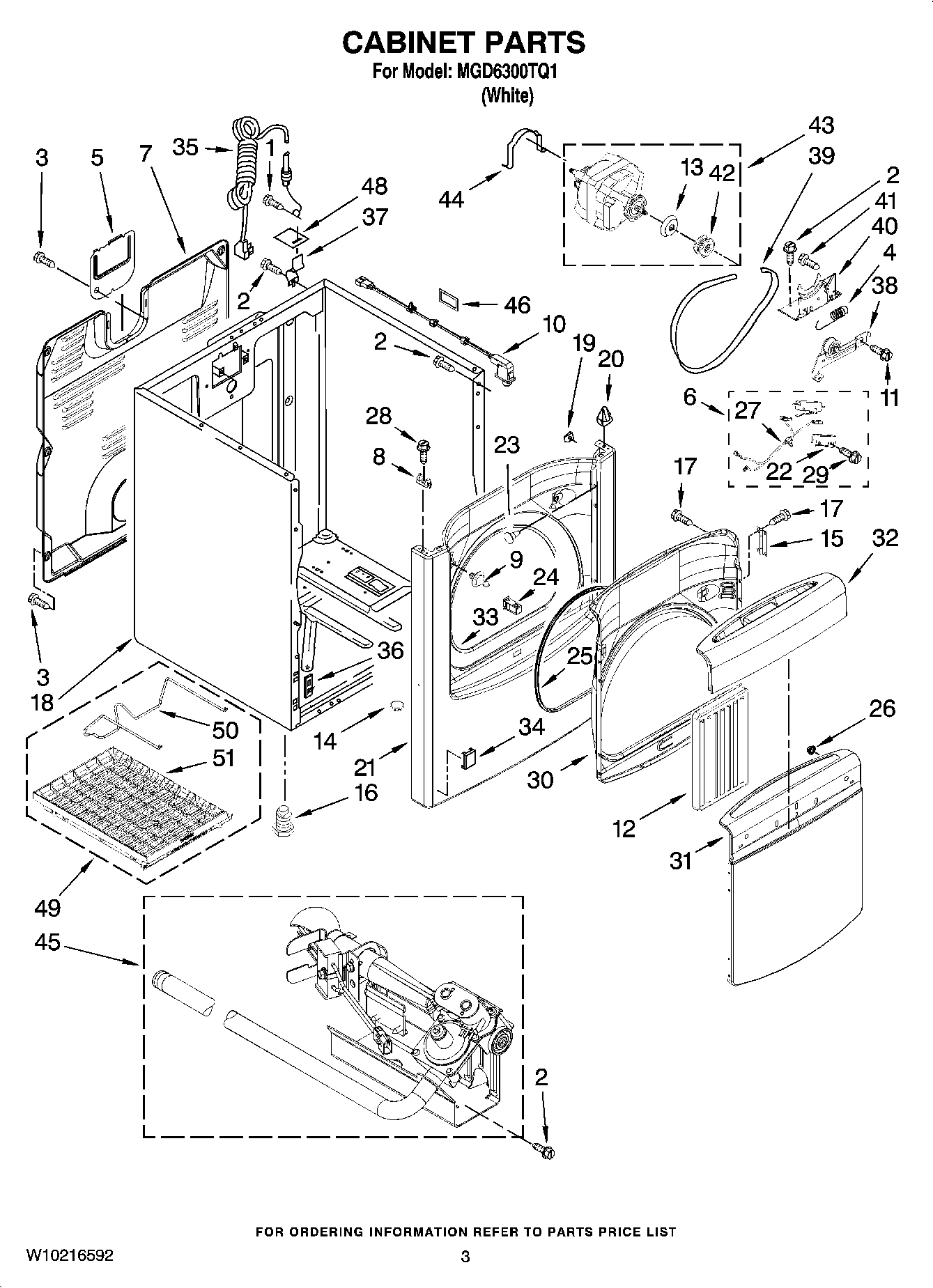

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - W10183825 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGD6300TQ1 GAS DRYER
1
MAY W10114195 MAY W10114195 Contact Us For Availability
1
MAY W10114208 MAY W10114208 Contact Us For Availability
1
MAY W10150660 MAY W10150660 Contact Us For Availability
1
MAY W10150672 MAY W10150672 Contact Us For Availability
1
SCREW GROUND MAY 8533974 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1) (White Rodger MAY W10183825 Contact Us For Availability
1
MAY 8544805 MAY 8544805 Contact Us For Availability
2
Assembly, User Interface MAY W10051096 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY W10111646 MAY W10111646 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
MAY 3387459 MAY 3387459 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
Screw, 6-19 x 3/64 MAY W10003770 Contact Us For Availability
4
MAY 3387374 MAY 3387374 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
Plug, 2-Way Terminal MAY 717252 Contact Us For Availability
5
Cover, Terminal Block MAY 8558833 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
5
Screw & Washer (8-32 x 7/8) MAY 3393909 Contact Us For Availability
6
Cover, Rear UI-Assembly MAY 8564265 Contact Us For Availability
6
MAY 3390631 MAY 3390631 Contact Us For Availability
6
Assembly, Switch MAY 8566208 Contact Us For Availability
6
MAY 487909 MAY 487909 Contact Us For Availability
7
MAY W10110196 MAY W10110196 Contact Us For Availability
7
Screw MAY 3196537 Contact Us For Availability
7
MAY 8558830 MAY 8558830 Contact Us For Availability
7
MAY W10183823 MAY W10183823 Contact Us For Availability
8
MAY 337686 MAY 337686 Contact Us For Availability
8
LOCATOR, SNAP-DOWN MAY 8568303 Contact Us For Availability
8
MAY 8539889 MAY 8539889 Contact Us For Availability
8
MAY 3387057 MAY 3387057 Contact Us For Availability
9
TERMINAL, FEMALE MAY 94614 Contact Us For Availability
9
Door Strike MAY 8572983 Contact Us For Availability
9
Thermister, Internal-Bias MAY 8577274 Contact Us For Availability
9
MAY 229742 MAY 229742 Contact Us For Availability
9
MAY 234826 MAY 234826 Contact Us For Availability
9
MAY 234868 MAY 234868 Contact Us For Availability
10
MAY 8572270 MAY 8572270 Contact Us For Availability
10
MAY 3978977 MAY 3978977 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
10
MAY 8281924 MAY 8281924 Contact Us For Availability
11
MAY W10168227 MAY W10168227 Contact Us For Availability
11
Retainer-Idler 1/4-20 x 1/16 MAY 3389420 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
MAY 694421 MAY 694421 Contact Us For Availability
12
MAY W10044470 MAY W10044470 Contact Us For Availability
12
MAY W10044480 MAY W10044480 Contact Us For Availability
12
MAY W10050060 MAY W10050060 Contact Us For Availability
12
MAY 8546149 MAY 8546149 Contact Us For Availability
12
MAY 8182790 MAY 8182790 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
Belt Restrainer MAY 8578538 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY 3936144 MAY 3936144 Contact Us For Availability
14
Hole Plug MAY 8578560 Contact Us For Availability
14
MAY 8544803 MAY 8544803 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
Assembly, Hinge & Pin MAY 8565018 Contact Us For Availability
15
Thermostat, 205 F (96C) MAY 3403140 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY 8565025 MAY 8565025 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 8544810 MAY 8544810 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
Screw, 8-18 3/64 MAY 342055 Contact Us For Availability
17
MAY 8558890 MAY 8558890 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY 8558863 MAY 8558863 Contact Us For Availability
18
MAY W10183827 MAY W10183827 Contact Us For Availability
18
MAY 8066049 MAY 8066049 Contact Us For Availability
19
CLIP, HARNESS MAY 3394427 Contact Us For Availability
19
Clip, Ground (2) MAY W10007520 Contact Us For Availability
19
MAY W10136369 MAY W10136369 Contact Us For Availability
20
Terminal MAY 94613 Contact Us For Availability
20
Lock, Front Top (2) MAY 8576625 Contact Us For Availability
20
MAY 3406126 MAY 3406126 Contact Us For Availability
21
MAY 8563853 MAY 8563853 Contact Us For Availability
21
Panel, Front (Includes Illus. 34.) MAY 8565033 Contact Us For Availability
21
Seal, Lint Chute MAY 8544813 Contact Us For Availability
22
MAY W10111617 MAY W10111617 Contact Us For Availability
22
MAY 8564011 MAY 8564011 Contact Us For Availability
22
MAY 3977373 MAY 3977373 Contact Us For Availability
23
Connector 6-Circuit MAY 3347243 Contact Us For Availability
23
PLUG, HOLE MAY 3404413 Contact Us For Availability
23
MAY 8565688 MAY 8565688 Contact Us For Availability
24
Connector Sensor MAY 353424 Contact Us For Availability
24
MAY 8572982 MAY 8572982 Contact Us For Availability
24
MAY 8557270 MAY 8557270 Contact Us For Availability
25
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
25
MAY W10130493 MAY W10130493 Contact Us For Availability
25
MAY 280010 MAY 280010 Contact Us For Availability
26
CONNECTOR, 2-POSITION (GAS VALVE) MAY 3403499 Contact Us For Availability
26
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
27
MAY 3403498 MAY 3403498 Contact Us For Availability
27
Nut 3/8-16 (R.H.) MAY 3934666 Contact Us For Availability
28
MAY W10111432 MAY W10111432 Contact Us For Availability
28
MAY W10100830 MAY W10100830 Contact Us For Availability
28
MAY 8573836 MAY 8573836 Contact Us For Availability
29
Screw, Grommet (2) MAY W10112673 Contact Us For Availability
29
Screw MAY 8539897 Contact Us For Availability
29
MAY W10109200 MAY W10109200 Contact Us For Availability
30
Washer (Top/Chute) MAY 237446 Contact Us For Availability
30
Door Inner MAY 8565020 Contact Us For Availability
30
Pad, Sensor MAY 8576468 Contact Us For Availability
31
Screw 8-18 X 1.370 MAY W10131402 Contact Us For Availability
31
MAY W10116924 MAY W10116924 Contact Us For Availability
31
Seal, Drum MAY 8557277 Contact Us For Availability
32
Handle, Door MAY W10111244 Contact Us For Availability
32
MAY 3402841 MAY 3402841 Contact Us For Availability
33
MAY W10044490 MAY W10044490 Contact Us For Availability
33
MAY 338906 MAY 338906 Contact Us For Availability
34
Plug, Front Panel MAY 8564457 Contact Us For Availability
34
BULKHEAD MAY 8557242 Contact Us For Availability
35
Power Cord MAY 344020 Contact Us For Availability
35
Nut, 3/8-16 MAY W10001120 Contact Us For Availability
36
MAY 3394083 MAY 3394083 Contact Us For Availability
36
MAY 8536973 MAY 8536973 Contact Us For Availability
37
MAY 238088 MAY 238088 Contact Us For Availability
37
Shaft, (R.H.) MAY 8575324 Contact Us For Availability
38
Idler & Pulley Assembly MAY 8547174 Contact Us For Availability
38
Shaft (L.H.) MAY 8575325 Contact Us For Availability
39
MAY 8547168 MAY 8547168 Contact Us For Availability
39
MAY 690997 MAY 690997 Contact Us For Availability
40
MAY 8547166 MAY 8547166 Contact Us For Availability
40
MAY W10053480 MAY W10053480 Contact Us For Availability
41
MAY W10002600 MAY W10002600 Contact Us For Availability
42
MAY 8578565 MAY 8578565 Contact Us For Availability
43
MAY 8566152 MAY 8566152 Contact Us For Availability
44
MAY W10121316 MAY W10121316 Contact Us For Availability
46
MAY W10118614 MAY W10118614 Contact Us For Availability
48
Pad-Top Hinge MAY 18849 Contact Us For Availability
50
MAY W10111656 MAY W10111656 Contact Us For Availability
51
MAY 8577310 MAY 8577310 Contact Us For Availability
NI
MAY W10071550 MAY W10071550 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
MAY 49572 MAY 49572 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
