Model Maytag MGD5100DC1 GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

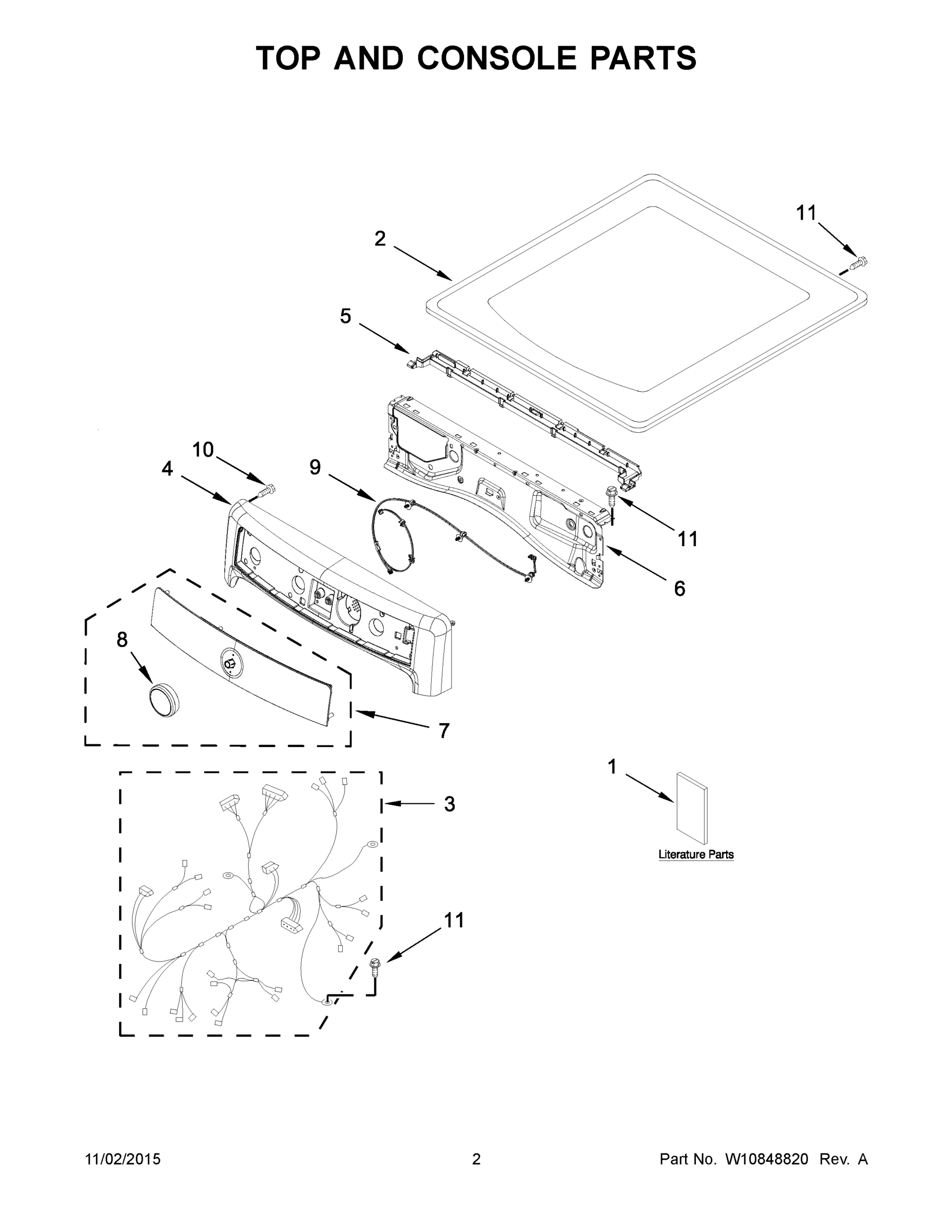

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - BURNER ASSEMBLY PARTS
06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGD5100DC1 GAS DRYER
1
MAY W10804690 MAY W10804690 Contact Us For Availability
1
MAY 8317339 MAY 8317339 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10307147 MAY W10307147 Contact Us For Availability
1
MAY W10797893 MAY W10797893 Contact Us For Availability
1A
MAY W10806850 MAY W10806850 Contact Us For Availability
1B
MAY W10676163 MAY W10676163 Contact Us For Availability
1C
MAY W10804378 MAY W10804378 Contact Us For Availability
1D
MAY W10804670 MAY W10804670 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10208419 MAY W10208419 Contact Us For Availability
2A
MAY W10460919 MAY W10460919 Contact Us For Availability
3
MAY W10801123 MAY W10801123 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10656504 MAY W10656504 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10626039 MAY W10626039 Contact Us For Availability
4
ASSEMBLY, CONSOLE (WHITE) MAY W10391555 Contact Us For Availability
4
PANEL, SIDE (RIGHT) (WHITE) MAY W10469589 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
MAY 8572266 MAY 8572266 Contact Us For Availability
4A
ASSEMBLY, CONSOLE (CHROME SHADOW) MAY W10433206 Contact Us For Availability
4A
PANEL, SIDE (RIGHT) (CHROME SHADOW) MAY W10474189 Contact Us For Availability
5
MAY W10636058 MAY W10636058 Contact Us For Availability
5
MAY W10774832 MAY W10774832 Contact Us For Availability
5
MAY W10295533 MAY W10295533 Contact Us For Availability
5
MAY W10366705 MAY W10366705 Contact Us For Availability
5
MAY W10208252 MAY W10208252 Contact Us For Availability
6
MAY W10208198 MAY W10208198 Contact Us For Availability
6
PANEL, SIDE (LEFT) (WHITE) MAY W10468495 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY W10208422 MAY W10208422 Contact Us For Availability
6
MAY W10329710 MAY W10329710 Contact Us For Availability
6A
PANEL, SIDE (LEFT) (CHROME SHADOW) MAY W10468496 Contact Us For Availability
7
MAY W10800515 MAY W10800515 Contact Us For Availability
7
MAY 3392100 MAY 3392100 Contact Us For Availability
7
MAY W10211950 MAY W10211950 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
MAY W10208398 MAY W10208398 Contact Us For Availability
7A
MAY W10800516 MAY W10800516 Contact Us For Availability
8
MAY W10727011 MAY W10727011 Contact Us For Availability
8
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
MAY W10208254 MAY W10208254 Contact Us For Availability
9
MAY W10540653 MAY W10540653 Contact Us For Availability
9
MAY W10446781 MAY W10446781 Contact Us For Availability
9
MAY W10516085 MAY W10516085 Contact Us For Availability
9
TYPE 1 (NATURAL) MAY 15418 Contact Us For Availability
9
MAY W10272404 MAY W10272404 Contact Us For Availability
10
MAY W10489172 MAY W10489172 Contact Us For Availability
10
SCREW MAY 3389420 Contact Us For Availability
10
MAY W10672680 MAY W10672680 Contact Us For Availability
10
MAY W10622154 MAY W10622154 Contact Us For Availability
10
DOOR, INNER MAY W10285652 Contact Us For Availability
11
MAY W10639171 MAY W10639171 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY W10460935 MAY W10460935 Contact Us For Availability
11
MAY W10295523 MAY W10295523 Contact Us For Availability
12
MAY W10504381 MAY W10504381 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
MAY W10328463 MAY W10328463 Contact Us For Availability
12
ASSEMBLY, OUTER DOOR MAY W10424248 Contact Us For Availability
13
MAY W10708958 MAY W10708958 Contact Us For Availability
13
MAY 326049536 MAY 326049536 Contact Us For Availability
13
MAY W10749947 MAY W10749947 Contact Us For Availability
14
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
14
SCREW MAY 693995 Contact Us For Availability
14
MAY W10097610 MAY W10097610 Contact Us For Availability
14
MAY W10208415 MAY W10208415 Contact Us For Availability
14A
MAY W10391496 MAY W10391496 Contact Us For Availability
15
MAY W10259611 MAY W10259611 Contact Us For Availability
15
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
15
MAY 3389889 MAY 3389889 Contact Us For Availability
15
SCREW MAY 9742177 Contact Us For Availability
16
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
16
MAY W10315109 MAY W10315109 Contact Us For Availability
16
MAY 8520836 MAY 8520836 Contact Us For Availability
17
SCREW MAY 3390647 Contact Us For Availability
17
MAY W10651060 MAY W10651060 Contact Us For Availability
17
WASHER MAY 3387459 Contact Us For Availability
17A
MAY W10637127 MAY W10637127 Contact Us For Availability
18
MAY W10688148 MAY W10688148 Contact Us For Availability
18
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 8565046 MAY 8565046 Contact Us For Availability
19
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY W10208250 MAY W10208250 Contact Us For Availability
20
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY W10208401 MAY W10208401 Contact Us For Availability
21
MAY W10342188 MAY W10342188 Contact Us For Availability
22
MAY W10804446 MAY W10804446 Contact Us For Availability
22
MAY W10672683 MAY W10672683 Contact Us For Availability
23
MAY W10208382 MAY W10208382 Contact Us For Availability
23
MAY W10665050 MAY W10665050 Contact Us For Availability
24
MAY W10806760 MAY W10806760 Contact Us For Availability
24
MAY W10381481 MAY W10381481 Contact Us For Availability
25
MAY W10487430 MAY W10487430 Contact Us For Availability
25
MAY W10219342 MAY W10219342 Contact Us For Availability
26
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
26
MAY W10521122 MAY W10521122 Contact Us For Availability
27
MAY W10112954 MAY W10112954 Contact Us For Availability
27
MAY W10414388 MAY W10414388 Contact Us For Availability
28
MAY 8529757 MAY 8529757 Contact Us For Availability
28
SCREW MAY 489463 Contact Us For Availability
29
MAY W10242878 MAY W10242878 Contact Us For Availability
29
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
30
MAY 3401401 MAY 3401401 Contact Us For Availability
30
MAY W10521118 MAY W10521118 Contact Us For Availability
31
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
32
MAY W10211901 MAY W10211901 Contact Us For Availability
33
MAY W10211899 MAY W10211899 Contact Us For Availability
34
SCREW MAY 3357011 Contact Us For Availability
34
MAY W10211915 MAY W10211915 Contact Us For Availability
35
MAY W10525140 MAY W10525140 Contact Us For Availability
36
MAY W10128629 MAY W10128629 Contact Us For Availability
37
MAY 3387242 MAY 3387242 Contact Us For Availability
37
MAY W10044599 MAY W10044599 Contact Us For Availability
38
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
38
MAY 3391018 MAY 3391018 Contact Us For Availability
39
MAY W10468057 MAY W10468057 Contact Us For Availability
39
THERMISTOR MAY 8577274 Contact Us For Availability
40
MAY W10277503 MAY W10277503 Contact Us For Availability
41
MAY W10211911 MAY W10211911 Contact Us For Availability
42
MAY W10211896 MAY W10211896 Contact Us For Availability
43
MAY 8573824 MAY 8573824 Contact Us For Availability
44
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
45
MAY 338906 MAY 338906 Contact Us For Availability
46
MAY W10693363 MAY W10693363 Contact Us For Availability
47
MAY W10794806 MAY W10794806 Contact Us For Availability
48
MAY W10416098 MAY W10416098 Contact Us For Availability
49
MAY W10673491 MAY W10673491 Contact Us For Availability
50
MAY W10672682 MAY W10672682 Contact Us For Availability
51
MAY W10505663 MAY W10505663 Contact Us For Availability
52
MAY W10510098 MAY W10510098 Contact Us For Availability
53
MAY W10347739 MAY W10347739 Contact Us For Availability
54
MAY W10348621 MAY W10348621 Contact Us For Availability
55
MAY W10623852 MAY W10623852 Contact Us For Availability
56
MAY 8529007 MAY 8529007 Contact Us For Availability
57
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
58
MAY W10672681 MAY W10672681 Contact Us For Availability
59
MAY W10726027 MAY W10726027 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10606694 MAY W10606694 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
MAY W10336486 MAY W10336486 Contact Us For Availability
NI
MAY W10439655 MAY W10439655 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
NI
MAY W10636192 MAY W10636192 Contact Us For Availability
× ![]()
