Model Maytag MGC7424AS0 GAS COOK-TOP – Common Parts & Diagrams

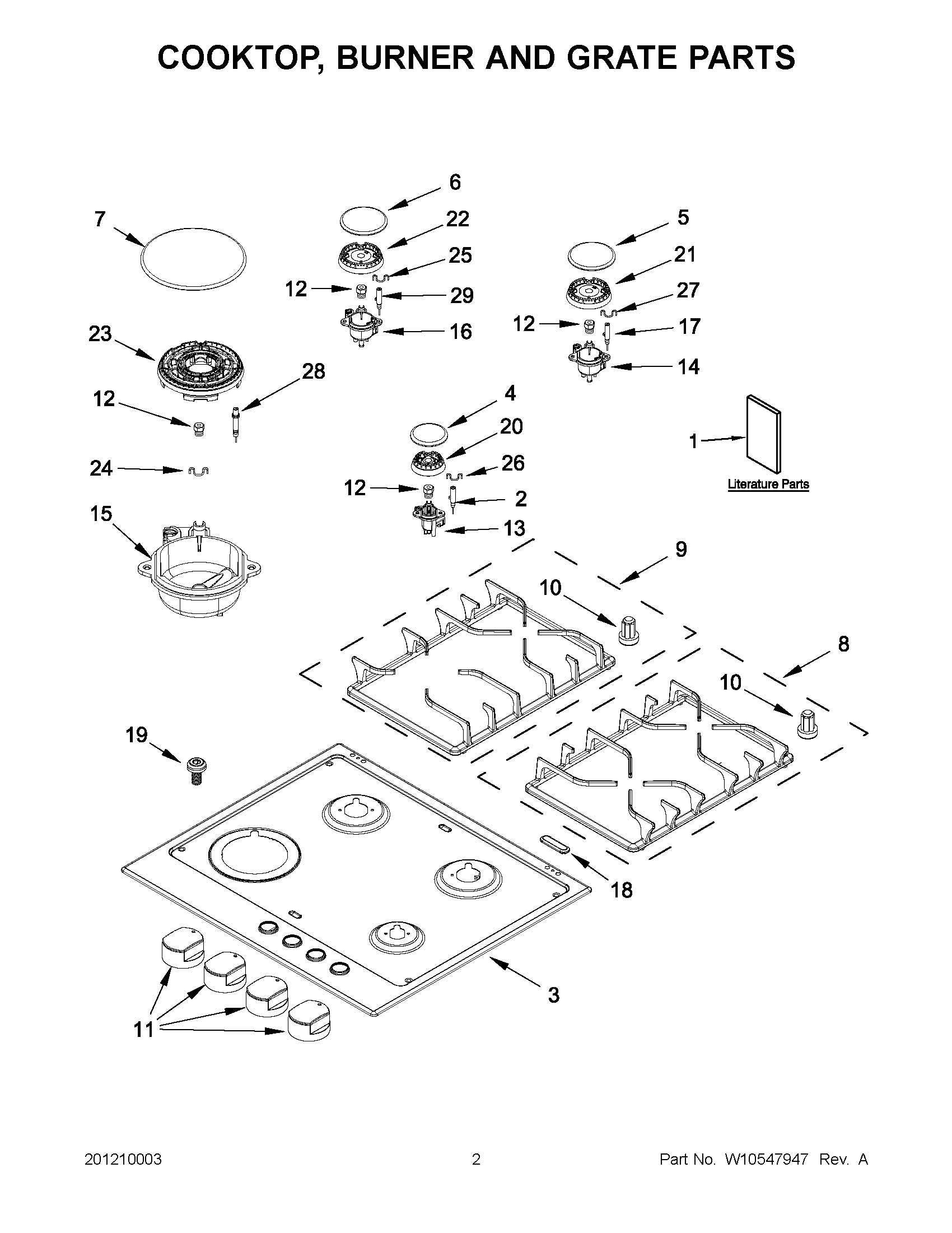

01 - COOKTOP, BURNER AND GRATE PARTS

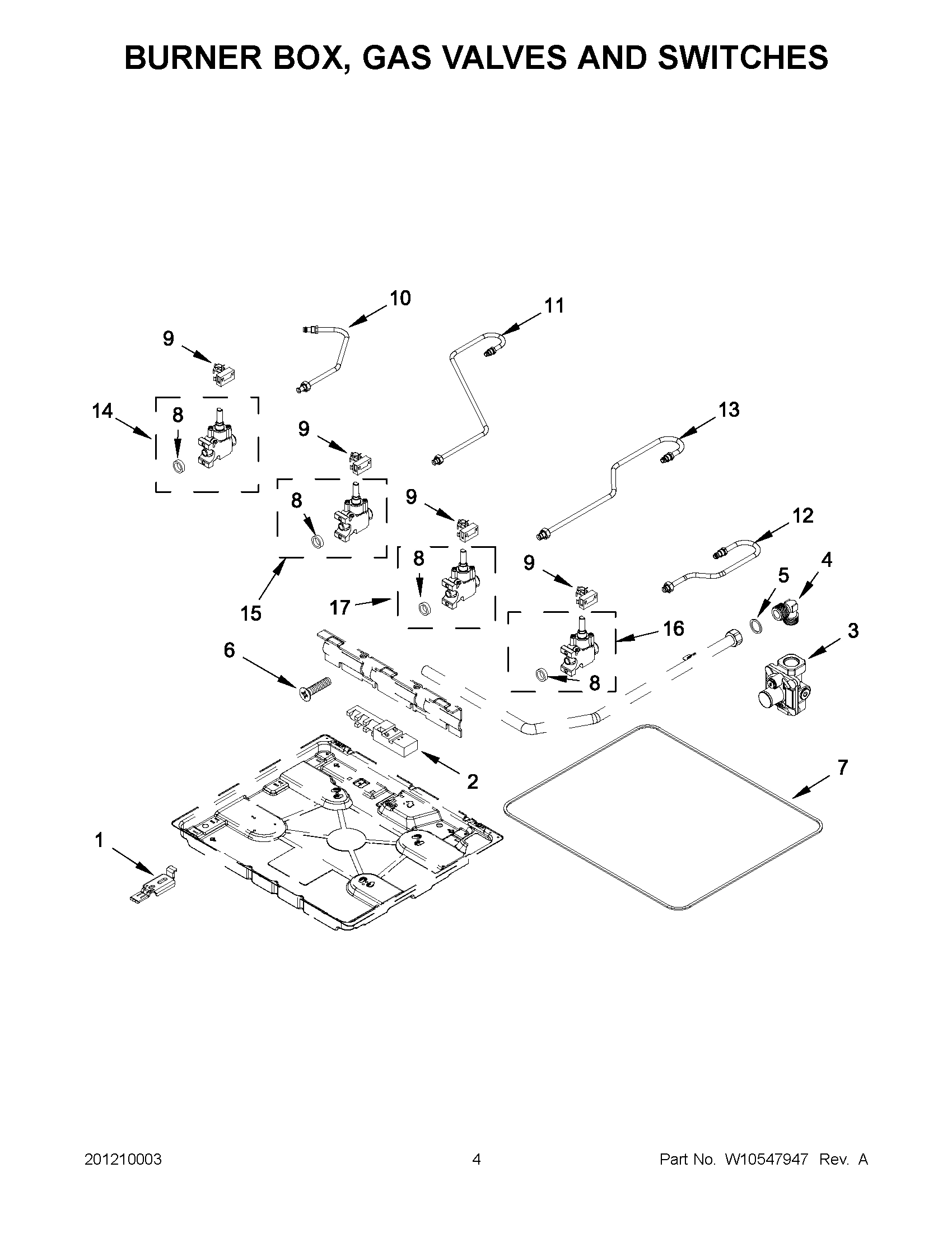

02 - BURNER BOX, GAS VALVES AND SWITCHES
Common parts from model Maytag MGC7424AS0 GAS COOK-TOP
1
MAY W10545655 MAY W10545655 Contact Us For Availability
1
MAY W10545656 MAY W10545656 Contact Us For Availability
1
MAY W10547955 MAY W10547955 Contact Us For Availability
1
MAY W10484469 MAY W10484469 Contact Us For Availability
2
MAY W10484366 MAY W10484366 Contact Us For Availability
3
MAY W10517477 MAY W10517477 Contact Us For Availability
3
REGULATOR,PRESSURE MAY 8186962 Contact Us For Availability
4
MAY W10483939 MAY W10483939 Contact Us For Availability
4
ELBOW, MANIFOLD MAY 8186827 Contact Us For Availability
5
GASKET, MANIFOLD ELBOW MAY 8186829 Contact Us For Availability
6
BURNER CAP SR LEFT REAR MAY W10483940 Contact Us For Availability
6
MAY W10517408 MAY W10517408 Contact Us For Availability
7
MAY W10517717 MAY W10517717 Contact Us For Availability
7
MAY W10515438 MAY W10515438 Contact Us For Availability
8
GRATE RIGHT SIDE MAY W10483909 Contact Us For Availability
8
GASKET, VALVE MAY 8186828 Contact Us For Availability
9
GRATE LEFT SIDE MAY W10483907 Contact Us For Availability
9
MAY W10484356 MAY W10484356 Contact Us For Availability
10
MAY W10483912 MAY W10483912 Contact Us For Availability
10
MAY W10517731 MAY W10517731 Contact Us For Availability
11
MAY W10517735 MAY W10517735 Contact Us For Availability
11
MAY W10484465 MAY W10484465 Contact Us For Availability
12
KIT (LIQUID PROPANE ORIFICES) MAY W10484296 Contact Us For Availability
12
KIT (NATURAL GAS ORIFICES) MAY W10484298 Contact Us For Availability
12
MAY W10484463 MAY W10484463 Contact Us For Availability
13
MAY W10483915 MAY W10483915 Contact Us For Availability
13
MAY W10484462 MAY W10484462 Contact Us For Availability
14
VALVE, GAS 4-CROWN LEFT FRONT MAY 8186816 Contact Us For Availability
15
MAY W10517706 MAY W10517706 Contact Us For Availability
16
HOLDER, ORIFICE SR LEFT REAR MAY W10483916 Contact Us For Availability
16
VALVE, GAS AUX RIGHT FRONT MAY 8186818 Contact Us For Availability
17
VALVE, GAS SR RIGHT REAR MAY 8186817 Contact Us For Availability
18
MAY W10483906 MAY W10483906 Contact Us For Availability
19
MAY W10484471 MAY W10484471 Contact Us For Availability
20
MAY W10483936 MAY W10483936 Contact Us For Availability
22
HEAD, BURNER SR LEFT REAR MAY W10483937 Contact Us For Availability
23
MAY W10517714 MAY W10517714 Contact Us For Availability
27
CLIP, IGNITOR RIGHT REAR MAY W10236996 Contact Us For Availability
28
IGNITOR, SURFACE LEFT FRONT MAY W10236997 Contact Us For Availability
29
MAY W10484335 MAY W10484335 Contact Us For Availability
× ![]()
