Model Maytag MGC5430BDB20 GAS COOK-TOP – Common Parts & Diagrams

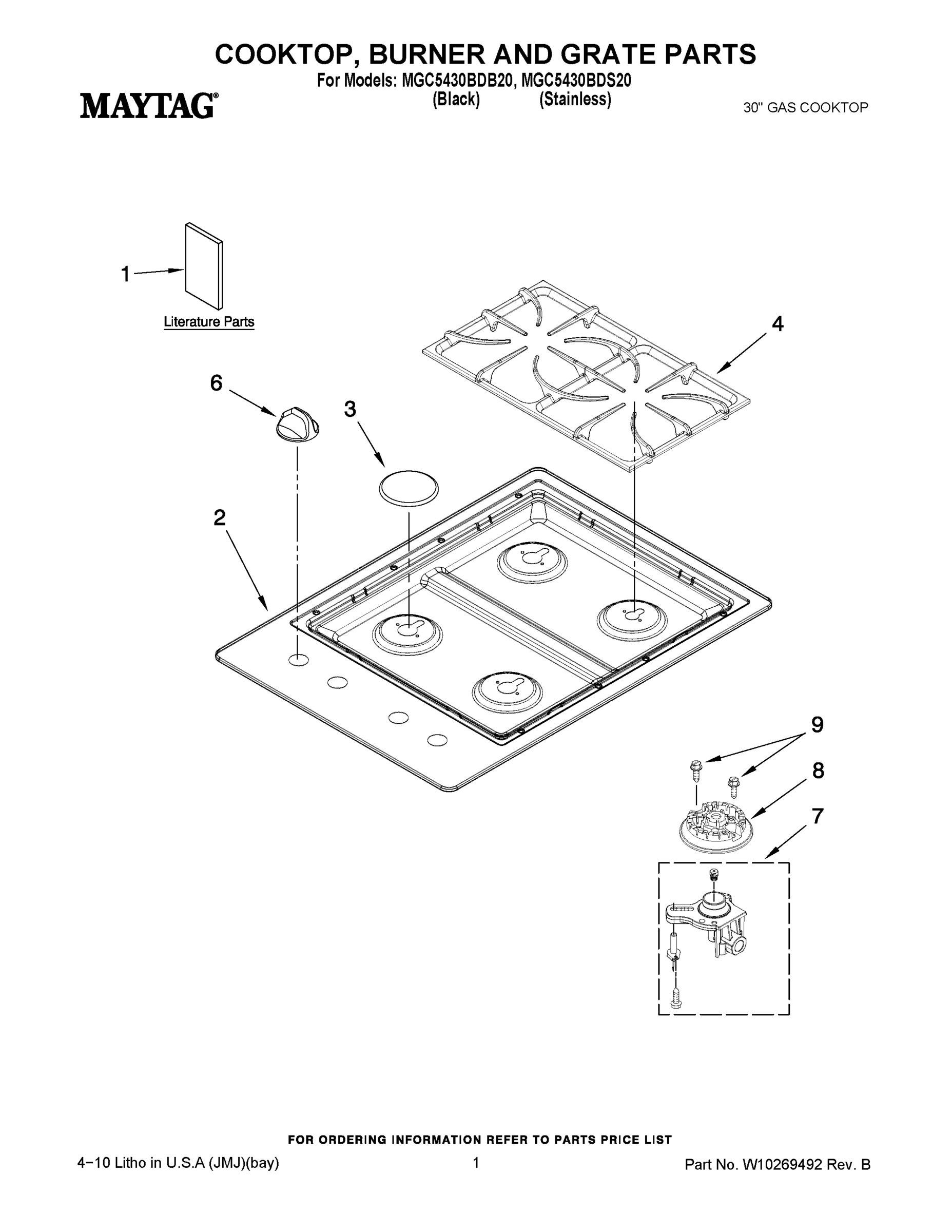

01 - COOKTOP, BURNER AND GRATE PARTS

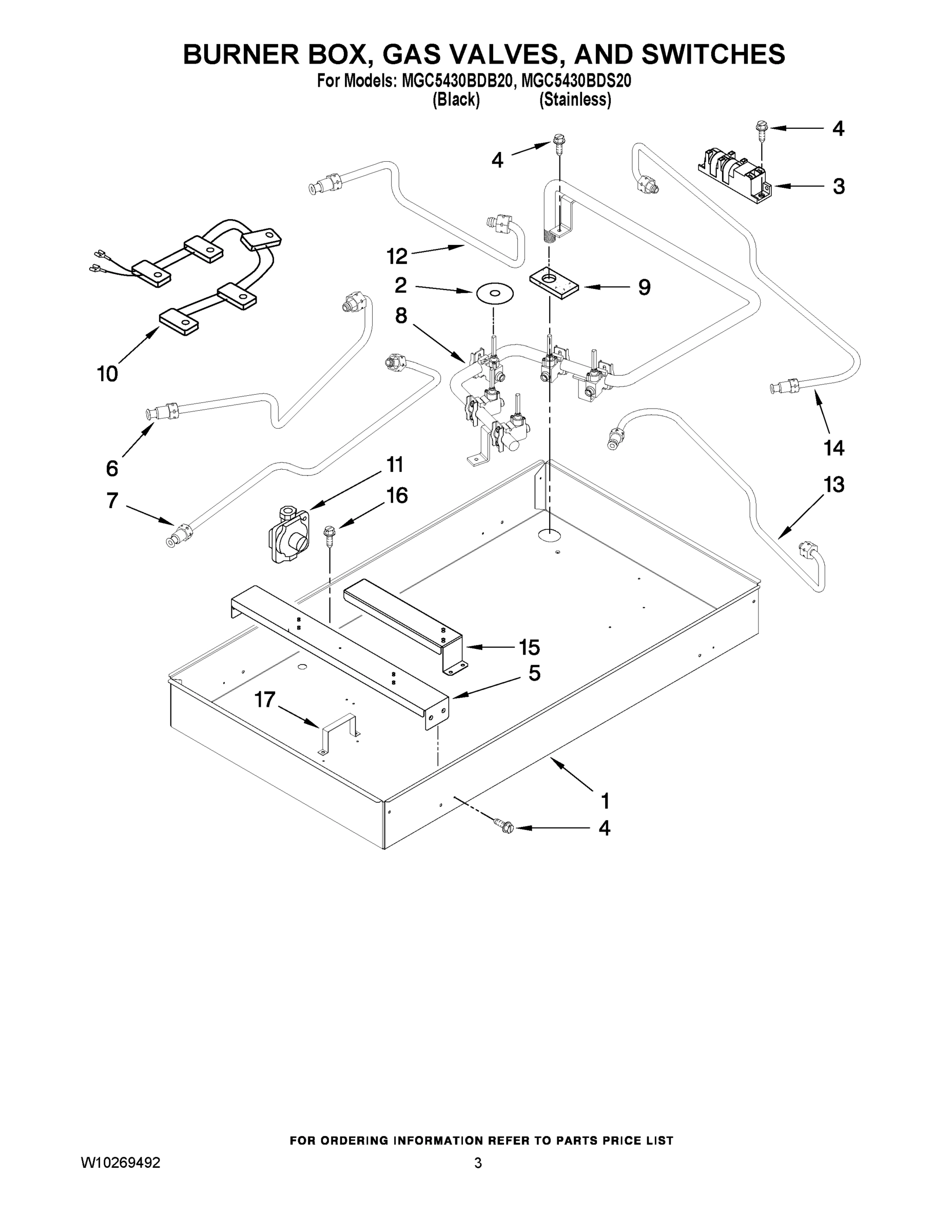

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGC5430BDB20 GAS COOK-TOP
1
MAY 8101P582-60 MAY 8101P582-60 Contact Us For Availability
1
Wiring Diagram (English) MAY 8104P828-60 Contact Us For Availability
1
MAY 8112P338-60 MAY 8112P338-60 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
MAY W10176503 MAY W10176503 Contact Us For Availability
2
MAY 2001F190-55 MAY 2001F190-55 Contact Us For Availability
2
MAY 2001F191-09 MAY 2001F191-09 Contact Us For Availability
2
Seal, Valve Shaft MAY 8008P065-60 Contact Us For Availability
3
CAP, BURNER (RR & LF) MAY W10183369 Contact Us For Availability
3
CAP, BURNER (LR) MAY W10183370 Contact Us For Availability
3
CAP, BURNER (RF) MAY W10183371 Contact Us For Availability
3
MAY 7431P064-60 MAY 7431P064-60 Contact Us For Availability
4
MAY 7518P400-60 MAY 7518P400-60 Contact Us For Availability
4
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
Bracket, Orifice Holder (2) MAY 3801F848-51 Contact Us For Availability
6
MAY 7733P489-60 MAY 7733P489-60 Contact Us For Availability
6
Tubing, Gas Burner (Left) (2) MAY 7506P375-60 Contact Us For Availability
7
HOLDER, ORIFICE (RF (12K)) MAY 7527P005-60 Contact Us For Availability
7
HOLDER, ORIFICE (LR (9K)) MAY 7527P006-60 Contact Us For Availability
7
HOLDER, ORIFICE (RR & LF (9.2K)) MAY 7527P007-60 Contact Us For Availability
7
Tubing, Gas Burner (Right) (2) MAY 7506P374-60 Contact Us For Availability
8
Head, Burner MAY 8286182 Contact Us For Availability
8
MAY 7513P356-60 MAY 7513P356-60 Contact Us For Availability
9
MAY 7208P024-60 MAY 7208P024-60 Contact Us For Availability
10
MAY 7450P081-60 MAY 7450P081-60 Contact Us For Availability
11
MAY 7510P088-60 MAY 7510P088-60 Contact Us For Availability
12
TUBING, CENTER MAY 7506P364-60 Contact Us For Availability
13
TUBING, RF MAY 7506P365-60 Contact Us For Availability
14
TUBING, RR MAY 7506P366-60 Contact Us For Availability
15
BRACKET, CTR HLDR MAY 3801F878-51 Contact Us For Availability
16
Screw, Ground MAY 7101P460-60 Contact Us For Availability
17
MAY 3801F933-51 MAY 3801F933-51 Contact Us For Availability
NI
MAY 5112P675-60 MAY 5112P675-60 Contact Us For Availability
NI
MAY 7101P062-60 MAY 7101P062-60 Contact Us For Availability
NI
MAY 7402P087-60 MAY 7402P087-60 Contact Us For Availability
NI
Spud Kit MAY 7509P103-60 Contact Us For Availability
NI
MAY 8007P003-60 MAY 8007P003-60 Contact Us For Availability
NI
Harness, Cooktop MAY W10173479 Contact Us For Availability
× ![]()
