Model Whirlpool MG3090XAB0 – Common Parts & Diagrams
01 - CONTROL PANEL
03 - DOOR AND LATCH

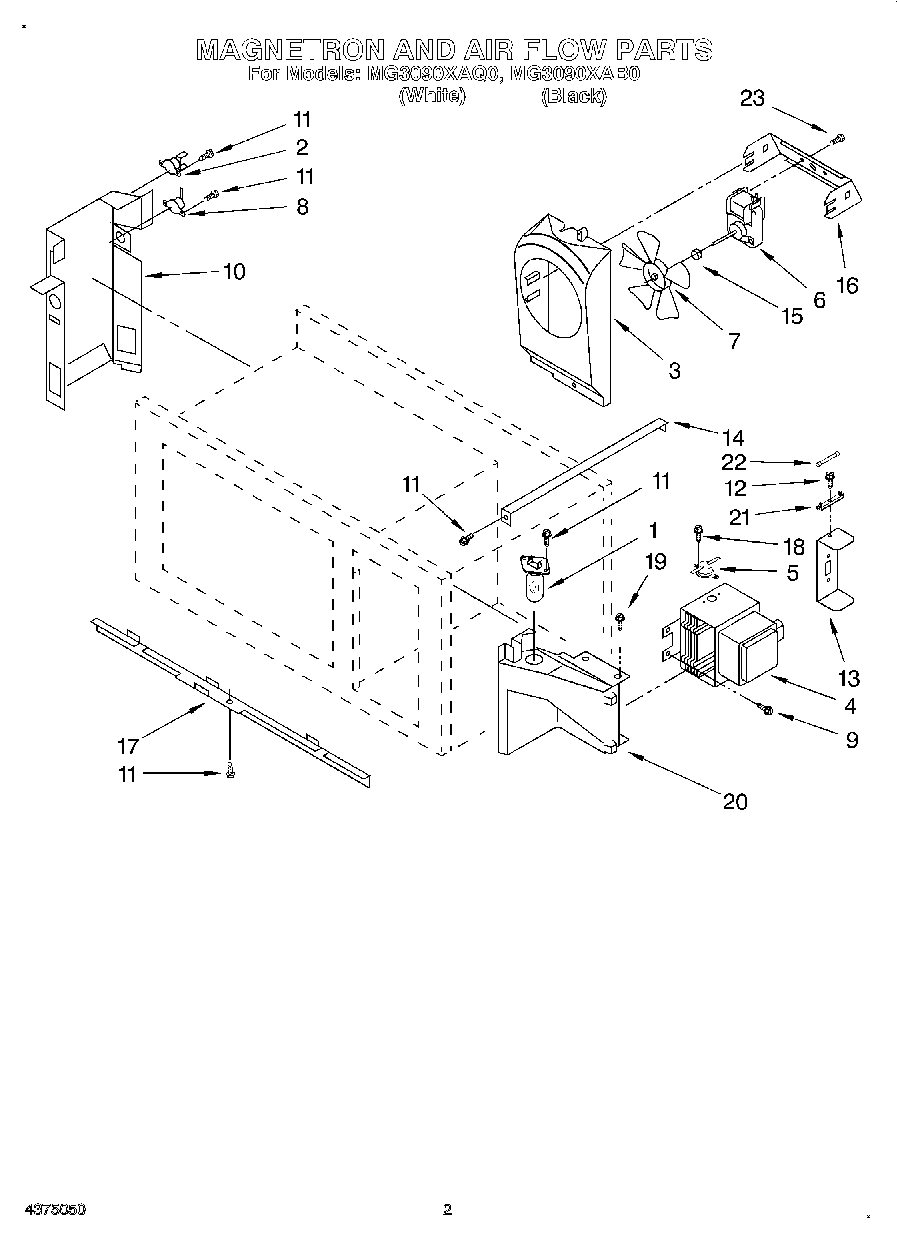

02 - MAGNETRON AND AIR FLOW, LITERATURE

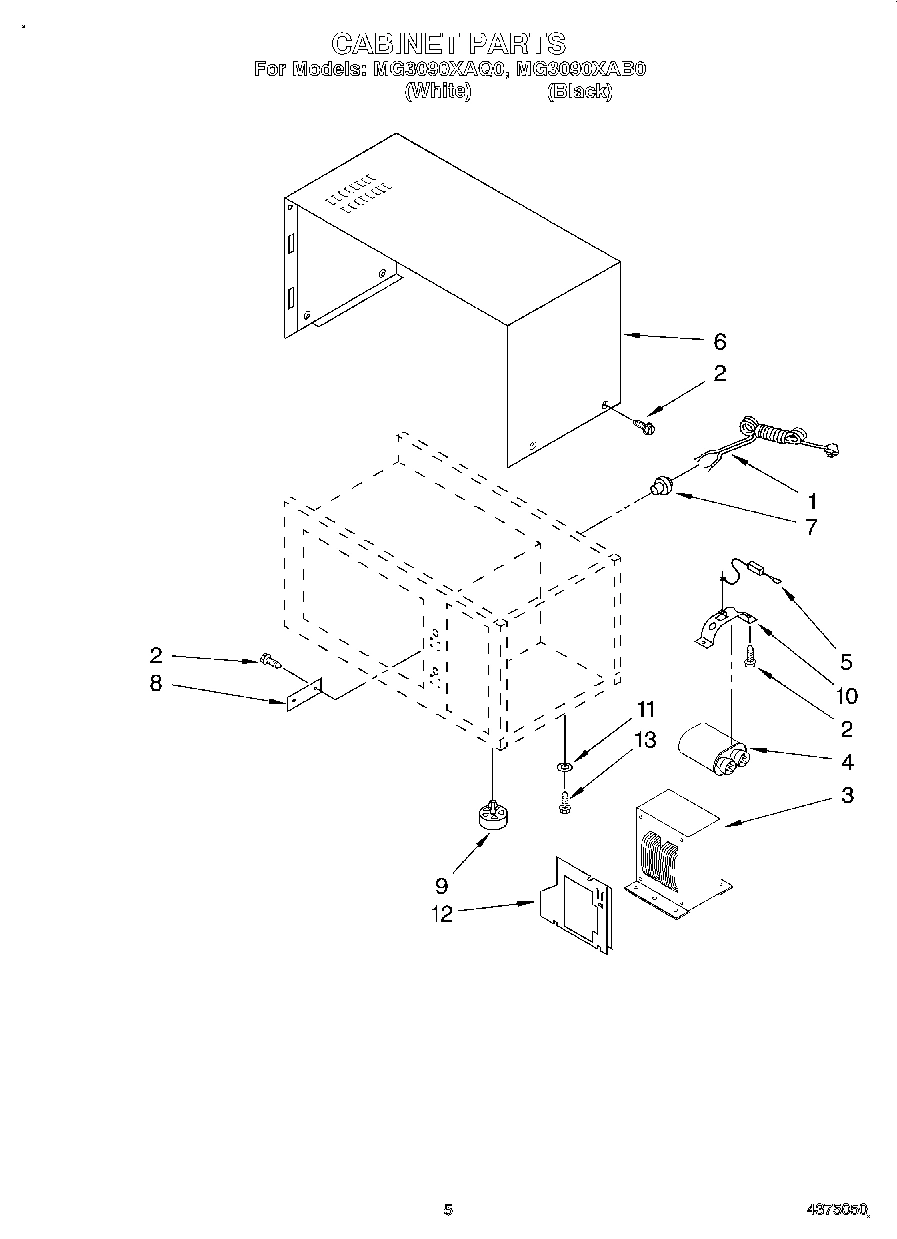

05 - CABINET

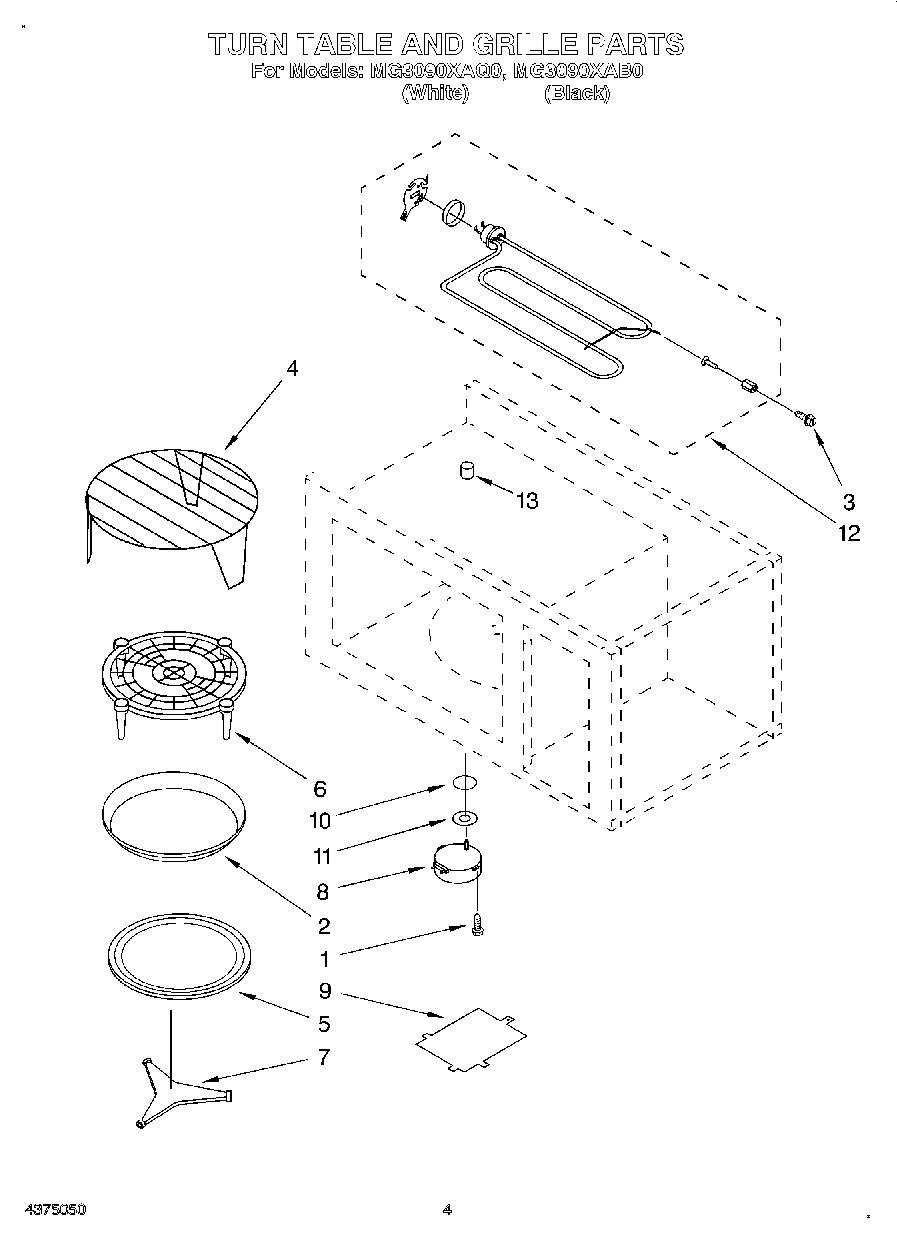

04 - TURNTABLE AND GRILLE
Common parts from model Whirlpool MG3090XAB0
White Model WPL 4319240 Contact Us For Availability
Black Model WPL 4319241 Contact Us For Availability
Use And Care Guide WPL LIT4375003 Contact Us For Availability
Tech Sheet WPL LIT4375005 Contact Us For Availability
Cook Guide Label WPL LIT4375009 Contact Us For Availability
Cook Book WPL LIT4375011 Contact Us For Availability
Crisp Pan Order Card WPL LIT4375015 Contact Us For Availability
1
Door, Complete (White) WPL 4375058 Contact Us For Availability
1
Door, Complete (Black) WPL 4375059 Contact Us For Availability
1
Lamp, Oven WPL 4375077 Contact Us For Availability
1
Power Cord WPL 4375082 Contact Us For Availability
2
Choke Cover WPL 4375062 Contact Us For Availability
2
Thermostat, Grille WPL 4375080 Contact Us For Availability
2
Screw WPL 4375203 Contact Us For Availability
3
Pin, Hinge WPL 4375063 Contact Us For Availability
3
Duct, Fan WPL 4375046 Contact Us For Availability
3
Screw WPL 4375095 Contact Us For Availability
3
Transformer WPL 4375083 Contact Us For Availability
4
Spring, Button WPL 4375034 Contact Us For Availability
4
Outer Frame (White) WPL 4375060 Contact Us For Availability
4
Outer Frame (Black) WPL 4375061 Contact Us For Availability
4
Grille, Metal WPL 4375068 Contact Us For Availability
5
Touch Pad (White) WPL 4375023 Contact Us For Availability
5
Touch Pad (Black) WPL 4375024 Contact Us For Availability
5
Latch Board (Includes Item 6) WPL 4375049 Contact Us For Availability
5
Rectifier WPL 4375084 Contact Us For Availability
5
Tray, Glass WPL 4375066 Contact Us For Availability
6
Door Release WPL 4375057 Contact Us For Availability
6
Micro switch (3) WPL 4375074 Contact Us For Availability
6
Motor, Fan WPL 4375075 Contact Us For Availability
6
Outer Cabinet (White) WPL 4375064 Contact Us For Availability
6
Outer Cabinet (Black) WPL 4375065 Contact Us For Availability
6
Grille, Plastic WPL 4375069 Contact Us For Availability
7
Screw WPL 4375051 Contact Us For Availability
7
Blade, Fan WPL 4375044 Contact Us For Availability
7
Clamp WPL 4375027 Contact Us For Availability
7
Support, Turntable WPL 4375067 Contact Us For Availability
8
Inner Frame (White) WPL 4375125 Contact Us For Availability
8
Inner Frame (Black) WPL 4375126 Contact Us For Availability
8
Thermostat, Oven WPL 4375078 Contact Us For Availability
8
Cover WPL 4375028 Contact Us For Availability
8
Motor, Turntable WPL 4375076 Contact Us For Availability
9
Outer Glass (White) WPL 4375018 Contact Us For Availability
9
Outer Glass (Black) WPL 4375019 Contact Us For Availability
9
Screw, Magnatron WPL 4375040 Contact Us For Availability
9
Foot (4) WPL 4375029 Contact Us For Availability
9
Cover, Motor WPL 4375031 Contact Us For Availability
10
Bracket WPL 4375055 Contact Us For Availability
10
Bracket, Capacitor WPL 4375025 Contact Us For Availability
10
Gasket, Turntable WPL 4375036 Contact Us For Availability
11
Lock Washer WPL 4375039 Contact Us For Availability
11
Ring WPL 4375037 Contact Us For Availability
12
Screw WPL 4375048 Contact Us For Availability
12
Air Duct WPL 4375054 Contact Us For Availability
12
Grille, Element WPL 4375081 Contact Us For Availability
13
Bracket, Magnatron WPL 4375041 Contact Us For Availability
13
Screw, Transformer WPL 4375038 Contact Us For Availability
13
Support, Grill WPL 4375311 Contact Us For Availability
14
Brace WPL 4375056 Contact Us For Availability
15
Clip, Fan Blade WPL 4375043 Contact Us For Availability
16
Bracket, Fan Motor WPL 4375045 Contact Us For Availability
17
Baffle, Air WPL 4375092 Contact Us For Availability
18
Screw WPL 4375042 Contact Us For Availability
19
Screw WPL 4375053 Contact Us For Availability
20
Duct, Magnetron WPL 4375052 Contact Us For Availability
21
Fuse Holder WPL 4375047 Contact Us For Availability
22
Fuse WPL 4375073 Contact Us For Availability
× ![]()
