Model Whirlpool MG2070XAB0 – Common Parts & Diagrams

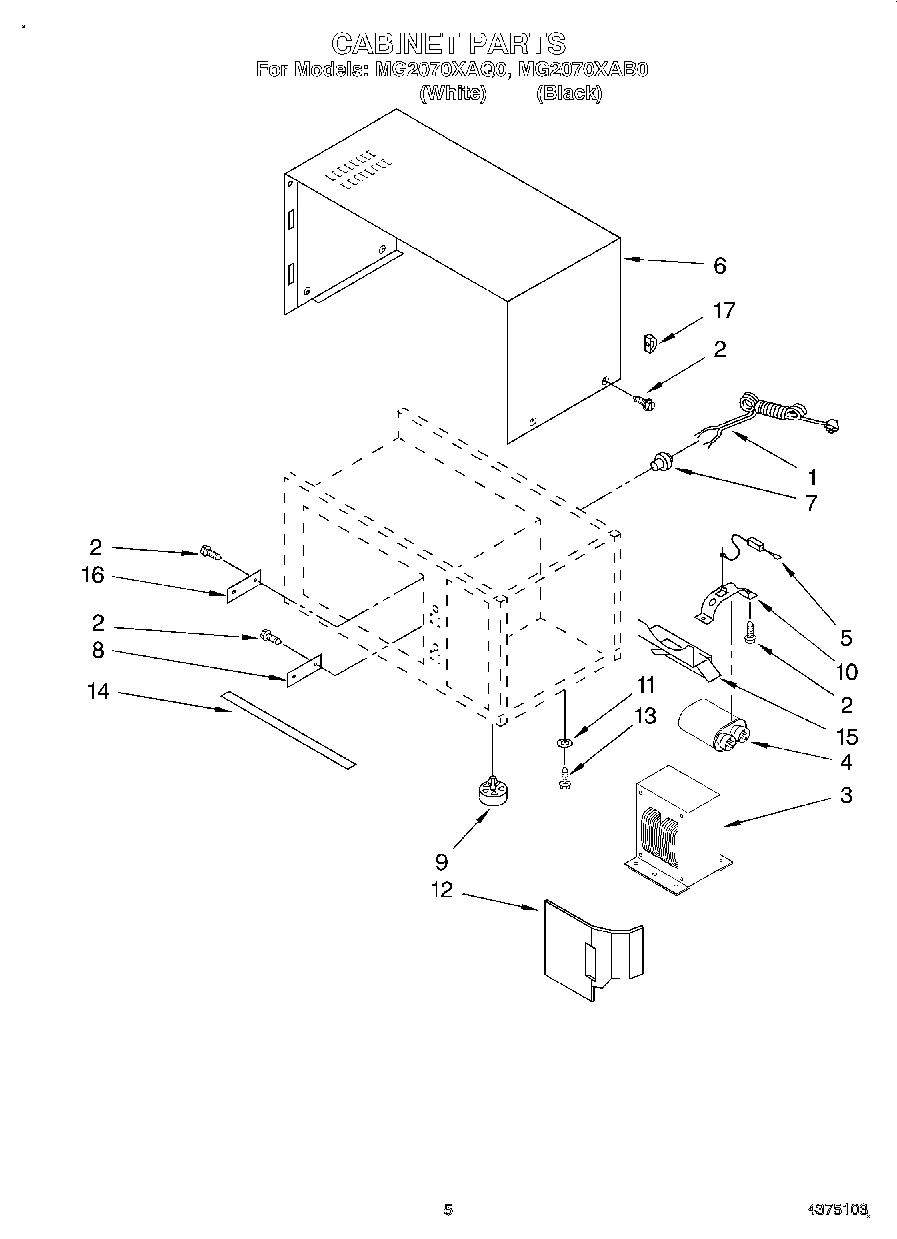

05 - CABINET

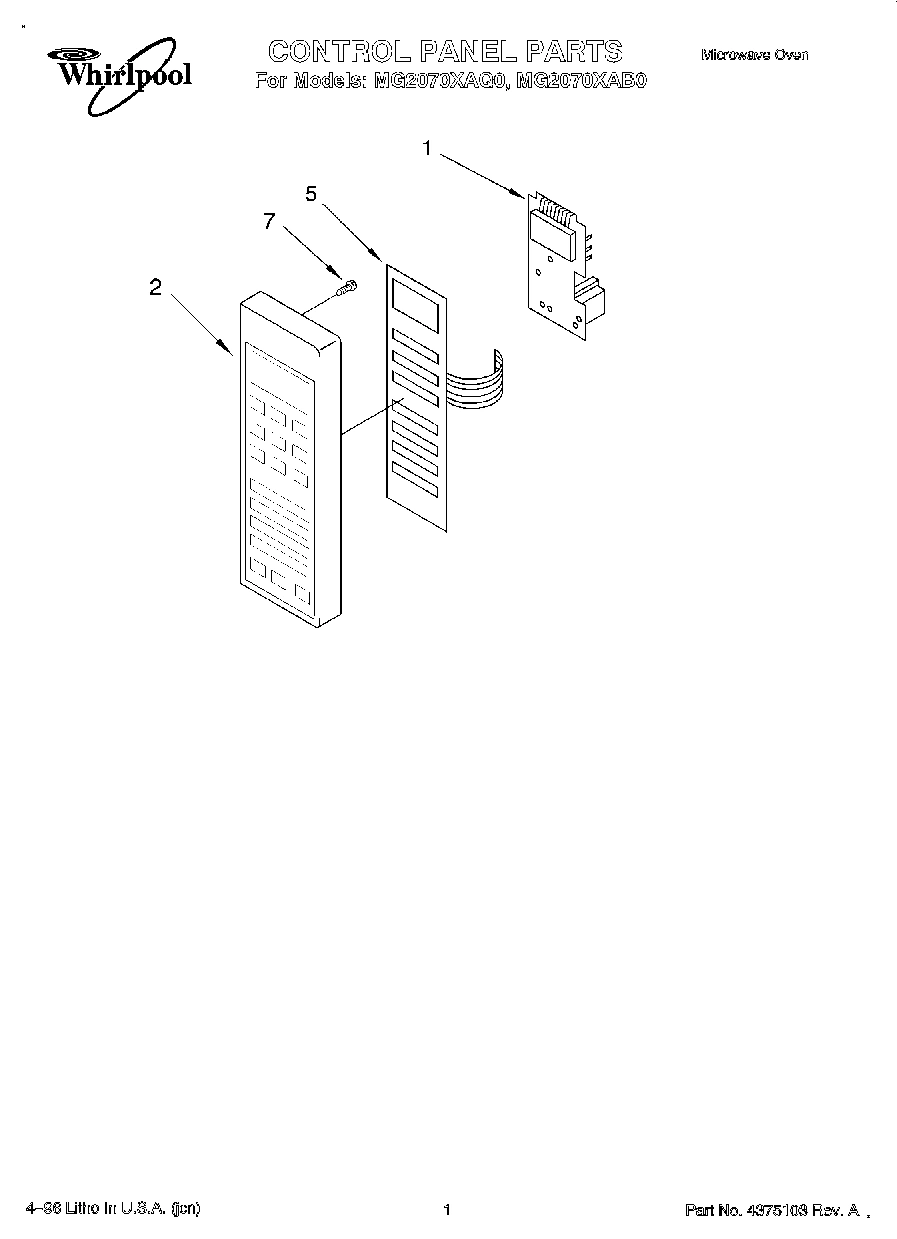

01 - CONTROL PANEL
02 - MAGNETRON AND AIRFLOW, LITERATURE
03 - DOOR AND LATCH
04 - TURN TABLE AND GRILLE
Common parts from model Whirlpool MG2070XAB0
White Model WPL 4378053 Contact Us For Availability
Black Model WPL 4378054 Contact Us For Availability
Tech Sheet WPL LIT4375002 Contact Us For Availability
Use And Care Guide WPL LIT4375003 Contact Us For Availability
Cook Guide Label WPL LIT4375004 Contact Us For Availability
Cook Book WPL LIT4375006 Contact Us For Availability
Crisp Pan Order Card WPL LIT4375016 Contact Us For Availability
1
Microcomputer WPL 4375138 Contact Us For Availability
1
Lamp, Oven WPL 4375077 Contact Us For Availability
1
Door, Complete (White) WPL 4375127 Contact Us For Availability
1
Door, Complete (Black) WPL 4375128 Contact Us For Availability
2
Control Panel (White) WPL 4375123 Contact Us For Availability
2
Control Panel (Black) WPL 4375124 Contact Us For Availability
2
Thermostat, Grille WPL 4375141 Contact Us For Availability
2
Choke Cover WPL 4375105 Contact Us For Availability
2
Crisping Pan WPL 4375137 Contact Us For Availability
3
Hinge, Lower WPL 4375104 Contact Us For Availability
4
Outer Frame (White) WPL 4375106 Contact Us For Availability
4
Outer Frame (Black) WPL 4375107 Contact Us For Availability
4
Grille, Metal WPL 4375135 Contact Us For Availability
5
Touch Pad (White) WPL 4375023 Contact Us For Availability
5
Touch Pad (Black) WPL 4375024 Contact Us For Availability
5
Latch Board (Includes Item 6) WPL 4375117 Contact Us For Availability
5
Tray, Glass WPL 4375133 Contact Us For Availability
6
Motor, Fan WPL 4375075 Contact Us For Availability
6
Micro switch (3) WPL 4375139 Contact Us For Availability
6
Grille, Plastic WPL 4375136 Contact Us For Availability
7
Clamp WPL 4375027 Contact Us For Availability
7
Blade, Fan WPL 4375113 Contact Us For Availability
7
Screw WPL 4375051 Contact Us For Availability
7
Support, Turntable WPL 4375134 Contact Us For Availability
8
Cover WPL 4375099 Contact Us For Availability
8
Thermostat, Oven WPL 4375140 Contact Us For Availability
8
Door, Inner (White) WPL 4375151 Contact Us For Availability
8
Door, Inner (Black) WPL 4375152 Contact Us For Availability
8
Motor, Turntable WPL 4375076 Contact Us For Availability
9
Foot (4) WPL 4375029 Contact Us For Availability
9
Screw, Magnatron WPL 4375040 Contact Us For Availability
10
Bracket, Capacitor WPL 4375097 Contact Us For Availability
10
Air Guide, Kit WPL 4375121 Contact Us For Availability
10
Locking Pin WPL 4375118 Contact Us For Availability
11
Lock Washer WPL 4375039 Contact Us For Availability
11
Lever WPL 4375114 Contact Us For Availability
11
Ring WPL 4375037 Contact Us For Availability
12
Air Duct WPL 4375119 Contact Us For Availability
12
Screw WPL 4375048 Contact Us For Availability
12
Outer Glass (White) WPL 4375012 Contact Us For Availability
12
Outer Glass (Black) WPL 4375013 Contact Us For Availability
12
Tube, Element (2) WPL 4375142 Contact Us For Availability
13
Screw, Transformer WPL 4375038 Contact Us For Availability
13
Air Guide WPL 4375101 Contact Us For Availability
13
Connector, Element WPL 4375111 Contact Us For Availability
14
Cover Strip WPL 4375109 Contact Us For Availability
14
Screen, Vent WPL 4375115 Contact Us For Availability
14
Tube Holder, Left Side WPL 4375108 Contact Us For Availability
15
Cover, Capacitor WPL 4375098 Contact Us For Availability
15
Clip, Fan Blade WPL 4375043 Contact Us For Availability
15
Tube Holder, Right Side WPL 4375110 Contact Us For Availability
16
Cover WPL 4375100 Contact Us For Availability
16
Tube, Support WPL 4375116 Contact Us For Availability
17
Spacer (White) WPL 4375131 Contact Us For Availability
17
Spacer (Black) WPL 4375132 Contact Us For Availability
17
Baffle, Air WPL 4375120 Contact Us For Availability
18
Screw WPL 4375042 Contact Us For Availability
20
Duct, Magnetron WPL 4375102 Contact Us For Availability
21
Fuse Holder WPL 4375047 Contact Us For Availability
22
Fuse WPL 4375073 Contact Us For Availability
23
Screw WPL 4375095 Contact Us For Availability
× ![]()
