Model Maytag MFW9800TK0 WASHER – Common Parts & Diagrams

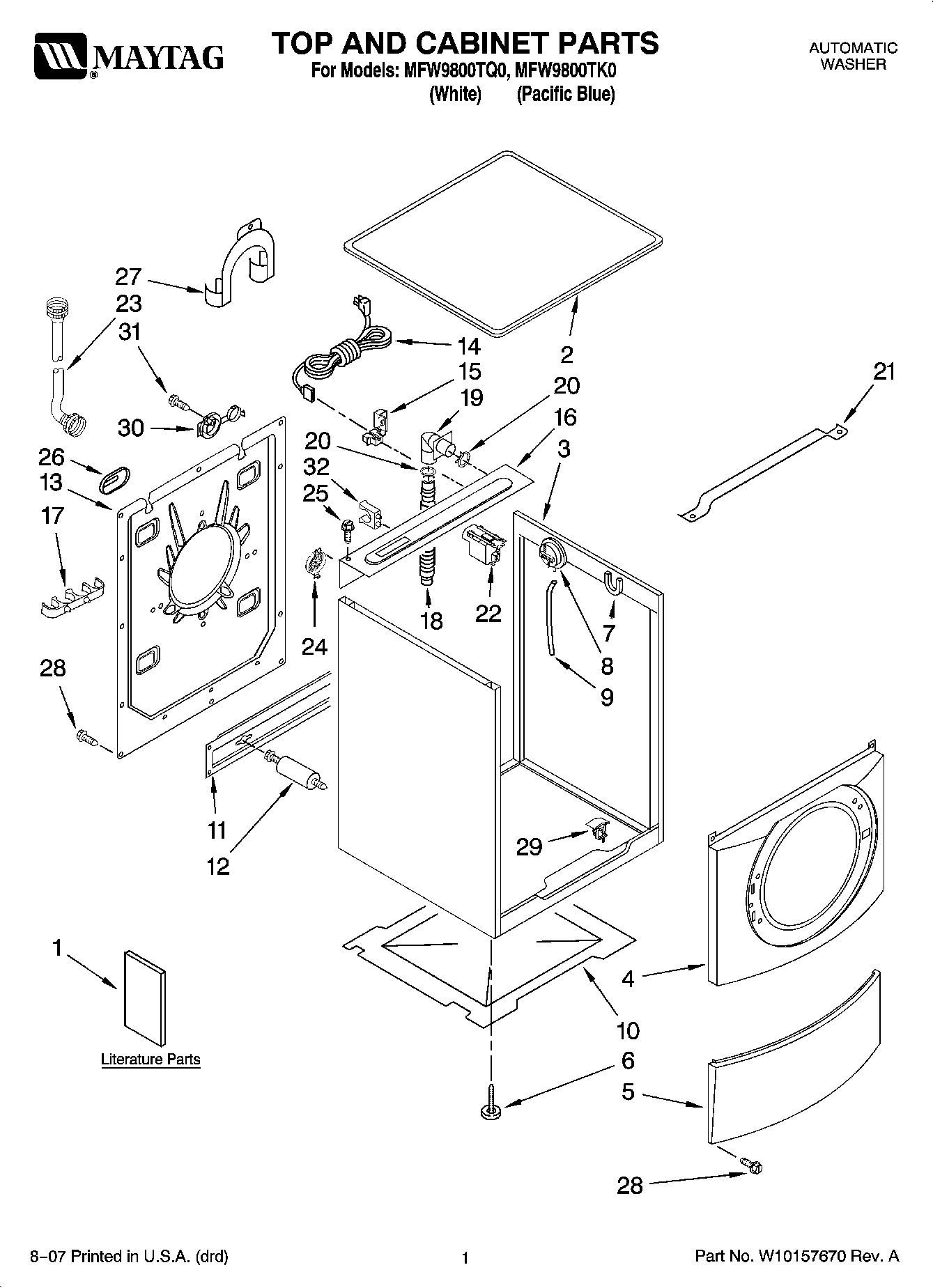

01 - TOP AND CABINET PARTS

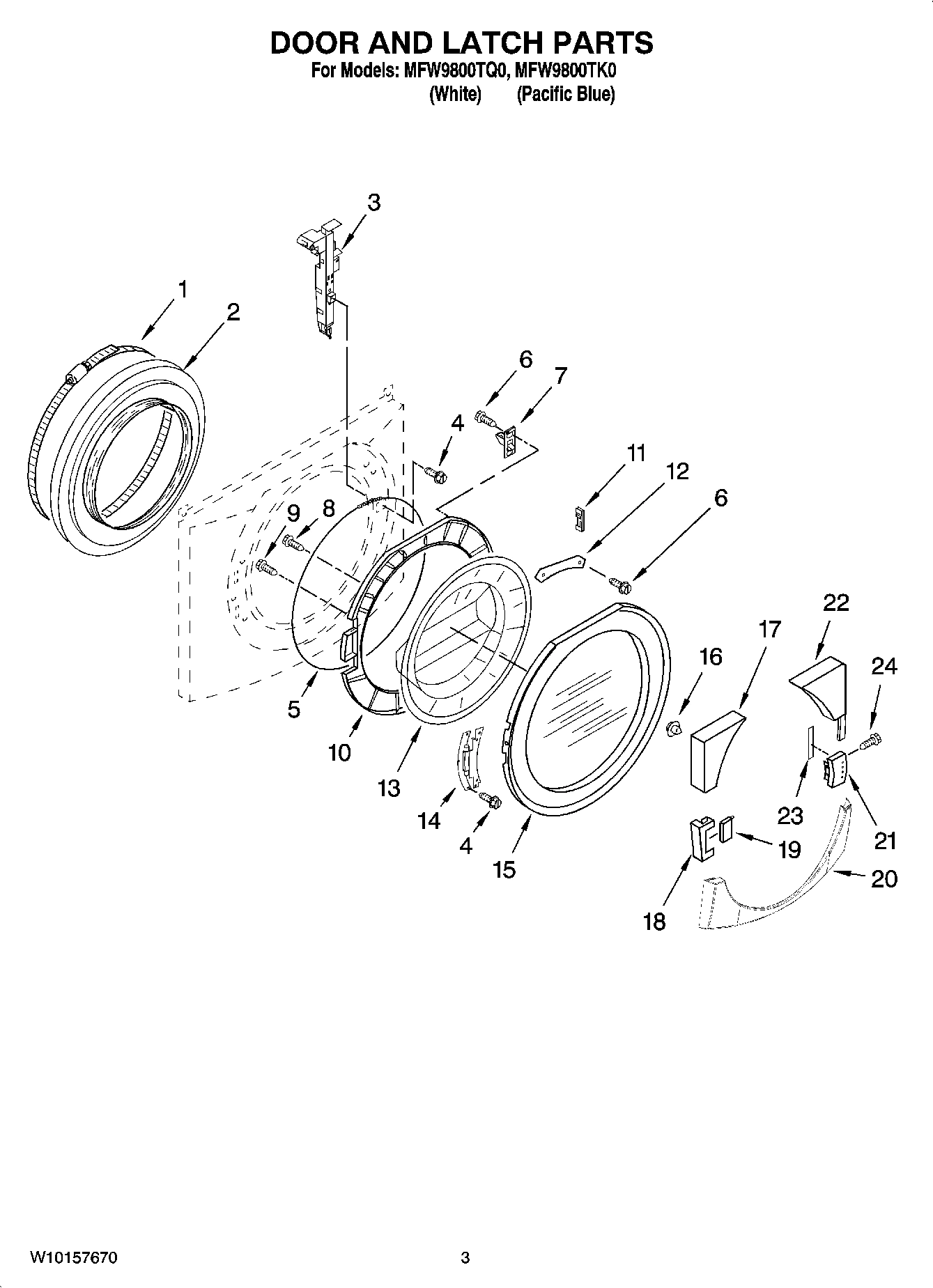

02 - DOOR AND LATCH PARTS

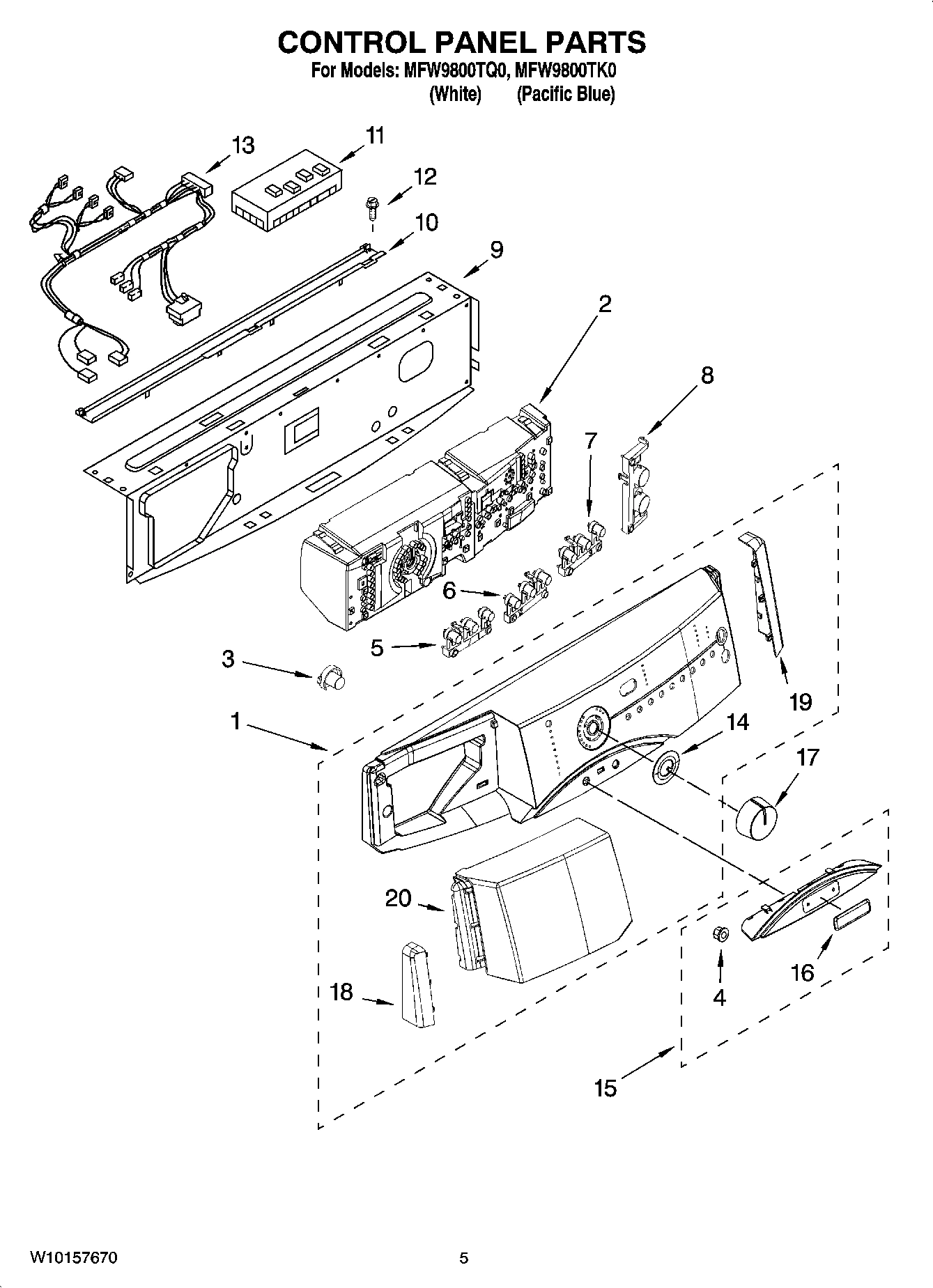

03 - CONTROL PANEL PARTS

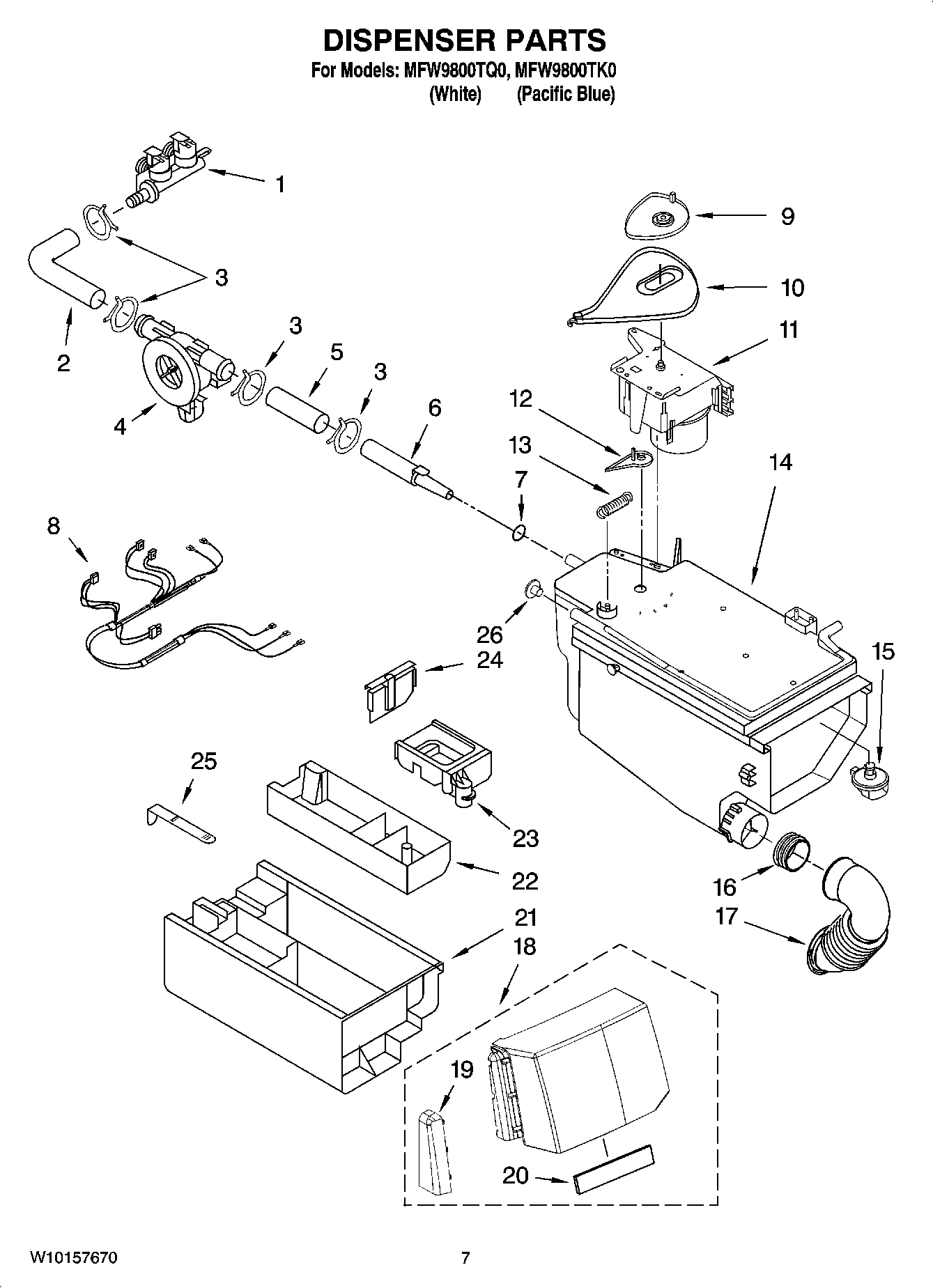

04 - DISPENSER PARTS

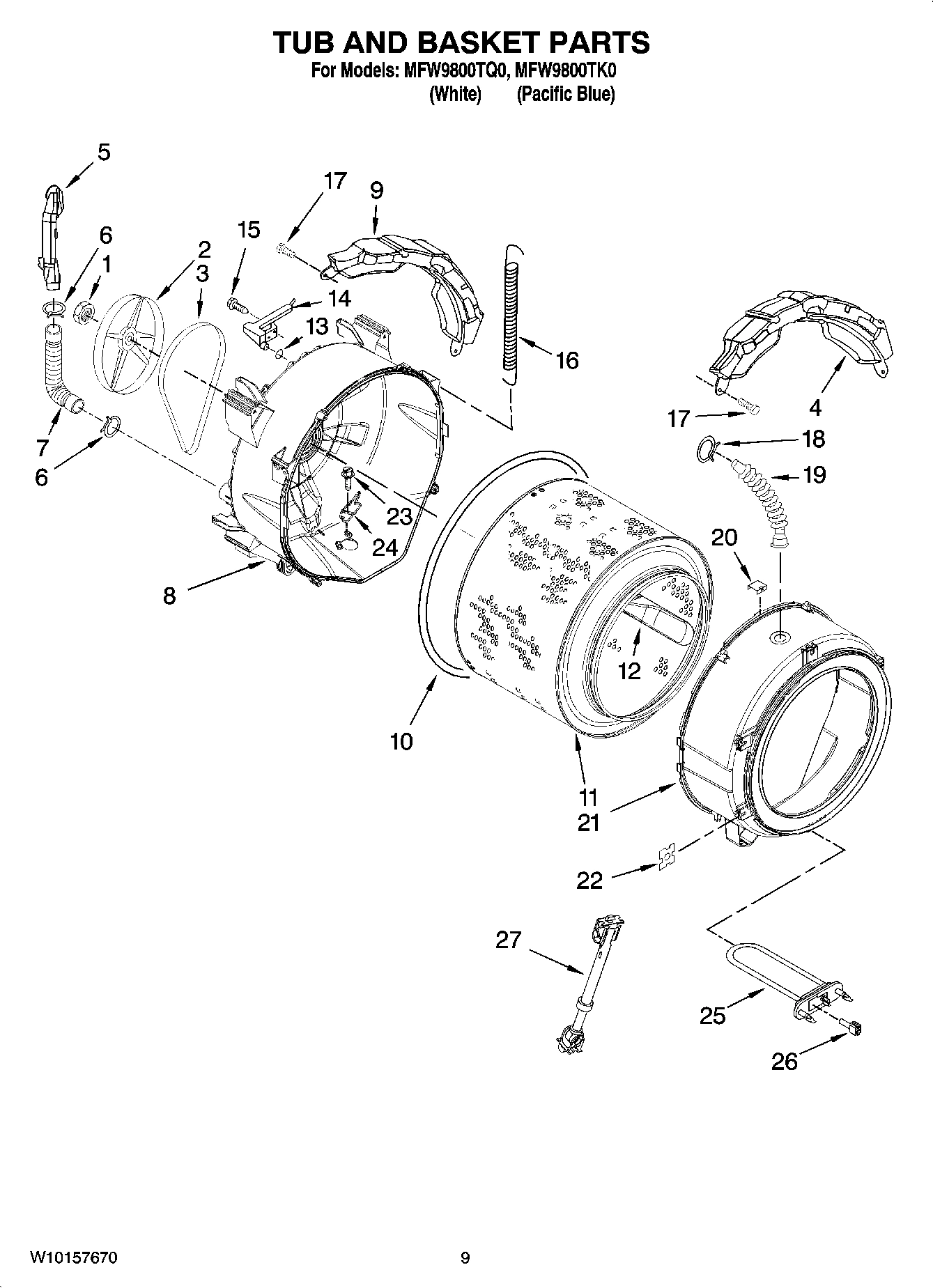

05 - TUB AND BASKET PARTS

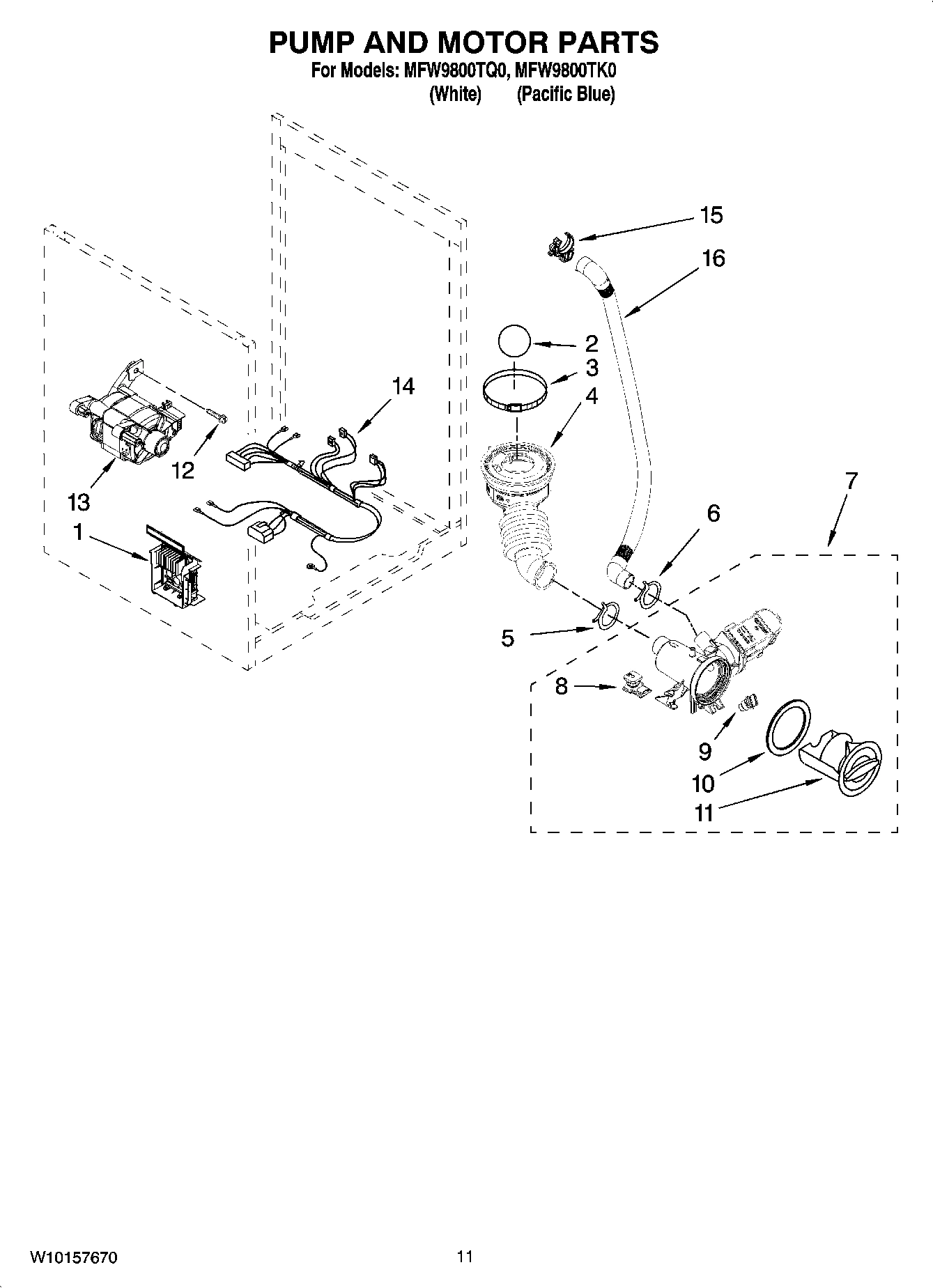

06 - PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFW9800TK0 WASHER
1
MAY 8182658 MAY 8182658 Contact Us For Availability
1
MAY 8182677 MAY 8182677 Contact Us For Availability
1
MAY W10137082 MAY W10137082 Contact Us For Availability
1
MAY W10163495 MAY W10163495 Contact Us For Availability
1
Clamp, Bellow To Tub MAY 8182210 Contact Us For Availability
1
MAY W10163309 MAY W10163309 Contact Us For Availability
1
MAY W10163310 MAY W10163310 Contact Us For Availability
1
MAY 8182862 MAY 8182862 Contact Us For Availability
1
MAY 8182132 MAY 8182132 Contact Us For Availability
1
Motor Control Unit MAY 8182706 Contact Us For Availability
2
Top (White) MAY 8181641 Contact Us For Availability
2
MAY W10163316 MAY W10163316 Contact Us For Availability
2
MAY 8182119 MAY 8182119 Contact Us For Availability
2
MAY 8182150 MAY 8182150 Contact Us For Availability
2
MAY 8181710 MAY 8181710 Contact Us For Availability
2
MAY 8182650 MAY 8182650 Contact Us For Availability
2
MAY W10121657 MAY W10121657 Contact Us For Availability
3
MAY 8182541 MAY 8182541 Contact Us For Availability
3
MAY 8182609 MAY 8182609 Contact Us For Availability
3
MAY 8182634 MAY 8182634 Contact Us For Availability
3
MAY W10163302 MAY W10163302 Contact Us For Availability
3
Clamp, Hose MAY 8181751 Contact Us For Availability
3
MAY 8183269 MAY 8183269 Contact Us For Availability
3
MAY 8181734 MAY 8181734 Contact Us For Availability
4
Panel, Front (White) MAY 8182605 Contact Us For Availability
4
MAY W10163317 MAY W10163317 Contact Us For Availability
4
MAY 8181760 MAY 8181760 Contact Us For Availability
4
MAY 8182183 MAY 8182183 Contact Us For Availability
4
MAY 8181696 MAY 8181696 Contact Us For Availability
4
Counterweight, Front (2) MAY 8181645 Contact Us For Availability
4
MAY 8181732 MAY 8181732 Contact Us For Availability
5
Toe Panel (White) MAY 8181643 Contact Us For Availability
5
MAY 8182550 MAY 8182550 Contact Us For Availability
5
Clamp, Bellow To Front Panel MAY 8182211 Contact Us For Availability
5
MAY W10163305 MAY W10163305 Contact Us For Availability
5
MAY 8181708 MAY 8181708 Contact Us For Availability
5
MAY 8181744 MAY 8181744 Contact Us For Availability
5
Clamp, Pump Hose MAY 8181753 Contact Us For Availability
6
MAY 8181636 MAY 8181636 Contact Us For Availability
6
Clamp, Drain Hose MAY 8181752 Contact Us For Availability
6
MAY 8181758 MAY 8181758 Contact Us For Availability
6
MAY W10163304 MAY W10163304 Contact Us For Availability
6
MAY 8183010 MAY 8183010 Contact Us For Availability
6
MAY 8181746 MAY 8181746 Contact Us For Availability
7
MAY 8181763 MAY 8181763 Contact Us For Availability
7
MAY 8181651 MAY 8181651 Contact Us For Availability
7
MAY W10163303 MAY W10163303 Contact Us For Availability
7
MAY 8181714 MAY 8181714 Contact Us For Availability
7
MAY 8181743 MAY 8181743 Contact Us For Availability
7
MAY 8182821 MAY 8182821 Contact Us For Availability
8
MAY 8181695 MAY 8181695 Contact Us For Availability
8
MAY 8181661 MAY 8181661 Contact Us For Availability
8
MAY W10163306 MAY W10163306 Contact Us For Availability
8
MAY 8183022 MAY 8183022 Contact Us For Availability
8
Tub, Rear (Includes Items 10, 22, 23 & 24) MAY 8181666 Contact Us For Availability
8
MAY 8182820 MAY 8182820 Contact Us For Availability
9
MAY 8181739 MAY 8181739 Contact Us For Availability
9
MAY 8181660 MAY 8181660 Contact Us For Availability
9
MAY 8182224 MAY 8182224 Contact Us For Availability
9
MAY 8181726 MAY 8181726 Contact Us For Availability
9
MAY 8181644 MAY 8181644 Contact Us For Availability
9
MAY 8182816 MAY 8182816 Contact Us For Availability
10
MAY 8181635 MAY 8181635 Contact Us For Availability
10
MAY W10163308 MAY W10163308 Contact Us For Availability
10
MAY 8181640 MAY 8181640 Contact Us For Availability
10
MAY 8181725 MAY 8181725 Contact Us For Availability
10
MAY 8181673 MAY 8181673 Contact Us For Availability
10
MAY 8181736 MAY 8181736 Contact Us For Availability
11
MAY 8182661 MAY 8182661 Contact Us For Availability
11
MAY W10128586 MAY W10128586 Contact Us For Availability
11
MAY W10137702 MAY W10137702 Contact Us For Availability
11
MAY 8181723 MAY 8181723 Contact Us For Availability
11
MAY 8182247 MAY 8182247 Contact Us For Availability
11
MAY 8183027 MAY 8183027 Contact Us For Availability
12
MAY 8182797 MAY 8182797 Contact Us For Availability
12
MAY 8182798 MAY 8182798 Contact Us For Availability
12
Clamp, Glass (2) MAY 8181650 Contact Us For Availability
12
MAY 8181756 MAY 8181756 Contact Us For Availability
12
MAY 8181724 MAY 8181724 Contact Us For Availability
12
Baffle, Basket MAY 8182233 Contact Us For Availability
12
MAY W10128585 MAY W10128585 Contact Us For Availability
13
MAY 8182698 MAY 8182698 Contact Us For Availability
13
MAY 8181655 MAY 8181655 Contact Us For Availability
13
MAY 8182212 MAY 8182212 Contact Us For Availability
13
MAY 8181727 MAY 8181727 Contact Us For Availability
13
MAY 8181748 MAY 8181748 Contact Us For Availability
13
Motor, Drive MAY 8182793 Contact Us For Availability
14
MAY 8183009 MAY 8183009 Contact Us For Availability
14
MAY 8181843 MAY 8181843 Contact Us For Availability
14
MAY 8182171 MAY 8182171 Contact Us For Availability
14
MAY 8183032 MAY 8183032 Contact Us For Availability
14
MAY 8181731 MAY 8181731 Contact Us For Availability
14
MAY 8183035 MAY 8183035 Contact Us For Availability
15
MAY 8181690 MAY 8181690 Contact Us For Availability
15
MAY W10163299 MAY W10163299 Contact Us For Availability
15
MAY W10163300 MAY W10163300 Contact Us For Availability
15
MAY 8181712 MAY 8181712 Contact Us For Availability
15
MAY 8181785 MAY 8181785 Contact Us For Availability
15
Retainer, Drain Hose MAY 8182209 Contact Us For Availability
16
MAY W10138248 MAY W10138248 Contact Us For Availability
16
MAY 8182779 MAY 8182779 Contact Us For Availability
16
MAY 8183059 MAY 8183059 Contact Us For Availability
16
MAY 8181747 MAY 8181747 Contact Us For Availability
16
MAY 8182814 MAY 8182814 Contact Us For Availability
16
MAY 8181740 MAY 8181740 Contact Us For Availability
17
Clip, Drain Hose MAY 8182701 Contact Us For Availability
17
Trim, Upper Left (White) MAY 8182592 Contact Us For Availability
17
MAY W10163318 MAY W10163318 Contact Us For Availability
17
MAY W10163301 MAY W10163301 Contact Us For Availability
17
MAY 8181718 MAY 8181718 Contact Us For Availability
17
MAY 8181647 MAY 8181647 Contact Us For Availability
18
MAY 8181737 MAY 8181737 Contact Us For Availability
18
Cover, Hinge (Outer) (White) MAY 8182595 Contact Us For Availability
18
MAY W10163322 MAY W10163322 Contact Us For Availability
18
Handle, Drawer (White) MAY W10163312 Contact Us For Availability
18
Handle, Drawer (Pacific Blue) MAY W10163313 Contact Us For Availability
18
Clamp, Hose MAY 8181742 Contact Us For Availability
19
Connector, Drain Hose MAY 8181738 Contact Us For Availability
19
Cover, Hinge (Inner) (White) MAY 8182596 Contact Us For Availability
19
MAY W10163323 MAY W10163323 Contact Us For Availability
19
Endcap (White) MAY 8182599 Contact Us For Availability
19
Endcap (Pacific Blue) MAY W10163314 Contact Us For Availability
19
Endcap, Right (White) MAY 8182600 Contact Us For Availability
19
MAY W10163315 MAY W10163315 Contact Us For Availability
19
MAY 8181794 MAY 8181794 Contact Us For Availability
20
Trim, Lower (White) MAY 8182594 Contact Us For Availability
20
MAY W10163321 MAY W10163321 Contact Us For Availability
20
MAY 8182173 MAY 8182173 Contact Us For Availability
20
Clamp, Tub MAY 8181667 Contact Us For Availability
21
MAY 8181632 MAY 8181632 Contact Us For Availability
21
Handle, Door (White) MAY 8182591 Contact Us For Availability
21
MAY W10163324 MAY W10163324 Contact Us For Availability
21
MAY 8181720 MAY 8181720 Contact Us For Availability
21
Tub, Front (Includes Items 10 & 22) MAY 8181665 Contact Us For Availability
22
MAY 8183019 MAY 8183019 Contact Us For Availability
22
Trim, Upper Right (White) MAY 8182593 Contact Us For Availability
22
MAY W10163319 MAY W10163319 Contact Us For Availability
22
MAY 8181722 MAY 8181722 Contact Us For Availability
22
MAY 8182512 MAY 8182512 Contact Us For Availability
23
MAY 8182792 MAY 8182792 Contact Us For Availability
23
MAY 8182795 MAY 8182795 Contact Us For Availability
23
MAY 8182153 MAY 8182153 Contact Us For Availability
23
MAY 8182665 MAY 8182665 Contact Us For Availability
23
MAY 8182214 MAY 8182214 Contact Us For Availability
24
MAY 8183030 MAY 8183030 Contact Us For Availability
24
MAY 8181759 MAY 8181759 Contact Us For Availability
24
MAY 8181730 MAY 8181730 Contact Us For Availability
24
MAY 8181686 MAY 8181686 Contact Us For Availability
25
MAY 8181691 MAY 8181691 Contact Us For Availability
25
MAY 8181721 MAY 8181721 Contact Us For Availability
25
MAY 8182666 MAY 8182666 Contact Us For Availability
26
MAY 8182700 MAY 8182700 Contact Us For Availability
26
MAY 8182123 MAY 8182123 Contact Us For Availability
26
MAY 8181705 MAY 8181705 Contact Us For Availability
27
MAY 8181768 MAY 8181768 Contact Us For Availability
27
MAY 8182812 MAY 8182812 Contact Us For Availability
28
MAY 8181828 MAY 8181828 Contact Us For Availability
29
MAY 8183086 MAY 8183086 Contact Us For Availability
30
MAY 8182699 MAY 8182699 Contact Us For Availability
31
MAY 8182201 MAY 8182201 Contact Us For Availability
32
MAY 8182702 MAY 8182702 Contact Us For Availability
NI
MAY 8182109 MAY 8182109 Contact Us For Availability
NI
MAY 8182126 MAY 8182126 Contact Us For Availability
NI
Drain Extension MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
MAY 4396816 MAY 4396816 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8212640 MAY 8212640 Contact Us For Availability
× ![]()
