Model Electrolux MFU21M3BW3 FREEZER – Common Parts & Diagrams

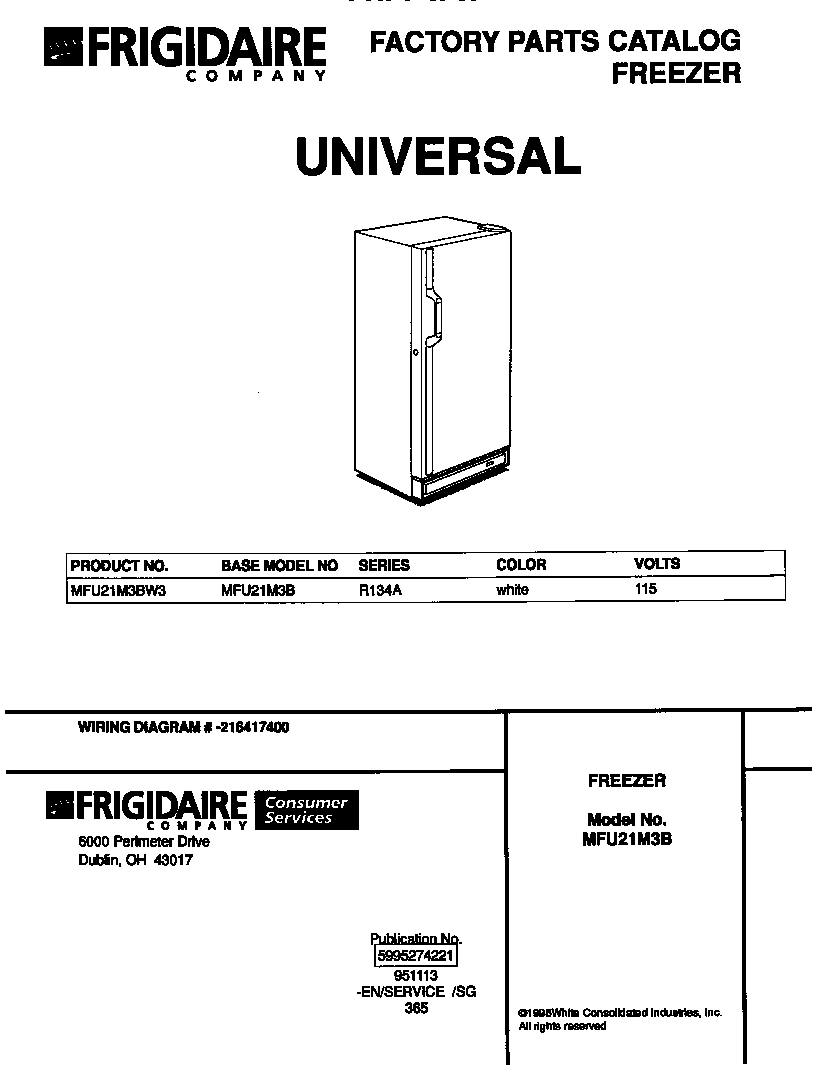

01 - COVER

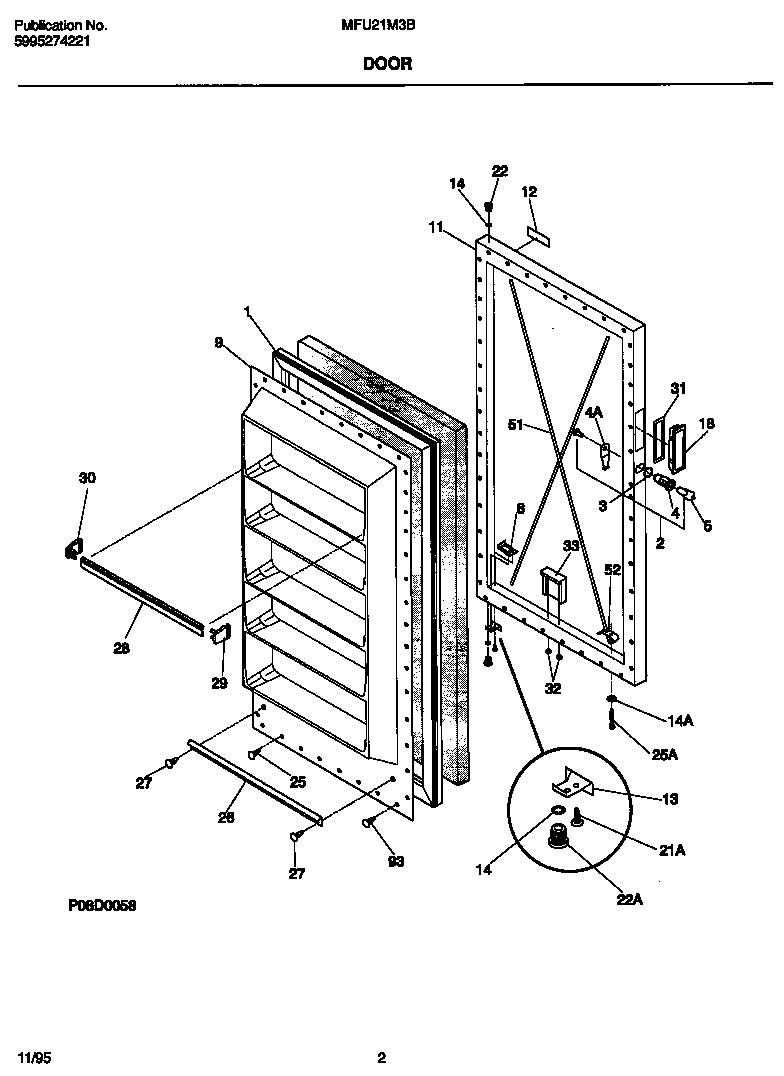

02 - DOOR

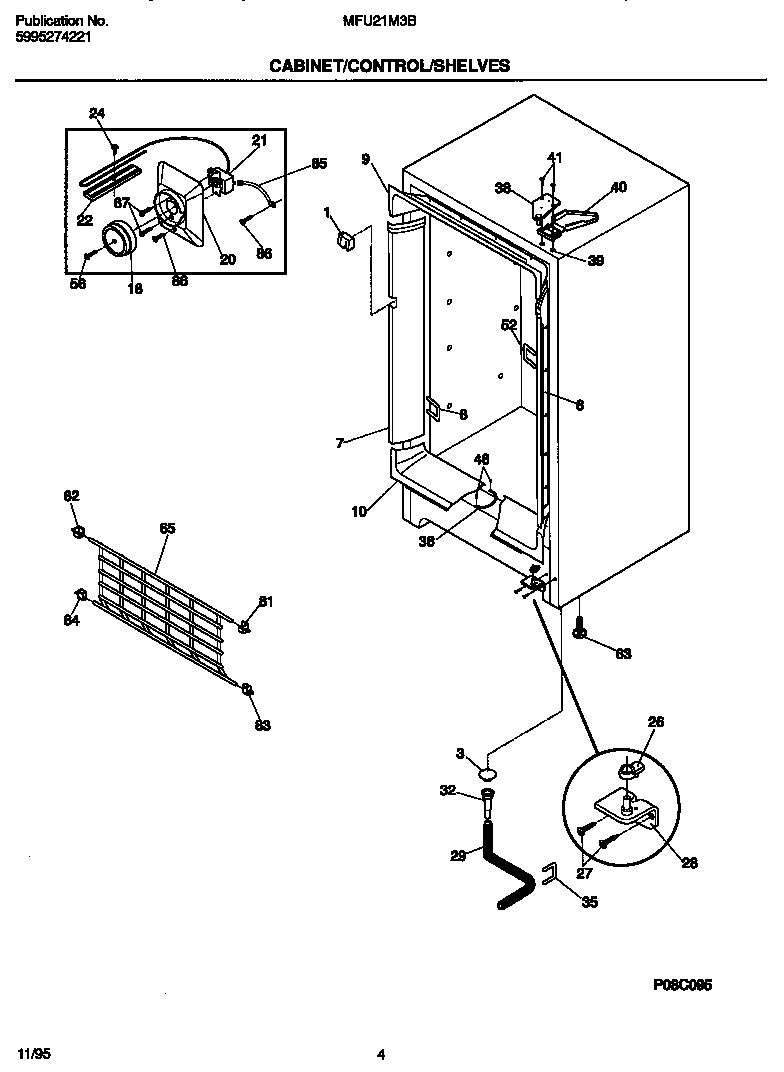

03 - CABINET/CONTROL/SHELVES

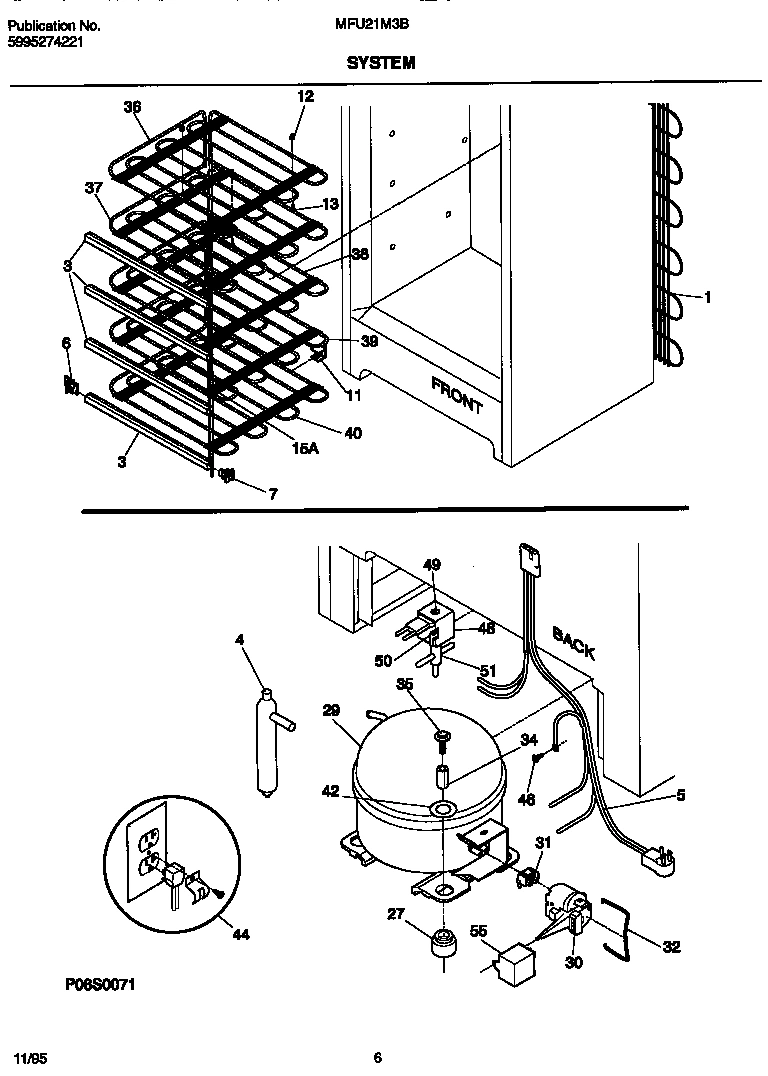

04 - SYSTEM
Common parts from model Electrolux MFU21M3BW3 FREEZER
*76000
INSULATION WCI 5303917276 Contact Us For Availability
*76001
WCI 06594680 WCI 06594680 Contact Us For Availability
*76002
WCI 5303207297 WCI 5303207297 Contact Us For Availability
1
GASKET DOOR WCI 3206261 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
5
HARNESS-WIRE WCI 216234300 Contact Us For Availability
6
WCI 216107500 WCI 216107500 Contact Us For Availability
7
WCI 216107601 WCI 216107601 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
8
WCI 216240000 WCI 216240000 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
11
WCI 216225600 WCI 216225600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216401500 WCI 216401500 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216260400 WCI 216260400 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
RACK-SHELF, NARROW WCI 5300129683 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
OVERLOAD WCI 216100104 Contact Us For Availability
32
BREATHER-AIR DUCT, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
AIR DUCT WCI 5303212700 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216071100 WCI 216071100 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
51
WIRE, DOOR ADJUSTMNT WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
63
WCI 205363701 WCI 205363701 Contact Us For Availability
65
WCI 216250300 WCI 216250300 Contact Us For Availability
81
WCI 06599973 WCI 06599973 Contact Us For Availability
82
WCI 06599974 WCI 06599974 Contact Us For Availability
83
WCI 06599975 WCI 06599975 Contact Us For Availability
84
WCI 06599976 WCI 06599976 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
× ![]()
