Model Electrolux MFU20F3BW3 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR

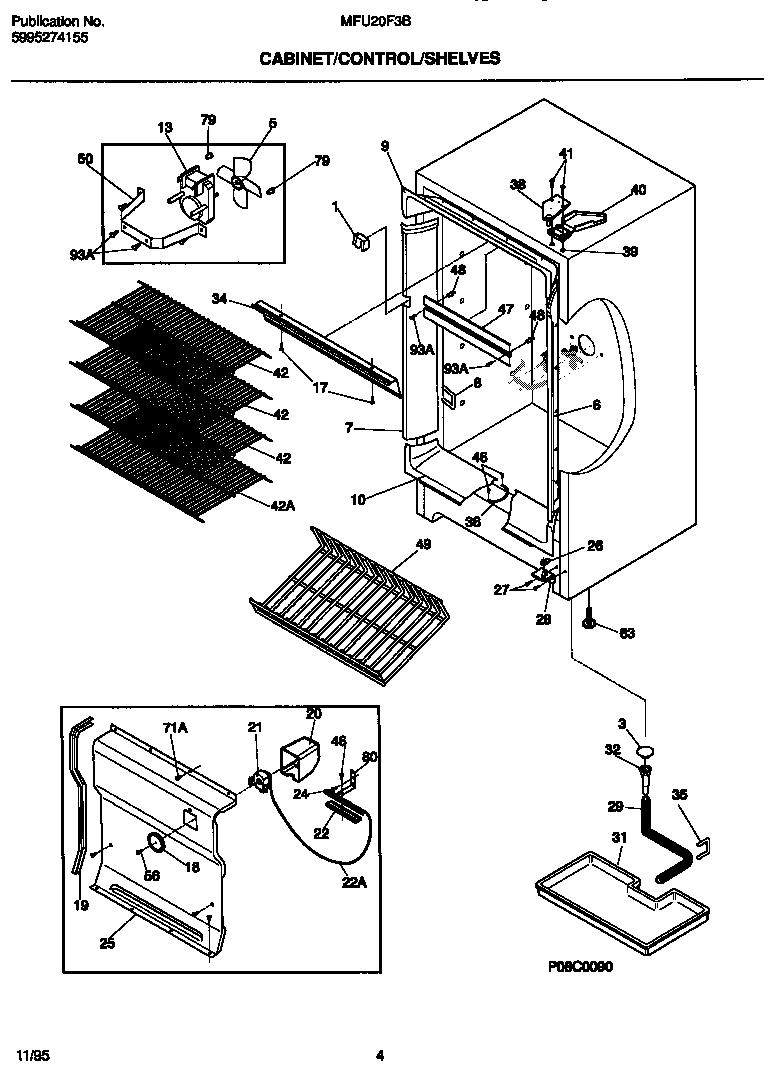

03 - CABINET/CONTROL/SHELVES

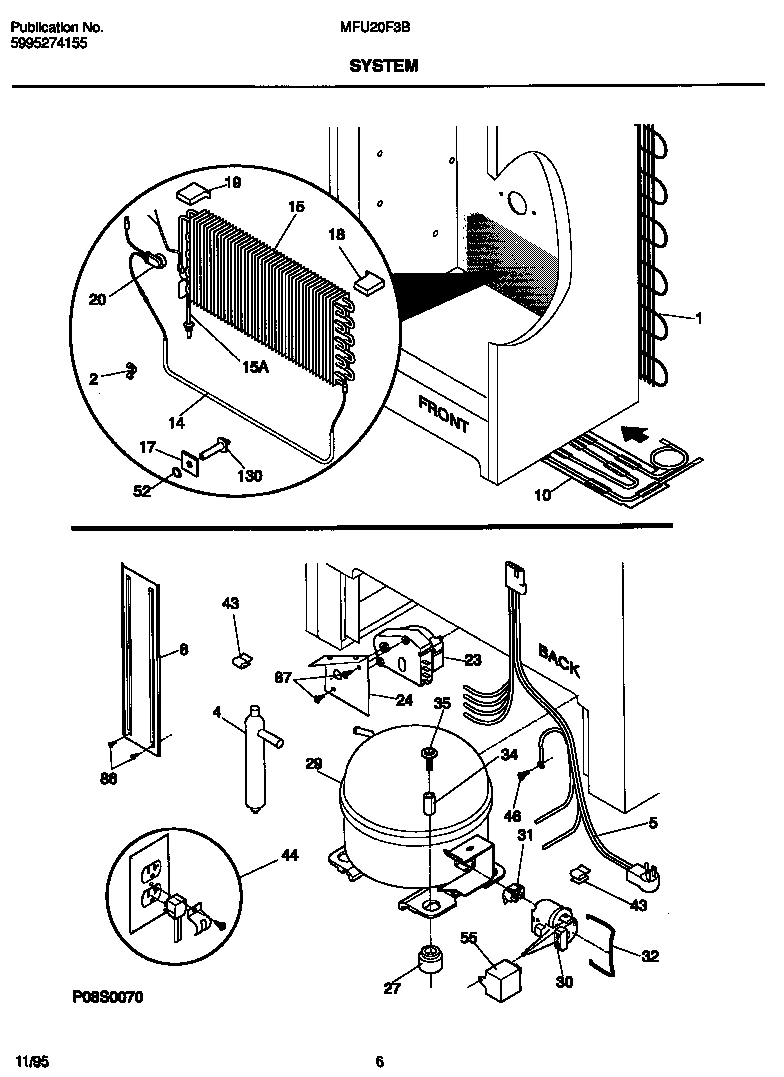

04 - SYSTEM
Common parts from model Electrolux MFU20F3BW3 FREEZER
*50640
WCI 06594680 WCI 06594680 Contact Us For Availability
*50641
WCI 5303207297 WCI 5303207297 Contact Us For Availability
*50642
WCI 5303207388 WCI 5303207388 Contact Us For Availability
*50644
WCI 216007500 WCI 216007500 Contact Us For Availability
1
GASKET DOOR WCI 3206261 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
5
WCI 216392000 WCI 216392000 Contact Us For Availability
6
WCI 216107500 WCI 216107500 Contact Us For Availability
7
WCI 216107601 WCI 216107601 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
8
WCI 216009000 WCI 216009000 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
15
WCI 216195900 No Longer Available
15
WCI 216383500 WCI 216383500 Contact Us For Availability
17
WCI 5303283898 WCI 5303283898 Contact Us For Availability
17
WCI 06599546 WCI 06599546 Contact Us For Availability
18
WCI 216008801 WCI 216008801 Contact Us For Availability
18
WCI 06599531 WCI 06599531 Contact Us For Availability
19
WCI 216204901 WCI 216204901 Contact Us For Availability
19
WCI 3017674 WCI 3017674 Contact Us For Availability
20
WCI 216254500 WCI 216254500 Contact Us For Availability
20
WCI 216230300 WCI 216230300 Contact Us For Availability
21
WCI 216303500 WCI 216303500 Contact Us For Availability
22
WCI 05878562 WCI 05878562 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
24
WCI 08016580 WCI 08016580 Contact Us For Availability
25
WCI 216084200 WCI 216084200 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
RACK-SHELF, NARROW, WHITE, (5) WCI 216273800 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
29
WCI 216425900 WCI 216425900 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
WCI 5308016387 WCI 5308016387 Contact Us For Availability
31
WCI 216100100 WCI 216100100 Contact Us For Availability
32
BREATHER-AIR DUCT, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
WCI 216084001 WCI 216084001 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216312201 WCI 216312201 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
35
WCI 06594637 WCI 06594637 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SHELF, UPPER (3) WCI 216266900 Contact Us For Availability
42
WCI 216267000 WCI 216267000 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 5303288233 WCI 5303288233 Contact Us For Availability
48
WCI 08000456 WCI 08000456 Contact Us For Availability
49
WCI 216279000 WCI 216279000 Contact Us For Availability
50
BRACKET-MOTOR MTG FAN WCI 216394000 Contact Us For Availability
51
WIRE, DOOR ADJUSTMNT WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
WCI 08013198 WCI 08013198 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
63
WCI 205363701 WCI 205363701 Contact Us For Availability
80
WCI 06594601 WCI 06594601 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
130
WCI 06599544 WCI 06599544 Contact Us For Availability
× ![]()
