Model Electrolux MFU16F3BW2 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR

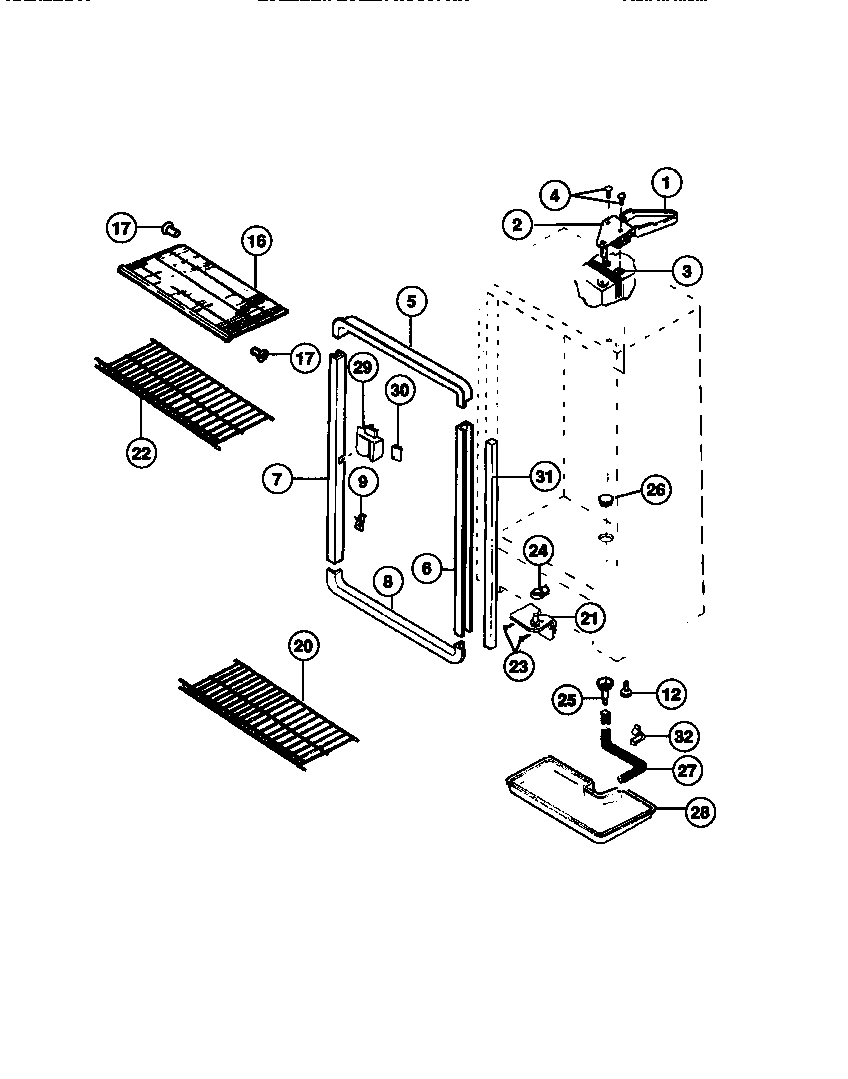

03 - CABINET

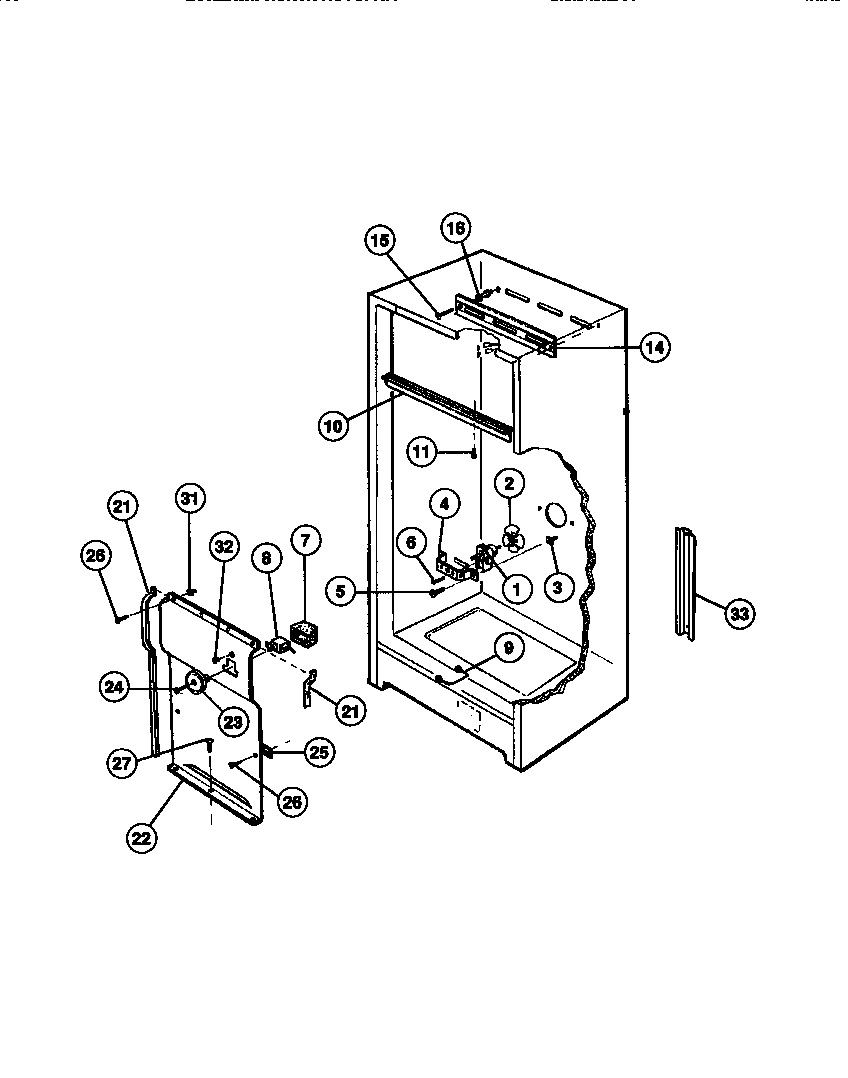

04 - CABINET

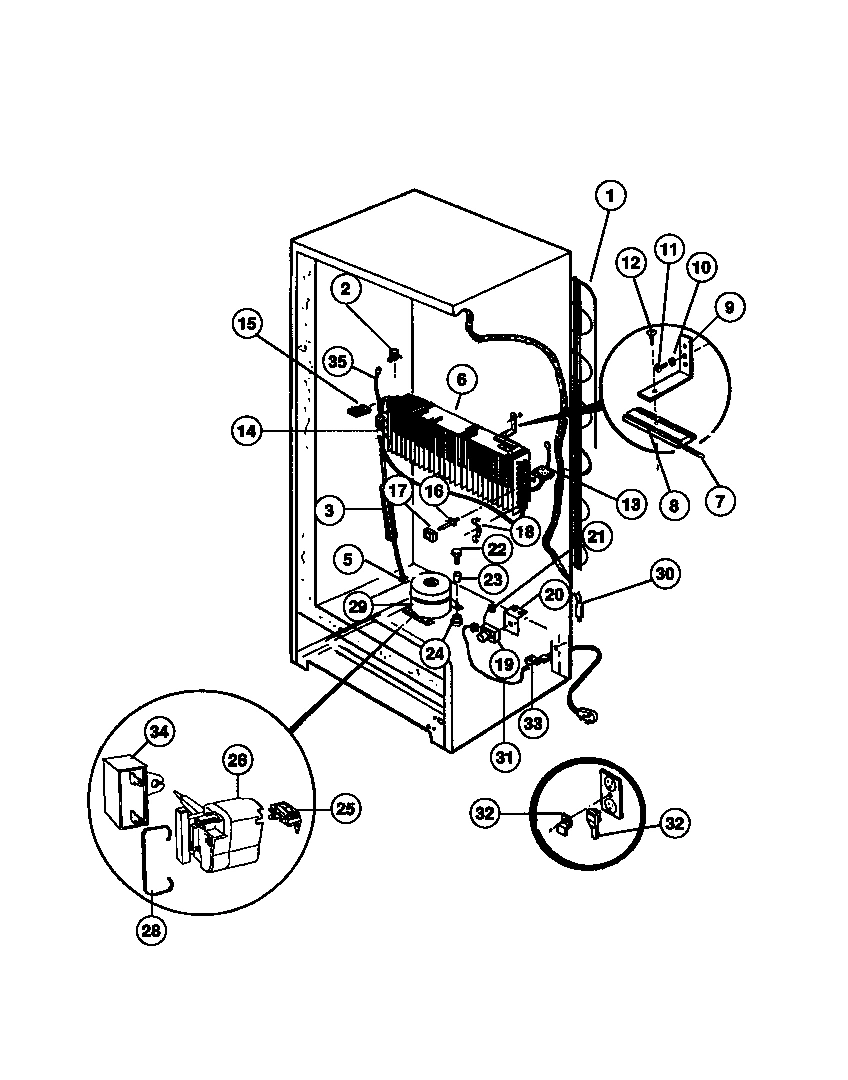

05 - LINER AND UNIT
Common parts from model Electrolux MFU16F3BW2 FREEZER
*15640
SCREW-SUPPORT (2) WCI 216283900 Contact Us For Availability
1
WCI 5303212912 WCI 5303212912 Contact Us For Availability
2
SWITCH-TERMINATION WCI 216254500 Contact Us For Availability
2
HINGE, TOP WCI 5303212935 Contact Us For Availability
2
WCI 3205520 WCI 3205520 Contact Us For Availability
3
INSERT, NUT WCI 5303294372 Contact Us For Availability
3
WCI 5303208489 WCI 5303208489 Contact Us For Availability
4
SCREW-HINGE (2) WCI 5303212937 Contact Us For Availability
4
BRACKET WCI 08013207 Contact Us For Availability
5
WCI 216085900 WCI 216085900 Contact Us For Availability
5
WCI 06594629 WCI 06594629 Contact Us For Availability
6
WCI 216195900 WCI 216195900 Contact Us For Availability
6
WCI 216107500 WCI 216107500 Contact Us For Availability
6
SCREW-MOTOR TO BRACKET WCI 08037849 Contact Us For Availability
7
WCI 216107601 WCI 216107601 Contact Us For Availability
7
COVER, CONTROL WCI 216230300 Contact Us For Availability
8
WCI 216085800 WCI 216085800 Contact Us For Availability
8
WCI 216303500 WCI 216303500 Contact Us For Availability
8
WCI 05878562 WCI 05878562 Contact Us For Availability
9
WCI 06594680 WCI 06594680 Contact Us For Availability
9
GROUND WIRE, CABINET WCI 5303207388 Contact Us For Availability
9
WCI 06594601 WCI 06594601 Contact Us For Availability
10
WCI 216241604 WCI 216241604 Contact Us For Availability
10
WCI 5300095480 WCI 5300095480 Contact Us For Availability
11
SCREW, SHIELD WCI 5303283898 Contact Us For Availability
12
LEG LEVELER-ADJ (4) WCI 205363701 Contact Us For Availability
12
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
13
AIR SEAL, RH WCI 06599531 Contact Us For Availability
14
BAFFLE WCI 5303288233 Contact Us For Availability
15
AIR SEA-LH WCI 3017674 Contact Us For Availability
16
SHELF, UPPER (3) WCI 216266900 Contact Us For Availability
16
SPACER, BAFFLE WCI 08000456 Contact Us For Availability
16
WCI 06599544 WCI 06599544 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
20
SHELF-BOTTOM WCI 216267000 Contact Us For Availability
20
BRACKET, TIMER WCI 08016580 Contact Us For Availability
21
GASKET, COVER WCI 216204900 Contact Us For Availability
21
WCI 216247400 WCI 216247400 Contact Us For Availability
22
SCREW-COMPRESSOR (3) WCI 5303272328 Contact Us For Availability
22
WCI 216279000 WCI 216279000 Contact Us For Availability
22
WCI 216084200 WCI 216084200 Contact Us For Availability
23
SLEEVE COMPRESSOR (3) WCI 5306594529 Contact Us For Availability
23
KNOB WCI 216008801 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
24
WCI 09950853 WCI 09950853 Contact Us For Availability
25
WCI 06599546 WCI 06599546 Contact Us For Availability
25
WCI 216110400 WCI 216110400 Contact Us For Availability
26
RELAY WCI 216008900 Contact Us For Availability
28
WCI 5308016387 WCI 5308016387 Contact Us For Availability
28
CLAMP WCI 215012000 Contact Us For Availability
29
CATCH, LOCK WCI 216013600 Contact Us For Availability
29
COMPRESSOR WCI 216110300 Contact Us For Availability
30
CLIP, LOCK CATCH WCI 216013700 Contact Us For Availability
31
WCI 09950831 WCI 09950831 Contact Us For Availability
31
INSERT NUT WCI 09948978 Contact Us For Availability
31
WCI 216267400 WCI 216267400 Contact Us For Availability
32
PLUG, INDICATOR CONTROL WCI 5303208663 Contact Us For Availability
32
ASSY POWER CORD CLAMP WCI 08016777 Contact Us For Availability
32
WCI 5300086065 WCI 5300086065 Contact Us For Availability
33
WCI 216009000 WCI 216009000 Contact Us For Availability
35
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
42
DOOR STOP WCI 08016354 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW-BRACKET (2) WCI 5303302716 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
55
GASKET DOOR WCI 3206261 Contact Us For Availability
57
SCREW, PANEL (24) WCI 216022800 Contact Us For Availability
58
GASKET WCI 5308016356 Contact Us For Availability
× ![]()
