Model Electrolux MFU16F3BW0 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS

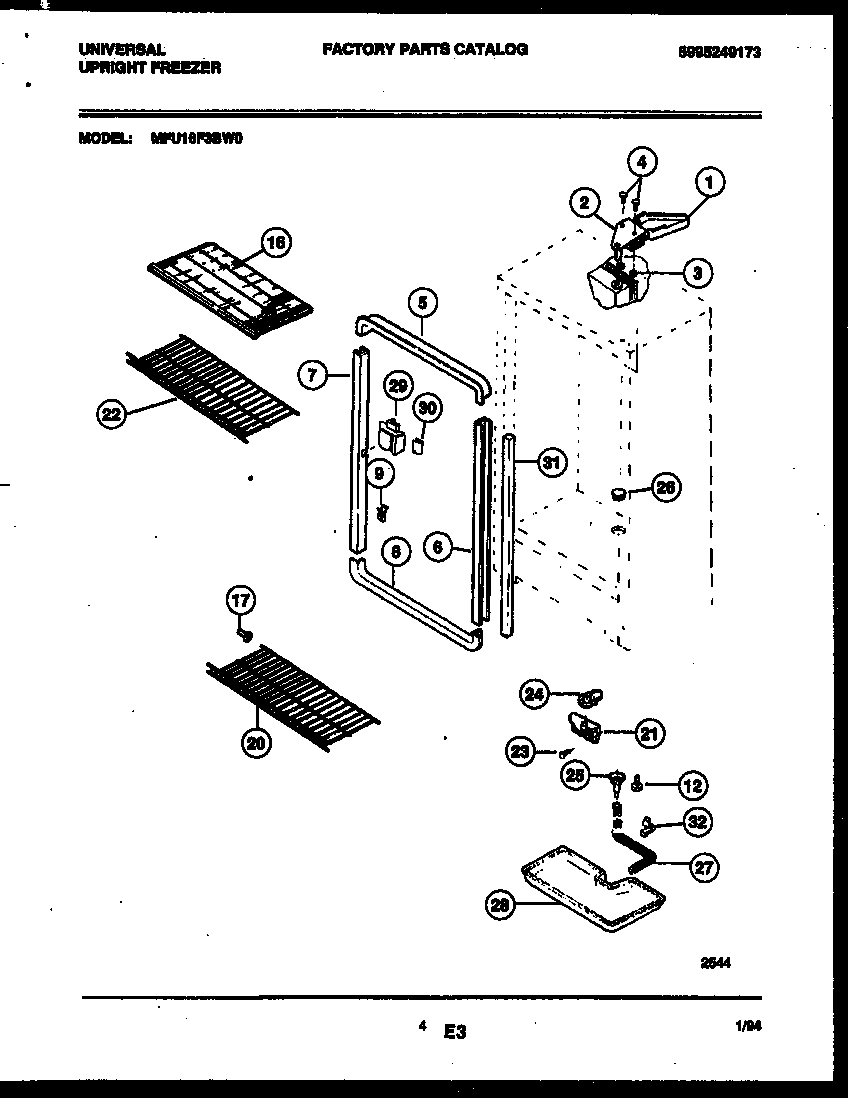

03 - CABINET PARTS

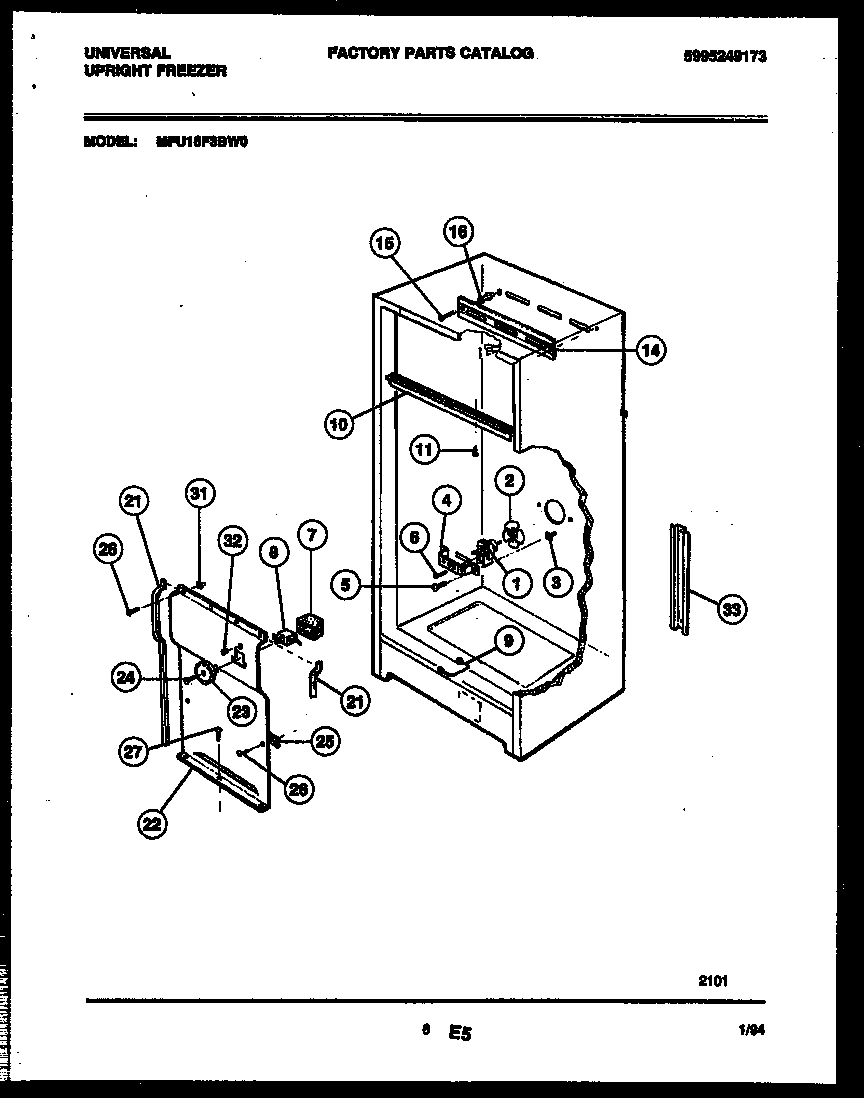

04 - INTERIOR PARTS

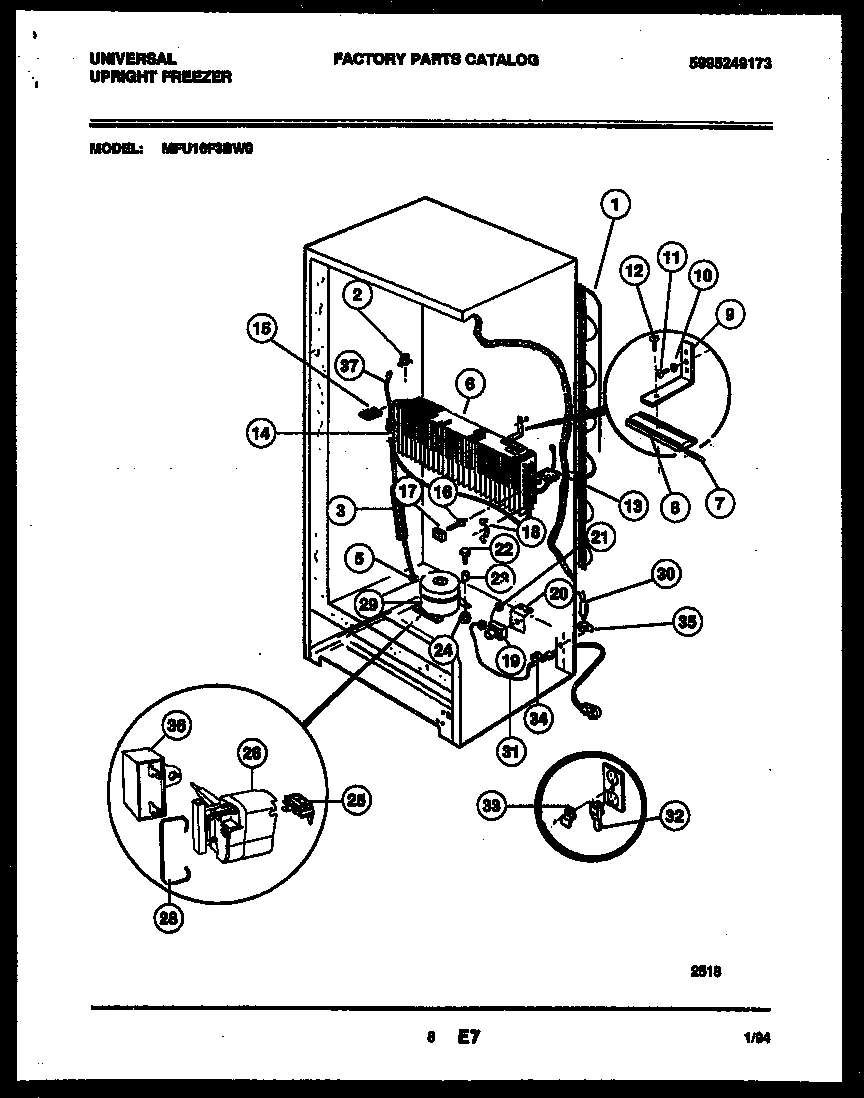

05 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux MFU16F3BW0 FREEZER
1
WCI 5303212912 WCI 5303212912 Contact Us For Availability
2
SWITCH-TERMINATION WCI 216254500 Contact Us For Availability
2
HINGE, TOP WCI 5303212935 Contact Us For Availability
2
WCI 3205520 WCI 3205520 Contact Us For Availability
3
INSERT, NUT WCI 5303294372 Contact Us For Availability
3
WCI 5303208489 WCI 5303208489 Contact Us For Availability
4
SCREW WCI 5303210386 Contact Us For Availability
4
BRACKET WCI 08013207 Contact Us For Availability
5
WCI 216085900 WCI 216085900 Contact Us For Availability
5
WCI 06594629 WCI 06594629 Contact Us For Availability
6
WCI 216195900 WCI 216195900 Contact Us For Availability
6
BREAKER-HINGE SIDE WCI 216108800 Contact Us For Availability
6
WCI 82473 WCI 82473 Contact Us For Availability
7
WCI 216108901 WCI 216108901 Contact Us For Availability
7
COVER, CONTROL WCI 216230300 Contact Us For Availability
8
WCI 216085800 WCI 216085800 Contact Us For Availability
8
WCI 216215900 WCI 216215900 Contact Us For Availability
8
WCI 05878562 WCI 05878562 Contact Us For Availability
9
WCI 06594680 WCI 06594680 Contact Us For Availability
9
WCI 06594651 WCI 06594651 Contact Us For Availability
9
WCI 06594601 WCI 06594601 Contact Us For Availability
10
WCI 216241604 WCI 216241604 Contact Us For Availability
10
WCI 5300095480 WCI 5300095480 Contact Us For Availability
11
SCREW, SHIELD WCI 5303283898 Contact Us For Availability
12
LEG LEVELER (4) WCI 216218100 Contact Us For Availability
12
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
13
AIR SEAL, RH WCI 06599531 Contact Us For Availability
14
BAFFLE WCI 5303288233 Contact Us For Availability
15
AIR SEA-LH WCI 3017674 Contact Us For Availability
16
WCI 216266700 WCI 216266700 Contact Us For Availability
16
SPACER, BAFFLE WCI 08000456 Contact Us For Availability
16
WCI 06599544 WCI 06599544 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
20
SHELF-BOTTOM WCI 216266800 Contact Us For Availability
20
BRACKET, TIMER WCI 08016580 Contact Us For Availability
21
GASKET, COVER WCI 216204900 Contact Us For Availability
21
WCI 5303210383 WCI 5303210383 Contact Us For Availability
22
SCREW-COMPRESSOR (3) WCI 5303272328 Contact Us For Availability
22
WCI 216278900 WCI 216278900 Contact Us For Availability
22
WCI 216084100 WCI 216084100 Contact Us For Availability
23
SLEEVE COMPRESSOR (3) WCI 5306594529 Contact Us For Availability
23
KNOB WCI 216008801 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
24
WCI 09950853 WCI 09950853 Contact Us For Availability
25
WCI 5303276514 WCI 5303276514 Contact Us For Availability
26
RELAY WCI 216008900 Contact Us For Availability
28
WCI 5308016387 WCI 5308016387 Contact Us For Availability
28
CLAMP WCI 215012000 Contact Us For Availability
29
CATCH, LOCK WCI 216013600 Contact Us For Availability
29
COMPRESSOR WCI 5303916411 Contact Us For Availability
30
CLIP, LOCK CATCH WCI 216013700 Contact Us For Availability
31
WCI 09950831 WCI 09950831 Contact Us For Availability
31
INSERT NUT WCI 09948978 Contact Us For Availability
31
WCI 216269000 WCI 216269000 Contact Us For Availability
32
PLUG, INDICATOR CONTROL WCI 5303208663 Contact Us For Availability
32
WCI 5300086065 WCI 5300086065 Contact Us For Availability
33
WCI 216009000 WCI 216009000 Contact Us For Availability
33
RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. WCI 08016777 Contact Us For Availability
37
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
42
DOOR STOP WCI 08016354 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037415 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
55
WCI 3206255 WCI 3206255 Contact Us For Availability
57
SCREW-PANEL (16) WCI 216022800 Contact Us For Availability
58
GASKET WCI 5308016356 Contact Us For Availability
× ![]()
