Model Maytag MFT2772HEZ02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams

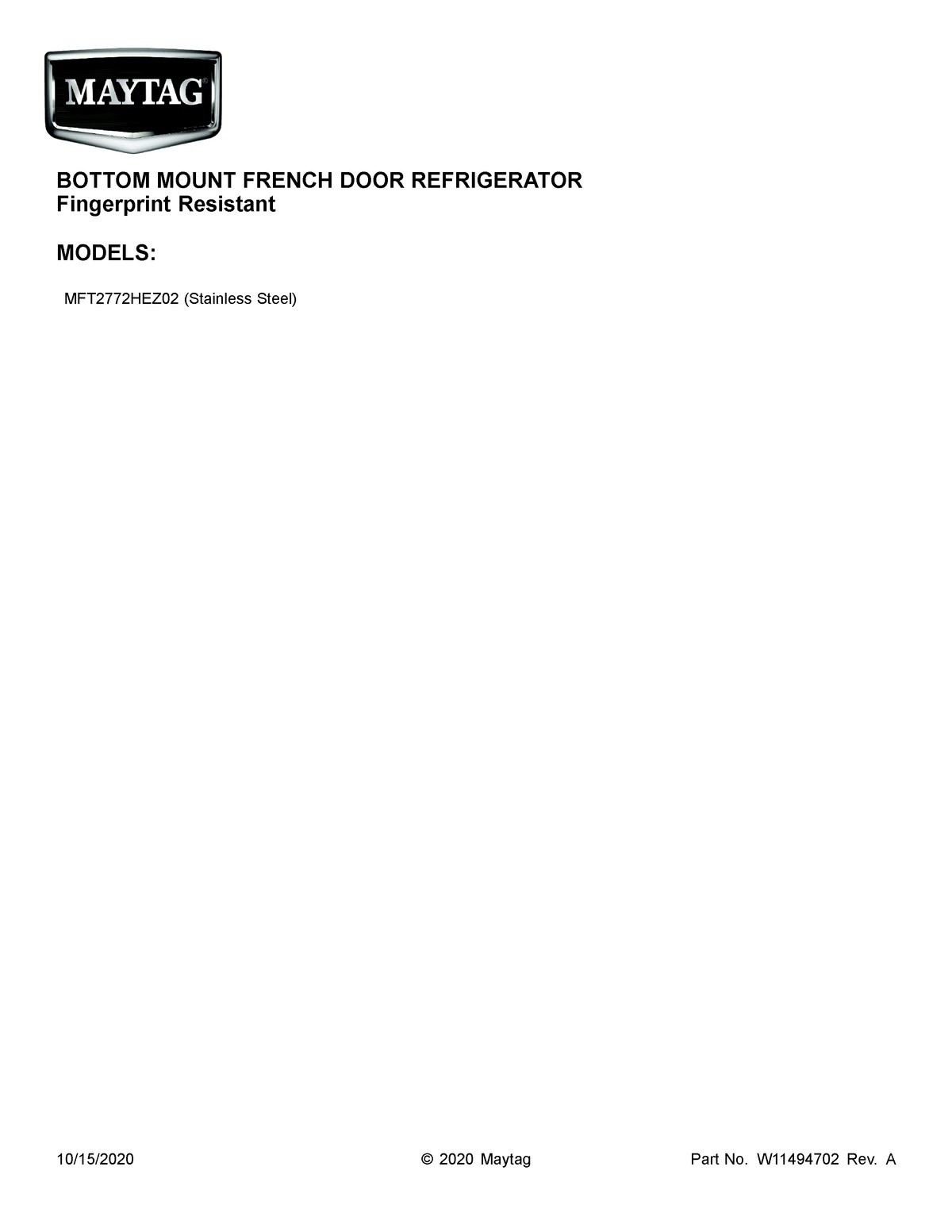

01 - COVER SHEET

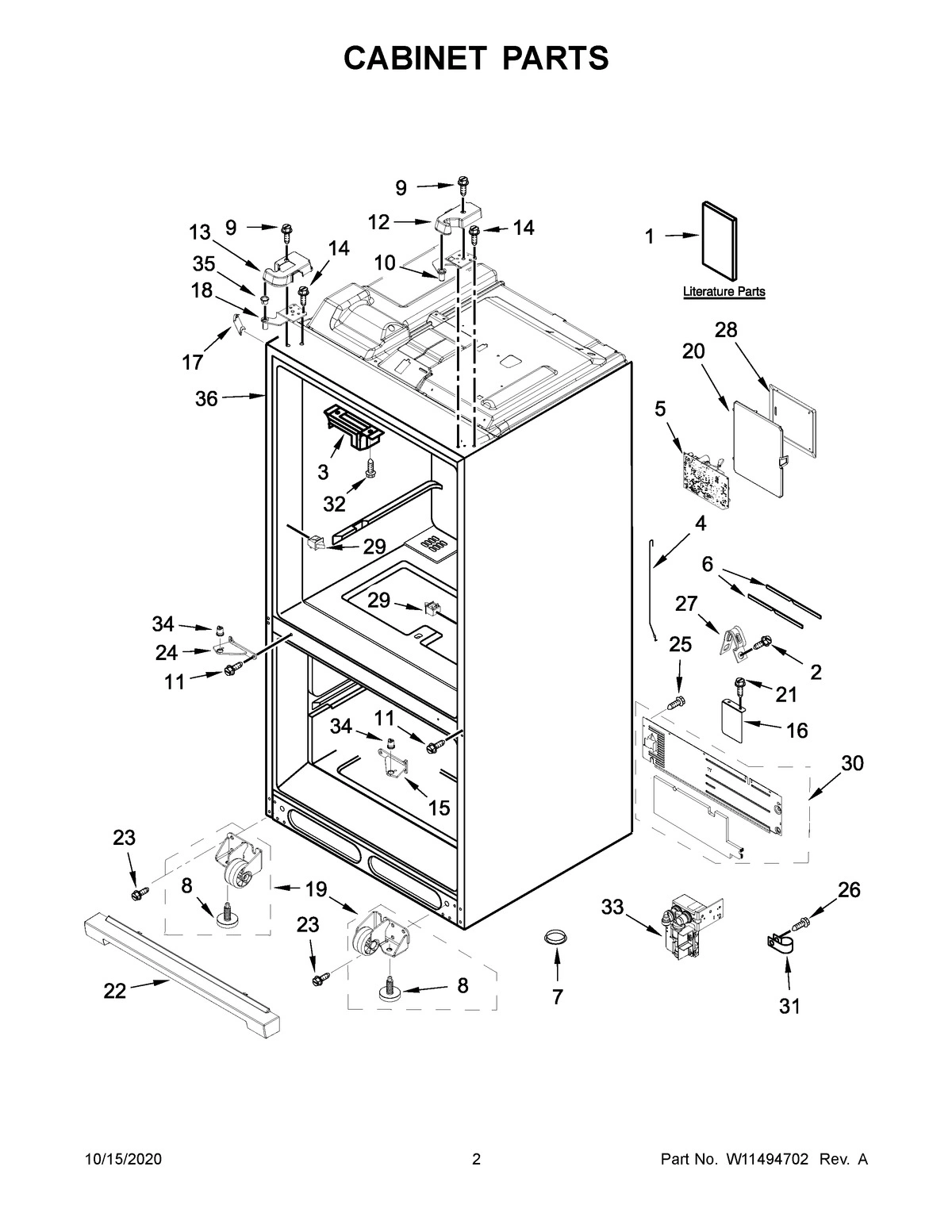

02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS
04 - FREEZER LINER PARTS
05 - REFRIGERATOR DOOR PARTS
06 - FREEZER DOOR PARTS
07 - UNIT PARTS
08 - SHELF PARTS
09 - DISPENSER FRONT PARTS
10 - ICEMAKER AND ICE CONTAINER PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag MFT2772HEZ02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, LEFT (STAINLESS) MAY W11405217 Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) MAY W11377893 Contact Us For Availability
1
CORD, POWER MAY W10738415 Contact Us For Availability
1
FRONT, PANTRY MAY W10559660 Contact Us For Availability
1
SCREW MAY W10272364 Contact Us For Availability
1B
TECH SHEET (ENGLISH) MAY W11431924 Contact Us For Availability
1C
TECH SHEET (FRENCH) MAY W11431925 Contact Us For Availability
1D
WIRING DIAGRAM MAY W11307496 Contact Us For Availability
2
HOUSING, WATER SYSTEM MAY W11281629 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
DOOR, RIGHT (STAINLESS) MAY W11377901 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10886552 Contact Us For Availability
2
BLADE, FAN MAY 2188935 Contact Us For Availability
2
ROLLER, GUIDE MAY W10248544 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEAT MAY W11171230 Contact Us For Availability
2
PLATE, ICE CHUTE MAY W10347051 Contact Us For Availability
3
BLOCK, PIVOT MAY W10344432 Contact Us For Availability
3
TUBE, FILL MAY W11306460 Contact Us For Availability
3
ASSEMBLY, LED LIGHT MODULE MAY W11228040 Contact Us For Availability
3
SCREW MAY W10238319 Contact Us For Availability
3
SCREW MAY W11328753 Contact Us For Availability
3
BASEPLATE MAY W10570074 Contact Us For Availability
3
SUPPORT, PANTRY MAY W11124673 Contact Us For Availability
3
WALL, DISPENSER FALSE (GREY) MAY W10520869 Contact Us For Availability
3
SEAL MAY 2198628 Contact Us For Availability
4
TUBE, WATER MAY W11296599 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
RESERVOIR, WATER (ALSO ORDER WIRE TIE PART 85 MAY W11296598 Contact Us For Availability
4
COVER, EVAPORATOR (FREEZER) MAY W11282987 Contact Us For Availability
4
ASSEMBLY, ICE DOOR MAY W10549593 Contact Us For Availability
4
SHAFT MAY W10503522 Contact Us For Availability
4
LADDER, CENTER MAY W10248516 Contact Us For Availability
4
ASSEMBLY, PAD (STAINLESS) MAY W10436678 Contact Us For Availability
4
CLIP, RETAINER MAY W10347120 Contact Us For Availability
5
BOARD, CONTROL MAY W11161172 Contact Us For Availability
5
VALVE, DUAL WATER MAY W11255718 Contact Us For Availability
5
LATCH, DOOR (LEFT HAND) MAY W10712952 Contact Us For Availability
5
ASSEMBLY, BRACKET (LEFT HAND) MAY W10795770 Contact Us For Availability
5
EXTENSION, DRAIN MAY W10776917 Contact Us For Availability
5
GLASS, PANTRY MAY W10248799 Contact Us For Availability
5
RING, TRIM (STAINLESS) MAY W10587910 Contact Us For Availability
5
SHAFT, MOTOR MAY W10347114 Contact Us For Availability
5A
LATCH, DOOR (RIGHT HAND) MAY W10712953 Contact Us For Availability
5A
ASSEMBLY, BRACKET (RIGHT HAND) MAY W10795768 Contact Us For Availability
6
GASKET, HV BOX MAY W10415341 Contact Us For Availability
6
HOUSING, WATER FILTER MAY W11293954 Contact Us For Availability
6
CLIP, FAN MOTOR MAY 12956601 Contact Us For Availability
6
MULLION, DOOR (GREY) MAY W10698199 Contact Us For Availability
6
ASSEMBLY, LOWER PAN MAY W10594047 Contact Us For Availability
6
TUBE, SUCTION MAY W10463542 Contact Us For Availability
6
FRONT, SIDEPLATE (PANTRY) (LEFT HAND) MAY W10426775 Contact Us For Availability
6
ASSEMBLY, SEPERATOR MAY W10577864 Contact Us For Availability
6
MOTOR, DISPENSER MAY W11185741 Contact Us For Availability
6A
FRONT, SIDEPLATE (PANTRY) (RIGHT HAND) MAY W10356979 Contact Us For Availability
7
ENCLOSURE, WATER VALVE MAY W11391457 Contact Us For Availability
7
SCREW MAY 12990518 Contact Us For Availability
7
SWITCH, LIGHT MAY W10847853 Contact Us For Availability
7
SLEEVE MAY W10303521 Contact Us For Availability
7
ASSEMBLY, METAL SHELF PLATTER (INCLUDES GLASS MAY W11235827 Contact Us For Availability
7
GUIDE, ICE MAY W10435760 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
8
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
8
COVER, WATERBOX MAY W10669663 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10886562 Contact Us For Availability
8
BIN, UPPER MAY W10704090 Contact Us For Availability
8
TRAY, EVAPORATOR MAY W10660727 Contact Us For Availability
8
SHELF, TUCK MAY W10401836 Contact Us For Availability
8
TRAY, DRIP (GREY) MAY W10410105 Contact Us For Availability
8
ASSEMBLY, ICE CONTAINER MAY W10347093 Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
LATCH, PUSH MAY 2223877 Contact Us For Availability
9
SCREW MAY 12990504 Contact Us For Availability
9
GRILLE, AIR (FREEZER) MAY W10496613 Contact Us For Availability
9
CLIP, SHAFT MAY W10709748 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
FRONT, CRISPER MAY W10524914 Contact Us For Availability
9
ASSEMBLY, LED MAY W10470750 Contact Us For Availability
9
GASKET MAY W10291905 Contact Us For Availability
10
HINGE, TOP (RIGHT HAND) MAY W10248409 Contact Us For Availability
10
DOOR, FILTER ACCESS MAY W10277949 Contact Us For Availability
10
SHROUD, EVAPORATOR FAN MAY W10363507 Contact Us For Availability
10
BUMPER, DOOR (GREY) MAY W10407188 Contact Us For Availability
10
DIVIDER, LOWER MAY W10507444 Contact Us For Availability
10
HEATER, DEFROST MAY 12729128 Contact Us For Availability
10
PAN, PANTRY MAY W10498901 Contact Us For Availability
10
COVER, SEPERATOR MAY W10549235 Contact Us For Availability
10
ASSEMBLY, ICEMAKER MAY W11457039 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
FILTER, WATER MAY W10680605 Contact Us For Availability
11
BLADE, FAN MAY 12986101 Contact Us For Availability
11
BADGE MAY W10612926 Contact Us For Availability
11
GASKET, DOOR (GREY) MAY W10248749 Contact Us For Availability
11
DEVICE, START MAY W10796752 Contact Us For Availability
11
SHELF, FIXED MAY W10402687 Contact Us For Availability
11
SCREW MAY 12990513 Contact Us For Availability
12
COVER, RIGHT HINGE (GREY) MAY W10407158 Contact Us For Availability
12
FILTER, AIR MAY W10315189 Contact Us For Availability
12
GROMMET, FAN MOTOR MAY W10905511 Contact Us For Availability
12
STOP, PAN (LEFT HAND) MAY W10485096 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12
AXLE, ROLLER MAY W10257246 Contact Us For Availability
12
MOTOR, ICE DOOR MAY W10205979 Contact Us For Availability
12A
STOP, PAN (RIGHT HAND) MAY W10485089 Contact Us For Availability
13
COVER, LEFT HINGE (GREY) MAY W10471618 Contact Us For Availability
13
WATERLINE, VALVE TO HINGE MAY W11306462 Contact Us For Availability
13
MOTOR, EVAPORATOR (INCLUDES HARNESS, THERMIST MAY W11215582 Contact Us For Availability
13
TRIVET, 2 LITER MAY W10555427 Contact Us For Availability
13
DIVIDER, UPPER MAY W10485654 Contact Us For Availability
13
ROLLER MAY 12477102 Contact Us For Availability
13
LADDER, SIDE MAY W10372170 Contact Us For Availability
14
SCREW MAY W10731474 Contact Us For Availability
14
HEATER, FILL TUBE MAY W10706850 Contact Us For Availability
14
ASSEMBLY, DRAIN FUNNEL MAY W10503218 Contact Us For Availability
14
BUCKET, GALLON MAY W10519670 Contact Us For Availability
14
SUPPORT, PAN MAY W10469177 Contact Us For Availability
14
SCREW MAY 12992101 Contact Us For Availability
14
GLASS, CRISPER MAY W10248578 Contact Us For Availability
15
HINGE, CENTER (RIGHT) (GREY) MAY W10248703 Contact Us For Availability
15
SEAL MAY M0500703 Contact Us For Availability
15
SCREW MAY 489214 Contact Us For Availability
15
SCREW (STAINLESS) MAY 489443 Contact Us For Availability
15
GROMMET MAY 10835903 Contact Us For Availability
15
COVER, CRISPER MAY W11133643 Contact Us For Availability
16
COVER, ROLLER MAY W10336736 Contact Us For Availability
16
COVER, ICEBOX MAY W10598013 Contact Us For Availability
16
GASKET, DRAIN MAY B8381501 Contact Us For Availability
16
SCREW MAY 12990204 Contact Us For Availability
16
GASKET, ICE COMPARTMENT DOOR MAY W10347085 Contact Us For Availability
16
ROLLER, PAN MAY W10248555 Contact Us For Availability
16
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
ASSEMBLY, ICEBOX (FOAMED) MAY W11374557 Contact Us For Availability
17
COVER, THERMISTOR MAY W10405166 Contact Us For Availability
17
CLIP, TUBE MAY W11315302 Contact Us For Availability
17
AXLE, ROLLER MAY W10643690 Contact Us For Availability
17
CLIP, DRIER MAY W10281329 Contact Us For Availability
17
PAN, CRISPER MAY W10410352 Contact Us For Availability
18
HINGE, TOP (LEFT HAND) MAY W10248410 Contact Us For Availability
18
COVER, DAMPER MAY W10530312 Contact Us For Availability
18
GASKET, DUAL EVAPORATOR MAY W10531268 Contact Us For Availability
18
BOARD, RECEIVER CIRCUIT MAY W10518658 Contact Us For Availability
18
TRAY, DRIP MAY W10342573 Contact Us For Availability
18
SIDEPLATE, PANTRY (LEFT HAND) MAY W10498906 Contact Us For Availability
18A
SIDEPLATE, PANTRY (RIGHT HAND) MAY W11124810 Contact Us For Availability
19
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
19
GASKET, FAN MAY W10392172 Contact Us For Availability
19
THERMISTOR MAY W10280385 Contact Us For Availability
19
COVER, RECEIVER MAY W10258510 Contact Us For Availability
19
SCREW MAY W10141625 Contact Us For Availability
19
ROLLER RUNNER, PANTRY (LEFT HAND) MAY W10508327 Contact Us For Availability
19A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
19A
ROLLER RUNNER, PANTRY (RIGHT HAND) MAY W10508326 Contact Us For Availability
20
LID, HV MAY W10768379 Contact Us For Availability
20
TRIM, ICEBOX MAY W10505516 Contact Us For Availability
20
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
20
ASSEMBLY, EVAPORATOR MAY W10248589 Contact Us For Availability
20
SUPPORT, CRISPER MAY W10530315 Contact Us For Availability
21
SCREW MAY 12990702 Contact Us For Availability
21
FAN, ICEBOX MAY W10833801 Contact Us For Availability
21
COVER, EMITTER MAY W10258502 Contact Us For Availability
21
ASSEMBLY, CONDENSER MAY W10627646 Contact Us For Availability
21
SCREW MAY 8281136 Contact Us For Availability
22
GRILLE, TOE (GREY) MAY W10637671 Contact Us For Availability
22
GASKET, REAR SUPPLY MAY W10280988 Contact Us For Availability
22
SLIDE, ICEMAKER SHUT OFF MAY W10258540 Contact Us For Availability
22
MOTOR, CONDENSER FAN MAY W10909387 Contact Us For Availability
22
SIDEPLATE, CRISPER (LEFT HAND) MAY W11315531 Contact Us For Availability
22A
SIDEPLATE, CRISPER (RIGHT HAND) MAY W11315533 Contact Us For Availability
23
SCREW MAY W10709365 Contact Us For Availability
23
BOARD, EMITTER CIRCUIT MAY W10832970 Contact Us For Availability
23
FRONT, SIDEPLATE (CRISPER) MAY W10488299 Contact Us For Availability
24
HINGE, CENTER (LEFT) (GREY) MAY W10248706 Contact Us For Availability
24
GASKET, REAR RETURN MAY W10320706 Contact Us For Availability
24
RETAINER, ICE CHUTE MAY W10400825 Contact Us For Availability
24
GASKET, AIRDAM MAY W10491355 Contact Us For Availability
24
ASSEMBLY, CRISPER TRACK MAY W10549606 Contact Us For Availability
25
SCREW MAY W10141645 Contact Us For Availability
25
ASSEMBLY, FASCIA (INCLUDES HEATER) MAY W10553630 Contact Us For Availability
25
GASKET, ICE CHUTE MAY W10347087 Contact Us For Availability
25
DRIER MAY W10177049 Contact Us For Availability
25
RUNNER, PANTRY ROLLER (LEFT HAND) MAY W10508330 Contact Us For Availability
25A
RUNNER, PANTRY ROLLER (RIGHT HAND) MAY W10508328 Contact Us For Availability
26
VENT, THERMISTOR MAY W10646855 Contact Us For Availability
26
COMPRESSOR (ALSO ORDER 876765 TUBE KIT) MAY W10391109 Contact Us For Availability
26
SCREW MAY W10185612 Contact Us For Availability
27
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
27
ASSEMBLY, AIR TOWER MAY W11373854 Contact Us For Availability
27
DOOR, EMITTER MAY W10258520 Contact Us For Availability
27
SCREW MAY W10142294 Contact Us For Availability
27
SUPPORT, FRONT MAY W10236512 Contact Us For Availability
28
COVER, CONTROL BOX MAY W10754144 Contact Us For Availability
28
INSULATION MAY W10280983 Contact Us For Availability
28
SPRING, DOOR MAY 2198635 Contact Us For Availability
28
AXLE, ROLLER MAY 12477202 Contact Us For Availability
28
SCREW MAY W10423560 Contact Us For Availability
29
SWITCH, LIGHT MAY W10847849 Contact Us For Availability
29
HARNESS, LED WIRE (INCLUDES LED LIGHTS) MAY W11234027 Contact Us For Availability
29
PIN, DOOR MAY 2198634 Contact Us For Availability
29
SHROUD MAY W10406719 Contact Us For Availability
29
PLATE, CRISPER (LEFT HAND) MAY W11315181 Contact Us For Availability
29A
PLATE, CRISPER (RIGHT HAND) MAY W11315180 Contact Us For Availability
30
ASSEMBLY, UNIT COVER MAY W11364644 Contact Us For Availability
30
ADAPTER, ICEBOX MAY W10635022 Contact Us For Availability
30
GASKET, DOOR (GREY) MAY W10873938 Contact Us For Availability
30
HARNESS, UNIT (INCLUDES POWER CORD) MAY W11306948 Contact Us For Availability
30
SCREW MAY W10847999 Contact Us For Availability
31
CLAMP, TUBE MAY M0108107 Contact Us For Availability
31
LOCKING RING (5/16) MAY W11175631 Contact Us For Availability
31
TUBE, WATER MAY W10499015 Contact Us For Availability
31
COVER, CONDENSER (BOTTOM) MAY W10278140 Contact Us For Availability
31
ASSEMBLY, FRONT PANTRY COVER MAY W10554737 Contact Us For Availability
32
SCREW MAY 12990302 Contact Us For Availability
32
WIRE ASSEMBLY, JUMPER MAY W11369503 Contact Us For Availability
32
NUT, PUSH-ON MAY 3406121 Contact Us For Availability
32
CLIP, BOTTOM COVER MAY W10815861 Contact Us For Availability
32
COVER, PANTRY TOP MAY W10525200 Contact Us For Availability
33
VALVE, WATER MAY W11460084 Contact Us For Availability
33
DAMPER, CONTROL MAY W10479155 Contact Us For Availability
33
CAPACITOR MAY W10350564 Contact Us For Availability
33
HOUSING, PANTRY TEMPERATURE CONTROL MAY W10554281 Contact Us For Availability
34
COUPLER, DOOR MAY W10505294 Contact Us For Availability
34
COVER, THERMISTOR MAY W10438957 Contact Us For Availability
34
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
34
KNOB, PANTRY TEMPERATURE CONTROL MAY W10512596 Contact Us For Availability
35
RETAINER, DOOR MAY W10212137 Contact Us For Availability
35
SCREW MAY W10141518 Contact Us For Availability
35
RAIL, SIDE (LEFT HAND) MAY W11133647 Contact Us For Availability
35A
RAIL, SIDE (RIGHT HAND) MAY W11133648 Contact Us For Availability
36
STRAP, BALE MAY W10650382 Contact Us For Availability
36
TRACK, CENTER MAY W10530307 Contact Us For Availability
37
CLIP MAY 2223913 Contact Us For Availability
37
ROLLER, CENTER MAY W10248789 Contact Us For Availability
NI
HARNESS, DUAL VALVE MAY W11306925 Contact Us For Availability
NI
WIRE ASSEMBLY, ICE BOX MAY W11298842 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH- MAY W10134625 Contact Us For Availability
NI
MAY W10917540 MAY W10917540 Contact Us For Availability
× ![]()
