Model Maytag MFT2673BEM10 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

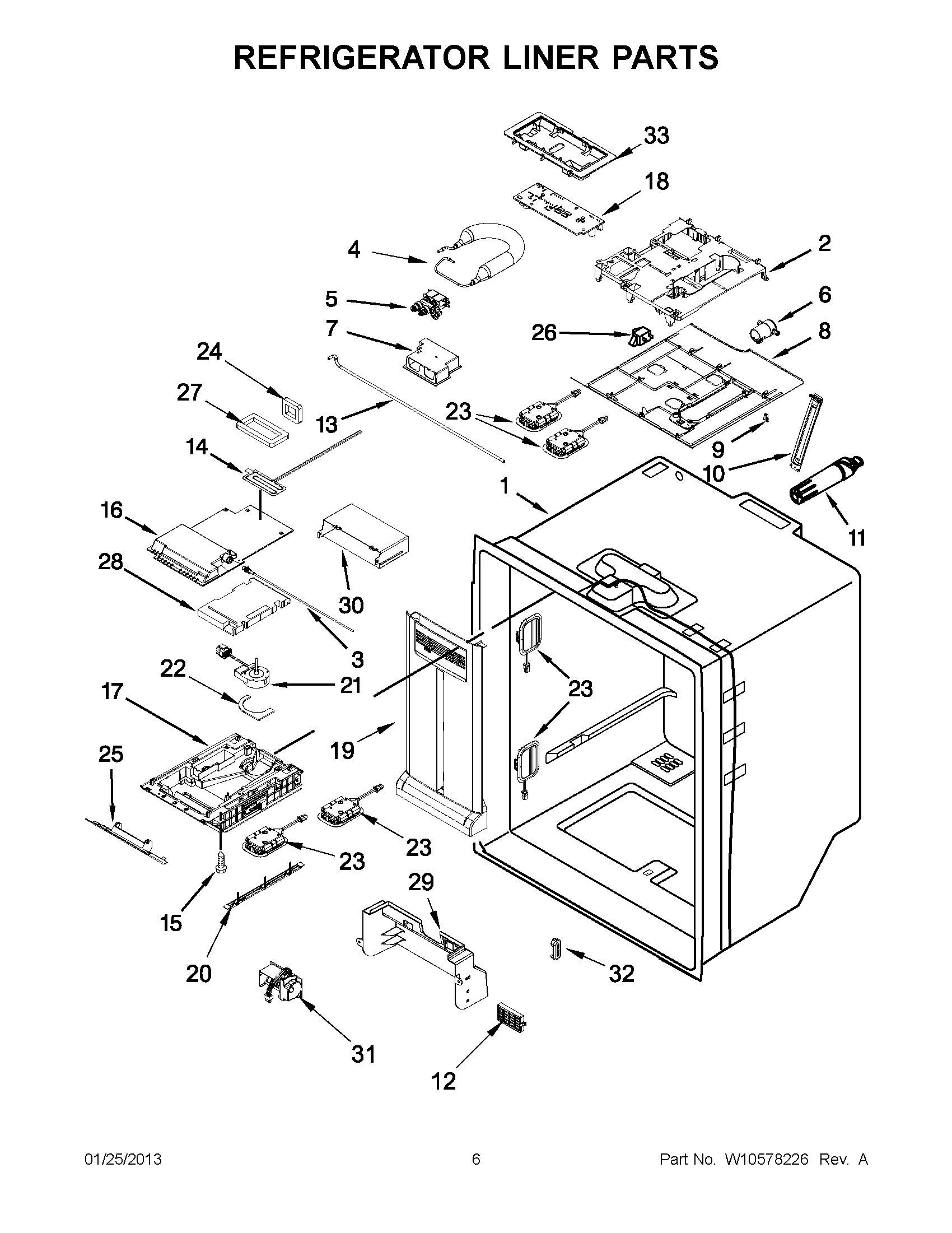

03 - REFRIGERATOR LINER PARTS

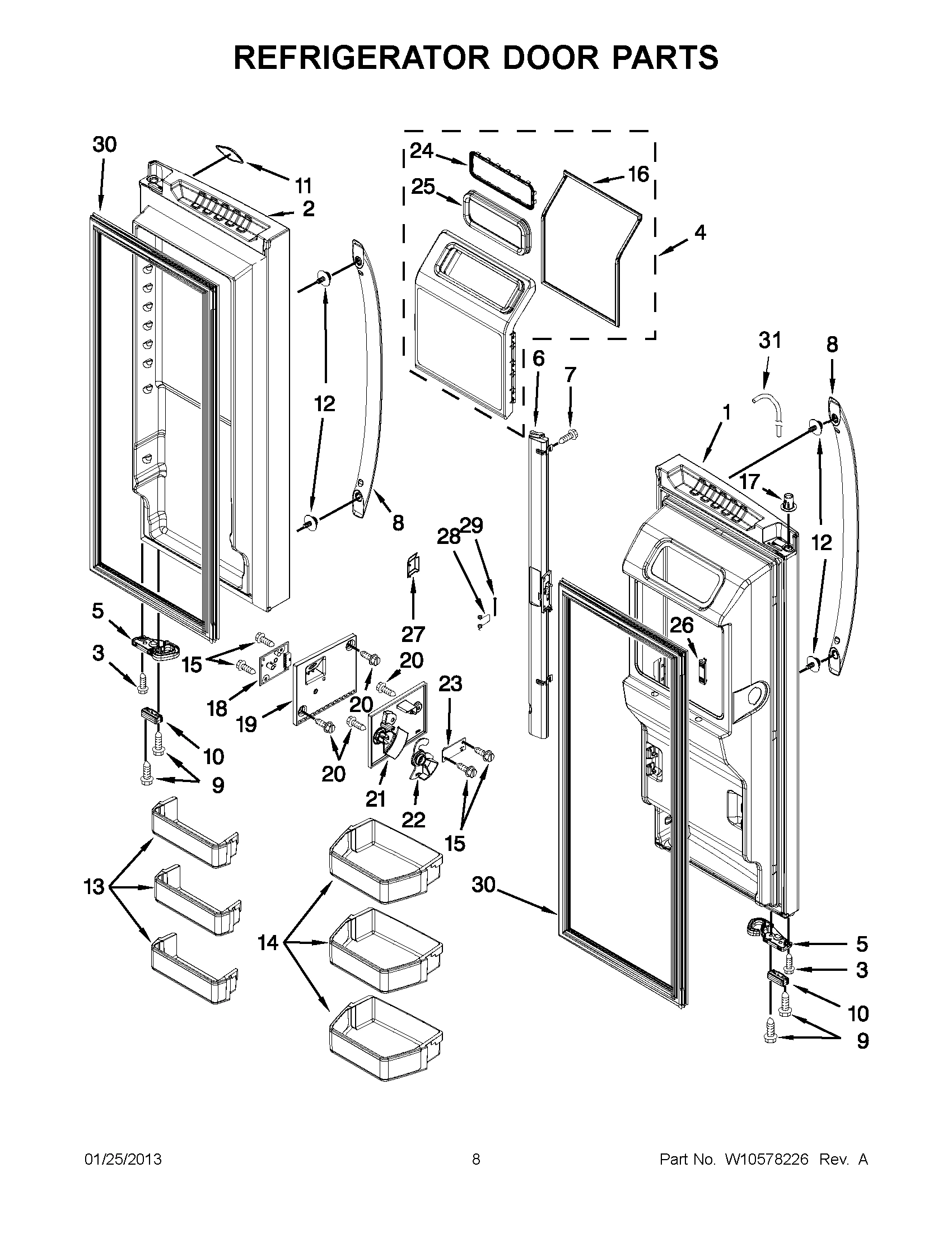

04 - REFRIGERATOR DOOR PARTS

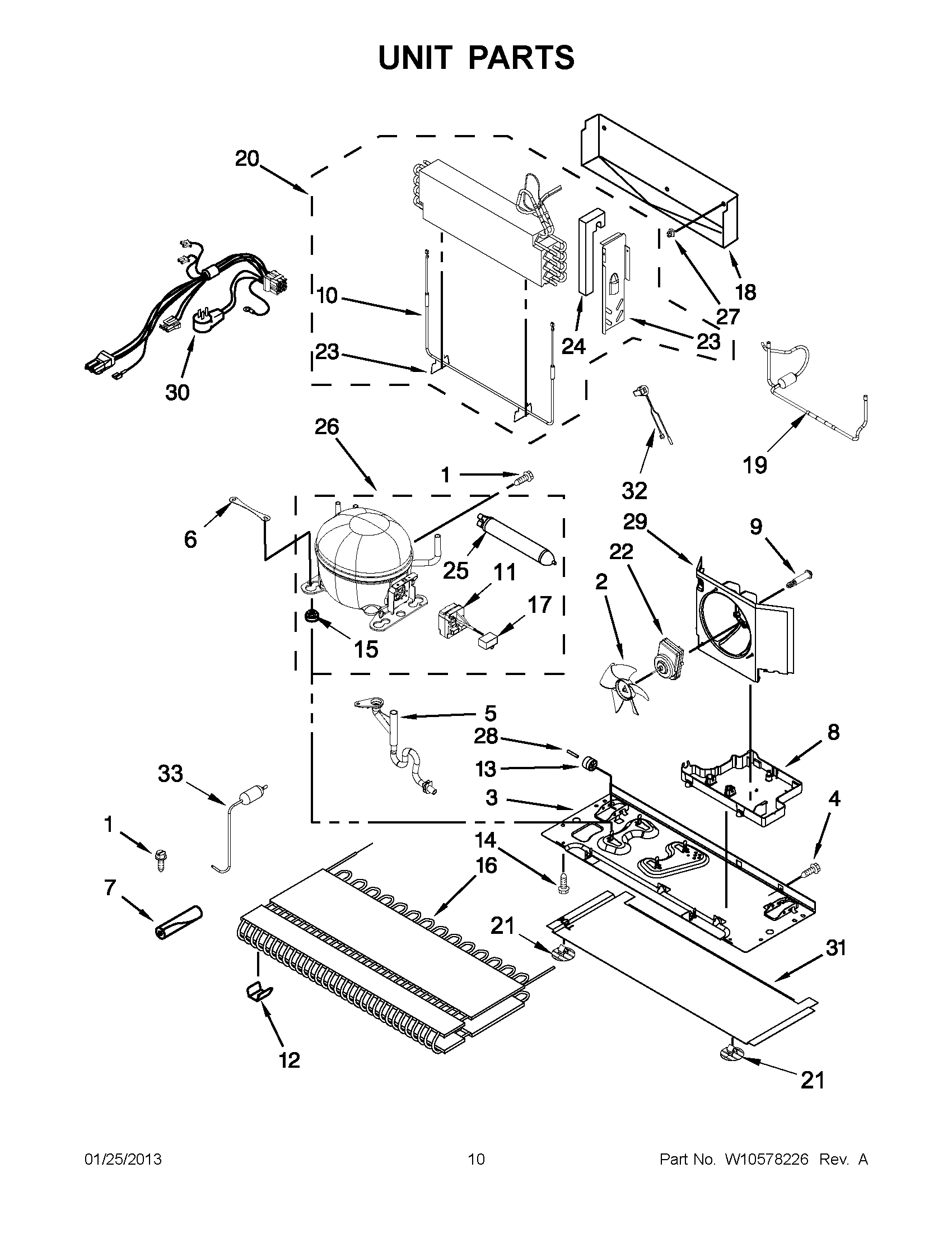

05 - UNIT PARTS

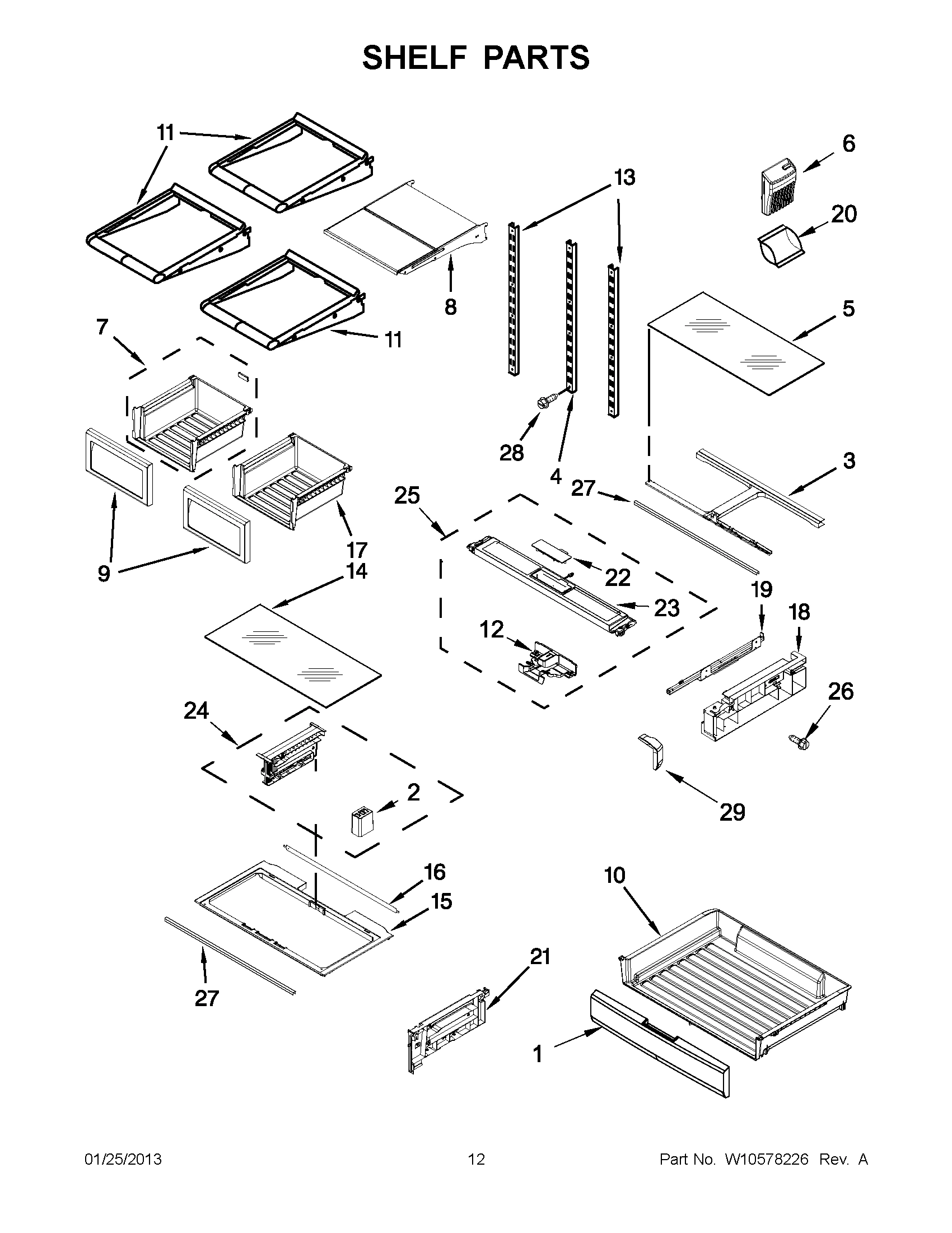

06 - SHELF PARTS

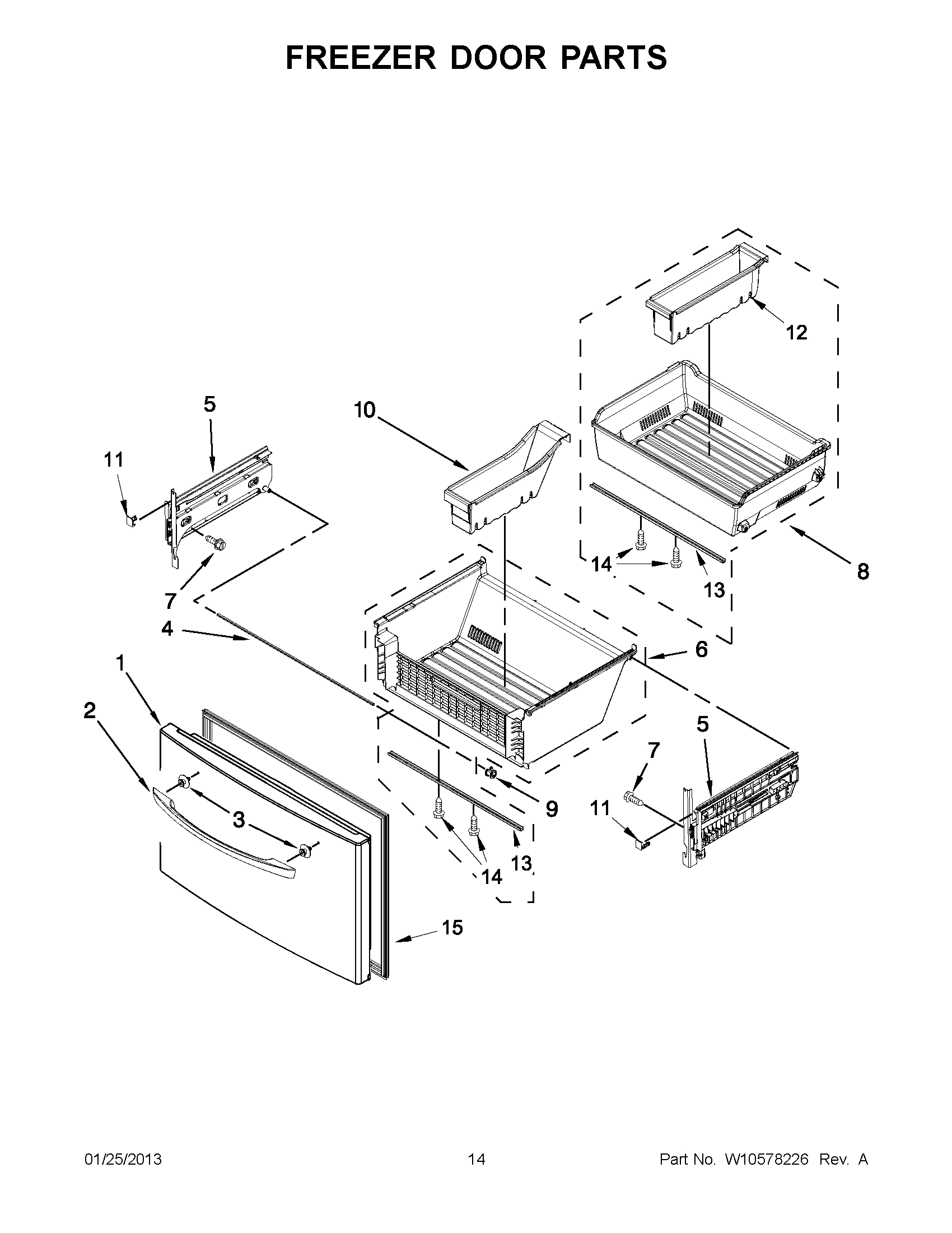

07 - FREEZER DOOR PARTS

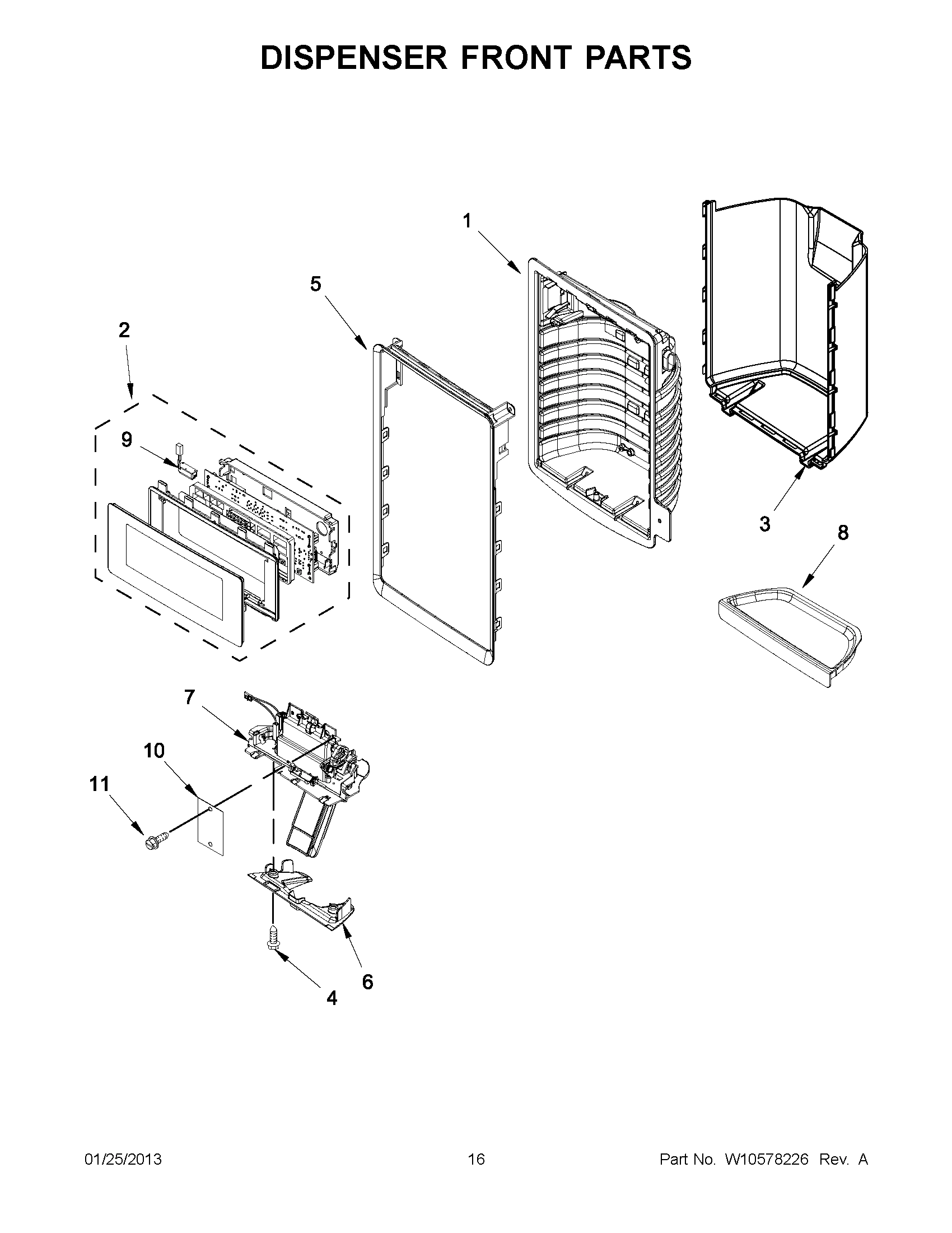

08 - DISPENSER FRONT PARTS

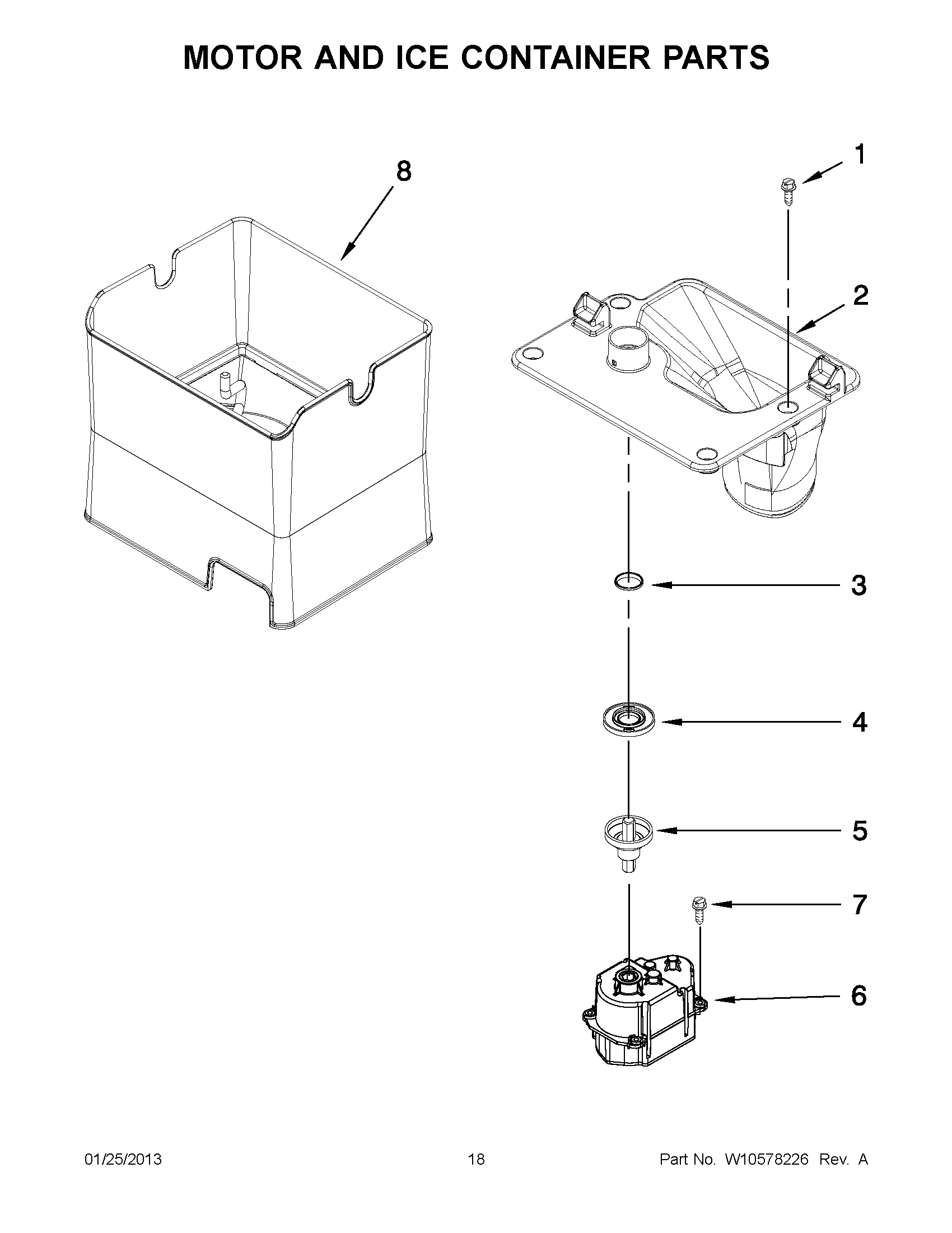

09 - MOTOR AND ICE CONTAINER PARTS

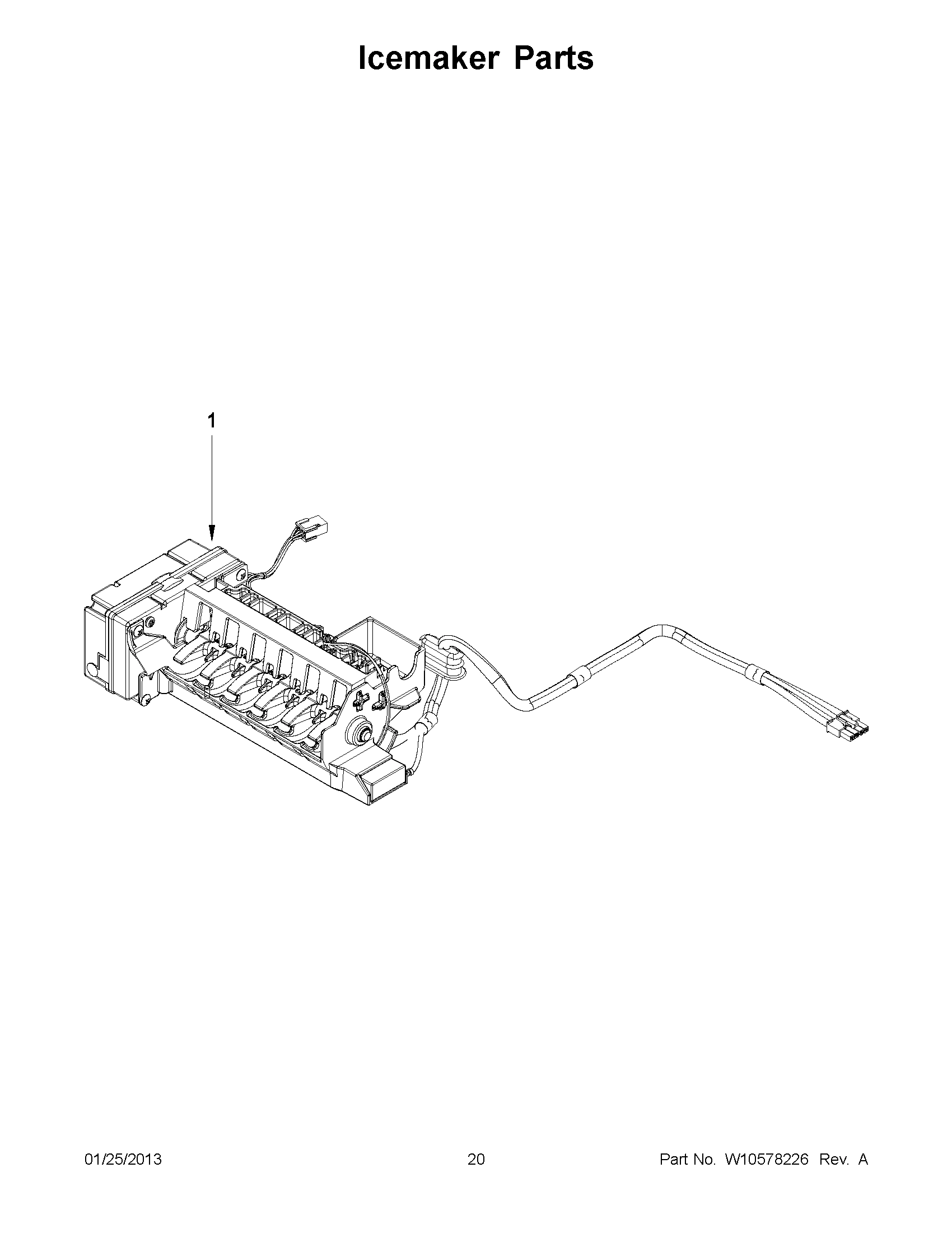

10 - ICEMAKER PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFT2673BEM10 REFRIGERATOR
1
MAY W10568023 MAY W10568023 Contact Us For Availability
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
MAY W10307047 MAY W10307047 Contact Us For Availability
1
MAY W10422782 MAY W10422782 Contact Us For Availability
1
MAY W10422783 MAY W10422783 Contact Us For Availability
1
MAY W10525198 MAY W10525198 Contact Us For Availability
1
FREEZER DOOR (WHITE) MAY W10307062 Contact Us For Availability
1
FREEZER DOOR (BLACK) MAY W10422790 Contact Us For Availability
1
MAY W10422791 MAY W10422791 Contact Us For Availability
1
MAY W10272364 MAY W10272364 Contact Us For Availability
1
MAY W10498261 MAY W10498261 Contact Us For Availability
2
MAY W10453401 MAY W10453401 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10562486 MAY W10562486 Contact Us For Availability
2
MAY W10307065 MAY W10307065 Contact Us For Availability
2
MAY W10422770 MAY W10422770 Contact Us For Availability
2
MAY W10422771 MAY W10422771 Contact Us For Availability
2
MAY 12825802 MAY 12825802 Contact Us For Availability
2
MAY W10463922 MAY W10463922 Contact Us For Availability
2
MAY W10439057 MAY W10439057 Contact Us For Availability
2
MAY W10439225 MAY W10439225 Contact Us For Availability
2
MAY W10439226 MAY W10439226 Contact Us For Availability
2
MAY W10560266 MAY W10560266 Contact Us For Availability
2
MAY W10560267 MAY W10560267 Contact Us For Availability
2
MAY W10560272 MAY W10560272 Contact Us For Availability
2
MAY W10347051 MAY W10347051 Contact Us For Availability
3
MAY W10344432 MAY W10344432 Contact Us For Availability
3
MAY W10482107 MAY W10482107 Contact Us For Availability
3
MAY W10464016 MAY W10464016 Contact Us For Availability
3
MAY W10460893 MAY W10460893 Contact Us For Availability
3
MAY W10248414 MAY W10248414 Contact Us For Availability
3
MAY W10515051 MAY W10515051 Contact Us For Availability
3
FALSE WALL, DISPENSER (BLACK) MAY W10427119 Contact Us For Availability
3
FALSE WALL, DISPENSER (GREY) MAY W10427120 Contact Us For Availability
3
FALSE WALL, DISPENSER (WHITE) MAY W10427126 Contact Us For Availability
3
MAY 2198628 MAY 2198628 Contact Us For Availability
4
MAY W10505487 MAY W10505487 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10513428 MAY W10513428 Contact Us For Availability
4
MAY W10277923 MAY W10277923 Contact Us For Availability
4
MAY W10492471 MAY W10492471 Contact Us For Availability
4
MAY W10248516 MAY W10248516 Contact Us For Availability
4
MAY W10503521 MAY W10503521 Contact Us For Availability
4
MAY 12990513 MAY 12990513 Contact Us For Availability
4
MAY W10347120 MAY W10347120 Contact Us For Availability
5
MAY W10277808 MAY W10277808 Contact Us For Availability
5
MAY W10341329 MAY W10341329 Contact Us For Availability
5
MAY W10355634 MAY W10355634 Contact Us For Availability
5
MAY W10372267 MAY W10372267 Contact Us For Availability
5
MAY W10384378 MAY W10384378 Contact Us For Availability
5
MAY W10248799 MAY W10248799 Contact Us For Availability
5
MAY W10492008 MAY W10492008 Contact Us For Availability
5
MAY W10492010 MAY W10492010 Contact Us For Availability
5
MAY W10322863 MAY W10322863 Contact Us For Availability
5
MAY W10322864 MAY W10322864 Contact Us For Availability
5
MAY W10410107 MAY W10410107 Contact Us For Availability
5
MAY W10347114 MAY W10347114 Contact Us For Availability
6
MAY W10415341 MAY W10415341 Contact Us For Availability
6
MAY 12956601 MAY 12956601 Contact Us For Availability
6
MAY W10238156 MAY W10238156 Contact Us For Availability
6
MAY W10407252 MAY W10407252 Contact Us For Availability
6
MAY W10407253 MAY W10407253 Contact Us For Availability
6
MAY W10407254 MAY W10407254 Contact Us For Availability
6
MAY W10236396 MAY W10236396 Contact Us For Availability
6
MAY W10408747 MAY W10408747 Contact Us For Availability
6
MAY W10507446 MAY W10507446 Contact Us For Availability
6
MAY W10560985 MAY W10560985 Contact Us For Availability
6
MAY W10215646 MAY W10215646 Contact Us For Availability
7
MAY W10279854 MAY W10279854 Contact Us For Availability
7
MAY 12990518 MAY 12990518 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
MAY W10303521 MAY W10303521 Contact Us For Availability
7
MAY W10422682 MAY W10422682 Contact Us For Availability
7
MAY W10403774 MAY W10403774 Contact Us For Availability
7
MAY W10403775 MAY W10403775 Contact Us For Availability
7
MAY W10403776 MAY W10403776 Contact Us For Availability
7
Screw MAY 8281163 Contact Us For Availability
8
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
8
MAY W10525805 MAY W10525805 Contact Us For Availability
8
MAY W10439227 MAY W10439227 Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY W10439228 Contact Us For Availability
8
MAY W10439229 MAY W10439229 Contact Us For Availability
8
MAY W10238584 MAY W10238584 Contact Us For Availability
8
SHELF-TUCK MAY W10402712 Contact Us For Availability
8
MAY W10557676 MAY W10557676 Contact Us For Availability
8
MAY W10322872 MAY W10322872 Contact Us For Availability
8
MAY W10322873 MAY W10322873 Contact Us For Availability
8
MAY W10410105 MAY W10410105 Contact Us For Availability
8
MAY W10347093 MAY W10347093 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
MAY W10496613 MAY W10496613 Contact Us For Availability
9
MAY 2223877 MAY 2223877 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
FRONT ASSEMBLY, CRISPER MAY W10524913 Contact Us For Availability
9
MAY W10248509 MAY W10248509 Contact Us For Availability
9
MAY W10470750 MAY W10470750 Contact Us For Availability
10
MAY W10248409 MAY W10248409 Contact Us For Availability
10
MAY W10248410 MAY W10248410 Contact Us For Availability
10
MAY W10363507 MAY W10363507 Contact Us For Availability
10
MAY W10277949 MAY W10277949 Contact Us For Availability
10
MAY W10407175 MAY W10407175 Contact Us For Availability
10
MAY W10407187 MAY W10407187 Contact Us For Availability
10
MAY W10407188 MAY W10407188 Contact Us For Availability
10
MAY 12729122 MAY 12729122 Contact Us For Availability
10
MAY W10514690 MAY W10514690 Contact Us For Availability
10
MAY W10507444 MAY W10507444 Contact Us For Availability
10
MAY W10572633 MAY W10572633 Contact Us For Availability
11
MAY W10403208 MAY W10403208 Contact Us For Availability
11
MAY W10403211 MAY W10403211 Contact Us For Availability
11
MAY W10403212 MAY W10403212 Contact Us For Availability
11
MAY 12986101 MAY 12986101 Contact Us For Availability
11
MAY W10238154 MAY W10238154 Contact Us For Availability
11
NAMEPLATE. MAYTAG MAY W10170766 Contact Us For Availability
11
START DEVICE, COMBINATION (START RELAY AND OV MAY W10197428 Contact Us For Availability
11
SHELF ASSEMBLY MAY W10402695 Contact Us For Availability
11
MAY W10485089 MAY W10485089 Contact Us For Availability
11
MAY W10485096 MAY W10485096 Contact Us For Availability
12
MAY W10248562 MAY W10248562 Contact Us For Availability
12
MAY W10407157 MAY W10407157 Contact Us For Availability
12
MAY W10407158 MAY W10407158 Contact Us For Availability
12
MAY 12951101 MAY 12951101 Contact Us For Availability
12
FILTER, AIR MAY W10315189 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12
MAY W10512596 MAY W10512596 Contact Us For Availability
12
MAY W10485654 MAY W10485654 Contact Us For Availability
13
MAY W10471615 MAY W10471615 Contact Us For Availability
13
COVER, LEFT HINGE (BLACK) MAY W10471617 Contact Us For Availability
13
MAY W10471618 MAY W10471618 Contact Us For Availability
13
MAY W10515793 MAY W10515793 Contact Us For Availability
13
MAY W10493532 MAY W10493532 Contact Us For Availability
13
ROLLER MAY 12477102 Contact Us For Availability
13
MAY W10372170 MAY W10372170 Contact Us For Availability
13
MAY W10469177 MAY W10469177 Contact Us For Availability
14
SCREW (BLACK) MAY W10308751 Contact Us For Availability
14
MAY W10503218 MAY W10503218 Contact Us For Availability
14
MAY W10554299 MAY W10554299 Contact Us For Availability
14
MAY W10522064 MAY W10522064 Contact Us For Availability
14
MAY 12992101 MAY 12992101 Contact Us For Availability
14
MAY W10248578 MAY W10248578 Contact Us For Availability
14
MAY 489443 MAY 489443 Contact Us For Availability
15
HINGE, CENTER (RT) (WHITE) MAY W10248433 Contact Us For Availability
15
HINGE, CENTER (RT) (BLACK) MAY W10248702 Contact Us For Availability
15
MAY W10248703 MAY W10248703 Contact Us For Availability
15
MAY M0500703 MAY M0500703 Contact Us For Availability
15
Screw MAY 489214 Contact Us For Availability
15
GROMMET MAY 10835903 Contact Us For Availability
15
MAY W10397044 MAY W10397044 Contact Us For Availability
15
MAY W10248748 MAY W10248748 Contact Us For Availability
15
MAY W10248749 MAY W10248749 Contact Us For Availability
15
MAY W10249094 MAY W10249094 Contact Us For Availability
16
MAY W10336736 MAY W10336736 Contact Us For Availability
16
MAY B8381501 MAY B8381501 Contact Us For Availability
16
MAY W10331462 MAY W10331462 Contact Us For Availability
16
MAY W10347085 MAY W10347085 Contact Us For Availability
16
MAY W10458003 MAY W10458003 Contact Us For Availability
16
MAY W10248967 MAY W10248967 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY W10405166 MAY W10405166 Contact Us For Availability
17
MAY W10347640 MAY W10347640 Contact Us For Availability
17
CLIP, TUBE MAY W10245516 Contact Us For Availability
17
MAY W10350564 MAY W10350564 Contact Us For Availability
17
MAY W10410352 MAY W10410352 Contact Us For Availability
18
MAY W10531268 MAY W10531268 Contact Us For Availability
18
MAY W10524406 MAY W10524406 Contact Us For Availability
18
CIRCUIT BOARD, RECEIVER MAY W10518658 Contact Us For Availability
18
MAY W10512220 MAY W10512220 Contact Us For Availability
18
MAY W10248796 MAY W10248796 Contact Us For Availability
18
MAY W10248798 MAY W10248798 Contact Us For Availability
19
ROLLER ASSY. (RIGHT HAND) MAY W10515762 Contact Us For Availability
19
ROLLER ASSY. (LEFT HAND) MAY W10515763 Contact Us For Availability
19
MAY W10280385 MAY W10280385 Contact Us For Availability
19
MAY W10568396 MAY W10568396 Contact Us For Availability
19
MAY W10258510 MAY W10258510 Contact Us For Availability
19
MAY W10463542 MAY W10463542 Contact Us For Availability
19
MAY W10508326 MAY W10508326 Contact Us For Availability
19
MAY W10508327 MAY W10508327 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY W10515072 MAY W10515072 Contact Us For Availability
20
MAY 3400065 MAY 3400065 Contact Us For Availability
20
MAY W10492011 MAY W10492011 Contact Us For Availability
20
MAY W10346771 MAY W10346771 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10460280 MAY W10460280 Contact Us For Availability
21
MAY W10258502 MAY W10258502 Contact Us For Availability
21
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
21
MAY W10248918 MAY W10248918 Contact Us For Availability
21
MAY W10248920 MAY W10248920 Contact Us For Availability
22
MAY W10485160 MAY W10485160 Contact Us For Availability
22
MAY W10485161 MAY W10485161 Contact Us For Availability
22
MAY W10485164 MAY W10485164 Contact Us For Availability
22
MAY W10392172 MAY W10392172 Contact Us For Availability
22
MAY W10258540 MAY W10258540 Contact Us For Availability
22
MAY 2188874 MAY 2188874 Contact Us For Availability
22
HOUSING, PANTRY TEMP CONTROL MAY W10554281 Contact Us For Availability
23
MAY 12992601 MAY 12992601 Contact Us For Availability
23
MAY W10456436 MAY W10456436 Contact Us For Availability
23
CIRCUIT BOARD, EMITTER MAY W10518659 Contact Us For Availability
23
MAY W10525200 MAY W10525200 Contact Us For Availability
24
HINGE, CENTER (LT) (WHITE) MAY W10248434 Contact Us For Availability
24
HINGE, CENTER (LT) (BLACK) MAY W10248705 Contact Us For Availability
24
MAY W10248706 MAY W10248706 Contact Us For Availability
24
MAY W10320706 MAY W10320706 Contact Us For Availability
24
RETAINER, ICE CHUTE MAY W10400825 Contact Us For Availability
24
MAY W10491355 MAY W10491355 Contact Us For Availability
24
MAY W10540581 MAY W10540581 Contact Us For Availability
25
MAY W10553630 MAY W10553630 Contact Us For Availability
25
MAY W10347087 MAY W10347087 Contact Us For Availability
25
Drier MAY W10177049 Contact Us For Availability
25
COVER ASSEMBLY, FRONT PANTRY MAY W10554737 Contact Us For Availability
26
SWITCH, LIGHT MAY C3680314 Contact Us For Availability
26
MAY W10347053 MAY W10347053 Contact Us For Availability
26
MAY W10474685 MAY W10474685 Contact Us For Availability
26
MAY W10185612 MAY W10185612 Contact Us For Availability
27
MAY 12990302 MAY 12990302 Contact Us For Availability
27
MAY W10280988 MAY W10280988 Contact Us For Availability
27
EMITTER, DOOR MAY W10258520 Contact Us For Availability
27
MAY W10142294 MAY W10142294 Contact Us For Availability
27
MAY W10236512 MAY W10236512 Contact Us For Availability
28
MAY W10485658 MAY W10485658 Contact Us For Availability
28
MAY W10280983 MAY W10280983 Contact Us For Availability
28
SPRING, DOOR MAY 2198635 Contact Us For Availability
28
MAY 12477202 MAY 12477202 Contact Us For Availability
28
MAY W10423560 MAY W10423560 Contact Us For Availability
29
MAY 12466114 MAY 12466114 Contact Us For Availability
29
MAY W10483040 MAY W10483040 Contact Us For Availability
29
PIN, DOOR MAY 2198634 Contact Us For Availability
29
MAY W10406719 MAY W10406719 Contact Us For Availability
29
MAY W10426797 MAY W10426797 Contact Us For Availability
29
MAY W10426799 MAY W10426799 Contact Us For Availability
30
MAY W10544171 MAY W10544171 Contact Us For Availability
30
MAY W10519548 MAY W10519548 Contact Us For Availability
30
MAY W10249089 MAY W10249089 Contact Us For Availability
30
MAY W10407145 MAY W10407145 Contact Us For Availability
30
MAY W10407146 MAY W10407146 Contact Us For Availability
30
MAY W10494227 MAY W10494227 Contact Us For Availability
31
MAY M0108107 MAY M0108107 Contact Us For Availability
31
MAY W10479155 MAY W10479155 Contact Us For Availability
31
TUBE-WATER MAY W10515777 Contact Us For Availability
31
UNIT COVER, BOTTOM MAY W10278140 Contact Us For Availability
32
MAY W10141645 MAY W10141645 Contact Us For Availability
32
THERMOSTAT, DEFROST MOTOR, EVAPORATOR (INCLUD MAY W10561029 Contact Us For Availability
32
MAY W10438957 MAY W10438957 Contact Us For Availability
33
MAY W10277839 MAY W10277839 Contact Us For Availability
33
MAY W10445802 MAY W10445802 Contact Us For Availability
33
MAY W10467035 MAY W10467035 Contact Us For Availability
34
MAY W10505294 MAY W10505294 Contact Us For Availability
35
MAY W10212137 MAY W10212137 Contact Us For Availability
37
CONNECTOR, WATER TUBE MAY W10271541 Contact Us For Availability
38
Clamp, Power Cord MAY 549193 Contact Us For Availability
39
TUBE, WATER MAY W10277931 Contact Us For Availability
40
MAY W10394076 MAY W10394076 Contact Us For Availability
NI
MAY W10475679 MAY W10475679 Contact Us For Availability
NI
MAY W10481392 MAY W10481392 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
