Model Maytag MFS35PDFTS COMMERCIAL WASHER – Common Parts & Diagrams
01 - COVER SHEET

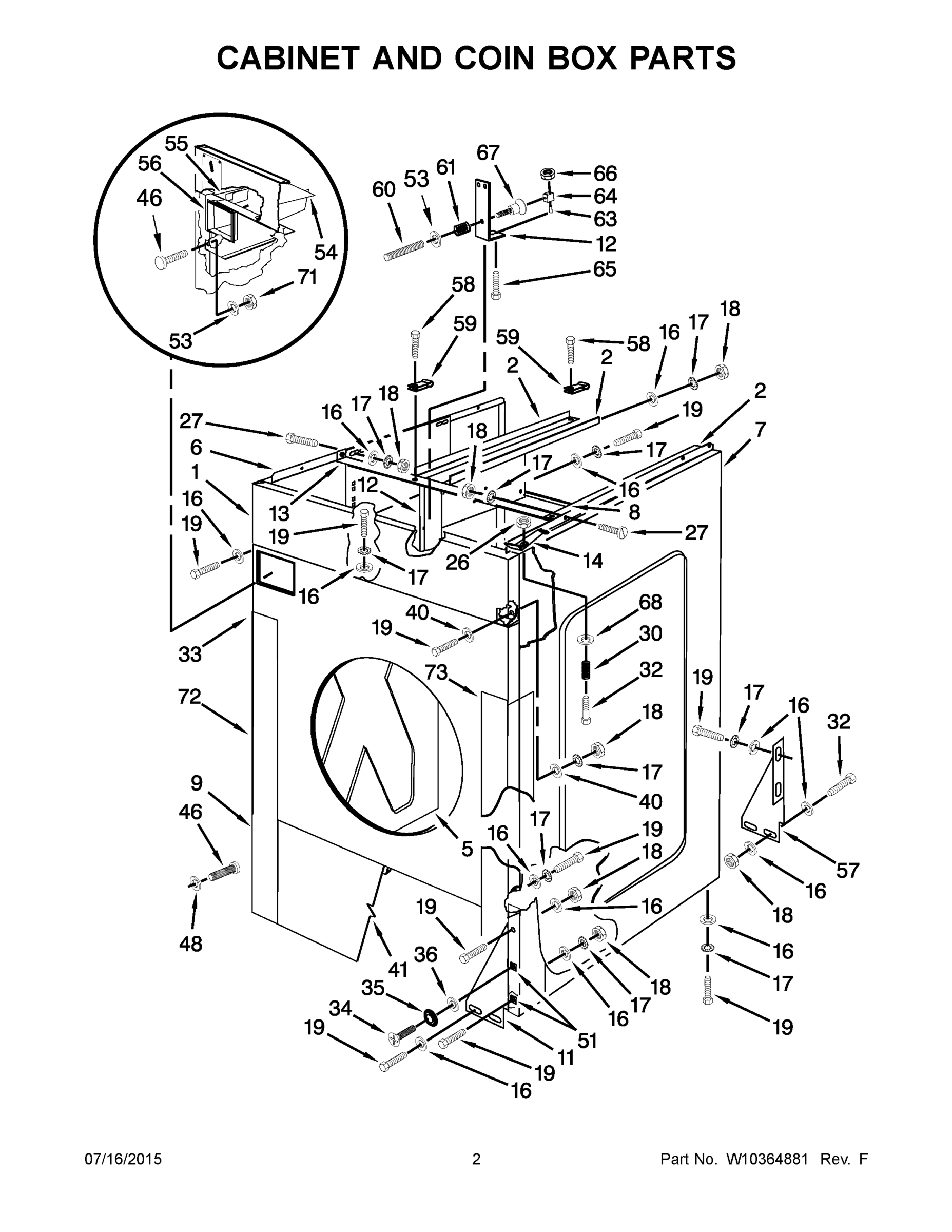

02 - CABINET AND COIN BOX PARTS

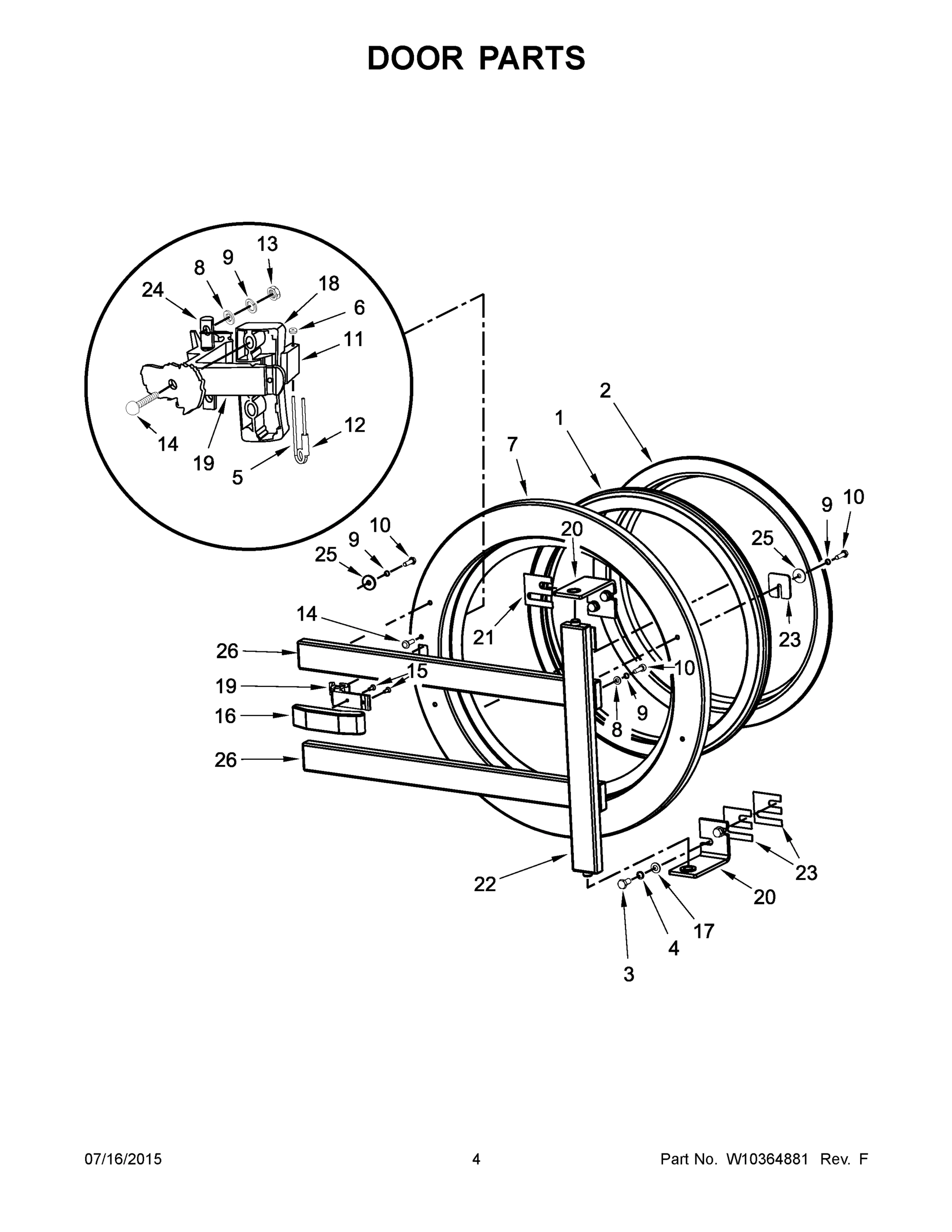

03 - DOOR PARTS

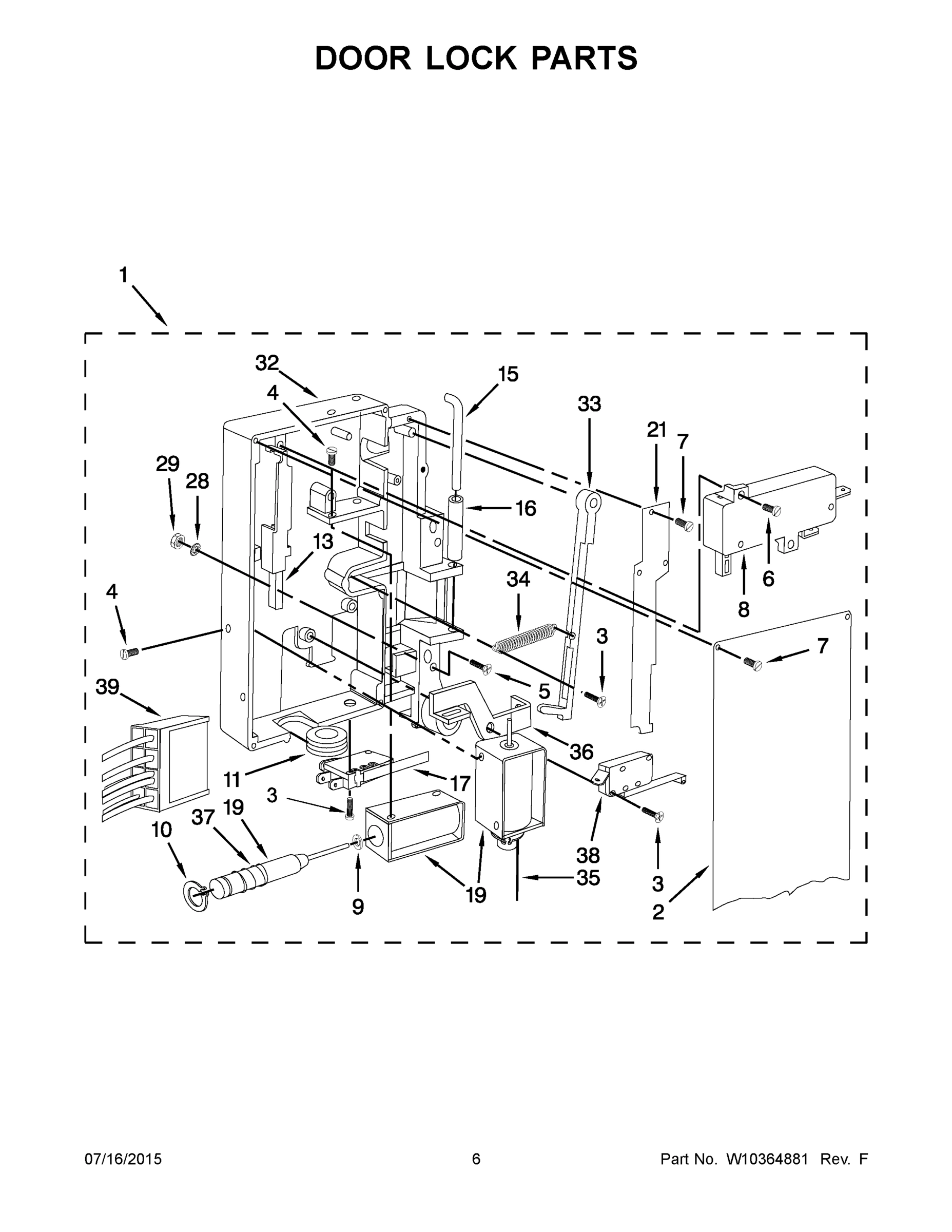

04 - DOOR LOCK PARTS

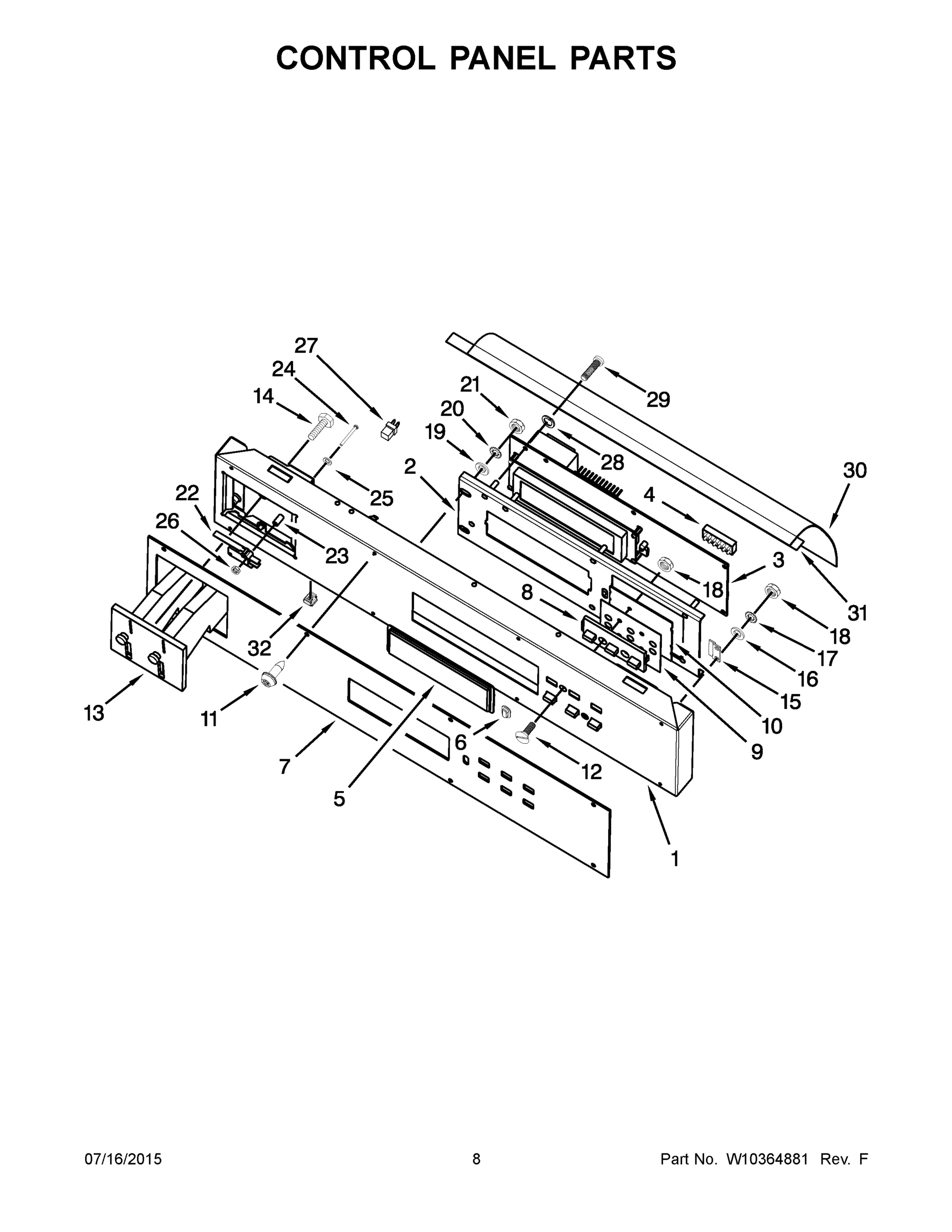

05 - CONTROL PANEL PARTS

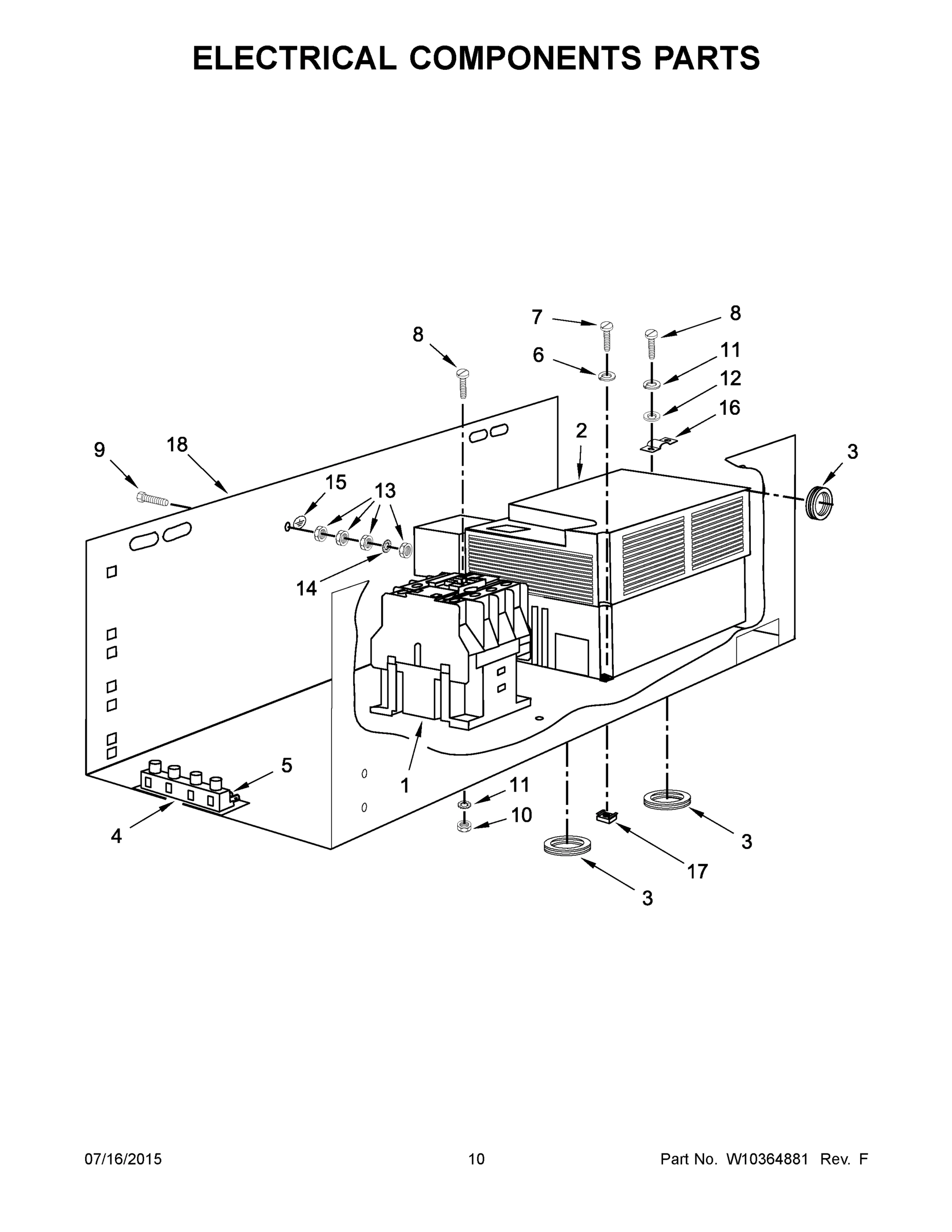

06 - ELECTRICAL COMPONENTS PARTS

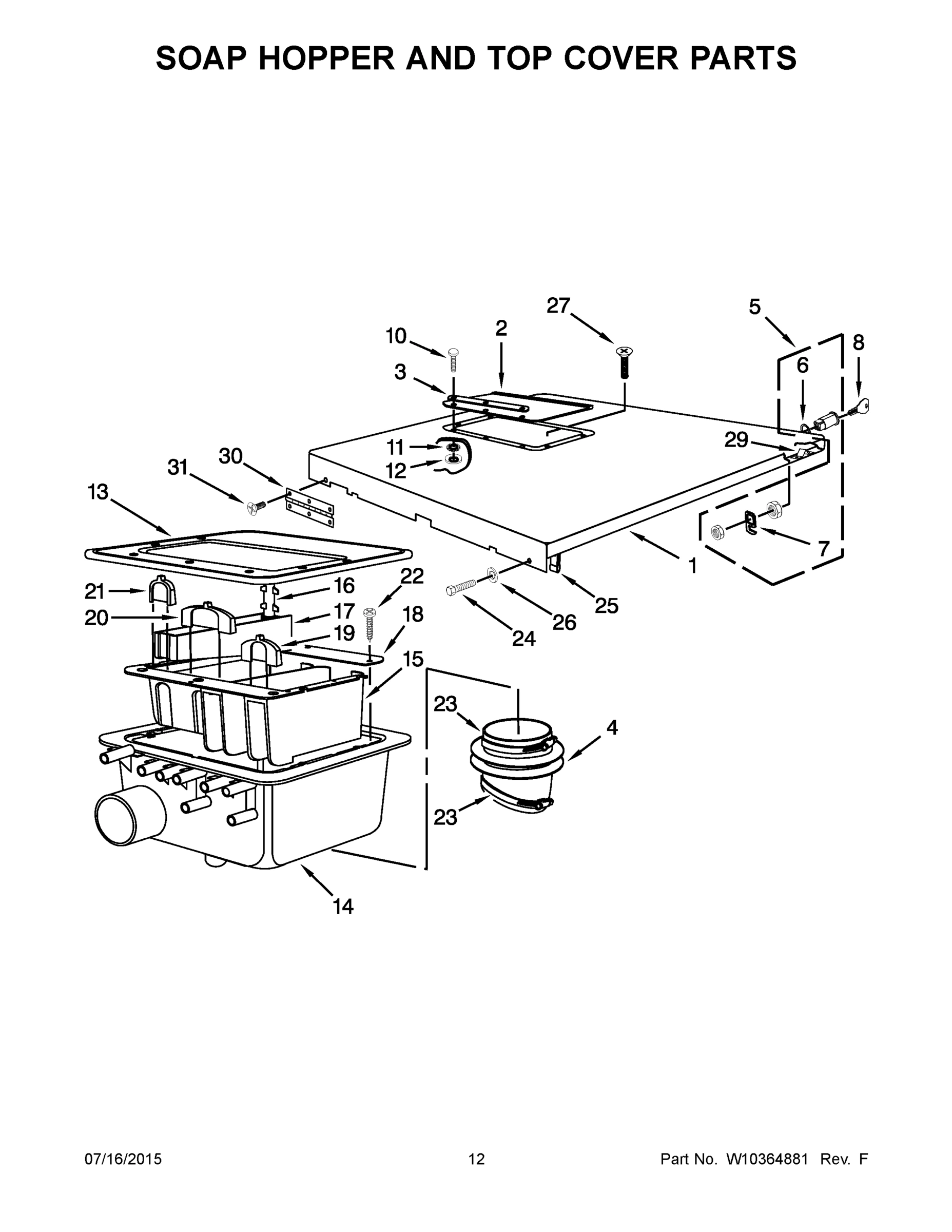

07 - SOAP HOPPER AND TOP COVER PARTS

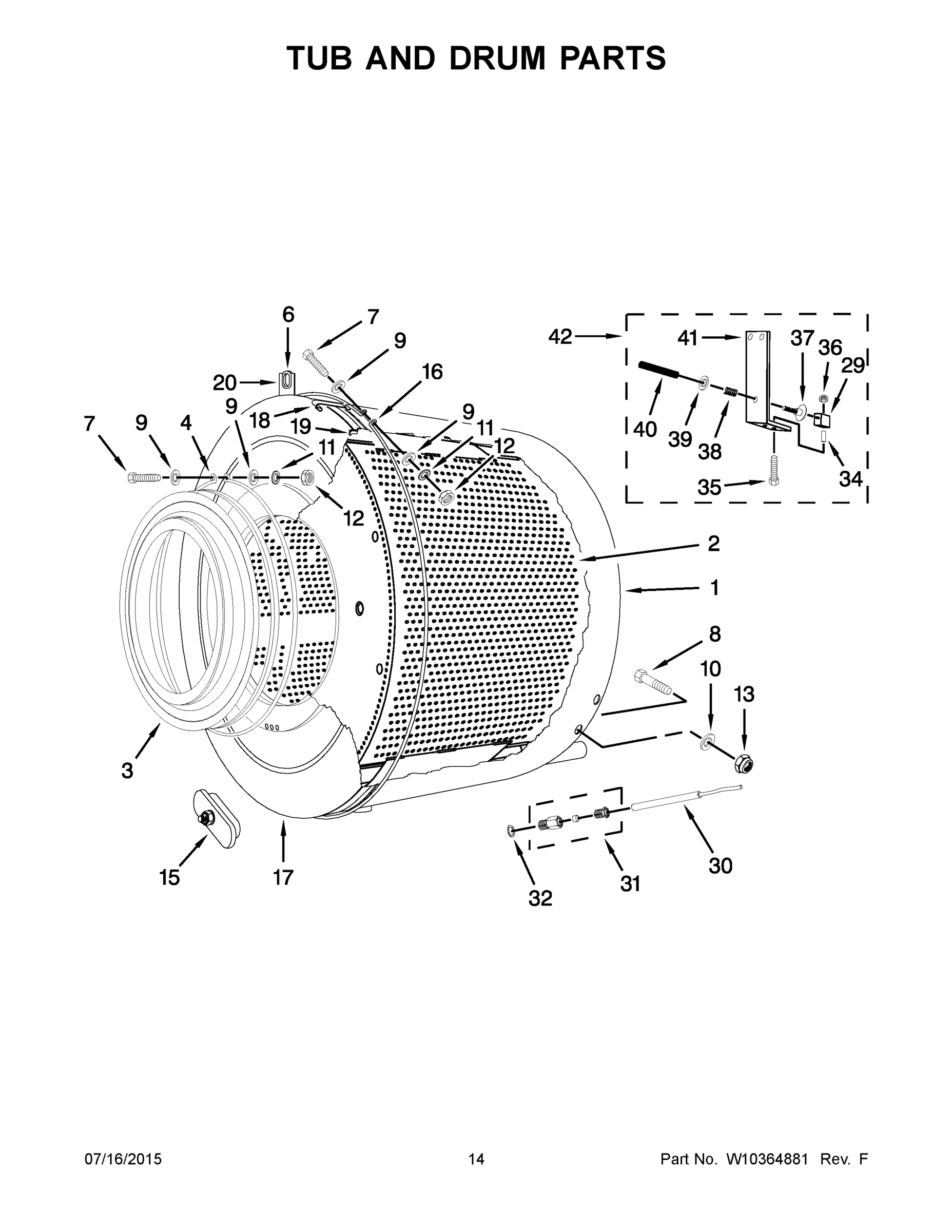

08 - TUB AND DRUM PARTS

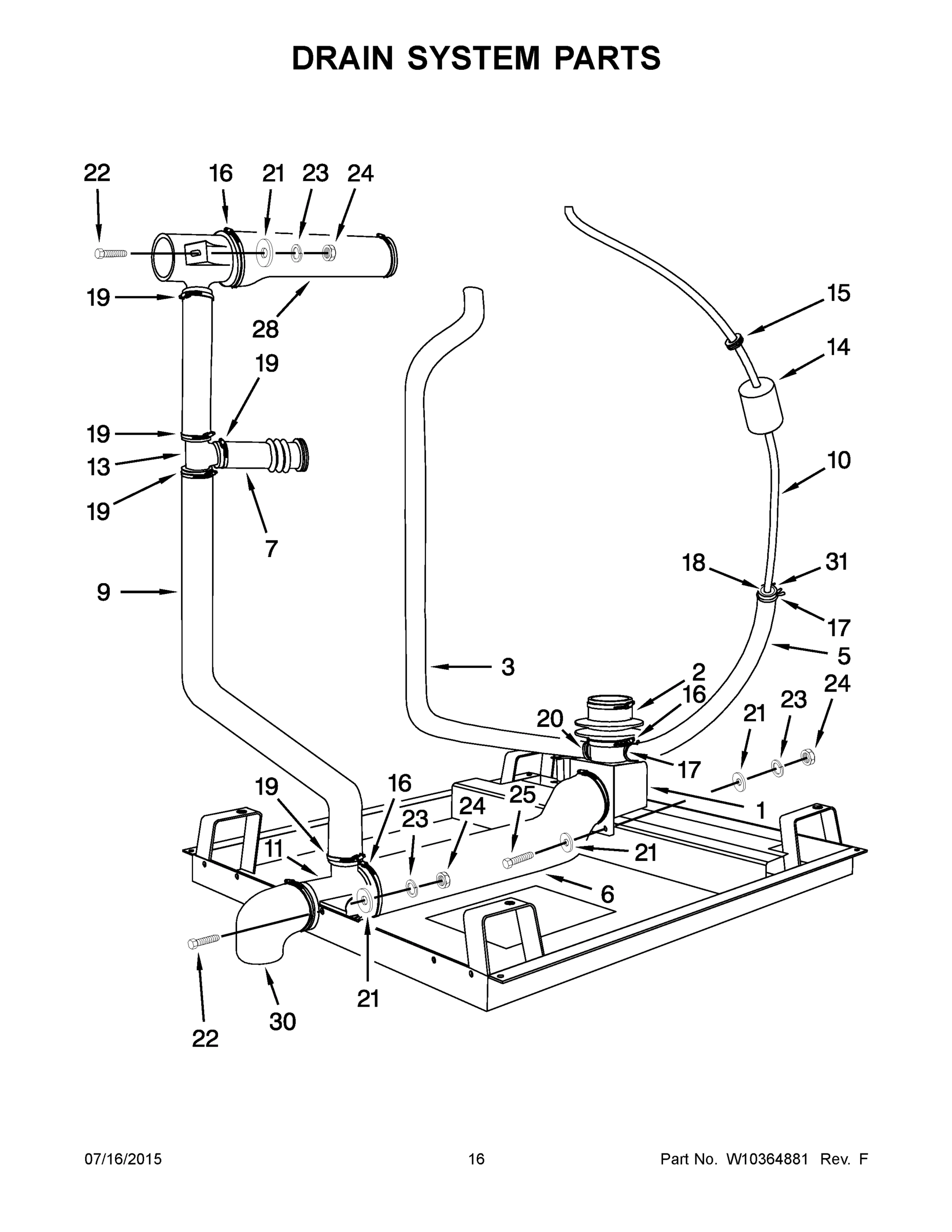

09 - DRAIN SYSTEM PARTS

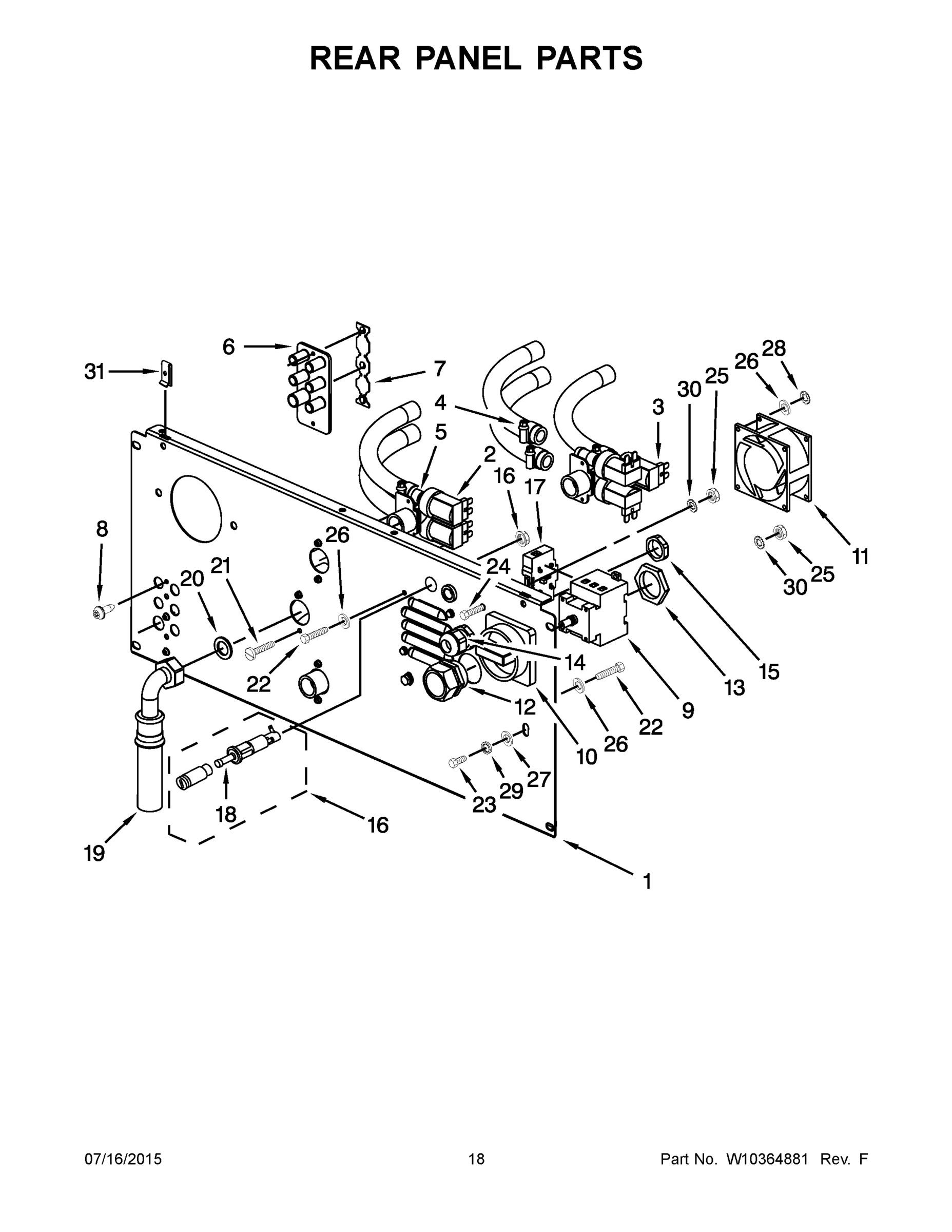

10 - REAR PANEL PARTS

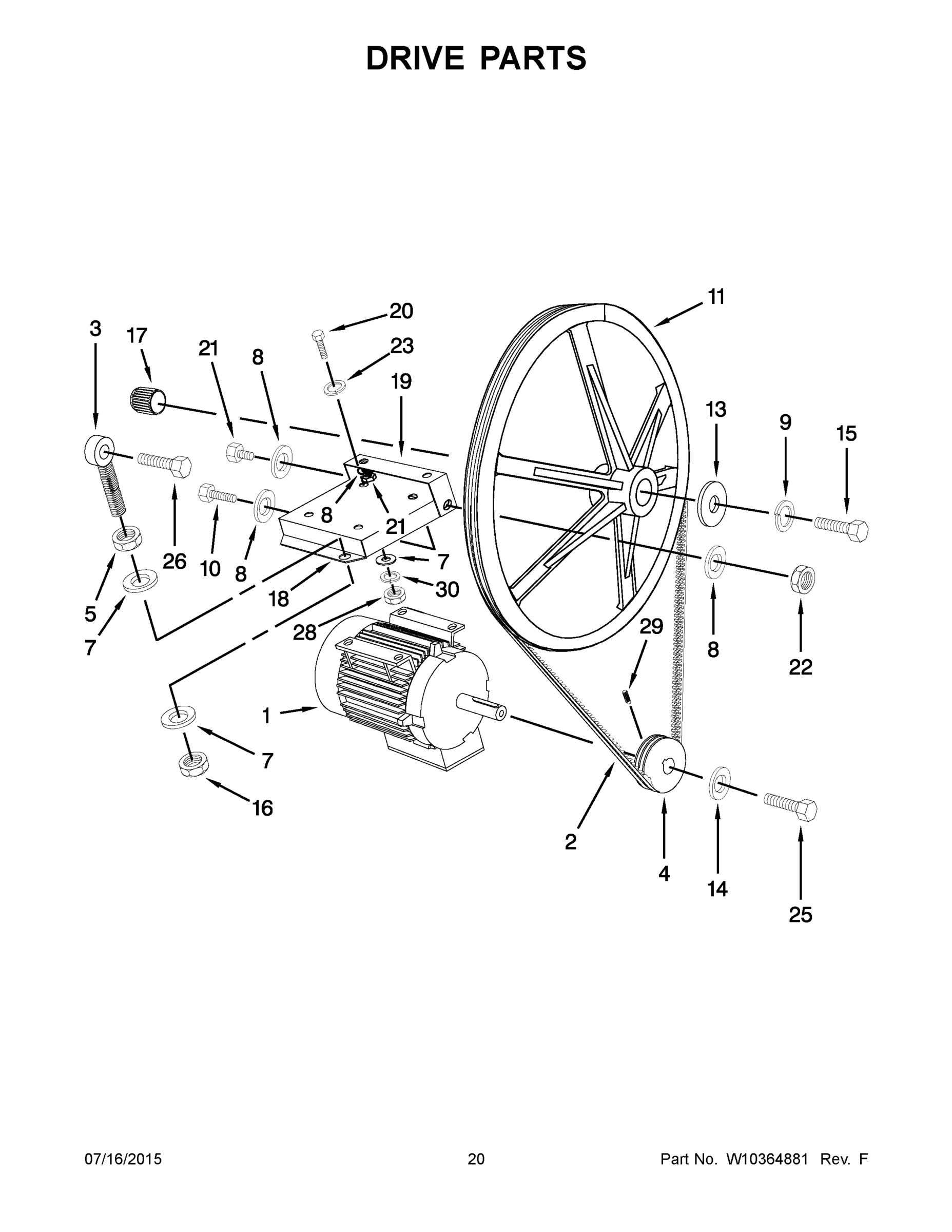

11 - DRIVE PARTS

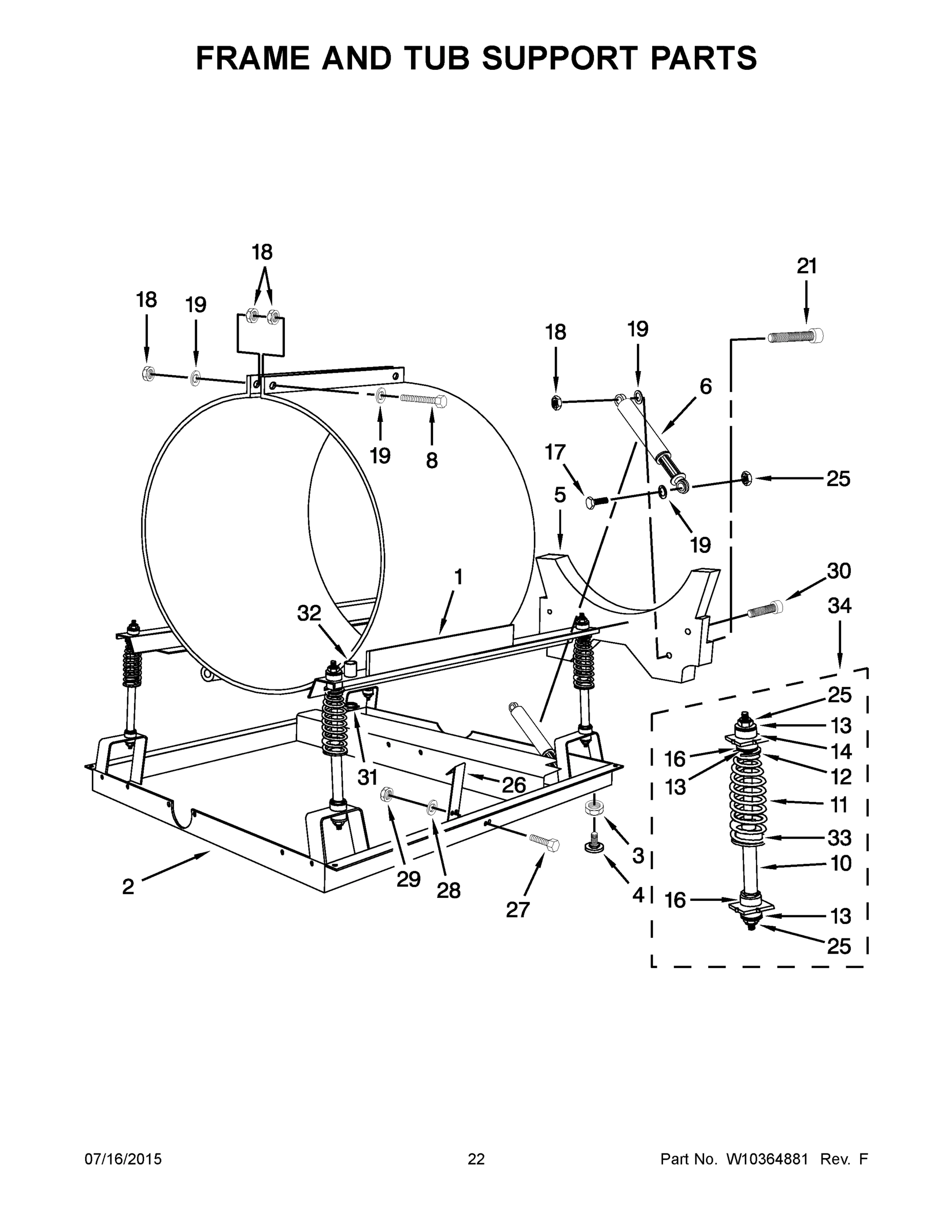

12 - FRAME AND TUB SUPPORT PARTS

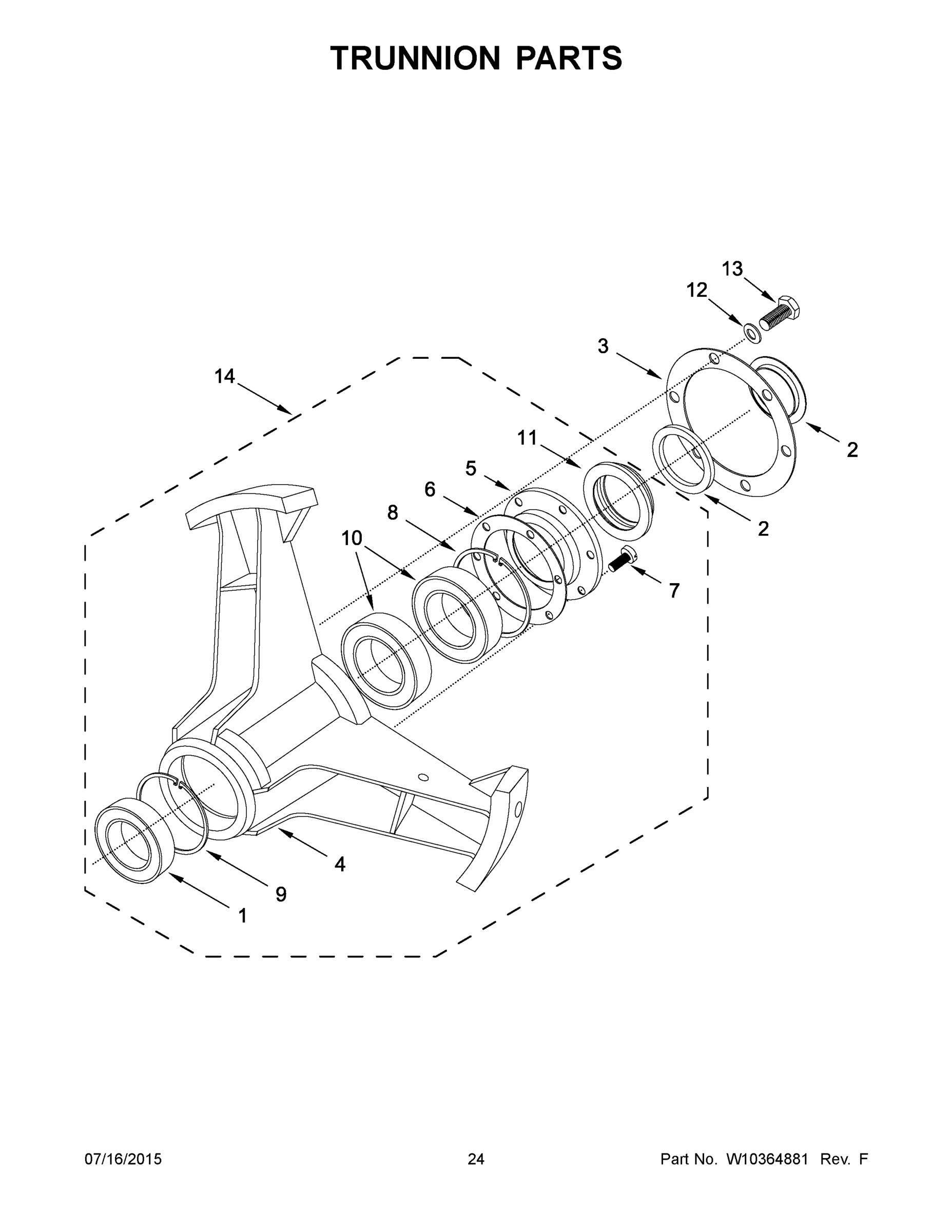

13 - TRUNNION PARTS
Common parts from model Maytag MFS35PDFTS COMMERCIAL WASHER
1
DRAIN VALVE (COMPLETE) MAY 23001244 Contact Us For Availability
1
MAY W10292561 MAY W10292561 Contact Us For Availability
1
MAY 23003861 MAY 23003861 Contact Us For Availability
1
CONTROL PANEL COIN MAY 23004302 Contact Us For Availability
1
CONTACTOR LC1 D09M7 MAY 23003750 Contact Us For Availability
1
MAY 23004392 MAY 23004392 Contact Us For Availability
1
MAY 23003897 MAY 23003897 Contact Us For Availability
1
MAY 23004493 MAY 23004493 Contact Us For Availability
1
MAY 23004082 MAY 23004082 Contact Us For Availability
1
MAY 23004462 MAY 23004462 Contact Us For Availability
1
BEARING (6309) MAY 23003615 Contact Us For Availability
1A
DRAIN VALVE (NO MOTOR) MAY W10126968 Contact Us For Availability
1B
DRAIN VALVE (MOTOR ONLY) MAY W10357127 Contact Us For Availability
2
MAY 23004469 MAY 23004469 Contact Us For Availability
2
DOOR GLASS MAY 23004109 Contact Us For Availability
2
MAY W10357120 MAY W10357120 Contact Us For Availability
2
CONTROL BOARD BRACKET MAY 23004117 Contact Us For Availability
2
FREQUENCY INVERTER PARTS MAY 23004080 Contact Us For Availability
2
DISPENSER COVER MAY 23001003 Contact Us For Availability
2
MAY 23004410 MAY 23004410 Contact Us For Availability
2
TUB TO DRAIN HOSE MAY 23001245 Contact Us For Availability
2
2-WAY INLET VALVE MAY 23001455 Contact Us For Availability
2
MAY 23004403 MAY 23004403 Contact Us For Availability
2
MAY 23004463 MAY 23004463 Contact Us For Availability
2
MAY 23003608 MAY 23003608 Contact Us For Availability
2A
FREQUENCY INVERTER PARTS MAY W10415735 Contact Us For Availability
2B
FREQUENCY INVERTER PARTS (COMMUNICATION CABLE MAY W10357136 Contact Us For Availability
3
MAY 23002421 MAY 23002421 Contact Us For Availability
3
BOLT M3X14 MAY 23001131 Contact Us For Availability
3
CONTROL BOARD (MC4 COIN CCU) MAY 23004118 Contact Us For Availability
3
GROMMET, RUBBER MAY 23001117 Contact Us For Availability
3
DISPENSER COVER RETAINER MAY 23003781 Contact Us For Availability
3
MAY 23003536 MAY 23003536 Contact Us For Availability
3
MAY W10357129 MAY W10357129 Contact Us For Availability
3
3-WAY INLET VALVE MAY 23001533 Contact Us For Availability
3
EYE BOLT (M16X90) MAY W10286331 Contact Us For Availability
3
MAY 23003607 MAY 23003607 Contact Us For Availability
3A
CONTROL BOARD (MC5 COIN CCU) MAY W10343020 Contact Us For Availability
4
MAY 23002727 MAY 23002727 Contact Us For Availability
4
MC4 COIN PROGRAM CHIP MAY W10165003 Contact Us For Availability
4
TERMINAL BLOCK MAY 23001113 Contact Us For Availability
4
HOPPER TO TUB HOSE MAY 23004187 Contact Us For Availability
4
TUB CLAMP PARTS (BELLOW TO TUB CLAMP) MAY 23003537 Contact Us For Availability
4
CLAMP, HOSE MAY 596669 Contact Us For Availability
4
MAY 23004506 MAY 23004506 Contact Us For Availability
4
MAY 23003458 MAY 23003458 Contact Us For Availability
4
MAY 23003609 MAY 23003609 Contact Us For Availability
4A
MAY W10387042 MAY W10387042 Contact Us For Availability
4A
TUB CLAMP PARTS (ASSEMBLY RING PLATE) MAY W10357140 Contact Us For Availability
5
MAY W10427067 MAY W10427067 Contact Us For Availability
5
SPRING, DOOR HANDLE MAY 23001169 Contact Us For Availability
5
BOLT M5X25 MAY 23001133 Contact Us For Availability
5
MAY 23004119 MAY 23004119 Contact Us For Availability
5
TERMINAL BLOCK INSULATION MAY 23001115 Contact Us For Availability
5
DOOR LOCK MAY 23001006 Contact Us For Availability
5
LOWER HOSE, PRESSURE SWITCH MAY 23001246 Contact Us For Availability
5
HOSE, INLET MAY 23001507 Contact Us For Availability
5
MAY 23004464 MAY 23004464 Contact Us For Availability
5
MAY 23003610 MAY 23003610 Contact Us For Availability
6
MAY 23004470 MAY 23004470 Contact Us For Availability
6
MAY 23002499 MAY 23002499 Contact Us For Availability
6
BOLT M4X8 MAY 23003114 Contact Us For Availability
6
INFRARED LENS MAY 23004120 Contact Us For Availability
6
WASHER M5.3 MAY 23001708 Contact Us For Availability
6
WASHER MAY 23001007 Contact Us For Availability
6
MAY 23003539 MAY 23003539 Contact Us For Availability
6
DRAIN VALVE OUTLET HOSE MAY 23001249 Contact Us For Availability
6
MAY W10223169 MAY W10223169 Contact Us For Availability
6
MAY 23002983 MAY 23002983 Contact Us For Availability
6
MAY 23004412 MAY 23004412 Contact Us For Availability
7
MAY 23004471 MAY 23004471 Contact Us For Availability
7
MAY W10286307 MAY W10286307 Contact Us For Availability
7
MAY W10592894 MAY W10592894 Contact Us For Availability
7
MAY 23004497 MAY 23004497 Contact Us For Availability
7
HOOK, LOCK MAY 23001009 Contact Us For Availability
7
BOLT M6X60 MAY 23004000 Contact Us For Availability
7
CORRUGATED VENT HOSE MAY 23001250 Contact Us For Availability
7
MAY 14227179 MAY 14227179 Contact Us For Availability
7
WASHER M17X40X3 MAY 23003403 Contact Us For Availability
7
MAY 23001184 MAY 23001184 Contact Us For Availability
8
MAY 23004472 MAY 23004472 Contact Us For Availability
8
WASHER M6.4 MAY 23002424 Contact Us For Availability
8
BIMETAL SWITCH ASSEMBLY MAY 23001135 Contact Us For Availability
8
3 BUTTON ASSEMBLY MAY 23003646 Contact Us For Availability
8
SCREW M4X13 MAY 23003810 Contact Us For Availability
8
BOLT M4X16 MAY 23001089 Contact Us For Availability
8
KEY, DOOR LOCK MAY 23002673 Contact Us For Availability
8
MAY 23003079 MAY 23003079 Contact Us For Availability
8
MAY 23004023 MAY 23004023 Contact Us For Availability
8
MAY 23002984 MAY 23002984 Contact Us For Availability
8
MAY 23003612 MAY 23003612 Contact Us For Availability
9
MAY 23004473 MAY 23004473 Contact Us For Availability
9
WASHER M6.4X17X3 MAY 23001309 Contact Us For Availability
9
WASHER M6 MAY 23001158 Contact Us For Availability
9
WASHER M5.1X3.3X0.1 MAY 23001136 Contact Us For Availability
9
MEMBRANE SWITCH MAY 23004122 Contact Us For Availability
9
LOWER OVERFLOW HOSE MAY 23001251 Contact Us For Availability
9
MAY 23003500 MAY 23003500 Contact Us For Availability
9
WASHER M12 MAY 23002658 Contact Us For Availability
9
MAY 23003613 MAY 23003613 Contact Us For Availability
10
MAY 23001014 MAY 23001014 Contact Us For Availability
10
BOLT M6X20 MAY 23002462 Contact Us For Availability
10
SNAP RING MAY 23001137 Contact Us For Availability
10
MEMBRANE SWITCH PLATE MAY 23004123 Contact Us For Availability
10
BOLT M4X12 MAY 23001012 Contact Us For Availability
10
UPPER HOSE, PRESSURE SWITCH MAY 23001252 Contact Us For Availability
10
MAY 23003497 MAY 23003497 Contact Us For Availability
10
MAY 23003451 MAY 23003451 Contact Us For Availability
10
BEARING (6310) MAY 23003614 Contact Us For Availability
11
MAY 23004474 MAY 23004474 Contact Us For Availability
11
DOOR HANDLE, GUIDE MAY 23001173 Contact Us For Availability
11
WASHER, LOCK M4 MAY 23002865 Contact Us For Availability
11
LOCK WASHER M4 MAY 23001013 Contact Us For Availability
11
LARGE T MAY 23001253 Contact Us For Availability
11
COOLING FAN MAY 23002165 Contact Us For Availability
11
DRUM PULLEY MAY 23001415 Contact Us For Availability
11
MAY 23003457 MAY 23003457 Contact Us For Availability
11
MAY 23003616 MAY 23003616 Contact Us For Availability
12
MAY 23004475 MAY 23004475 Contact Us For Availability
12
WASHER M4 MAY 23002504 Contact Us For Availability
12
MAY W10304861 MAY W10304861 Contact Us For Availability
12
SCREW M4X12 MAY 23003793 Contact Us For Availability
12
NUT M4 MAY 23002652 Contact Us For Availability
12
MAY 23004494 MAY 23004494 Contact Us For Availability
12
MAY 23003454 MAY 23003454 Contact Us For Availability
12
WASHER M22X11X1 MAY 23001201 Contact Us For Availability
13
MAY 23004476 MAY 23004476 Contact Us For Availability
13
MAY 23002280 MAY 23002280 Contact Us For Availability
13
LOCKING, BAR MAY 23001140 Contact Us For Availability
13
COIN DROP ASSEMBLY (.25 CENT) MAY 23004124 Contact Us For Availability
13
SOAP HOPPER GASKET MAY 23001015 Contact Us For Availability
13
WASHER M12 MAY 23004146 Contact Us For Availability
13
MAY 23003606 MAY 23003606 Contact Us For Availability
13
SMALL T MAY 23001255 Contact Us For Availability
13
MAY 23004495 MAY 23004495 Contact Us For Availability
13
MAY 23003455 MAY 23003455 Contact Us For Availability
13
BOLT M10X25 MAY 23003354 Contact Us For Availability
13A
DUAL COIN DROP ASSEMBLY (CANADA) MAY 23004075 Contact Us For Availability
13B
COIN DROP ASSEMBLY (OPTIC SWITCH) MAY 23004167 Contact Us For Availability
14
TOP CLIP MAY 23001442 Contact Us For Availability
14
BOLT M6X20 (HANDLE SIDE) MAY 23001175 Contact Us For Availability
14
RETAINING BOLT MAY 23003797 Contact Us For Availability
14
EXTERNAL SOAP HOPPER MAY 23001016 Contact Us For Availability
14
MAY 23004491 MAY 23004491 Contact Us For Availability
14
MED. STRAIN RELIEF MAY 23002196 Contact Us For Availability
14
MAY 23003456 MAY 23003456 Contact Us For Availability
14
MAY 23004413 MAY 23004413 Contact Us For Availability
15
MAY 23004113 MAY 23004113 Contact Us For Availability
15
MAY 23001138 MAY 23001138 Contact Us For Availability
15
LATCH ROLLER PIN MAY 23001142 Contact Us For Availability
15
Z CLIP MAY 23004125 Contact Us For Availability
15
GROUNDING PLATE MAY 23002505 Contact Us For Availability
15
SOAP HOPPER INSERT MAY 23001017 Contact Us For Availability
15
HEATING ELEMENT HOLE PLUG MAY 23001594 Contact Us For Availability
15
MED. STRAIN RELIEF NUT MAY 23002197 Contact Us For Availability
15
BOLT M12X25 MAY 23001418 Contact Us For Availability
16
DOOR HANDLE COVER MAY 23003860 Contact Us For Availability
16
LATCH ROLLER MAY 23001143 Contact Us For Availability
16
CLIP, U MAY 23004094 Contact Us For Availability
16
SYPHON HOSE MAY 23001018 Contact Us For Availability
16
CLAMP, RETAINING RING MAY 23004142 Contact Us For Availability
16
MAY 696392 MAY 696392 Contact Us For Availability
16
FUSE HOLDER (6X32MM) MAY 23002210 Contact Us For Availability
16
MAY 23004281 MAY 23004281 Contact Us For Availability
16
MAY 23003459 MAY 23003459 Contact Us For Availability
17
WASHER M8.4 MAY 23001608 Contact Us For Availability
17
NUT M5 MAY 23001448 Contact Us For Availability
17
FABRIC SOFTENER INSERT MAY 23001019 Contact Us For Availability
17
MAY 23004411 MAY 23004411 Contact Us For Availability
17
HOSE CLAMP MAY 23001259 Contact Us For Availability
17
MAY 23003504 MAY 23003504 Contact Us For Availability
17
BOLT M10X50 MAY 23003285 Contact Us For Availability
17
TOLERANCE RING MAY 23001410 Contact Us For Availability
18
HANDLE, DOOR BLOCK WITH PIN MAY 23001370 Contact Us For Availability
18
MAY 23004386 MAY 23004386 Contact Us For Availability
18
INSERT RETAINER MAY 23001020 Contact Us For Availability
18
TUB-FRONT CLAMP MAY 23004141 Contact Us For Availability
18
PRESSURE SWITCH HOSE FITTING MAY 23001260 Contact Us For Availability
18
FUSE 0.5A 250V MAY 23002919 Contact Us For Availability
18
MAY 23004507 MAY 23004507 Contact Us For Availability
18
MAY 23001661 MAY 23001661 Contact Us For Availability
19
LATCH, DOOR MAY 23003858 Contact Us For Availability
19
SOLENOID MAY 23001146 Contact Us For Availability
19
PREWASH DIVERTER MAY 23001021 Contact Us For Availability
19
FUNNEL MAY 23004148 Contact Us For Availability
19
HOSE CLAMP (40-60) MAY 23001750 Contact Us For Availability
19
NON-NORTH AMERICAN HOSE MAY 23003496 Contact Us For Availability
19
WASHER M10.5 MAY 23003788 Contact Us For Availability
19
MAY 23004508 MAY 23004508 Contact Us For Availability
19A
MAY 23001523 MAY 23001523 Contact Us For Availability
20
MAY W10286308 MAY W10286308 Contact Us For Availability
20
WASHER, LOCK MAY 23003778 Contact Us For Availability
20
MAINWASH DIVERTER MAY 23001022 Contact Us For Availability
20
MAY 23003911 MAY 23003911 Contact Us For Availability
20
CLAMP, HOSE MAY 616099 Contact Us For Availability
20
MAY 23002921 MAY 23002921 Contact Us For Availability
20
MAY 23001305 MAY 23001305 Contact Us For Availability
21
MAY W10304862 MAY W10304862 Contact Us For Availability
21
LEAF SPRING MAY 23001149 Contact Us For Availability
21
FABRIC SOFTENER DIVERTER MAY 23001023 Contact Us For Availability
21
MAY 23002437 MAY 23002437 Contact Us For Availability
21
BOLT M4X12 MAY 23002721 Contact Us For Availability
21
MAY 23001905 MAY 23001905 Contact Us For Availability
21
MAY 23004465 MAY 23004465 Contact Us For Availability
22
MAY 23004095 MAY 23004095 Contact Us For Availability
22
MAY 23003094 MAY 23003094 Contact Us For Availability
22
SCREW MAY 23003782 Contact Us For Availability
23
MAY W10286310 MAY W10286310 Contact Us For Availability
23
SPACER MAY 23003653 Contact Us For Availability
23
HOSE CLAMP (90-110) MAY 23001025 Contact Us For Availability
23
WASHER M8.4X24X2 MAY 23001203 Contact Us For Availability
24
SHAFT, LEVER MAY 23001168 Contact Us For Availability
24
BOLT M3X30 MAY 23003652 Contact Us For Availability
24
BOLT M6X25 MAY 23002806 Contact Us For Availability
24
SCREW ST4.8X25 MAY 23004488 Contact Us For Availability
25
MAY W10431220 MAY W10431220 Contact Us For Availability
25
WASHER M3.2 MAY 23003654 Contact Us For Availability
25
MAY 23001264 MAY 23001264 Contact Us For Availability
25
BOLT M8X120 MAY 23002908 Contact Us For Availability
25
NUT (M10) MAY 23002356 Contact Us For Availability
26
NUT M6 MAY 23001310 Contact Us For Availability
26
WASHER M4.3 MAY 23002438 Contact Us For Availability
26
MAY 23002958 MAY 23002958 Contact Us For Availability
26
MAY W10286312 MAY W10286312 Contact Us For Availability
26
MAY 23004040 MAY 23004040 Contact Us For Availability
26
MAY 23004466 MAY 23004466 Contact Us For Availability
27
BOLT M6X16 MAY 23002461 Contact Us For Availability
27
CONNECTOR, EMERGENCY STOP MAY W10357118 Contact Us For Availability
27
BOLT M5X16 MAY 23003484 Contact Us For Availability
28
LOCKWASHER, M6 MAY 23002756 Contact Us For Availability
28
MAY 23004485 MAY 23004485 Contact Us For Availability
28
MAY 23003766 MAY 23003766 Contact Us For Availability
28
MAY 23004241 MAY 23004241 Contact Us For Availability
28
WASHER M4 MAY 23002400 Contact Us For Availability
29
MAY 23001312 MAY 23001312 Contact Us For Availability
29
SWITCH, MICRO MAY 23003899 Contact Us For Availability
29
BOLT M3X6 MAY 23002869 Contact Us For Availability
29
MAY 23004486 MAY 23004486 Contact Us For Availability
29
SPRING CLIP MAY 23001032 Contact Us For Availability
29
WASHER M6 MAY 23002440 Contact Us For Availability
29
MAY 23004509 MAY 23004509 Contact Us For Availability
30
TOP CLIP SPRING MAY 23001445 Contact Us For Availability
30
MAY 23002877 MAY 23002877 Contact Us For Availability
30
WASHER, LOCK M6 MAY 23001734 Contact Us For Availability
30
MAY 23004103 MAY 23004103 Contact Us For Availability
30
TEMPERATURE SENSOR MUST ALSO ORDER KEY # 31 MAY 23003831 Contact Us For Availability
30
WASHER, LOCK M8 MAY 23002358 Contact Us For Availability
30
DRAIN ELBOW MAY 23002015 Contact Us For Availability
30
MAY W10361724 MAY W10361724 Contact Us For Availability
31
TINNERMAN CLIP MAY 23004481 Contact Us For Availability
31
DOUBLE-SIDED TAPE MAY 23004126 Contact Us For Availability
31
MAY W10304856 MAY W10304856 Contact Us For Availability
31
MAY W10382922 MAY W10382922 Contact Us For Availability
31
BUSHING NUT MAY 23002212 Contact Us For Availability
32
BOLT M6X30 MAY 23002463 Contact Us For Availability
32
NUT, M6 MAY 23002455 Contact Us For Availability
32
DOOR LOCK HOUSING MAY Y23002898 Contact Us For Availability
32
MAY 23002179 MAY 23002179 Contact Us For Availability
32
MAY W10357103 MAY W10357103 Contact Us For Availability
33
MAY W10357112 MAY W10357112 Contact Us For Availability
33
ACTUATOR ARM MAY 23002899 Contact Us For Availability
33
MAY 23003465 MAY 23003465 Contact Us For Availability
34
MAY 23003478 MAY 23003478 Contact Us For Availability
34
MAY 23003902 MAY 23003902 Contact Us For Availability
34
ACTUATOR ARM SPRING MAY 23001148 Contact Us For Availability
34
MAY 23004373 MAY 23004373 Contact Us For Availability
35
WASHER M6 MAY 23002457 Contact Us For Availability
35
EMERGENCY OPENING CORD MAY 23001152 Contact Us For Availability
35
MAY 23003903 MAY 23003903 Contact Us For Availability
36
WASHER M15X7X2 MAY 23002458 Contact Us For Availability
36
MAY 23002902 MAY 23002902 Contact Us For Availability
36
MAY 23001053 MAY 23001053 Contact Us For Availability
37
SPRING HOLDER, TILT SWITCH MAY 23003904 Contact Us For Availability
37
SPRING, SOLENOID MAY 23002903 Contact Us For Availability
38
SPRING MAY 23003900 Contact Us For Availability
38
MICROSWITCH MAY 23002337 Contact Us For Availability
39
DOOR LOCK WIRE HARNESS MC4 MAY 23002905 Contact Us For Availability
39
MAY 23002951 MAY 23002951 Contact Us For Availability
39A
MAY W10286305 MAY W10286305 Contact Us For Availability
40
MAY 23003901 MAY 23003901 Contact Us For Availability
41
MAY W10427075 MAY W10427075 Contact Us For Availability
41
MAY W10427109 MAY W10427109 Contact Us For Availability
42
MAY 23004414 MAY 23004414 Contact Us For Availability
54
COINBOX SUPPORT MAY 23003776 Contact Us For Availability
55
VAULT ASSEMBLY MAY 23003974 Contact Us For Availability
56
VAULT FRONT BEZEL MAY 23003775 Contact Us For Availability
57
CABINET STIFFNER (BACK LEFT) MAY 23004478 Contact Us For Availability
57A
CABINET STIFFNER (BACK RIGHT) MAY 23004479 Contact Us For Availability
58
MAY 23004480 MAY 23004480 Contact Us For Availability
65
BOLT M3X25 MAY 23002906 Contact Us For Availability
68
WASHER M6 MAY 23001027 Contact Us For Availability
72
MAY W10427069 MAY W10427069 Contact Us For Availability
73
MAY W10427074 MAY W10427074 Contact Us For Availability
NI
MICROSWITCH PLATE MAY 23003863 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10357119 MAY W10357119 Contact Us For Availability
NI
MC4 OPL CCU MAY 23003991 Contact Us For Availability
NI
MAY 23004163 MAY 23004163 Contact Us For Availability
NI
MAIN HARNESS (STARTING WITH SERIES 22) MAY W10357137 Contact Us For Availability
NI
O RING MAY W10382923 Contact Us For Availability
NI
SAFTEY LABEL MAY 23001465 Contact Us For Availability
NI
HOT WATER LABEL MAY 23001469 Contact Us For Availability
NI
MAY 23001470 MAY 23001470 Contact Us For Availability
NI
WATER VALVE LABEL MAY 23001509 Contact Us For Availability
NI
FUSE LABEL 1A/500V MAY 23003328 Contact Us For Availability
NI
MAY W10357133 MAY W10357133 Contact Us For Availability
NI
MAY W10357135 MAY W10357135 Contact Us For Availability
NI
MAY 23004498 MAY 23004498 Contact Us For Availability
× ![]()
