Model Maytag MFS18PDFTS WASHER – Common Parts & Diagrams
01 - CABINET AND COIN BOX PARTS
02 - DOOR PARTS

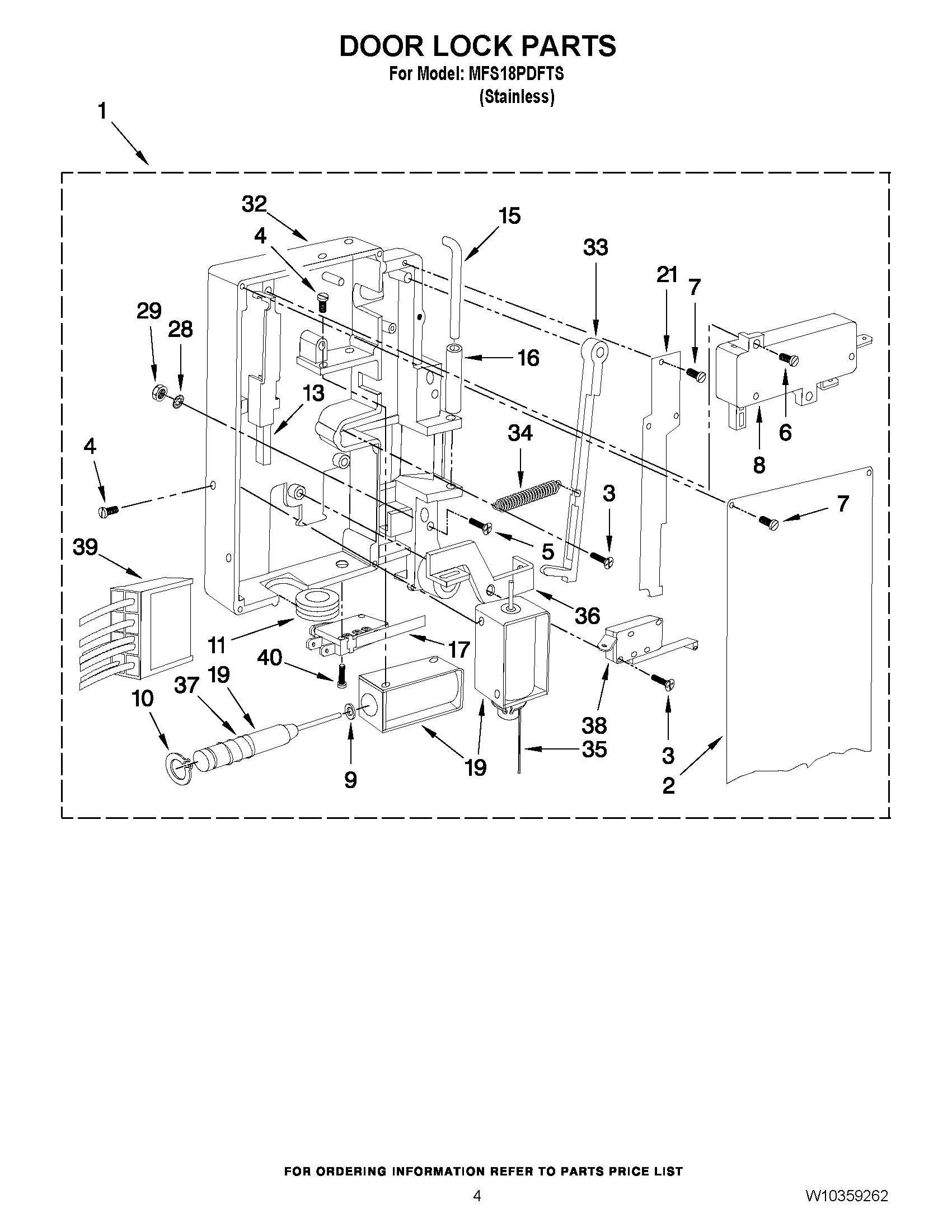

03 - DOOR LOCK PARTS

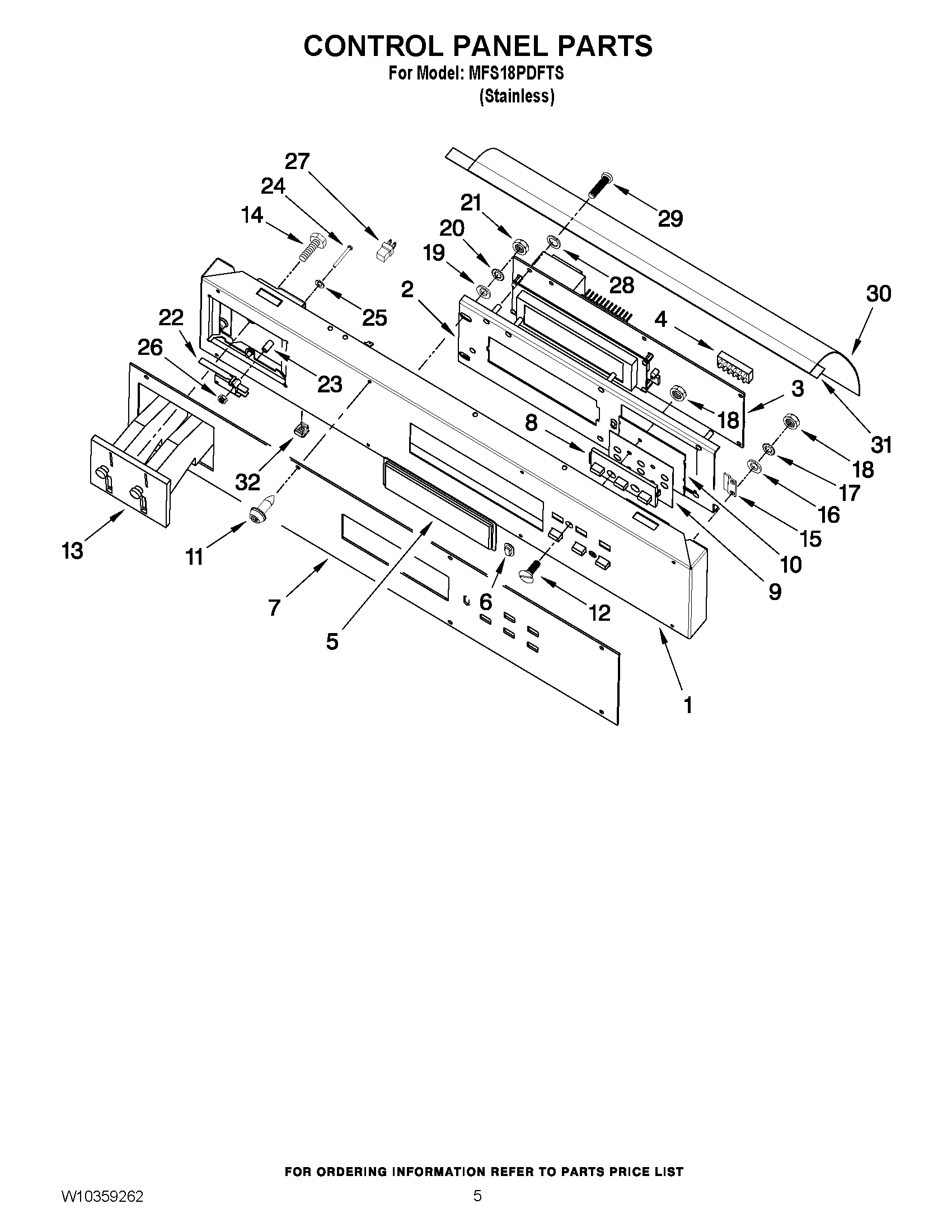

04 - CONTROL PANEL PARTS

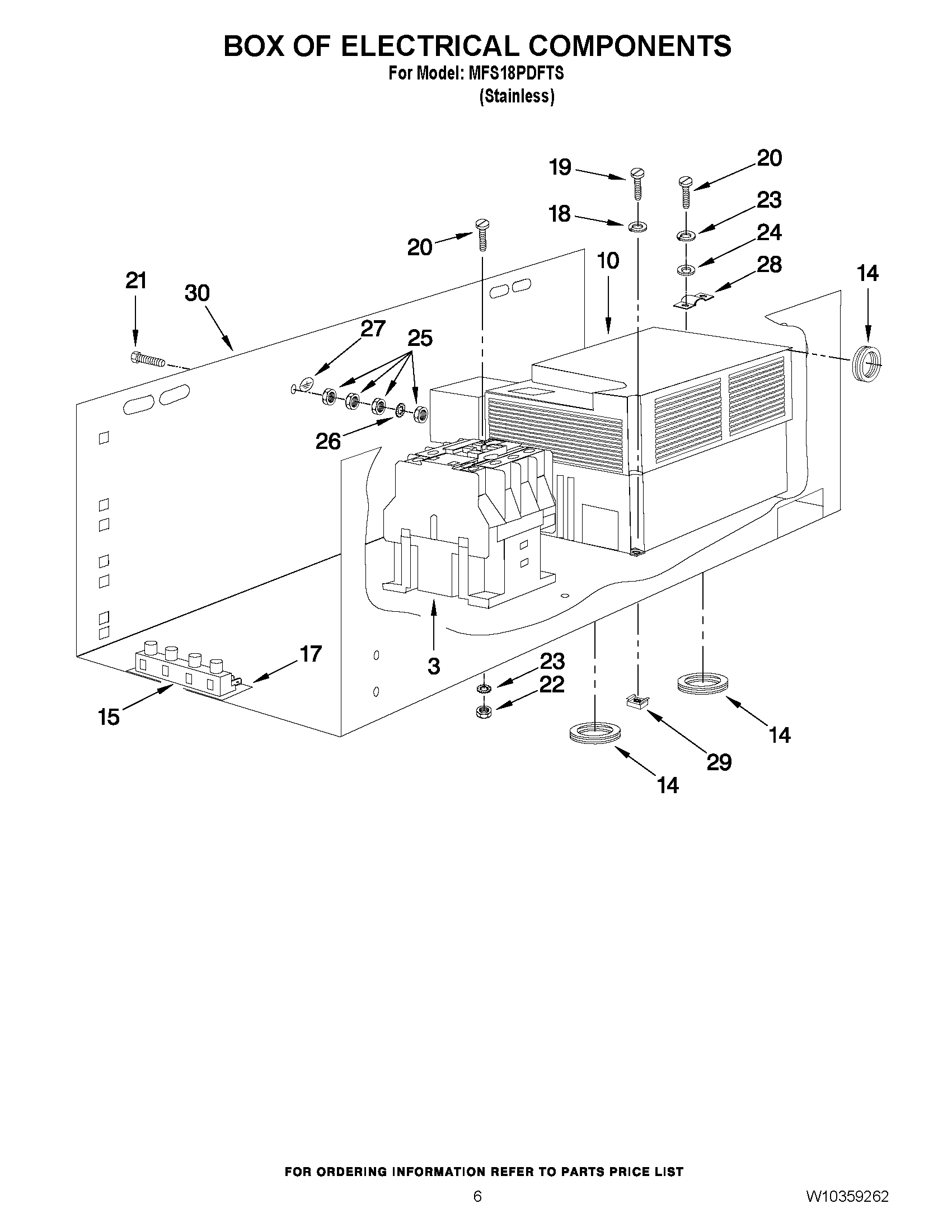

05 - BOX OF ELECTRICAL COMPONENTS

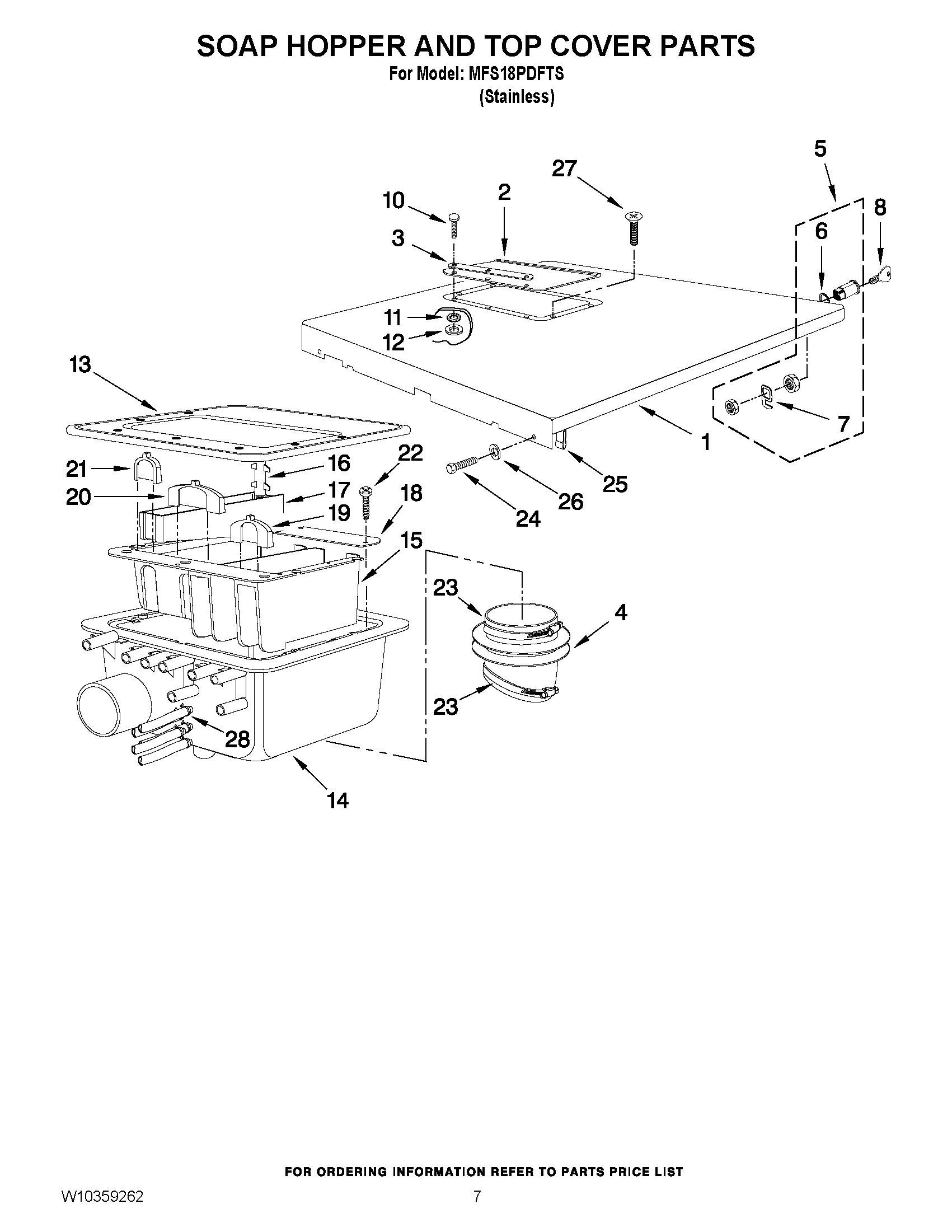

06 - SOAP HOPPER AND TOP COVER PARTS

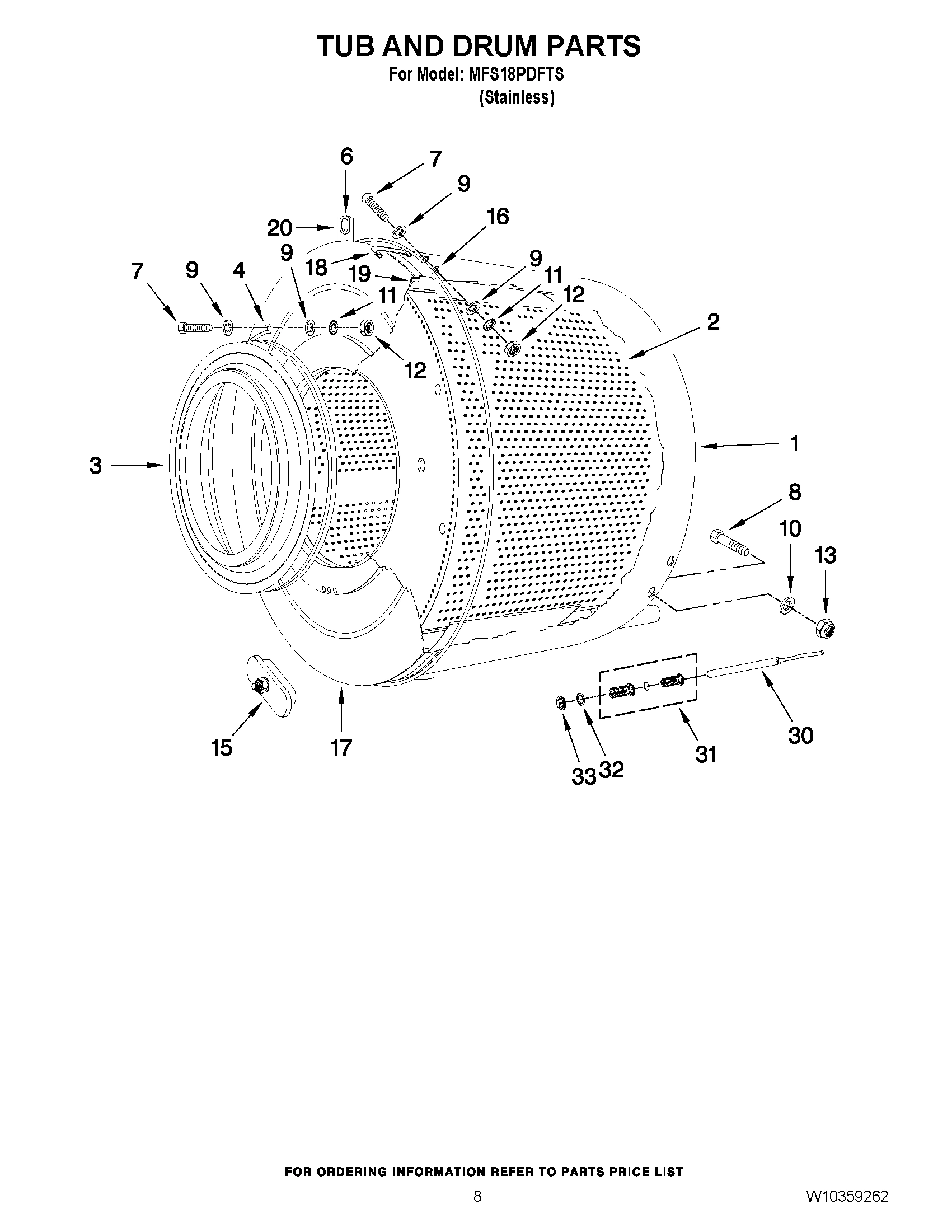

07 - TUB AND DRUM PARTS

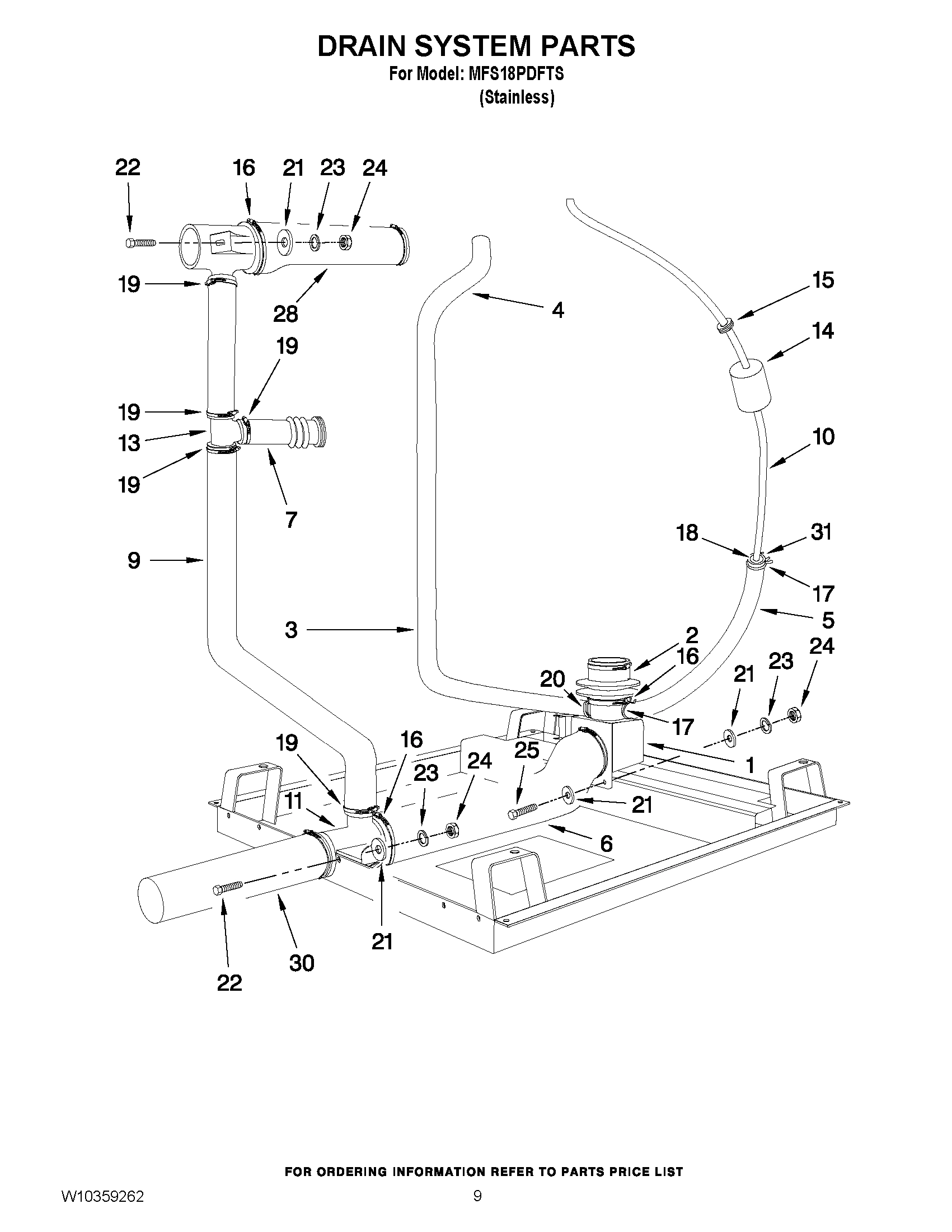

08 - DRAIN SYSTEM PARTS

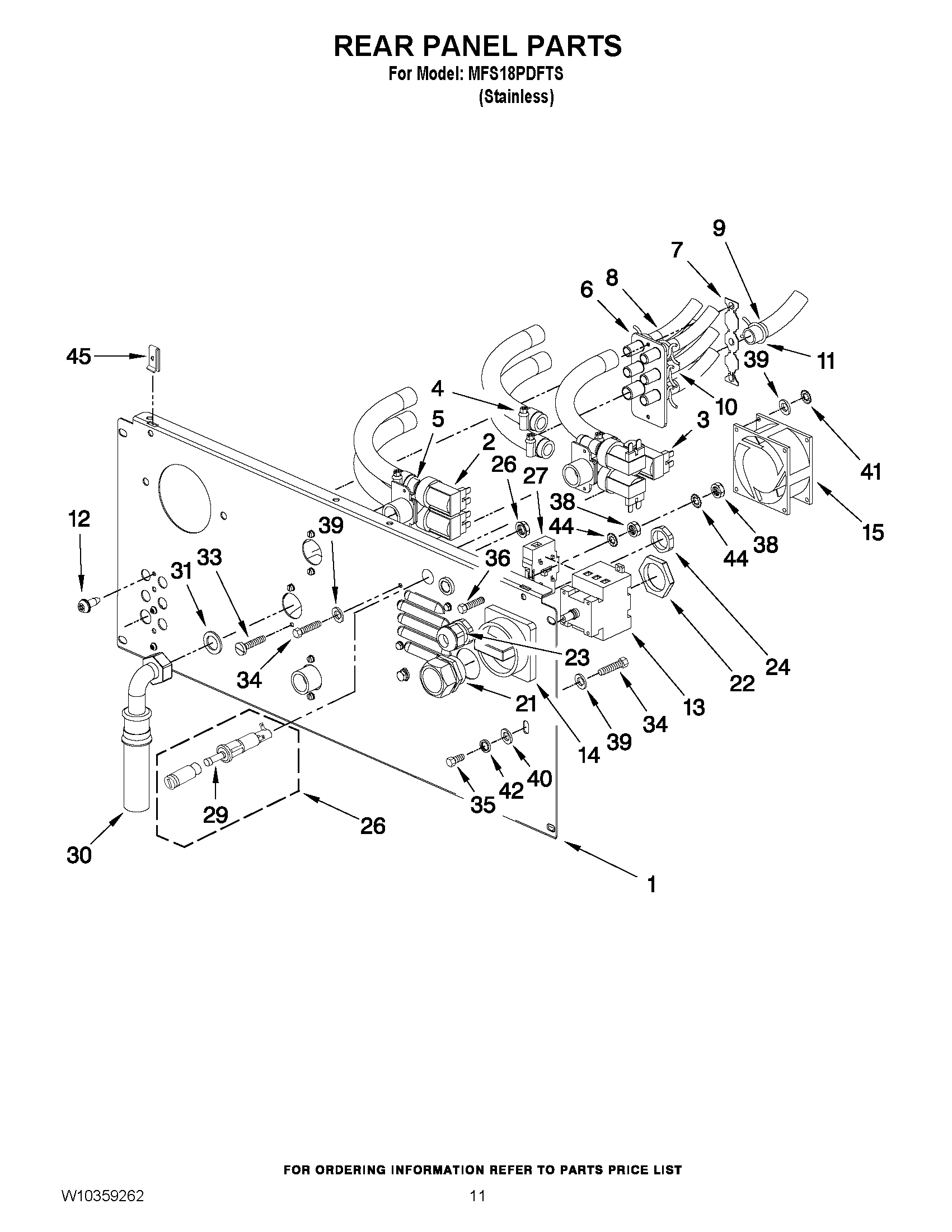

09 - REAR PANEL PARTS

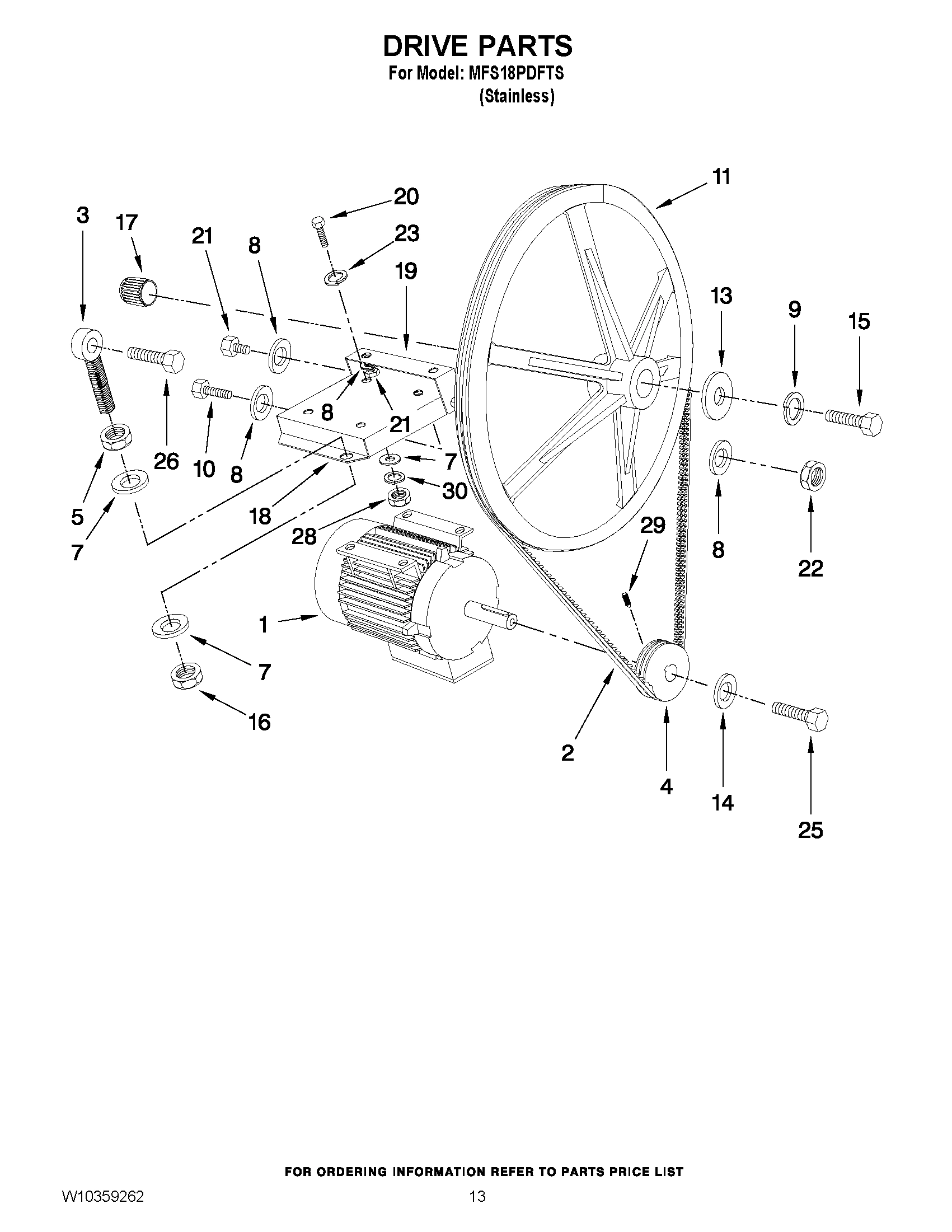

10 - DRIVE PARTS

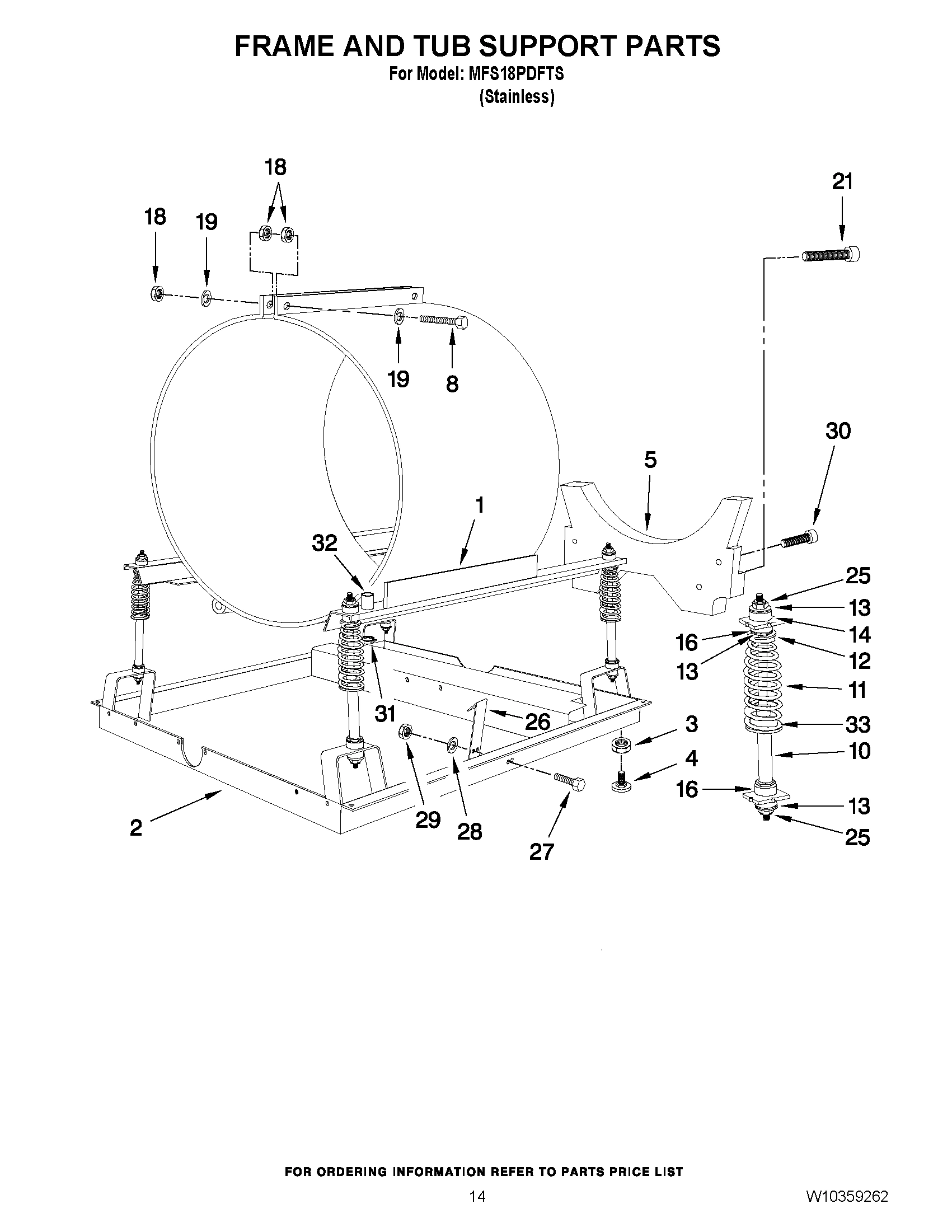

11 - FRAME AND TUB SUPPORT PARTS

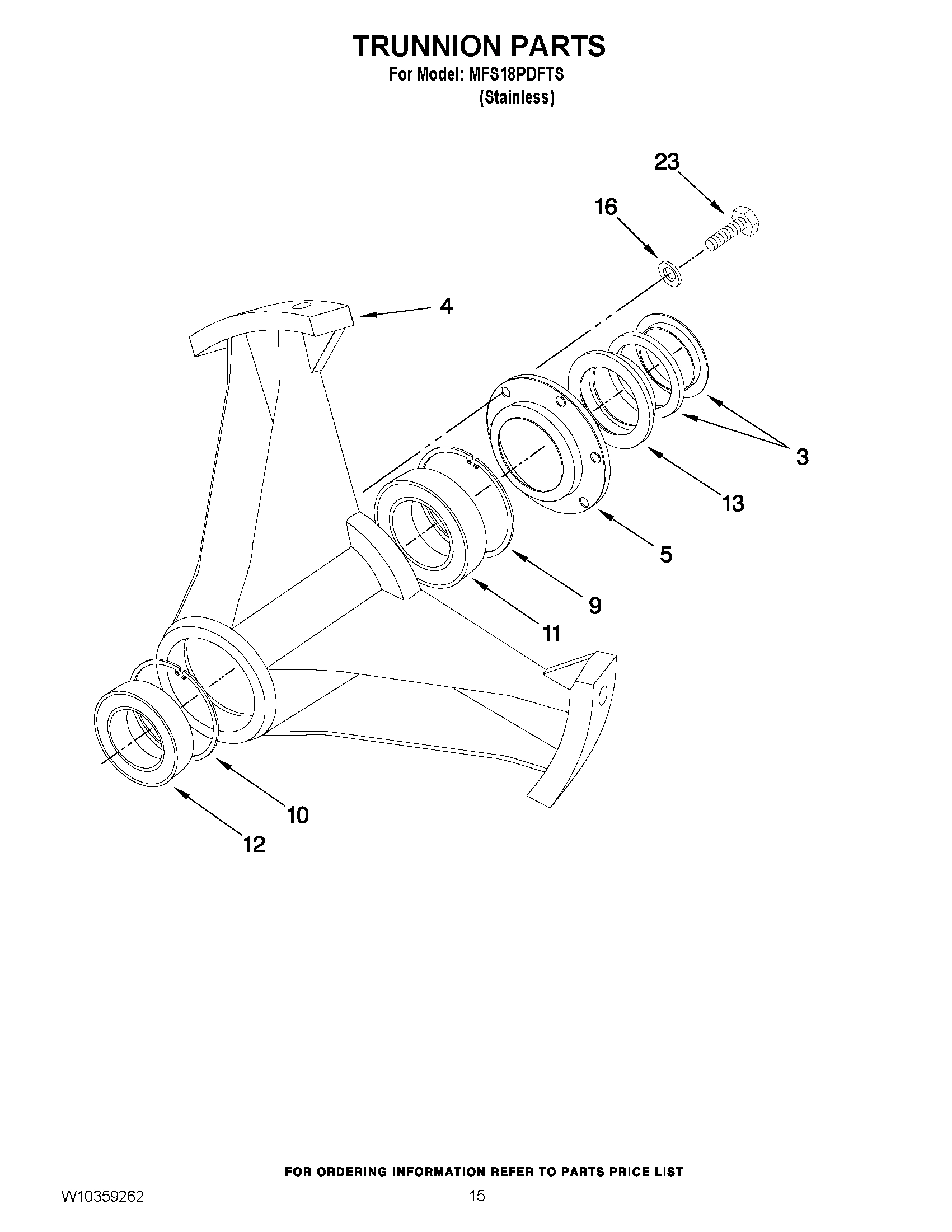

12 - TRUNNION PARTS
Common parts from model Maytag MFS18PDFTS WASHER
1
DRAIN VALVE COMPLETE MAY 23001244 Contact Us For Availability
1
DOOR LOCK COMPLETE MAY Y23002897 Contact Us For Availability
1
CONTROL PANEL MAY 23004302 Contact Us For Availability
1
MAY W10337907 MAY W10337907 Contact Us For Availability
1
MAY W10357138 MAY W10357138 Contact Us For Availability
1
DRAIN VALVE NO MOTOR MAY W10126968 Contact Us For Availability
1
MAY W10357127 MAY W10357127 Contact Us For Availability
1
MAY 23004493 MAY 23004493 Contact Us For Availability
1
DRIVE MOTOR MAY 23004079 Contact Us For Availability
1
MAY W10357099 MAY W10357099 Contact Us For Availability
2
MAY W10357106 MAY W10357106 Contact Us For Availability
2
MAY W10357120 MAY W10357120 Contact Us For Availability
2
CONTROL BOARD BRACKET MAY 23004117 Contact Us For Availability
2
DISPENSER COVER MAY 23001003 Contact Us For Availability
2
MAY W10357139 MAY W10357139 Contact Us For Availability
2
MAY W10357128 MAY W10357128 Contact Us For Availability
2
DUAL VALVE MAY 23001455 Contact Us For Availability
2
MAY 23003587 MAY 23003587 Contact Us For Availability
2
MAY W10357100 MAY W10357100 Contact Us For Availability
3
MAY 23003544 MAY 23003544 Contact Us For Availability
3
MC4 CONTROL BOARD MAY 23004118 Contact Us For Availability
3
MC5 CONTROL BOARD STARTING WITH SERIES 22 MAY W10343020 Contact Us For Availability
3
FREQUENCY INVERTER CONTACTOR MAY 23003750 Contact Us For Availability
3
DISPENSER COVER RETAINER MAY N/P Contact Us For Availability
3
MAY 23003536 MAY 23003536 Contact Us For Availability
3
MAY W10357129 MAY W10357129 Contact Us For Availability
3
TRIPLE VALVE MAY 23001533 Contact Us For Availability
3
MAY W10286331 MAY W10286331 Contact Us For Availability
4
DOOR GLASS GASKET MAY 23001365 Contact Us For Availability
4
MC4 COIN PROGRAM CHIP MAY W10165009 Contact Us For Availability
4
MC5 COIN PROGRAM CHIP STARTING WITH SERIES 22 MAY W10387042 Contact Us For Availability
4
HOPPER TO TUB HOSE MAY 23004187 Contact Us For Availability
4
MAY 23003537 MAY 23003537 Contact Us For Availability
4
MAY W10357140 MAY W10357140 Contact Us For Availability
4
MAY 23004490 MAY 23004490 Contact Us For Availability
4
HOSE CLAMP MAY 596669 Contact Us For Availability
4
MAY W10357142 MAY W10357142 Contact Us For Availability
4
MAY 23003458 MAY 23003458 Contact Us For Availability
4
MAY W10357145 MAY W10357145 Contact Us For Availability
5
HINGE BLOCK MAY 23003545 Contact Us For Availability
5
BOLT M5X25 MAY 23001133 Contact Us For Availability
5
MAY 23004119 MAY 23004119 Contact Us For Availability
5
TOP COVER LOCK MAY 23001006 Contact Us For Availability
5
LOWER PRESSURE SWITCH HOSE MAY 23001246 Contact Us For Availability
5
INLET HOSE MAY 23001507 Contact Us For Availability
5
MAY W10360062 MAY W10360062 Contact Us For Availability
5
MAY 23004511 MAY 23004511 Contact Us For Availability
6
MAY W10357107 MAY W10357107 Contact Us For Availability
6
HINGE BLOCK SHIM MAY 23001368 Contact Us For Availability
6
BOLT M4X8 MAY 23003114 Contact Us For Availability
6
INFRARED LENS MAY 23004120 Contact Us For Availability
6
TOP LOCK CAM MAY 23001007 Contact Us For Availability
6
MAY 23003539 MAY 23003539 Contact Us For Availability
6
DRAIN VALVE OUTLET HOSE MAY 23001249 Contact Us For Availability
6
MAY W10223169 MAY W10223169 Contact Us For Availability
7
MAY W10357108 MAY W10357108 Contact Us For Availability
7
MAY W10357116 MAY W10357116 Contact Us For Availability
7
TOP LOCK HOOK MAY 23001009 Contact Us For Availability
7
MAY 23004000 MAY 23004000 Contact Us For Availability
7
CORREGATED VENT HOSE MAY 23001250 Contact Us For Availability
7
MANIFOLD MTG PLATE MAY 14227179 Contact Us For Availability
7
WASHER M17X40X3 MAY 23003403 Contact Us For Availability
8
MAY W10357109 MAY W10357109 Contact Us For Availability
8
BIMETAL SWITCH ASSEMBLY MAY 23001135 Contact Us For Availability
8
3 BUTTON ASSEMBLY MAY 23003646 Contact Us For Availability
8
LOCK KEY MAY 23002673 Contact Us For Availability
8
MAY 23003079 MAY 23003079 Contact Us For Availability
8
MAY 23002193 MAY 23002193 Contact Us For Availability
8
MAY 23004023 MAY 23004023 Contact Us For Availability
8
MAY 23002984 MAY 23002984 Contact Us For Availability
9
SERVICE PANEL MAY 23001436 Contact Us For Availability
9
WASHER M6.4X17X3 MAY 23001309 Contact Us For Availability
9
DOOR HANDLE PIVOT PIN MAY 23001168 Contact Us For Availability
9
WASHER MAY 23001136 Contact Us For Availability
9
MEMBRANE SWITCH MAY 23004122 Contact Us For Availability
9
LOWER OVERFLOW HOSE MAY 23001251 Contact Us For Availability
9
LARGE CHEMICAL HOSE D14/18 MAY W10223170 Contact Us For Availability
9
WASHER M12 MAY 23002658 Contact Us For Availability
9
MAY 23004039 MAY 23004039 Contact Us For Availability
10
DOOR HANDLE SPRING MAY 23001169 Contact Us For Availability
10
SNAP RING MAY 23001137 Contact Us For Availability
10
MEMBRANE SWITCH PLATE MAY 23004123 Contact Us For Availability
10
FREQUENCY INVERTER MAY 23004078 Contact Us For Availability
10
MAY W10357136 MAY W10357136 Contact Us For Availability
10
FREQUENCY INVERTER (AFTER SERIES 22) MAY W10415734 Contact Us For Availability
10
BOLT M4X12 MAY 23001012 Contact Us For Availability
10
UPPER PRESSURE SWITCH HOSE MAY 23001252 Contact Us For Availability
10
MAY W10286344 MAY W10286344 Contact Us For Availability
10
MAY 23003285 MAY 23003285 Contact Us For Availability
10
MAY 23003451 MAY 23003451 Contact Us For Availability
10
MAY 23004512 MAY 23004512 Contact Us For Availability
11
MAY W10357110 MAY W10357110 Contact Us For Availability
11
SPRING SPEED CLIP MAY 23002499 Contact Us For Availability
11
LOCKWASHER (M4) MAY 23001013 Contact Us For Availability
11
LARGE T MAY 23001253 Contact Us For Availability
11
MAY W10286346 MAY W10286346 Contact Us For Availability
11
DRUM PULLEY MAY 23001415 Contact Us For Availability
11
MAY 23003453 MAY 23003453 Contact Us For Availability
11
FRONT BEARING MAY 23003615 Contact Us For Availability
12
MAY 23004475 MAY 23004475 Contact Us For Availability
12
SCREW M4X13 MAY 23003810 Contact Us For Availability
12
SCREW M4X12 MAY 23003793 Contact Us For Availability
12
NUT M4 MAY 23002652 Contact Us For Availability
12
MAY 23003454 MAY 23003454 Contact Us For Availability
12
REAR BEARING MAY 23004032 Contact Us For Availability
13
MAY 23004476 MAY 23004476 Contact Us For Availability
13
LOCKING BAR MAY 23001140 Contact Us For Availability
13
MAY 23004075 MAY 23004075 Contact Us For Availability
13
COIN DROP (.25 CENT) MAY 23004124 Contact Us For Availability
13
MAY 23004167 MAY 23004167 Contact Us For Availability
13
SOAP HOPPER GASKET MAY 23001015 Contact Us For Availability
13
WASHER M37X13X3 MAY 23004146 Contact Us For Availability
13
MAY W10357141 MAY W10357141 Contact Us For Availability
13
SMALL T MAY 23001255 Contact Us For Availability
13
MAY 23003500 MAY 23003500 Contact Us For Availability
13
MAY 23003455 MAY 23003455 Contact Us For Availability
13
WATER SEAL MAY 12002779 Contact Us For Availability
14
TOP CLIP MAY 23001442 Contact Us For Availability
14
WASHER M6 MAY 23002424 Contact Us For Availability
14
RETAINING BOLT MAY 23003797 Contact Us For Availability
14
RUBBER GROMMET MAY 23001117 Contact Us For Availability
14
EXTERNAL SOAP HOPPER MAY 23001016 Contact Us For Availability
14
MAY 23004491 MAY 23004491 Contact Us For Availability
14
MAY 23003497 MAY 23003497 Contact Us For Availability
14
MAY 23003456 MAY 23003456 Contact Us For Availability
15
LOCK WASHER M6 MAY 23001158 Contact Us For Availability
15
SMALLER BUMPER MAY 23001138 Contact Us For Availability
15
LATCH ROLLER PIN MAY 23001142 Contact Us For Availability
15
Z CLIP MAY 23004125 Contact Us For Availability
15
TERMINAL BLOCK MAY 23001113 Contact Us For Availability
15
SOAP HOPPER INSERT MAY 23001017 Contact Us For Availability
15
HEATING ELEMENT HOLE PLUG MAY 23001594 Contact Us For Availability
15
COOLING FAN MAY 23002165 Contact Us For Availability
15
MAY 23001418 MAY 23001418 Contact Us For Availability
16
LATCH ROLLER MAY 23001143 Contact Us For Availability
16
SYPHON HOSE MAY 23001018 Contact Us For Availability
16
MAY 23004502 MAY 23004502 Contact Us For Availability
16
MAY 696392 MAY 696392 Contact Us For Availability
16
MAY 23004281 MAY 23004281 Contact Us For Availability
16
MAY 23003459 MAY 23003459 Contact Us For Availability
16
WASHER M6.4X12X1.6 MAY 23002281 Contact Us For Availability
17
DOOR HANDLE, GUIDE MAY 23001173 Contact Us For Availability
17
TERMINAL BLOCK INSULATION MAY 23001115 Contact Us For Availability
17
FABRIC SOFTNER INSERT MAY 23001019 Contact Us For Availability
17
MAY 23004503 MAY 23004503 Contact Us For Availability
17
HOSE CLAMP MAY 23001259 Contact Us For Availability
17
TOLERANCE RING MAY 23001410 Contact Us For Availability
18
WASHER M5 MAY 23001708 Contact Us For Availability
18
INSERT RETAINER MAY 23001020 Contact Us For Availability
18
TUB-FRONT CLAMP MAY 23004141 Contact Us For Availability
18
PRESSURE SWITCH HOSE FITTING MAY 23001260 Contact Us For Availability
18
MAY W10357143 MAY W10357143 Contact Us For Availability
18
MAY 23001661 MAY 23001661 Contact Us For Availability
19
MAY 23002280 MAY 23002280 Contact Us For Availability
19
SOLENOID MAY 23001146 Contact Us For Availability
19
MAY 23004497 MAY 23004497 Contact Us For Availability
19
PREWASH DIVERTER MAY 23001021 Contact Us For Availability
19
FUNNEL MAY 23004148 Contact Us For Availability
19
HOSE CLAMP MAY 23001750 Contact Us For Availability
19
WASHER M10 MAY 23003788 Contact Us For Availability
19
MAY W10357144 MAY W10357144 Contact Us For Availability
20
BOLT M6X20 (HANDLE SIDE) MAY 23001175 Contact Us For Availability
20
BOLT M4X16 MAY 23001089 Contact Us For Availability
20
MAINWASH DIVERTER MAY 23001022 Contact Us For Availability
20
MAY 23003911 MAY 23003911 Contact Us For Availability
20
HOSE CLAMP MAY 616099 Contact Us For Availability
20
MAY 23001305 MAY 23001305 Contact Us For Availability
21
MAY 23004113 MAY 23004113 Contact Us For Availability
21
LEAF SPRING MAY 23001149 Contact Us For Availability
21
FABRIC SOFTNER DIVERTER MAY 23001023 Contact Us For Availability
21
MAY 23002437 MAY 23002437 Contact Us For Availability
21
MAY 23004494 MAY 23004494 Contact Us For Availability
21
MAY 23001905 MAY 23001905 Contact Us For Availability
21
MAY W10357101 MAY W10357101 Contact Us For Availability
22
MAY 23001014 MAY 23001014 Contact Us For Availability
22
SCREW ST3.5X25 MAY 23003782 Contact Us For Availability
22
MAY 23001264 MAY 23001264 Contact Us For Availability
22
MAY 23004495 MAY 23004495 Contact Us For Availability
23
BOLT M6X20 MAY 23002462 Contact Us For Availability
23
DOOR HANDLE COVER MAY 23003860 Contact Us For Availability
23
SPACER MAY 23003653 Contact Us For Availability
23
WASHER M4 MAY 23002865 Contact Us For Availability
23
HOSE CLAMP MAY 23001025 Contact Us For Availability
23
MED. STRAIN RELIEF MAY 23002196 Contact Us For Availability
23
WASHER M8.4X24X2 MAY 23001203 Contact Us For Availability
24
WASHER M4 MAY 23002504 Contact Us For Availability
24
MAY W10357125 MAY W10357125 Contact Us For Availability
24
BOLT M3X30 MAY 23003652 Contact Us For Availability
24
MAY 23004488 MAY 23004488 Contact Us For Availability
24
MED. STRAIN RELIEF NUT MAY 23002197 Contact Us For Availability
25
WASHER M3.2 MAY 23003654 Contact Us For Availability
25
BOLT M8X120 MAY 23002908 Contact Us For Availability
25
MAY 23002356 MAY 23002356 Contact Us For Availability
26
NUT M6 MAY 23001310 Contact Us For Availability
26
MAY 23002958 MAY 23002958 Contact Us For Availability
26
MAY W10357126 MAY W10357126 Contact Us For Availability
26
FUSE HOLDER MAY 23002210 Contact Us For Availability
26
MAY 23004040 MAY 23004040 Contact Us For Availability
26
MAY W10357102 MAY W10357102 Contact Us For Availability
27
BOLT M6X16 MAY 23002461 Contact Us For Availability
27
MAY 23003301 MAY 23003301 Contact Us For Availability
27
DOOR HANDLE BLOCK W/PIN MAY 23001370 Contact Us For Availability
27
MAY W10357118 MAY W10357118 Contact Us For Availability
27
GROUND LABEL MAY 23002505 Contact Us For Availability
27
BOLT M5X16 MAY 23003484 Contact Us For Availability
27
MAY 23003504 MAY 23003504 Contact Us For Availability
28
WASHER M6 MAY 23002756 Contact Us For Availability
28
DOOR LATCH MAY 23003858 Contact Us For Availability
28
MAY 23004485 MAY 23004485 Contact Us For Availability
28
U-CLIP MAY 23004094 Contact Us For Availability
28
MAY W10357122 MAY W10357122 Contact Us For Availability
28
MAY 23003766 MAY 23003766 Contact Us For Availability
28
MAY 23004241 MAY 23004241 Contact Us For Availability
29
MAY 23001312 MAY 23001312 Contact Us For Availability
29
MAY 23004489 MAY 23004489 Contact Us For Availability
29
BOLT M3X6 MAY 23002869 Contact Us For Availability
29
MAY 23004486 MAY 23004486 Contact Us For Availability
29
NUT M5 MAY 23001448 Contact Us For Availability
29
FUSE 0.5A MAY 23002919 Contact Us For Availability
29
MAY 23004509 MAY 23004509 Contact Us For Availability
30
TOP CLIP SPRING MAY 23001445 Contact Us For Availability
30
MAY W10382919 MAY W10382919 Contact Us For Availability
30
RAIN SHIELD MAY 23002877 Contact Us For Availability
30
MAY 23004386 MAY 23004386 Contact Us For Availability
30
TEMPERATURE SENSOR MAY 23003831 Contact Us For Availability
30
WASHER M8 MAY 23002358 Contact Us For Availability
30
DRAIN ELBOW MAY 23002015 Contact Us For Availability
30
NORTH AMERICAN, HOSE MAY 23001523 Contact Us For Availability
30
MAY 23003496 MAY 23003496 Contact Us For Availability
30
MAY W10361724 MAY W10361724 Contact Us For Availability
31
DOUBLE SIDED TAPE MAY 23004126 Contact Us For Availability
31
TEMPERATURE, SENSOR HOLDER MAY 23003807 Contact Us For Availability
31
HOSE WASHER MAY 23002921 Contact Us For Availability
31
BUSHING NUT MAY 23002212 Contact Us For Availability
32
BOLT M6X30 MAY 23002463 Contact Us For Availability
32
CAGE NUT M6 MAY 23002455 Contact Us For Availability
32
DOOR LOCK HOUSING MAY Y23002898 Contact Us For Availability
32
O RING MAY 23002179 Contact Us For Availability
32
MAY W10357103 MAY W10357103 Contact Us For Availability
33
MAY W10357112 MAY W10357112 Contact Us For Availability
33
ACTUATOR ARM MAY 23002899 Contact Us For Availability
33
TEMPERATURE, SENSOR HOLDER, NUT M14 MAY 23002936 Contact Us For Availability
33
BOLT M4X12 MAY 23002721 Contact Us For Availability
33
MAY 23003465 MAY 23003465 Contact Us For Availability
34
MAY 23003478 MAY 23003478 Contact Us For Availability
34
MAY 23004095 MAY 23004095 Contact Us For Availability
34
ACTUATOR ARM SPRING MAY 23001148 Contact Us For Availability
35
WASHER M6 MAY 23002457 Contact Us For Availability
35
EMERGENCY OPENING CORD MAY 23001152 Contact Us For Availability
36
WASHER M15X7X2 MAY 23002458 Contact Us For Availability
36
MAY 23002902 MAY 23002902 Contact Us For Availability
36
BOLT M6X25 MAY 23002806 Contact Us For Availability
37
SOLENOID SPRING MAY 23002903 Contact Us For Availability
38
DOOR LOCKED SWITCH MAY 23002337 Contact Us For Availability
39
WASHER M4.3 MAY 23002438 Contact Us For Availability
39
DOOR LOCK WIRE HARNESS MAY 23002905 Contact Us For Availability
40
BOLT M3X14 MAY 23001131 Contact Us For Availability
41
WASHER M4 MAY 23002400 Contact Us For Availability
42
WASHER M6 MAY 23002440 Contact Us For Availability
44
LOCK WASHER M6 MAY 23001734 Contact Us For Availability
45
TINNERMAN CLIP MAY 23004481 Contact Us For Availability
54
COINBOX SUPPORT MAY 23003776 Contact Us For Availability
55
VAULT ASSEMBLY MAY 23003974 Contact Us For Availability
56
VAULT FRONT BEZEL MAY 23003775 Contact Us For Availability
57
MAY W10357114 MAY W10357114 Contact Us For Availability
57
MAY W10357115 MAY W10357115 Contact Us For Availability
58
SCREW ST4, 8X13 MAY 23004480 Contact Us For Availability
60
MAY 23003901 MAY 23003901 Contact Us For Availability
61
MAY 23003900 MAY 23003900 Contact Us For Availability
63
MAY 23003902 MAY 23003902 Contact Us For Availability
64
MAY 23003899 MAY 23003899 Contact Us For Availability
65
BOLT M3X25 MAY 23002906 Contact Us For Availability
67
MAY 23003904 MAY 23003904 Contact Us For Availability
68
WASHER M6 MAY 23001027 Contact Us For Availability
NI
MICROSWITCH INSULATING WASHER MAY 23003863 Contact Us For Availability
NI
MAY W10357119 MAY W10357119 Contact Us For Availability
NI
MAY 23004163 MAY 23004163 Contact Us For Availability
NI
MAY W10357137 MAY W10357137 Contact Us For Availability
NI
O RING MAY W10382923 Contact Us For Availability
NI
SAFTEY LABEL MAY 23001465 Contact Us For Availability
NI
HOT WATER LABEL MAY 23001469 Contact Us For Availability
NI
MAY 23001470 MAY 23001470 Contact Us For Availability
NI
WATER VALVE LABEL MAY 23001509 Contact Us For Availability
NI
FUSE LABEL 1A/500V MAY 23003328 Contact Us For Availability
NI
MAY W10357133 MAY W10357133 Contact Us For Availability
NI
MAY W10357135 MAY W10357135 Contact Us For Availability
NI
MAY 23004498 MAY 23004498 Contact Us For Availability
× ![]()
