Model Maytag MFR80PDCTS COMMERCIAL WASHER – Common Parts & Diagrams

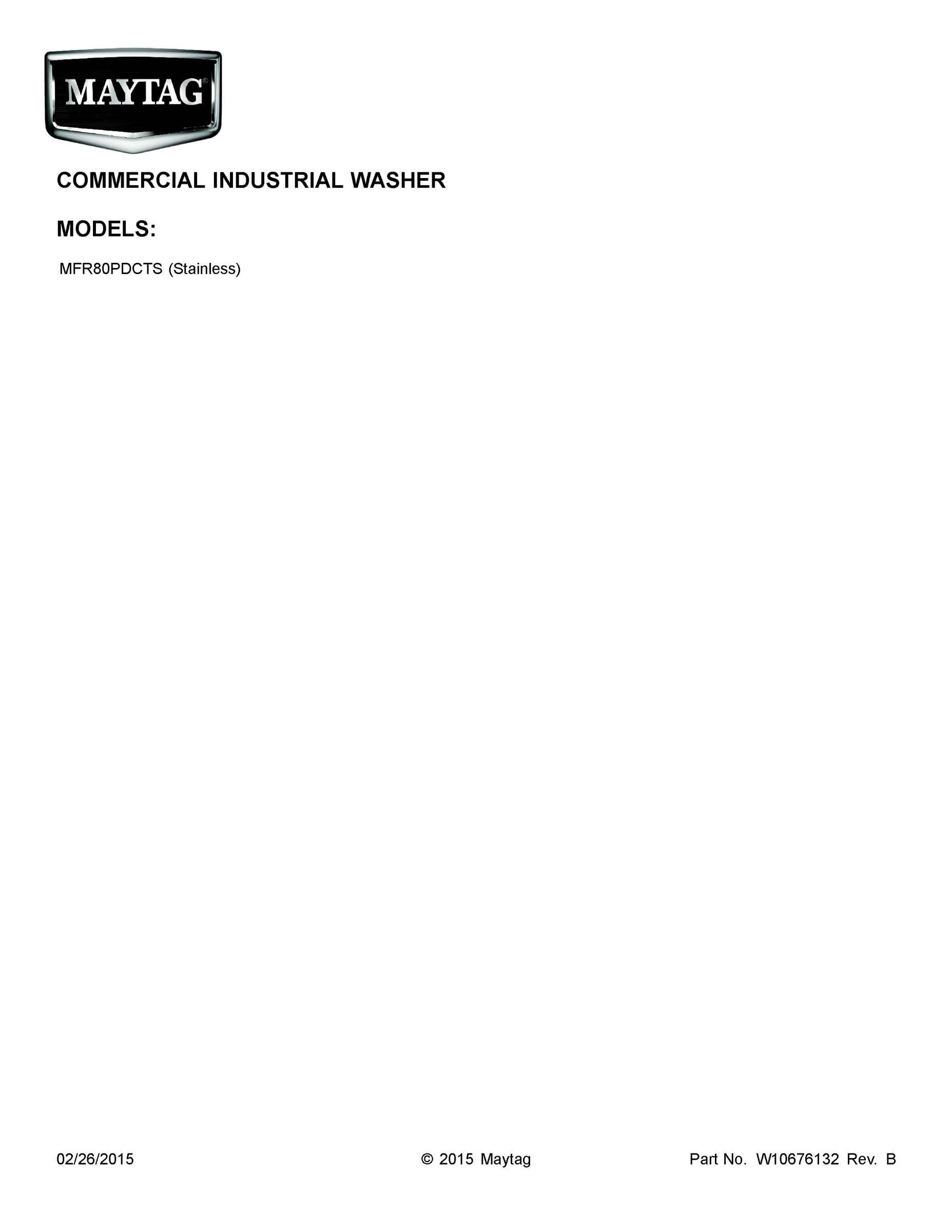

01 - COVER SHEET

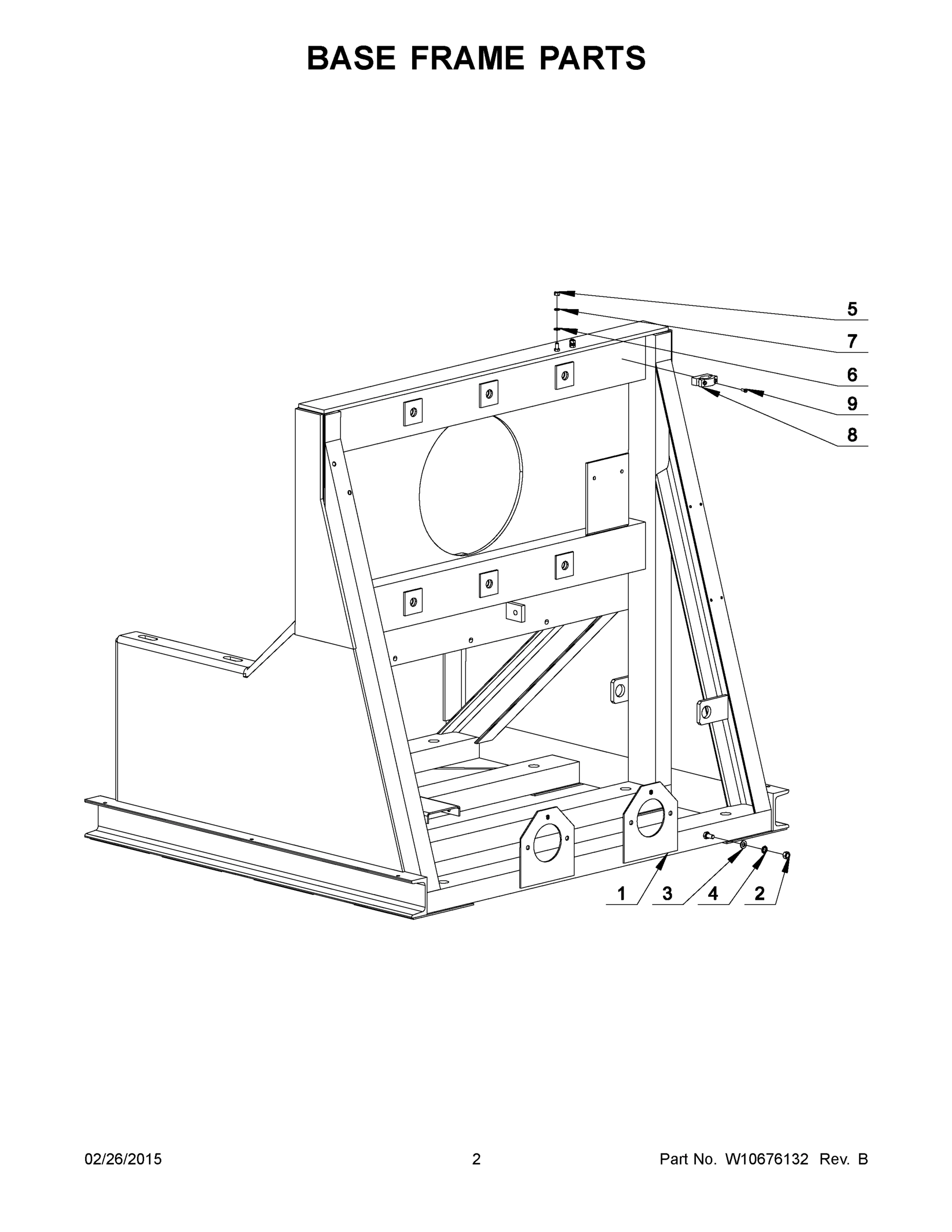

02 - BASE FRAME PARTS

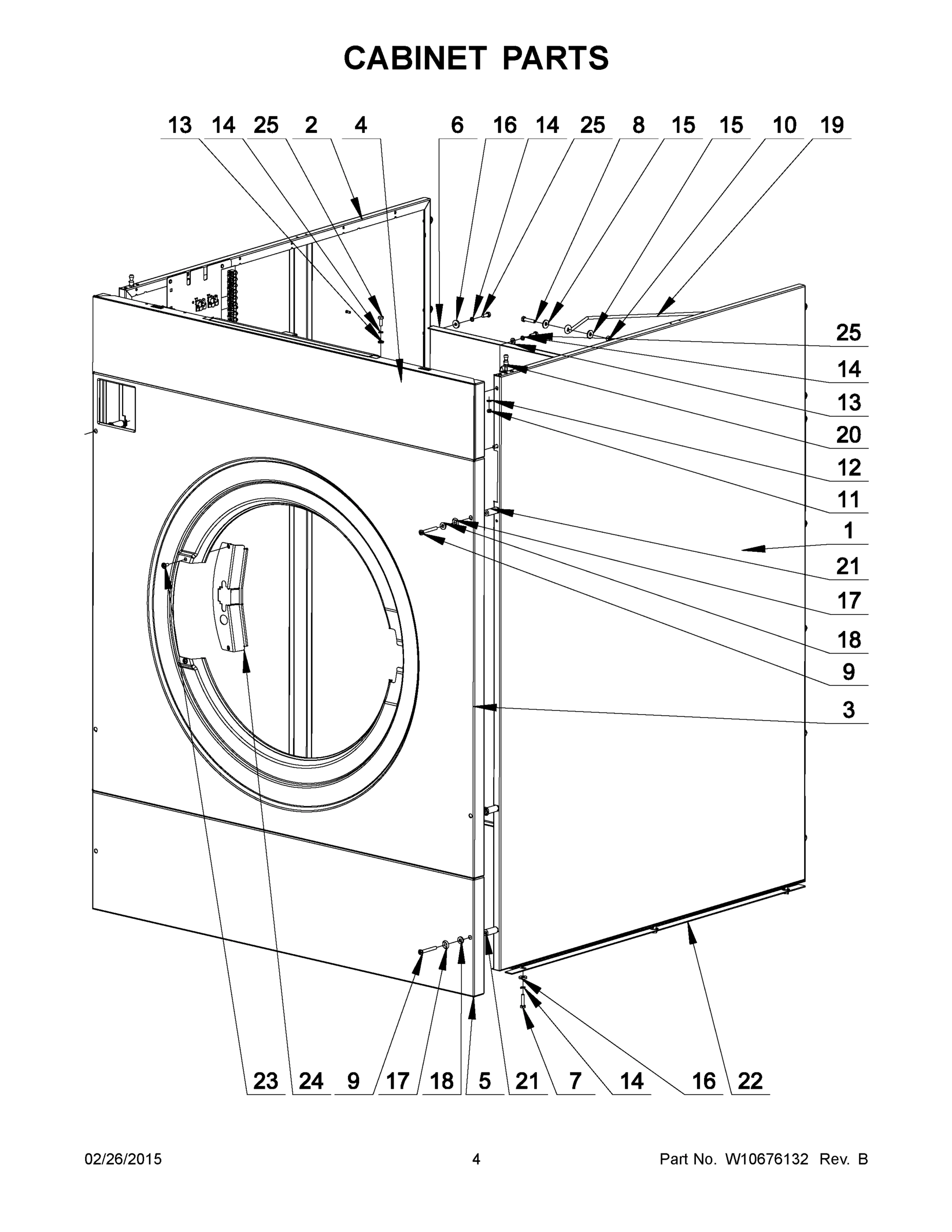

03 - CABINET PARTS

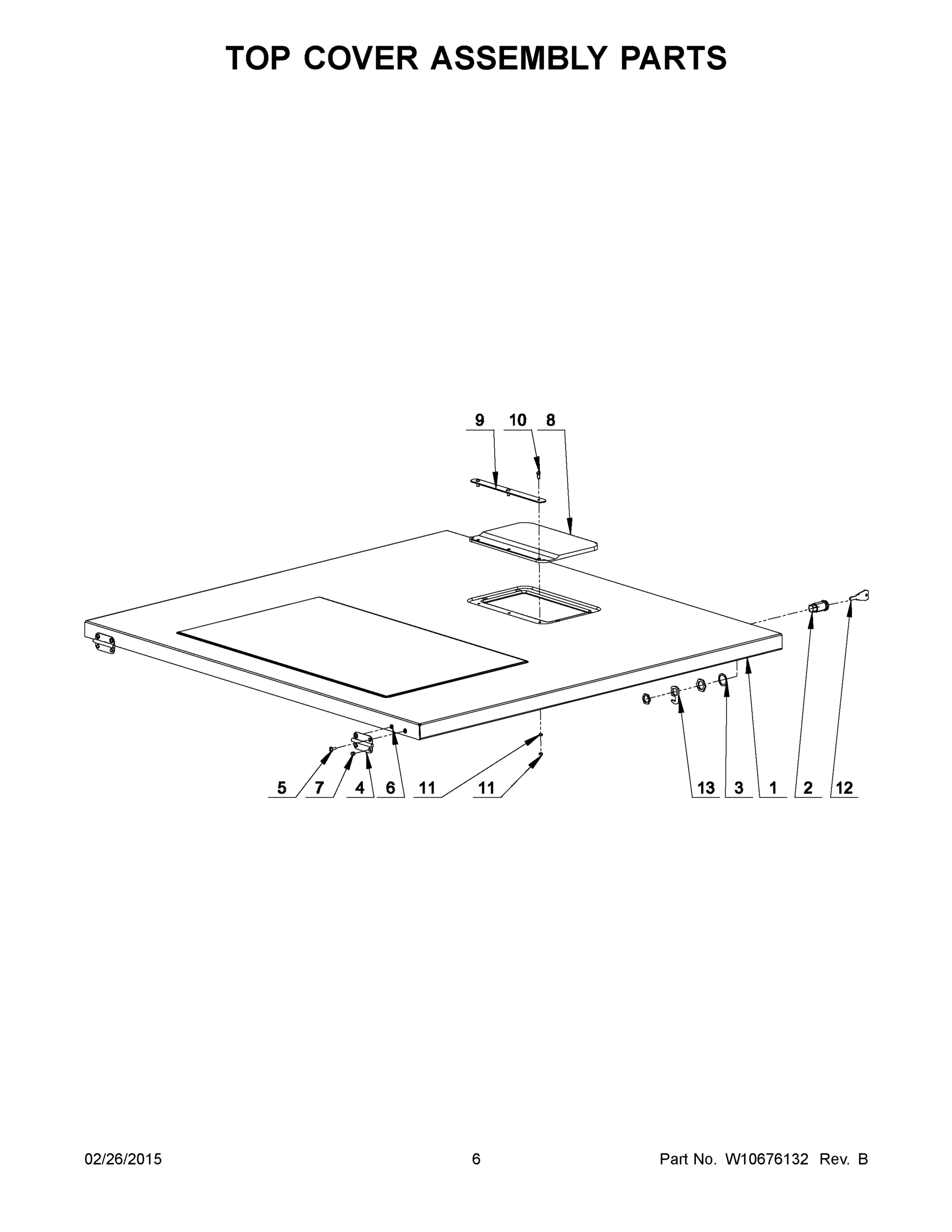

04 - TOP COVER ASSEMBLY PARTS

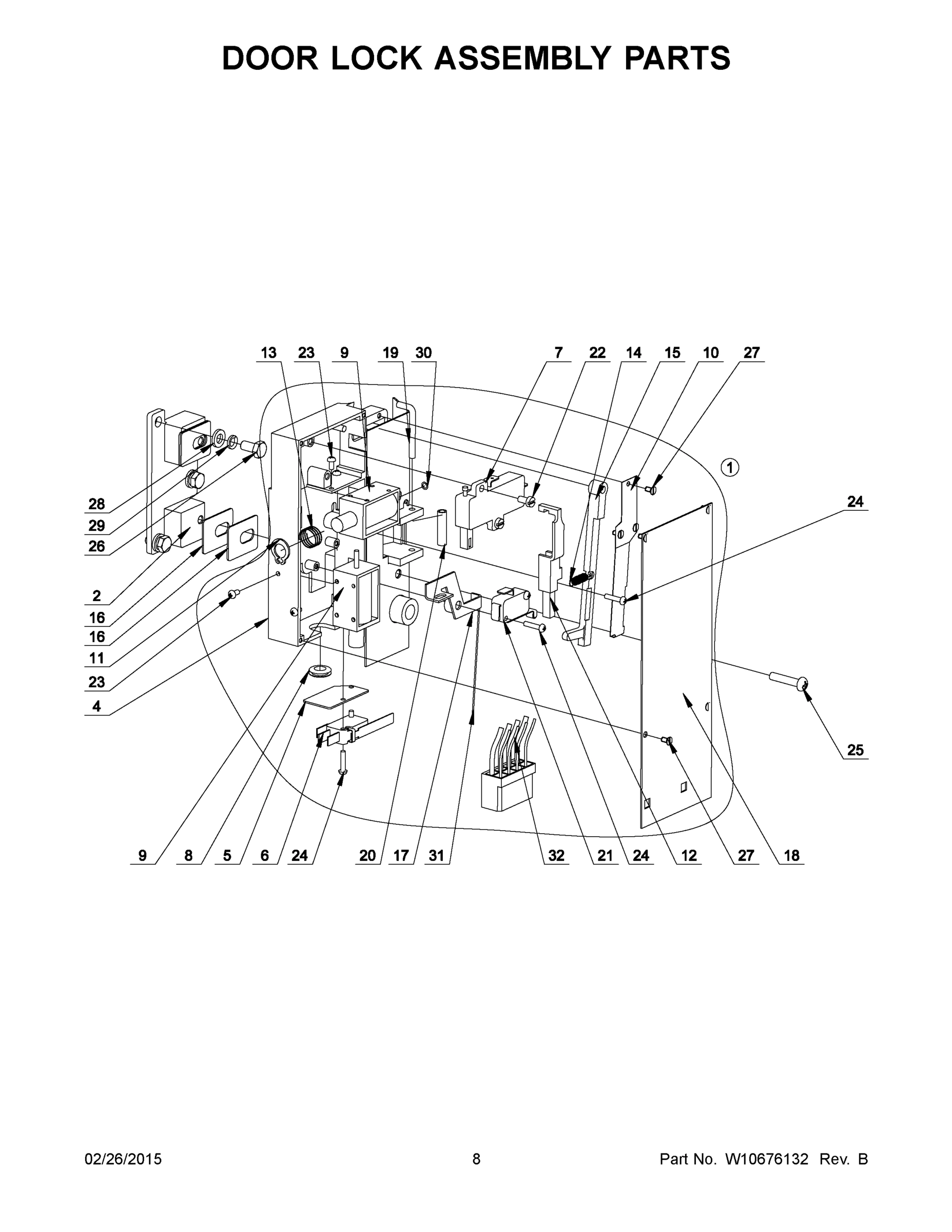

05 - DOOR LOCK ASSEMBLY PARTS

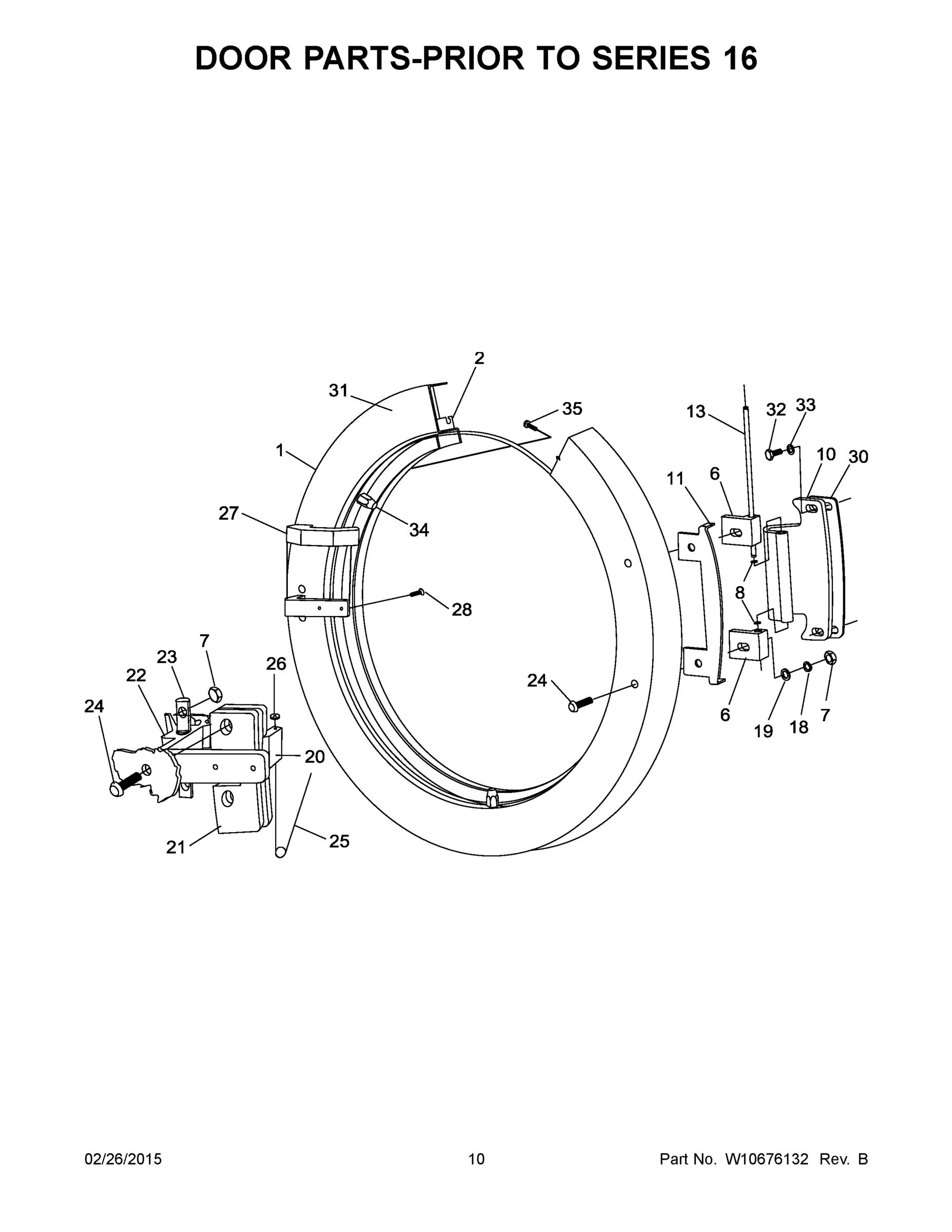

06 - DOOR PARTS-PRIOR TO SERIES 16

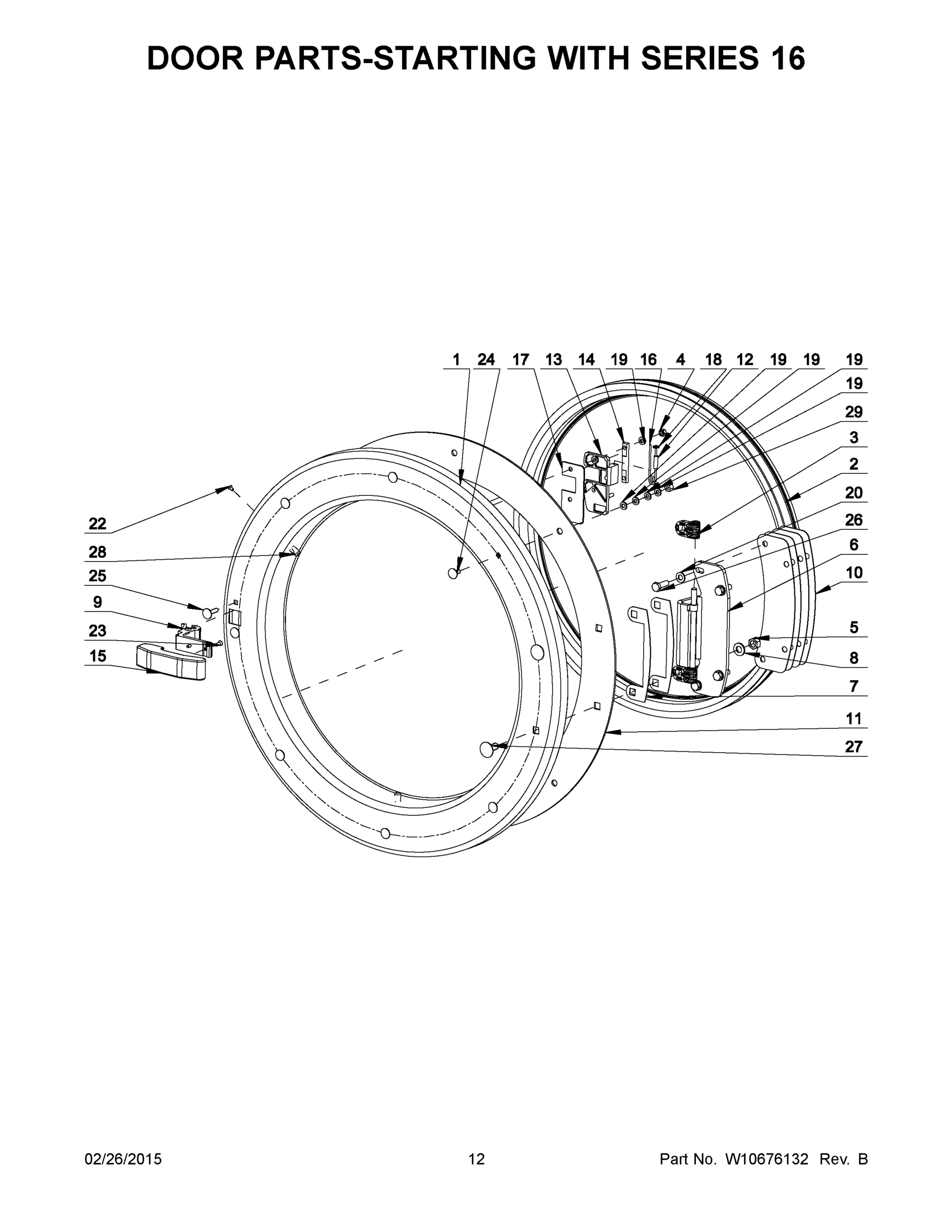

07 - DOOR PARTS-STARTING WITH SERIES 16

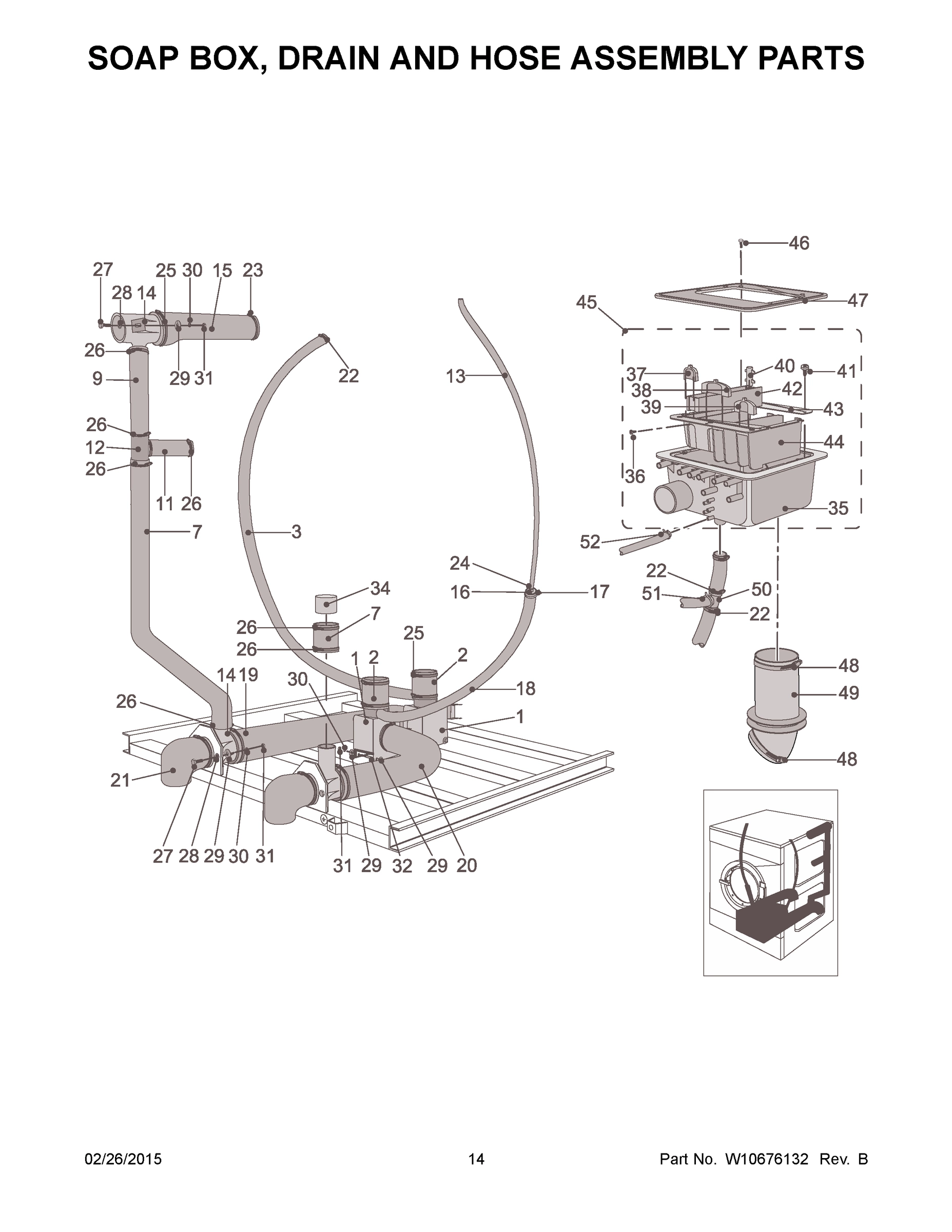

08 - SOAP BOX, DRAIN AND HOSE ASSEMBLY PARTS

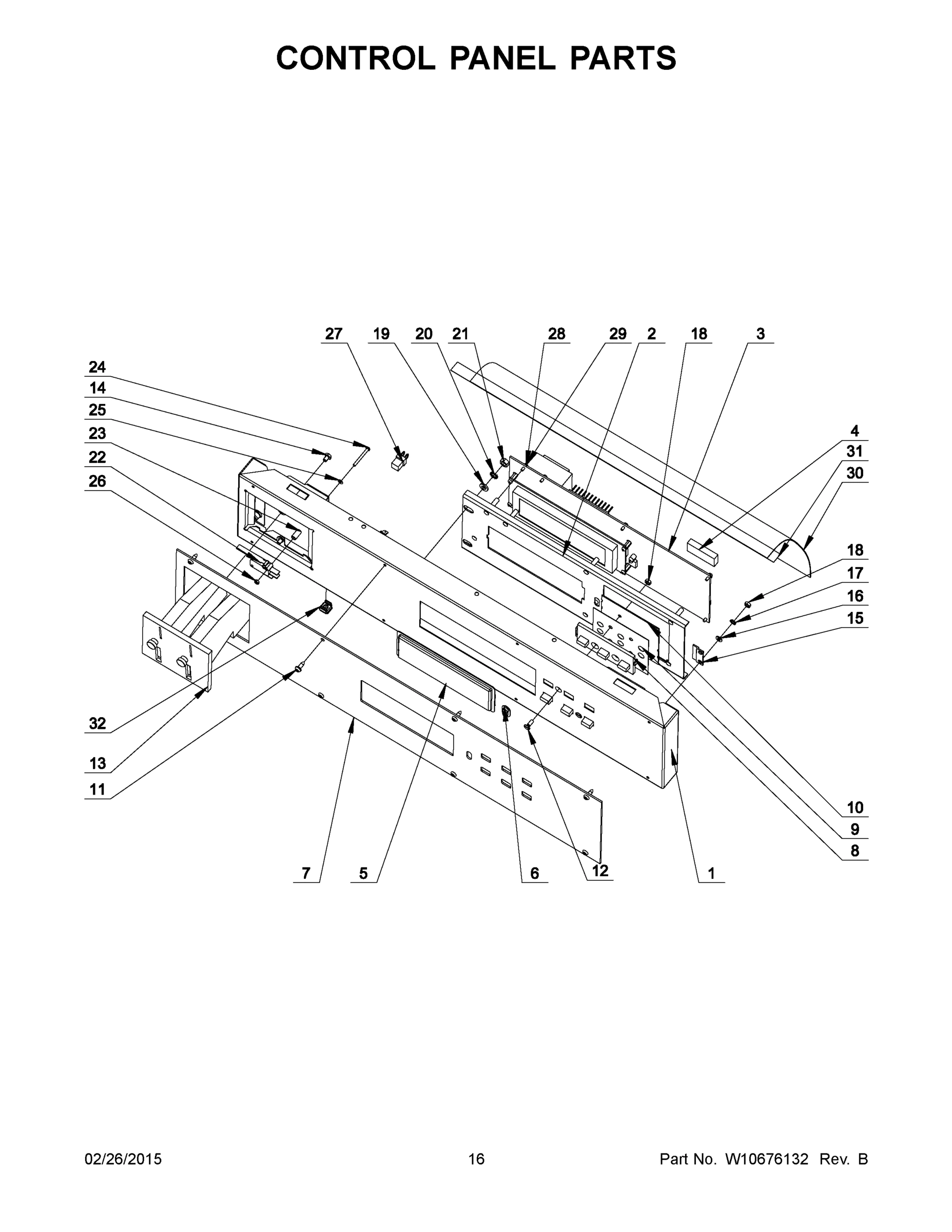

09 - CONTROL PANEL PARTS

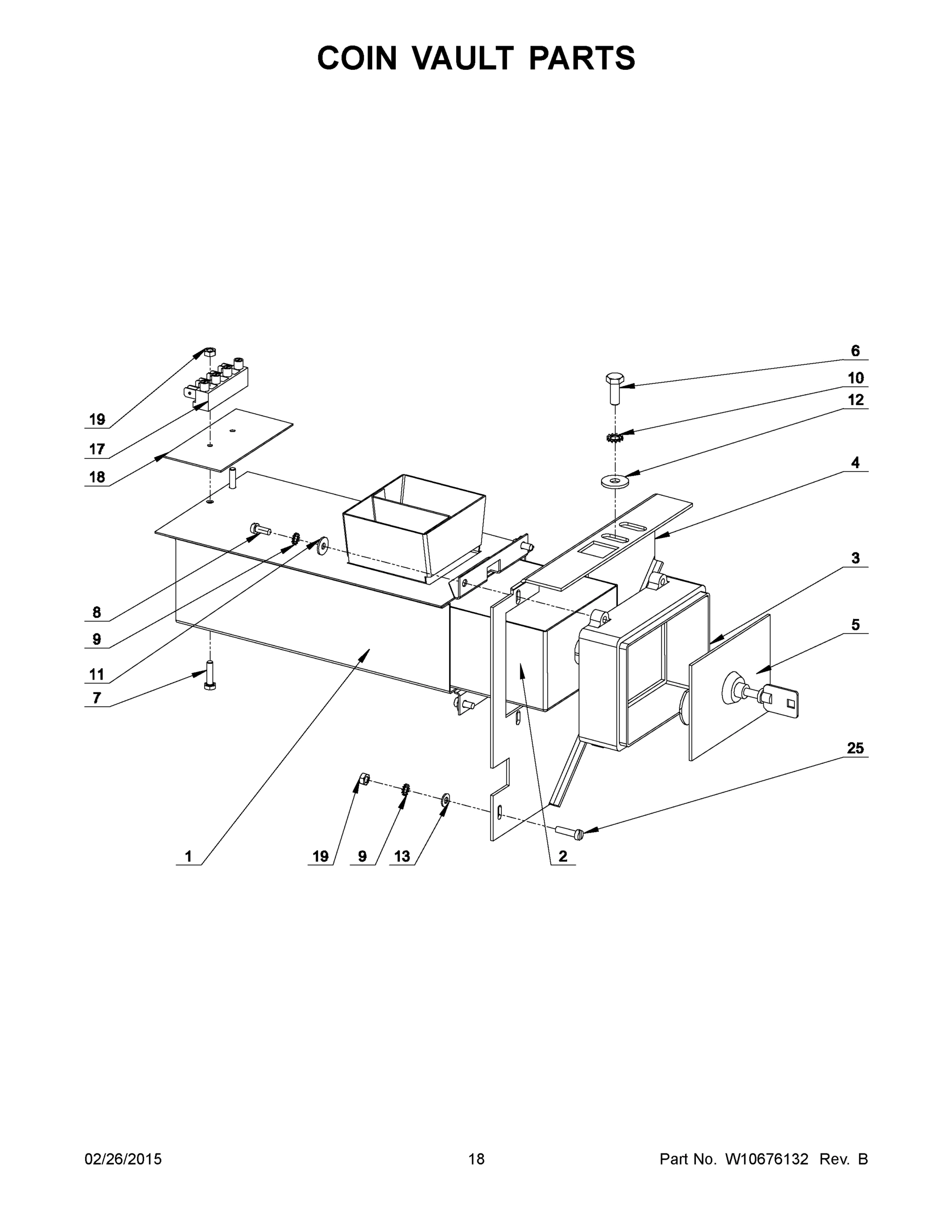

10 - COIN VAULT PARTS

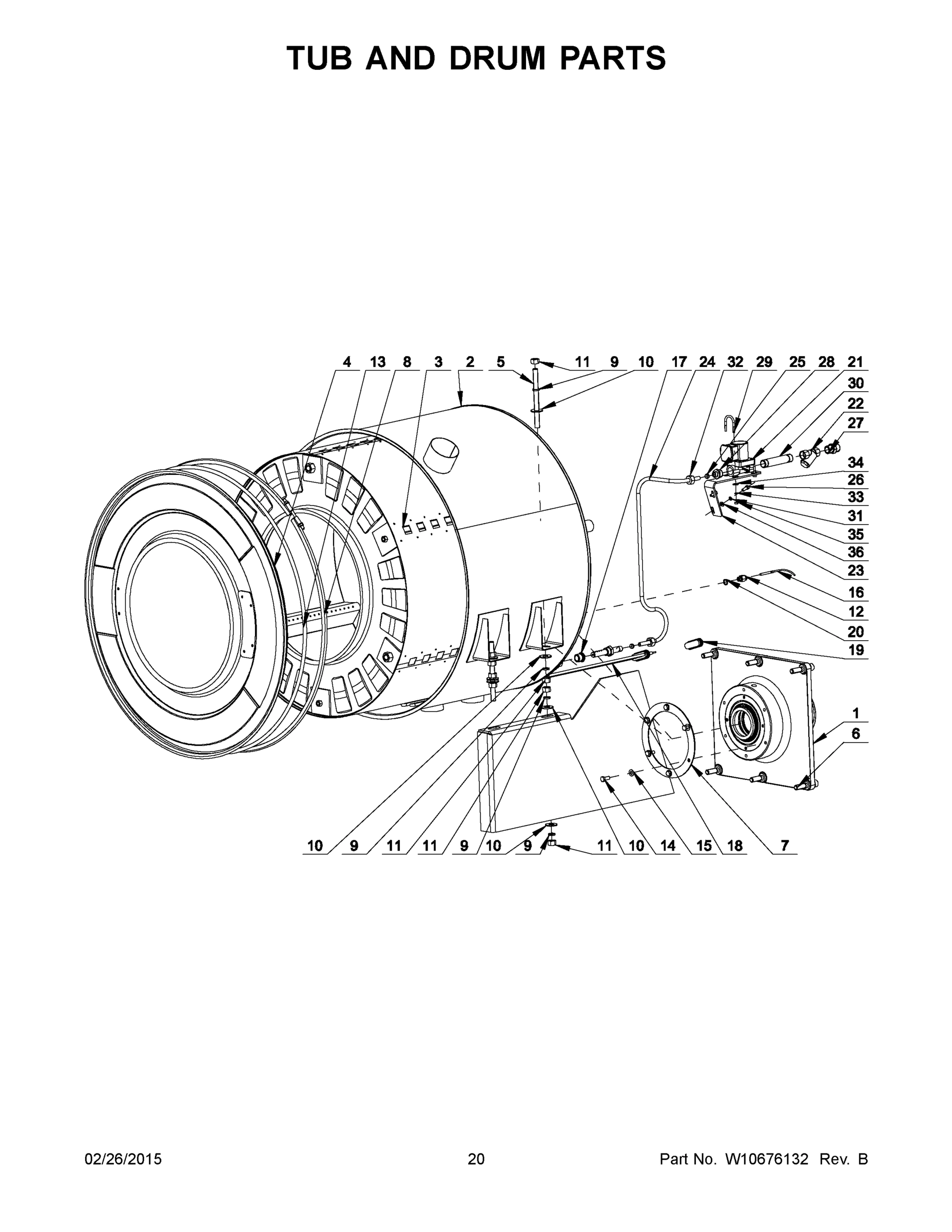

11 - TUB AND DRUM PARTS

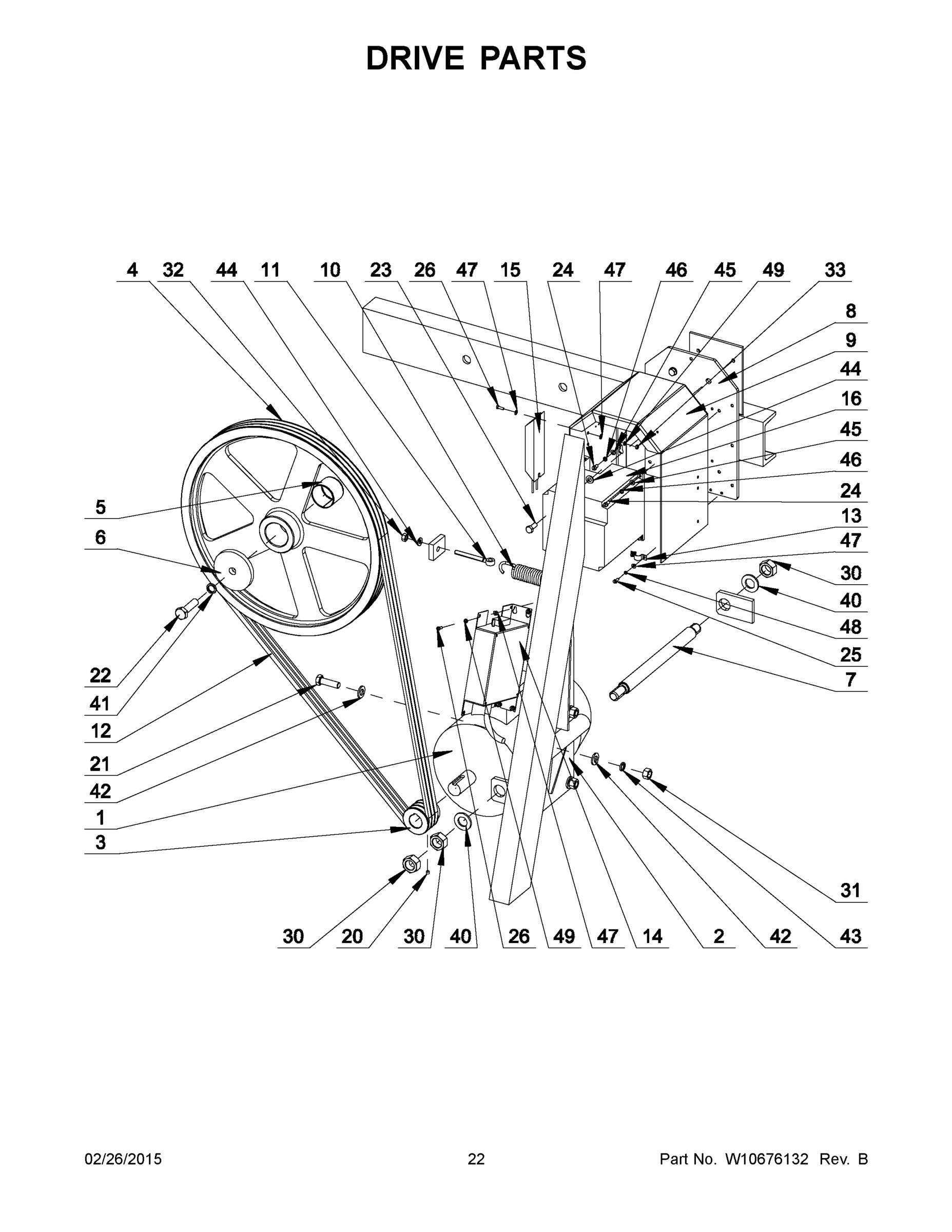

12 - DRIVE PARTS

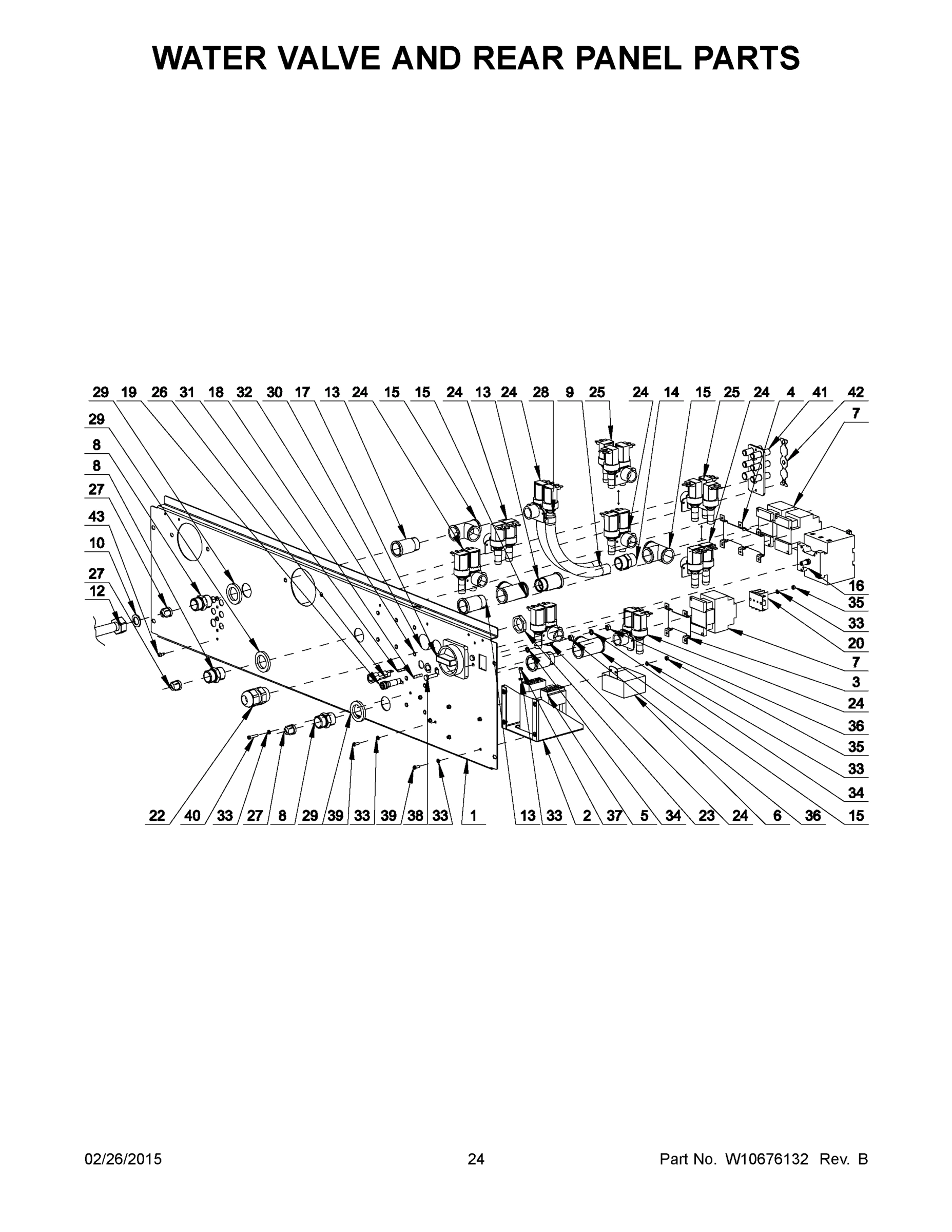

13 - WATER VALVE AND REAR PANEL PARTS

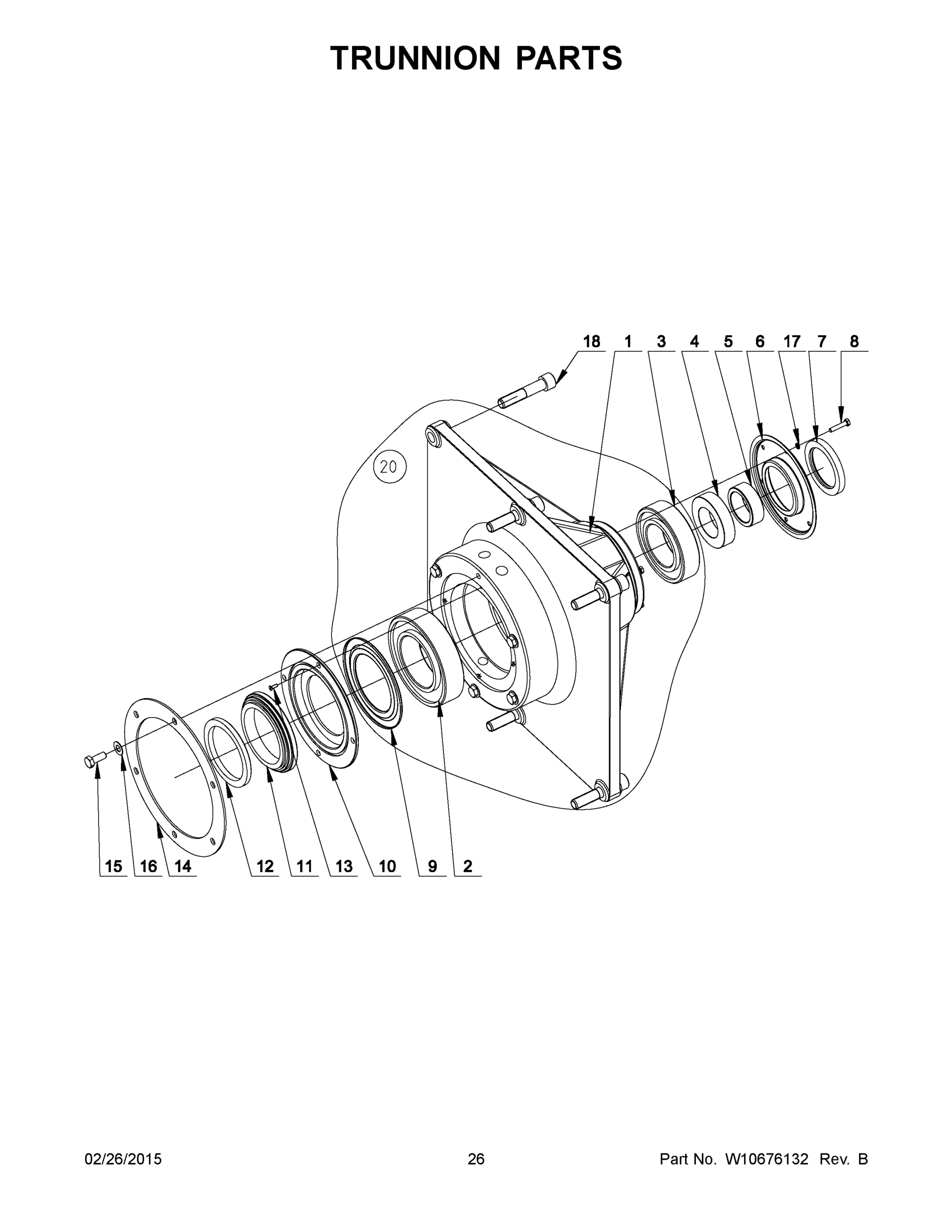

14 - TRUNNION PARTS
Common parts from model Maytag MFR80PDCTS COMMERCIAL WASHER
1
DRAIN VALVE (COMPLETE) MAY 23001244 Contact Us For Availability
1
MAY 23004269 MAY 23004269 Contact Us For Availability
1
MAY W10684084 MAY W10684084 Contact Us For Availability
1
DOOR LOCK COMPLETE MAY Y23002897 Contact Us For Availability
1
MAY 23004236 MAY 23004236 Contact Us For Availability
1
MAY W10285292 MAY W10285292 Contact Us For Availability
1
MAY 23004276 MAY 23004276 Contact Us For Availability
1
MAY W10666589 MAY W10666589 Contact Us For Availability
1
MAY W10684085 MAY W10684085 Contact Us For Availability
1
MAY 23004083 MAY 23004083 Contact Us For Availability
1
MAY W10684102 MAY W10684102 Contact Us For Availability
1
MAY 23003425 MAY 23003425 Contact Us For Availability
1A
MAY W10684402 MAY W10684402 Contact Us For Availability
2
MAY 23004268 MAY 23004268 Contact Us For Availability
2
DOOR LOCK MAY 23001006 Contact Us For Availability
2
MAY 23001156 MAY 23001156 Contact Us For Availability
2
MAY 23003413 MAY 23003413 Contact Us For Availability
2
MAY W10664567 MAY W10664567 Contact Us For Availability
2
HOSE, OUTLET VALVE TUB MAY 23003372 Contact Us For Availability
2
CONTROL BOARD BRACKET MAY 23004117 Contact Us For Availability
2
COIN BOX VAULT MAY 23004128 Contact Us For Availability
2
MAY W10684086 MAY W10684086 Contact Us For Availability
2
MAY 23004283 MAY 23004283 Contact Us For Availability
2
MAY 23004316 MAY 23004316 Contact Us For Availability
2
MAY 23001210 MAY 23001210 Contact Us For Availability
3
MAY W10684148 MAY W10684148 Contact Us For Availability
3
WASHER MAY 23001007 Contact Us For Availability
3
MAY W10285294 MAY W10285294 Contact Us For Availability
3
LOWER HOSE, PRESSURE SWITCH MAY 23001246 Contact Us For Availability
3
MAY 23004118 MAY 23004118 Contact Us For Availability
3
VAULT FRONT BEZEL MAY 23003775 Contact Us For Availability
3
DRUM MAY 23003398 Contact Us For Availability
3
MAY 23004284 MAY 23004284 Contact Us For Availability
3
MAY 23004161 MAY 23004161 Contact Us For Availability
3
MAY 23001211 MAY 23001211 Contact Us For Availability
3A
MAY W10343020 MAY W10343020 Contact Us For Availability
4
WASHER, LOCK M8 MAY 23002427 Contact Us For Availability
4
MAY 23002280 MAY 23002280 Contact Us For Availability
4
MAY W10684074 MAY W10684074 Contact Us For Availability
4
MAY 23004103 MAY 23004103 Contact Us For Availability
4
DOOR LOCK HOUSING MAY Y23002898 Contact Us For Availability
4
MC4 COIN PROGRAM CHIP MAY W10165003 Contact Us For Availability
4
COINBOX SUPPORT MAY 23003776 Contact Us For Availability
4
MAY 23004057 MAY 23004057 Contact Us For Availability
4
V-PULLEY, DRUM (DIA. 450) MAY 23001285 Contact Us For Availability
4
MAY W10667697 MAY W10667697 Contact Us For Availability
4
RING, SPACER MAY 23001218 Contact Us For Availability
4A
MAY W10387042 MAY W10387042 Contact Us For Availability
5
PANEL, SERVICE MAY 23002449 Contact Us For Availability
5
MAY W10304856 MAY W10304856 Contact Us For Availability
5
MICROSWITCH PLATE MAY 23003863 Contact Us For Availability
5
MAY 23003048 MAY 23003048 Contact Us For Availability
5
MAY 23004119 MAY 23004119 Contact Us For Availability
5
MAY W10666590 MAY W10666590 Contact Us For Availability
5
MAY 23003401 MAY 23003401 Contact Us For Availability
5
MAY 23001274 MAY 23001274 Contact Us For Availability
5
MAY W10286352 MAY W10286352 Contact Us For Availability
5
RING, BUSHING MAY 23001219 Contact Us For Availability
6
MAY 23002450 MAY 23002450 Contact Us For Availability
6
BOLT M6X16 MAY 23002461 Contact Us For Availability
6
RIVET BLIND NUT M4 MAY 23004093 Contact Us For Availability
6
HINGE BLOCK MAY 23003545 Contact Us For Availability
6
MAY W10495940 MAY W10495940 Contact Us For Availability
6
INFRARED LENS MAY 23004120 Contact Us For Availability
6
MAY W10684094 MAY W10684094 Contact Us For Availability
6
MAY 23004406 MAY 23004406 Contact Us For Availability
6
HOLDER AXIAL SEAL MAY 23001221 Contact Us For Availability
7
BOLT M6 X 25 MAY 23002861 Contact Us For Availability
7
RIVET M4X6 MAY 23004105 Contact Us For Availability
7
BIMETAL SWITCH ASSEMBLY MAY 23001135 Contact Us For Availability
7
MAY W10664569 MAY W10664569 Contact Us For Availability
7
HOSE, OVERFLOW MAY 23003375 Contact Us For Availability
7
MAY 23004277 MAY 23004277 Contact Us For Availability
7
MAY 23004095 MAY 23004095 Contact Us For Availability
7
MAY 23004286 MAY 23004286 Contact Us For Availability
7
CONTACTOR LC1 D09M7 MAY 23003750 Contact Us For Availability
7
MAY 23001220 MAY 23001220 Contact Us For Availability
8
MAY 23002428 MAY 23002428 Contact Us For Availability
8
BOLT M6X30 MAY 23002463 Contact Us For Availability
8
DISPENSER COVER MAY 23001003 Contact Us For Availability
8
CABLE PASSAGE MAY 23002479 Contact Us For Availability
8
MAY 23002727 MAY 23002727 Contact Us For Availability
8
MAY W10285300 MAY W10285300 Contact Us For Availability
8
3 BUTTON ASSEMBLY MAY 23003646 Contact Us For Availability
8
SCREW M4X10 MAY 23002423 Contact Us For Availability
8
MAY 23002484 MAY 23002484 Contact Us For Availability
8
MAY W10684095 MAY W10684095 Contact Us For Availability
8
MAY W10684103 MAY W10684103 Contact Us For Availability
8
BOLT M6X12 MAY 23002649 Contact Us For Availability
9
SCREW M6X50 MAY 23002456 Contact Us For Availability
9
LATCH, SOAP HOPPER COVER MAY 23001004 Contact Us For Availability
9
SOLENOID MAY 23001146 Contact Us For Availability
9
MAY 23003979 MAY 23003979 Contact Us For Availability
9
MAY 23004274 MAY 23004274 Contact Us For Availability
9
MEMBRANE SWITCH MAY 23004122 Contact Us For Availability
9
WASHER M17 MAY 23003402 Contact Us For Availability
9
MAY 23004017 MAY 23004017 Contact Us For Availability
9
HOSE, INLET MAY 23001507 Contact Us For Availability
9
MAY 23003815 MAY 23003815 Contact Us For Availability
10
LOCKWASHER, M6 MAY 23002756 Contact Us For Availability
10
LEAF SPRING MAY 23001149 Contact Us For Availability
10
MAY 23004237 MAY 23004237 Contact Us For Availability
10
MEMBRANE SWITCH PLATE MAY 23004123 Contact Us For Availability
10
WASHER M17X40X3 MAY 23003403 Contact Us For Availability
10
MAY 23004256 MAY 23004256 Contact Us For Availability
10
MAY 23002921 MAY 23002921 Contact Us For Availability
10
MAY 23003426 MAY 23003426 Contact Us For Availability
11
MAY 23003716 MAY 23003716 Contact Us For Availability
11
MAY 23001014 MAY 23001014 Contact Us For Availability
11
SNAP RING MAY 23001137 Contact Us For Availability
11
HINGE BLOCK WASHER MAY 23004110 Contact Us For Availability
11
MAY W10664571 MAY W10664571 Contact Us For Availability
11
HOSE, OVERFLOW MAY 23003379 Contact Us For Availability
11
WASHER M4 MAY 23002504 Contact Us For Availability
11
MAY 23004281 MAY 23004281 Contact Us For Availability
11
MAY 23004255 MAY 23004255 Contact Us For Availability
11
MAY 23001213 MAY 23001213 Contact Us For Availability
12
WASHER M5.3 MAY 23002862 Contact Us For Availability
12
KEY, DOOR LOCK MAY 23002673 Contact Us For Availability
12
LOCKING, BAR MAY 23001140 Contact Us For Availability
12
MAY W10304861 MAY W10304861 Contact Us For Availability
12
SMALL T MAY 23001255 Contact Us For Availability
12
SCREW M4X12 MAY 23003793 Contact Us For Availability
12
THERMOSTAT SENSOR HOLDER MAY 23003807 Contact Us For Availability
12
MAY 23003854 MAY 23003854 Contact Us For Availability
12
HOSE, WATER INLET MAY 23001486 Contact Us For Availability
12
MAY 23001212 MAY 23001212 Contact Us For Availability
13
HOOK, LOCK MAY 23001009 Contact Us For Availability
13
SPRING, SOLENOID MAY 23002903 Contact Us For Availability
13
MAY 23004112 MAY 23004112 Contact Us For Availability
13
HANDLE, DOOR BLOCK WITH PIN MAY 23001370 Contact Us For Availability
13
UPPER HOSE, PRESSURE SWITCH MAY 23001252 Contact Us For Availability
13
COIN DROP (.25 CENT) MAY 23004124 Contact Us For Availability
13
RING, SEAL (TUB) MAY 23002485 Contact Us For Availability
13
MAY 23004021 MAY 23004021 Contact Us For Availability
13
EXTENSION (3/4" PIPE THREAD) MAY 23001484 Contact Us For Availability
13
SCREW M4X10 MAY 23001372 Contact Us For Availability
13A
DUAL COIN DROP (CANADA) MAY 23004075 Contact Us For Availability
14
MAY 23002900 MAY 23002900 Contact Us For Availability
14
SHAFT, LEVER MAY 23001168 Contact Us For Availability
14
LARGE T MAY 23001253 Contact Us For Availability
14
RETAINING BOLT MAY 23003797 Contact Us For Availability
14
RING, SEALING MAY 23003427 Contact Us For Availability
14
MAY W10684099 MAY W10684099 Contact Us For Availability
14
NIPPLE (3/4" PIPE THREAD) MAY 23001482 Contact Us For Availability
15
ACTUATOR ARM MAY 23002899 Contact Us For Availability
15
MAY 23004239 MAY 23004239 Contact Us For Availability
15
MAY 23004241 MAY 23004241 Contact Us For Availability
15
Z CLIP MAY 23004125 Contact Us For Availability
15
BOLT M10X25 MAY 23003354 Contact Us For Availability
15
MAY 23004024 MAY 23004024 Contact Us For Availability
15
TEE (3/4" PIPE THREAD) MAY 23001485 Contact Us For Availability
15A
MAY W10667487 MAY W10667487 Contact Us For Availability
16
WASHER M6 MAY 23002469 Contact Us For Availability
16
HINGE BLOCK SHIM MAY 23001368 Contact Us For Availability
16
SPRING, DOOR HANDLE MAY 23001169 Contact Us For Availability
16
PRESSURE SWITCH HOSE FITTING MAY 23001260 Contact Us For Availability
16
WASHER M22X11X1 MAY 23001201 Contact Us For Availability
16
TEMPERATURE SENSOR MAY 23003964 Contact Us For Availability
16
MAY 23003986 MAY 23003986 Contact Us For Availability
16
MAY 23003503 MAY 23003503 Contact Us For Availability
16A
MAY W10684101 MAY W10684101 Contact Us For Availability
16A
MAY 23003502 MAY 23003502 Contact Us For Availability
16B
FAN, FREQUENCY INVERTER MAY 23004220 Contact Us For Availability
16B
MAY 23003505 MAY 23003505 Contact Us For Availability
16C
MAY 23004210 MAY 23004210 Contact Us For Availability
17
WASHER M6 MAY 23002457 Contact Us For Availability
17
MAY 23002902 MAY 23002902 Contact Us For Availability
17
WASHER M6 MAY 23001158 Contact Us For Availability
17
MAY 23003420 MAY 23003420 Contact Us For Availability
17
HOSE CLAMP MAY 23001259 Contact Us For Availability
17
TERMINAL BLOCK MAY 23001113 Contact Us For Availability
17
MAY 23002480 MAY 23002480 Contact Us For Availability
17
MAY 23003497 MAY 23003497 Contact Us For Availability
18
WASHER M15X7X2 MAY 23002458 Contact Us For Availability
18
MAY W10357120 MAY W10357120 Contact Us For Availability
18
MAY 23002499 MAY 23002499 Contact Us For Availability
18
MAY 23003380 MAY 23003380 Contact Us For Availability
18
TERMINAL BLOCK INSULATION MAY 23001115 Contact Us For Availability
18
MAY 23004291 MAY 23004291 Contact Us For Availability
18
MAY 23002482 MAY 23002482 Contact Us For Availability
18
FUSE 0.5A 250V MAY 23002919 Contact Us For Availability
18A
MAY W10684088 MAY W10684088 Contact Us For Availability
19
WASHER M6.4 MAY 23002424 Contact Us For Availability
19
PROP ROD MAY 23001330 Contact Us For Availability
19
LATCH ROLLER PIN MAY 23001142 Contact Us For Availability
19
ELBOW, OUTLET MAY 23003381 Contact Us For Availability
19
WASHER M6 X 4 MAY 23003774 Contact Us For Availability
19
HEATING ELEMENT HOLE PLUG MAY 23001594 Contact Us For Availability
19
FUSE HOLDER (5X20MM) MAY 23001462 Contact Us For Availability
20
WASHER M8.4 MAY 23001608 Contact Us For Availability
20
ALIGNMENT PIN MAY 23001332 Contact Us For Availability
20
LATCH ROLLER MAY 23001143 Contact Us For Availability
20
ELBOW, OUTLET MAY 23003382 Contact Us For Availability
20
MAY 23002179 MAY 23002179 Contact Us For Availability
20
BOLT M6X6 MAY 23002930 Contact Us For Availability
20
ELECTRIC HEAT TERMINAL BOARD MAY 23002959 Contact Us For Availability
20
MAY W10684107 MAY W10684107 Contact Us For Availability
21
MAY 23002860 MAY 23002860 Contact Us For Availability
21
MICROSWITCH MAY 23002337 Contact Us For Availability
21
DRAIN ELBOW MAY 23002015 Contact Us For Availability
21
MAY 23004282 MAY 23004282 Contact Us For Availability
21
MAY 23003079 MAY 23003079 Contact Us For Availability
21A
MAY W10553970 MAY W10553970 Contact Us For Availability
21B
MAY W10286316 MAY W10286316 Contact Us For Availability
22
MAY 23004272 MAY 23004272 Contact Us For Availability
22
BOLT M4X8 MAY 23003114 Contact Us For Availability
22
MAY 23003811 MAY 23003811 Contact Us For Availability
22
HOSE CLAMP (20-32) MAY 23001262 Contact Us For Availability
22
MAY 23003410 MAY 23003410 Contact Us For Availability
22
BOLT M14X50 MAY 23002931 Contact Us For Availability
22
MAY 23002211 MAY 23002211 Contact Us For Availability
23
MAY W10666026 MAY W10666026 Contact Us For Availability
23
MAY 23004113 MAY 23004113 Contact Us For Availability
23
HOSE CLAMP (60-80) MAY 23001256 Contact Us For Availability
23
BOLT M8X20 MAY 23002475 Contact Us For Availability
23
SPACER MAY 23003653 Contact Us For Availability
23
MAY W10684092 MAY W10684092 Contact Us For Availability
23
NUT, CABLE SWIVEL MAY 23003138 Contact Us For Availability
24
MAY W10665809 MAY W10665809 Contact Us For Availability
24
BOLT M3X14 MAY 23001131 Contact Us For Availability
24
SCREW M6X26 MAY 23002937 Contact Us For Availability
24
MAY W10664572 MAY W10664572 Contact Us For Availability
24
MAY 23001257 MAY 23001257 Contact Us For Availability
24
BOLT M3X30 MAY 23003652 Contact Us For Availability
24
MAY W10684093 MAY W10684093 Contact Us For Availability
24
MAY 23001704 MAY 23001704 Contact Us For Availability
24
2-WAY INLET VALVE MAY 23001455 Contact Us For Availability
25
BOLT M4X12 MAY 23001012 Contact Us For Availability
25
MAY W10666110 MAY W10666110 Contact Us For Availability
25
MAY W10285296 MAY W10285296 Contact Us For Availability
25
HOSE CLAMP (70-90) MAY 23001258 Contact Us For Availability
25
WASHER M3.2 MAY 23003654 Contact Us For Availability
25
MAY W10667392 MAY W10667392 Contact Us For Availability
25
3-WAY INLET VALVE MAY 23001533 Contact Us For Availability
26
BOLT, M6 X 12 MAY 23001157 Contact Us For Availability
26
MAY 23003419 MAY 23003419 Contact Us For Availability
26
HOSE CLAMP 32-50 MAY 23001261 Contact Us For Availability
26
MAY 23002958 MAY 23002958 Contact Us For Availability
26
MAY 23001264 MAY 23001264 Contact Us For Availability
26
MAY 23001609 MAY 23001609 Contact Us For Availability
26
FUSE HOLDER (6X32MM) MAY 23002210 Contact Us For Availability
27
SCREW M3X6 MAY 23003113 Contact Us For Availability
27
MAY W10285298 MAY W10285298 Contact Us For Availability
27
EMERGENCY STOP INTERCONNECT MAY 23004127 Contact Us For Availability
27
MAY 23003411 MAY 23003411 Contact Us For Availability
27
FILTER SCREEN MAY 23002922 Contact Us For Availability
28
MAY 23004238 MAY 23004238 Contact Us For Availability
28
WASHER, LOCK M4 MAY 23002865 Contact Us For Availability
28
MAY 23003171 MAY 23003171 Contact Us For Availability
28
HOSE CLAMP (12-22) MAY 23001506 Contact Us For Availability
29
BOLT M3X6 MAY 23002869 Contact Us For Availability
29
MAY 23002392 MAY 23002392 Contact Us For Availability
29
MAY 23002437 MAY 23002437 Contact Us For Availability
29
MAY 23002433 MAY 23002433 Contact Us For Availability
29
WASHER M28X42X5 MAY 23001483 Contact Us For Availability
30
WASHER M5.1X3.3X0.1 MAY 23001136 Contact Us For Availability
30
MAY 23002877 MAY 23002877 Contact Us For Availability
30
TUBE MAY 23003408 Contact Us For Availability
30
MAY 23003935 MAY 23003935 Contact Us For Availability
30
PLUG MAY 23002243 Contact Us For Availability
31
EMERGENCY OPENING CORD MAY 23001152 Contact Us For Availability
31
MAY 23004240 MAY 23004240 Contact Us For Availability
31
WASHER M8 MAY 23001265 Contact Us For Availability
31
DOUBLE-SIDED TAPE MAY 23004126 Contact Us For Availability
31
MAY 23003676 MAY 23003676 Contact Us For Availability
32
DOOR LOCK WIRE HARNESS MC4 MAY 23002905 Contact Us For Availability
32
MAY 23001266 MAY 23001266 Contact Us For Availability
32
BOLT M8X120 MAY 23002908 Contact Us For Availability
32
NUT, M6 MAY 23002455 Contact Us For Availability
32
MAY W10667395 MAY W10667395 Contact Us For Availability
32
MAY 23002467 MAY 23002467 Contact Us For Availability
33
WASHER M6 MAY 23002440 Contact Us For Availability
33
WASHER, LOCK M4 MAY 23002950 Contact Us For Availability
34
WASHER, LOCK M6 MAY 23002425 Contact Us For Availability
34
WASHER M6 MAY 23003012 Contact Us For Availability
34
MAY 23004275 MAY 23004275 Contact Us For Availability
35
MAY 23003773 MAY 23003773 Contact Us For Availability
35
EXTERNAL SOAP HOPPER MAY 23001016 Contact Us For Availability
35
NUT M4 MAY 23003666 Contact Us For Availability
36
MAY 23003769 MAY 23003769 Contact Us For Availability
36
SCREW MAY 23003783 Contact Us For Availability
36
MAY 23001312 MAY 23001312 Contact Us For Availability
37
FABRIC SOFTENER DIVERTER MAY 23001023 Contact Us For Availability
37
MAY 23001682 MAY 23001682 Contact Us For Availability
38
MAINWASH DIVERTER MAY 23001022 Contact Us For Availability
38
BOLT M6X25 MAY 23002806 Contact Us For Availability
39
MAY 23001361 MAY 23001361 Contact Us For Availability
39
PREWASH DIVERTER MAY 23001021 Contact Us For Availability
40
SYPHON HOSE MAY 23001018 Contact Us For Availability
40
MAY 23004285 MAY 23004285 Contact Us For Availability
40
MAY 23002807 MAY 23002807 Contact Us For Availability
41
SCREW MAY 23003782 Contact Us For Availability
41
LOCK WASHER, SPRING M14 MAY 23001226 Contact Us For Availability
41
MAY W10223169 MAY W10223169 Contact Us For Availability
42
FABRIC SOFTENER INSERT MAY 23001019 Contact Us For Availability
42
WASHER M13 MAY 23001292 Contact Us For Availability
42
MAY 14227179 MAY 14227179 Contact Us For Availability
43
INSERT RETAINER MAY 23001020 Contact Us For Availability
43
SCREW M4X13 MAY 23003810 Contact Us For Availability
43
WASHER M12 MAY 23002658 Contact Us For Availability
44
SOAP HOPPER INSERT MAY 23001017 Contact Us For Availability
44
WASHER M8.4X24X2 MAY 23001203 Contact Us For Availability
45
MAY 23004242 MAY 23004242 Contact Us For Availability
45
WASHER M5.3 MAY 23001708 Contact Us For Availability
46
BOLT M5X16 MAY 23003484 Contact Us For Availability
46
WASHER M5 MAY 23002836 Contact Us For Availability
47
SOAP HOPPER GASKET MAY 23001015 Contact Us For Availability
47
WASHER M4.3 MAY 23002438 Contact Us For Availability
48
HOSE CLAMP (90-110) MAY 23001025 Contact Us For Availability
48
WASHER M4 MAY 23002400 Contact Us For Availability
49
MAY 23004115 MAY 23004115 Contact Us For Availability
50
MAY W10304864 MAY W10304864 Contact Us For Availability
51
MAY W10286346 MAY W10286346 Contact Us For Availability
52
MAY W10666435 MAY W10666435 Contact Us For Availability
NI
EMERGENCY STOP HARNESS (OPL) MAY 23004139 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10510677 MAY W10510677 Contact Us For Availability
NI
MAY W10684075 MAY W10684075 Contact Us For Availability
NI
KIT, CONVERT PD TO PN MAY 23004091 Contact Us For Availability
NI
MAY W10286299 MAY W10286299 Contact Us For Availability
NI
MAY W10684138 MAY W10684138 Contact Us For Availability
× ![]()
