Model Maytag MFR50PDCTS WASHER – Common Parts & Diagrams
01 - BASE FRAME
02 - CABINET (PD)

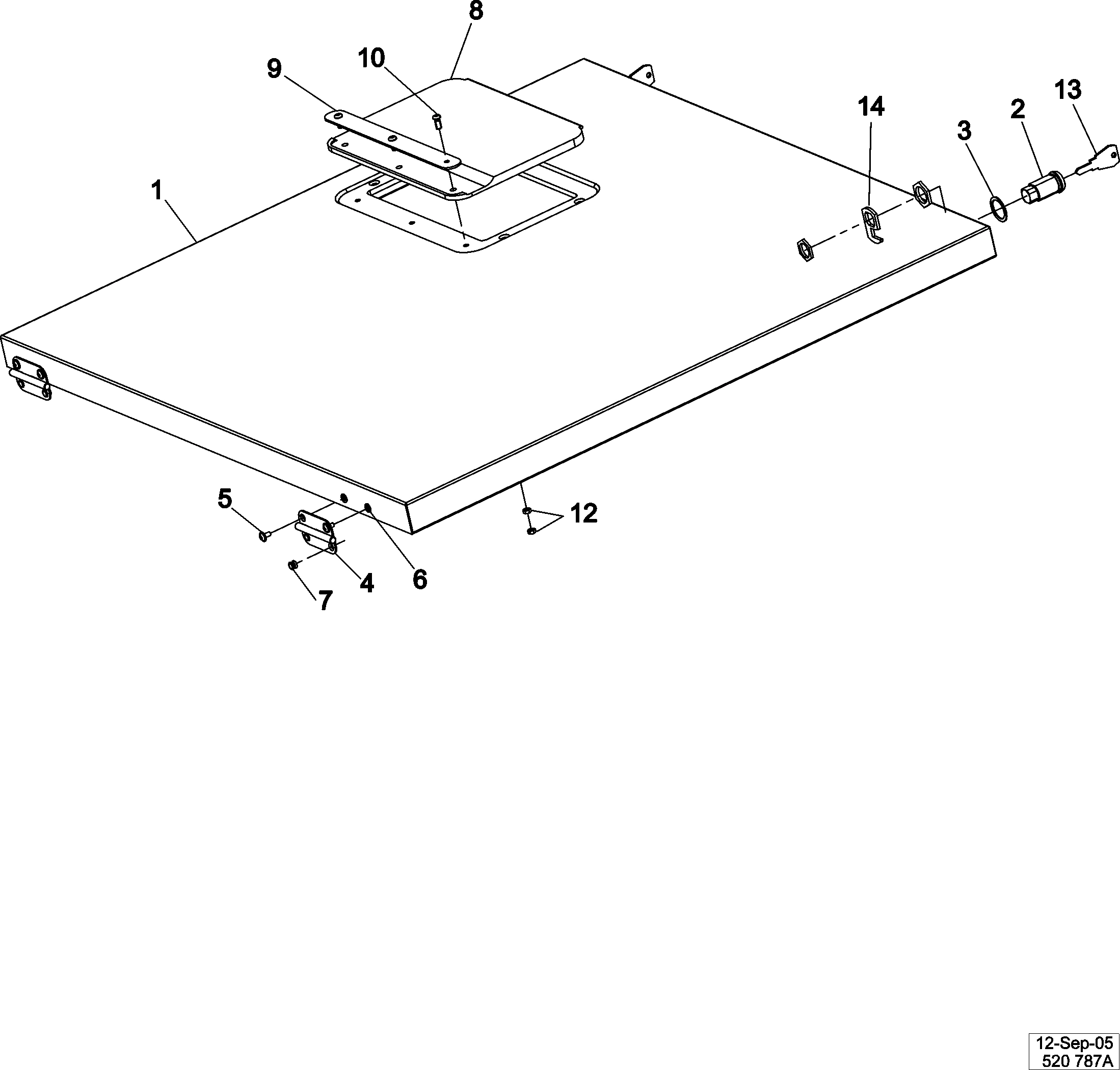

03 - TOP COVER ASSEMBLY

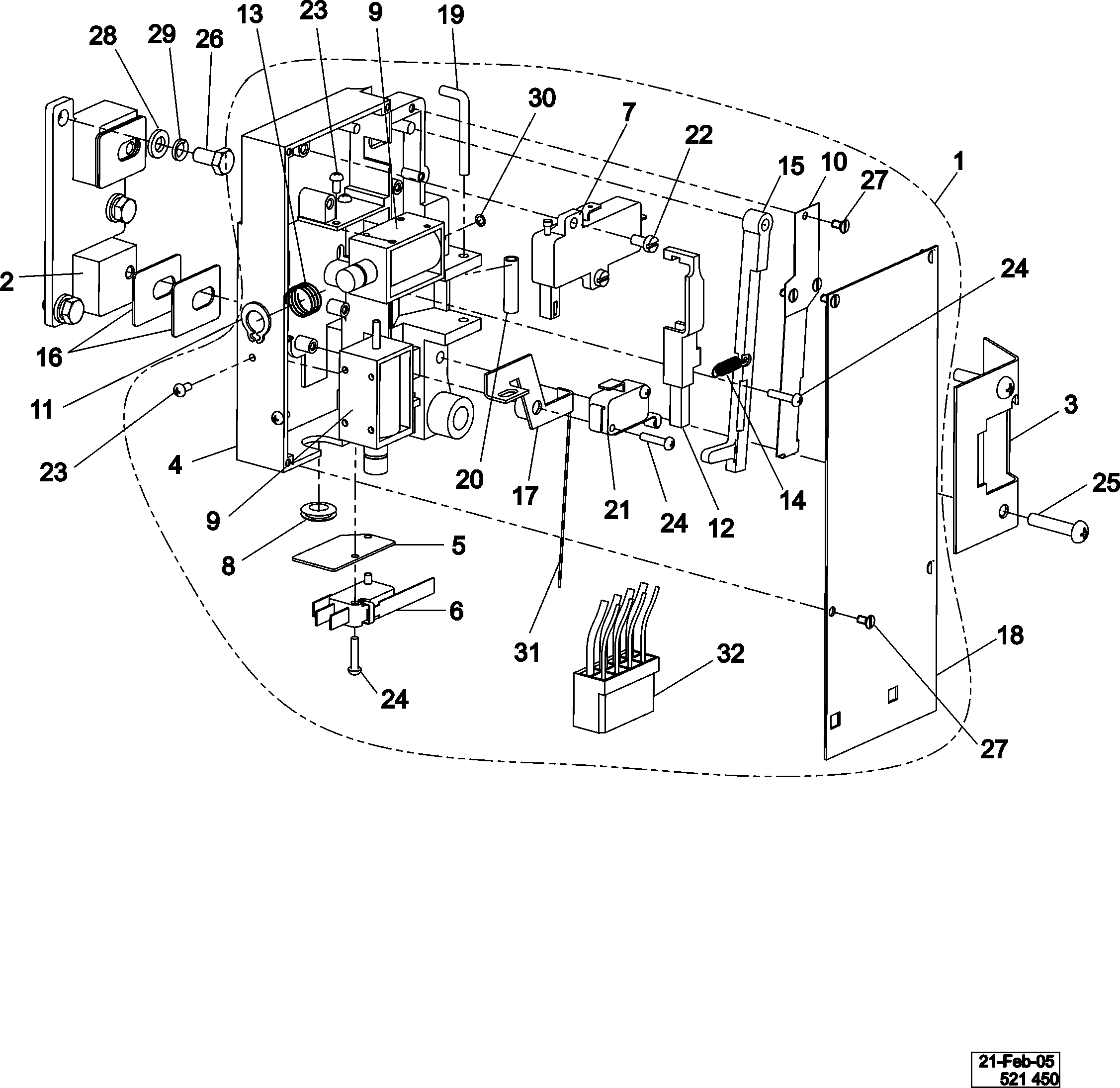

04 - DOOR LOCK ASSEMBLY

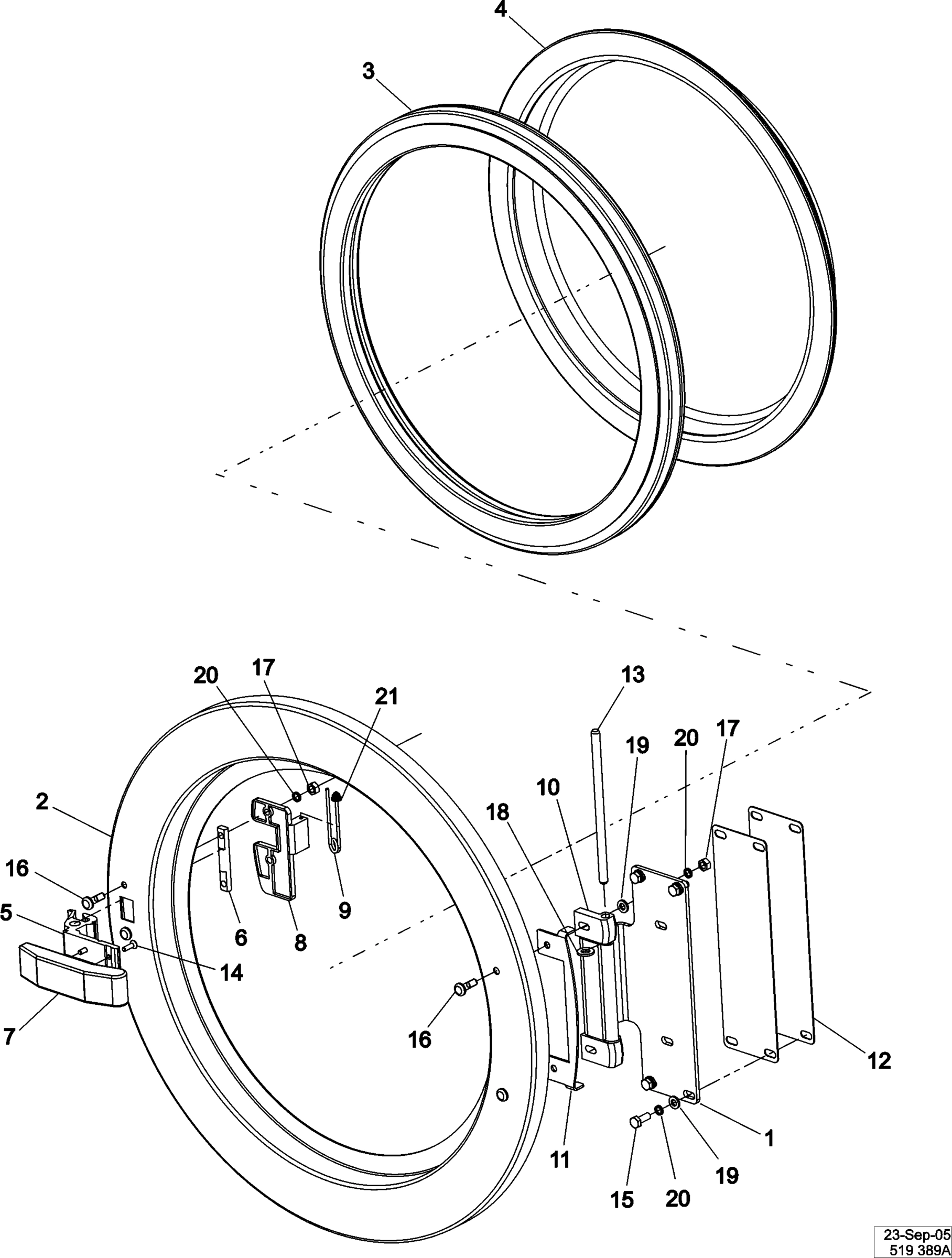

05 - DOOR

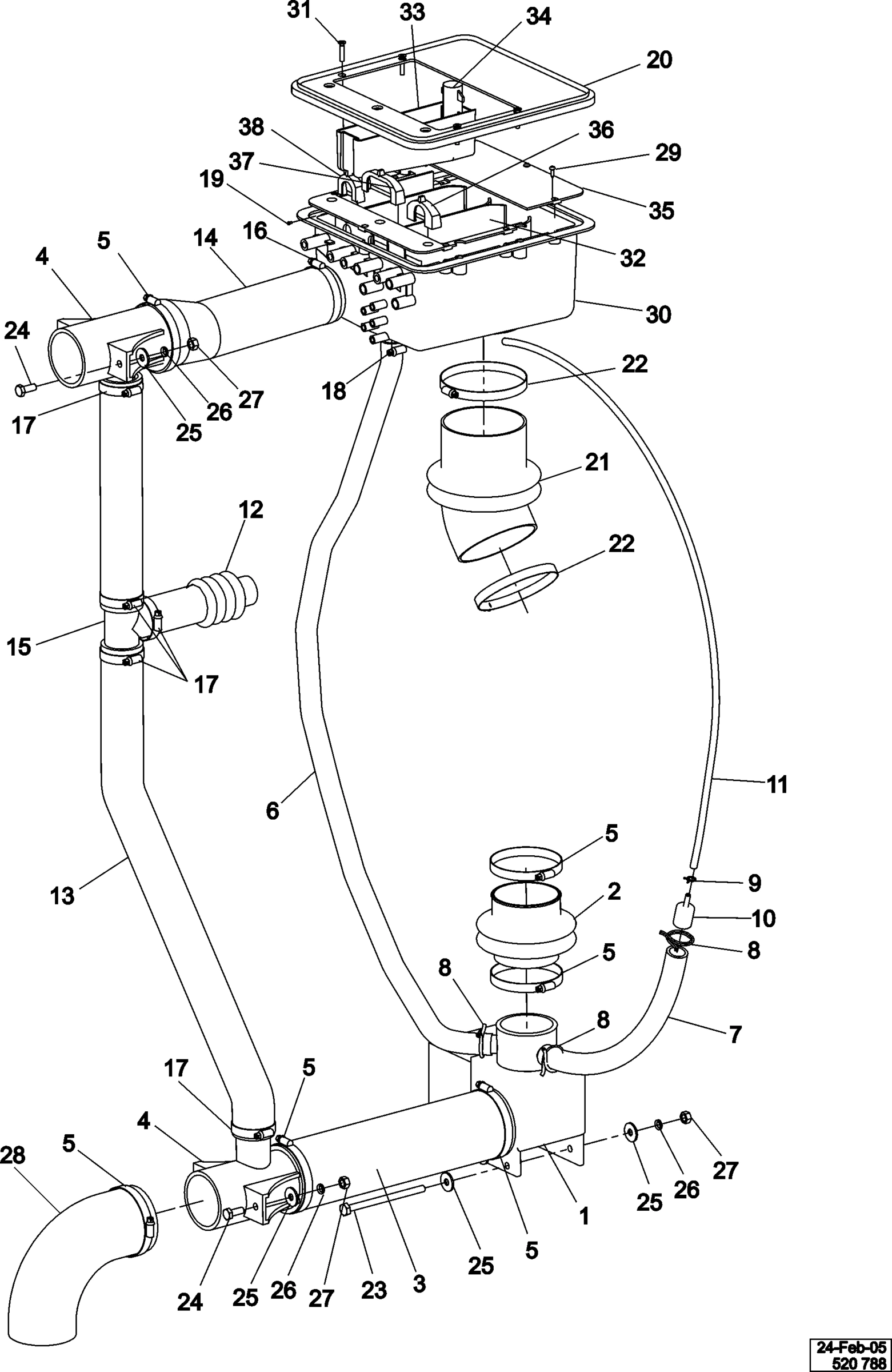

06 - SOAP BOX, DRAIN & HOSE ASSEMBLY

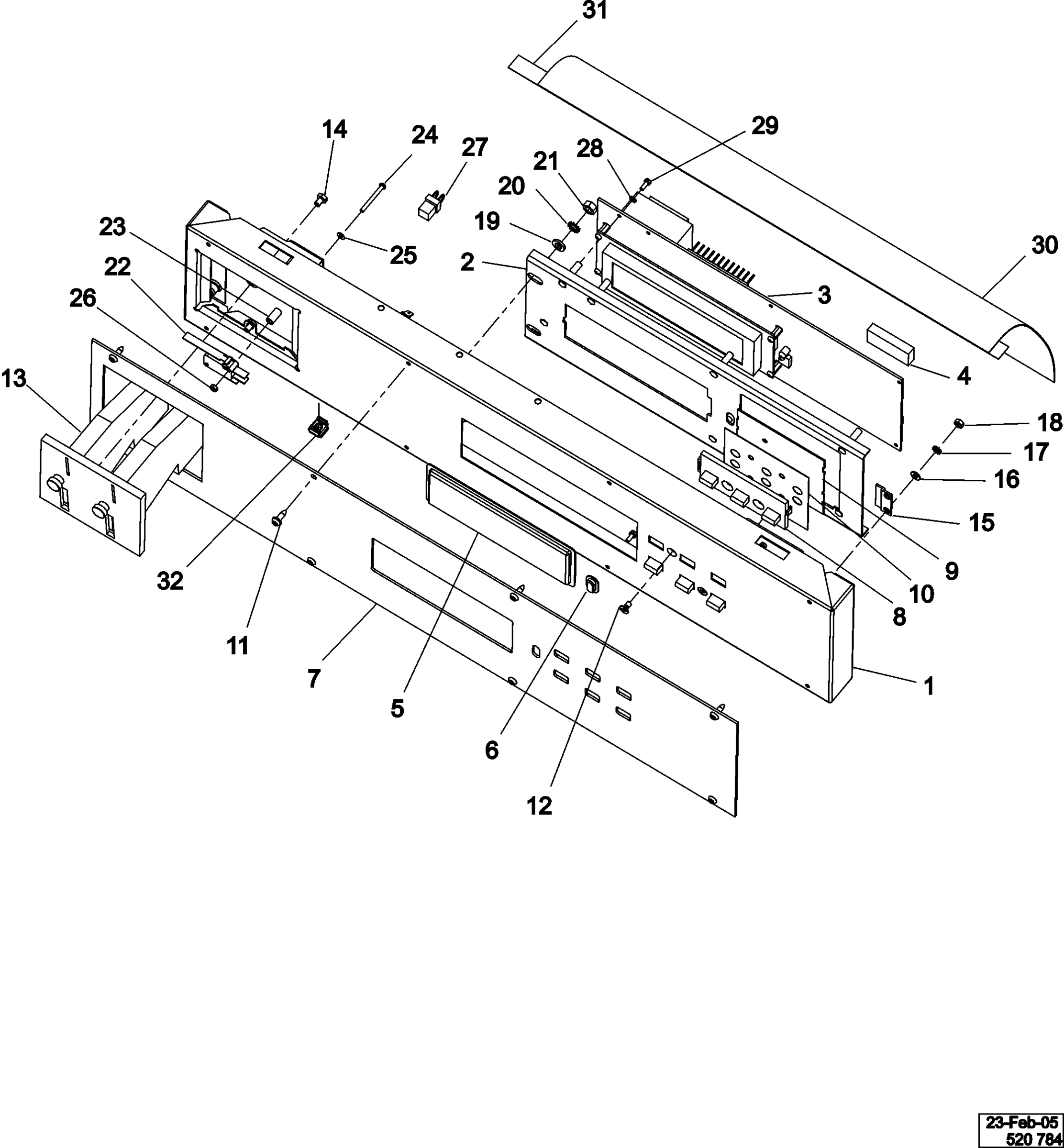

07 - CONTROL PANEL (PD)

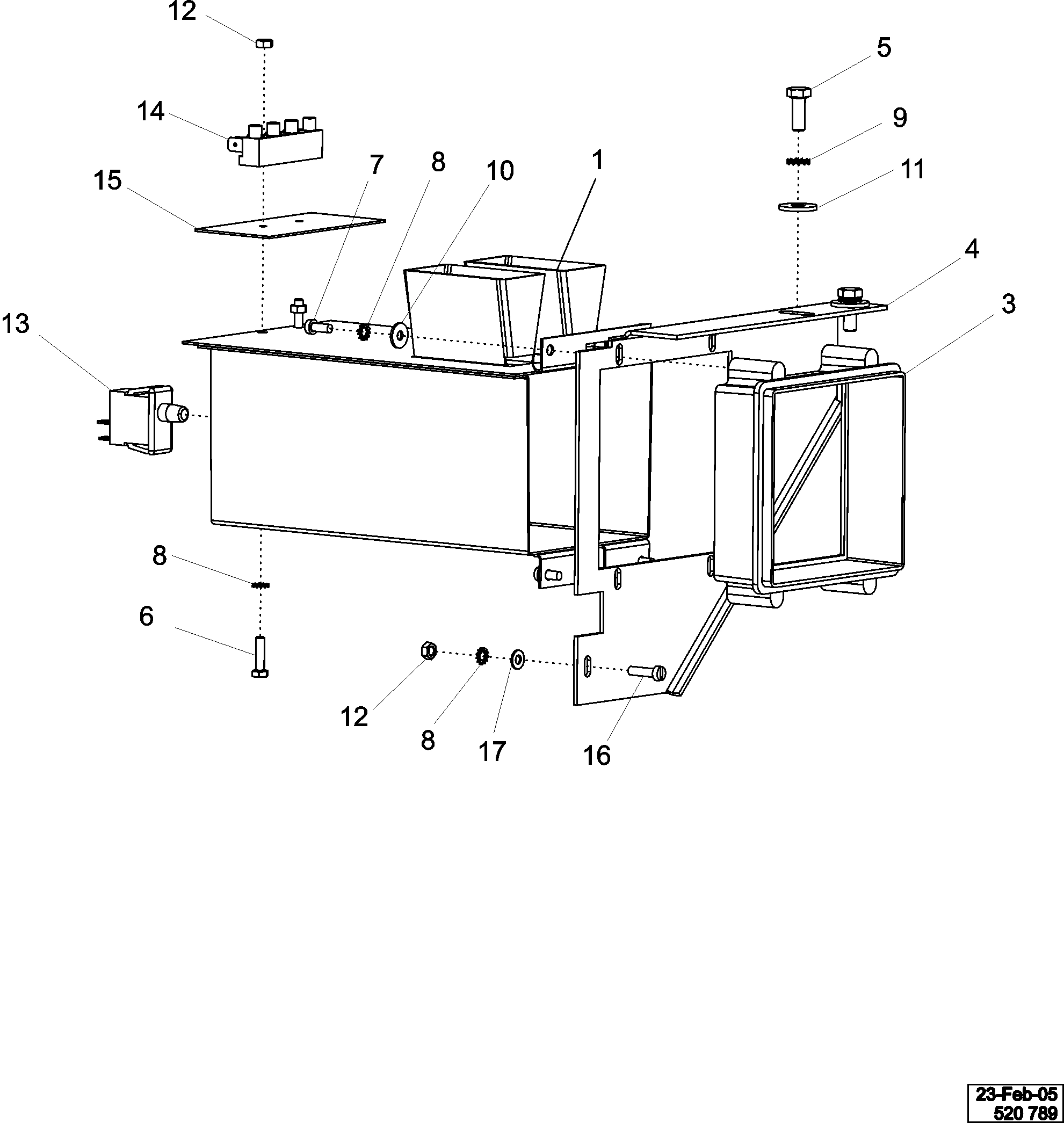

08 - COIN VAULT (PD)

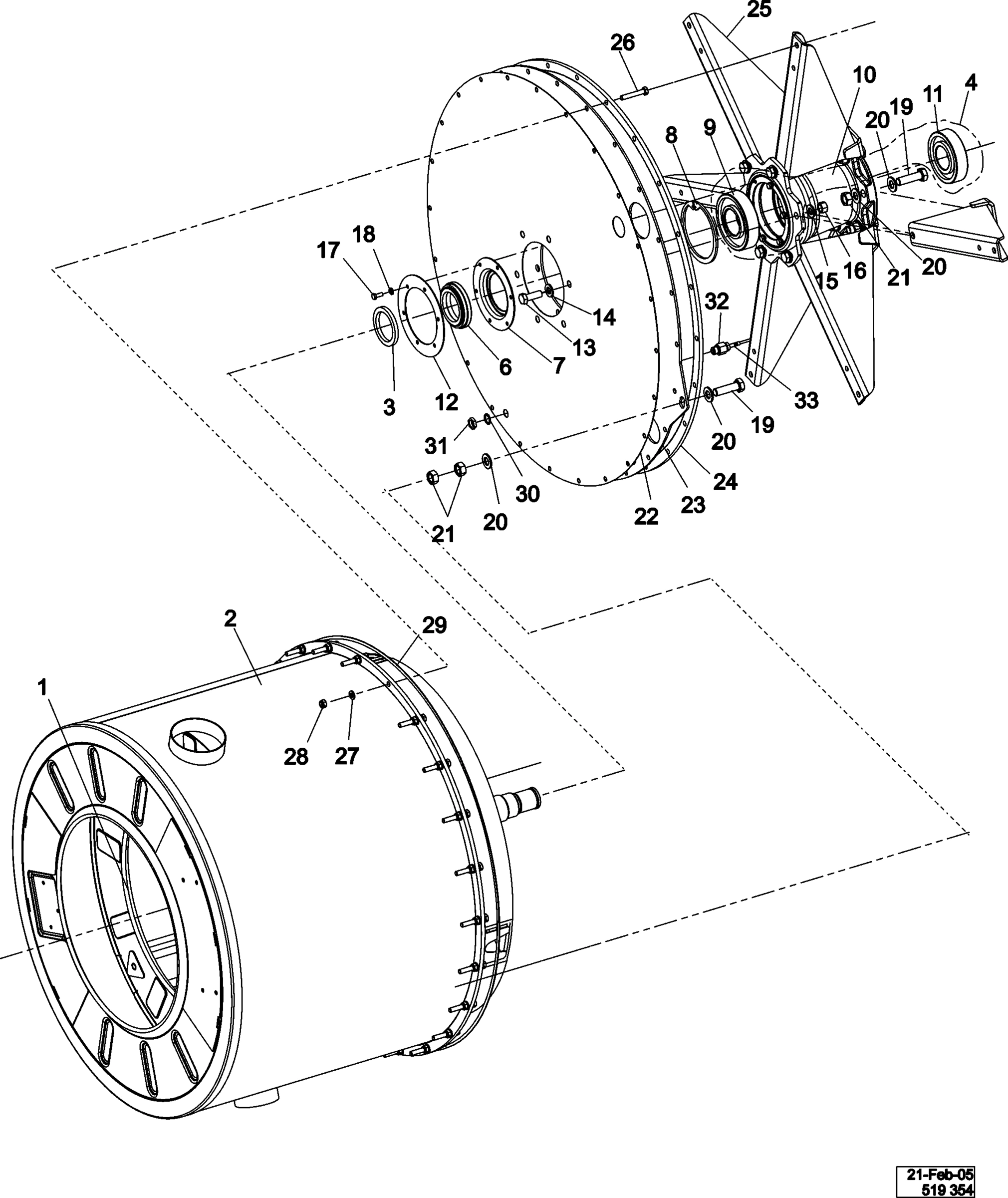

09 - BASKET & OUTER SHELL ASSEMBLY

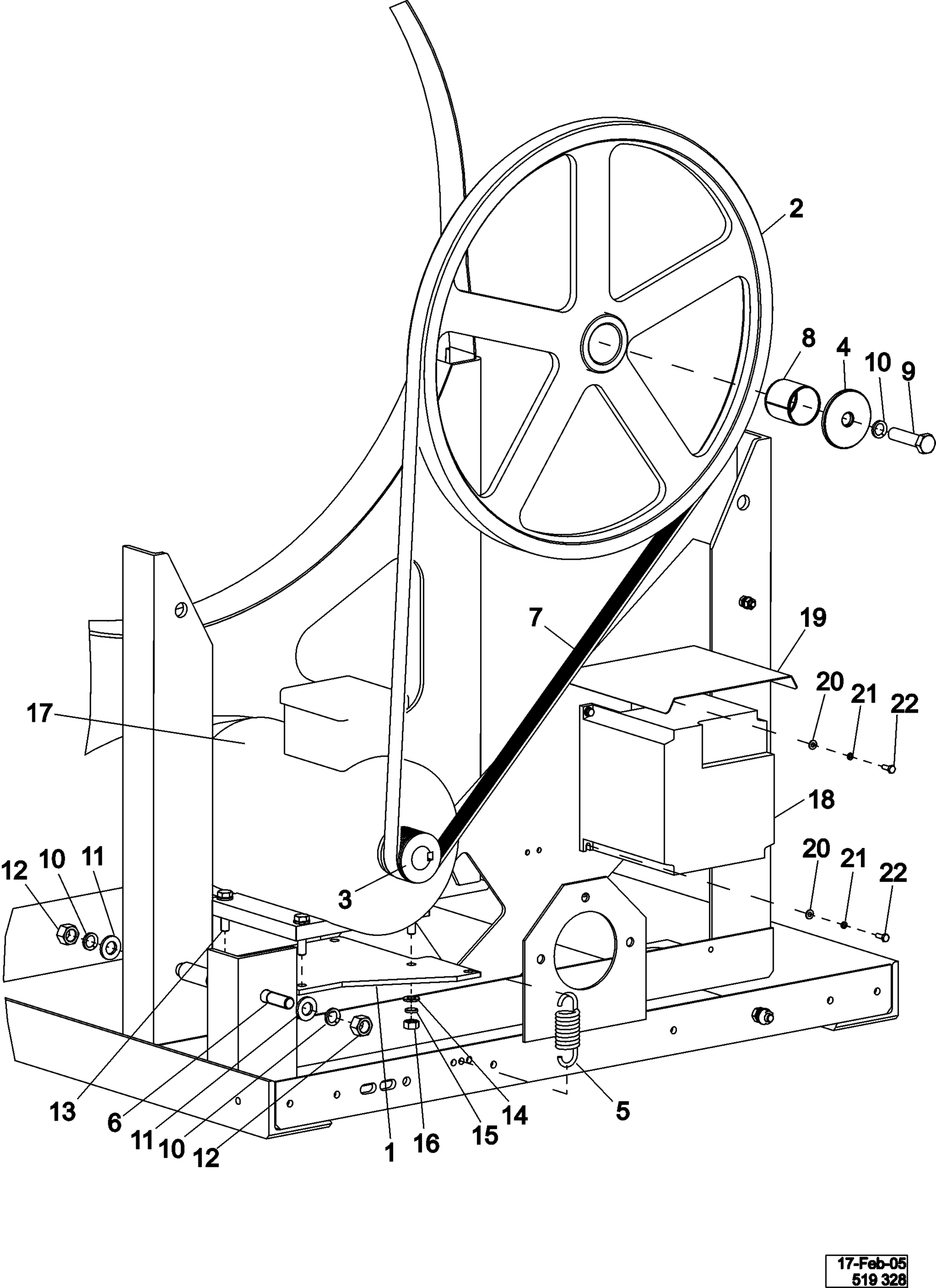

10 - MOTOR & BASKET PULLEY

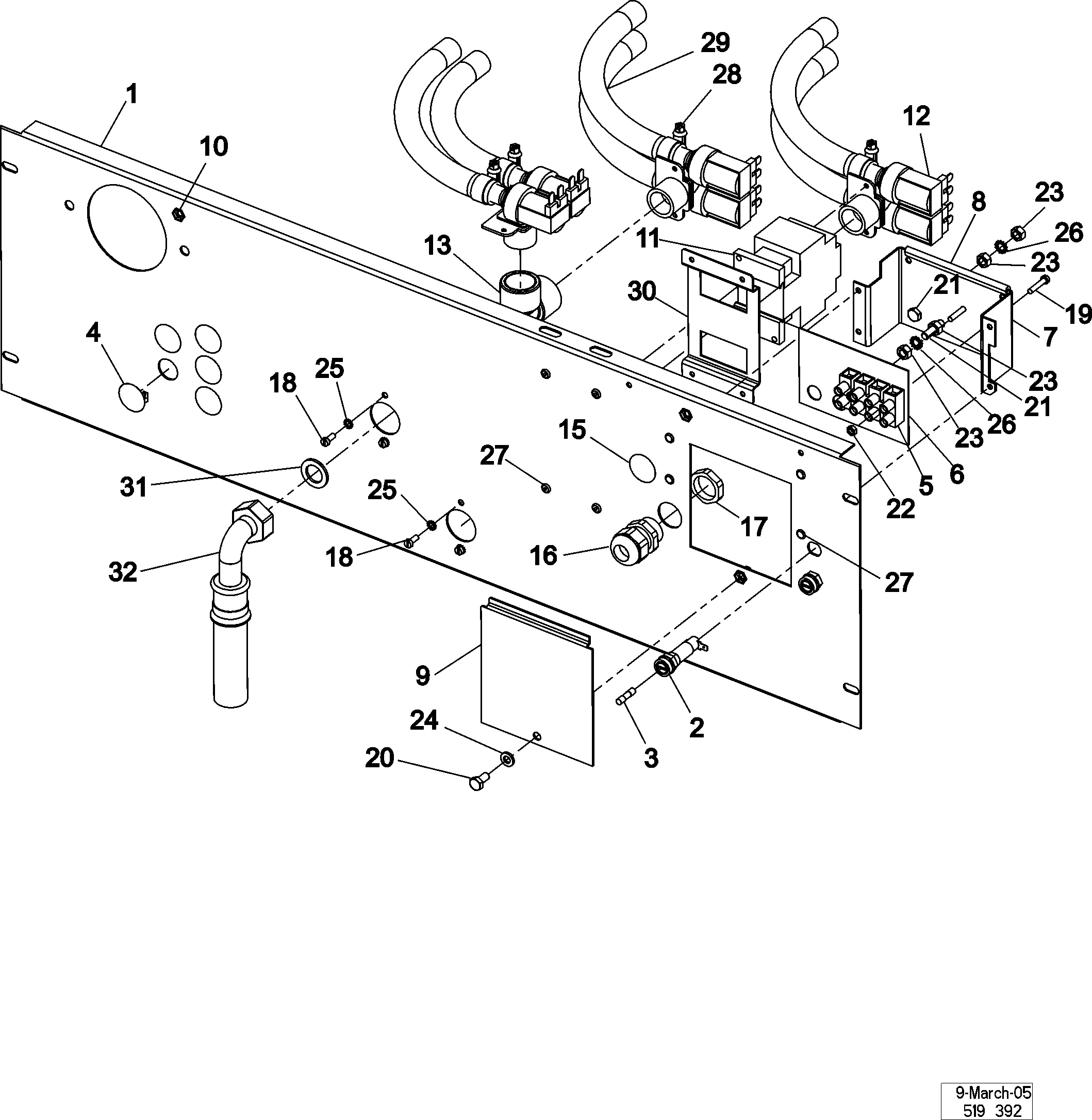

11 - WATER VALVE & REAR PANEL
Common parts from model Maytag MFR50PDCTS WASHER
001
MAY 23001244 MAY 23001244 Contact Us For Availability
001
MAY 23004213 MAY 23004213 Contact Us For Availability
001
MAY 23004186 MAY 23004186 Contact Us For Availability
001
MAY Y23002897 MAY Y23002897 Contact Us For Availability
001
MAY 23004107 MAY 23004107 Contact Us For Availability
001
MAY 23004188 MAY 23004188 Contact Us For Availability
001
MAY 23004128 MAY 23004128 Contact Us For Availability
001
MAY 23004218 MAY 23004218 Contact Us For Availability
001
MAY 23004201 MAY 23004201 Contact Us For Availability
001
MAY 23004205 MAY 23004205 Contact Us For Availability
002
MAY 23004168 MAY 23004168 Contact Us For Availability
002
MAY 23004214 MAY 23004214 Contact Us For Availability
002
MAY 23001006 MAY 23001006 Contact Us For Availability
002
MAY 23001156 MAY 23001156 Contact Us For Availability
002
MAY 23004108 MAY 23004108 Contact Us For Availability
002
MAY 23002907 MAY 23002907 Contact Us For Availability
002
MAY 23004117 MAY 23004117 Contact Us For Availability
002
MAY 23004219 MAY 23004219 Contact Us For Availability
002
MAY 23004202 MAY 23004202 Contact Us For Availability
002
MAY 23001462 MAY 23001462 Contact Us For Availability
003
MAY 23004169 MAY 23004169 Contact Us For Availability
003
MAY 23004178 MAY 23004178 Contact Us For Availability
003
MAY 23004515 MAY 23004515 Contact Us For Availability
003
MAY 23001007 MAY 23001007 Contact Us For Availability
003
MAY 23004106 MAY 23004106 Contact Us For Availability
003
MAY 23004234 MAY 23004234 Contact Us For Availability
003
MAY 23003859 MAY 23003859 Contact Us For Availability
003
MAY 23001248 MAY 23001248 Contact Us For Availability
003
MAY 23004118 MAY 23004118 Contact Us For Availability
003
MAY W10343020 MAY W10343020 Contact Us For Availability
003
MAY 23004129 MAY 23004129 Contact Us For Availability
003
MAY 23003608 MAY 23003608 Contact Us For Availability
003
MAY 23004203 MAY 23004203 Contact Us For Availability
004
MAY 23004170 MAY 23004170 Contact Us For Availability
004
MAY 23004103 MAY 23004103 Contact Us For Availability
004
MAY Y23002898 MAY Y23002898 Contact Us For Availability
004
MAY 23004109 MAY 23004109 Contact Us For Availability
004
DRAIN TEE MAY 23001253 Contact Us For Availability
004
MAY W10387042 MAY W10387042 Contact Us For Availability
004
MAY 23004130 MAY 23004130 Contact Us For Availability
004
MAY 23004046 MAY 23004046 Contact Us For Availability
004
MAY 23004204 MAY 23004204 Contact Us For Availability
005
MAY 23004267 MAY 23004267 Contact Us For Availability
005
MAY 23002461 MAY 23002461 Contact Us For Availability
005
MAY 23002857 MAY 23002857 Contact Us For Availability
005
MAY 23004104 MAY 23004104 Contact Us For Availability
005
MAY 23003863 MAY 23003863 Contact Us For Availability
005
MAY 23003858 MAY 23003858 Contact Us For Availability
005
MAY 23001258 MAY 23001258 Contact Us For Availability
005
MAY 23004119 MAY 23004119 Contact Us For Availability
005
MAY W10157981 MAY W10157981 Contact Us For Availability
005
MAY 23002923 MAY 23002923 Contact Us For Availability
006
MAY 23004093 MAY 23004093 Contact Us For Availability
006
MAY 23004179 MAY 23004179 Contact Us For Availability
006
SHAFT, LEVER MAY 23001168 Contact Us For Availability
006
MAY 23004120 MAY 23004120 Contact Us For Availability
006
MAY 23004095 MAY 23004095 Contact Us For Availability
006
MAY 23003616 MAY 23003616 Contact Us For Availability
006
MAY 23004152 MAY 23004152 Contact Us For Availability
006
MAY 23004159 MAY 23004159 Contact Us For Availability
007
MAY 23004215 MAY 23004215 Contact Us For Availability
007
MAY 23001135 MAY 23001135 Contact Us For Availability
007
MAY 23003860 MAY 23003860 Contact Us For Availability
007
MAY 23001246 MAY 23001246 Contact Us For Availability
007
MAY 23004189 MAY 23004189 Contact Us For Availability
007
MAY 23004045 MAY 23004045 Contact Us For Availability
007
MAY 23004211 MAY 23004211 Contact Us For Availability
007
MAY 23004160 MAY 23004160 Contact Us For Availability
008
MAY 23004216 MAY 23004216 Contact Us For Availability
008
MAY 23001003 MAY 23001003 Contact Us For Availability
008
MAY 23002479 MAY 23002479 Contact Us For Availability
008
MAY 23001370 MAY 23001370 Contact Us For Availability
008
MAY 23001259 MAY 23001259 Contact Us For Availability
008
MAY 23003646 MAY 23003646 Contact Us For Availability
008
MAY 23004047 MAY 23004047 Contact Us For Availability
008
MAY 23004206 MAY 23004206 Contact Us For Availability
008
MAY 23002473 MAY 23002473 Contact Us For Availability
009
MAY 23004182 MAY 23004182 Contact Us For Availability
009
MAY 23002756 MAY 23002756 Contact Us For Availability
009
MAY 23003781 MAY 23003781 Contact Us For Availability
009
MAY 23001146 MAY 23001146 Contact Us For Availability
009
MAY 23001169 MAY 23001169 Contact Us For Availability
009
MAY 23001257 MAY 23001257 Contact Us For Availability
009
MAY 23004122 MAY 23004122 Contact Us For Availability
009
MAY 23003614 MAY 23003614 Contact Us For Availability
009
MAY 23004207 MAY 23004207 Contact Us For Availability
009
MAY 23003661 MAY 23003661 Contact Us For Availability
010
MAY 23004092 MAY 23004092 Contact Us For Availability
010
MAY 23001149 MAY 23001149 Contact Us For Availability
010
MAY 23003545 MAY 23003545 Contact Us For Availability
010
MAY 23001260 MAY 23001260 Contact Us For Availability
010
MAY 23004123 MAY 23004123 Contact Us For Availability
010
MAY 23002504 MAY 23002504 Contact Us For Availability
010
MAY 23004048 MAY 23004048 Contact Us For Availability
010
MAY 23002658 MAY 23002658 Contact Us For Availability
011
SCREW (M6 X 20) LU MAY 23002462 Contact Us For Availability
011
MAY 23003012 MAY 23003012 Contact Us For Availability
011
MAY 23001137 MAY 23001137 Contact Us For Availability
011
MAY 23004110 MAY 23004110 Contact Us For Availability
011
MAY 23001252 MAY 23001252 Contact Us For Availability
011
MAY 23003810 MAY 23003810 Contact Us For Availability
011
MAY 23003615 MAY 23003615 Contact Us For Availability
011
MAY 23004193 MAY 23004193 Contact Us For Availability
011
MAY 23003750 MAY 23003750 Contact Us For Availability
012
MAY 23002487 MAY 23002487 Contact Us For Availability
012
MAY 23002861 MAY 23002861 Contact Us For Availability
012
MAY 23002652 MAY 23002652 Contact Us For Availability
012
MAY 23001140 MAY 23001140 Contact Us For Availability
012
MAY 23004111 MAY 23004111 Contact Us For Availability
012
MAY 23001250 MAY 23001250 Contact Us For Availability
012
MAY 23003811 MAY 23003811 Contact Us For Availability
012
MAY 23004049 MAY 23004049 Contact Us For Availability
012
MAY 23003676 MAY 23003676 Contact Us For Availability
012
MAY 23001455 MAY 23001455 Contact Us For Availability
013
MAY 23001608 MAY 23001608 Contact Us For Availability
013
MAY 23002456 MAY 23002456 Contact Us For Availability
013
MAY 23002673 MAY 23002673 Contact Us For Availability
013
MAY 23002903 MAY 23002903 Contact Us For Availability
013
MAY 23004112 MAY 23004112 Contact Us For Availability
013
MAY 23001251 MAY 23001251 Contact Us For Availability
013
MAY 23004075 MAY 23004075 Contact Us For Availability
013
MAY 23004124 MAY 23004124 Contact Us For Availability
013
MAY 23004167 MAY 23004167 Contact Us For Availability
013
MAY 23003656 MAY 23003656 Contact Us For Availability
013
MAY 23002661 MAY 23002661 Contact Us For Availability
013
MAY 23003765 MAY 23003765 Contact Us For Availability
013
MAY 23002924 MAY 23002924 Contact Us For Availability
014
MAY 23003769 MAY 23003769 Contact Us For Availability
014
MAY 23004172 MAY 23004172 Contact Us For Availability
014
LOCK HOOK (SHORT) MAY 23001009 Contact Us For Availability
014
MAY 23002900 MAY 23002900 Contact Us For Availability
014
MAY 23004113 MAY 23004113 Contact Us For Availability
014
MAY 23001254 MAY 23001254 Contact Us For Availability
014
MAY 23003797 MAY 23003797 Contact Us For Availability
014
CONNECTOR HOUSING (4 POLE) MAY 23001113 Contact Us For Availability
015
MAY 23003716 MAY 23003716 Contact Us For Availability
015
MAY 23002899 MAY 23002899 Contact Us For Availability
015
MAY 23001255 MAY 23001255 Contact Us For Availability
015
MAY 23002439 MAY 23002439 Contact Us For Availability
015
MAY 23004125 MAY 23004125 Contact Us For Availability
015
INSULATION PAPER MAY 23001115 Contact Us For Availability
015
MAY 23002657 MAY 23002657 Contact Us For Availability
015
MAY 23002795 MAY 23002795 Contact Us For Availability
016
MAY 23004175 MAY 23004175 Contact Us For Availability
016
MAY 23002471 MAY 23002471 Contact Us For Availability
016
MAY 23001012 MAY 23001012 Contact Us For Availability
016
MAY 23001368 MAY 23001368 Contact Us For Availability
016
MAY 23001175 MAY 23001175 Contact Us For Availability
016
MAY 23001256 MAY 23001256 Contact Us For Availability
016
MAY 23002196 MAY 23002196 Contact Us For Availability
017
MAY 23002280 MAY 23002280 Contact Us For Availability
017
MAY 23002862 MAY 23002862 Contact Us For Availability
017
MAY 23004114 MAY 23004114 Contact Us For Availability
017
MAY 23001750 MAY 23001750 Contact Us For Availability
017
MAY 23004081 MAY 23004081 Contact Us For Availability
017
MAY 23002197 MAY 23002197 Contact Us For Availability
018
MAY 23001130 MAY 23001130 Contact Us For Availability
018
MAY 23001262 MAY 23001262 Contact Us For Availability
018
MAY 23002423 MAY 23002423 Contact Us For Availability
018
MAY 23002281 MAY 23002281 Contact Us For Availability
018
MAY 23004080 MAY 23004080 Contact Us For Availability
018
MAY 23004220 MAY 23004220 Contact Us For Availability
018
MAY W10415735 MAY W10415735 Contact Us For Availability
019
SCREW (M4X20) MAY NLA Contact Us For Availability
019
MAY 23002424 MAY 23002424 Contact Us For Availability
019
MAY 23004173 MAY 23004173 Contact Us For Availability
019
MAY 23002440 MAY 23002440 Contact Us For Availability
019
MAY 23001142 MAY 23001142 Contact Us For Availability
019
MAY 23003783 MAY 23003783 Contact Us For Availability
019
MAY 23003774 MAY 23003774 Contact Us For Availability
019
MAY 23002931 MAY 23002931 Contact Us For Availability
019
MAY 23004208 MAY 23004208 Contact Us For Availability
020
MAY 23004174 MAY 23004174 Contact Us For Availability
020
MAY 23001143 MAY 23001143 Contact Us For Availability
020
MAY 23002130 MAY 23002130 Contact Us For Availability
020
MAY 23001015 MAY 23001015 Contact Us For Availability
020
MAY 23002438 MAY 23002438 Contact Us For Availability
020
MAY 23004194 MAY 23004194 Contact Us For Availability
020
MAY 23002649 MAY 23002649 Contact Us For Availability
021
MAY 23003773 MAY 23003773 Contact Us For Availability
021
MAY 23002337 MAY 23002337 Contact Us For Availability
021
MAY 23002499 MAY 23002499 Contact Us For Availability
021
MAY 23004187 MAY 23004187 Contact Us For Availability
021
MAY 23003746 MAY 23003746 Contact Us For Availability
021
MAY 23002400 MAY 23002400 Contact Us For Availability
021
MAY 23002806 MAY 23002806 Contact Us For Availability
022
MAY 23003114 MAY 23003114 Contact Us For Availability
022
MAY 23001025 MAY 23001025 Contact Us For Availability
022
MAY 23003666 MAY 23003666 Contact Us For Availability
022
MAY 23004195 MAY 23004195 Contact Us For Availability
022
MAY 23004209 MAY 23004209 Contact Us For Availability
023
MAY 23002869 MAY 23002869 Contact Us For Availability
023
MAY 23002908 MAY 23002908 Contact Us For Availability
023
MAY 23003653 MAY 23003653 Contact Us For Availability
023
MAY 23004196 MAY 23004196 Contact Us For Availability
023
MAY 23002651 MAY 23002651 Contact Us For Availability
024
MAY 23003778 MAY 23003778 Contact Us For Availability
024
MAY 23002457 MAY 23002457 Contact Us For Availability
024
MAY 23003115 MAY 23003115 Contact Us For Availability
024
MAY 23002475 MAY 23002475 Contact Us For Availability
024
MAY 23003652 MAY 23003652 Contact Us For Availability
024
MAY 23001197 MAY 23001197 Contact Us For Availability
025
MAY 23003784 MAY 23003784 Contact Us For Availability
025
MAY 23002437 MAY 23002437 Contact Us For Availability
025
MAY 23002950 MAY 23002950 Contact Us For Availability
025
MAY 23003654 MAY 23003654 Contact Us For Availability
025
MAY 23004197 MAY 23004197 Contact Us For Availability
026
MAY 23001447 MAY 23001447 Contact Us For Availability
026
MAY 23002422 MAY 23002422 Contact Us For Availability
026
MAY 23002958 MAY 23002958 Contact Us For Availability
026
MAY 23004198 MAY 23004198 Contact Us For Availability
026
MAY 23002425 MAY 23002425 Contact Us For Availability
027
MAY 23004105 MAY 23004105 Contact Us For Availability
027
MAY 23003113 MAY 23003113 Contact Us For Availability
028
MAY 23001330 MAY 23001330 Contact Us For Availability
028
MAY 23002015 MAY 23002015 Contact Us For Availability
028
MAY 23002865 MAY 23002865 Contact Us For Availability
028
MAY 23001607 MAY 23001607 Contact Us For Availability
028
MAY 23001506 MAY 23001506 Contact Us For Availability
029
MAY 23004183 MAY 23004183 Contact Us For Availability
029
MAY 23003782 MAY 23003782 Contact Us For Availability
029
MAY 23004061 MAY 23004061 Contact Us For Availability
029
MAY 23004199 MAY 23004199 Contact Us For Availability
029
MAY 23001507 MAY 23001507 Contact Us For Availability
030
MAY 23002860 MAY 23002860 Contact Us For Availability
030
MAY 23001136 MAY 23001136 Contact Us For Availability
030
SOAP BOX HOUSING MAY 23001016 Contact Us For Availability
030
MAY 23002179 MAY 23002179 Contact Us For Availability
030
MAY 23004161 MAY 23004161 Contact Us For Availability
031
MAY 23002901 MAY 23002901 Contact Us For Availability
031
MAY 23003484 MAY 23003484 Contact Us For Availability
031
MAY 23004126 MAY 23004126 Contact Us For Availability
031
MAY 23002936 MAY 23002936 Contact Us For Availability
031
MAY 23002921 MAY 23002921 Contact Us For Availability
032
MAY 23002455 MAY 23002455 Contact Us For Availability
032
MAY 23002905 MAY 23002905 Contact Us For Availability
032
SOAP BOX INSERT MAY 23001017 Contact Us For Availability
032
MAY 23004200 MAY 23004200 Contact Us For Availability
032
MAY 23001523 MAY 23001523 Contact Us For Availability
033
MAY 23001019 MAY 23001019 Contact Us For Availability
033
MAY 23004091 MAY 23004091 Contact Us For Availability
033
MAY 23003964 MAY 23003964 Contact Us For Availability
033
MAY 23004162 MAY 23004162 Contact Us For Availability
034
MAY 23001018 MAY 23001018 Contact Us For Availability
034
MAY 23004163 MAY 23004163 Contact Us For Availability
035
MAY 23001020 MAY 23001020 Contact Us For Availability
035
MAY 23004127 MAY 23004127 Contact Us For Availability
036
MAY 23001021 MAY 23001021 Contact Us For Availability
036
MAY 23004139 MAY 23004139 Contact Us For Availability
037
MAY 23001022 MAY 23001022 Contact Us For Availability
037
MAY 23004164 MAY 23004164 Contact Us For Availability
038
MAY 23001023 MAY 23001023 Contact Us For Availability
038
MAY 23004165 MAY 23004165 Contact Us For Availability
039
MAY 23004210 MAY 23004210 Contact Us For Availability
× ![]()
