Model Maytag MFR35PNBVS WASHER – Common Parts & Diagrams

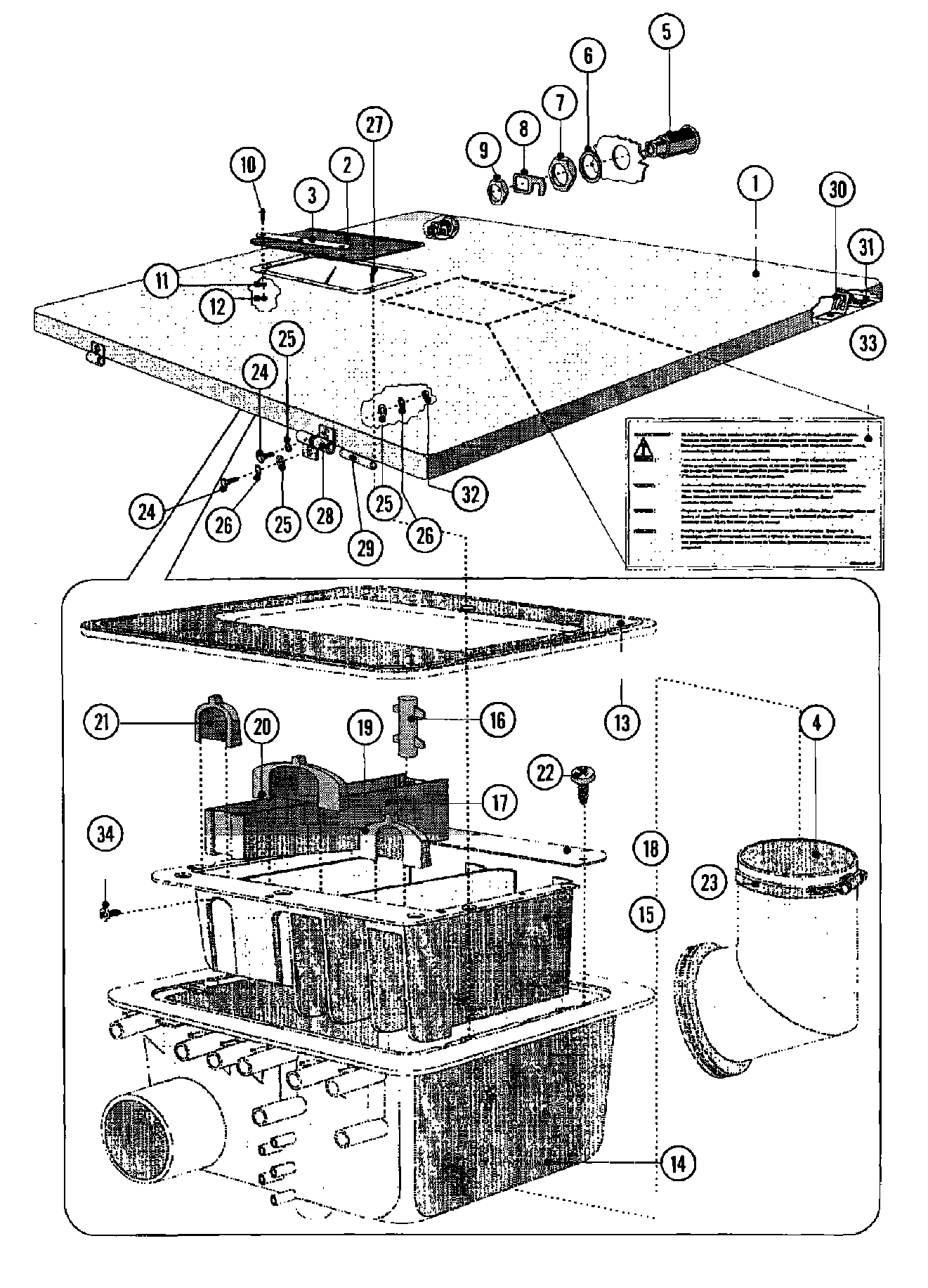

01 - SOAP BOX & TOP COVER ASSEMBLY

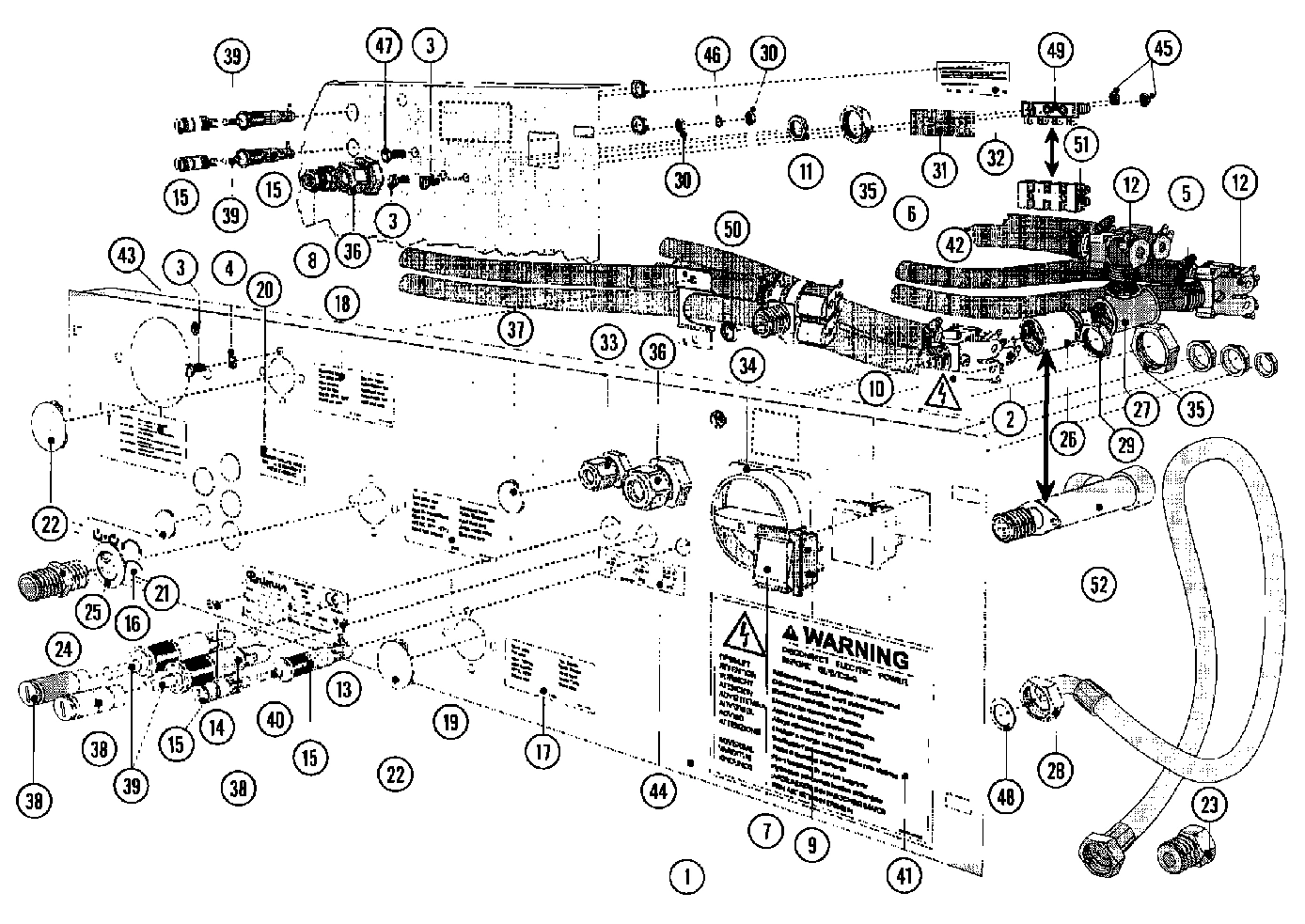

02 - WATER VALVE & REAR PANEL

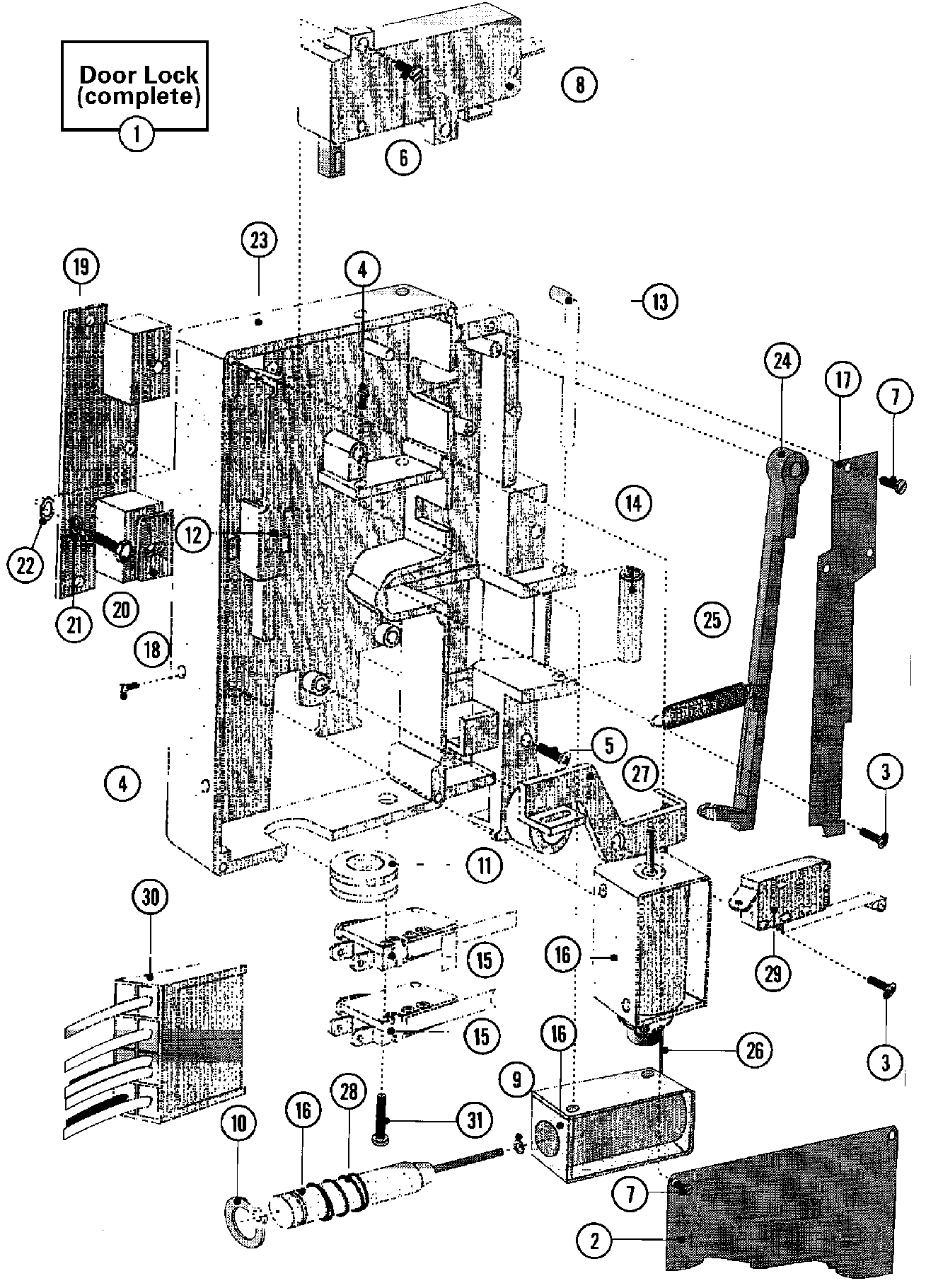

03 - DOOR LOCK ASSEMBLY
04 - DOOR

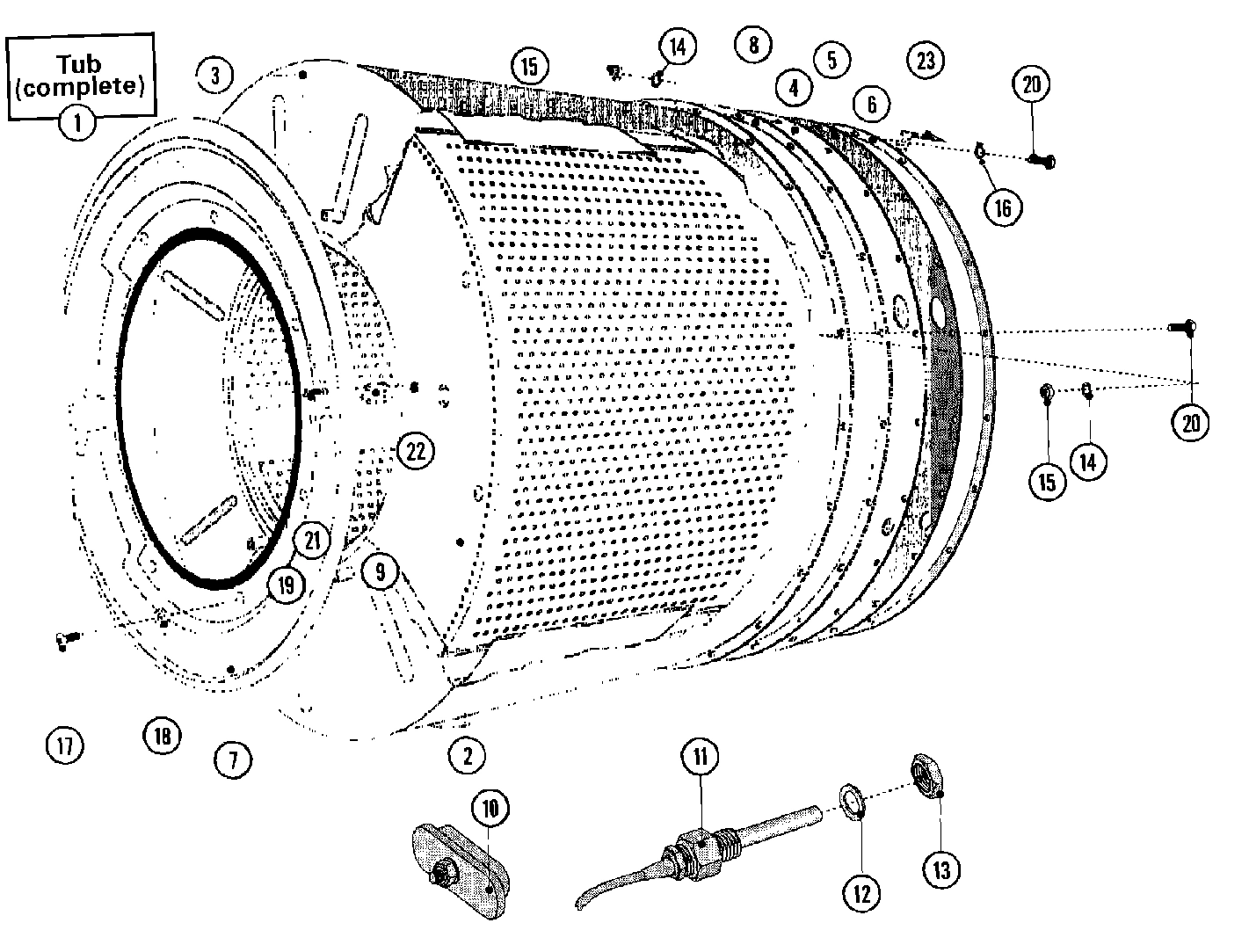

05 - BASKET & OUTER SHELL ASSEMBLY

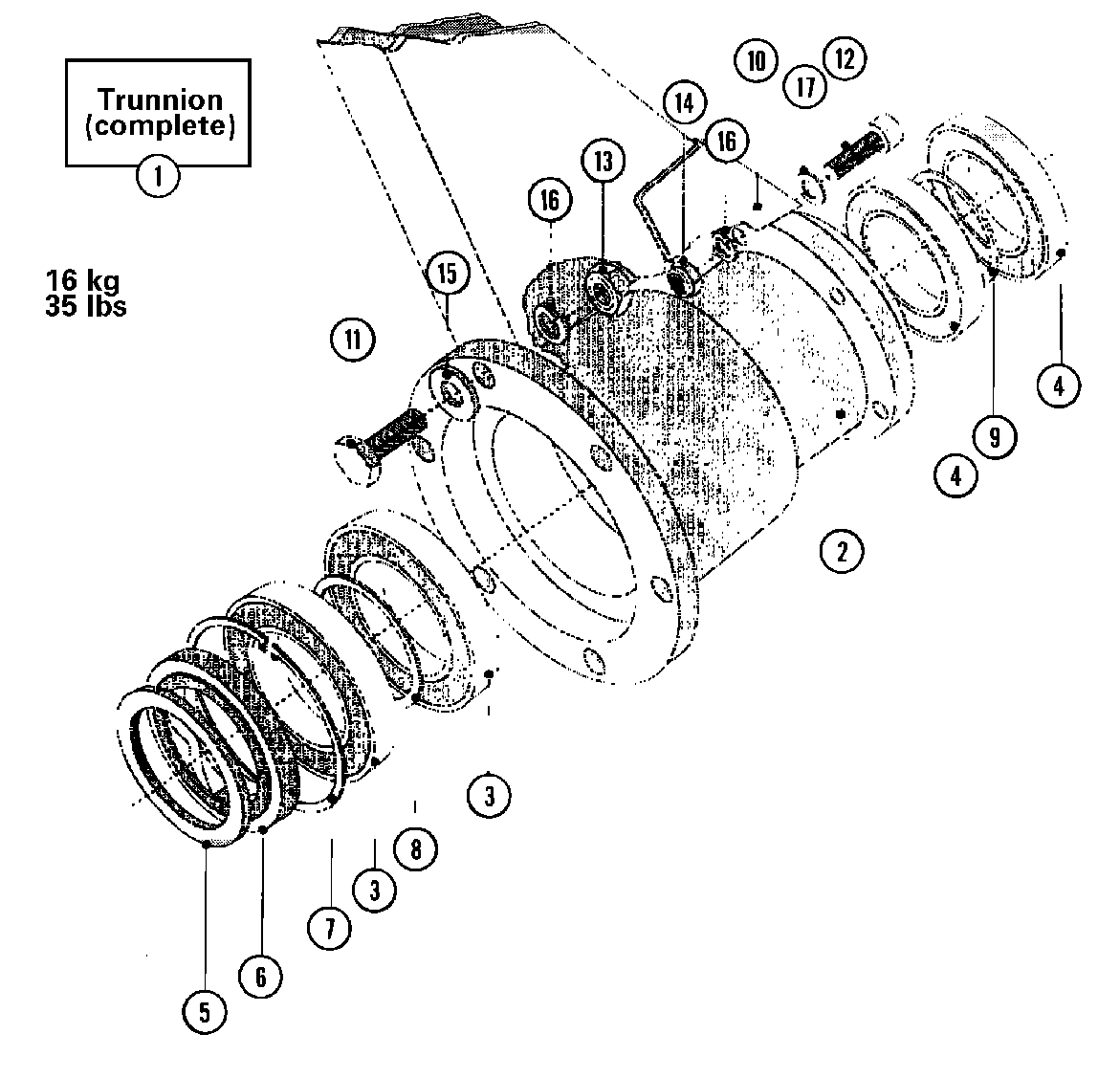

06 - BEARINGS & TRUNNION ASSEMBLY

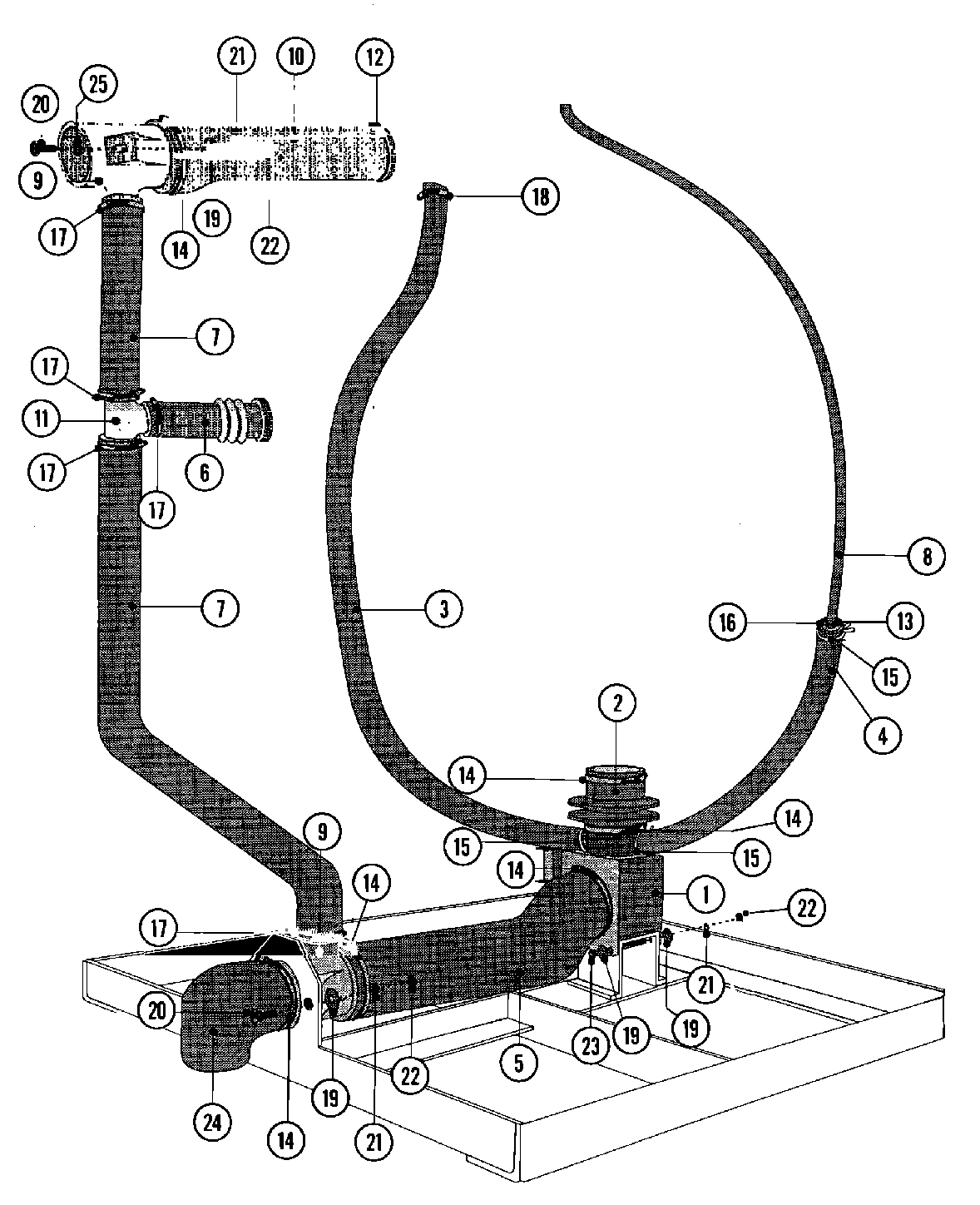

07 - DRAIN & HOSE ASSEMBLY
08 - MOTOR & BASKET PULLEY

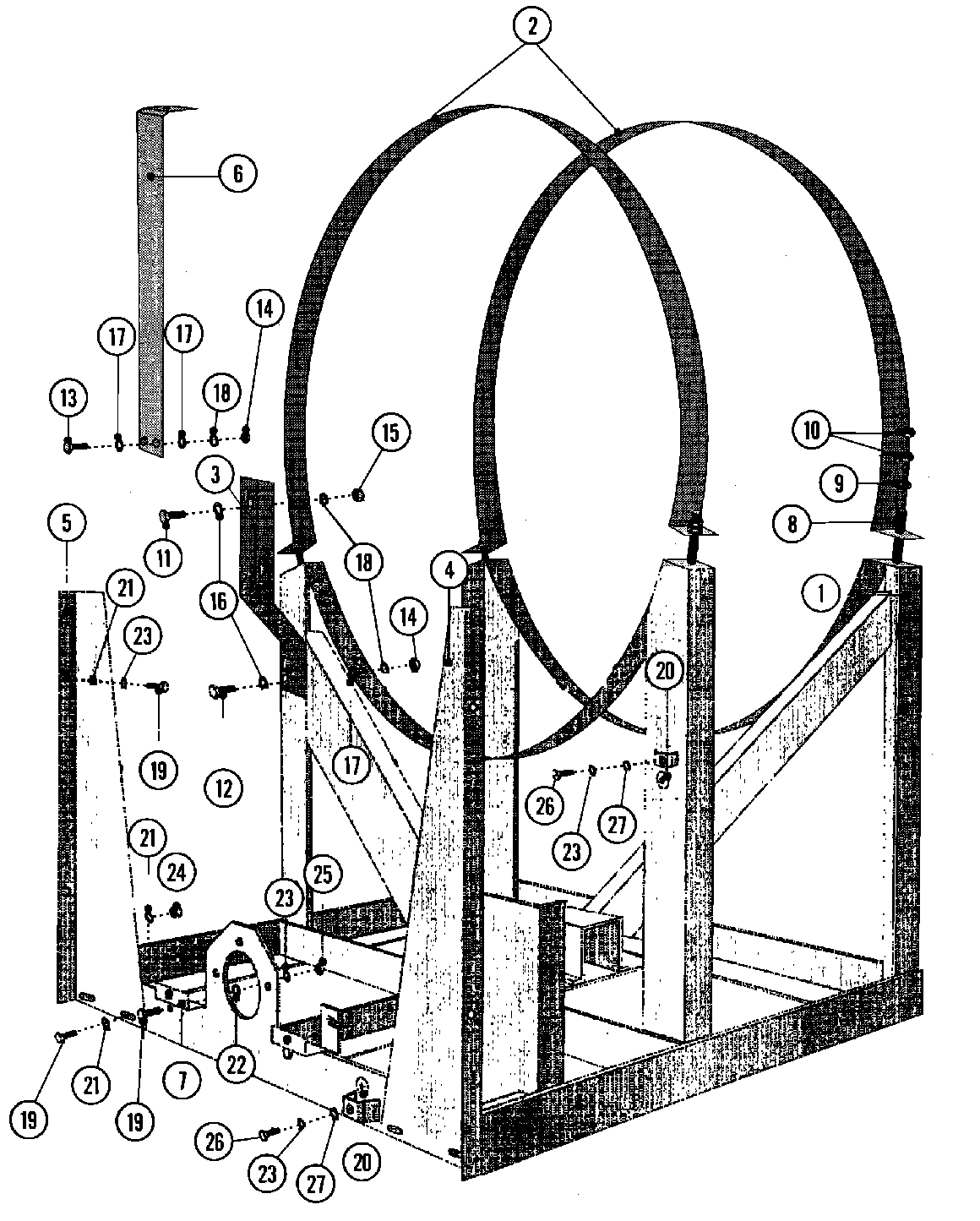

09 - BASE FRAME

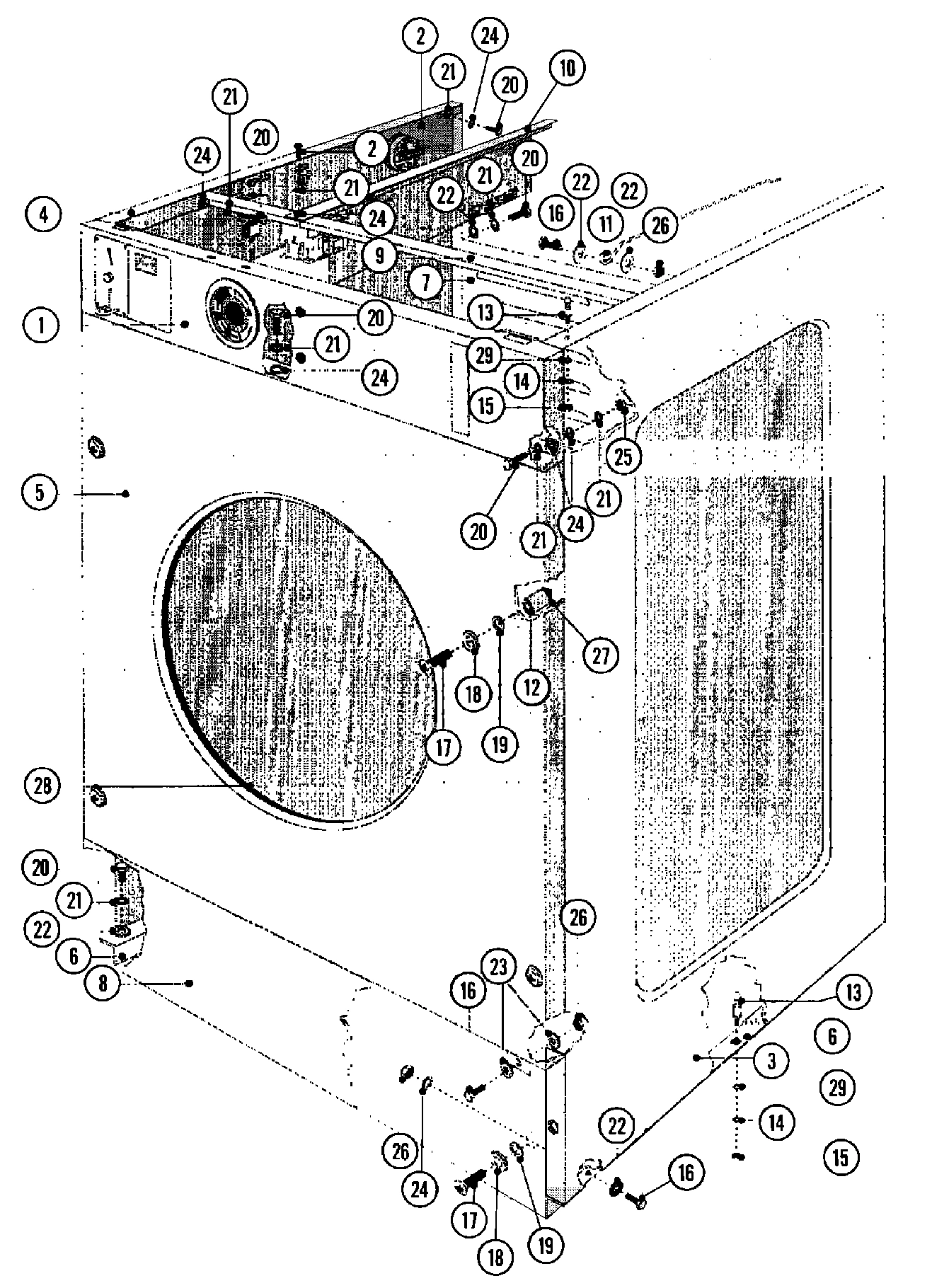

10 - CABINET
11 - CONTROL PANEL

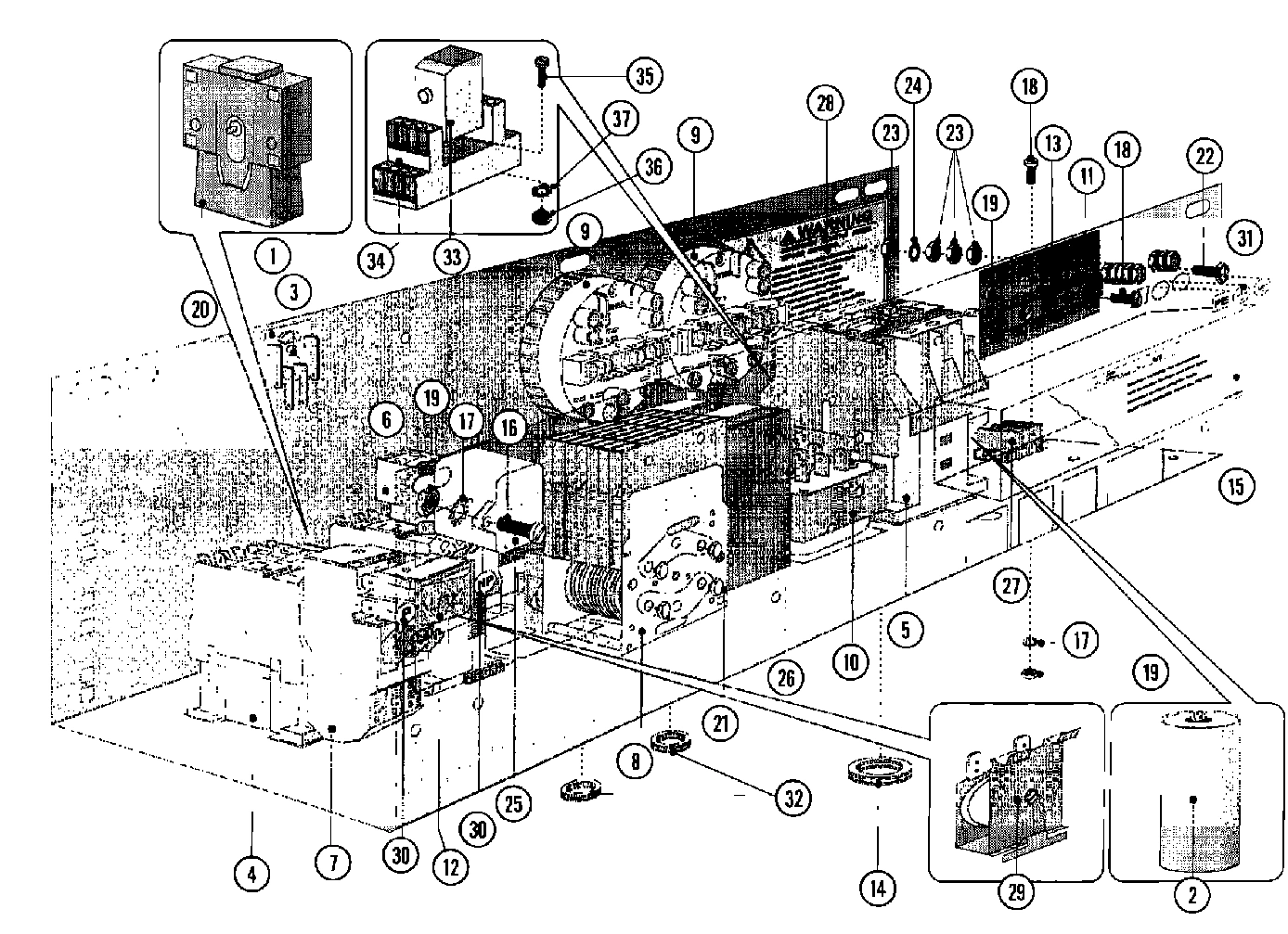

12 - ELECTRICAL COMPONENTS
Common parts from model Maytag MFR35PNBVS WASHER
001
MAY 23001244 MAY 23001244 Contact Us For Availability
001
MAY 23002909 MAY 23002909 Contact Us For Availability
001
MAY Y23002897 MAY Y23002897 Contact Us For Availability
001
MAY 23001161 MAY 23001161 Contact Us For Availability
001
TRUNNION (35LBS) MAY 23002938 Contact Us For Availability
001
MAY 23001270 MAY 23001270 Contact Us For Availability
001
MAY 23002317 MAY 23002317 Contact Us For Availability
001
MAY 23002840 MAY 23002840 Contact Us For Availability
001
MAY 23002942 MAY 23002942 Contact Us For Availability
001
MAY 23001094 MAY 23001094 Contact Us For Availability
002
MAY 23001533 MAY 23001533 Contact Us For Availability
002
MAY 23001130 MAY 23001130 Contact Us For Availability
002
MAY 23001162 MAY 23001162 Contact Us For Availability
002
MAY 23002933 MAY 23002933 Contact Us For Availability
002
MAY 23001230 MAY 23001230 Contact Us For Availability
002
MAY 23002907 MAY 23002907 Contact Us For Availability
002
MAY 23002925 MAY 23002925 Contact Us For Availability
002
MAY 23001297 MAY 23001297 Contact Us For Availability
002
MAY 23002850 MAY 23002850 Contact Us For Availability
002
MAY 23001096 MAY 23001096 Contact Us For Availability
002
MAY 23001098 MAY 23001098 Contact Us For Availability
003
LATH, RUBBER COVER SOAP BOX MAY 23002893 Contact Us For Availability
003
MAY 23001131 MAY 23001131 Contact Us For Availability
003
MAY 23001163 MAY 23001163 Contact Us For Availability
003
MAY 23002934 MAY 23002934 Contact Us For Availability
003
MAY 23001231 MAY 23001231 Contact Us For Availability
003
MAY 23001246 MAY 23001246 Contact Us For Availability
003
MAY 23001273 MAY 23001273 Contact Us For Availability
003
MAY 23002841 MAY 23002841 Contact Us For Availability
003
MAY 23002851 MAY 23002851 Contact Us For Availability
003
MAY 23001073 MAY 23001073 Contact Us For Availability
003
PC BOARD SOCKET MAY 23001099 Contact Us For Availability
004
MAY 23001005 MAY 23001005 Contact Us For Availability
004
MAY 23001132 MAY 23001132 Contact Us For Availability
004
MAY 23001164 MAY 23001164 Contact Us For Availability
004
MAY 23001193 MAY 23001193 Contact Us For Availability
004
MAY 23002178 MAY 23002178 Contact Us For Availability
004
MAY 23001232 MAY 23001232 Contact Us For Availability
004
MAY 23001247 MAY 23001247 Contact Us For Availability
004
MAY 23002926 MAY 23002926 Contact Us For Availability
004
MAY 23002927 MAY 23002927 Contact Us For Availability
004
MAY 23002842 MAY 23002842 Contact Us For Availability
004
MAY 23002852 MAY 23002852 Contact Us For Availability
004
MAY 23002163 MAY 23002163 Contact Us For Availability
004
MAY 23001100 MAY 23001100 Contact Us For Availability
004
MAY 23001101 MAY 23001101 Contact Us For Availability
004
MAY 23003750 MAY 23003750 Contact Us For Availability
004
MAY 23003751 MAY 23003751 Contact Us For Availability
005
MAY 23001006 MAY 23001006 Contact Us For Availability
005
MAY 23002673 MAY 23002673 Contact Us For Availability
005
MAY 23001506 MAY 23001506 Contact Us For Availability
005
SCREW (M5 X 25 STAINLESS STEEL MAY 23001133 Contact Us For Availability
005
MAY 23001165 MAY 23001165 Contact Us For Availability
005
MAY 23001195 MAY 23001195 Contact Us For Availability
005
MAY 23001233 MAY 23001233 Contact Us For Availability
005
MAY 23001249 MAY 23001249 Contact Us For Availability
005
BELT TENSIONER (SINGLE PHASE) MAY 23001278 Contact Us For Availability
005
MAY 23002843 MAY 23002843 Contact Us For Availability
005
PANEL, FRONT (SS)COIN MAY 23001320 Contact Us For Availability
005
MAY 23002332 MAY 23002332 Contact Us For Availability
005
MAY 23001102 MAY 23001102 Contact Us For Availability
005
MAY 23001103 MAY 23001103 Contact Us For Availability
005
MAY 23001340 MAY 23001340 Contact Us For Availability
005
MAY 23003752 MAY 23003752 Contact Us For Availability
006
MAY 23001234 MAY 23001234 Contact Us For Availability
006
MAY 23001007 MAY 23001007 Contact Us For Availability
006
MAY 23001507 MAY 23001507 Contact Us For Availability
006
MAY 23001070 MAY 23001070 Contact Us For Availability
006
MAY 23001166 MAY 23001166 Contact Us For Availability
006
MAY 23002935 MAY 23002935 Contact Us For Availability
006
MAY 23001250 MAY 23001250 Contact Us For Availability
006
MAY 23001279 MAY 23001279 Contact Us For Availability
006
MAY 23002844 MAY 23002844 Contact Us For Availability
006
MAY 23002854 MAY 23002854 Contact Us For Availability
006
MAY 23002855 MAY 23002855 Contact Us For Availability
006
MAY 23001104 MAY 23001104 Contact Us For Availability
007
LOCK NUT (LARGE) MAY 23001008 Contact Us For Availability
007
MAY 23001532 MAY 23001532 Contact Us For Availability
007
MAY 23001134 MAY 23001134 Contact Us For Availability
007
MAY 12001889 MAY 12001889 Contact Us For Availability
007
HANDLE, DOOR (FRONT) MAY 23003631 Contact Us For Availability
007
HANDLE, DOOR (BACK) MAY 23003632 Contact Us For Availability
007
MAY 23001198 MAY 23001198 Contact Us For Availability
007
MAY 23001235 MAY 23001235 Contact Us For Availability
007
MAY 23001251 MAY 23001251 Contact Us For Availability
007
MAY 23001280 MAY 23001280 Contact Us For Availability
007
MAY 23002336 MAY 23002336 Contact Us For Availability
007
MAY 23002845 MAY 23002845 Contact Us For Availability
007
MAY 23002856 MAY 23002856 Contact Us For Availability
007
MAY 23001105 MAY 23001105 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD (4-6A) MAY 23001106 Contact Us For Availability
007
RELAY, THERMAL OVERLOAD (7-10A MAY 23001108 Contact Us For Availability
007
RELAY, OVERLOAD (LR2-D1312) MAY 23002101 Contact Us For Availability
007
MAY 23003756 MAY 23003756 Contact Us For Availability
007
MAY 23003757 MAY 23003757 Contact Us For Availability
007
MAY 23003758 MAY 23003758 Contact Us For Availability
007
MAY 23003761 MAY 23003761 Contact Us For Availability
008
LOCK HOOK (SHORT) MAY 23001009 Contact Us For Availability
008
MAY 23001010 MAY 23001010 Contact Us For Availability
008
MAY 23001453 MAY 23001453 Contact Us For Availability
008
MAY 23001135 MAY 23001135 Contact Us For Availability
008
MAY 23003634 MAY 23003634 Contact Us For Availability
008
MAY 23001199 MAY 23001199 Contact Us For Availability
008
SPACER RING (FRONT BEARING) MAY 23001236 Contact Us For Availability
008
MAY 23001252 MAY 23001252 Contact Us For Availability
008
MAY 23001282 MAY 23001282 Contact Us For Availability
008
MAY 23002846 MAY 23002846 Contact Us For Availability
008
MAY 23002931 MAY 23002931 Contact Us For Availability
008
MAY 23002857 MAY 23002857 Contact Us For Availability
008
MAY 23002331 MAY 23002331 Contact Us For Availability
008
TIMER, REVERSING (PR1840) MAY 23001110 Contact Us For Availability
009
MAY 23001011 MAY 23001011 Contact Us For Availability
009
MAY 23001529 MAY 23001529 Contact Us For Availability
009
MAY 23001136 MAY 23001136 Contact Us For Availability
009
SHAFT, LEVER MAY 23001168 Contact Us For Availability
009
MAY 23001200 MAY 23001200 Contact Us For Availability
009
SPACER RING (REAR BEARING) MAY 23001237 Contact Us For Availability
009
DRAIN TEE MAY 23001253 Contact Us For Availability
009
MAY 23002661 MAY 23002661 Contact Us For Availability
009
MAY 23002657 MAY 23002657 Contact Us For Availability
009
MAY 23002258 MAY 23002258 Contact Us For Availability
009
MAY 23002858 MAY 23002858 Contact Us For Availability
009
MAY 23001692 MAY 23001692 Contact Us For Availability
009
MAY 23001111 MAY 23001111 Contact Us For Availability
009
MAY 23002176 MAY 23002176 Contact Us For Availability
010
MAY 23001012 MAY 23001012 Contact Us For Availability
010
MAY 23001452 MAY 23001452 Contact Us For Availability
010
MAY 23001137 MAY 23001137 Contact Us For Availability
010
MAY 23001169 MAY 23001169 Contact Us For Availability
010
MAY 23001594 MAY 23001594 Contact Us For Availability
010
MAY 23002939 MAY 23002939 Contact Us For Availability
010
MAY 23001254 MAY 23001254 Contact Us For Availability
010
BASKET PULLEY (DIA. 450) MAY 23001284 Contact Us For Availability
010
MAY 23001599 MAY 23001599 Contact Us For Availability
010
MAY 23003746 MAY 23003746 Contact Us For Availability
010
MAY 23002859 MAY 23002859 Contact Us For Availability
010
MAY 23002946 MAY 23002946 Contact Us For Availability
010
MAY 23002460 MAY 23002460 Contact Us For Availability
011
WASHER MAY 23001636 Contact Us For Availability
011
MAY 23001450 MAY 23001450 Contact Us For Availability
011
MAY 23001057 MAY 23001057 Contact Us For Availability
011
MAY 23001592 MAY 23001592 Contact Us For Availability
011
MAY 23002847 MAY 23002847 Contact Us For Availability
011
MAY 23002940 MAY 23002940 Contact Us For Availability
011
MAY 23001255 MAY 23001255 Contact Us For Availability
011
MAY 23002928 MAY 23002928 Contact Us For Availability
011
MAY 23001330 MAY 23001330 Contact Us For Availability
011
MAY 23002947 MAY 23002947 Contact Us For Availability
011
MAY 23002154 MAY 23002154 Contact Us For Availability
012
MAY 23002652 MAY 23002652 Contact Us For Availability
012
MAY 23001455 MAY 23001455 Contact Us For Availability
012
MAY 23001140 MAY 23001140 Contact Us For Availability
012
MAY 23001171 MAY 23001171 Contact Us For Availability
012
MAY 23002179 MAY 23002179 Contact Us For Availability
012
MAY 23002941 MAY 23002941 Contact Us For Availability
012
MAY 23001256 MAY 23001256 Contact Us For Availability
012
MAY 23001287 MAY 23001287 Contact Us For Availability
012
MAY 23001304 MAY 23001304 Contact Us For Availability
012
MAY 23002860 MAY 23002860 Contact Us For Availability
012
ROCKER SWITCH, PREWASH/NO PREW MAY 23001114 Contact Us For Availability
013
MAY 23001015 MAY 23001015 Contact Us For Availability
013
INSULATION PAPER MAY 23001115 Contact Us For Availability
013
MAY 23001142 MAY 23001142 Contact Us For Availability
013
MAY 23001172 MAY 23001172 Contact Us For Availability
013
MAY 23002936 MAY 23002936 Contact Us For Availability
013
MAY 23001661 MAY 23001661 Contact Us For Availability
013
MAY 23001257 MAY 23001257 Contact Us For Availability
013
BASKET PULLEY KEY (10 X 8X 60) MAY 23001288 Contact Us For Availability
013
MAY 23002647 MAY 23002647 Contact Us For Availability
013
MAY 23001332 MAY 23001332 Contact Us For Availability
014
SOAP BOX HOUSING MAY 23001016 Contact Us For Availability
014
MAY 23001461 MAY 23001461 Contact Us For Availability
014
MAY 23001143 MAY 23001143 Contact Us For Availability
014
MAY 23001173 MAY 23001173 Contact Us For Availability
014
MAY 23002356 MAY 23002356 Contact Us For Availability
014
MAY 23001258 MAY 23001258 Contact Us For Availability
014
MAY 23002435 MAY 23002435 Contact Us For Availability
014
MAY 23002929 MAY 23002929 Contact Us For Availability
014
MAY 23002465 MAY 23002465 Contact Us For Availability
014
MAY 23002201 MAY 23002201 Contact Us For Availability
014
MAY 23003742 MAY 23003742 Contact Us For Availability
014
MAY 23003744 MAY 23003744 Contact Us For Availability
014
MAY 23001117 MAY 23001117 Contact Us For Availability
015
SOAP BOX INSERT MAY 23001017 Contact Us For Availability
015
MAY 23001462 MAY 23001462 Contact Us For Availability
015
MAY 23001144 MAY 23001144 Contact Us For Availability
015
MAY 23002937 MAY 23002937 Contact Us For Availability
015
MAY 23001607 MAY 23001607 Contact Us For Availability
015
MAY 23001201 MAY 23001201 Contact Us For Availability
015
MAY 23001259 MAY 23001259 Contact Us For Availability
015
MAY 23002930 MAY 23002930 Contact Us For Availability
015
MAY 23002466 MAY 23002466 Contact Us For Availability
015
MAY 23001118 MAY 23001118 Contact Us For Availability
016
MAY 23001018 MAY 23001018 Contact Us For Availability
016
MAY 23002423 MAY 23002423 Contact Us For Availability
016
MAY 23001468 MAY 23001468 Contact Us For Availability
016
MAY 23001146 MAY 23001146 Contact Us For Availability
016
MAY 23001147 MAY 23001147 Contact Us For Availability
016
MAY 23001159 MAY 23001159 Contact Us For Availability
016
NUT (M6 STAINLESS STEEL) MAY 23001176 Contact Us For Availability
016
MAY 23001400 MAY 23001400 Contact Us For Availability
016
MAY 23001260 MAY 23001260 Contact Us For Availability
016
MAY 23001291 MAY 23001291 Contact Us For Availability
016
MAY 23001263 MAY 23001263 Contact Us For Availability
016
MAY 23002861 MAY 23002861 Contact Us For Availability
016
MAY 23001056 MAY 23001056 Contact Us For Availability
017
MAY 23001019 MAY 23001019 Contact Us For Availability
017
MAY 23002111 MAY 23002111 Contact Us For Availability
017
MAY 23001149 MAY 23001149 Contact Us For Availability
017
MAY 23002130 MAY 23002130 Contact Us For Availability
017
MAY 23002617 MAY 23002617 Contact Us For Availability
017
MAY 23002655 MAY 23002655 Contact Us For Availability
017
MAY 23001261 MAY 23001261 Contact Us For Availability
017
MAY 23002653 MAY 23002653 Contact Us For Availability
017
MAY 23002456 MAY 23002456 Contact Us For Availability
017
MAY 23002426 MAY 23002426 Contact Us For Availability
018
MAY 23001020 MAY 23001020 Contact Us For Availability
018
MAY 23001155 MAY 23001155 Contact Us For Availability
018
WASHER M8 MAY 23002358 Contact Us For Availability
018
MAY 23001204 MAY 23001204 Contact Us For Availability
018
MAY 23001262 MAY 23001262 Contact Us For Availability
018
MAY 23002475 MAY 23002475 Contact Us For Availability
018
MAY 23001337 MAY 23001337 Contact Us For Availability
018
MAY 23002398 MAY 23002398 Contact Us For Availability
019
MAY 23001021 MAY 23001021 Contact Us For Availability
019
SCREW (M6 X 20) LU MAY 23002462 Contact Us For Availability
019
MAY 23001156 MAY 23001156 Contact Us For Availability
019
MAY 23001621 MAY 23001621 Contact Us For Availability
019
MAY 23002437 MAY 23002437 Contact Us For Availability
019
MAY 23002932 MAY 23002932 Contact Us For Availability
019
MAY 23002399 MAY 23002399 Contact Us For Availability
019
MAY 23001338 MAY 23001338 Contact Us For Availability
019
MAY 23001090 MAY 23001090 Contact Us For Availability
020
MAY 23001022 MAY 23001022 Contact Us For Availability
020
MAY 23001509 MAY 23001509 Contact Us For Availability
020
MAY 23001178 MAY 23001178 Contact Us For Availability
020
MAY 23002354 MAY 23002354 Contact Us For Availability
020
MECHANICAL INTERLOCK, CONTACTO MAY 23001119 Contact Us For Availability
020
MAY 23003762 MAY 23003762 Contact Us For Availability
021
MAY 23001023 MAY 23001023 Contact Us For Availability
021
MAY 23002756 MAY 23002756 Contact Us For Availability
021
MAY 23001781 MAY 23001781 Contact Us For Availability
021
MAY 23001089 MAY 23001089 Contact Us For Availability
021
MAY 23002952 MAY 23002952 Contact Us For Availability
022
SCREW MAY 23001024 Contact Us For Availability
022
MAY 23001476 MAY 23001476 Contact Us For Availability
022
MAY 23001055 MAY 23001055 Contact Us For Availability
022
MAY 23001708 MAY 23001708 Contact Us For Availability
022
MAY 23001309 MAY 23001309 Contact Us For Availability
022
MAY 23002951 MAY 23002951 Contact Us For Availability
022
MAY 23002806 MAY 23002806 Contact Us For Availability
023
MAY 23001025 MAY 23001025 Contact Us For Availability
023
MAY 23001477 MAY 23001477 Contact Us For Availability
023
MAY Y23002898 MAY Y23002898 Contact Us For Availability
023
RETAINING RING (DIA. 8) MAY 23001181 Contact Us For Availability
023
MAY 23001203 MAY 23001203 Contact Us For Availability
023
MAY 23001206 MAY 23001206 Contact Us For Availability
023
MAY 23002908 MAY 23002908 Contact Us For Availability
023
MAY 23002330 MAY 23002330 Contact Us For Availability
023
MAY 23001515 MAY 23001515 Contact Us For Availability
024
MAY 23001482 MAY 23001482 Contact Us For Availability
024
MAY 23002899 MAY 23002899 Contact Us For Availability
024
MAY 23002279 MAY 23002279 Contact Us For Availability
024
MAY 23002822 MAY 23002822 Contact Us For Availability
024
MAY 23002282 MAY 23002282 Contact Us For Availability
024
MAY 23001734 MAY 23001734 Contact Us For Availability
024
ORNAMENTAL SCREW (M3 X 10) MAY 23001064 Contact Us For Availability
025
MAY 23001027 MAY 23001027 Contact Us For Availability
025
MAY 23002436 MAY 23002436 Contact Us For Availability
025
MAY 23001483 MAY 23001483 Contact Us For Availability
025
MAY 23002900 MAY 23002900 Contact Us For Availability
025
MAY 23001185 MAY 23001185 Contact Us For Availability
025
MAY 23002174 MAY 23002174 Contact Us For Availability
026
MAY 23001484 MAY 23001484 Contact Us For Availability
026
MAY 23002353 MAY 23002353 Contact Us For Availability
026
MAY 23002901 MAY 23002901 Contact Us For Availability
026
MAY 23001186 MAY 23001186 Contact Us For Availability
026
MAY 23002471 MAY 23002471 Contact Us For Availability
026
MAY 23002348 MAY 23002348 Contact Us For Availability
027
MAY 23002894 MAY 23002894 Contact Us For Availability
027
MAY 23001485 MAY 23001485 Contact Us For Availability
027
MAY 23001643 MAY 23001643 Contact Us For Availability
027
MAY 23001339 MAY 23001339 Contact Us For Availability
027
MAY 23002959 MAY 23002959 Contact Us For Availability
028
MAY 23001030 MAY 23001030 Contact Us For Availability
028
MAY 23001523 MAY 23001523 Contact Us For Availability
028
MAY 23001465 MAY 23001465 Contact Us For Availability
028
MAY 23002903 MAY 23002903 Contact Us For Availability
028
MAY 23001088 MAY 23001088 Contact Us For Availability
029
SHAFT, HINGE (10 X 56 BRASS) MAY 23001031 Contact Us For Availability
029
MAY 23002197 MAY 23002197 Contact Us For Availability
029
MAY 23002337 MAY 23002337 Contact Us For Availability
029
MAY 23002862 MAY 23002862 Contact Us For Availability
029
MAY 23002955 MAY 23002955 Contact Us For Availability
030
MAY 23001032 MAY 23001032 Contact Us For Availability
030
MAY 23001312 MAY 23001312 Contact Us For Availability
030
MAY 23002905 MAY 23002905 Contact Us For Availability
031
MAY 23001033 MAY 23001033 Contact Us For Availability
031
LABEL, EARTH MAY NLA Contact Us For Availability
032
MAY 23001138 MAY 23001138 Contact Us For Availability
033
MAY 23001550 MAY 23001550 Contact Us For Availability
033
MAY 23002196 MAY 23002196 Contact Us For Availability
033
MAY 23002956 MAY 23002956 Contact Us For Availability
034
MAY 23001731 MAY 23001731 Contact Us For Availability
034
MAY 23002914 MAY 23002914 Contact Us For Availability
034
MAY 23002915 MAY 23002915 Contact Us For Availability
034
MAY 23002916 MAY 23002916 Contact Us For Availability
034
MAY 23002957 MAY 23002957 Contact Us For Availability
035
MAY 23002212 MAY 23002212 Contact Us For Availability
035
MAY 23002906 MAY 23002906 Contact Us For Availability
036
MAY 23002958 MAY 23002958 Contact Us For Availability
037
MAY 23002243 MAY 23002243 Contact Us For Availability
037
MAY 23002865 MAY 23002865 Contact Us For Availability
038
MAY 23002210 MAY 23002210 Contact Us For Availability
039
MAY 23002918 MAY 23002918 Contact Us For Availability
040
MAY 23002919 MAY 23002919 Contact Us For Availability
042
MAY 23002920 MAY 23002920 Contact Us For Availability
043
MAY 23002053 MAY 23002053 Contact Us For Availability
046
WASHER M6 MAY 23001158 Contact Us For Availability
047
MAY 23002778 MAY 23002778 Contact Us For Availability
048
MAY 23002921 MAY 23002921 Contact Us For Availability
049
CONNECTOR HOUSING (4 POLE) MAY 23001113 Contact Us For Availability
050
MAY 23002922 MAY 23002922 Contact Us For Availability
051
MAY 23002923 MAY 23002923 Contact Us For Availability
052
MAY 23002924 MAY 23002924 Contact Us For Availability
× ![]()
