Model Electrolux MFC23S4CW0 FREEZER – Common Parts & Diagrams

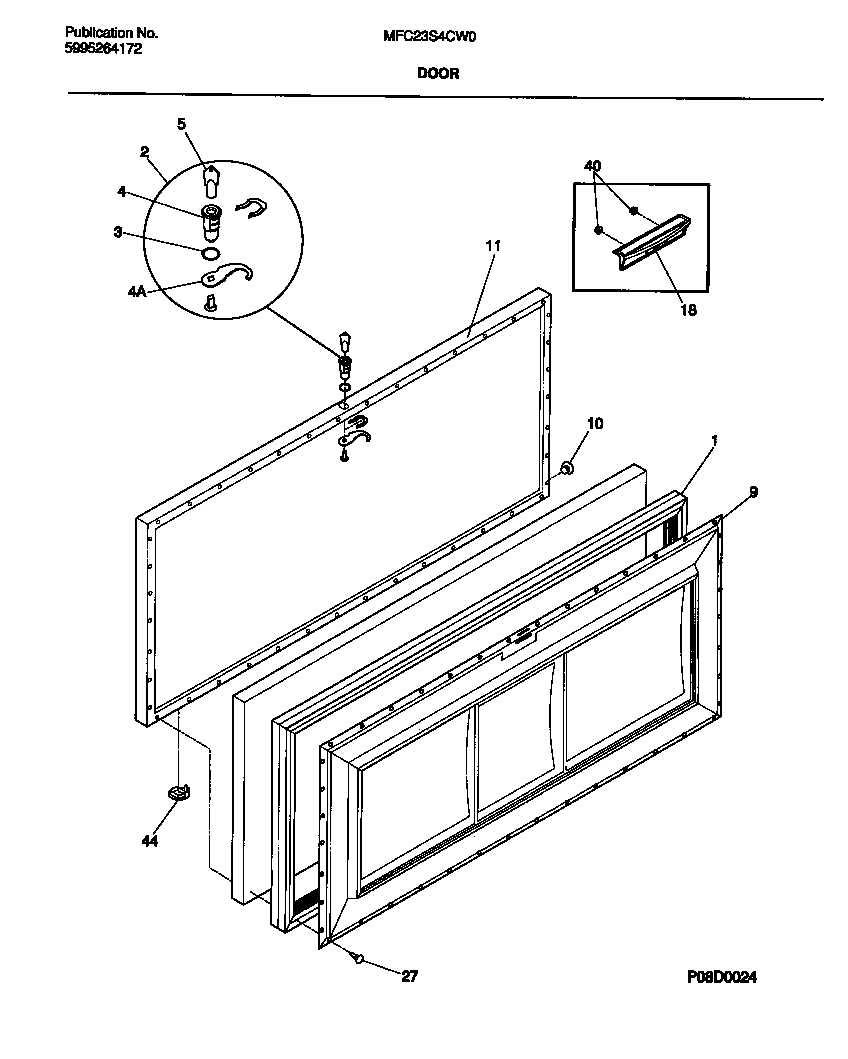

02 - DOOR

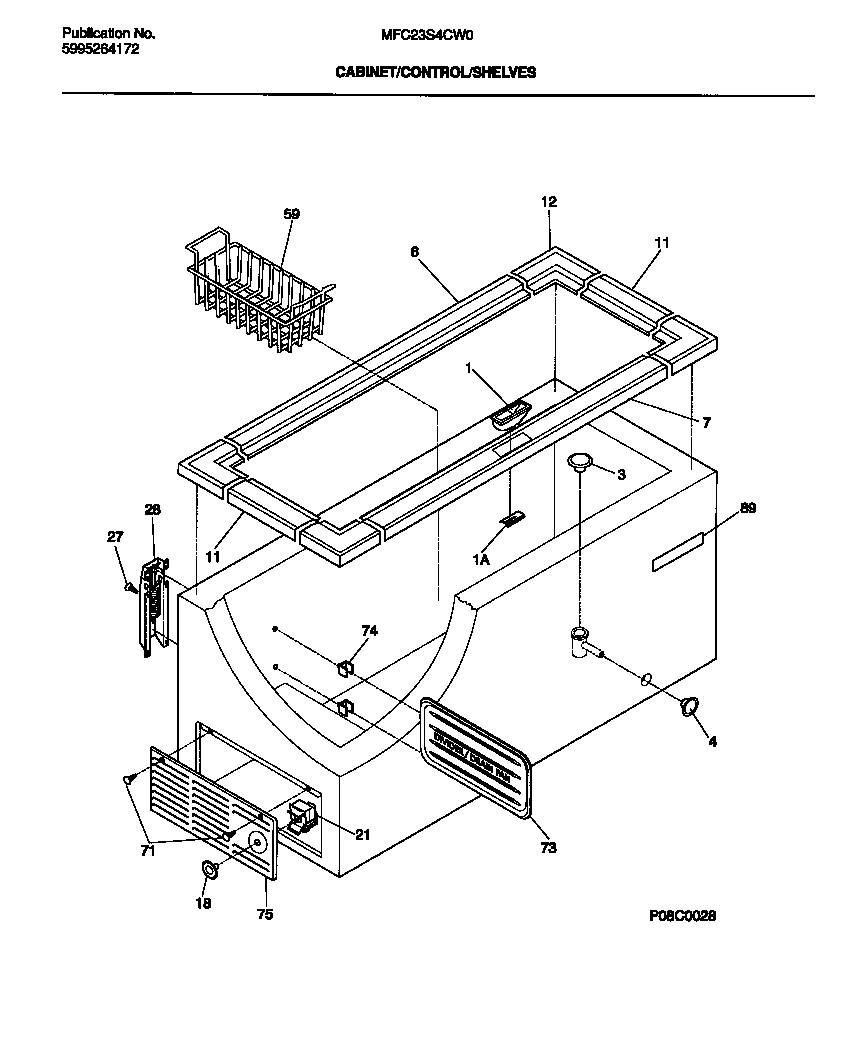

03 - CABINET/CONTROL/SHELVES

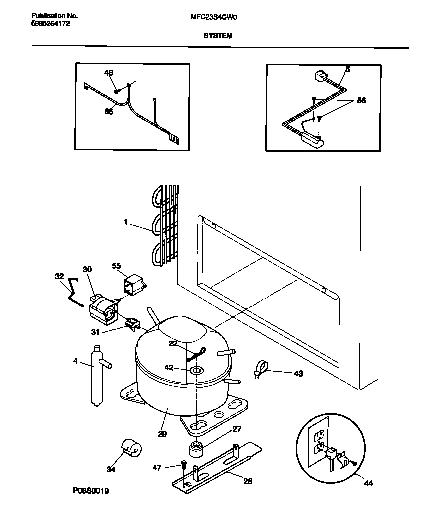

04 - SYSTEM
Common parts from model Electrolux MFC23S4CW0 FREEZER
*60360
WCI 5303917276 WCI 5303917276 Contact Us For Availability
1
WCI 216080800 WCI 216080800 Contact Us For Availability
1
LATCH, DOOR WCI 5303208488 Contact Us For Availability
4
WCI 5303283905 WCI 5303283905 Contact Us For Availability
4
PLUG, DRAIN WCI 216073900 Contact Us For Availability
5
HARNESS-WIRE WCI 216158400 Contact Us For Availability
6
BREAKER, HINGE SIDE WCI 5303925185 Contact Us For Availability
7
WCI 5303925186 WCI 5303925186 Contact Us For Availability
9
PANEL-INNER LID, WHITE WCI 216060805 Contact Us For Availability
10
WCI 216141101 WCI 216141101 Contact Us For Availability
11
PANEL-OUTER LID, WHITE WCI 216130207 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
12
Breaker,white ,corners WCI 216110700 Contact Us For Availability
18
WCI 216205001 WCI 216205001 Contact Us For Availability
18
WCI 216034510 WCI 216034510 Contact Us For Availability
21
WCI 216356800 WCI 216356800 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
27
SCREW HINGE WCI 5309950602 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
OVERLOAD WCI 216100110 Contact Us For Availability
32
CLIP, STARTER, 2 SPEED WCI 216158300 Contact Us For Availability
34
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
40
WCI 5309948647 WCI 5309948647 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
44
WCI 5303308306 WCI 5303308306 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
SCREW-COMPRESOR,IND HWH TYPE T ,10-32 X 1/2,S WCI 08016776 Contact Us For Availability
59
WCI 216080300 WCI 216080300 Contact Us For Availability
73
WCI 216128200 WCI 216128200 Contact Us For Availability
74
SUPPORT, SHELF WCI 5306594584 Contact Us For Availability
75
WCI 216022700 WCI 216022700 Contact Us For Availability
85
WCI 5303294326 WCI 5303294326 Contact Us For Availability
89
FRAME - NAMEPLATE,WHITE WCI 215366301 Contact Us For Availability
× ![]()
