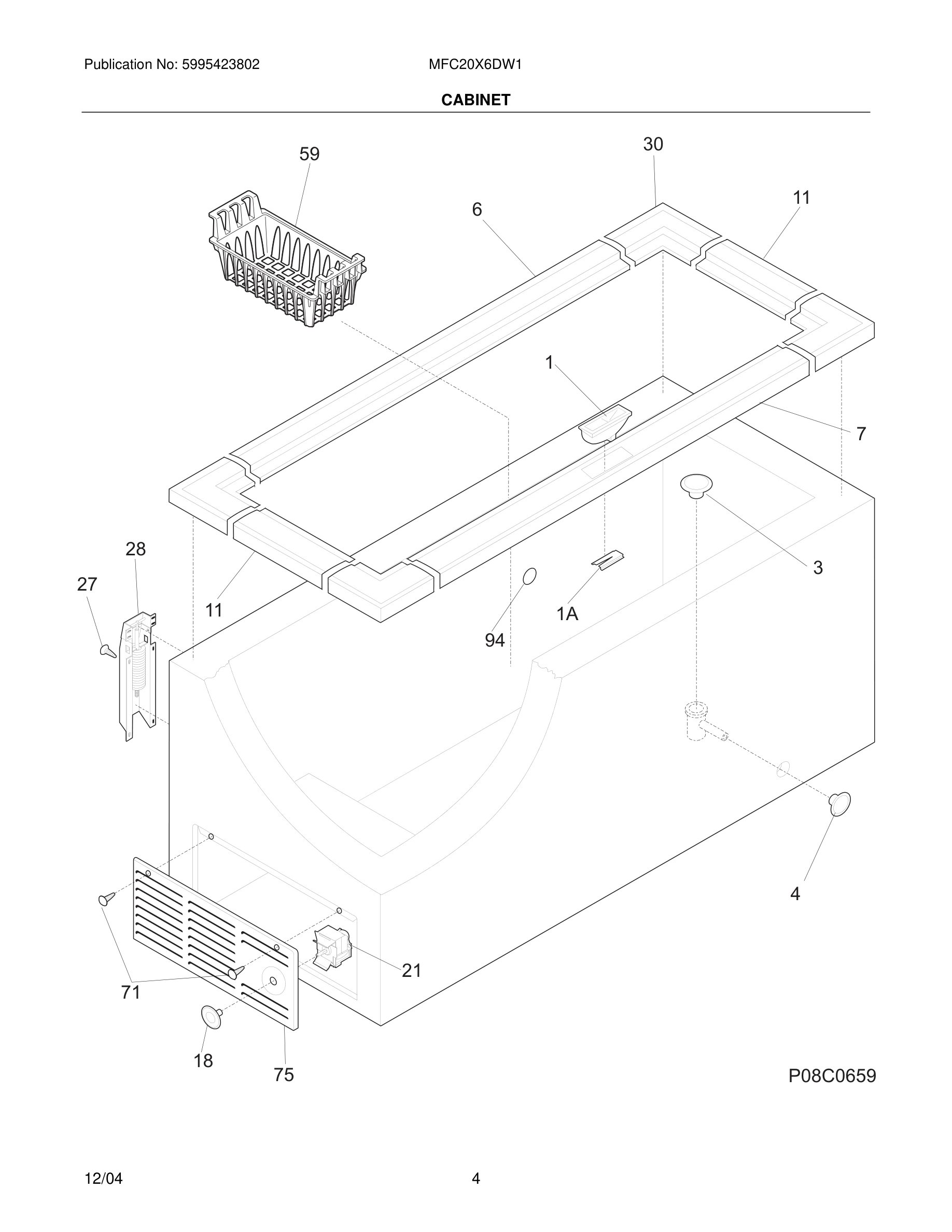

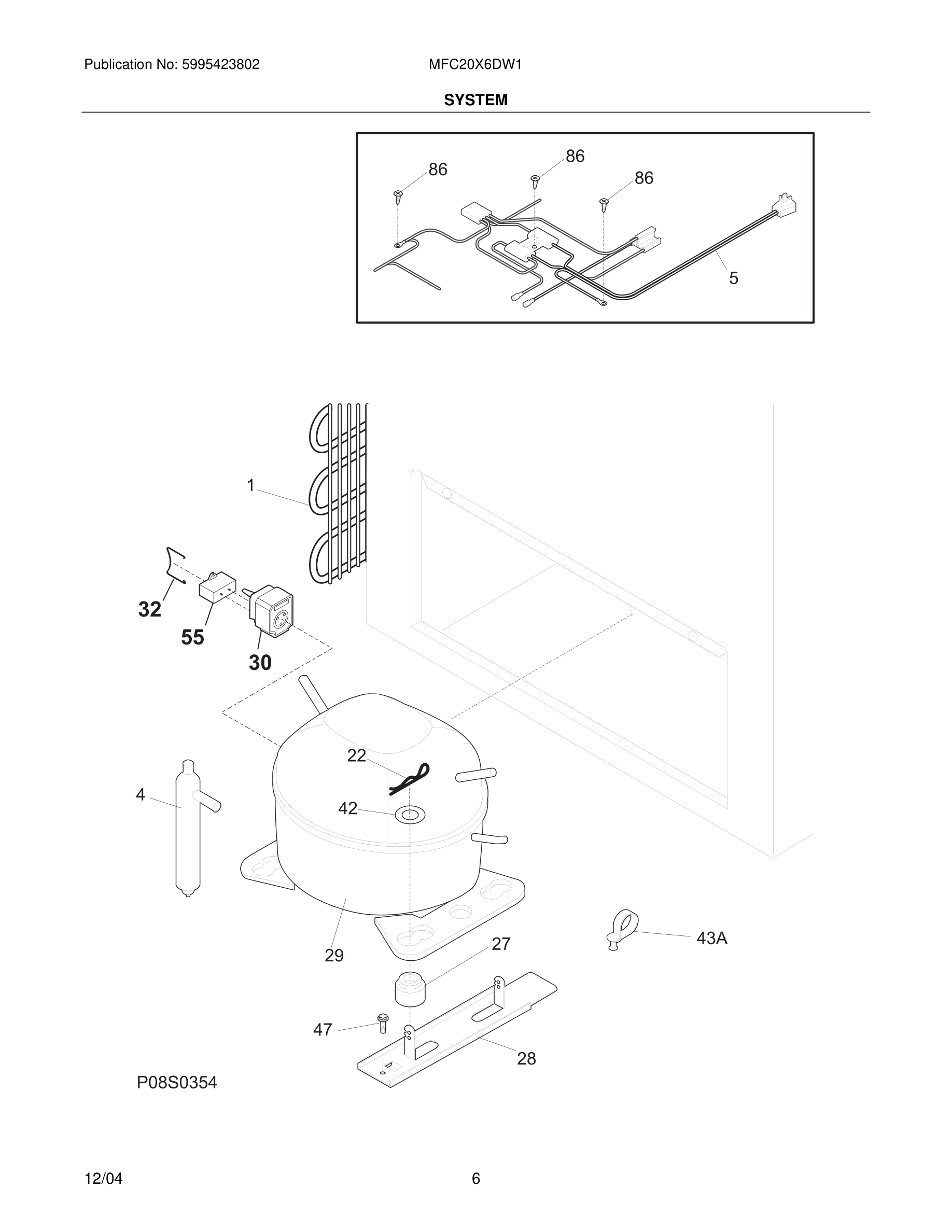

Model Electrolux MFC20X6DW1 FREEZER CHEST – Common Parts & Diagrams

*
Insulation-door, fiberglass, (bulk)
Insulation-door, fiberglass, (bulk) WCI 5303917276 Contact Us For Availability
View on Model
1
Gasket, lid seal, white
Gasket, lid seal, white WCI 216481401 Contact Us For Availability
View on Model
1
Catch-lock, white
Catch-lock, white WCI 216909800 Contact Us For Availability
View on Model
1#
Condenser
Condenser WCI 5303280307 Contact Us For Availability
View on Model
1A
Support, lock catch clip
Support, lock catch clip WCI 216818900 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
5
Harness-main
Harness-main WCI 216806900 Contact Us For Availability
View on Model
7
Breaker, lock side
Breaker, lock side WCI 216955512 Contact Us For Availability
View on Model
9
Panel-inner door, frzr
Panel-inner door, frzr WCI 216829504 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
23
Light-signal, amber
Light-signal, amber WCI 5308002706 Contact Us For Availability
View on Model
28
Support, compressor
Support, compressor WCI 5303212615 Contact Us For Availability
View on Model
32
Clamp, elec cont mtg, compressor
Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
42
Washer, flat, 1"OD x 0.531"ID
Washer, flat, 1"OD x 0.531"ID WCI 216232700 Contact Us For Availability
View on Model
59
Basket, upper, (2)
Basket, upper, (2) WCI 216916200 Contact Us For Availability
View on Model
75
Panel, access, white
Panel, access, white WCI 216034301 Contact Us For Availability
View on Model
