Model Electrolux MFC18M0EW0 FREEZER – Common Parts & Diagrams

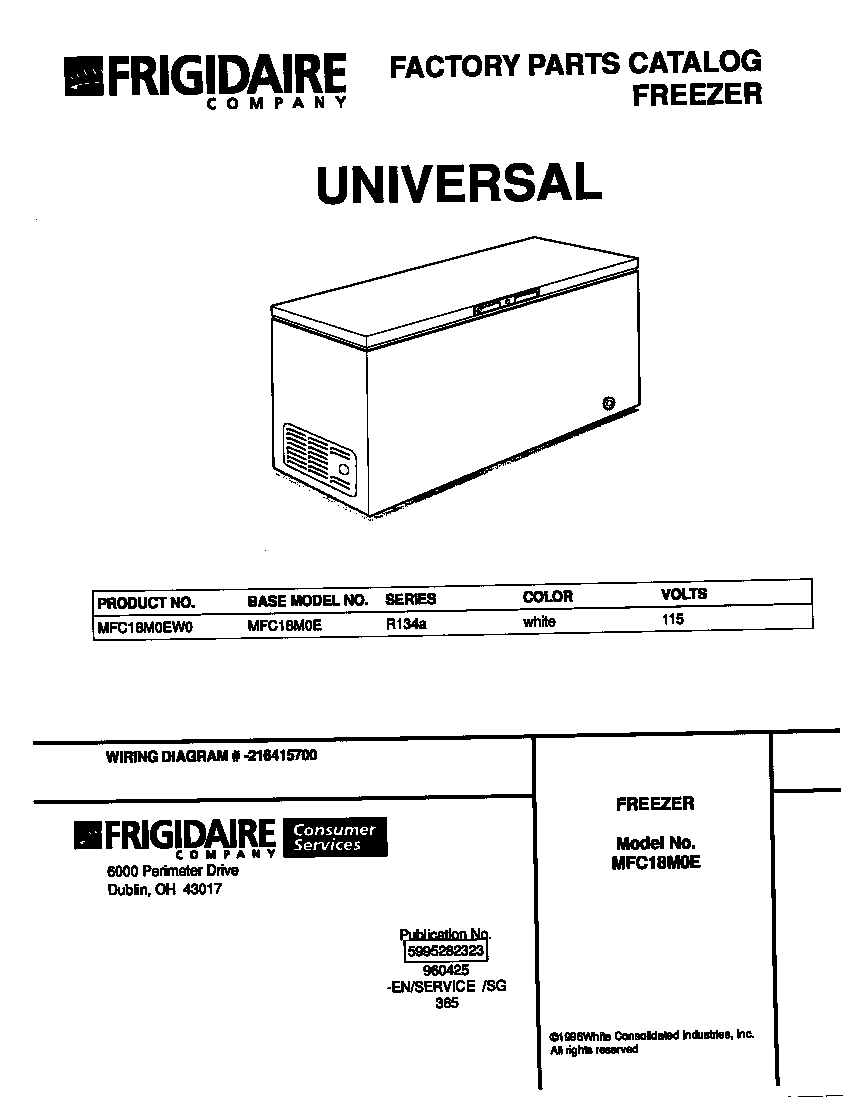

01 - COVER

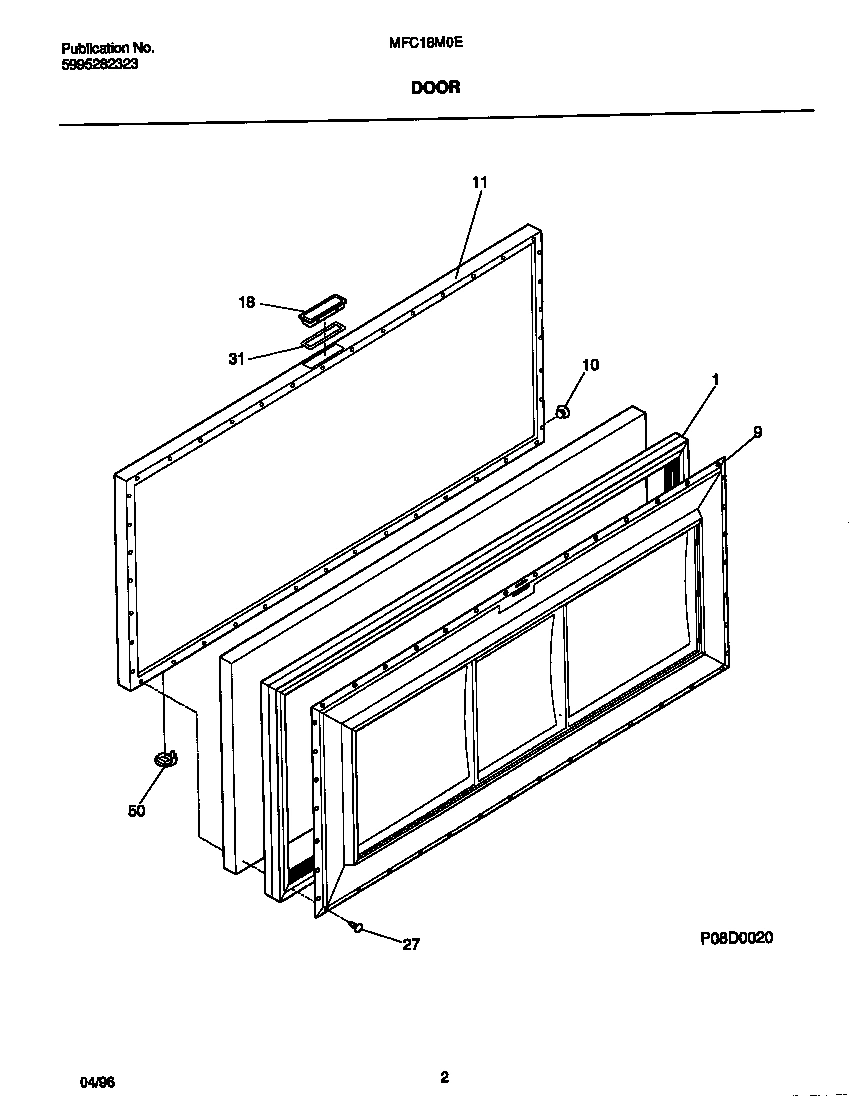

02 - DOOR

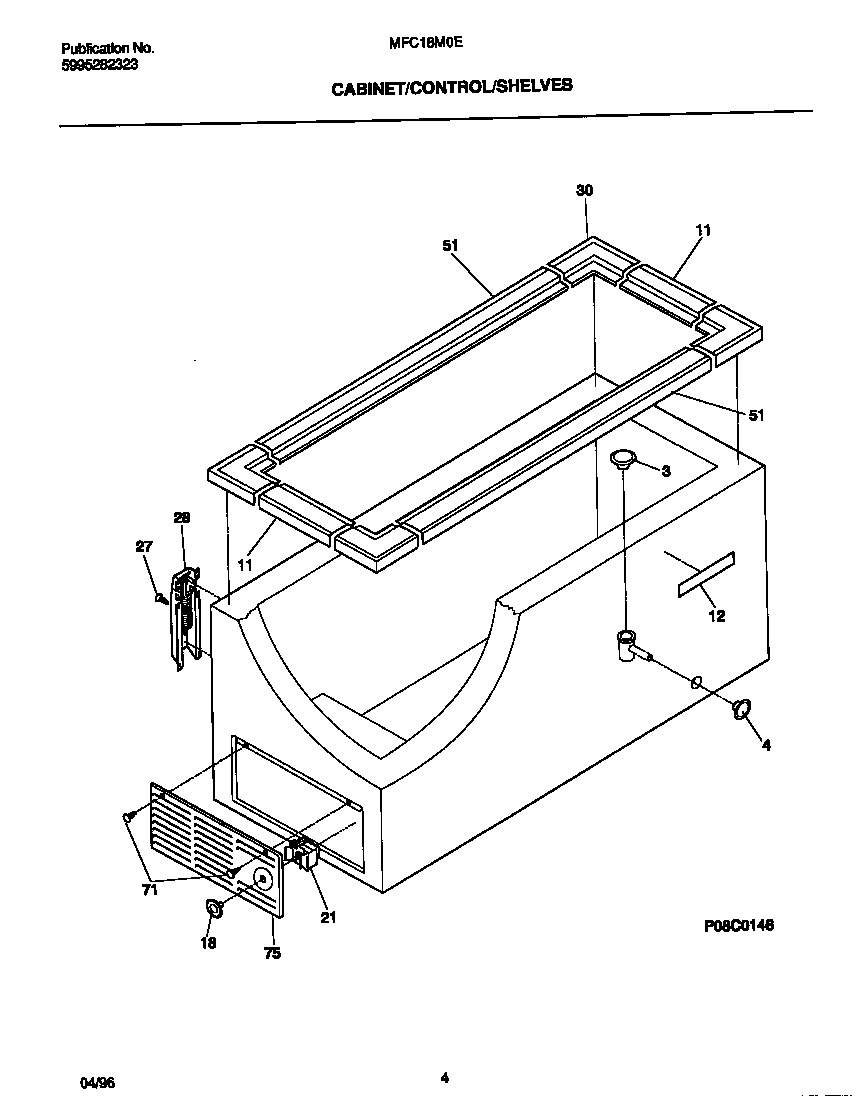

03 - CABINET/CONTROL/SHELVES

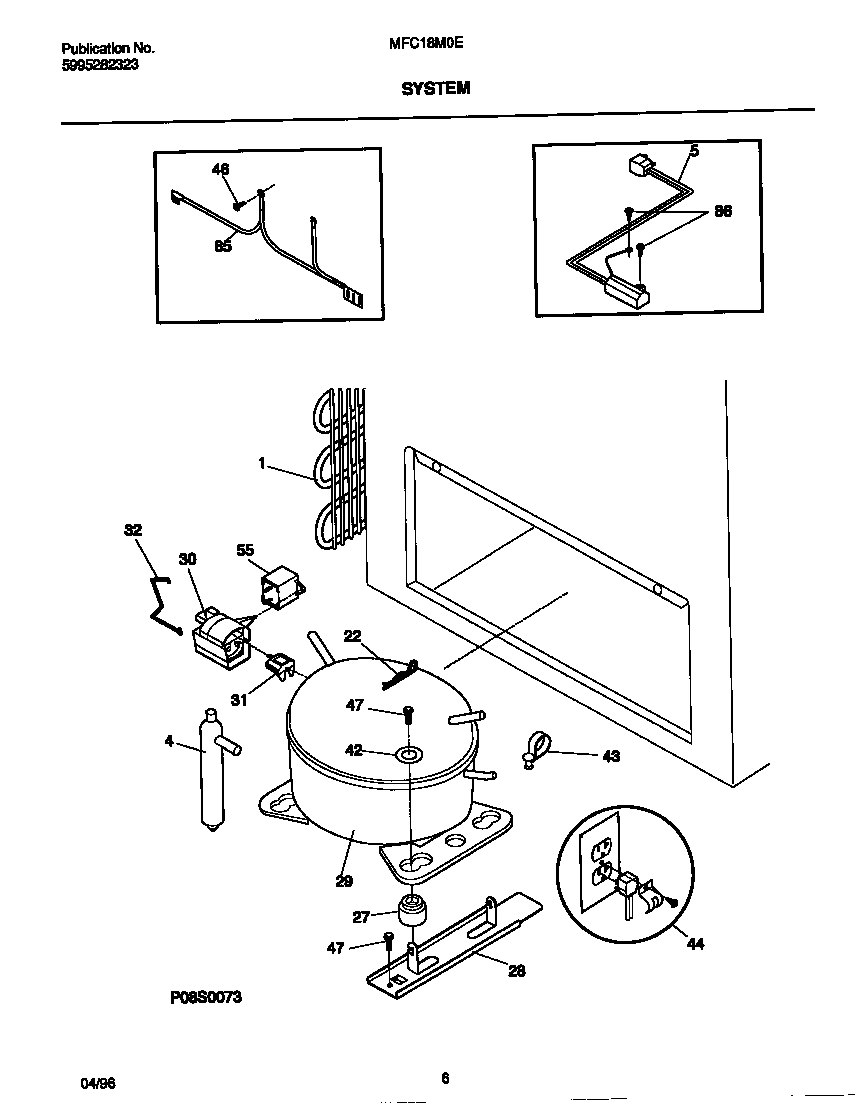

04 - SYSTEM

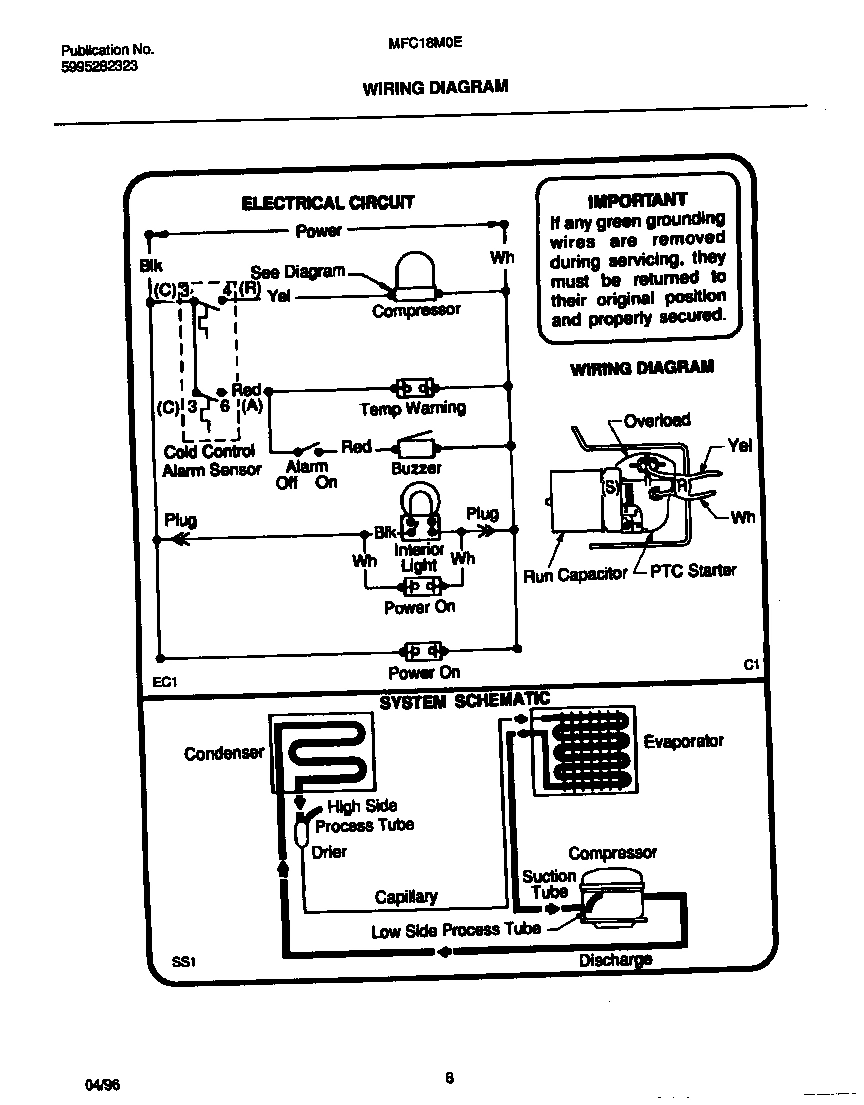

05 - WIRING DIAGRAM
Common parts from model Electrolux MFC18M0EW0 FREEZER
1
WCI 5303280307 WCI 5303280307 Contact Us For Availability
4
PLUG, DRAIN WCI 216073900 Contact Us For Availability
5
HARNESS, WIRING, COMPRESSOR WCI 216089600 Contact Us For Availability
10
WCI 08009395 WCI 08009395 Contact Us For Availability
11
WCI 216130007 WCI 216130007 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
12
FRAME - NAMEPLATE,WHITE WCI 215366301 Contact Us For Availability
18
WCI 216140200 WCI 216140200 Contact Us For Availability
18
WCI 216034510 WCI 216034510 Contact Us For Availability
21
WCI 216356800 WCI 216356800 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
27
SCREW HINGE WCI 5309950602 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
30
Breaker,white ,corners WCI 216110700 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
WCI 216100108 WCI 216100108 Contact Us For Availability
32
CLIP, STARTER, 2 SPEED WCI 216158300 Contact Us For Availability
42
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
47
SCREW-COMPRESSOR, IND HWH TYPE T, 10-32 X 1/2 WCI 08016776 Contact Us For Availability
50
WCI 5303308306 WCI 5303308306 Contact Us For Availability
51
WCI 216111100 WCI 216111100 Contact Us For Availability
75
ACCESS PANEL WCI 216034301 Contact Us For Availability
85
WCI 5303294326 WCI 5303294326 Contact Us For Availability
× ![]()
