Model Electrolux MFC15M4FW2 FREEZER – Common Parts & Diagrams
01 - COVER

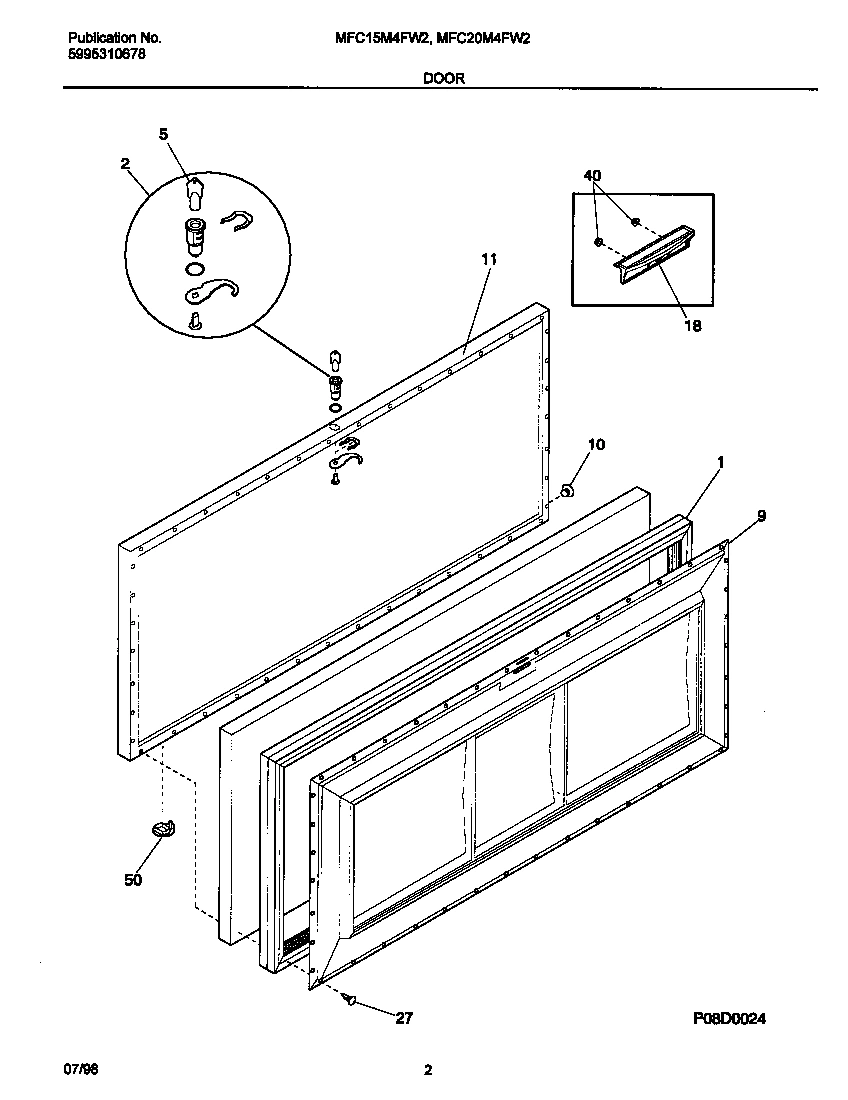

02 - DOOR

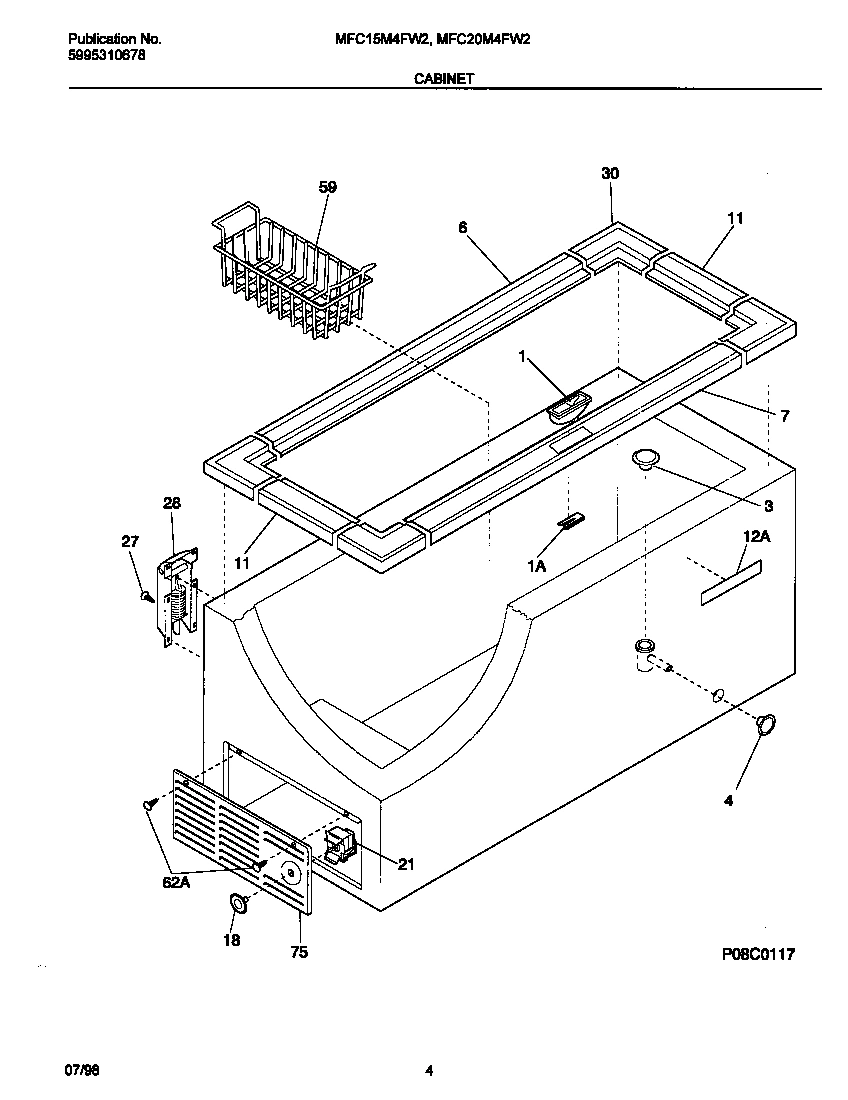

03 - CABINET

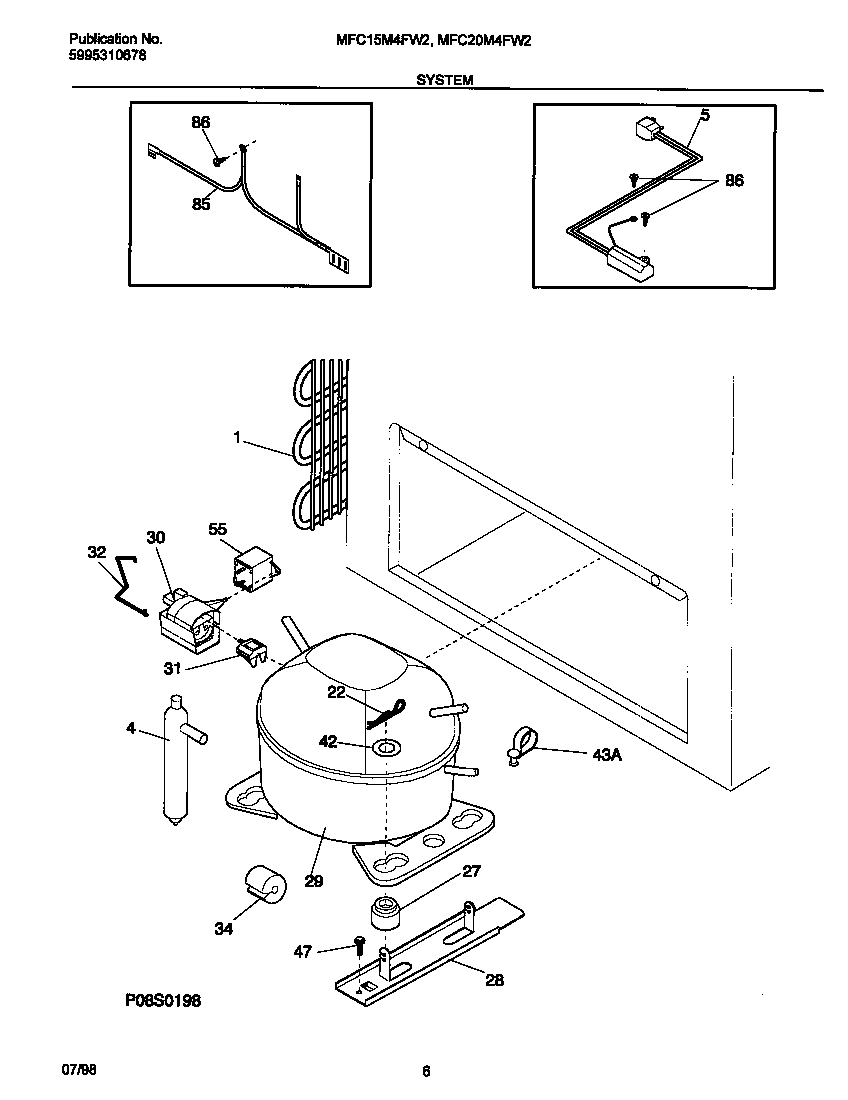

04 - SYSTEM
Common parts from model Electrolux MFC15M4FW2 FREEZER
*92800
INSULATION WCI 5303917276 Contact Us For Availability
*92802
WCI 216478900 WCI 216478900 Contact Us For Availability
1
LATCH, DOOR WCI 5303208488 Contact Us For Availability
1 A
WCI 216080800 WCI 216080800 Contact Us For Availability
3
WCI 216073900 WCI 216073900 Contact Us For Availability
4
PLUG-DRAIN,EXTERIOR WCI 216502600 Contact Us For Availability
5
WCI 216551600 WCI 216551600 Contact Us For Availability
6
BREAKER, HINGE SIDE WCI 216111000 Contact Us For Availability
7
WCI 216111600 WCI 216111600 Contact Us For Availability
9
PANEL-INNER LID WCI 216057804 Contact Us For Availability
11
BREAKER ENDS WCI 216110800 Contact Us For Availability
12A
WCI 216373000 WCI 216373000 Contact Us For Availability
18
WCI 216591602 WCI 216591602 Contact Us For Availability
21
CONTROL-TEMP WCI 216532100 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
28
SUPPORT-COMP WCI 5303212615 Contact Us For Availability
29A
WCI 216511100 WCI 216511100 Contact Us For Availability
30
WCI 216110700 WCI 216110700 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 216100114 WCI 216100114 Contact Us For Availability
32
WCI 216147800 WCI 216147800 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
47
SCREW-COMPRESSOR WCI 08016776 Contact Us For Availability
50
WCI 5303308306 WCI 5303308306 Contact Us For Availability
59
WCI 216080300 WCI 216080300 Contact Us For Availability
75
PANEL-ACCESS WCI 216034301 Contact Us For Availability
85
WCI 216533500 WCI 216533500 Contact Us For Availability
× ![]()
