Model Electrolux MFC13M6BW0 FREEZER – Common Parts & Diagrams
01 - COVER

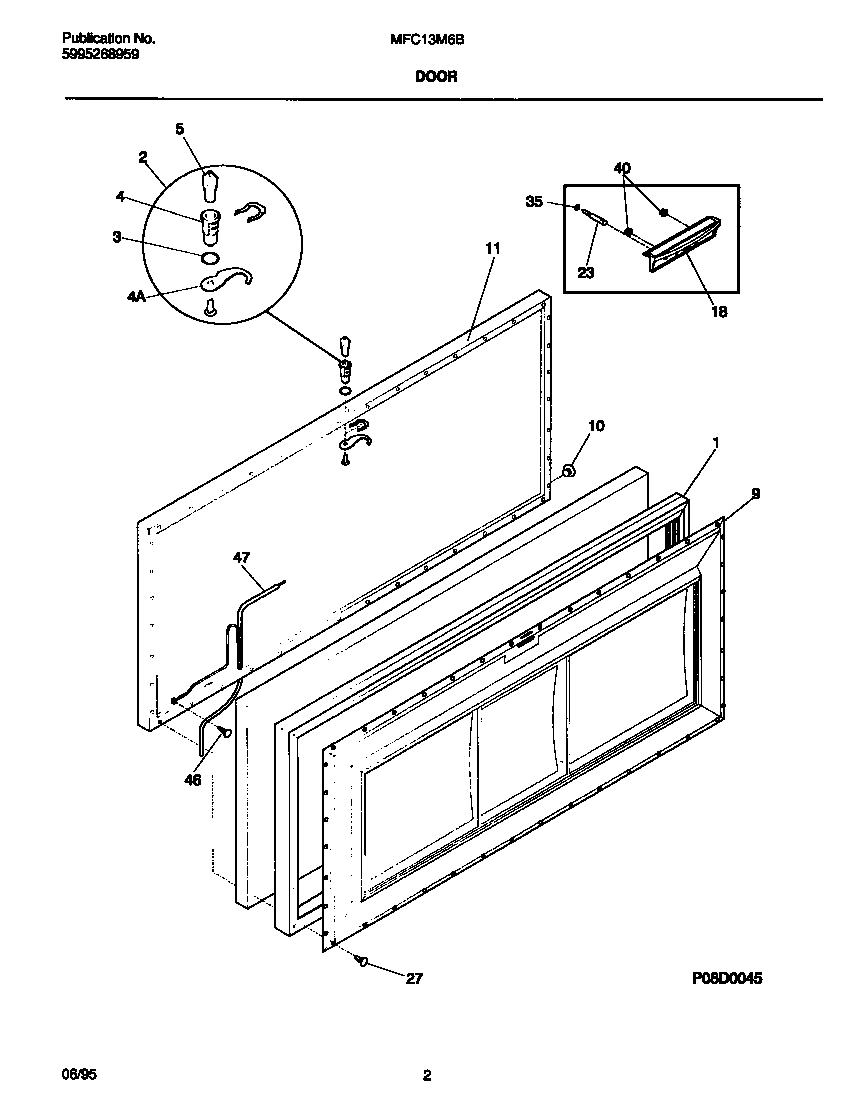

02 - DOOR

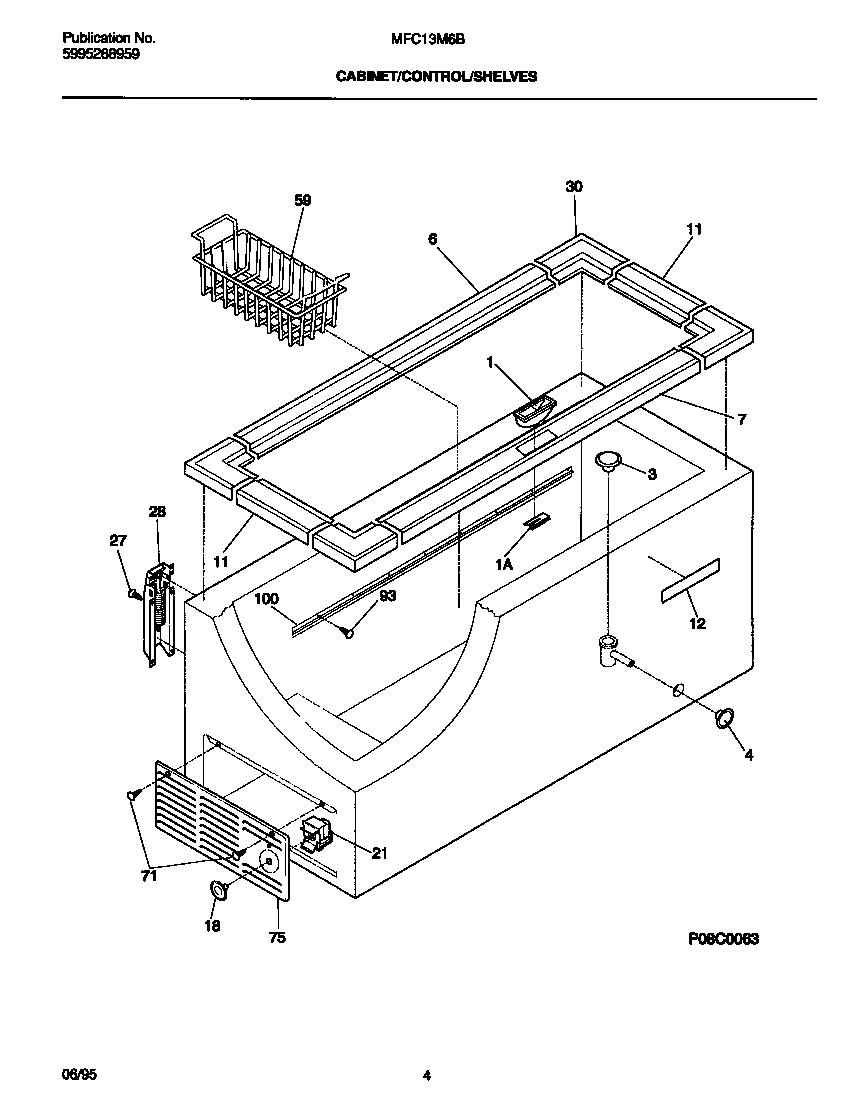

03 - CABINET/CONTROL/SHELVES

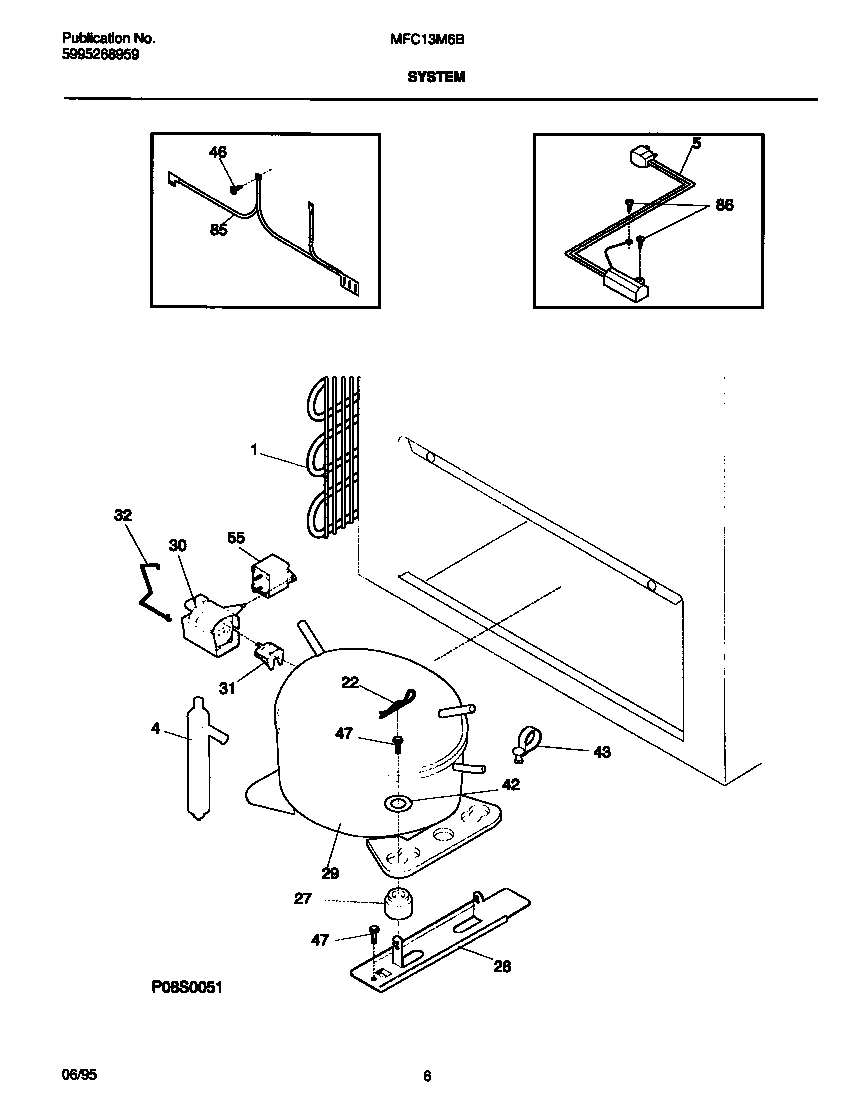

04 - SYSTEM
Common parts from model Electrolux MFC13M6BW0 FREEZER
*03000
WCI 5303917276 WCI 5303917276 Contact Us For Availability
1
WCI 216080800 WCI 216080800 Contact Us For Availability
1
LATCH, DOOR WCI 5303208488 Contact Us For Availability
3
WCI 5306593887 WCI 5306593887 Contact Us For Availability
4
WCI 5303283905 WCI 5303283905 Contact Us For Availability
4
PLUG, DRAIN WCI 216073900 Contact Us For Availability
5
HARNESS-WIRE WCI 216089500 Contact Us For Availability
6
BREAKER, HINGE SIDE WCI 5303925185 Contact Us For Availability
7
WCI 5303925186 WCI 5303925186 Contact Us For Availability
9
WCI 216057404 WCI 216057404 Contact Us For Availability
10
WCI 08009395 WCI 08009395 Contact Us For Availability
11
Breaker,white ,ends WCI 216110800 Contact Us For Availability
12
FRAME - NAMEPLATE,WHITE WCI 215366301 Contact Us For Availability
18
WCI 216205004 WCI 216205004 Contact Us For Availability
18
WCI 216034505 WCI 216034505 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
23
WCI 216212700 WCI 216212700 Contact Us For Availability
27
SCREW HINGE WCI 5309950602 Contact Us For Availability
28
WCI 5303212615 WCI 5303212615 Contact Us For Availability
29
COMPRESSOR W/ELEC, SERVICE WCI 5300186041 Contact Us For Availability
30
Breaker,white ,corners WCI 216110700 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303206816 WCI 5303206816 Contact Us For Availability
32
WCI 216147800 WCI 216147800 Contact Us For Availability
35
WCI 5303297015 WCI 5303297015 Contact Us For Availability
40
WCI 5309948647 WCI 5309948647 Contact Us For Availability
42
WASHER-FLAT WCI 216232700 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 3201260 WCI 3201260 Contact Us For Availability
47
SCREW-COMPRESSOR, IND HWH TYPE T, 10-32 X 1/2 WCI 08016776 Contact Us For Availability
59
BASKET, UPPER WCI 216080300 Contact Us For Availability
59
BASKET, LOWER (NOT ILLUSTRATED) WCI 216080700 Contact Us For Availability
75
WCI 216022700 WCI 216022700 Contact Us For Availability
85
WCI 5303294326 WCI 5303294326 Contact Us For Availability
100
WCI 216081500 WCI 216081500 Contact Us For Availability
× ![]()
