Model Electrolux MFC09S1CW0 FREEZER – Common Parts & Diagrams

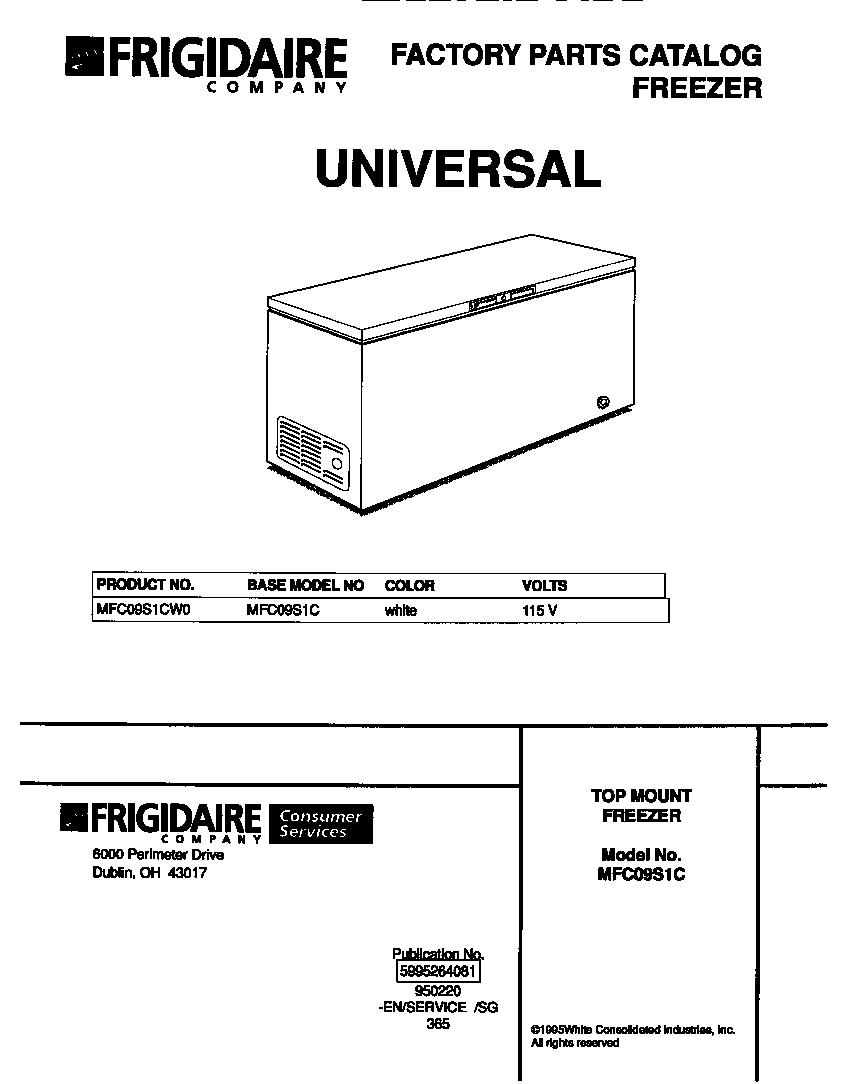

01 - COVER

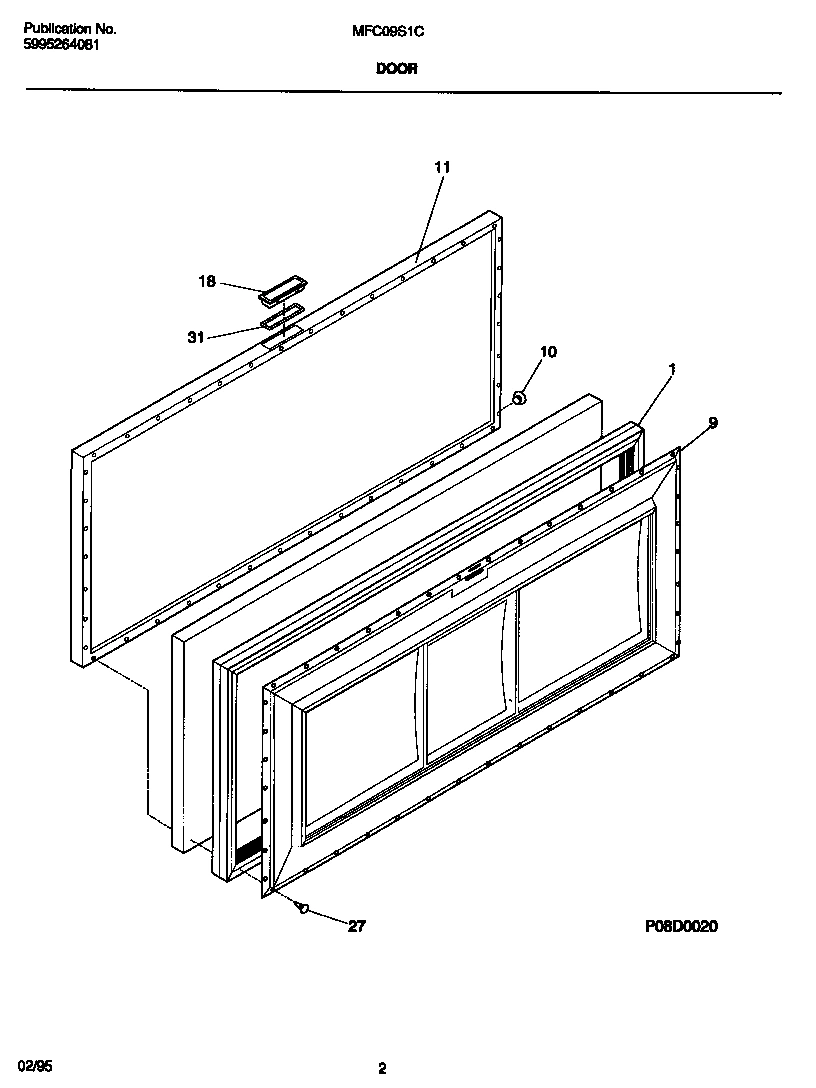

02 - DOOR

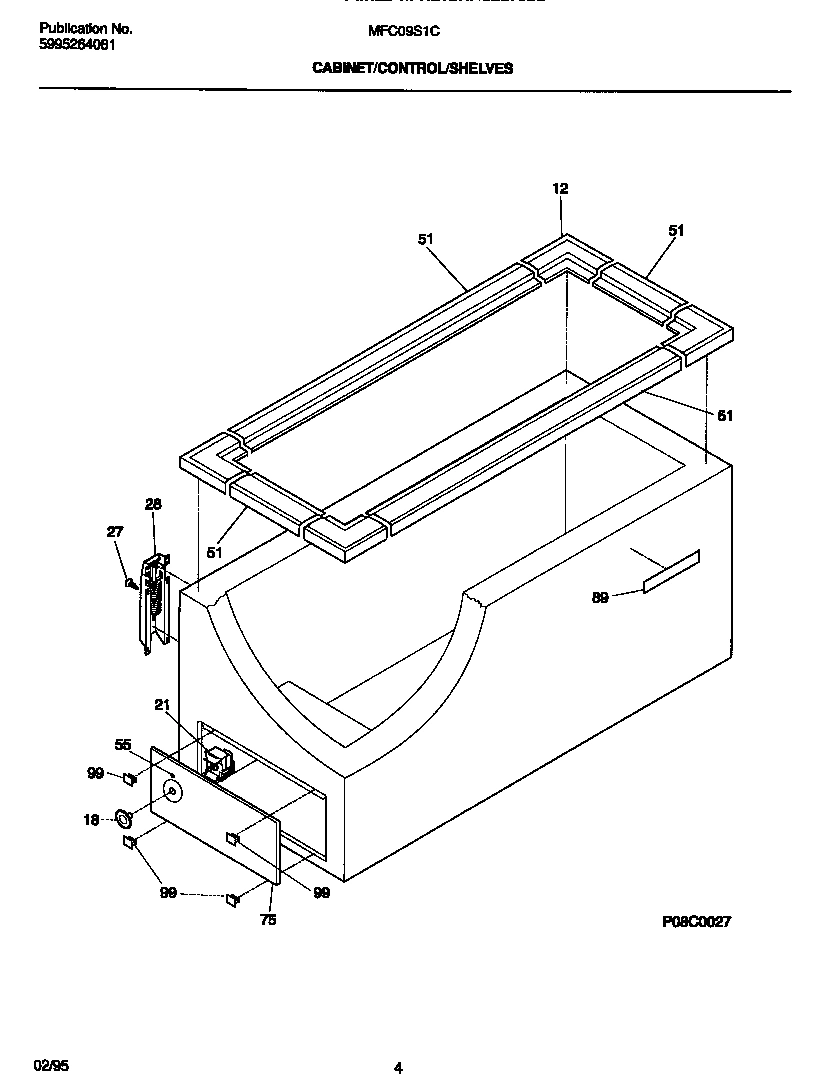

03 - CABINET/CONTROL/SHELVES

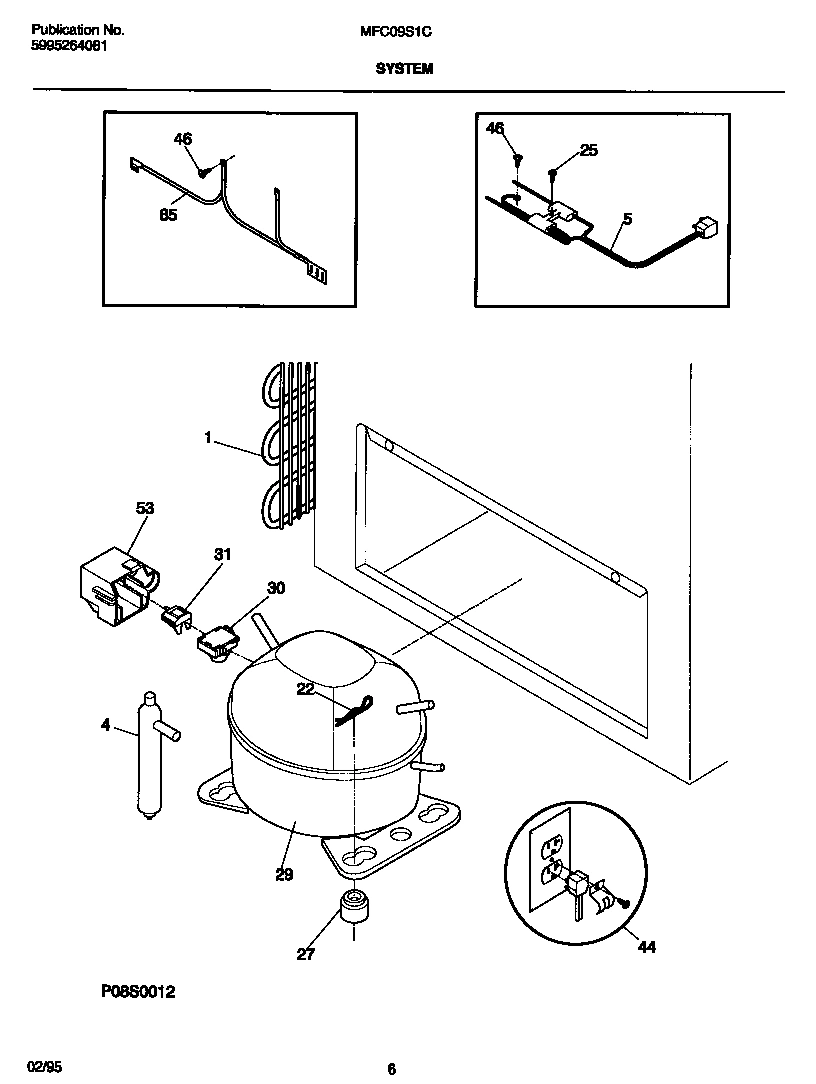

04 - SYSTEM
Common parts from model Electrolux MFC09S1CW0 FREEZER
*55120
WCI 5303917276 WCI 5303917276 Contact Us For Availability
1
WCI 5303925317 WCI 5303925317 Contact Us For Availability
5
WCI 216359100 WCI 216359100 Contact Us For Availability
9
WCI 216061802 WCI 216061802 Contact Us For Availability
12
BREAKER, WHITE, CORNERS WCI 216105500 Contact Us For Availability
18
WCI 216034510 WCI 216034510 Contact Us For Availability
21
WCI 216356800 WCI 216356800 Contact Us For Availability
22
CLIP, SPRING MTG WCI 216056400 Contact Us For Availability
25
WCI 216022800 WCI 216022800 Contact Us For Availability
27
SCREW HINGE WCI 5309950602 Contact Us For Availability
28
HINGE ASSY WCI 216119201 Contact Us For Availability
30
WCI 216347700 WCI 216347700 Contact Us For Availability
31
GASKET, WHITE WCI 08009392 Contact Us For Availability
31
WCI 216100105 WCI 216100105 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
51
BREAKERS WCI 216117500 Contact Us For Availability
53
COVER, COMPRESSOR WCI 216347800 Contact Us For Availability
55
LENS, INDICATOR, COLD CONTROL WCI 5303208663 Contact Us For Availability
75
PANEL-ACCESS, WHITE WCI 216108200 Contact Us For Availability
85
WCI 216154900 WCI 216154900 Contact Us For Availability
89
FRAME - NAMEPLATE,WHITE WCI 215366301 Contact Us For Availability
99
RETAINER, WHITE, ACCESS PANEL WCI 5309950877 Contact Us For Availability
× ![]()
