Model Electrolux MFC09M1BW0 FREEZER – Common Parts & Diagrams

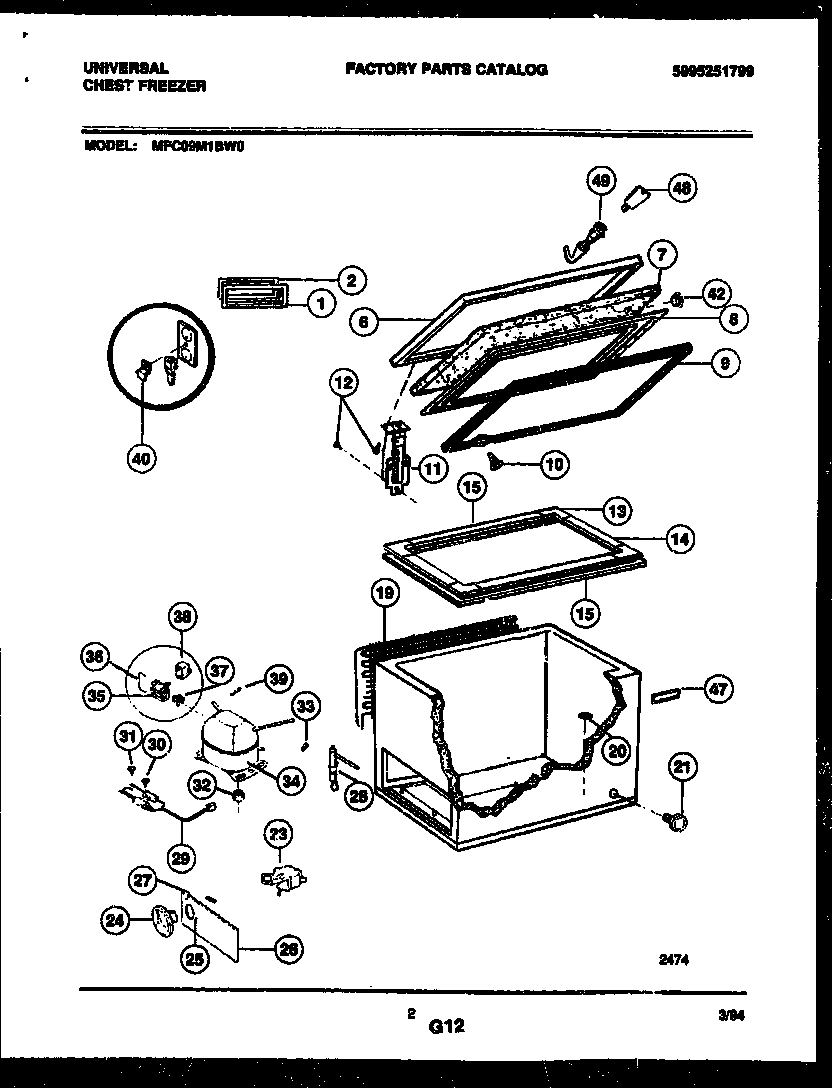

02 - CHEST FREEZER PARTS
Common parts from model Electrolux MFC09M1BW0 FREEZER
6
LID EXTERIOR-WHITE WCI 216117906 Contact Us For Availability
7
WCI 5303207270 WCI 5303207270 Contact Us For Availability
8
PANEL-INNER-WHITE WCI 216061802 Contact Us For Availability
9
WCI 3200692 WCI 3200692 Contact Us For Availability
11
HINGE ASSY WCI 216119201 Contact Us For Availability
12
SCREW-HINGE (8) WCI 5309950602 Contact Us For Availability
13
BREAKER-CORNER WCI 216105500 Contact Us For Availability
14
BREAKER-SIDE WCI 216105600 Contact Us For Availability
15A
BREAKER-FRONT WCI 216117505 Contact Us For Availability
19
CONDENSER (NOT ORIGINAL EQUIPMENT-SERVICE REP WCI 5300120781 Contact Us For Availability
20
WCI 5306593887 WCI 5306593887 Contact Us For Availability
21
PLUG-DRAIN WCI 5300128045 Contact Us For Availability
24
WCI 216034510 WCI 216034510 Contact Us For Availability
25
PLUG-INDICATOR WCI 5303208663 Contact Us For Availability
26
WCI 216108200 WCI 216108200 Contact Us For Availability
27
RETAINER (4) WCI 5309950877 Contact Us For Availability
29
HARNESS W/ POWER CORD WCI 216138300 Contact Us For Availability
30
SCREW WCI 216022800 Contact Us For Availability
31
SCREW-GROUND WCI 08037851 Contact Us For Availability
34
WCI 216138400 WCI 216138400 Contact Us For Availability
34A
WIRE GROUND (NON-ILLUSTRATED) WCI 216154900 Contact Us For Availability
35
RELAY WCI 216008900 Contact Us For Availability
36
CLAMP WCI 216147800 Contact Us For Availability
37
WCI 5303206885 WCI 5303206885 Contact Us For Availability
39
CLIP (3) WCI 216056400 Contact Us For Availability
40
CLAMP-POWER CORD (NOT ORIGINAL EQUIPMENT-CUST WCI 08016777 Contact Us For Availability
42
PLUG-HOLE LID WCI 216141101 Contact Us For Availability
47
FRAME WCI 215366301 Contact Us For Availability
49
LOCK COMPLETE WCI 5303283905 Contact Us For Availability
× ![]()
