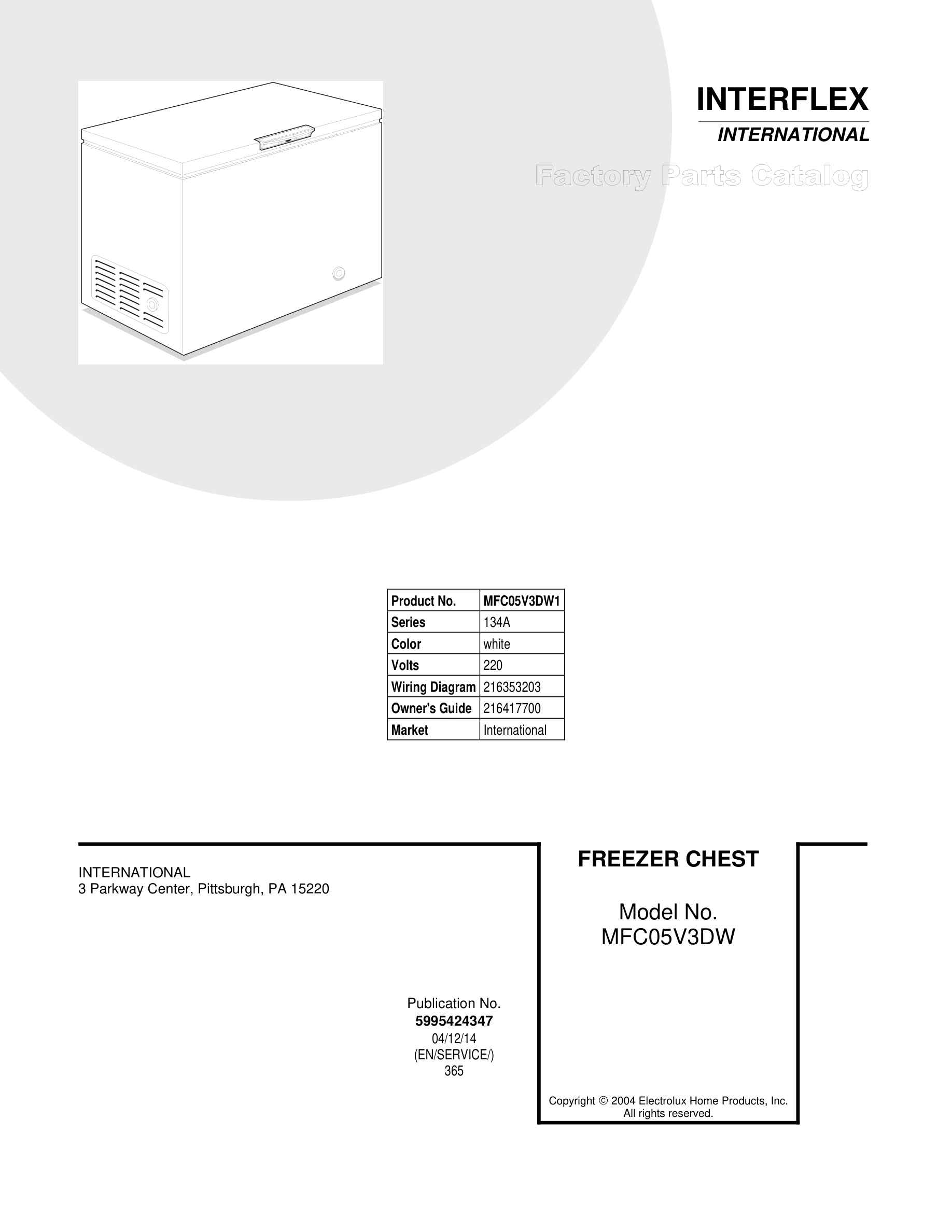

Model Electrolux MFC05V3DW1 FREEZER CHEST – Common Parts & Diagrams

*
Shield, guard, access hole
Shield, guard, access hole WCI 216916600 Contact Us For Availability
View on Model
1
Gasket-door, white
Gasket-door, white WCI 216480801 Contact Us For Availability
View on Model
1

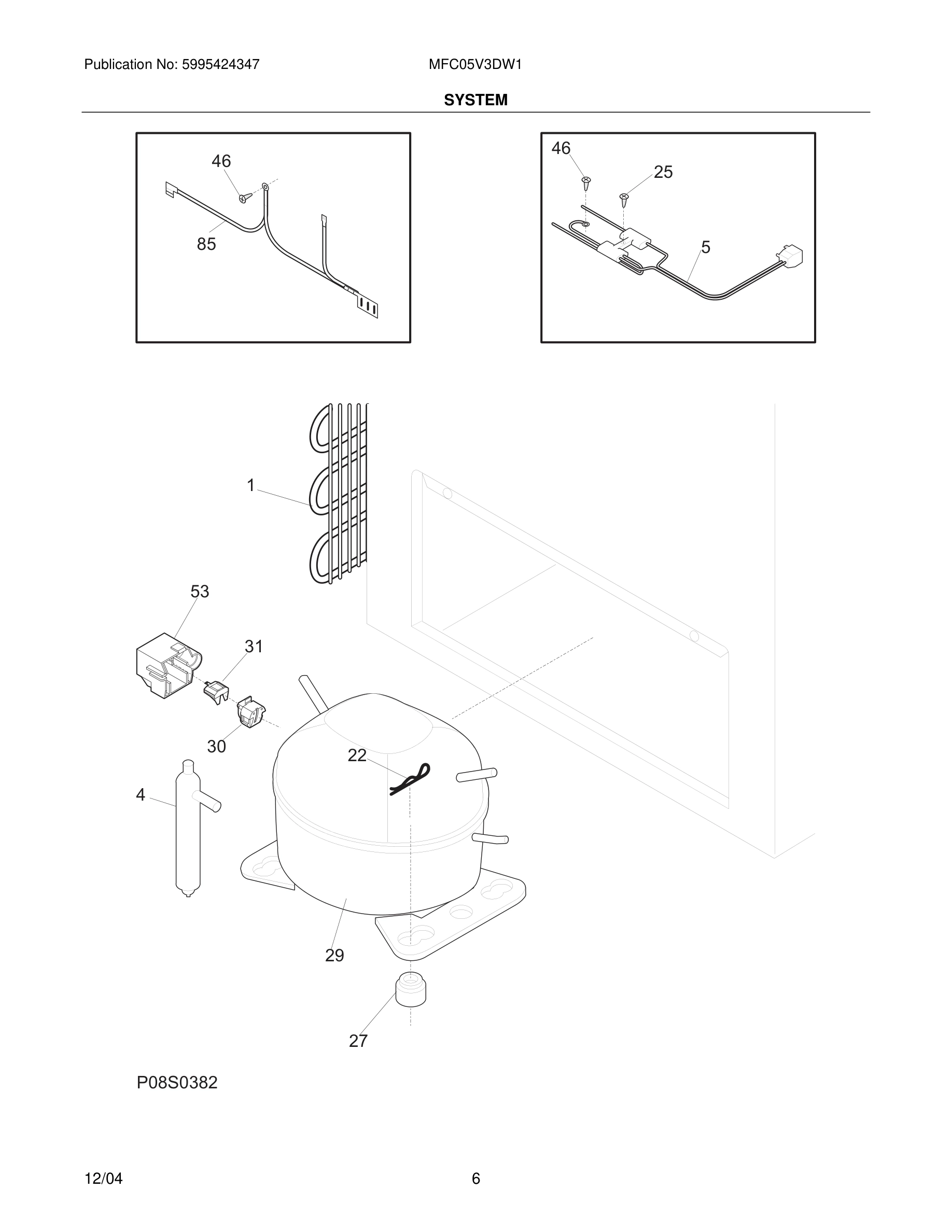

Condenser
Condenser WCI 5300120779 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
5#
Harness, electrical
Harness, electrical WCI 216828800 Contact Us For Availability
View on Model
6
Breaker, hinge side
Breaker, hinge side WCI 216855700 Contact Us For Availability
View on Model
7
Breaker-lock side, white
Breaker-lock side, white WCI 216855701 Contact Us For Availability
View on Model
10
Plug button, 1/4", white
Plug button, 1/4", white WCI 216923001 No Longer Available
View on Model
11
Breaker-ends, white
Breaker-ends, white WCI 216855706 Contact Us For Availability
View on Model
22
Clip, compressor mtg, SPRING
Clip, compressor mtg, SPRING WCI 216056400 Contact Us For Availability
View on Model
25
Screw, 8-18 X 1/2
Screw, 8-18 X 1/2 WCI 216707700 Contact Us For Availability
View on Model
28
Hinge Assy
Hinge Assy WCI 216478800 Contact Us For Availability
View on Model
29#
Compressor, w/o electricals
Compressor, w/o electricals WCI 216967100 Contact Us For Availability
View on Model
30
Breaker-corners, white
Breaker-corners, white WCI 216105500 Contact Us For Availability
View on Model
30
Relay, /starter
Relay, /starter WCI 5303211376 Contact Us For Availability
View on Model
40
Fastener, .330 dia stud, handle, (2)
Fastener, .330 dia stud, handle, (2) WCI 216922700 Contact Us For Availability
View on Model
46
Screw, PH, 8-32 x 1/2, wiring harness
Screw, PH, 8-32 x 1/2, wiring harness WCI 216707800 Contact Us For Availability
View on Model
53
Cover terminal, cover-comp term
Cover terminal, cover-comp term WCI 216347800 Contact Us For Availability
View on Model
75
Panel-access, white
Panel-access, white WCI 216782000 Contact Us For Availability
View on Model
85
Wire-ground
Wire-ground WCI 216818300 Contact Us For Availability
View on Model
94
Lens, frost indicator, blue
Lens, frost indicator, blue WCI 216140400 Contact Us For Availability
View on Model
