Model Maytag MFB2055YEB01 REFRIGERATOR – Common Parts & Diagrams

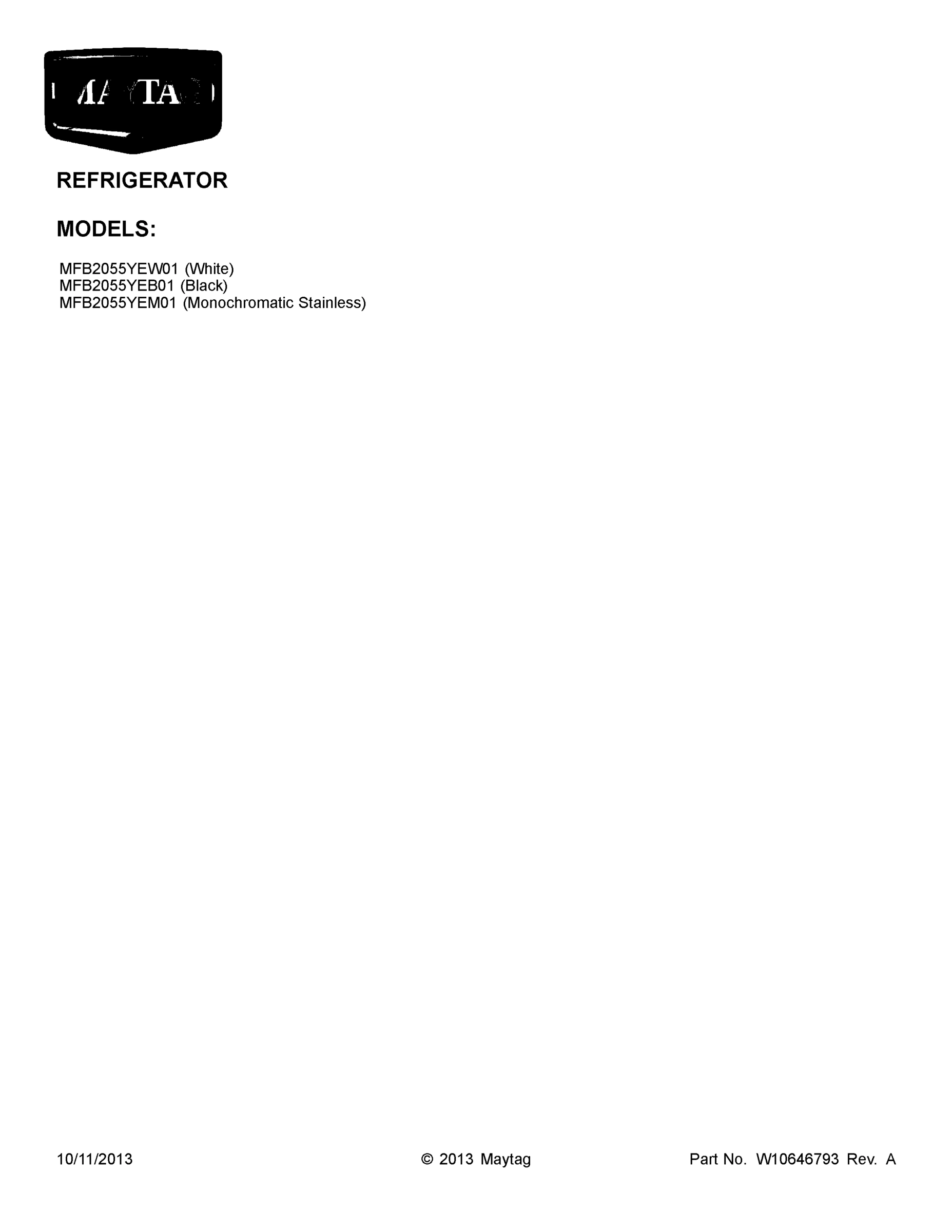

01 - COVER SHEET

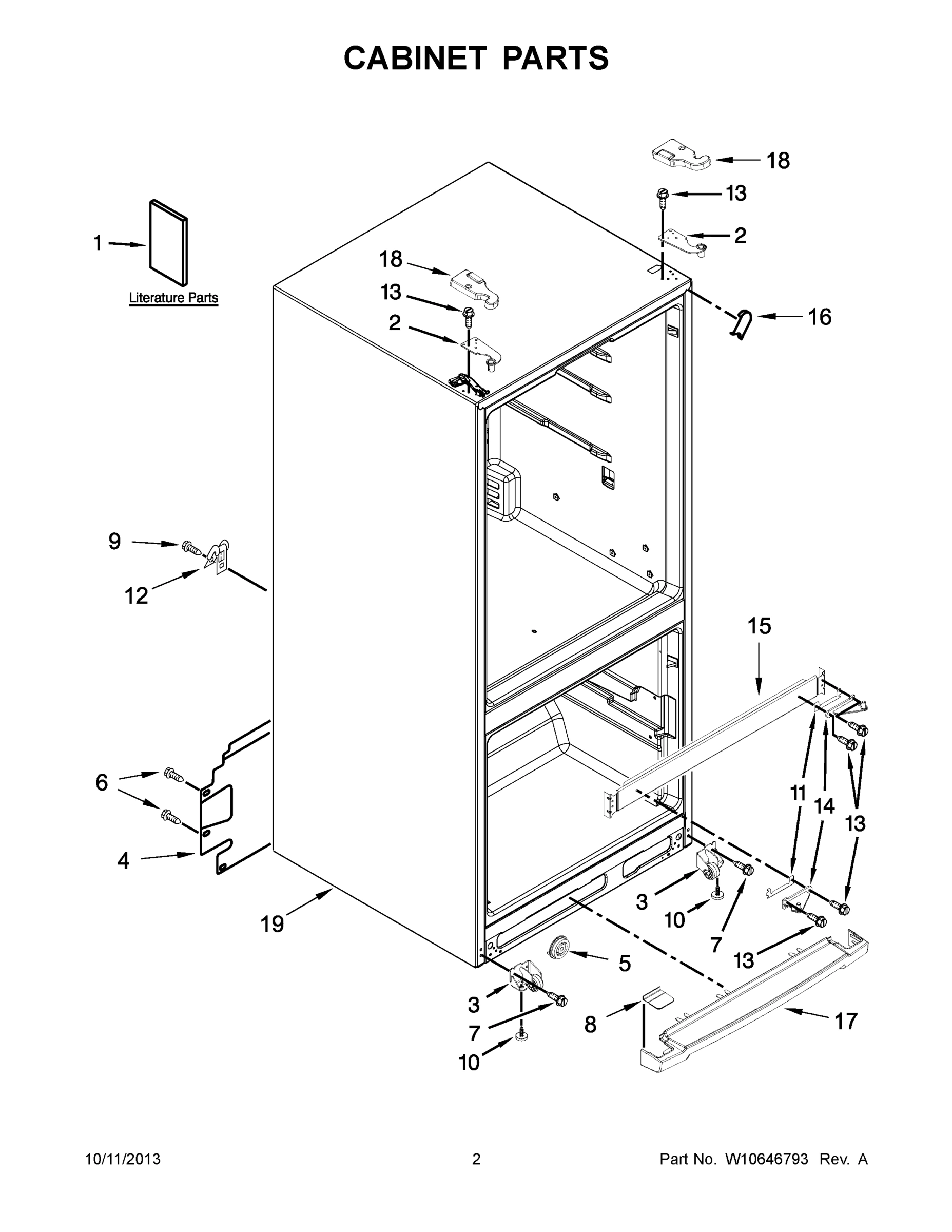

02 - CABINET PARTS

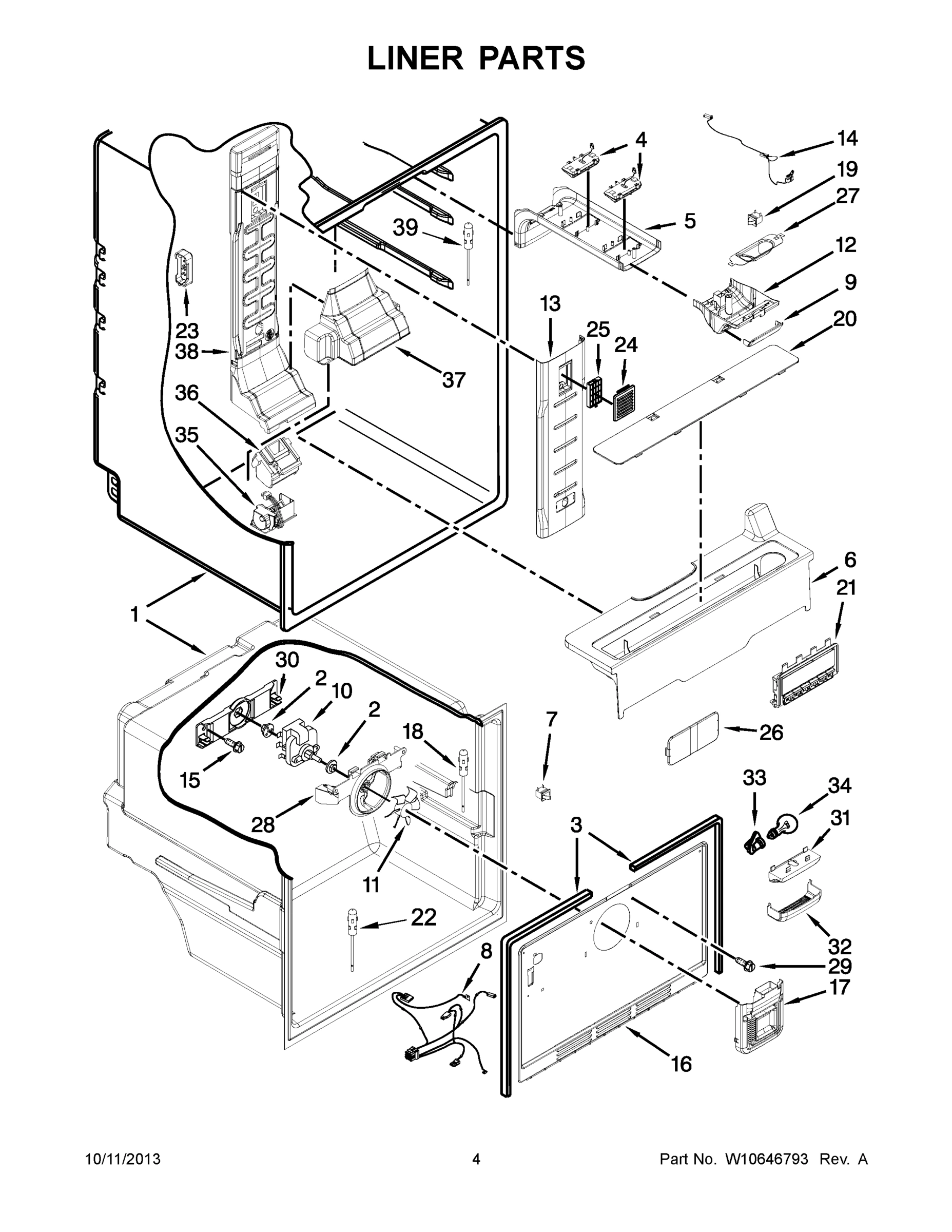

03 - LINER PARTS

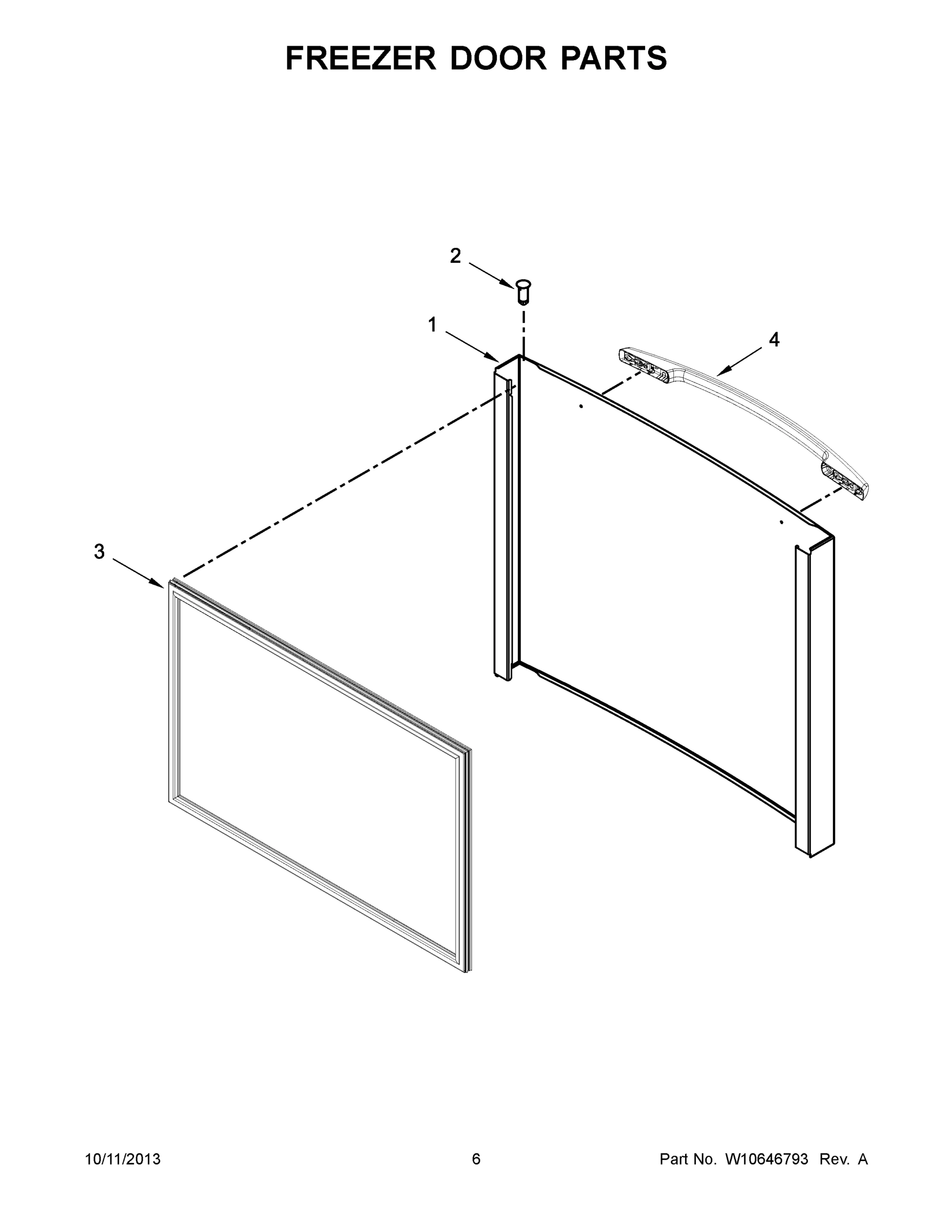

04 - FREEZER DOOR PARTS

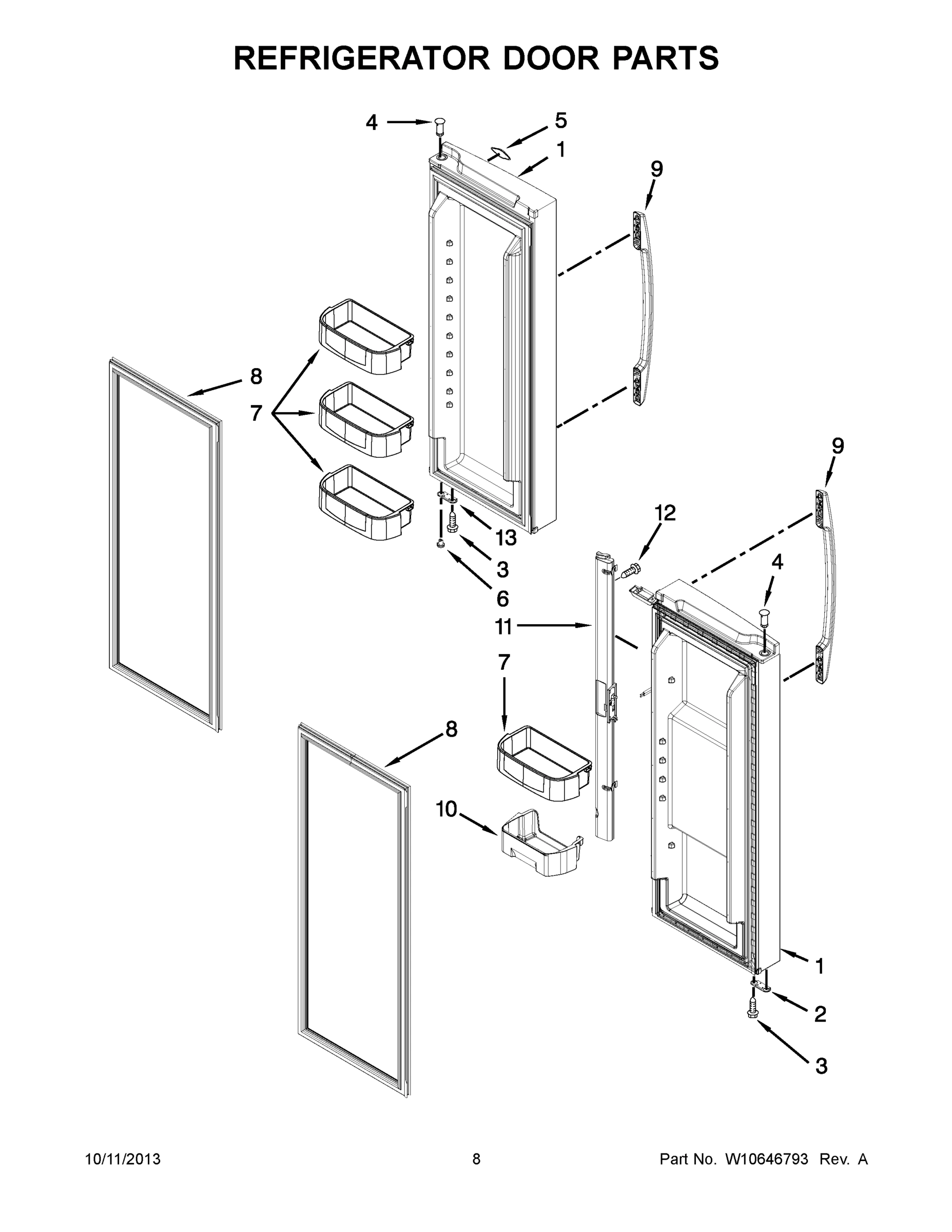

05 - REFRIGERATOR DOOR PARTS

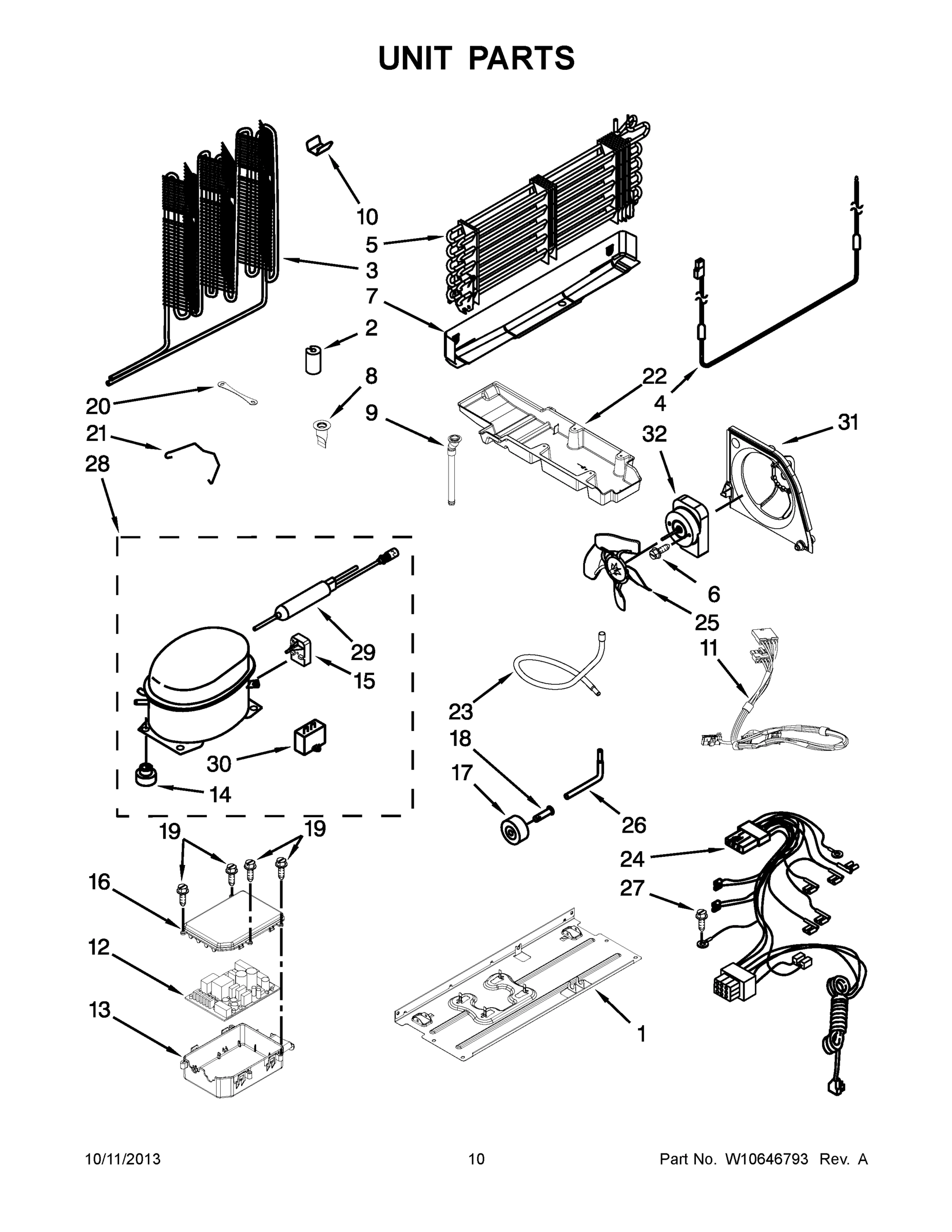

06 - UNIT PARTS

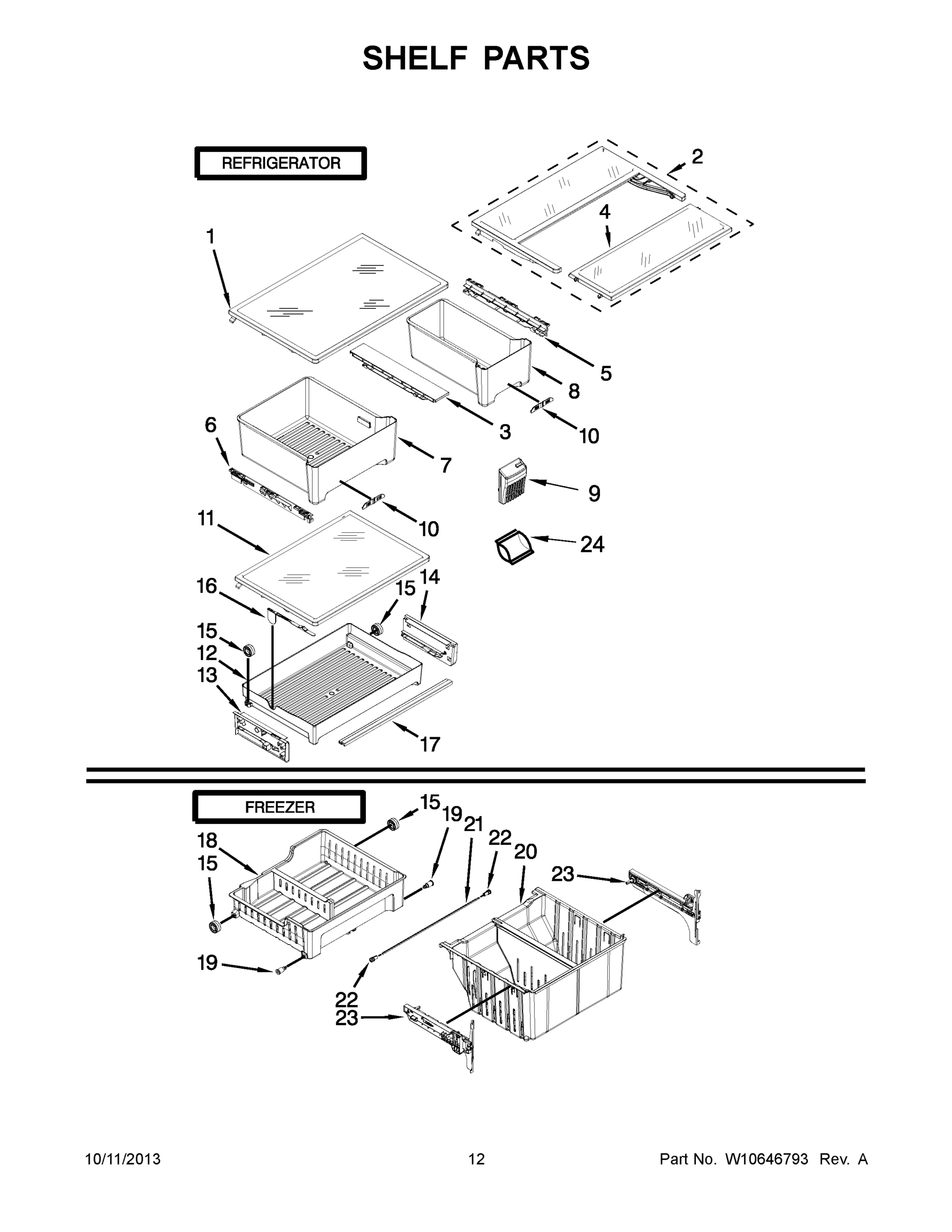

07 - SHELF PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag MFB2055YEB01 REFRIGERATOR
1
MAY W10452526 MAY W10452526 Contact Us For Availability
1
MAY W10460643 MAY W10460643 Contact Us For Availability
1
SERVICE & WIRING SHEET MAY W10536929 Contact Us For Availability
1
MAY W10353182 MAY W10353182 Contact Us For Availability
1
MAY W10413530 MAY W10413530 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ILLUS. 2 & 3) (MONO ST MAY W10413531 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (RIGHT HAND MAY W10353181 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (LEFT HAND MAY W10393587 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (RIGHT HAND MAY W10413518 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (RIGHT HAND MAY W10413519 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (LEFT HAND MAY W10413522 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (LEFT HAND MAY W10413524 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1
SHELF ASSEMBLY, FULL (30``) MAY W10486290 Contact Us For Availability
2
MAY W10546298 MAY W10546298 Contact Us For Availability
2
MAY W10546299 MAY W10546299 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
2
FLIP DOWN SHELF ASSEMBLY MAY W10352270 Contact Us For Availability
3
ROLLER, FRONT (RIGHT HAND) MAY W10359255 Contact Us For Availability
3
ROLLER, FRONT (LEFT HAND) MAY W10359256 Contact Us For Availability
3
MAY 2254359 MAY 2254359 Contact Us For Availability
3
MAY W10465758 MAY W10465758 Contact Us For Availability
3
MAY W10465761 MAY W10465761 Contact Us For Availability
3
GASKET, FC (GREY) MAY W10465762 Contact Us For Availability
3
MAY 489276 MAY 489276 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
MAY W10468557 MAY W10468557 Contact Us For Availability
4
MAY W10444800 MAY W10444800 Contact Us For Availability
4
LED LIGHT ASSEMBLY, RC MAY W10360497 Contact Us For Availability
4
THIMBLE (LEFT HAND) MAY W10334042 Contact Us For Availability
4
MAY W10360538 MAY W10360538 Contact Us For Availability
4
MAY W10409179 MAY W10409179 Contact Us For Availability
4
MAY W10409180 MAY W10409180 Contact Us For Availability
4
THIMBLE (RIGHT HAND) MAY W10366270 Contact Us For Availability
4
MAY W10436849 MAY W10436849 Contact Us For Availability
4
FLIP DOWN SHELF MAY W10305243 Contact Us For Availability
5
MAY W10331226 MAY W10331226 Contact Us For Availability
5
HOUSING, LIGHT RC MAY W10469878 Contact Us For Availability
5
Badge (Maytag) MAY W10170766 Contact Us For Availability
5
EVAPORATOR ASSEMBLY MAY W10321158 Contact Us For Availability
5
MAY W10468556 MAY W10468556 Contact Us For Availability
6
MAY 2262176 MAY 2262176 Contact Us For Availability
6
MAY W10326338 MAY W10326338 Contact Us For Availability
6
DOOR CLOSURE MAY W10470155 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
MAY W10468555 MAY W10468555 Contact Us For Availability
7
MAY 12466105 MAY 12466105 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
7
MAY W10331764 MAY W10331764 Contact Us For Availability
7
CRISPER PAN, 16`` MAY W10370327 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
MAY W10353930 MAY W10353930 Contact Us For Availability
8
COVER, TOE GRILLE (GREY) MAY W10353932 Contact Us For Availability
8
WIRE ASSEMBLY, FREEZER COMPARTMENT MAY W10487766 Contact Us For Availability
8
MAY W10353189 MAY W10353189 Contact Us For Availability
8
MAY W10413465 MAY W10413465 Contact Us For Availability
8
GASKET, RC (GREY) MAY W10413468 Contact Us For Availability
8
DRAIN VALVE MAY W10519112 Contact Us For Availability
8
CRISPER PAN 8`` MAY W10317184 Contact Us For Availability
9
MAY 489442 MAY 489442 Contact Us For Availability
9
MAY W10360550 MAY W10360550 Contact Us For Availability
9
HANDLE ASSEMBLY (WHITE) MAY W10252284 Contact Us For Availability
9
MAY W10252285 MAY W10252285 Contact Us For Availability
9
HANDLE ASSEMBLY (STAINLESS) MAY W10252288 Contact Us For Availability
9
DRAIN TUBE MAY W10314199 Contact Us For Availability
9
MAY W10408748 MAY W10408748 Contact Us For Availability
10
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
10
FAN MOTOR MAY W10464673 Contact Us For Availability
10
SHALLOW BIN MAY W10372916 Contact Us For Availability
10
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
10
HUMIDITY CONTROL MAY W10356846 Contact Us For Availability
11
SHIM, HINGE CENTER MAY W10450363 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
MAY W10448918 MAY W10448918 Contact Us For Availability
11
MAY W10448923 MAY W10448923 Contact Us For Availability
11
MAY W10448924 MAY W10448924 Contact Us For Availability
11
WIRE ASSEMBLY, LOW VOLTAGE MAY W10424230 Contact Us For Availability
11
COVER GLASS, PANTRY MAY W10513681 Contact Us For Availability
12
Clamp, Power Cord MAY 549193 Contact Us For Availability
12
MAY W10435634 MAY W10435634 Contact Us For Availability
12
MAY 12990302 MAY 12990302 Contact Us For Availability
12
ELECTRONIC CONTROL, MINOTAUR MAY W10547719 Contact Us For Availability
12
PANTRY, DELI PAN ASSEMBLY MAY W10397907 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY W10356895 MAY W10356895 Contact Us For Availability
13
MAY W10397055 MAY W10397055 Contact Us For Availability
13
MAY W10370696 MAY W10370696 Contact Us For Availability
13
PANTRY RAIL, LEFT HAND MAY W10317191 Contact Us For Availability
14
MAY W10521409 MAY W10521409 Contact Us For Availability
14
MAY W10521411 MAY W10521411 Contact Us For Availability
14
WIRE ASSEMBLY, RC LIGHTING MAY W10421350 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
14
PANTRY RAIL, RIGHT HAND MAY W10317189 Contact Us For Availability
15
Screw MAY 488208 Contact Us For Availability
15
START DEVICE, COMBINATION (START RELAY AND OV MAY W10194431 Contact Us For Availability
15
MAY W10278139 MAY W10278139 Contact Us For Availability
16
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
16
CORNER FILLER (BLACK) MAY W10283960 Contact Us For Availability
16
CORNER FILLER (GREY) MAY W10283961 Contact Us For Availability
16
MAY W10300900 MAY W10300900 Contact Us For Availability
16
MAY W10313215 MAY W10313215 Contact Us For Availability
16
MAY W10411411 MAY W10411411 Contact Us For Availability
17
MAY W10300127 MAY W10300127 Contact Us For Availability
17
MAY W10353933 MAY W10353933 Contact Us For Availability
17
MAY W10353935 MAY W10353935 Contact Us For Availability
17
FC TOWER MAY W10317182 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
17
SUPPORT ASSEMBLY, PANTRY COVER MAY W10507470 Contact Us For Availability
18
COVER, HINGE (WHITE, RIGHT SIDE) MAY W10465764 Contact Us For Availability
18
COVER, HINGE (WHITE, LEFT SIDE) MAY W10465765 Contact Us For Availability
18
COVER, HINGE (GREY, RIGHT SIDE) MAY W10465767 Contact Us For Availability
18
COVER, HINGE (GREY, LEFT SIDE) MAY W10465768 Contact Us For Availability
18
COVER, HINGE (BLACK, RIGHT SIDE) MAY W10465770 Contact Us For Availability
18
COVER, HINGE (BLACK, LEFT SIDE) MAY W10465771 Contact Us For Availability
18
MAY W10383615 MAY W10383615 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
18
FREEZER BIN, UPPER MAY W10555437 Contact Us For Availability
19
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
19
MAY 8533859 MAY 8533859 Contact Us For Availability
19
MAY W10257246 MAY W10257246 Contact Us For Availability
20
MAY W10413160 MAY W10413160 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20
FREEZER BASKET, LOWER MAY W10317289 Contact Us For Availability
21
MAY W10547650 MAY W10547650 Contact Us For Availability
21
MAY W10204187 MAY W10204187 Contact Us For Availability
21
MAY W10371538 MAY W10371538 Contact Us For Availability
22
MAY W10438761 MAY W10438761 Contact Us For Availability
22
DRAIN TRAY MAY W10466213 Contact Us For Availability
22
COLLAR, GEAR MAY W10277361 Contact Us For Availability
23
MAY W10425252 MAY W10425252 Contact Us For Availability
23
MAY W10397635 MAY W10397635 Contact Us For Availability
23
MAY W10397636 MAY W10397636 Contact Us For Availability
24
MAY W10330850 MAY W10330850 Contact Us For Availability
24
WIRE ASSEMBLY, UNIT MAY W10390445 Contact Us For Availability
24
MAY W10346771 MAY W10346771 Contact Us For Availability
25
FILTER, AIR MAY W10315189 Contact Us For Availability
25
MAY W10139483 MAY W10139483 Contact Us For Availability
26
SCREW CUP MAY W10336009 Contact Us For Availability
26
MAY W10466682 MAY W10466682 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
MAY W10321162 MAY W10321162 Contact Us For Availability
28
MAY W10391109 MAY W10391109 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
BRACKET EVAPORATOR FAN, REAR MAY 2254454 Contact Us For Availability
30
MAY 2264017 MAY 2264017 Contact Us For Availability
31
MAY W10313917 MAY W10313917 Contact Us For Availability
31
BAFFLE, AIR MAY 2315541 Contact Us For Availability
32
MAY W10313918 MAY W10313918 Contact Us For Availability
32
MAY 2188874 MAY 2188874 Contact Us For Availability
33
MAY W10440814 MAY W10440814 Contact Us For Availability
34
LIGHT BULB, FC MAY W10473925 Contact Us For Availability
35
MAY W10257451 MAY W10257451 Contact Us For Availability
36
MAY W10474774 MAY W10474774 Contact Us For Availability
37
MAY W10314204 MAY W10314204 Contact Us For Availability
38
MULTIFLOW ASSEMBLY MAY W10448448 Contact Us For Availability
39
MAY W10438639 MAY W10438639 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
MAY W10413645A MAY W10413645A Contact Us For Availability
× ![]()
