Model Maytag MFB2055DRM00 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

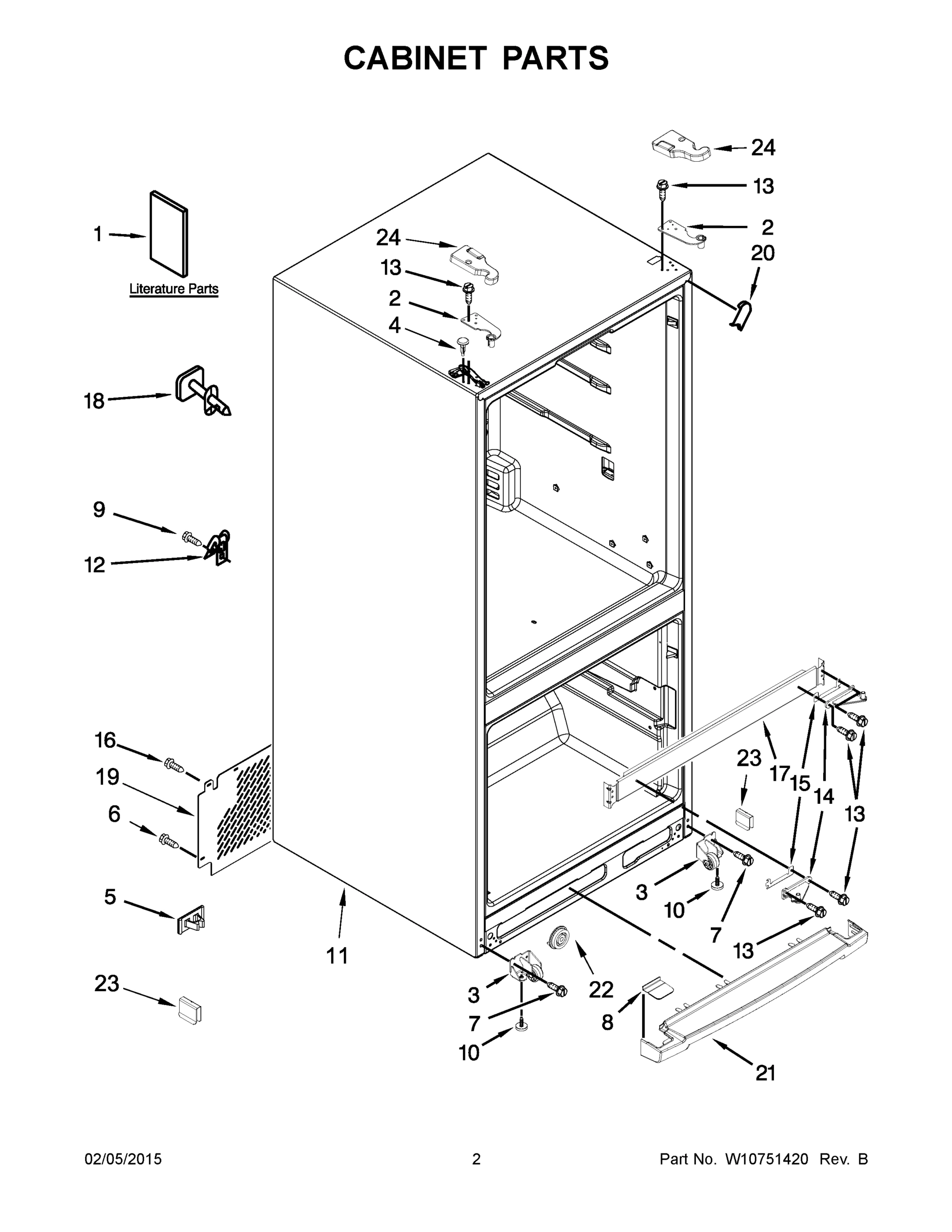

02 - CABINET PARTS
03 - LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - FREEZER DOOR PARTS
06 - UNIT PARTS
07 - SHELF PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag MFB2055DRM00 REFRIGERATOR
1
MAY W10596092 MAY W10596092 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10721544 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES ILLUSTRATION 3) (WHIT MAY W10353182 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1
ASSEMBLY, FULL SHELF (30") MAY W10486290 Contact Us For Availability
1A
MAY W10726400 MAY W10726400 Contact Us For Availability
1A
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10721540 Contact Us For Availability
1A
DOOR, FREEZER (INCLUDES ILLUSTRATION 3) (BLAC MAY W10413530 Contact Us For Availability
1B
MAY W10460643 MAY W10460643 Contact Us For Availability
1B
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10721546 Contact Us For Availability
1B
MAY W10413531 MAY W10413531 Contact Us For Availability
1C
ICEMAKER SERVICE SHEET MAY 2225623 Contact Us For Availability
1C
DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) MAY W10721541 Contact Us For Availability
1D
MAY W10721548 MAY W10721548 Contact Us For Availability
1E
MAY W10721542 MAY W10721542 Contact Us For Availability
2
MAY W10546298 MAY W10546298 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
SCREW MAY W10170540 Contact Us For Availability
2
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
2
MAY W10476425 MAY W10476425 Contact Us For Availability
2A
MAY W10546299 MAY W10546299 Contact Us For Availability
3
ROLLER, FRONT (LEFT HAND) MAY W10359256 Contact Us For Availability
3
MAY W10468762 MAY W10468762 Contact Us For Availability
3
MAY 489276 MAY 489276 Contact Us For Availability
3
GASKET, DOOR (BEIGE) MAY W10465758 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
RAIL, TRACK (CENTER) MAY W10468557 Contact Us For Availability
3A
ROLLER, FRONT (RIGHT HAND) MAY W10359255 Contact Us For Availability
3A
GASKET, DOOR (BLACK) MAY W10465761 Contact Us For Availability
3B
MAY W10465762 MAY W10465762 Contact Us For Availability
4
MAY W10520304 MAY W10520304 Contact Us For Availability
4
MAY W10360497 MAY W10360497 Contact Us For Availability
4
MAY W10366270 MAY W10366270 Contact Us For Availability
4
MAY W10643720 MAY W10643720 Contact Us For Availability
4
MAY W10436849 MAY W10436849 Contact Us For Availability
4
MAY W10305243 MAY W10305243 Contact Us For Availability
4A
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
4A
BLACK MAY W10334042 Contact Us For Availability
4B
MAY W10520307 MAY W10520307 Contact Us For Availability
5
MAY W10352217 MAY W10352217 Contact Us For Availability
5
MAY W10469878 MAY W10469878 Contact Us For Availability
5
MAY W10612925 MAY W10612925 Contact Us For Availability
5
MAY W10321158 MAY W10321158 Contact Us For Availability
5
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
6
MAY 2262176 MAY 2262176 Contact Us For Availability
6
CONTAINER, WATER RESERVOIR MAY W10326338 Contact Us For Availability
6
MAY W10470155 MAY W10470155 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
7
MAY 12466105 MAY 12466105 Contact Us For Availability
7
MAY W10331764 MAY W10331764 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
7
MAY W10370327 MAY W10370327 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
MAY W10487766 MAY W10487766 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10353189 Contact Us For Availability
8
MAY 2215468 MAY 2215468 Contact Us For Availability
8
MAY W10317184 MAY W10317184 Contact Us For Availability
8A
MAY W10353930 MAY W10353930 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10413465 Contact Us For Availability
8B
COVER, TOE GRILLE (GREY) MAY W10353932 Contact Us For Availability
8B
MAY W10413468 MAY W10413468 Contact Us For Availability
9
MAY W10360550 MAY W10360550 Contact Us For Availability
9
ASSEMBLY, HANDLE (STAINLESS) MAY W10643725 Contact Us For Availability
9
MAY W10314199 MAY W10314199 Contact Us For Availability
9
MAY W10408748 MAY W10408748 Contact Us For Availability
10
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
10
MAY W10464673 MAY W10464673 Contact Us For Availability
10
MAY 12990302 MAY 12990302 Contact Us For Availability
10
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
10
MAY W10356846 MAY W10356846 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
MAY W10372916 MAY W10372916 Contact Us For Availability
11
MAY W10424230 MAY W10424230 Contact Us For Availability
11
MAY W10346771 MAY W10346771 Contact Us For Availability
12
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
12
MAY W10435634 MAY W10435634 Contact Us For Availability
12
MAY W10547719 MAY W10547719 Contact Us For Availability
12
MAY W10397907 MAY W10397907 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
TOWER, MULTIFLOW AIR MAY W10356895 Contact Us For Availability
13
ASSEMBLY, MULLION (WHITE) MAY W10624451 Contact Us For Availability
13
MAY W10370696 MAY W10370696 Contact Us For Availability
13
RAIL, PANTRY (LEFT HAND) MAY W10317191 Contact Us For Availability
13A
ASSEMBLY, MULLION (BLACK) MAY W10624448 Contact Us For Availability
13B
MAY W10624450 MAY W10624450 Contact Us For Availability
14
MAY W10521411 MAY W10521411 Contact Us For Availability
14
MAY W10421350 MAY W10421350 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
14
RAIL, PANTRY (RIGHT HAND) MAY W10317189 Contact Us For Availability
14A
MAY W10521409 MAY W10521409 Contact Us For Availability
15
MAY W10450363 MAY W10450363 Contact Us For Availability
15
SCREW MAY 488208 Contact Us For Availability
15
DEVICE, START MAY W10448874 Contact Us For Availability
15
MAY W10278139 MAY W10278139 Contact Us For Availability
16
MAY 489442 MAY 489442 Contact Us For Availability
16
MAY W10300900 MAY W10300900 Contact Us For Availability
16
MAY W10313215 MAY W10313215 Contact Us For Availability
16
MAY W10411411 MAY W10411411 Contact Us For Availability
17
MAY W10317182 MAY W10317182 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
17
MAY W10555437 MAY W10555437 Contact Us For Availability
18
MAY W10383615 MAY W10383615 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
18
MAY W10257246 MAY W10257246 Contact Us For Availability
19
MAY W10636716 MAY W10636716 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
MAY 8533859 MAY 8533859 Contact Us For Availability
19
MAY W10317289 MAY W10317289 Contact Us For Availability
20
FILLER, CORNER (WHITE) MAY W10283959 Contact Us For Availability
20
MAY W10413160 MAY W10413160 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20
MAY W10371538 MAY W10371538 Contact Us For Availability
20A
FILLER, CORNER (BLACK) MAY W10283960 Contact Us For Availability
20B
FILLER, CORNER (GREY) MAY W10283961 Contact Us For Availability
21
MAY W10300127 MAY W10300127 Contact Us For Availability
21
MAY W10647625 MAY W10647625 Contact Us For Availability
21
MAY W10174384 MAY W10174384 Contact Us For Availability
21
COLLAR, GEAR MAY W10277361 Contact Us For Availability
21A
MAY W10353933 MAY W10353933 Contact Us For Availability
21B
MAY W10353935 MAY W10353935 Contact Us For Availability
22
MAY W10331226 MAY W10331226 Contact Us For Availability
22
MAY W10339203 MAY W10339203 Contact Us For Availability
22
MAY W10349514 MAY W10349514 Contact Us For Availability
22
MAY W10397636 MAY W10397636 Contact Us For Availability
22A
MAY W10397635 MAY W10397635 Contact Us For Availability
23
CLIP, ROLLER MAY 2174706 Contact Us For Availability
23
MAY W10425252 MAY W10425252 Contact Us For Availability
23
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
23
MAY W10507470 MAY W10507470 Contact Us For Availability
24
COVER, HINGE (LEFT HAND (WHITE)) MAY W10465765 Contact Us For Availability
24
MAY W10330850 MAY W10330850 Contact Us For Availability
24
MAY W10519112 MAY W10519112 Contact Us For Availability
24
MAY W10513681 MAY W10513681 Contact Us For Availability
24A
COVER, HINGE (RIGHT HAND (WHITE)) MAY W10465764 Contact Us For Availability
24B
COVER, HINGE (LEFT HAND (BLACK)) MAY W10465771 Contact Us For Availability
24C
COVER, HINGE (RIGHT HAND (BLACK)) MAY W10465770 Contact Us For Availability
24D
MAY W10465768 MAY W10465768 Contact Us For Availability
24E
MAY W10465767 MAY W10465767 Contact Us For Availability
25
FILTER, AIR MAY W10315189 Contact Us For Availability
25
MAY W10466213 MAY W10466213 Contact Us For Availability
26
MAY W10336009 MAY W10336009 Contact Us For Availability
26
MAY VS20001 MAY VS20001 Contact Us For Availability
27
MAY W10438761 MAY W10438761 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
MAY W10321162 MAY W10321162 Contact Us For Availability
28
MAY W10445423 MAY W10445423 Contact Us For Availability
29
MAY W10669573 MAY W10669573 Contact Us For Availability
30
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
30
MAY W10590083 MAY W10590083 Contact Us For Availability
31
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
31
BRACKET, CONDENSER FAN MAY 2315541 Contact Us For Availability
32
MAY W10313918 MAY W10313918 Contact Us For Availability
32
MAY W10530280 MAY W10530280 Contact Us For Availability
33
MAY W10440814 MAY W10440814 Contact Us For Availability
33
ASSEMBLY, UNIT WIRE MAY W10390445 Contact Us For Availability
34
MAY W10473925 MAY W10473925 Contact Us For Availability
34
MAY W10139483 MAY W10139483 Contact Us For Availability
35
MAY W10257451 MAY W10257451 Contact Us For Availability
35
MAY W10510988 MAY W10510988 Contact Us For Availability
36
MAY W10474774 MAY W10474774 Contact Us For Availability
36
MAY 1114718 MAY 1114718 Contact Us For Availability
37
MAY W10314204 MAY W10314204 Contact Us For Availability
37
TIE, WIRE MAY 2263990 Contact Us For Availability
38
MAY W10448448 MAY W10448448 Contact Us For Availability
38
MAY 2258429 MAY 2258429 Contact Us For Availability
39
MAY 489478 MAY 489478 Contact Us For Availability
39
MAY W10438639 MAY W10438639 Contact Us For Availability
40
HOLE PLUG (WHITE) MAY 941839 Contact Us For Availability
40
MAY 8281232 MAY 8281232 Contact Us For Availability
41
MAY W10314197 MAY W10314197 Contact Us For Availability
42
CLIP, HARNESS MAY 2219077 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICEMAKER FIELD INSTALLABLE, ECKMF94 MAY 2155469A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
MAY W10413645A MAY W10413645A Contact Us For Availability
× ![]()
